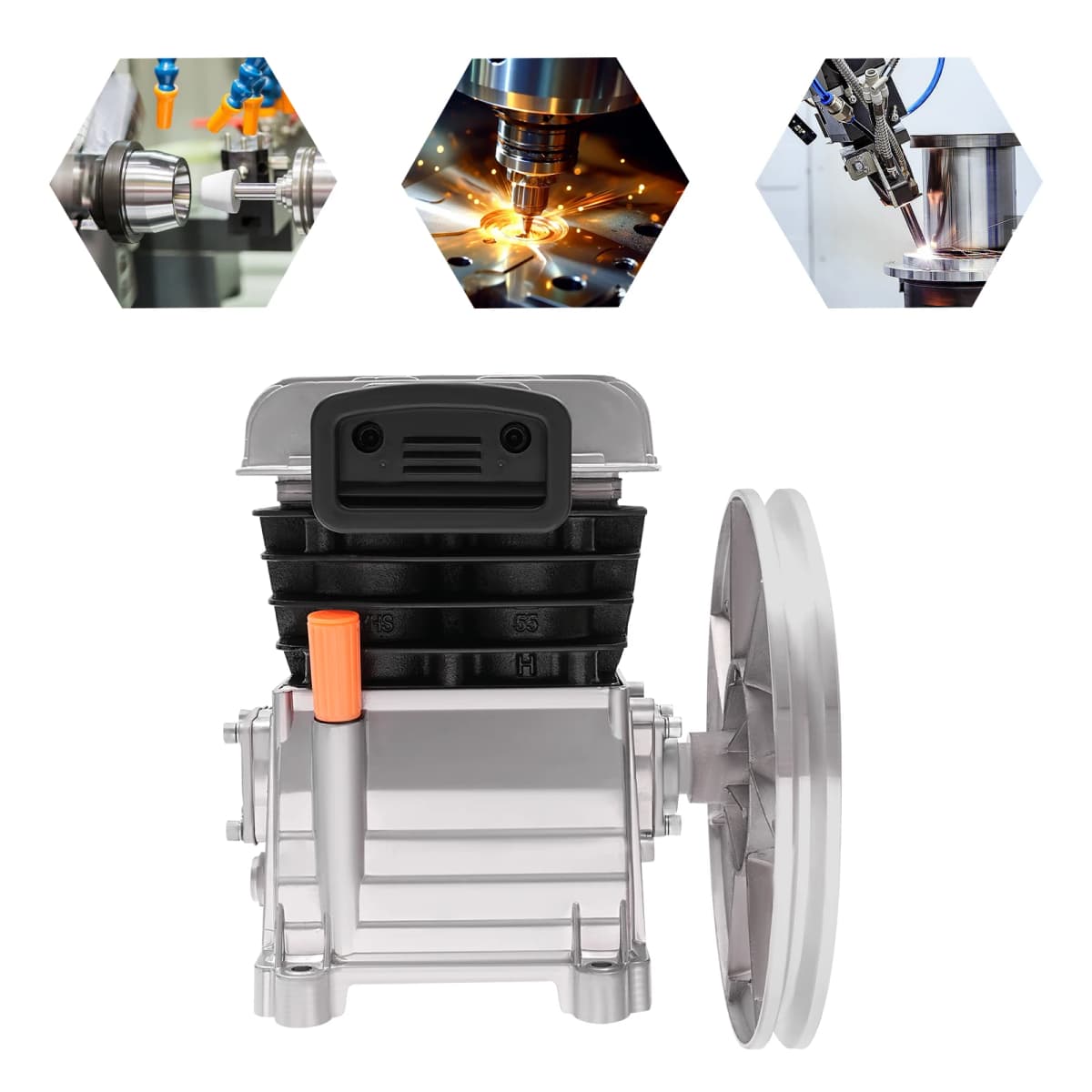

2 Cylinders Air Compressor Pump Head 2HP Air Compressor Head with Belt Pulley 8Bar Working Pressure Oil Lubricated Air Compress

2 Cylinders Air Compressor Pump Head 2HP Air Compressor Head with Belt Pulley 8Bar Working Pressure Oil Lubricated Air Compress

Application

It is ideal for industries such as electronics, machinery, construction, automotive repair, interior decoration, power sources for pneumatic equipment, and repair and maintenance of equipment and factories. It is suitable for gas conveying, synthesis, refrigeration, and separation.

Specifications

Model: 2055-170L

Material: Aluminum, Iron

Surface Treatment: Paint Spraying

Assembly Required: Yes

Style: Modern

Color: Silver, Black

Working Principle: Piston Compressor

Lubrication: Oil Lubricated Air Compressor

Compression Medium: Air

Thread: NPT 1/2

Number of Cylinders: 2

Applicable Engine Power: 2HP

Speed: 960RPM

Noise: 79dB(A)

Cylinder Diameter: 55mm/2.17in

Theoretical Air Intake: 170L/37.39Gal/Min

Effective Discharge Volume: 170L/37.39Gal/Min

Working Pressure: 8Bar

Maximum Pressure: 10Bar

Flywheel Diameter: 26cm/10.2in

Mounting Hole Size: 13.2*16.1cm/5.2*6.34in

Product Size: 28*26.5*31cm/11.02*10.43*12.2in

Packing Size: 30*27*32cm/11.81*10.63*12.6in

Gross Weight: 10.5kg/23.15lbs

Net Weight: 9.5kg/20.94lbs

Package Included
1*Air Compressor Pump Head
1*Silencer
1*Breather
Other Accessories for Installation

Notes
1.Please check the size carefully before ordering.
2.Please note that a belt is not included in the product.
3.Please do not use it to pump liquid, alcohol, or oil.
4.High temperatures are generated when the machine is in operation, so please do not touch it with your hands.
5.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
