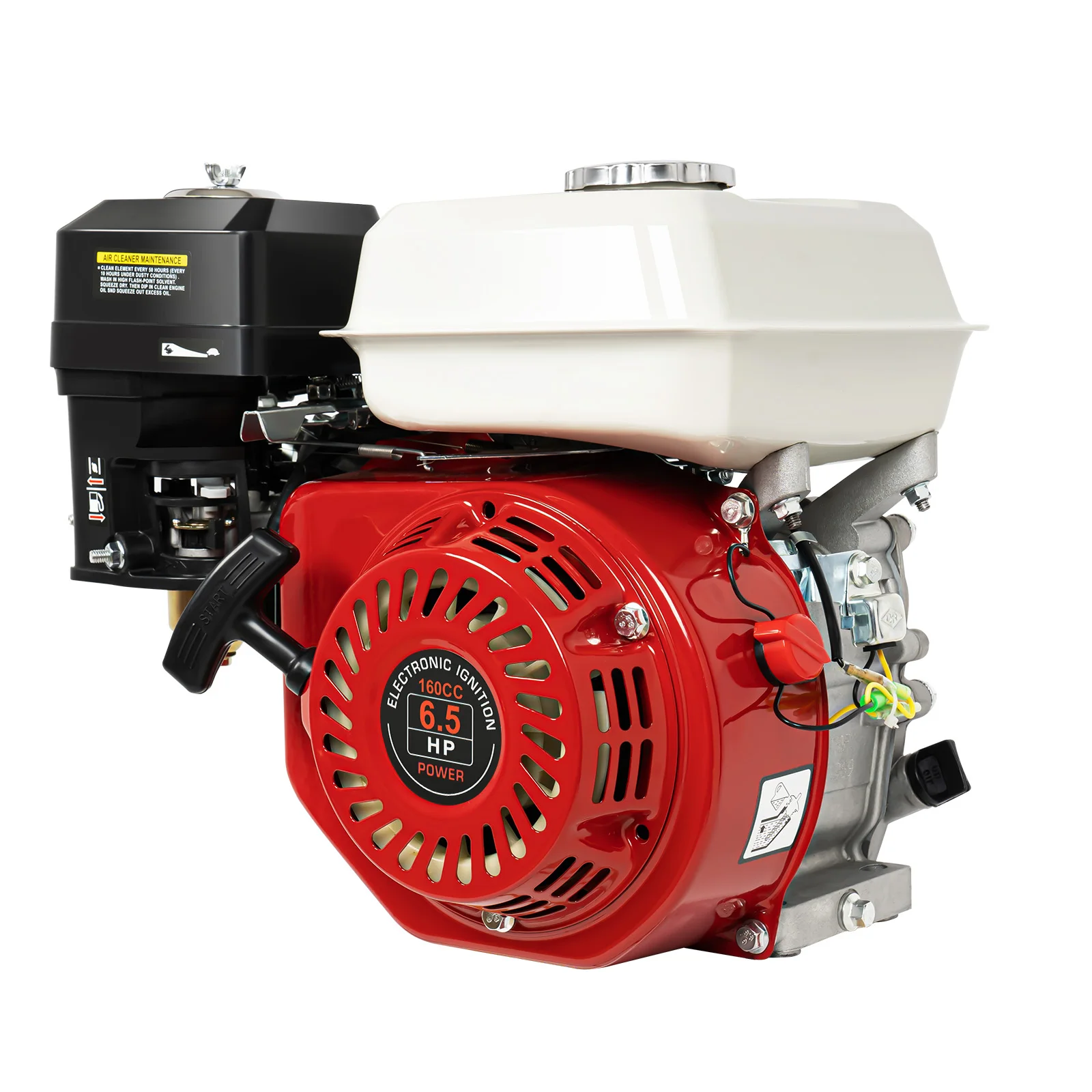

6.5HP 200cc Gasoline Engine OHV 4-Stroke GX160 Air Cooled Petrol Motor with Oil Alert Low Fuel Consumption for Water Pump

Specification

Material: Aluminum, Iron, Cast Iron, Plastic

Fuel Type: Gasoline

Lube Oil Capacity: 0.6L/0.16gal

Engine Oil Capacity: 3.6L/ 0.95gal

Max. Torque: 10.8N-m

Bore Stroke: 70*45mm/2.76*1.77inch

Displacement: 200cc

Engine Type: 4-strokes, Single Cylinder, Air-cooled

Horsepower: 6.5HP

Speed: 3600rpm

Fuel Consumption Rate: 360g/kw.h

Max Power: 3kw

Rated Power: 2.8kw

Shaft Diameter: 20mm/0.79inch

Rotation: Anticlockwise

Starting System: Pull Start

Packing Size: 48*38*37cm/18.9*14.96*14.57inch

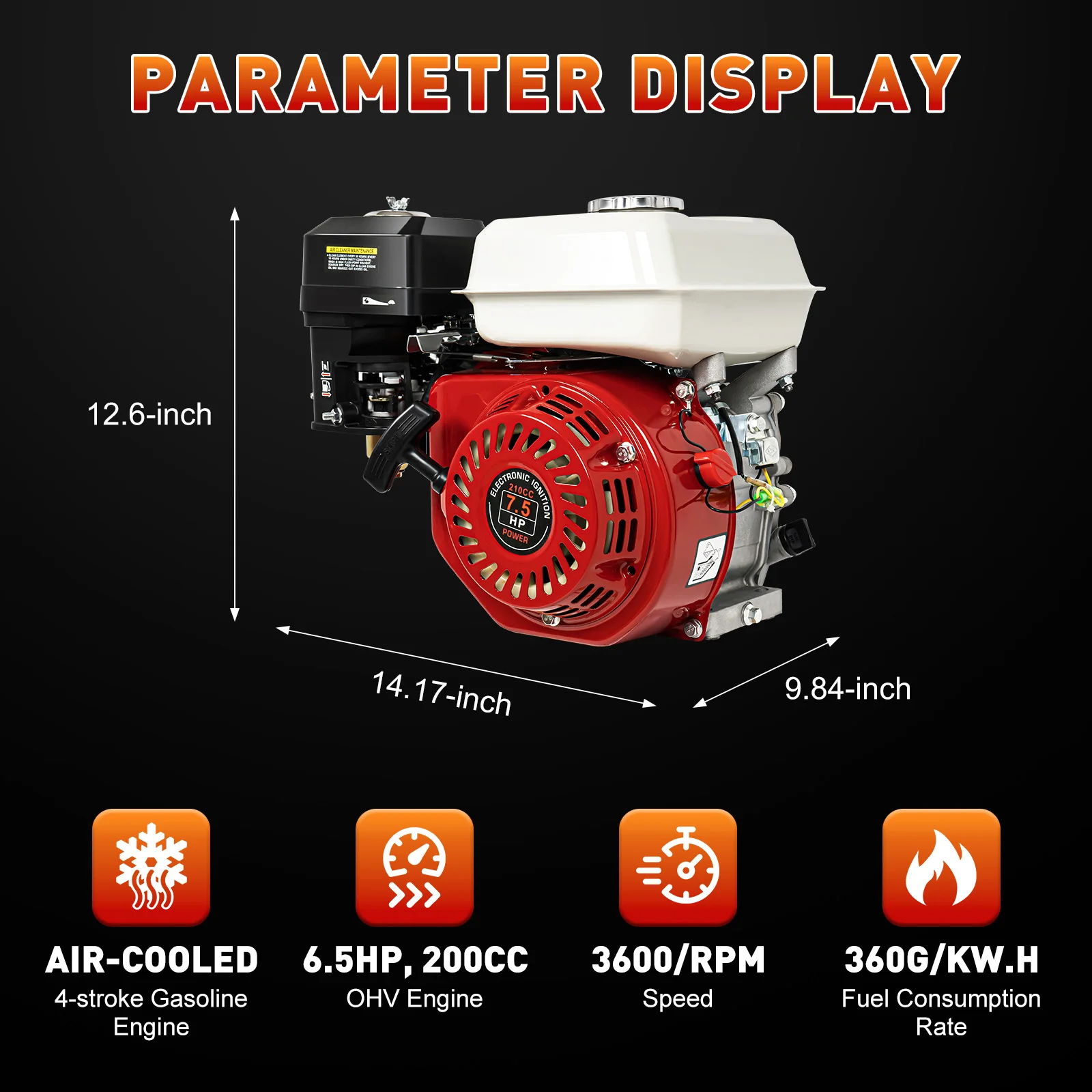

Product Size: 36*25*32cm/14.17*9.84*12.6inch

Gross Weight: 14.45kg/31.86lbs

Net Weight: 12.35kg/27.23lbs

Package Included

1 * Petrol Engine

1* English Manual

Other Accessories for Installation

Description

If you find manual labor very hard from time to time, then you definitely need this gasoline engine! It is made of high-quality materials, sturdy and durable, and the high-power engine can run smoothly to meet your high efficiency work. With it, you can save a lot of energy. It also has a silencer, so you can have a quiet working environment.

Key Features

Build to Last: The engine is made of high-quality aluminium body, iron shaft, cast iron cylinder cover, and iron fuel tank, which is strong and durable. Metal materials and forged crankshafts provide it greater performance and longer life.

Strong Power: The engine has a power of up to 3kw and a high speed of up to 3600r/min, our engines produce a lot of power and help you get the job done quickly and well.

Large Fuel Tank: The engine has a large fuel tank capacity of 6.5L/1.72gal allowing it to work for a long time. You don't need to fill the tank frequently, which is very convenient.

Efficient Cooling System: The built-in air cooling system and ventilated heat sink are designed to keep the motor cool and provide high reliability and durability.

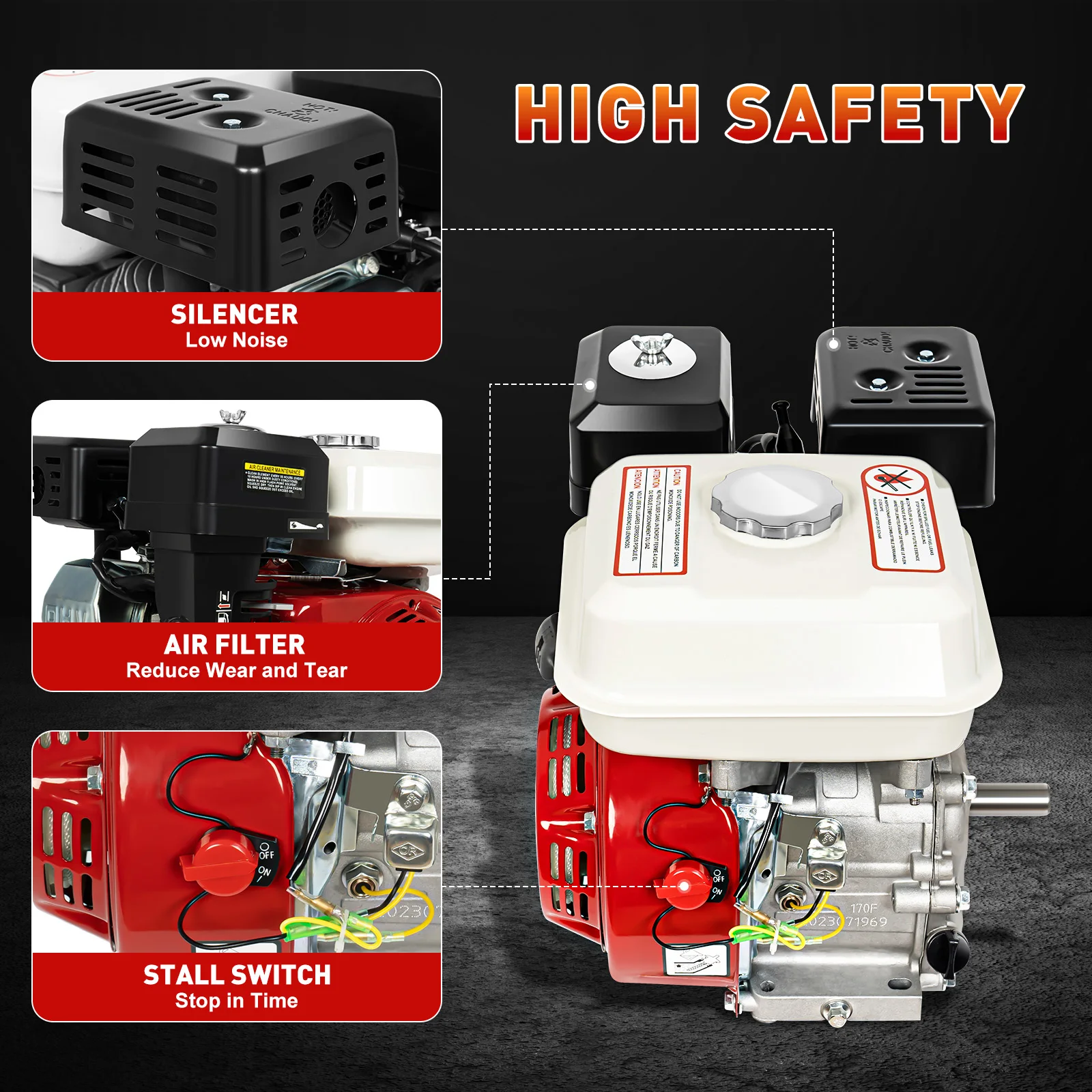

High Safety: The product is equipped with an oil alarm. If enough oil is not added before starting, the machine will automatically turn off to protect the machine. Moreover, the cast iron cylinder liner make engine operation smoother and overall performance more stable, thus the machine will not be easily damaged and has a longer service life.

Good Noise Reduction Effect: The product adopts a silencer, which has a good noise reduction effect. This engine works hard to create a quiet working environment for you.

Simple Operation: The machine body adopts an integrated design, so you don't need to go through the assembly alone. You can simply install it on the machine and start using it.

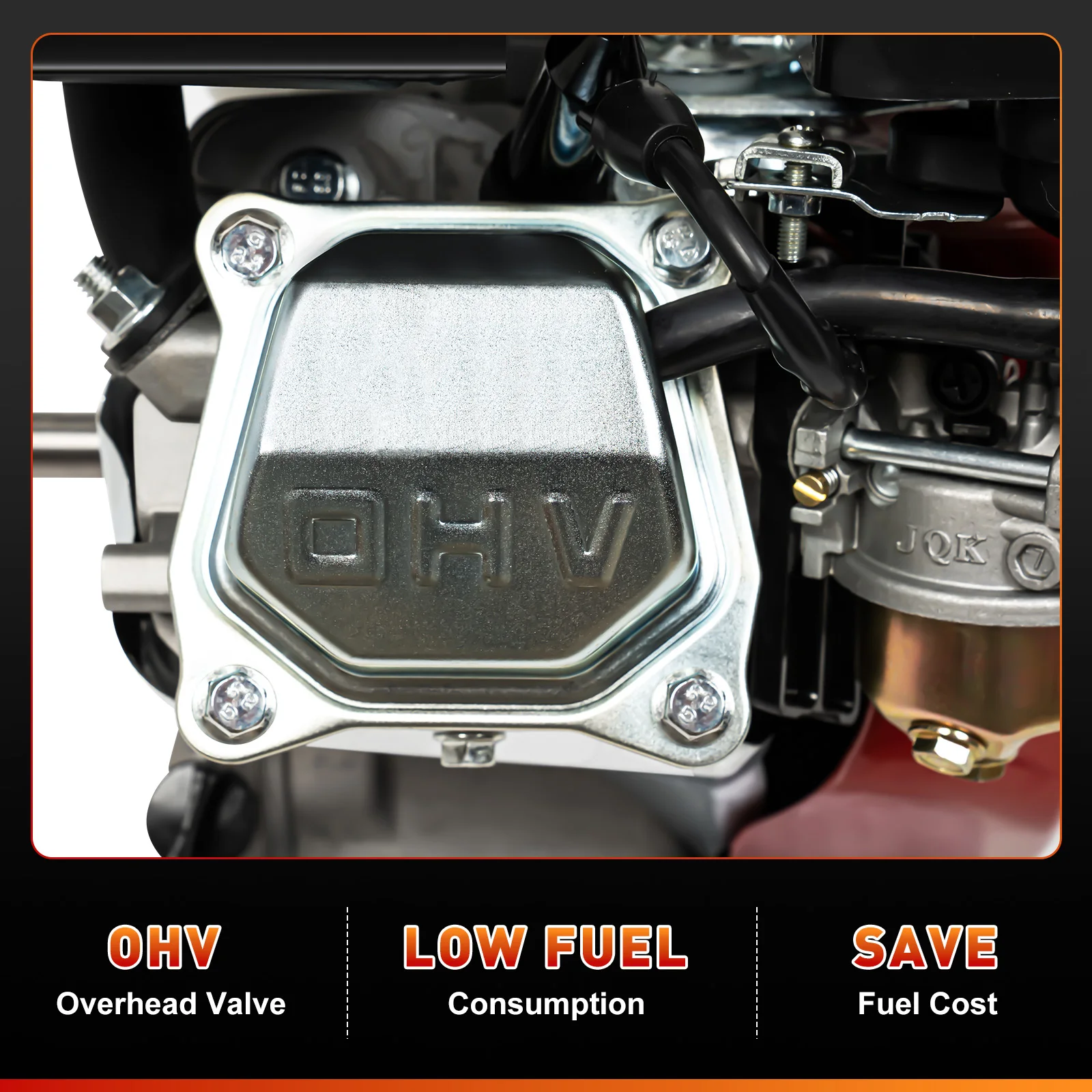

Low Fuel Consumption: The OHV overhead valve effectively helps reduce carbon buildup and dramatically improves fuel savings. You can also save a lot of money on fuel costs.

Protective Package: The double wrapping of foam and cardboard boxes protects the product as much as possible in transit.

Details

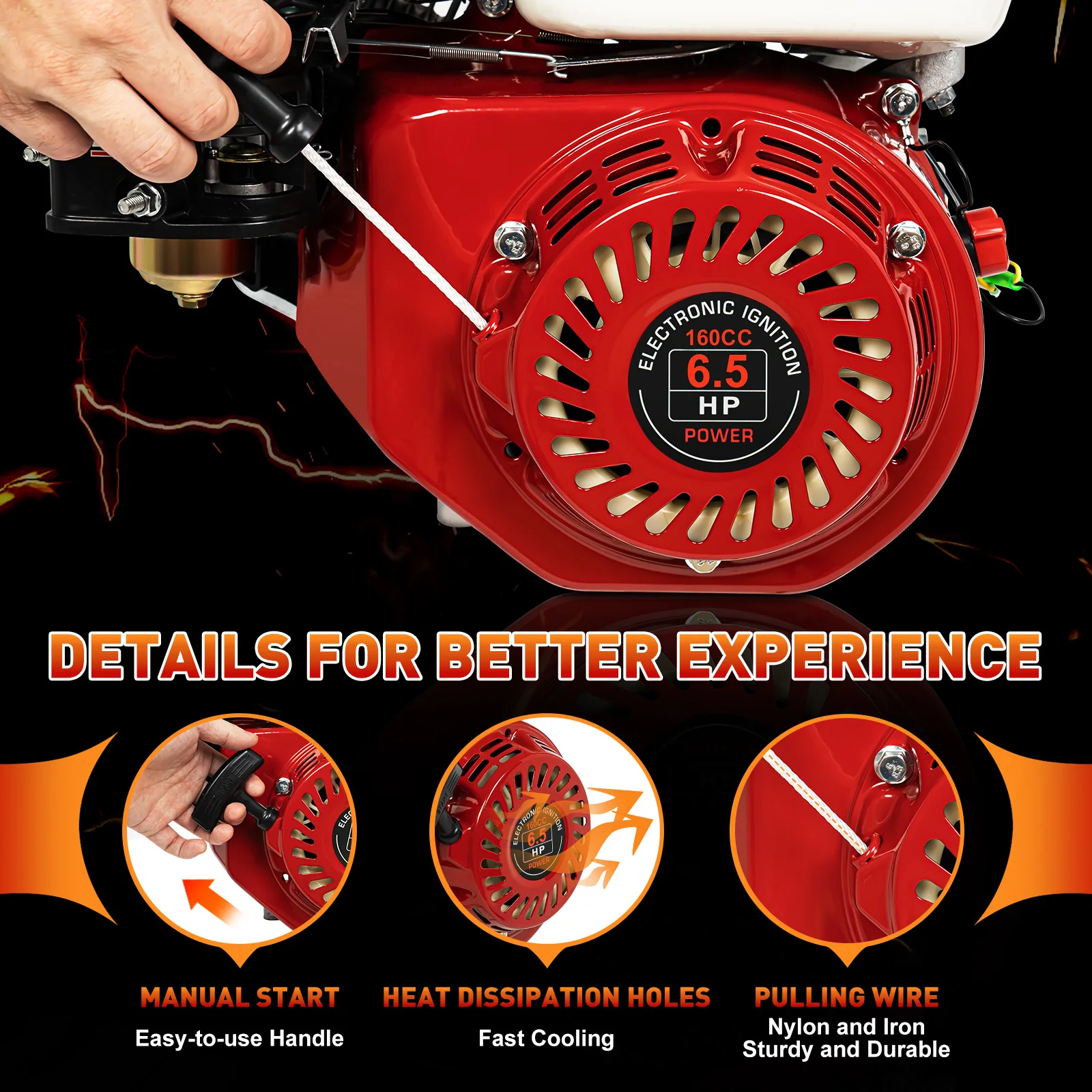

Pulling Wire: The pulling wire is made of nylon and iron, which is more wear-resistant, durable and uneasy to pile up for easy starting.

Ergonomic Handle: The hand-pull starter features an ergonomic plastic handle that is non-slip and easy to use.

Air Filter: It can improve the air filtration performance of the machine, reduce wear and tear, and increase its service life.

Application

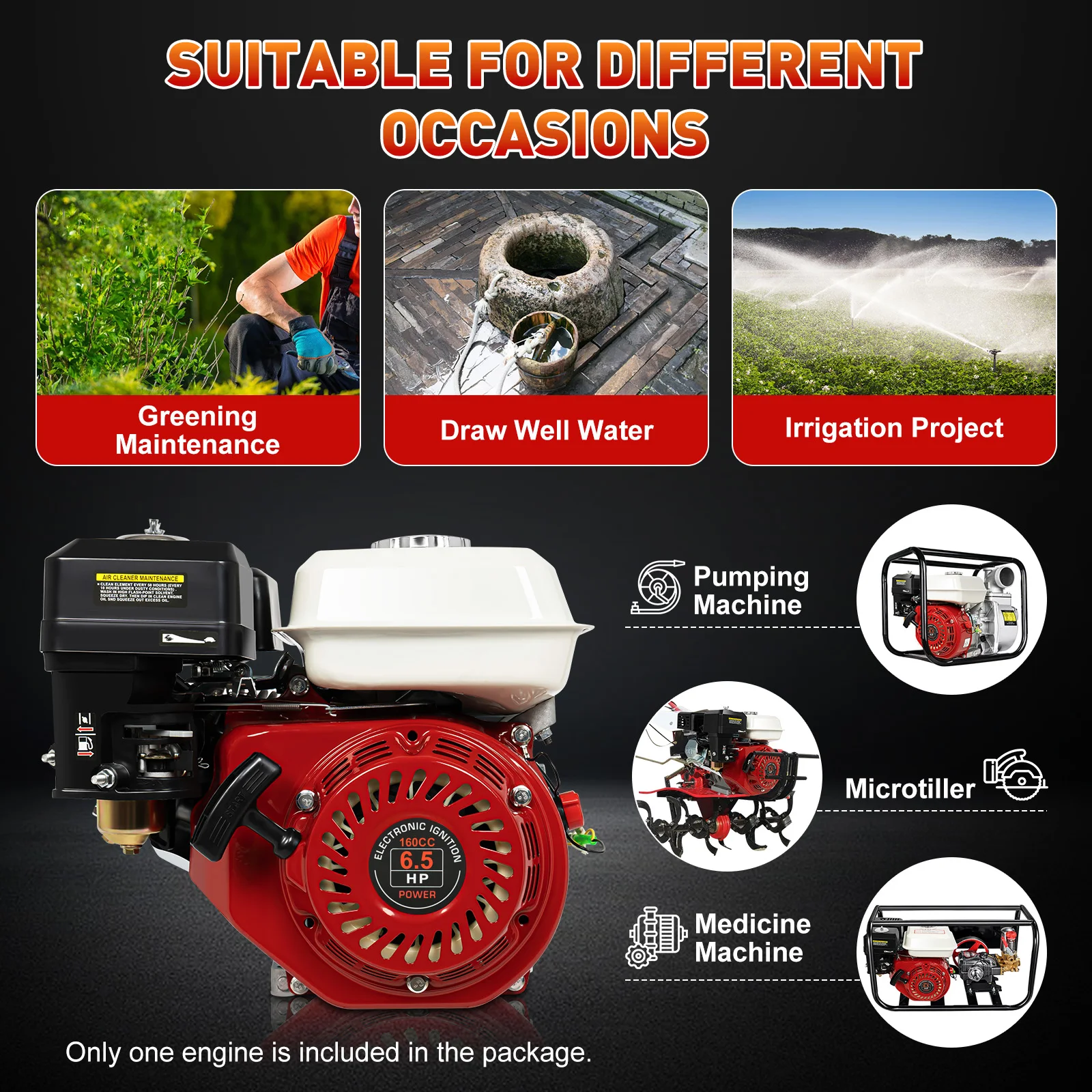

This product can be used widely with pumping machines, microtillers, cleaning machines, spraying machines, medicine machines, threshing machines, smoothing machines, etc.

How to Use

1. Fill with appropriate amount of special oil for petrol engine.

2. Trigger the fuel switch to  the ON position.

3. Trigger the damper handle to the OFF position when starting.

4. Move the regulating valve switch from low speed to high speed.

5. Pull the starter handle slowly and firmly.

6. After starting, turn the damper handle to the ON position.

7. Turn the flame failure switch to the ON position.

Notes

1. Please read the instructions carefully before use.

2. Please note that do not use indoors due to danger of carbon monoxide poisoning.

3. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
