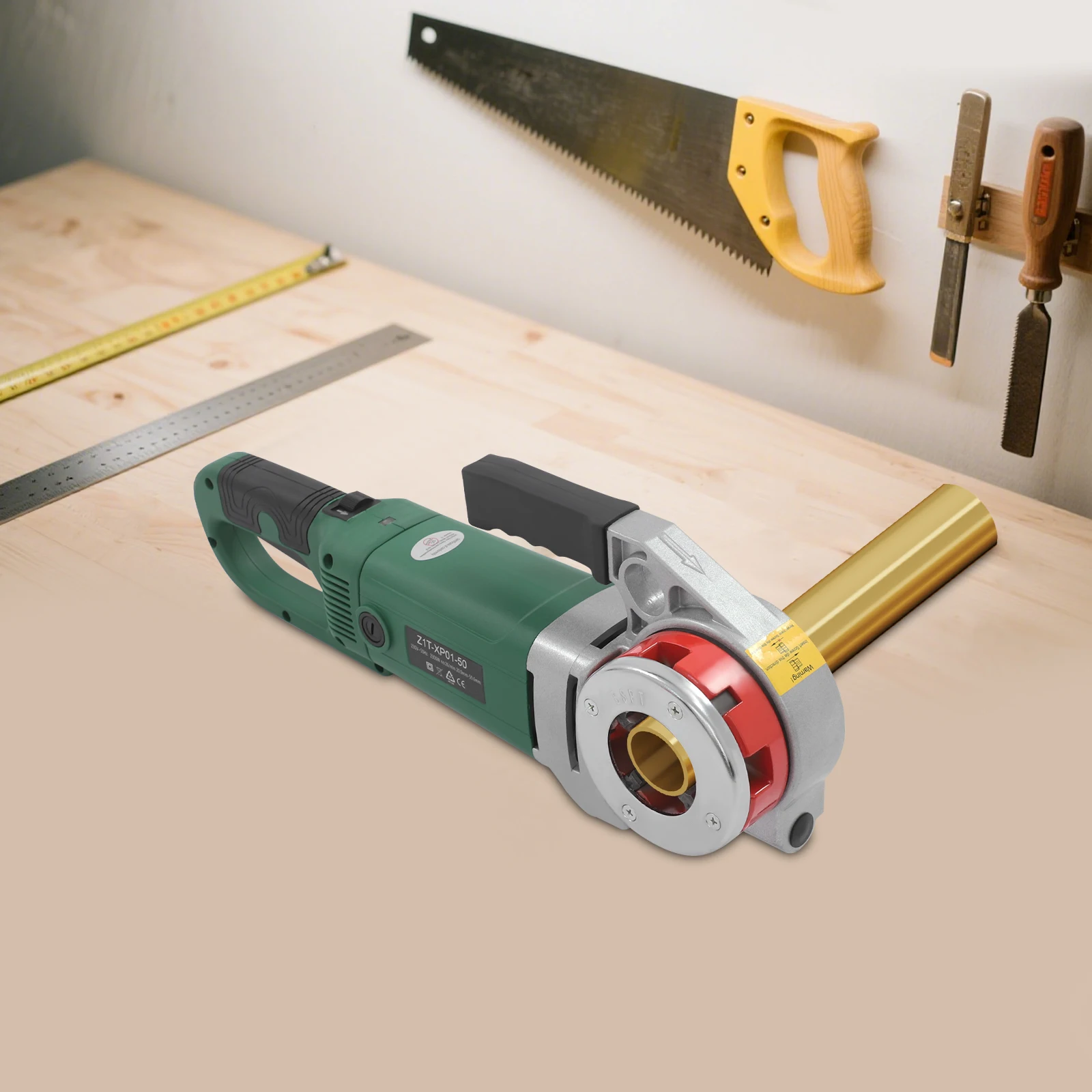

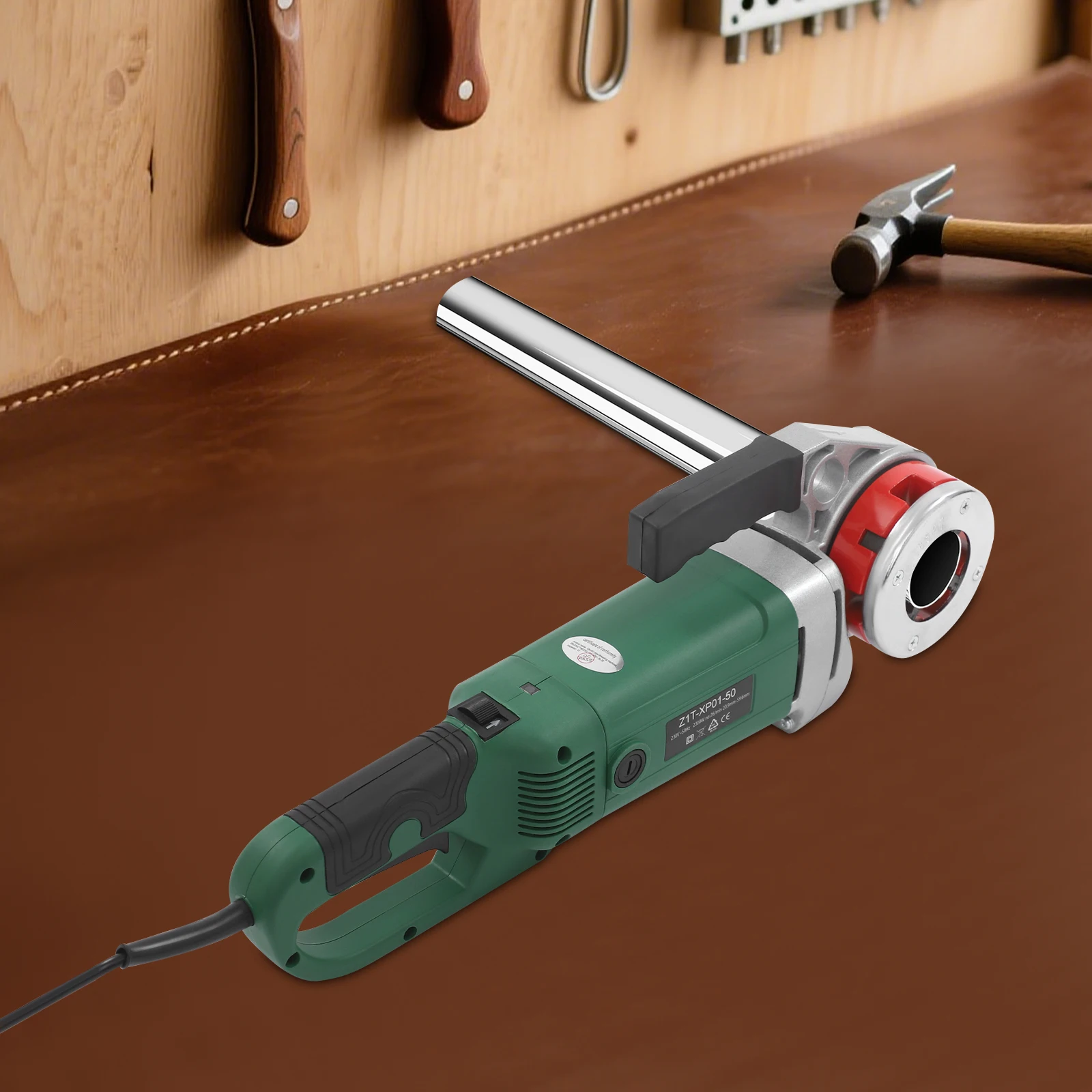

2300W Handheld Electric Threading Machine Pipe Threader Galvanized Pipe Threading Machine 230V for 0.82 to 2.35 Inch Pipes

Specification

Material: Aluminum, Copper, PA6, GF30, TPR
Color: Dark Green, Silver
Process: Spray Molding
Motor Type: Pure Copper Motor
Power Source: Corded Electric
Plug Type: EU Standard
Voltage: 230V~50Hz
Power: 2300W
Nominal Speed: 26rpm
Applicable Pipe Diameter: 20.9-59.6mm/0.82-2.35in
Dies Size: 2'', 1-1/2'', 1-1/4'', 1'', 3/4'', 1/2''
Power Cord Length: 2m/6.56ft

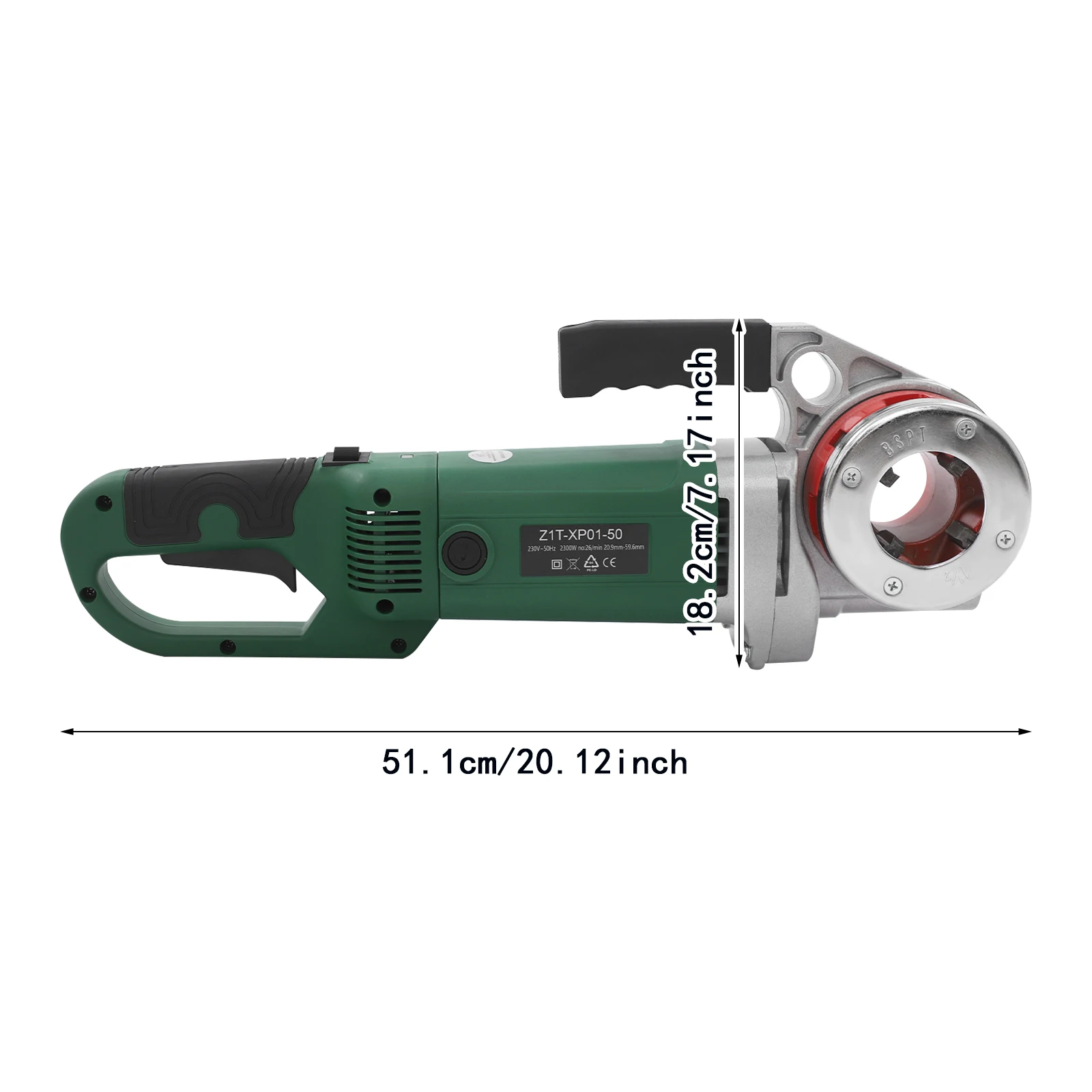

Product Size(L*H): 51.1*18.2cm/20.12*7.17in
Package Size: 58*31*13cm/22.83*12.2*5.12in
Gross Weight: 15kg/33.07 lbs
Net Weight: 14.25kg/31.42 lbs

Key Features

Built to Endure: Crafted from premium aluminum, copper, PA6, GF30, and TPR materials, our product undergoes a spray molding process. This ensures exceptional durability and reliable performance.

Outstanding Efficiency: With a 2300W pure copper motor, this high-performance tool ensures excellent power, making it the ideal choice for boosting work efficiency and reducing construction time.

Excellent Versatility: Our product is equipped with 6 precision dies in sizes of 2", 1-1/2", 1-1/4", 1", 3/4", and 1/2" to accommodate pipes with diameters from 0.82 to 2.35 inches. This comprehensive set ensures the flexibility and adaptability you need for the job.

Safety First: Designed with your safety as our top priority, this product features a dual-switch mechanism that effectively guards against accidental start-ups. Its motor is built to high-temperature-tolerant and withstand overloads, providing an extra layer of safety and reliability for your peace of mind.

Careful Design for Peace of Mind: The product features a power indicator light that illuminates upon successful connection, clearly showing it's powered on and ready to go. Plus, it comes with a storage case, ensuring that both the product and its accessories are kept organized, protected, and easily accessible.

Details

Bio-fit Grips: Our specially designed handles give you a super secure grip, providing you with a more convenient experience.

Practical Cooling Holes: Designed to rapidly dissipate heat, these innovative features keep your motor running at proper temperatures, ensuring good performance and reliability.

Application

This product is suitable for galvanized pipes, fire pipes, plastic pipes, aluminum pipes, water pipes, iron pipes, etc., with a diameter range of 0.82 to 2.35 inches.

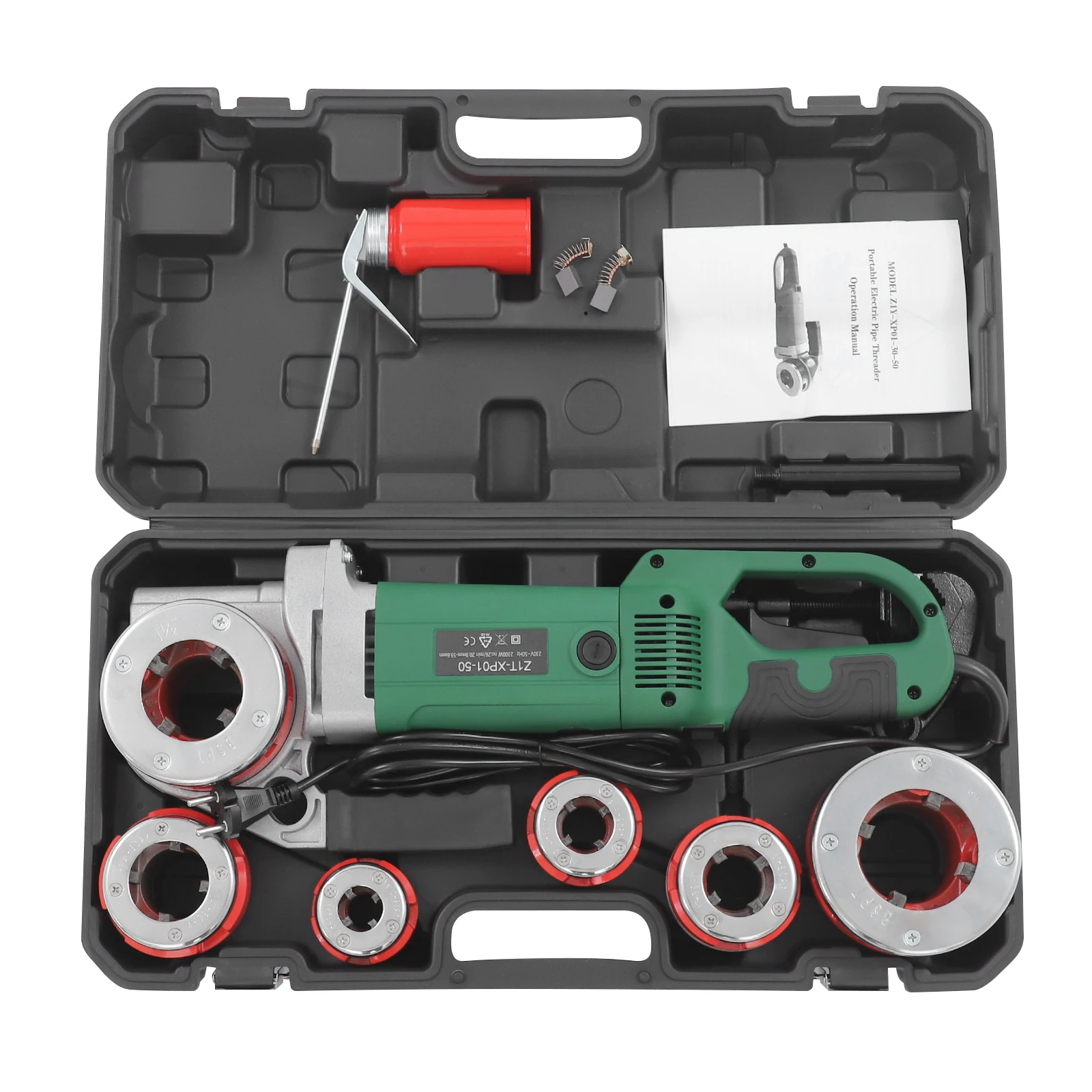

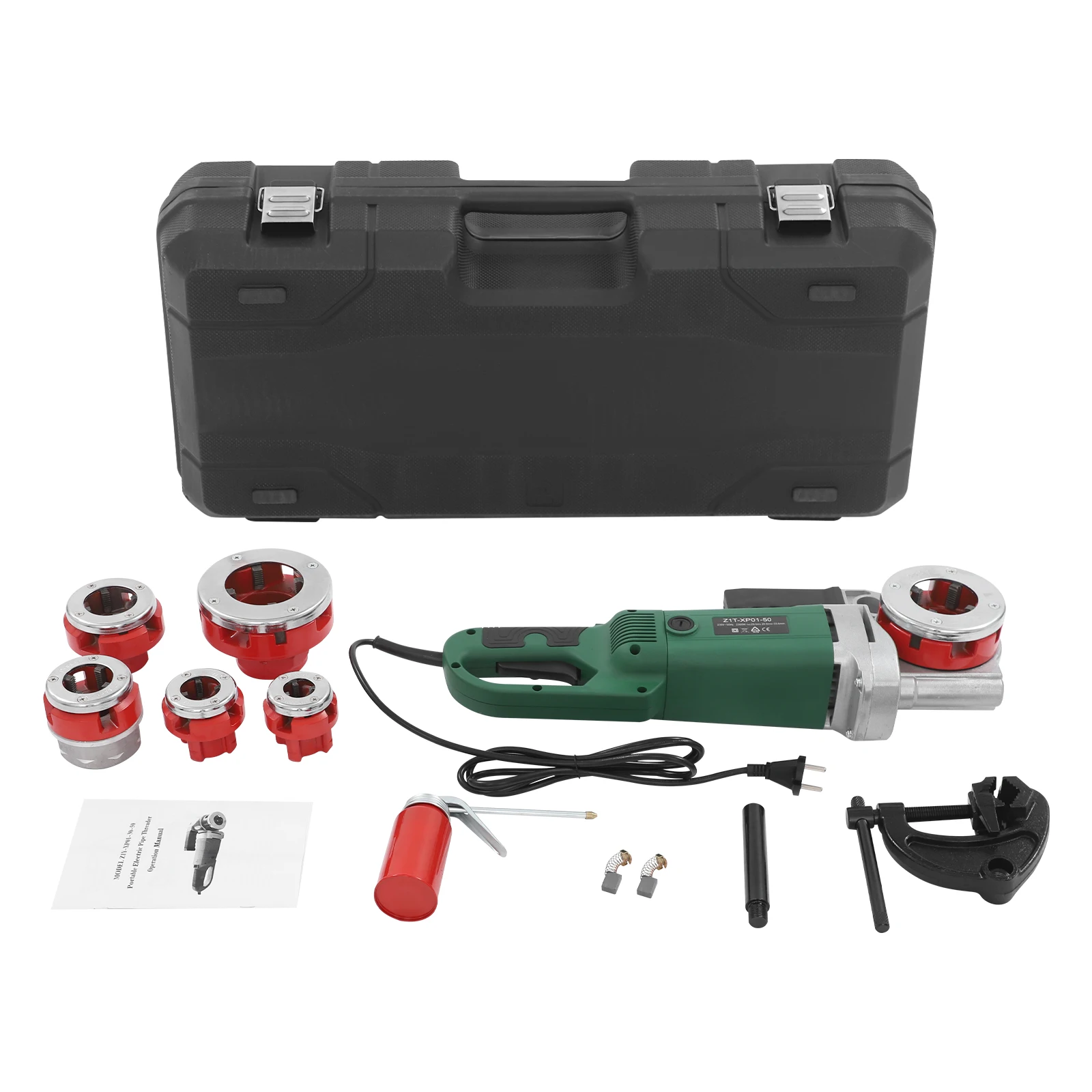

Package Included

1* Electric Pipe Threader
1* Refueling Pot
1* Tube Holder
6* Dies (One Already Installed)
1* Storage Case
1* English Manual
Other Needed Accessories

Notes

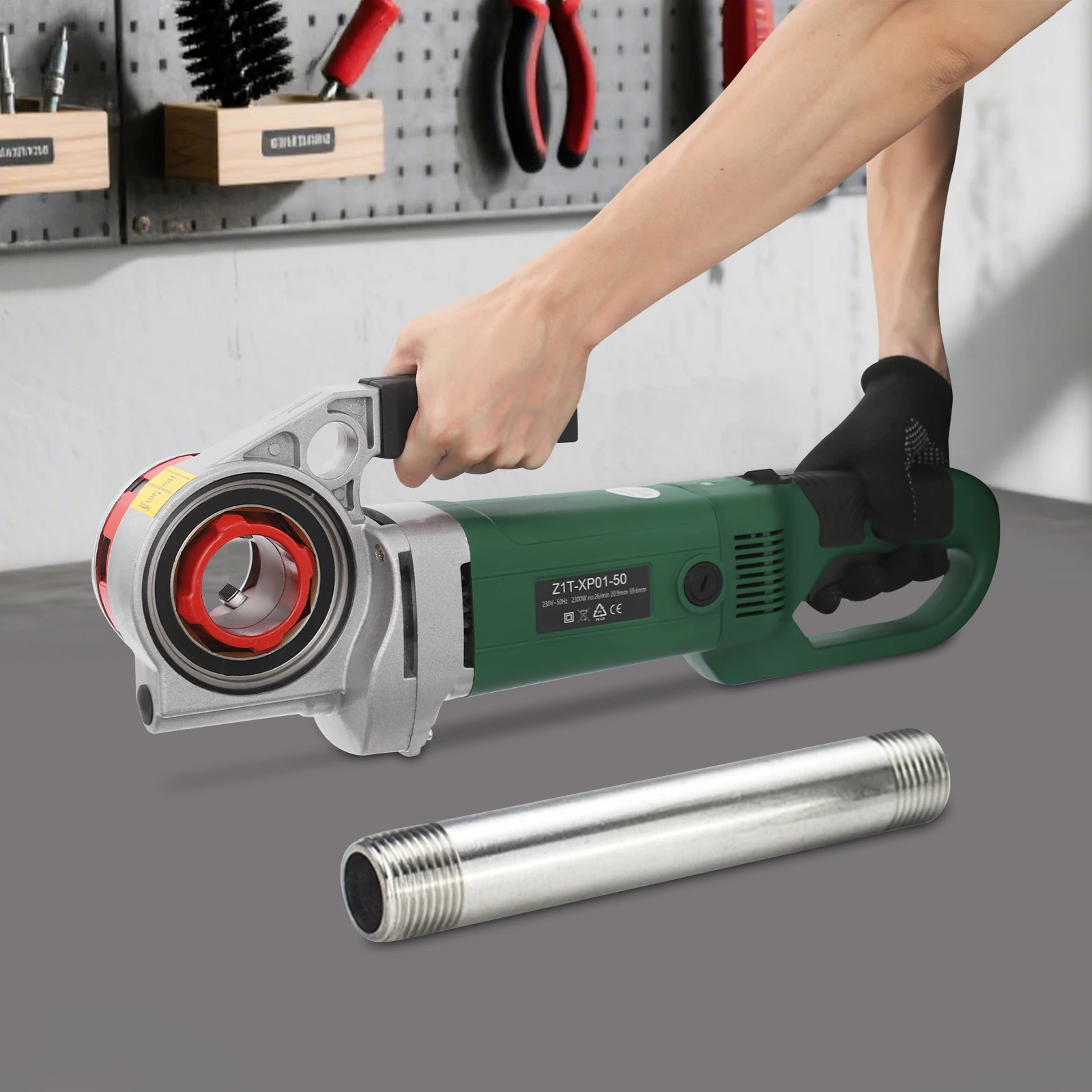

1.Please be aware that operating this product requires gradual mastery. It is not about turning on the machine and it will automatically thread, but rather about using your right hand to forcefully press the tube to the left at the beginning of the operation. After the first pipe enters, you do not need to press it hard anymore. When using, the left hand holding the tube should not push the tube too hard to the right.
2.Please be aware that lubricating oil needs to be added to the threading die during use; otherwise, it will shorten the service life of the threading die.
3.Please be cautious of electrical safety hazards, use such tools according to the product manual, and take necessary personal protective measures. Keep them out of reach of children on a daily basis.
4.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
