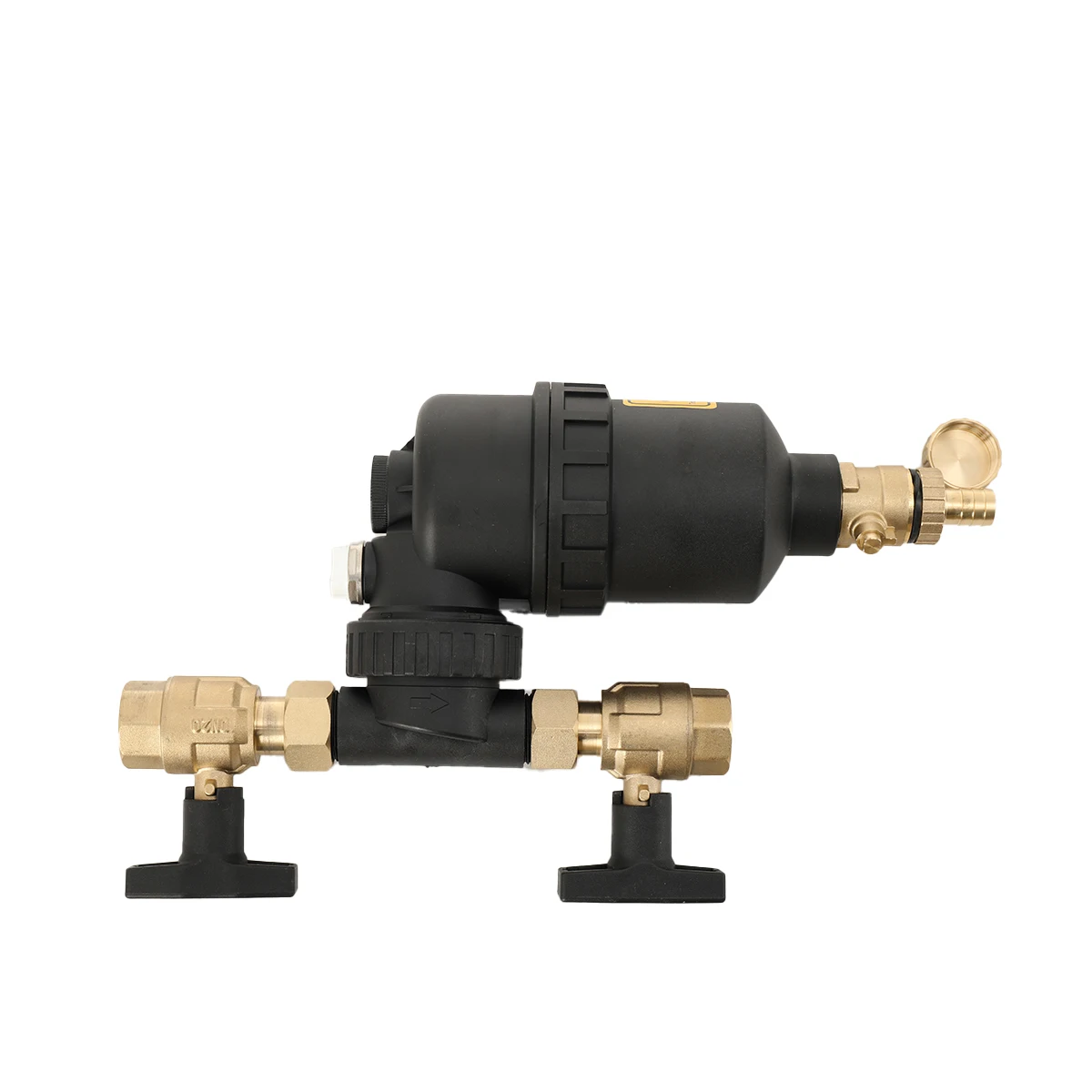

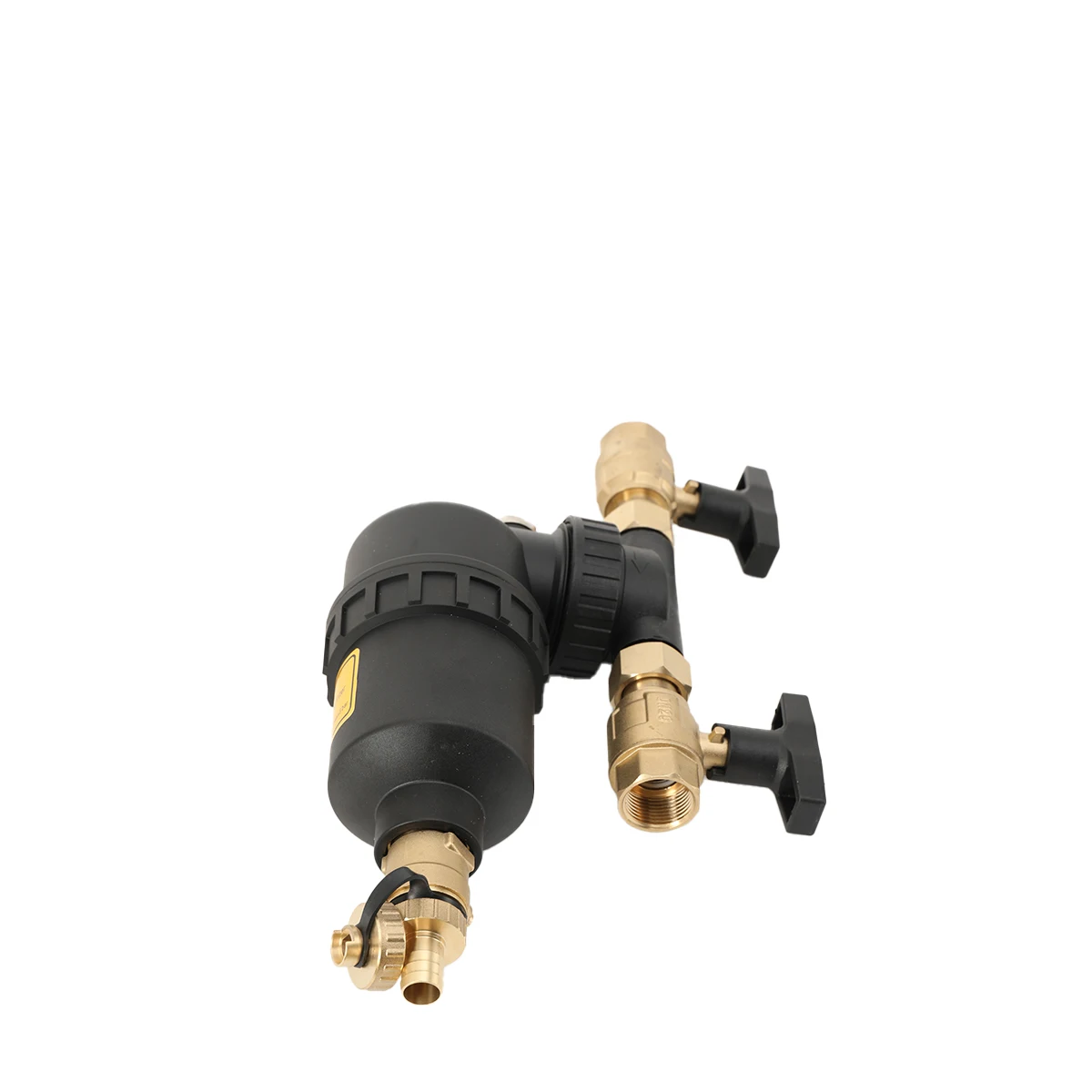

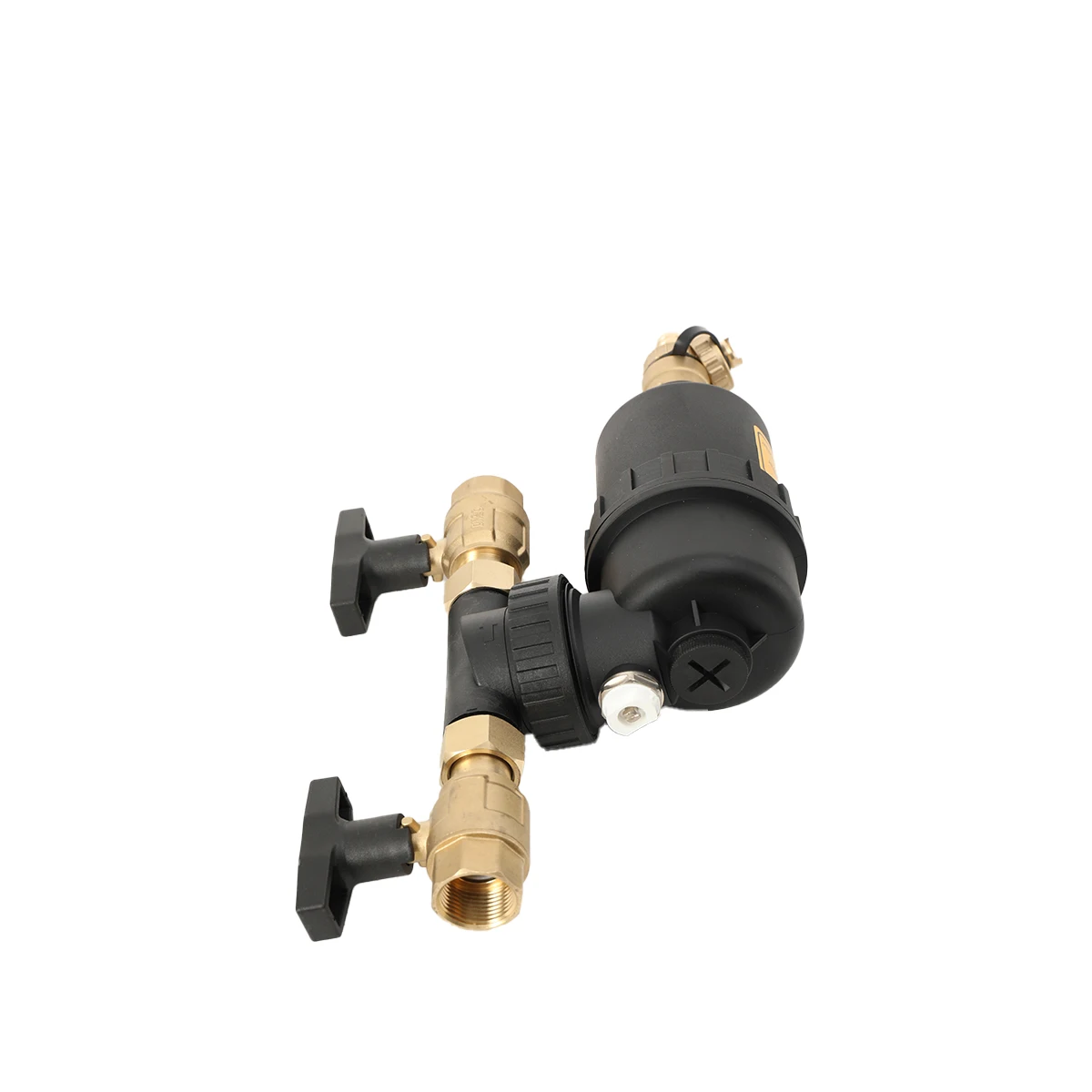

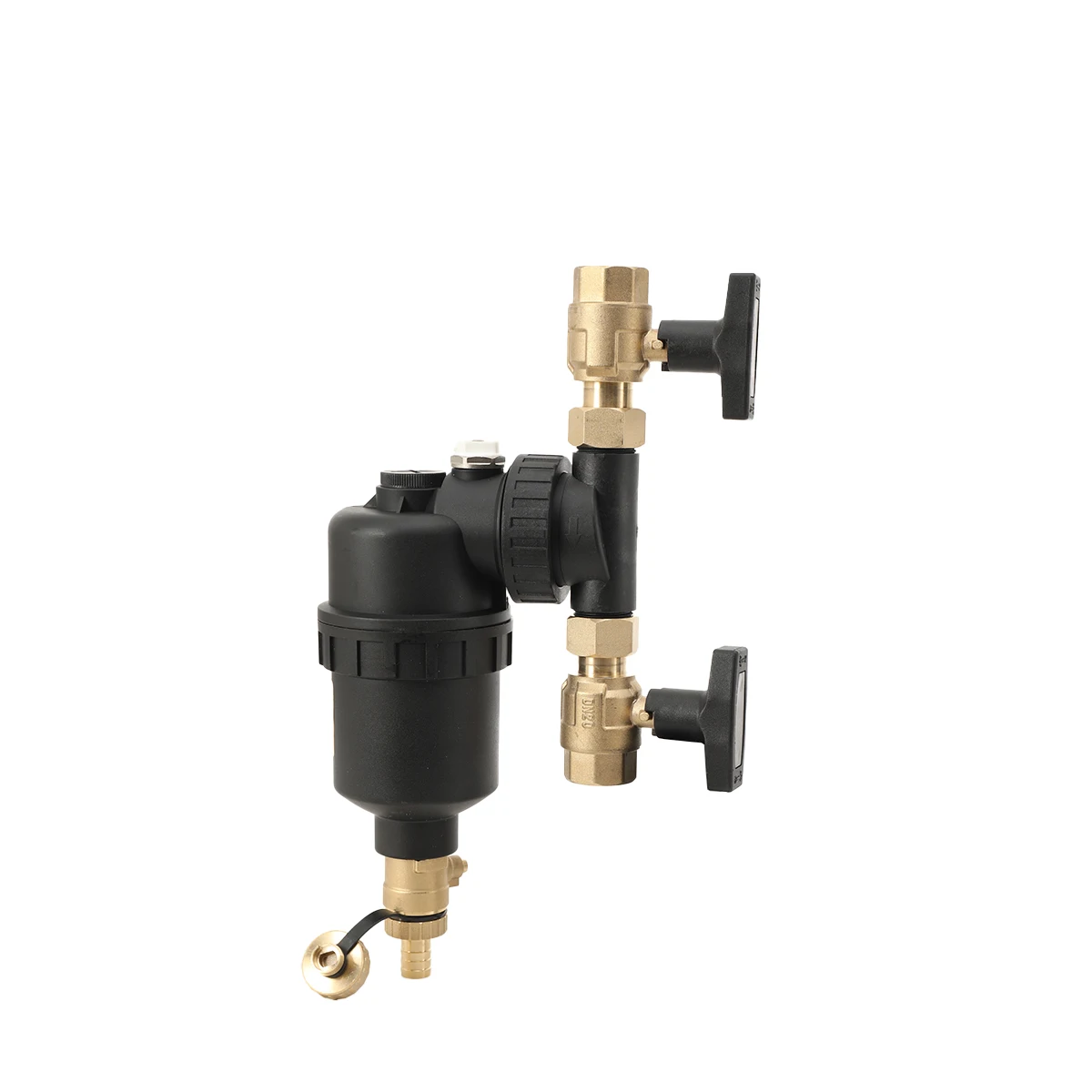

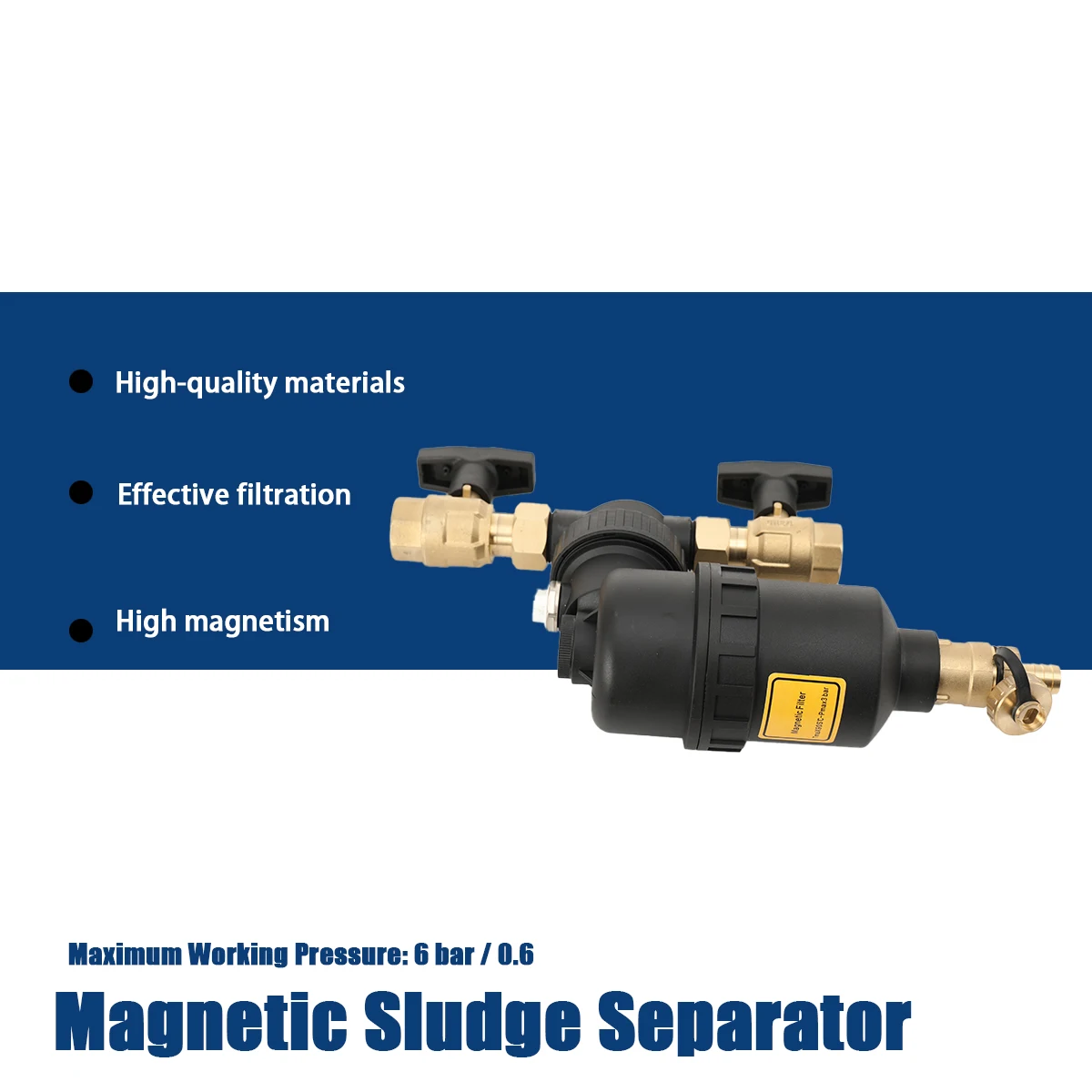

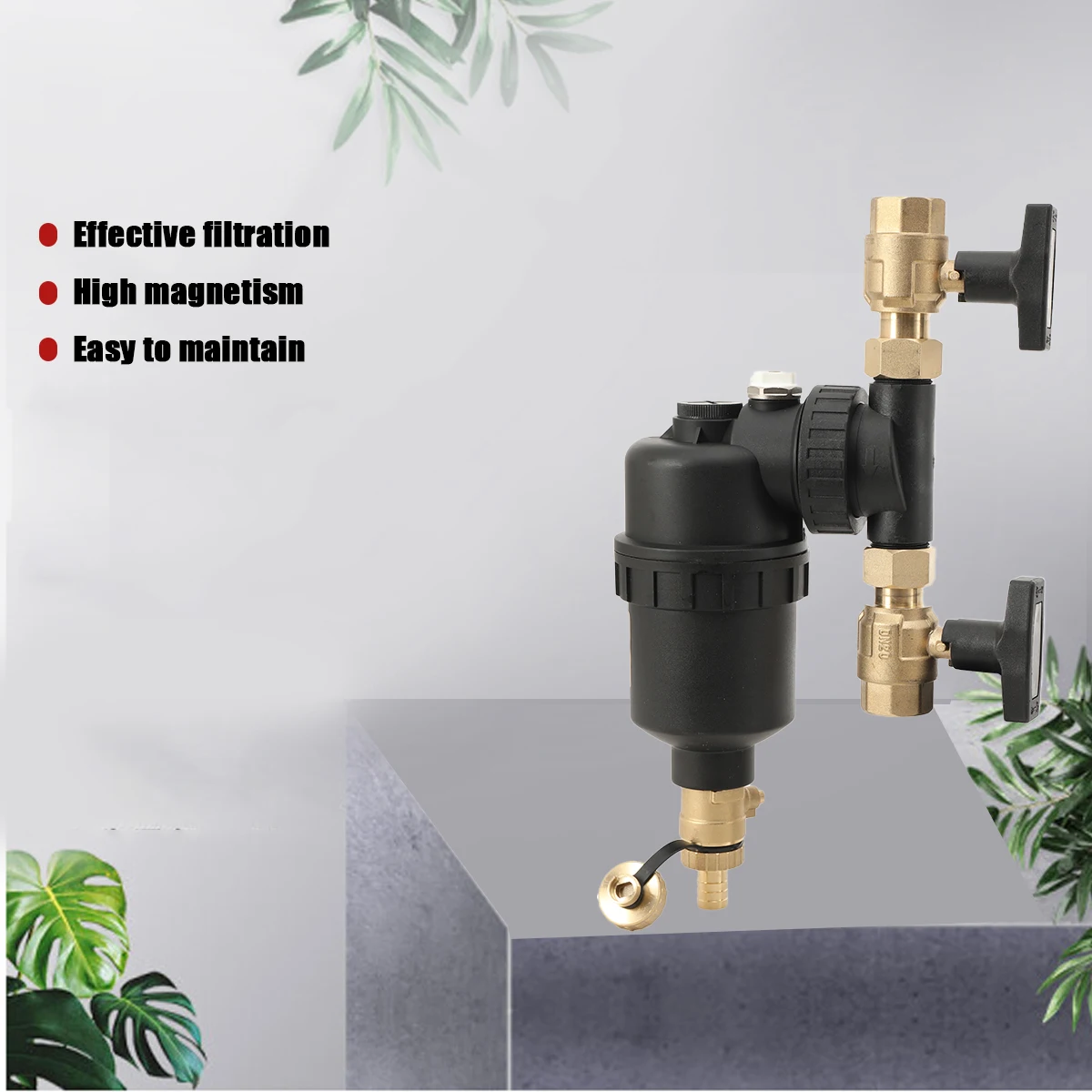

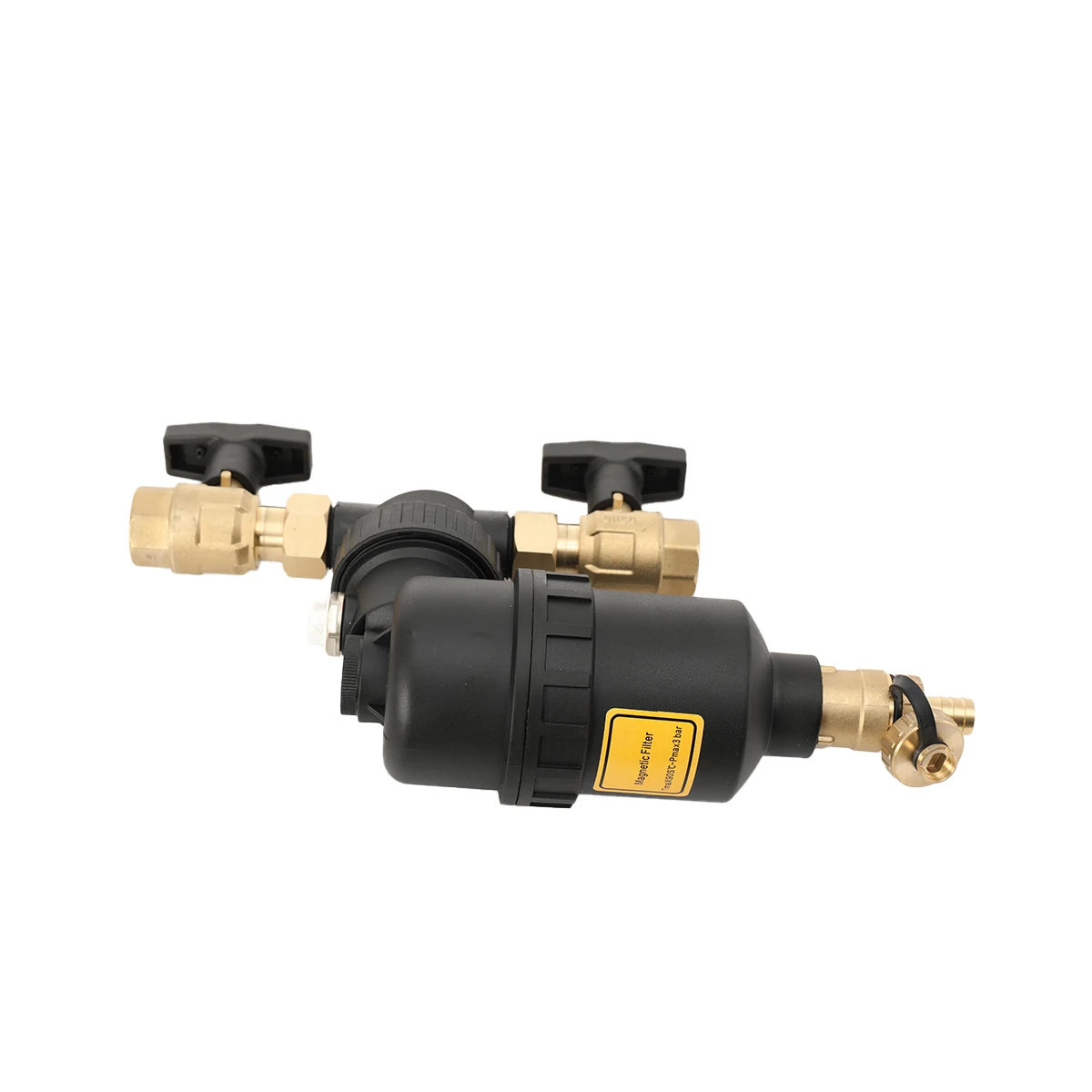

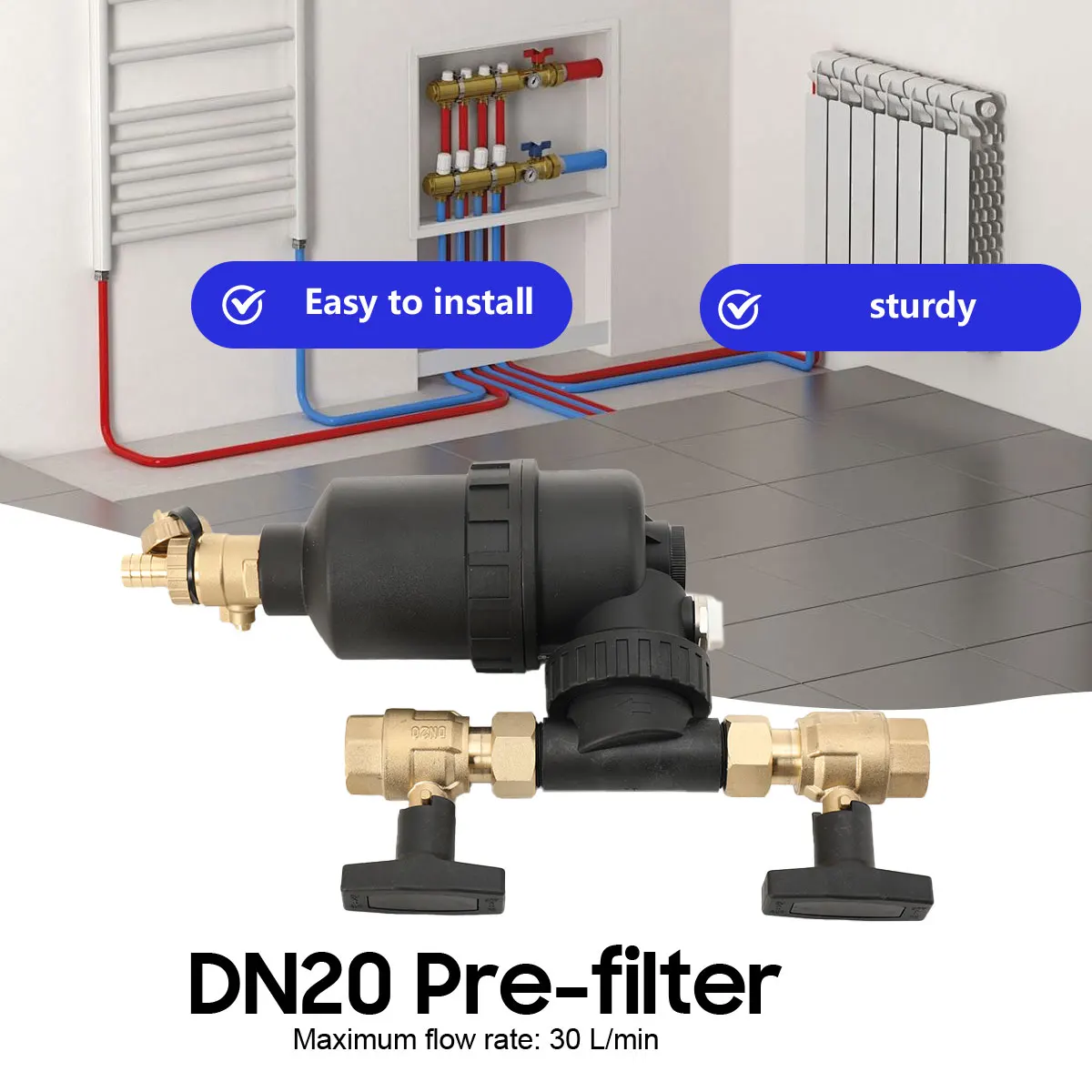

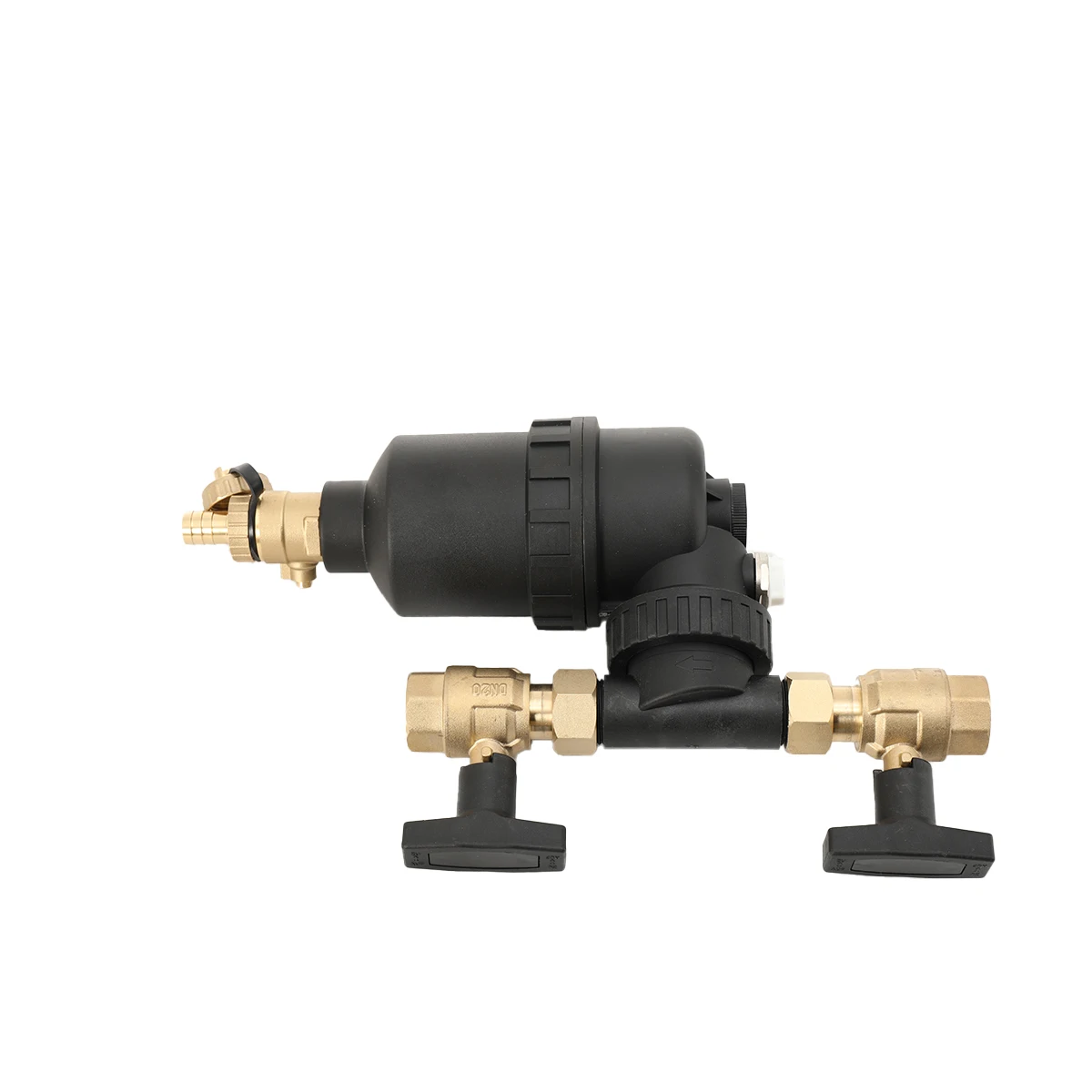

Magnetic Water Heater Filter DN20 Pre-filter Boiler Magnetic Filter For Underfloor Heating Systems

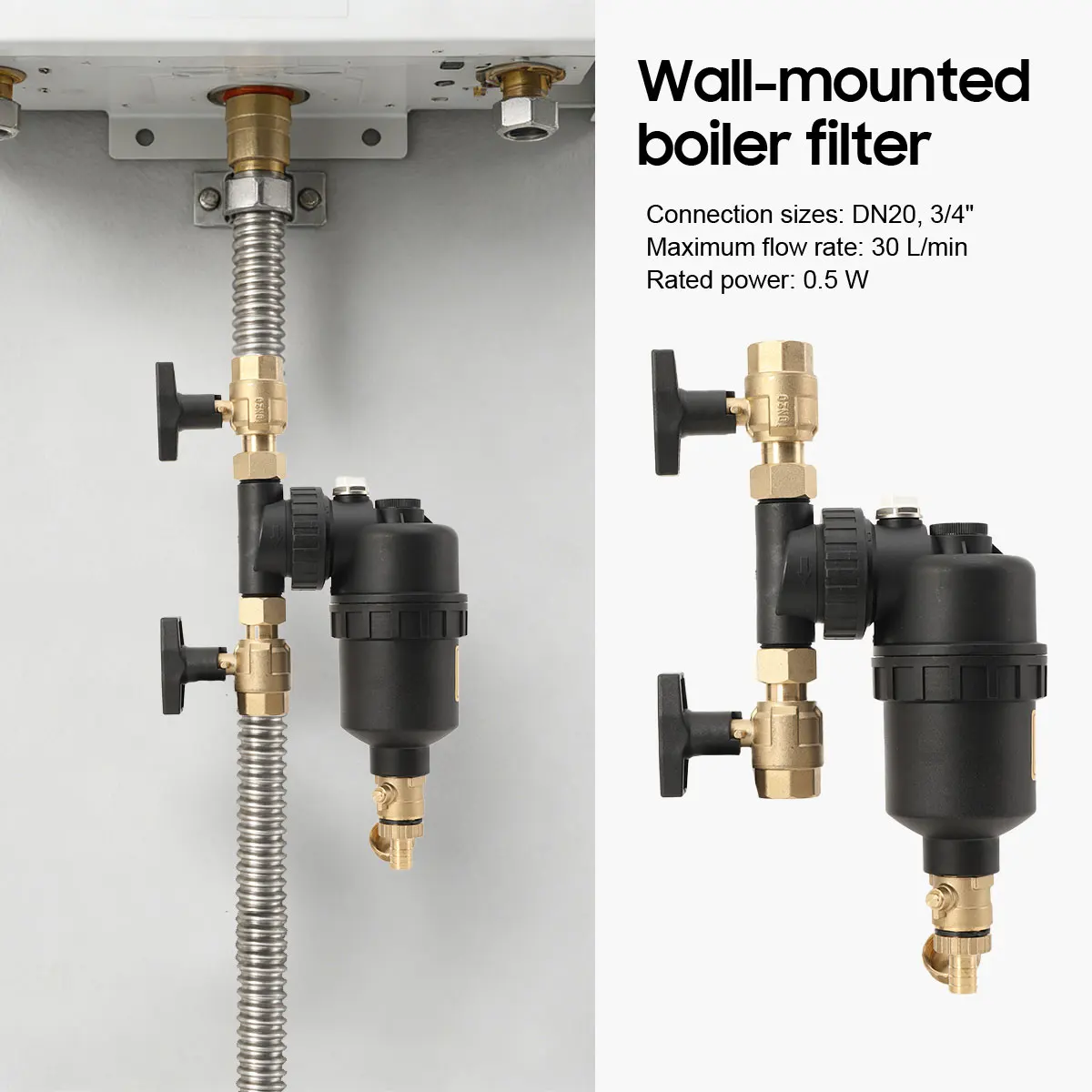

This magnetic sludge separator is designed for central water heating systems and targets rust, lime, and sediment in HVAC equipment, helping to prevent clogs and maintain smooth water flow for improved performance.

The magnetic filter uses a removable magnetic ring to attract and capture magnetic contaminants in a spacious chamber, slowing the flow so that particles settle before they can reach sensitive boiler components.

The combination of a sludge filter and magnetic core protects the heating circuit, increases the service life of the heater, and permanently improves energy efficiency.

Technical data:

Type: Magnetic sludge separator

Material: Engineering plastic, brass

Color: Black

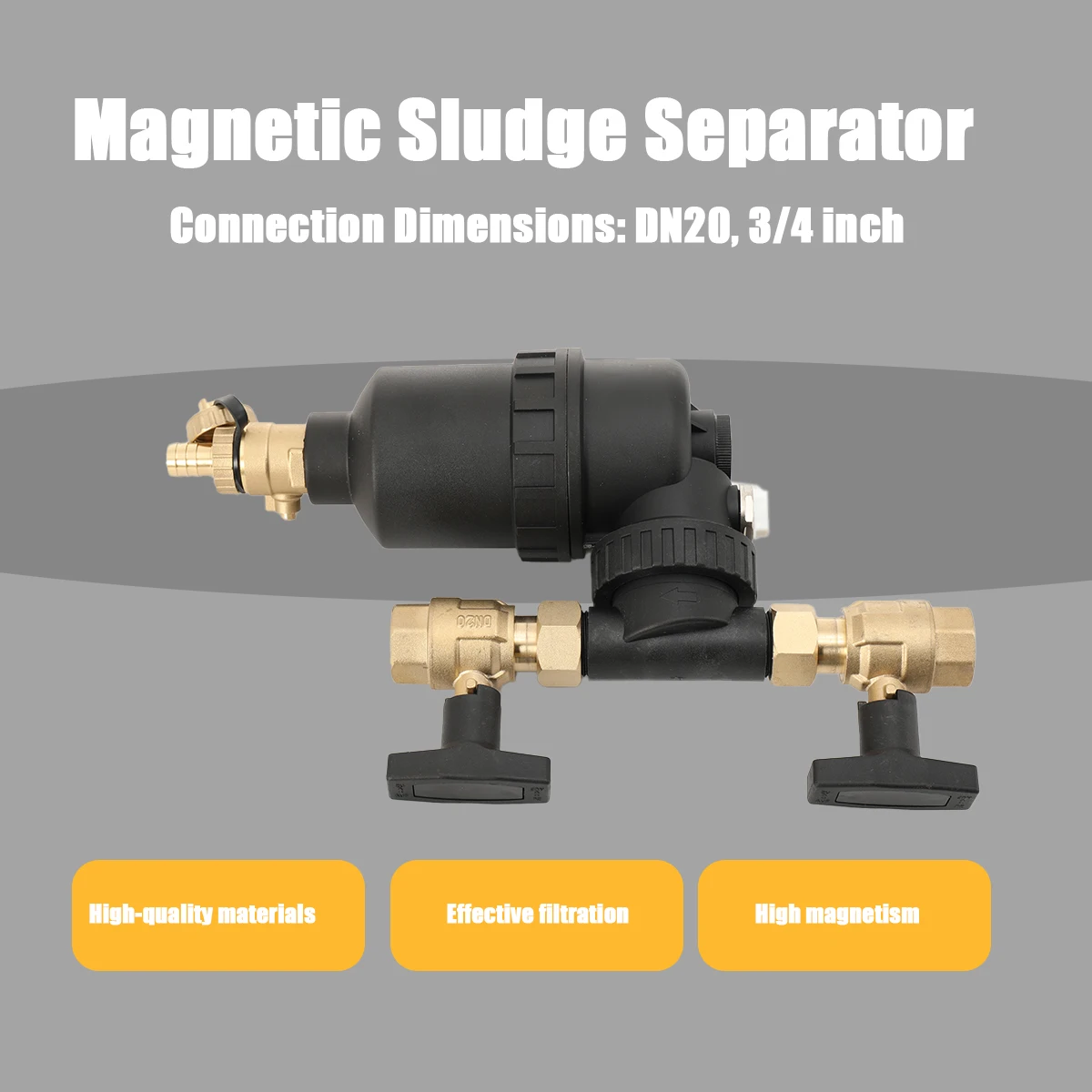

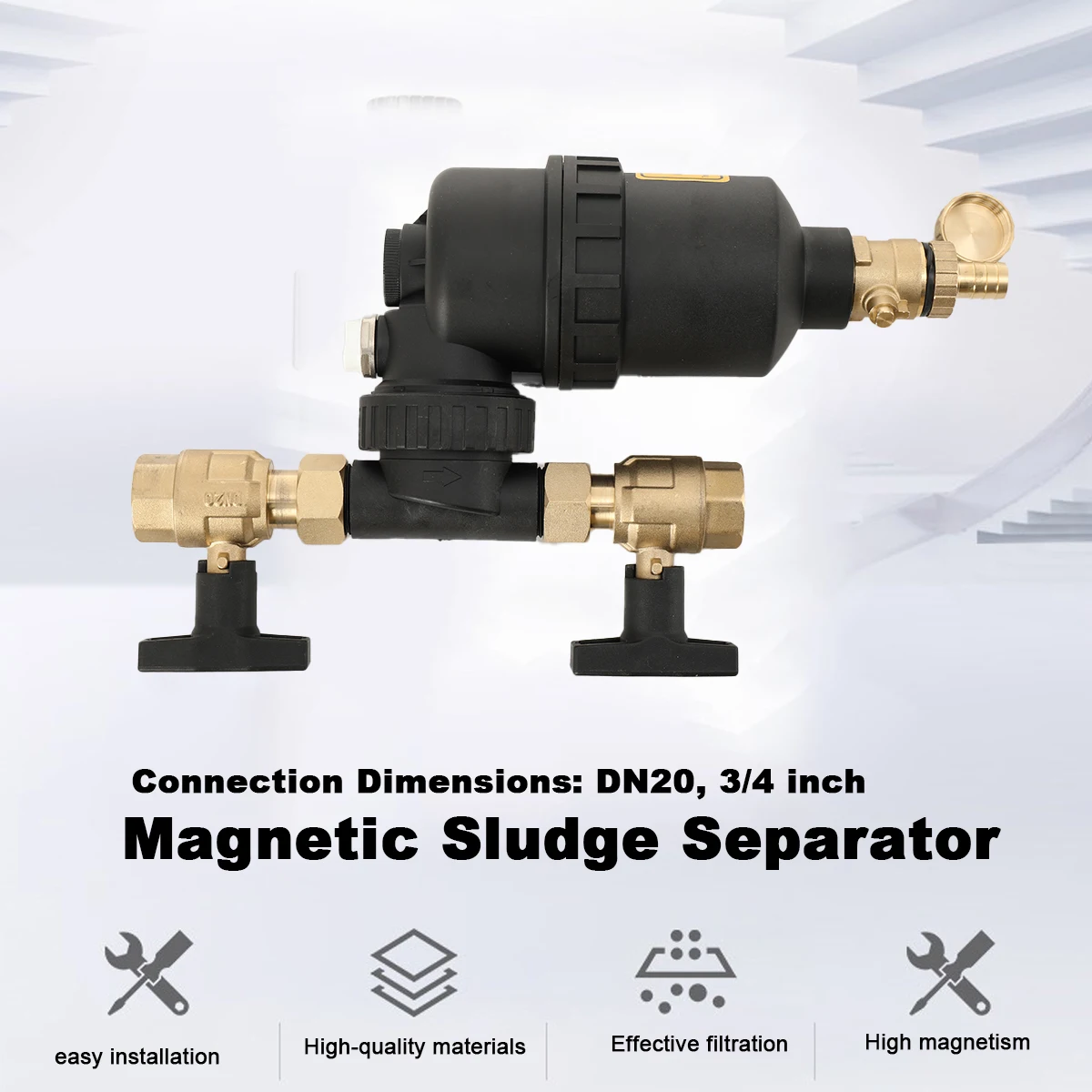

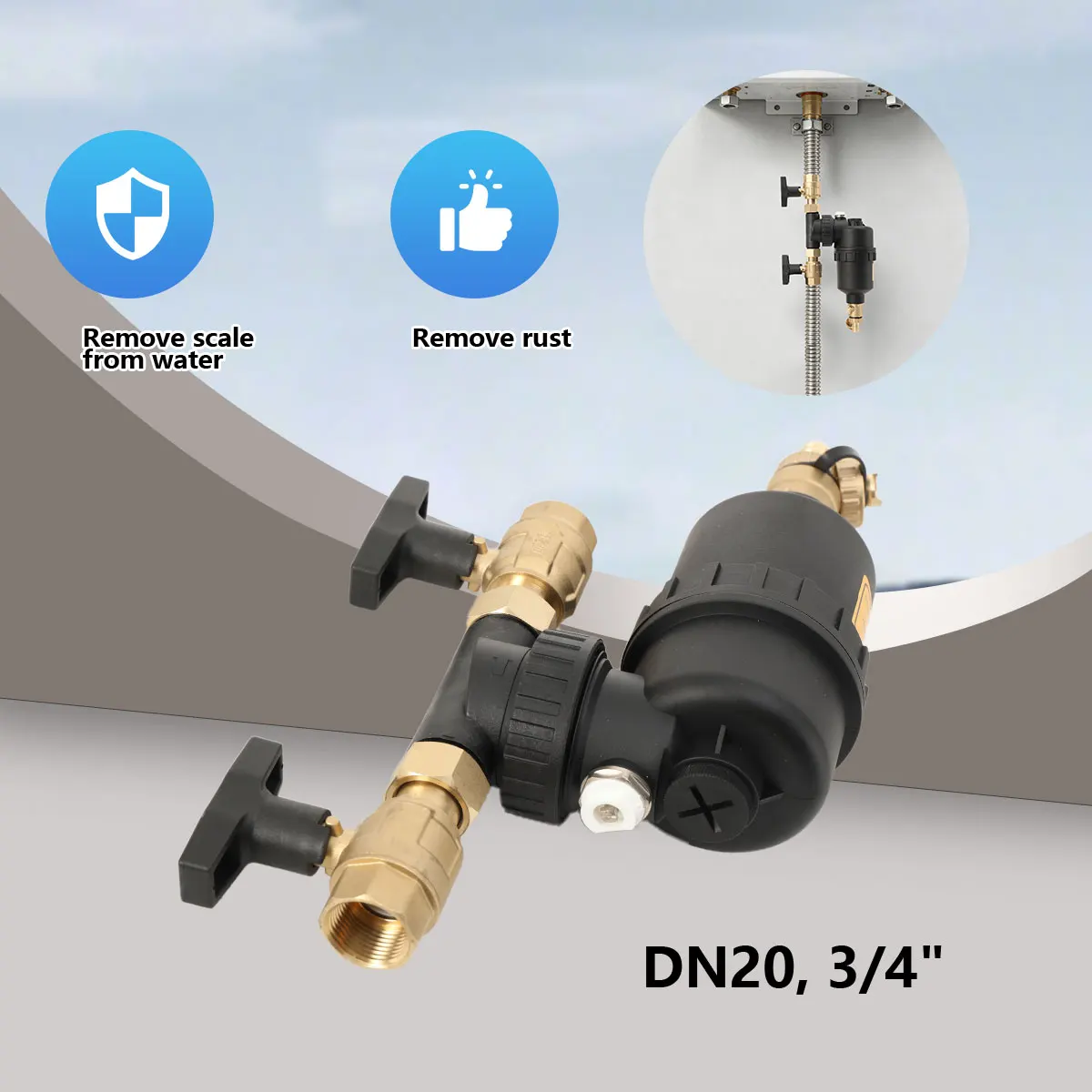

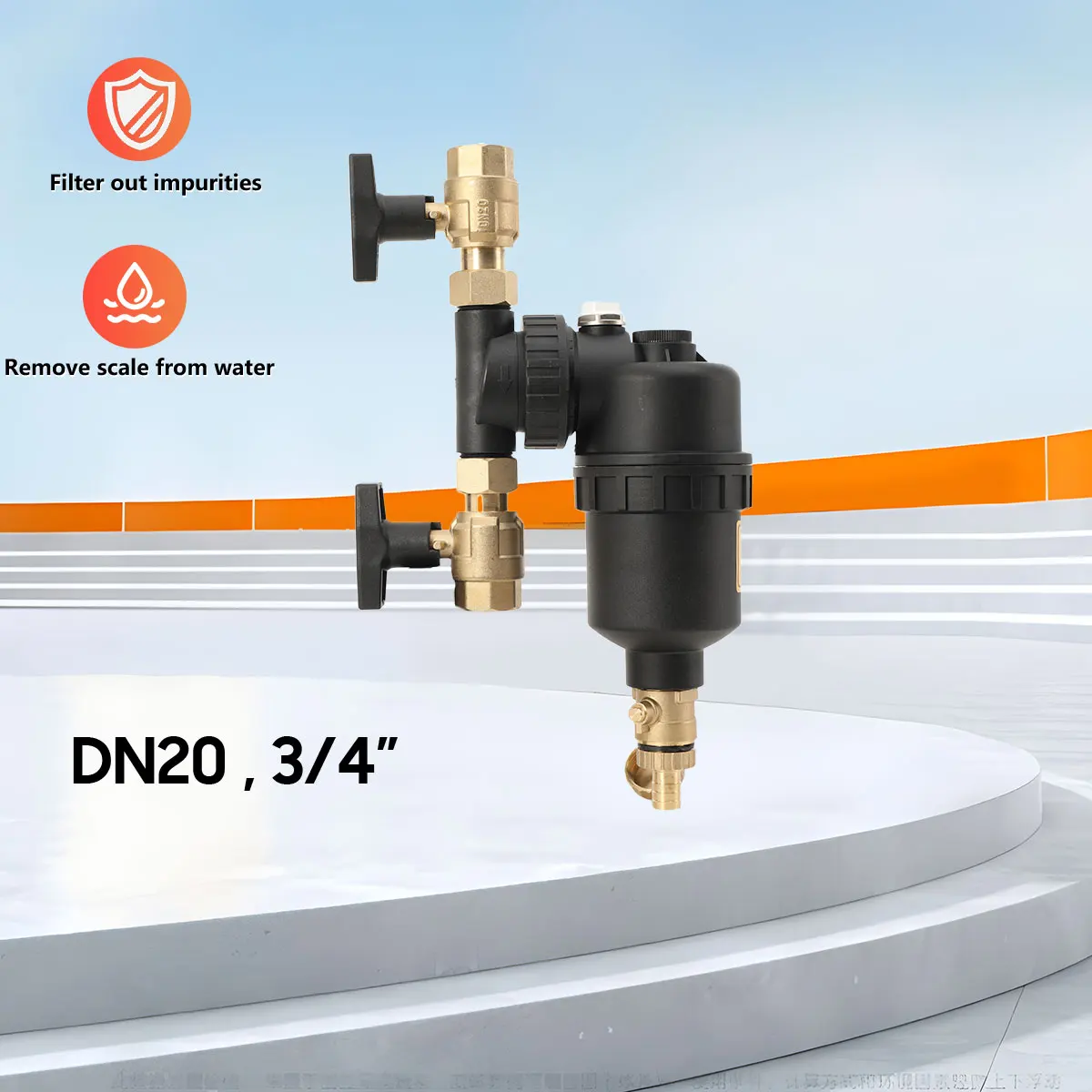

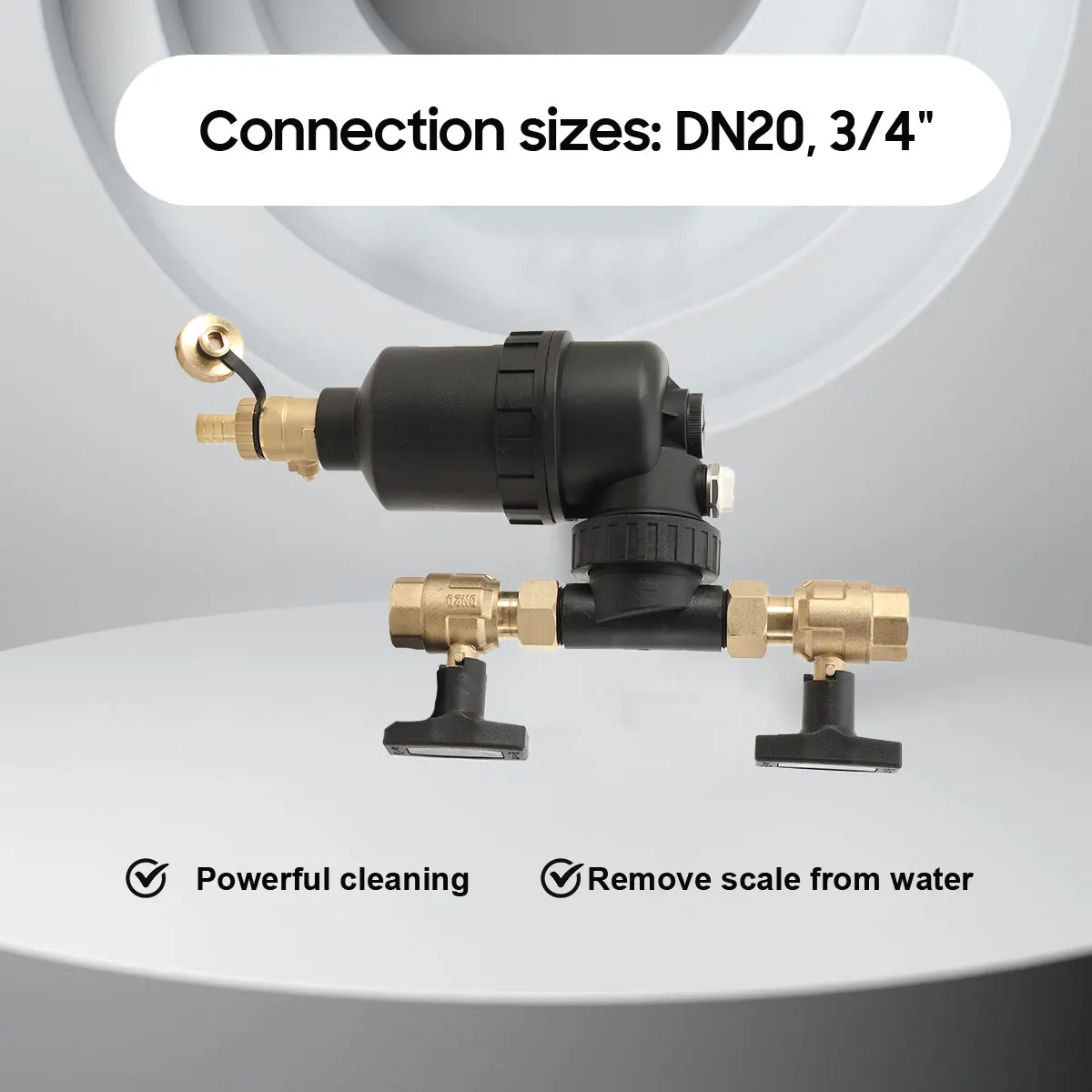

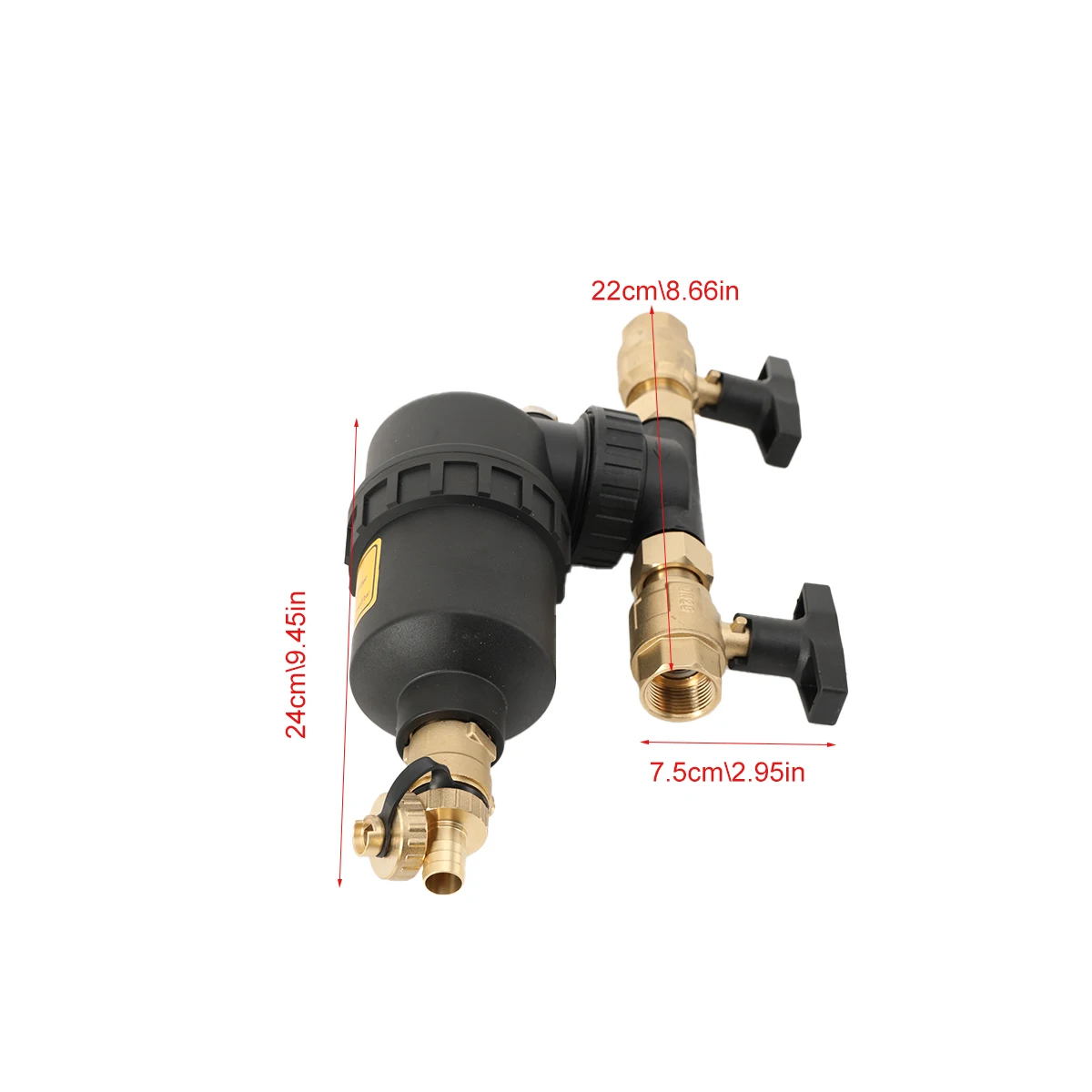

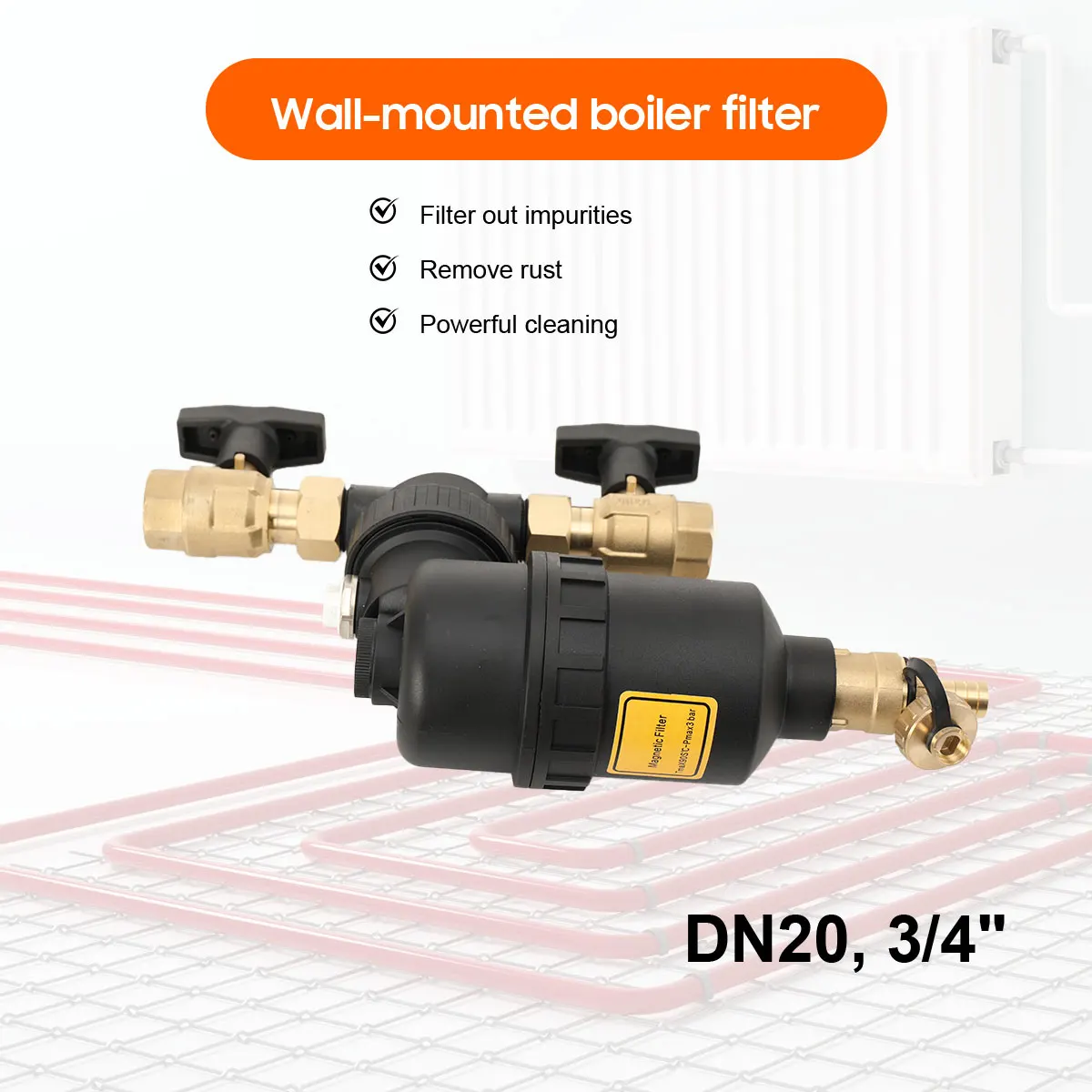

Connection sizes: DN20, 3/4"

Maximum flow rate: 30 L/min

Rated power: 0.5 W

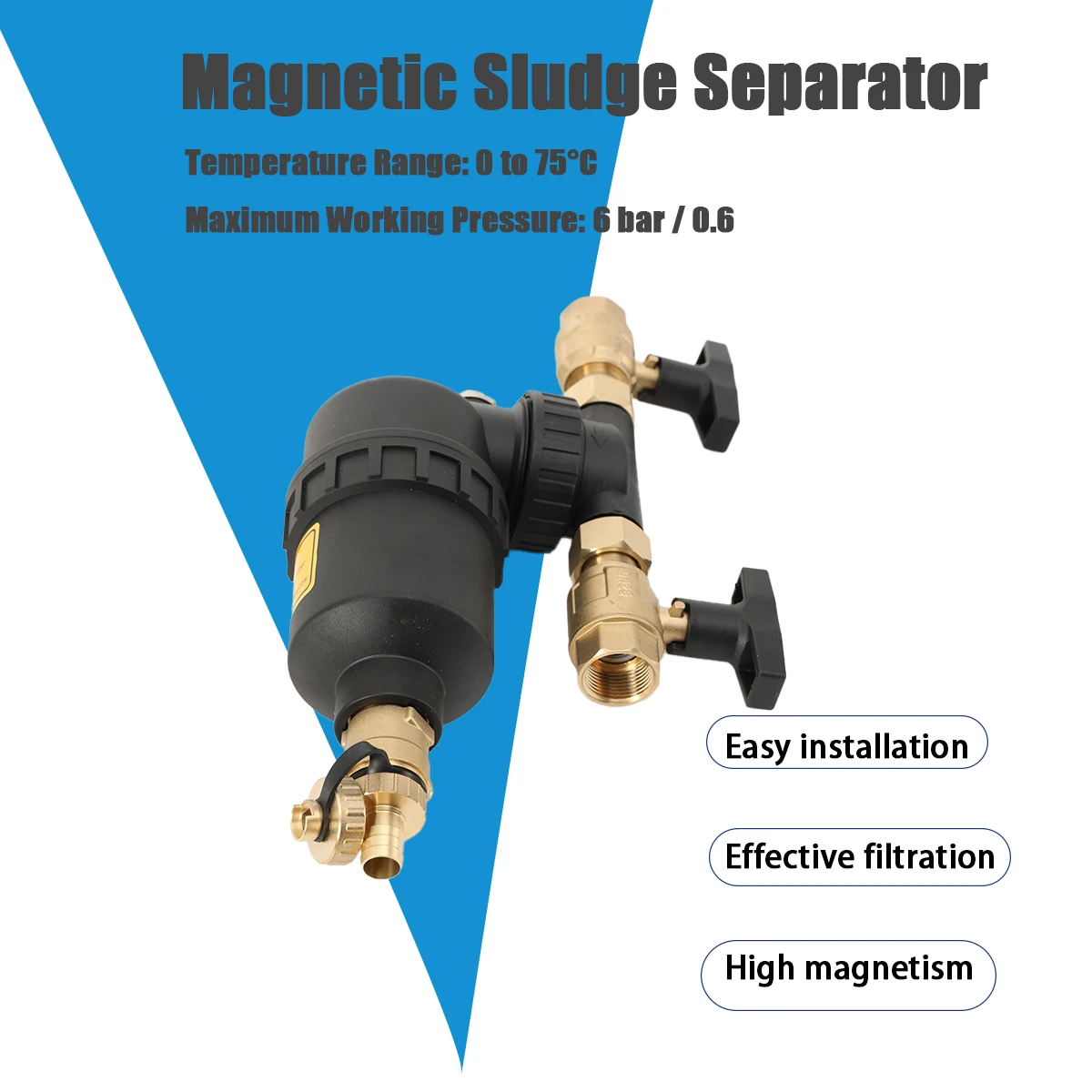

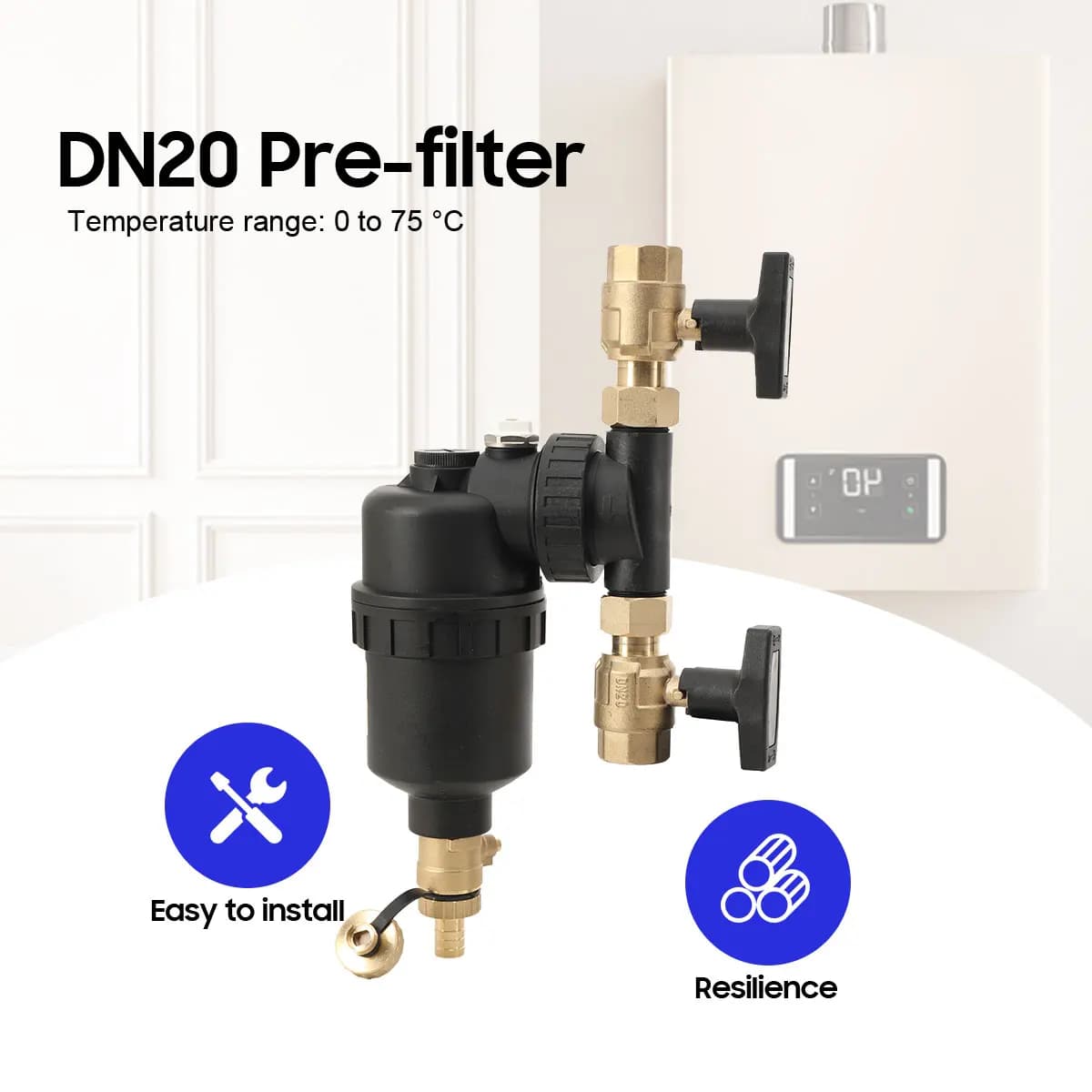

Temperature range: 0 to 75 °C

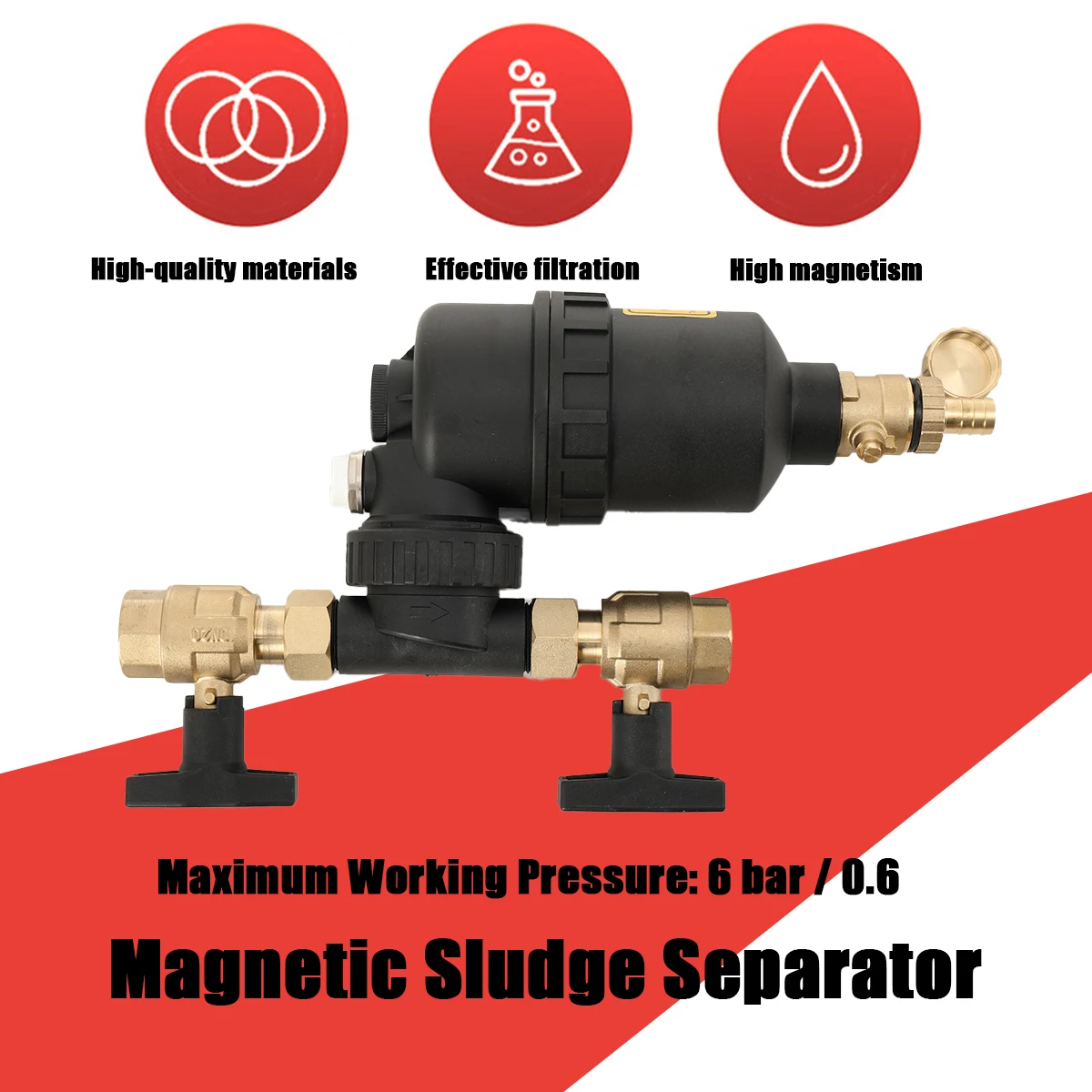

Maximum operating pressure: 6 bar / 0.6 MPa

Water discharge mode: Single discharge

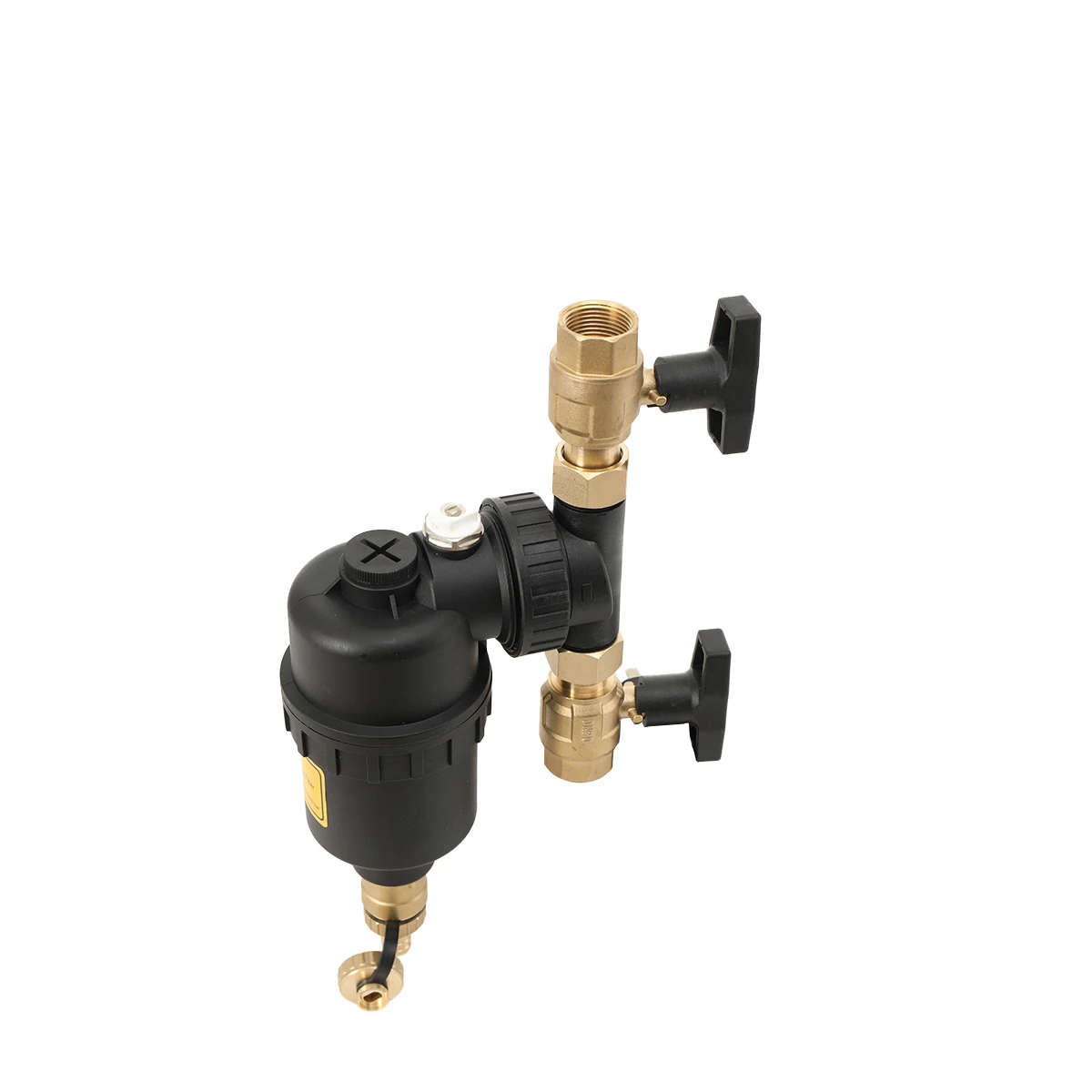

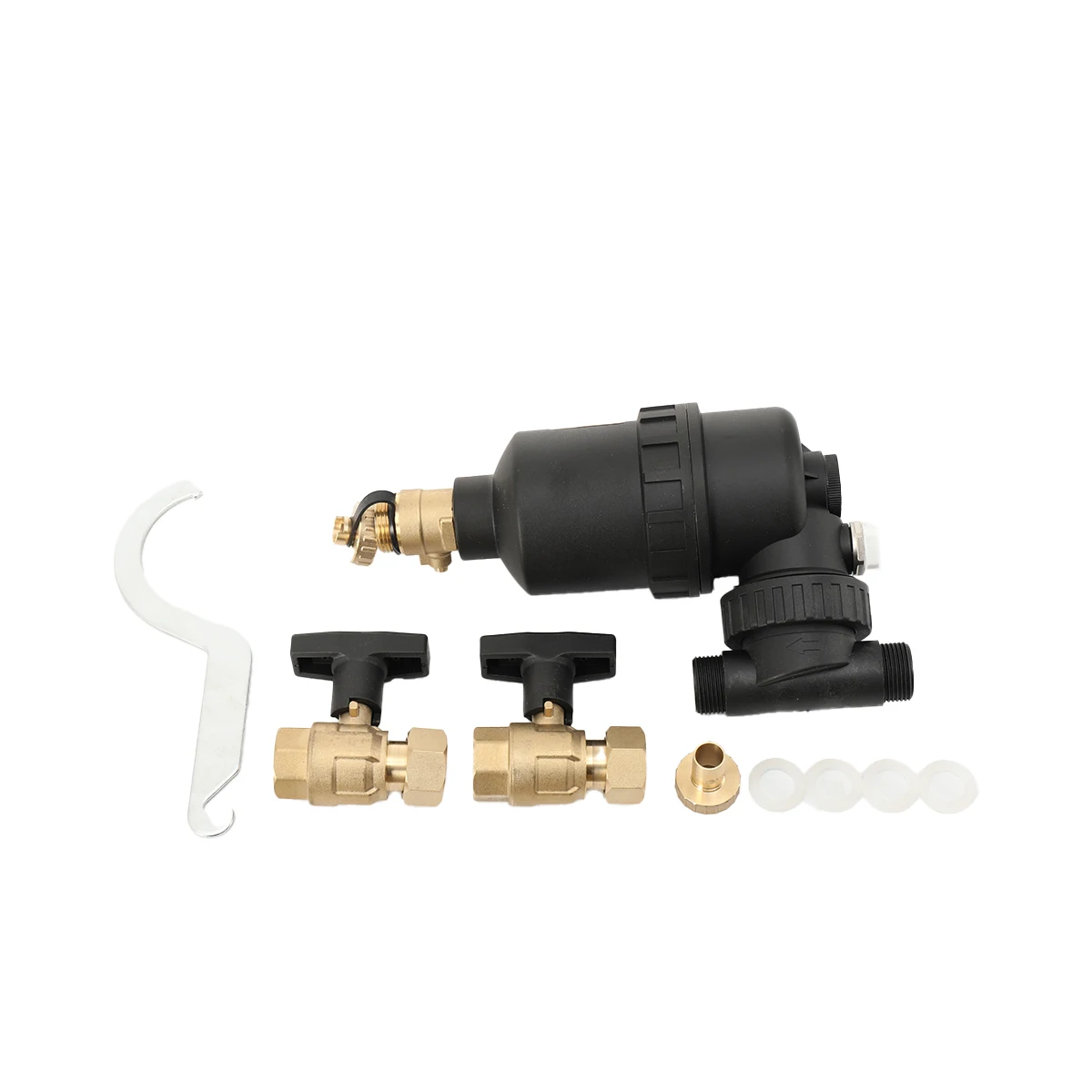

Package contents:

1x filter

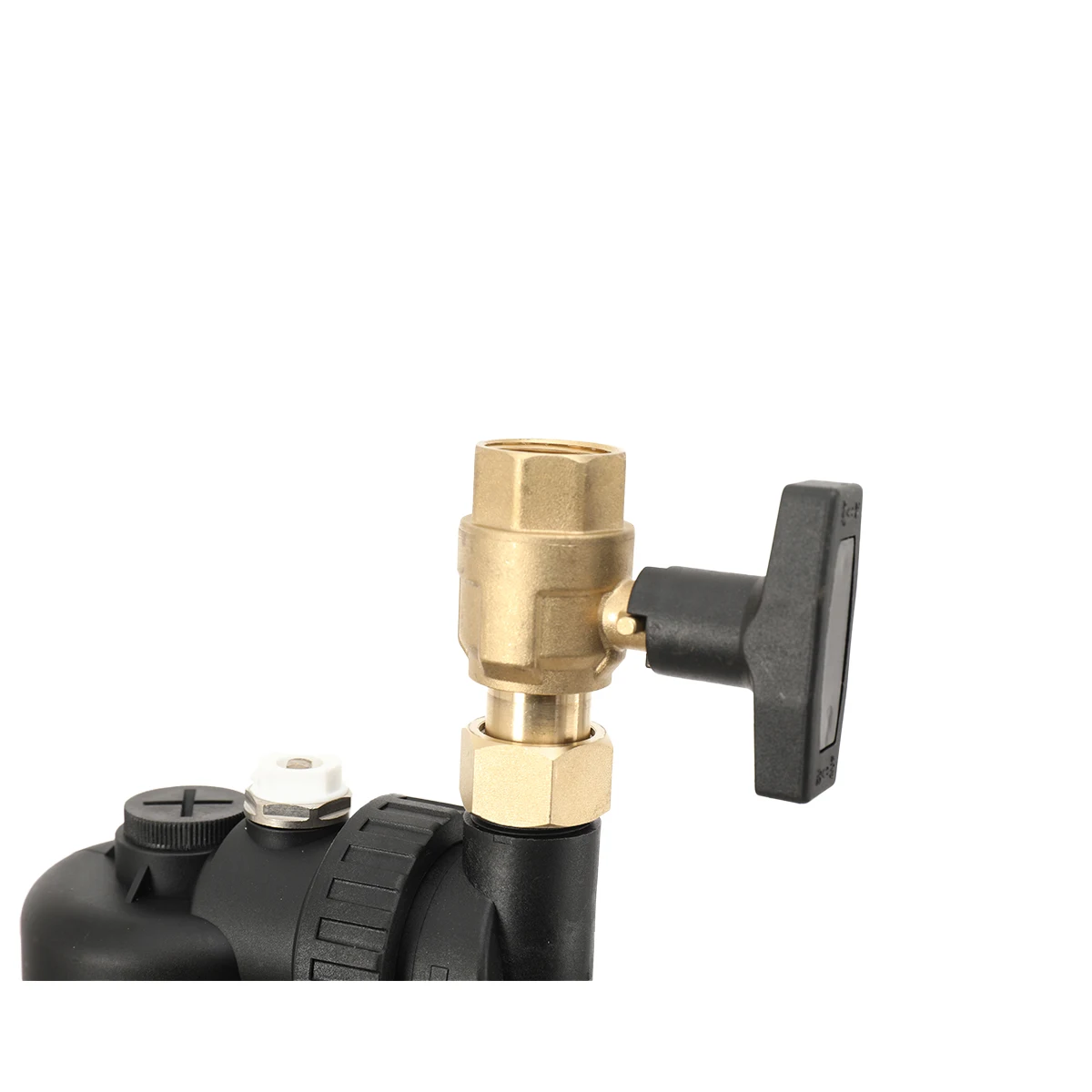

2x shut-off valve 3/4"

1x multifunctional wrench
