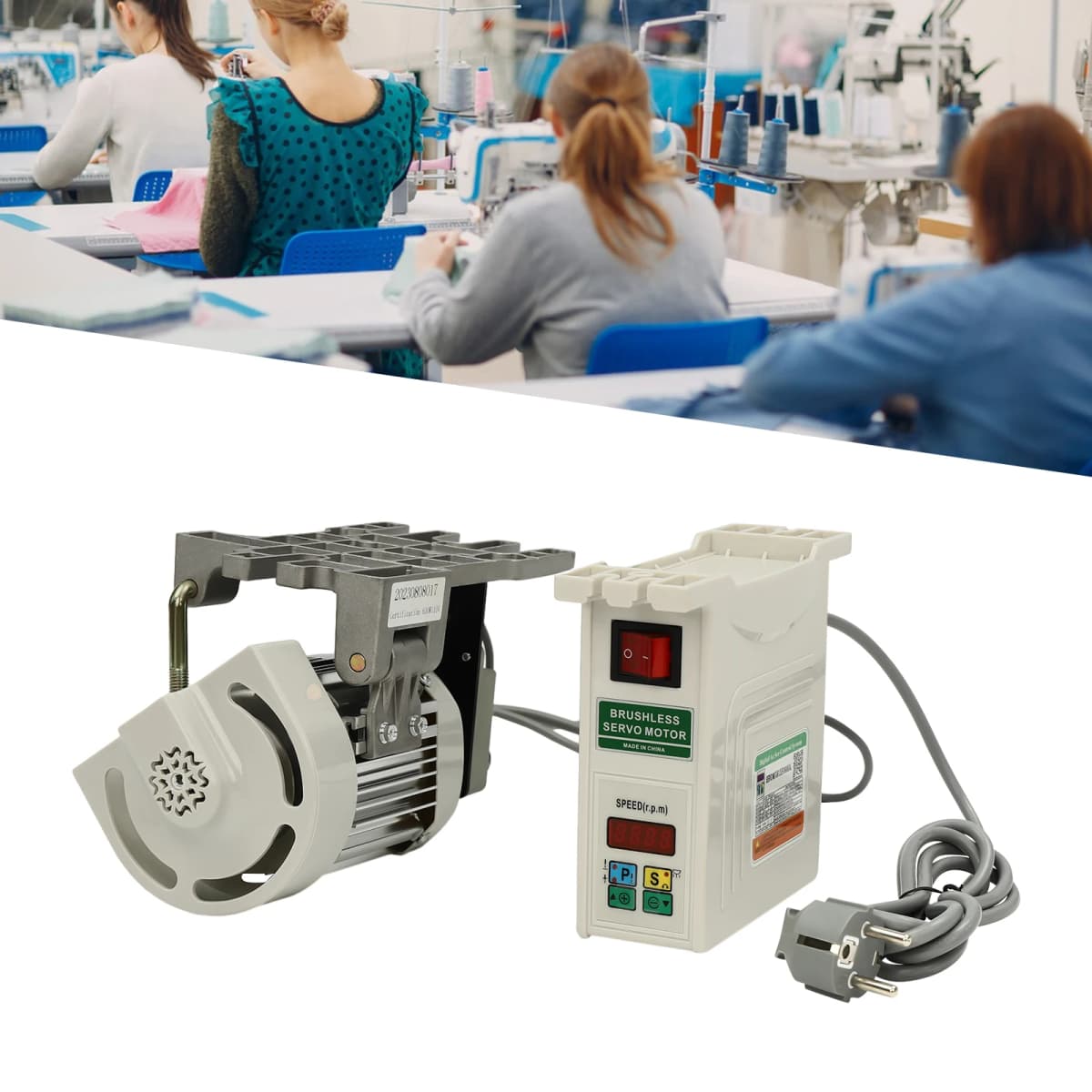

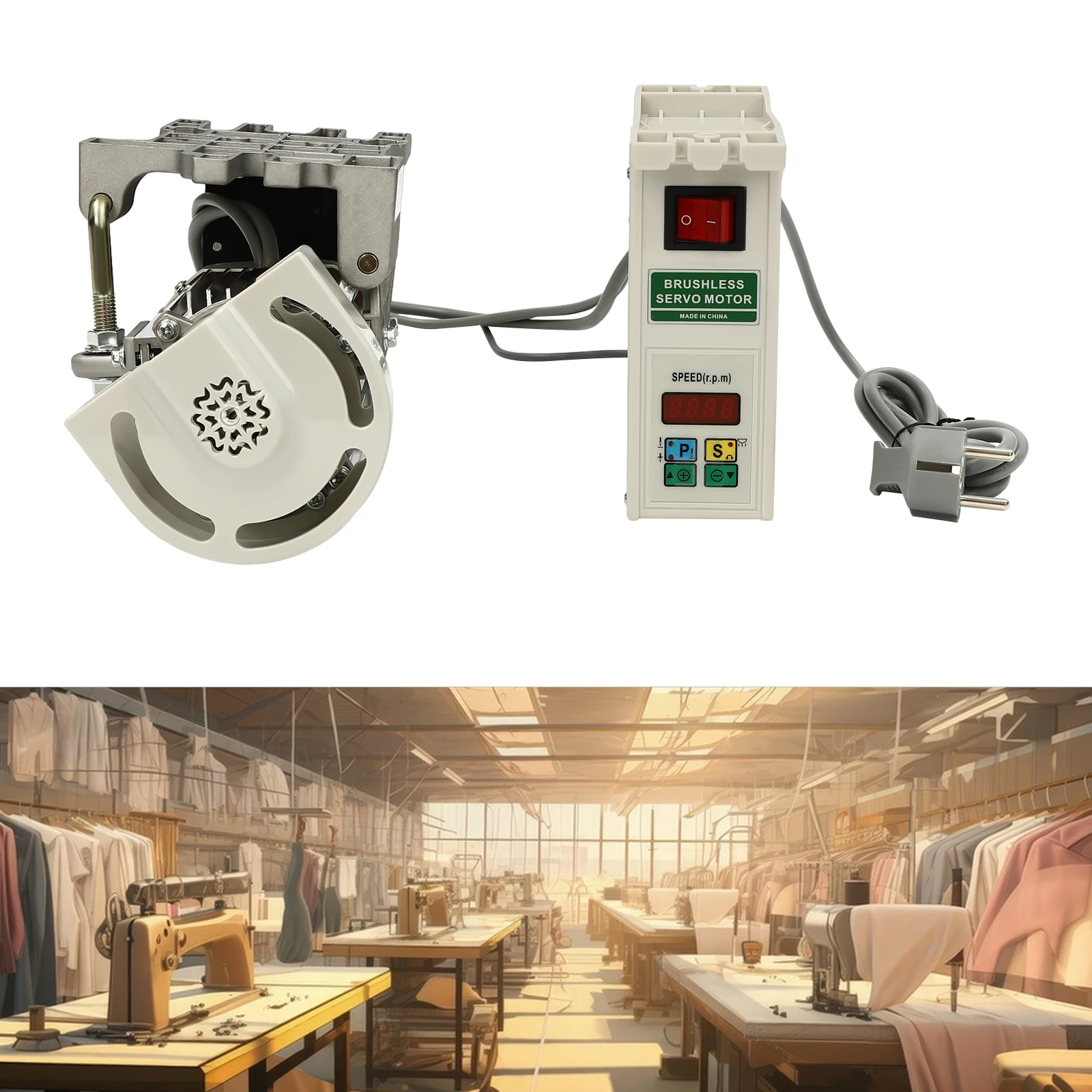

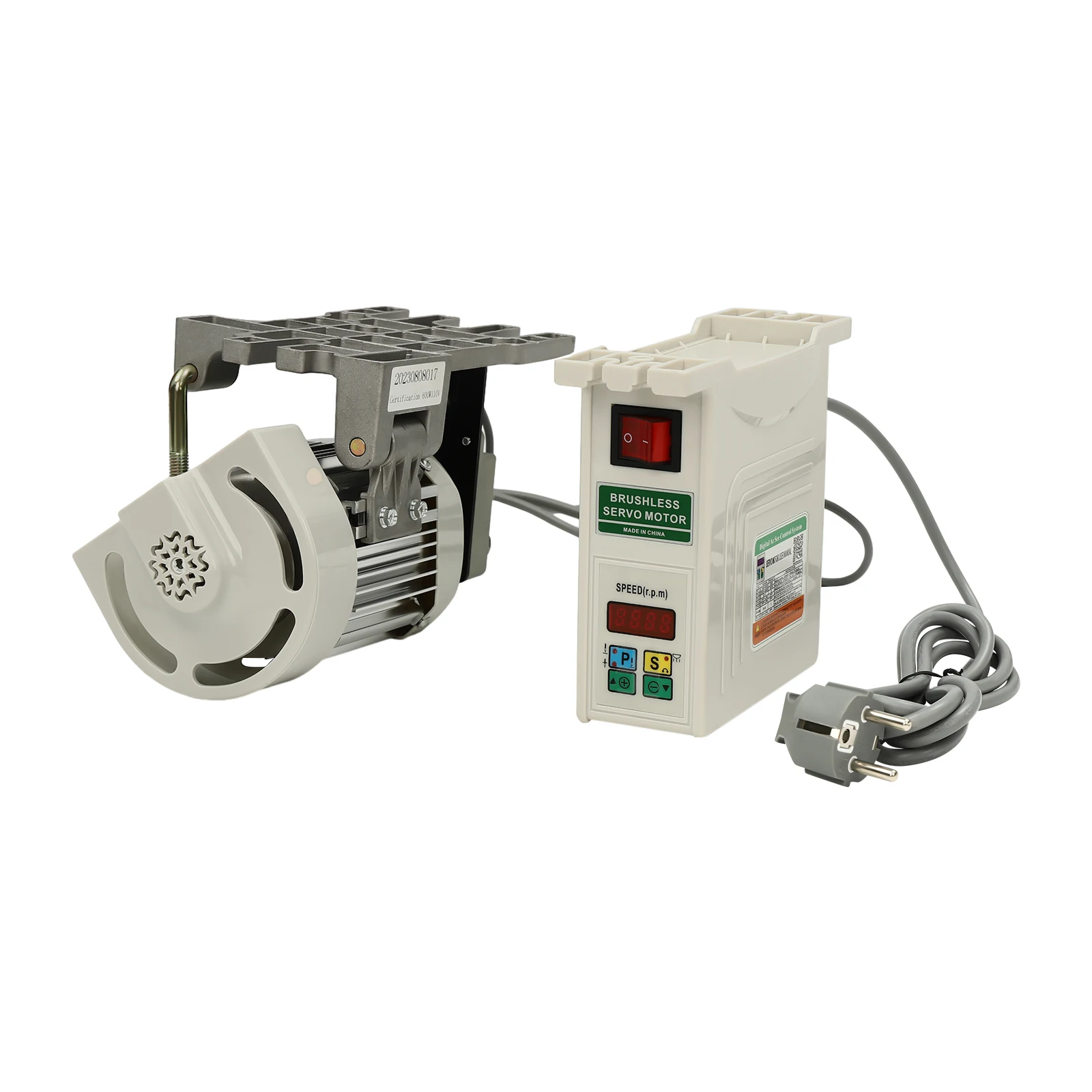

600W Industrial Sewing Machine 220V Brushless Servo Motor, Split Motor and Controller for Light to Heavy-Duty Work 500-4500RPM

600W Industrial Sewing Machine 220V Brushless Servo Motor, Split Motor and Controller for Light to Heavy-Duty Work 500-4500RPM

Specifications

Color: Silver, White

Material: Copper, Aluminum, Plastic, Magnet Steel

Assembly Required: Yes

Plug Type: EU Standard

Voltage: 220V

Speed: 500-4500RPM

Step Adjustment: 100 Stitches/Min

Power: 600W

Controller Power Cord Length: 1.81m/5.94ft

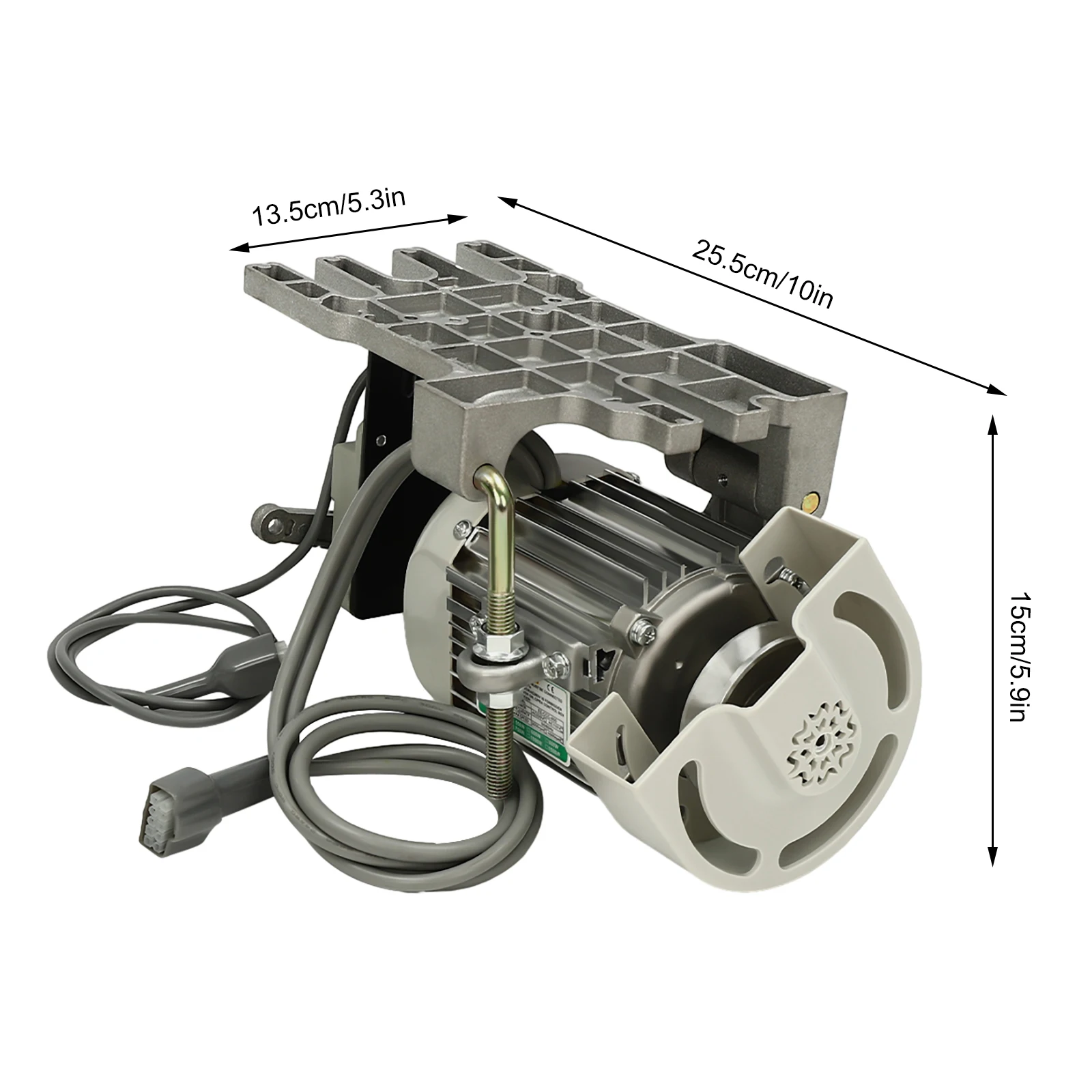

Servo Motor Size: 25.5*13.5*15cm/10*5.3*5.9in

Controller Size: 18.7*6*15.9cm/7.4*2.4*6.3in

Packaging Size: 31.5*28*21cm/12.4*11*8.3in

Net Weight: 3.95kg/8.7lbs

Gross Weight: 4.35kg/9.6lbs

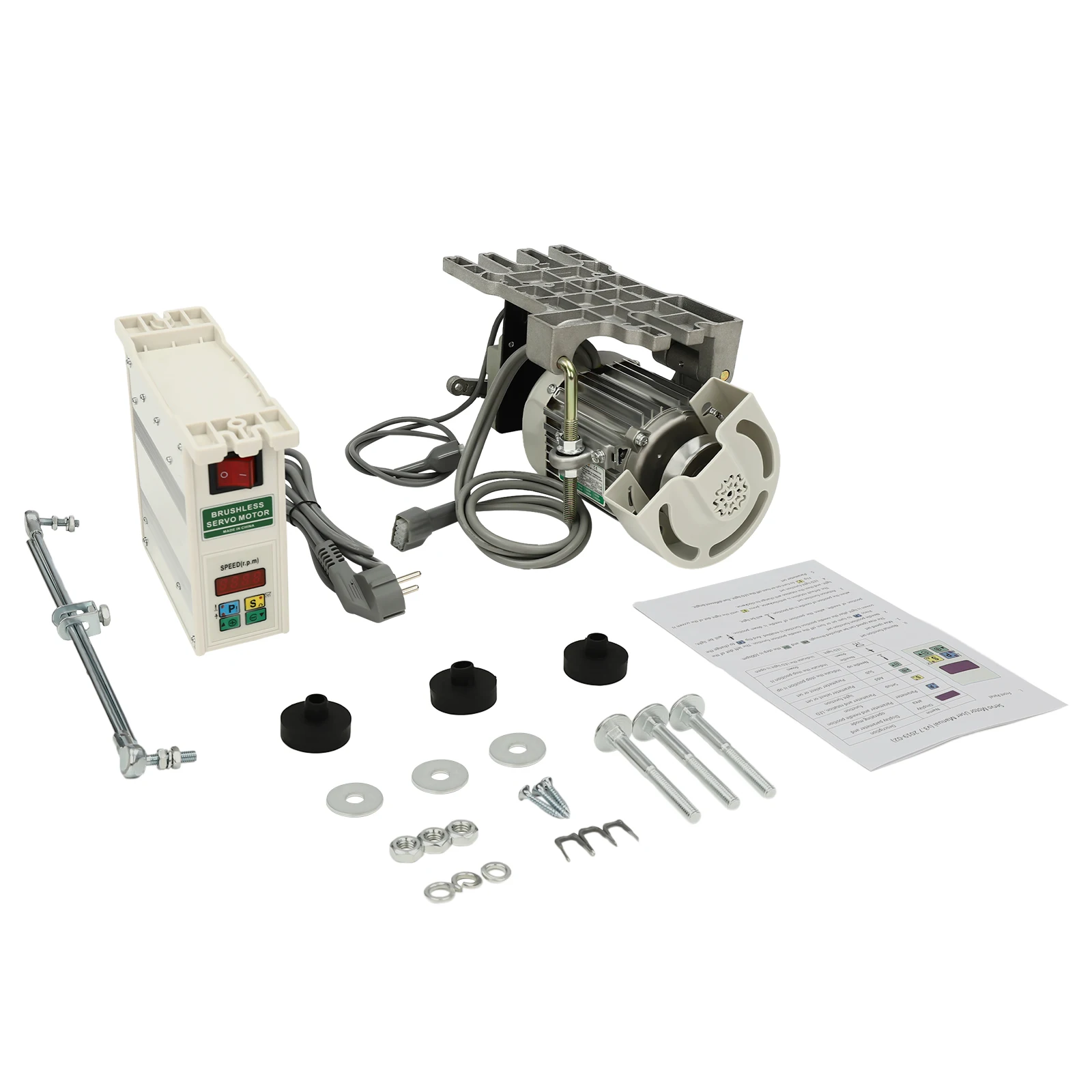

Package Included

1* Brushless Motor

1* Controller

1* English Manual

All Accessories for Assembly

Key Features

High-quality Material: With high strength, high hardness, corrosion resistance, wear resistance, and good heat dissipation, the premium copper, aluminum, magnet steel and plastic make our product sturdy and give it a long service life.

Pure Copper Coil Motor: The coil of the motor is made of high-quality and high-temperature copper wire, whose purity is up to 99.5%, featuring high corrosion and aging resistance and excellent conductivity, making the motor more durable and efficient.

Low Noise: With the simple structure and excellent sealing, the motor can run in a low noise, which can provide you with a quiet working environment.

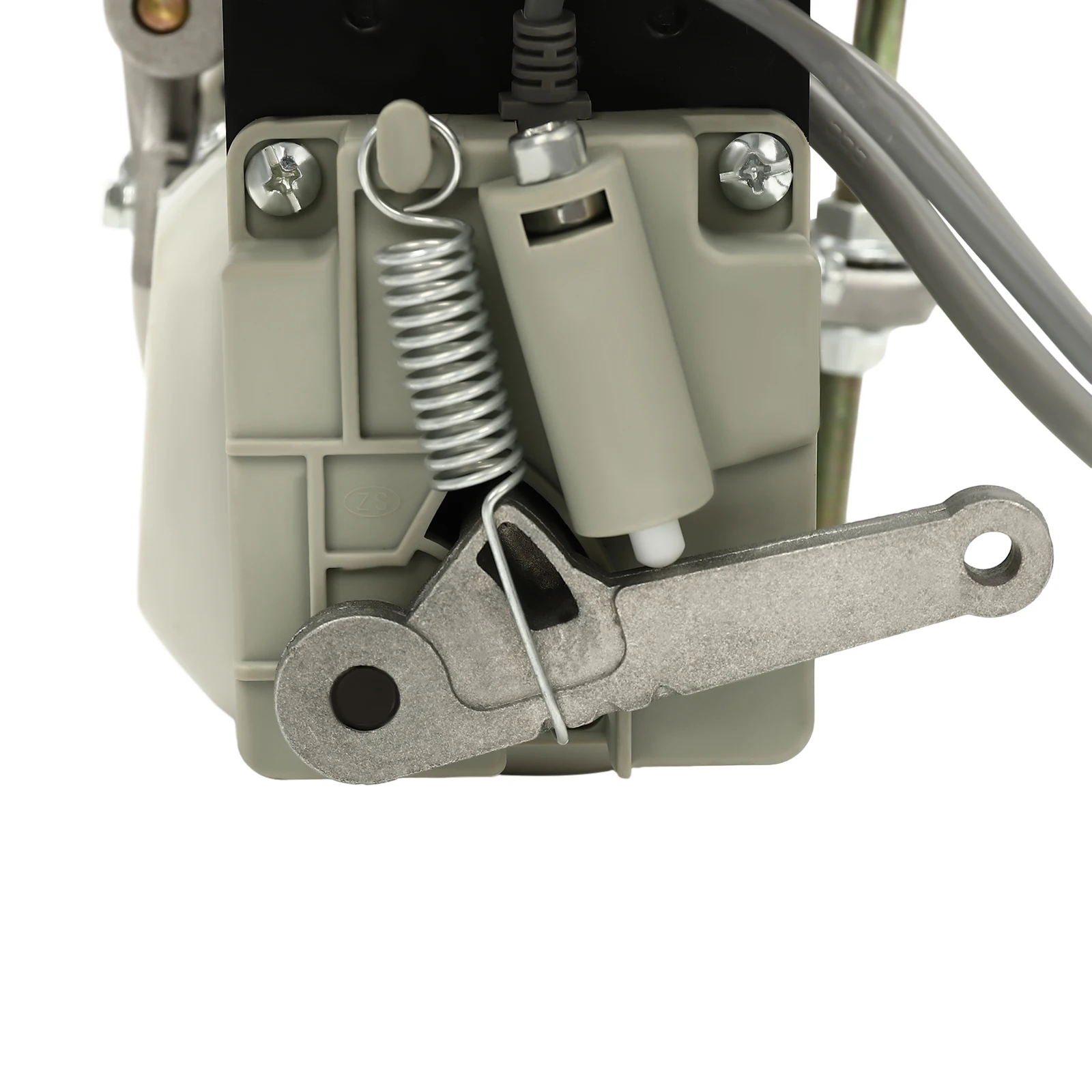

Flexible Adjustment: The motor is equipped with an independent speed control lever. The position of the spring on it is adjustable for adjusting different elasticity, which increases pedal sensitivity and gives you more flexibility in speed adjustment.

Safe&Easy Operation: It comes with a controller, screen, heat dissipation fan and English user manual, making it very easy to understand and start to operate.

Wide Compatability: It comes with a speed adjustment range of 500-4500rpm, an adjustment step of 100 stitches/minute, and adjustable directions in both clockwise and anti-clockwise, enabling the motor to adapt to different working requirements. The controller can be connected to an LED light(not included) and boasts five brightness adjustable options, making it suit for different working environments.

Two-way Fixing: It is fixed with four screws in two directions to make it more stable for better supporting the motor.

Ideal Gift: Its convenient operation and excellent workmanship make it an ideal gift for your friends, families, or colleagues to do their sewing work.

Customer Service:  We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Magnet Sleeve: It can fix the magnet without falling off, and can withstand high-speed rotation, high load, and reducing the probability of motor failure.

Needle Roller Bearing: It can reduce the wear of the shaft and sleeve so that it does not produce clearance for long-term use.

Shock Absorbing Pads: They can reduce motor vibration, reduce noise, reduce wear, and extend the lifespan of the motor and frame.

Application

It is suitable for any type of industrial sewing machine for light to heavy-duty work including straight stitch machines, overlocks, zigzag stitching machines, blindstitch machines, heavy-duty walking foot, and heavy-duty upholstery machine.

Notes

1.Please check the size carefully before ordering.
2.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
