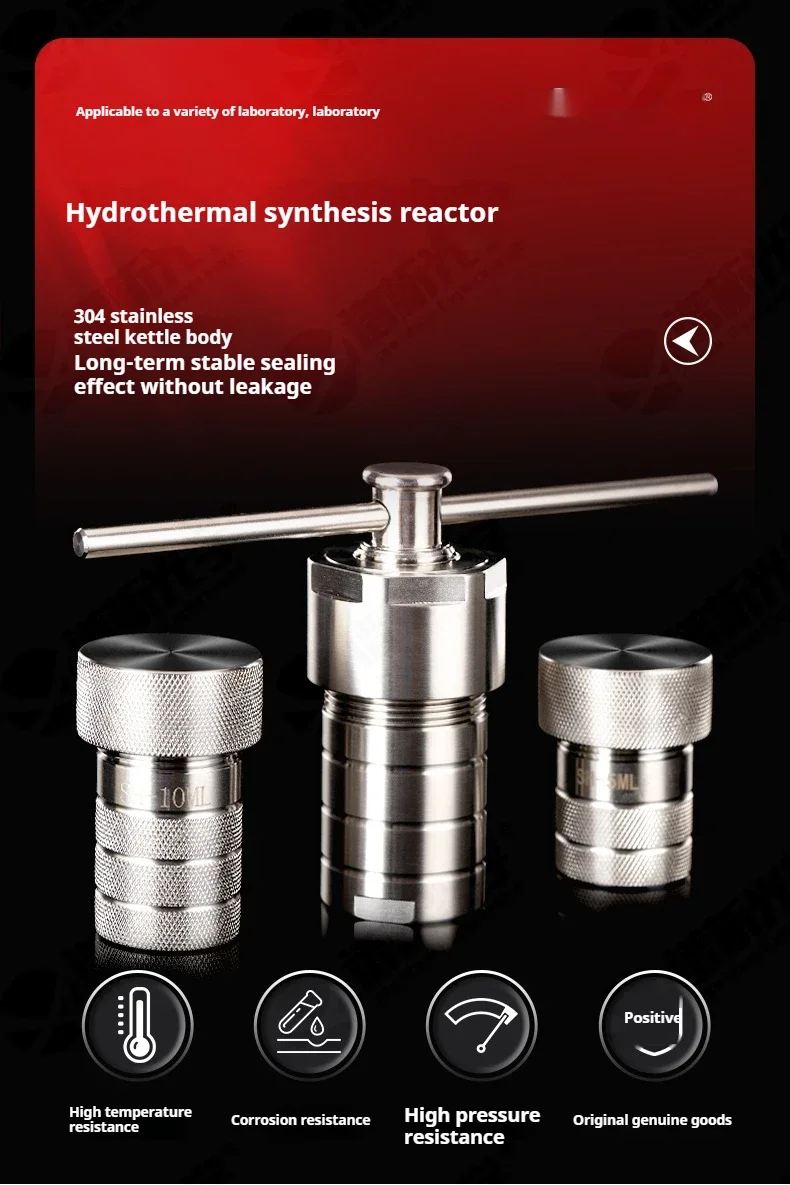

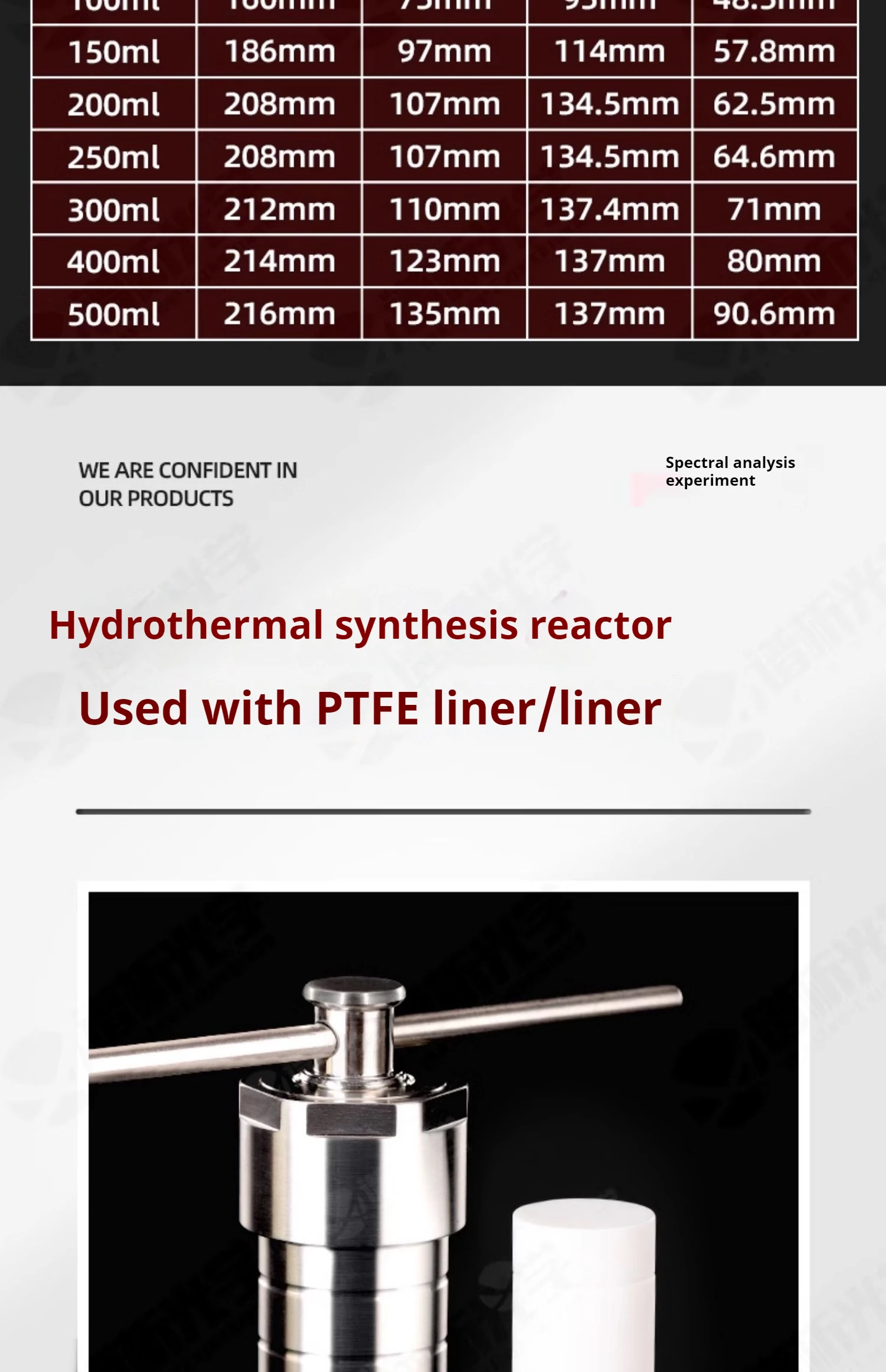

25ml PTFE Lined Hydrothermal Synthesis Autoclave Reactor 3Mpa 304 Steel High Pressure Hydrothermal Digestion Tank PTFE

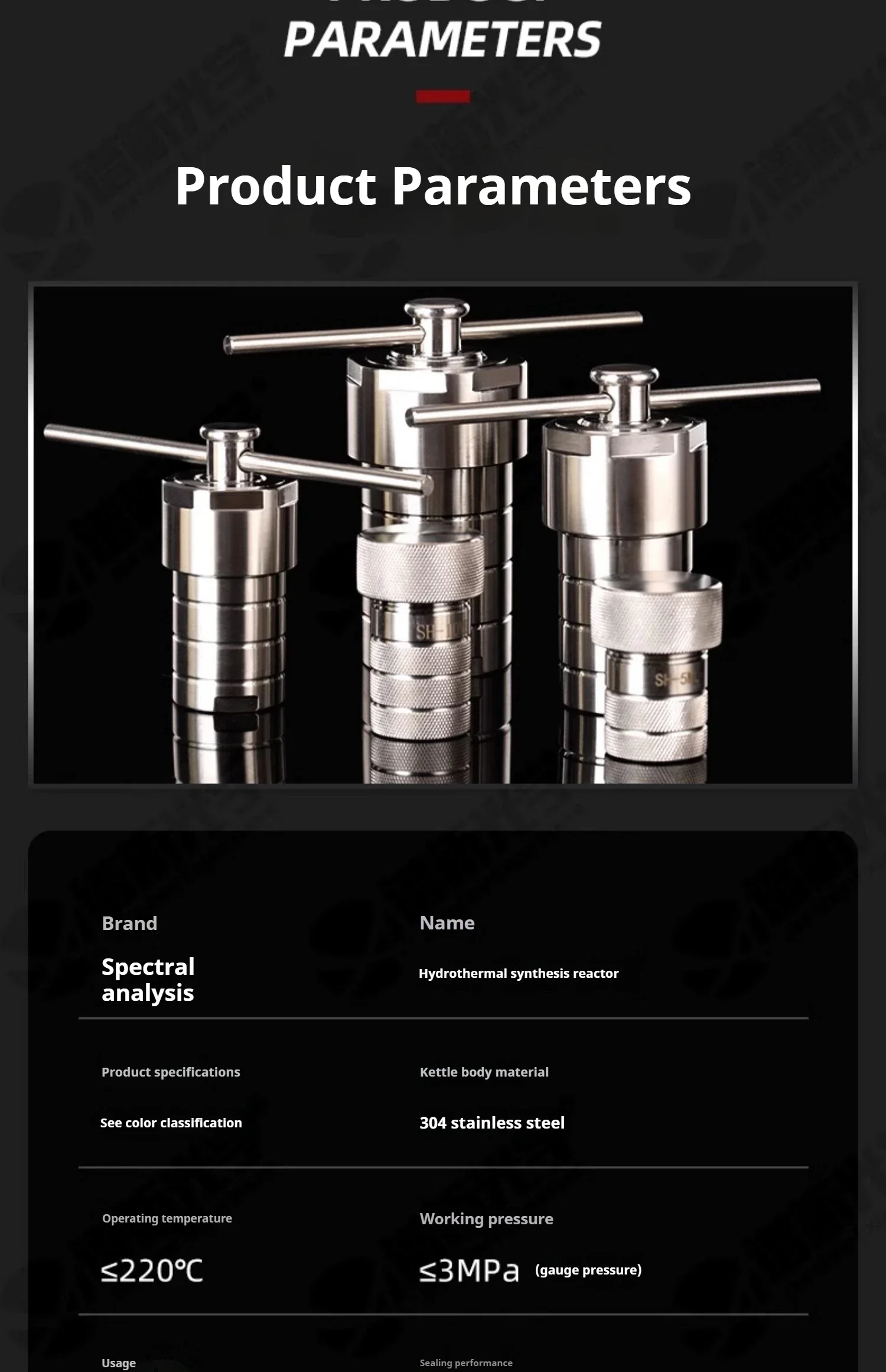

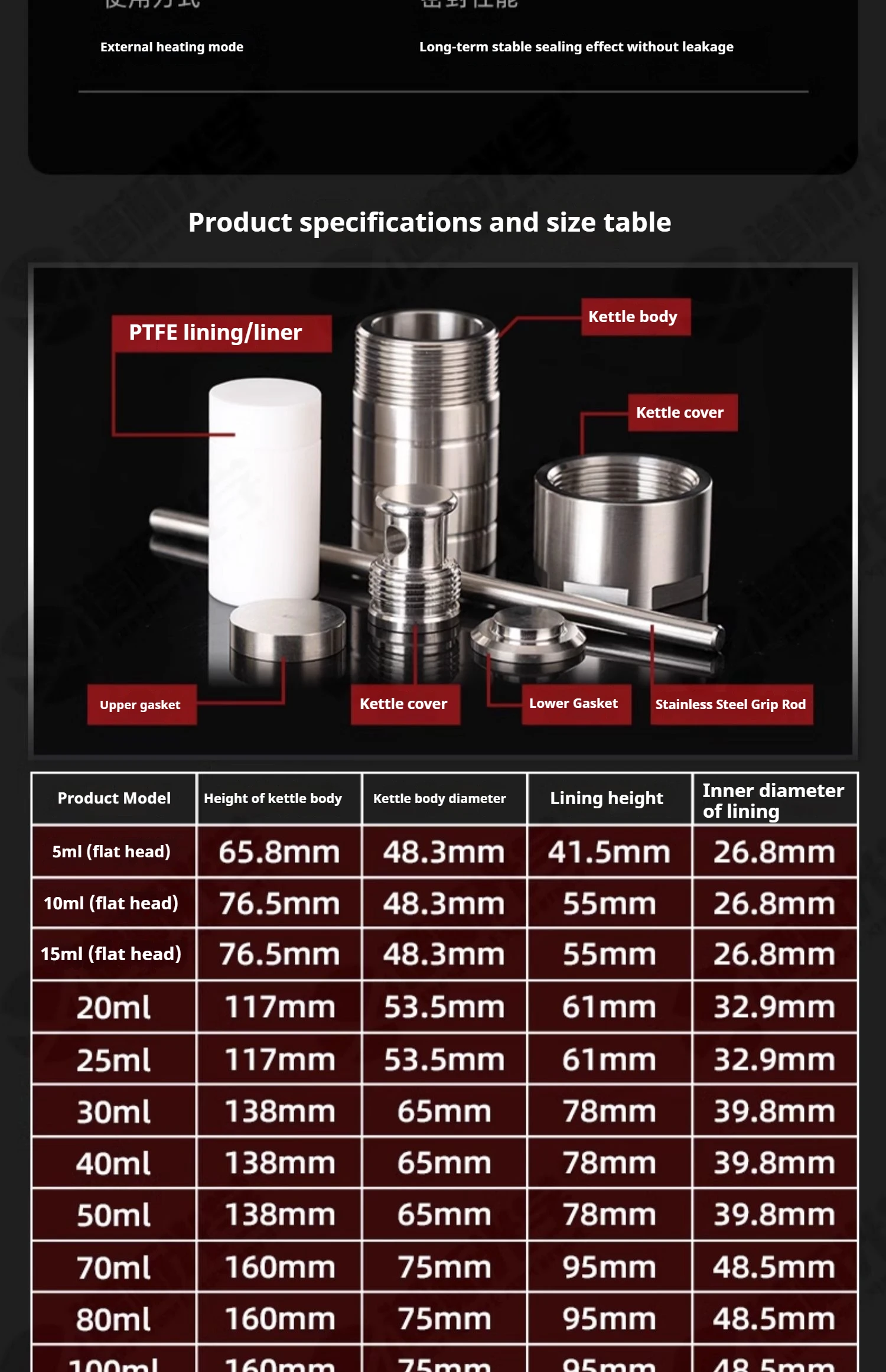

Specification:

Volume:25ml other customized according to user needs

Seal Structure: sealed by PTFE chamber

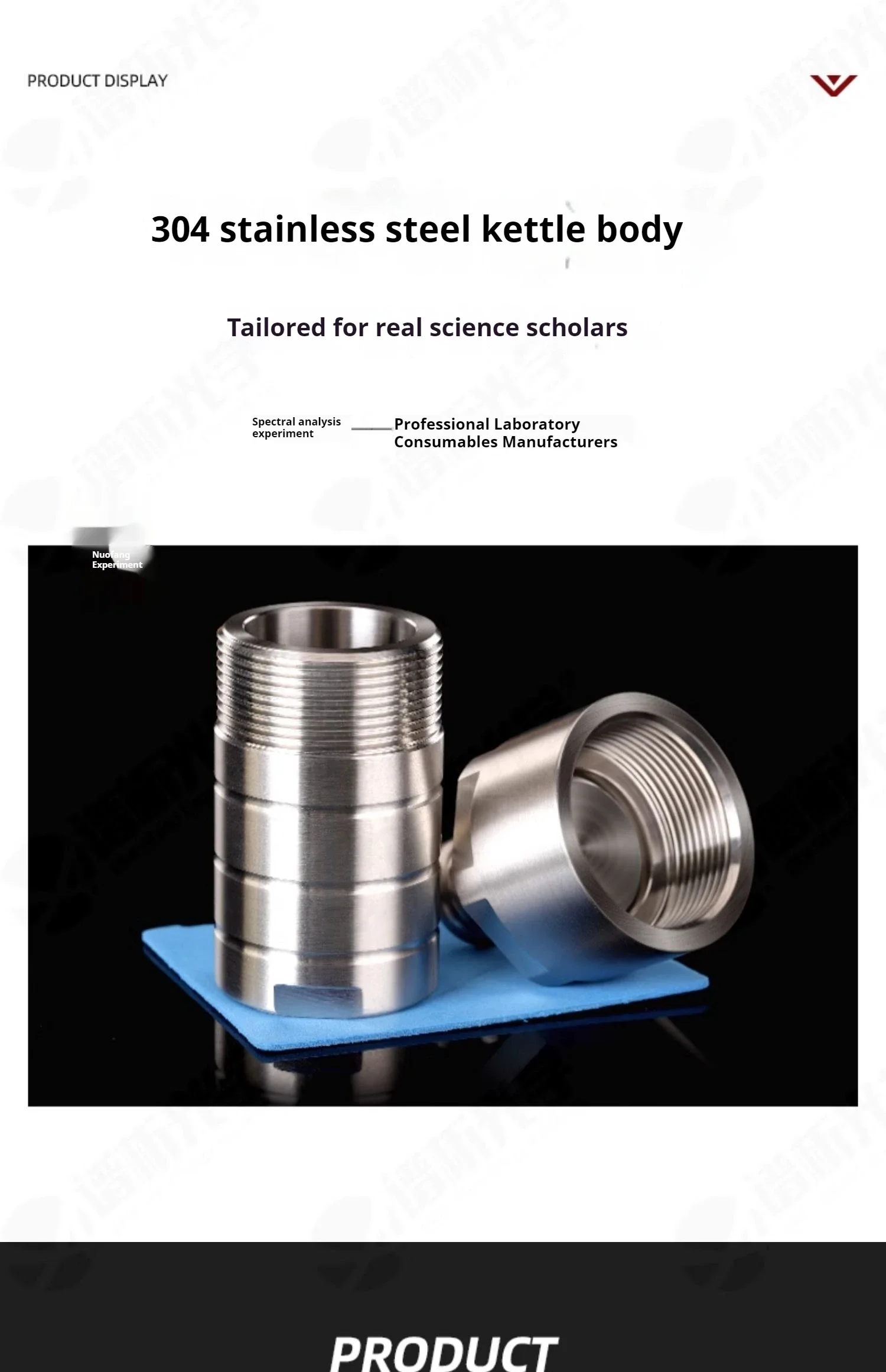

Shell Material: stainless steel 304

Chamber Material: high quality PTFE

Heating/ Cooling rate: 5c/min

Max temperature: 220℃

Max pressure: 3Mpa

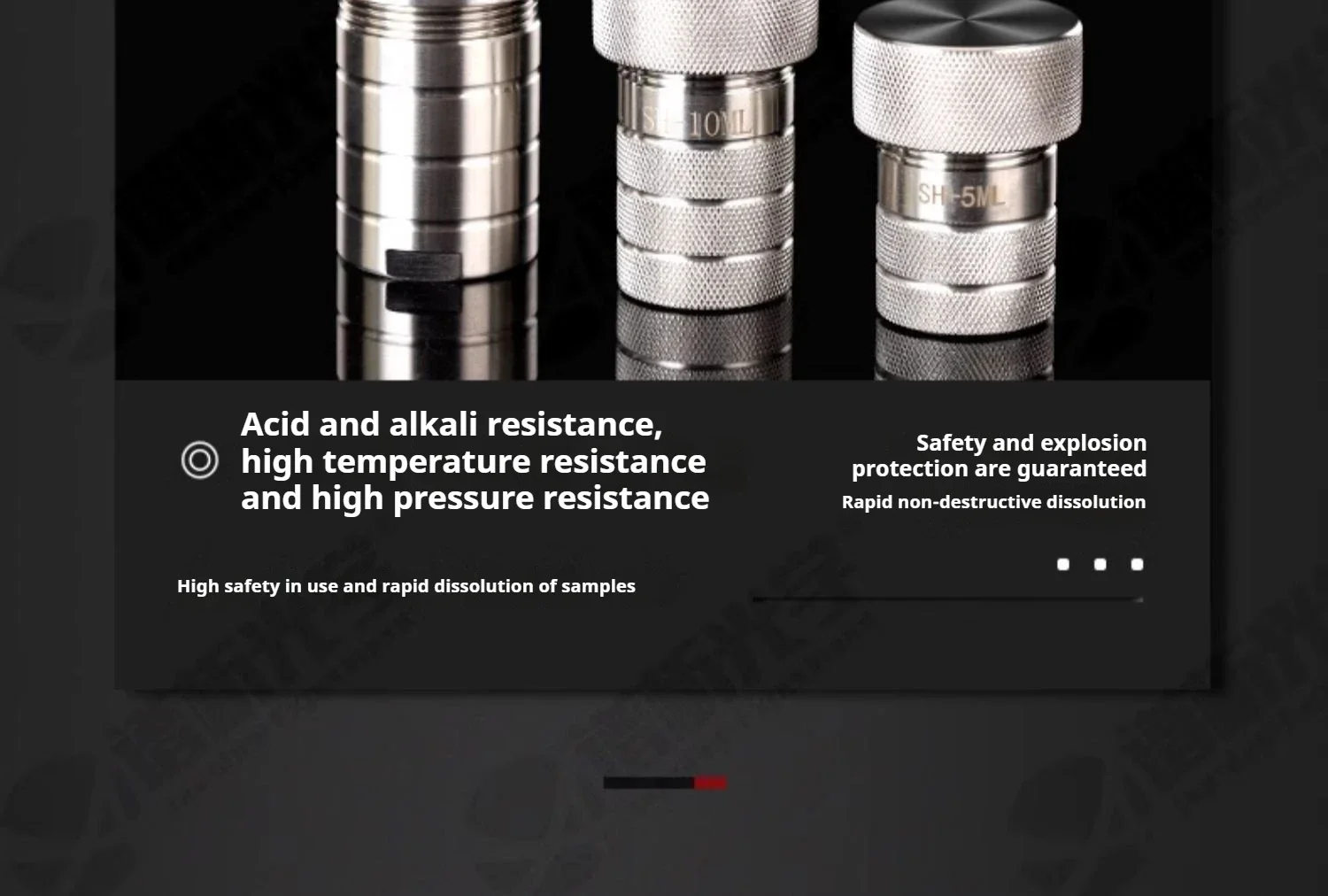

Feature:

1.Insulation, high lubrication.

2.No adhesion,;Anti-pollution, anti-leakage.

3.Good corrosion resistance, no harmful substances spill.

4.Pollution reducing, use safety.

4.With polytetrafluoroethylene bushing, acid and alkali resistant.

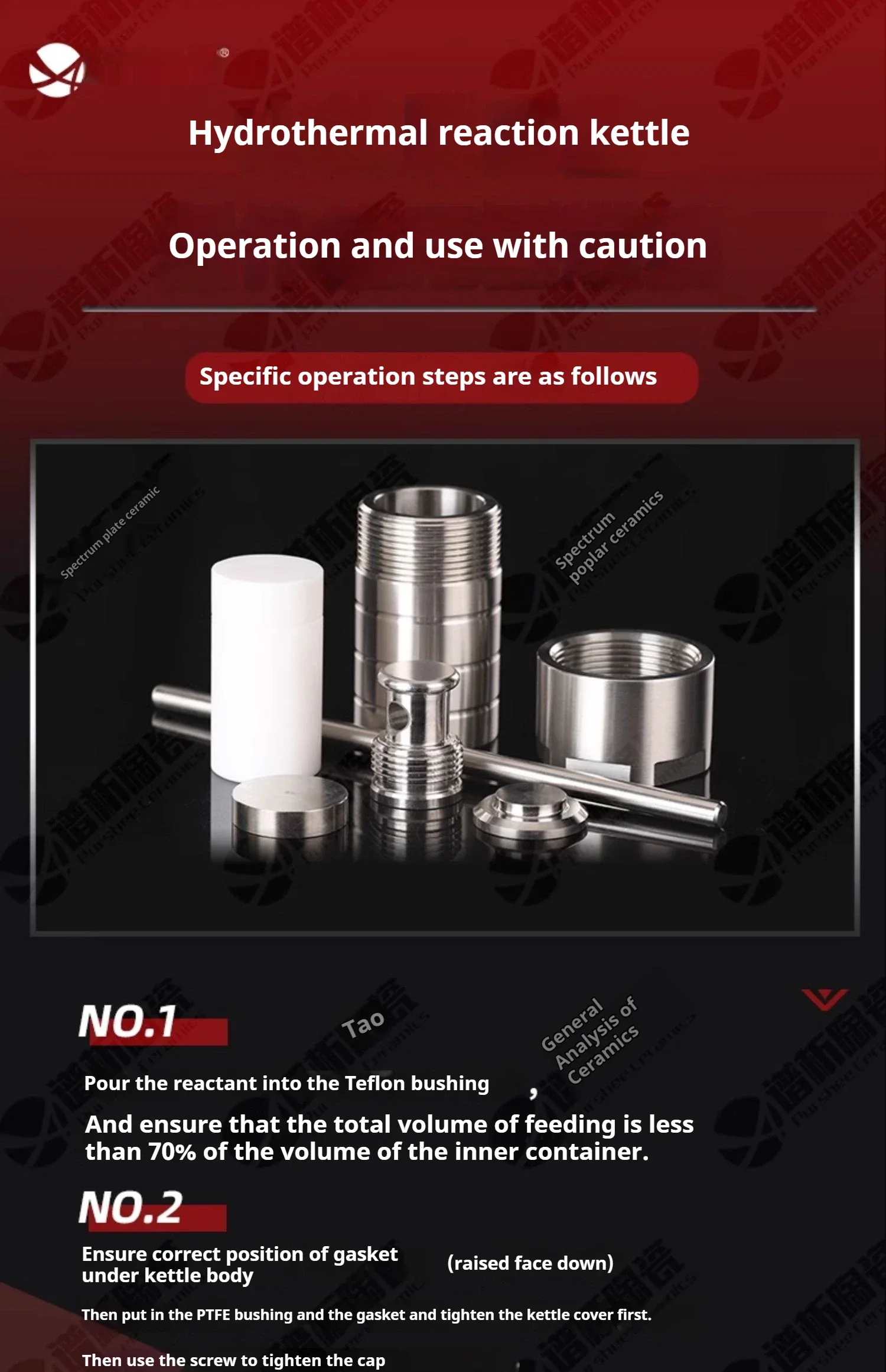

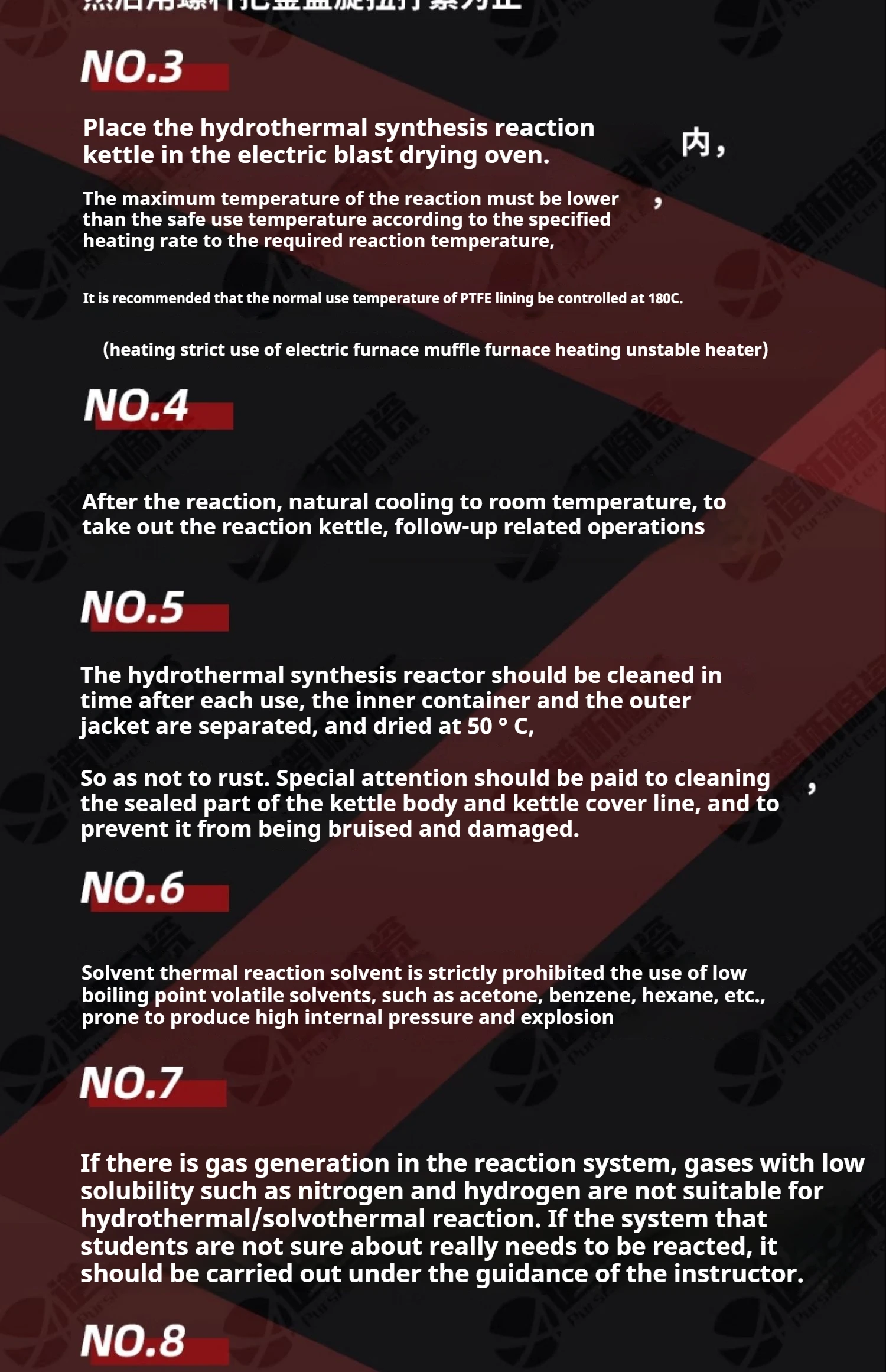

How to use it :

- Pour the reactant into the reactor kettle, and to ensure feeding coefficient is less than 0.8.

- You should put the corrosive reaction into PTFE bush, and should be assured kettle body from corrosion.

- Hydrothermal synthesis reactor will be placed on the heater, in accordance with the provisions of the heating rate of heating to the desired reaction temperature (less than the required safety temperature).

- When finishing heating and need to cool, it's also in strict accordance with the provisions of the cooling rate operation, to facilitate the safety and reactor life.

- After confirmation of intra-abdominal temperature below the boiling point solvents reaction system, it could be allowed to be open tank lid and do a follow-up operation.

- Hydrothermal synthesis reactor each time after use to clean, to avoid corrosion. Kettle body, kettle lid seal line to pay particular attention to clean and prevent damage to the bumps.
