550w Industrie Labor Vakuum Pumpe 220v 50hz Suitable For Gas Tightness Experiments, Surgical Vacuum Suction

Specification

Model: XHX550A2
Material: Aluminum Alloy, Rubber
Process: Paint Baking
Number of Items: 1
Motor Type: All Copper Motor
Assembly Required: Yes
Style: Modern
Color: Silver
Plug Type: EU Standard
Power Source: Corded Electric
Insulation Class: B
Capacitor: Red Line
Voltage: 220V 50Hz
Power: 550W
Noise: 45dB
Speed: 1400rpm
Thread: G1/4
Max. Pressure: 8bar
Max. Vacuum: -93Kpa
Air Flow Speed: 120L/126.8Qt/min
Ambient Temperature: 0-40°C/32-104°F
Overheating Protection: 135°C/275°F
Power Cable Length: About 35cm/13.78in

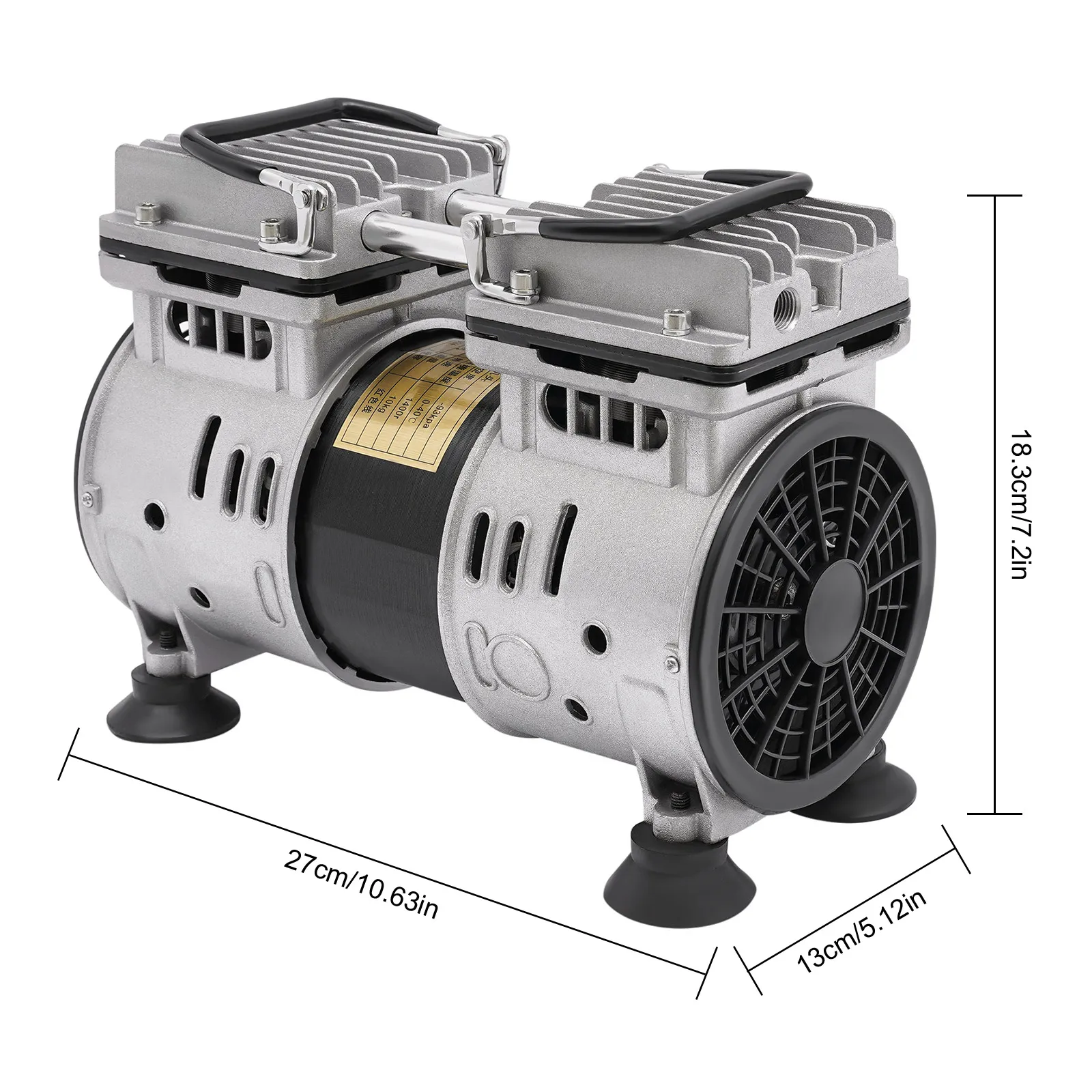

Product Size: 27*13*18.3cm/10.63*5.12*7.2in
Packing Size: 30*28*20cm/11.81*11.02*7.87in
Net Weight: 10kg/22 lbs
Gross Weight: 11kg/24.25 lbs

Key Features

Sturdy and Durable: It is made of high-quality aluminum alloy and adopts a paint baking process, which is robust, rust-proof, and corrosion-resistant, ensuring a long service life.

Excellent Heat Dissipation: The powerful cooling fan and multiple heat-sink holes on the machine effectively dissipate heat to ensure continuous work without overheating, thus extending its service life.

High Efficiency: It adopts a pure copper motor with 550W power, a high speed of 1400rpm, and low loss, which can greatly improve work efficiency.

Environmentally Friendly and Convenient: This oil-free vacuum pump can be operated without any media, making it environmentally friendly. It also eliminates the need for regular maintenance and frequent refueling, which is very time-saving and convenient.

Low Noise: All-copper motor, the external silencer, and the thickened wall ensure good noise reduction(45dB), equivalent to the sound of a normal conversation in everyday life, giving you a quieter and more comfortable working environment.

High Safety: It has overload protection and overheating protection. When the temperature reaches 275°F, it automatically cuts off the power supply to prevent the motor from burning out due to high-temperature operation. In addition, its insulation level reaches level B, ensuring safe use.

Thoughtful Design: The two comfortable handles on the top allow you to carry it with less effort. Its compact size(10.63*5.12*7.2in) will not occupy much countertop space.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Rubber Foot Pads: They help dampen vibrations, ensure stable running, and avoid scratching the countertop.

Precision Thread: Standard G1/4 thread ensures a sturdy connection and is not easy to fall off.

Application

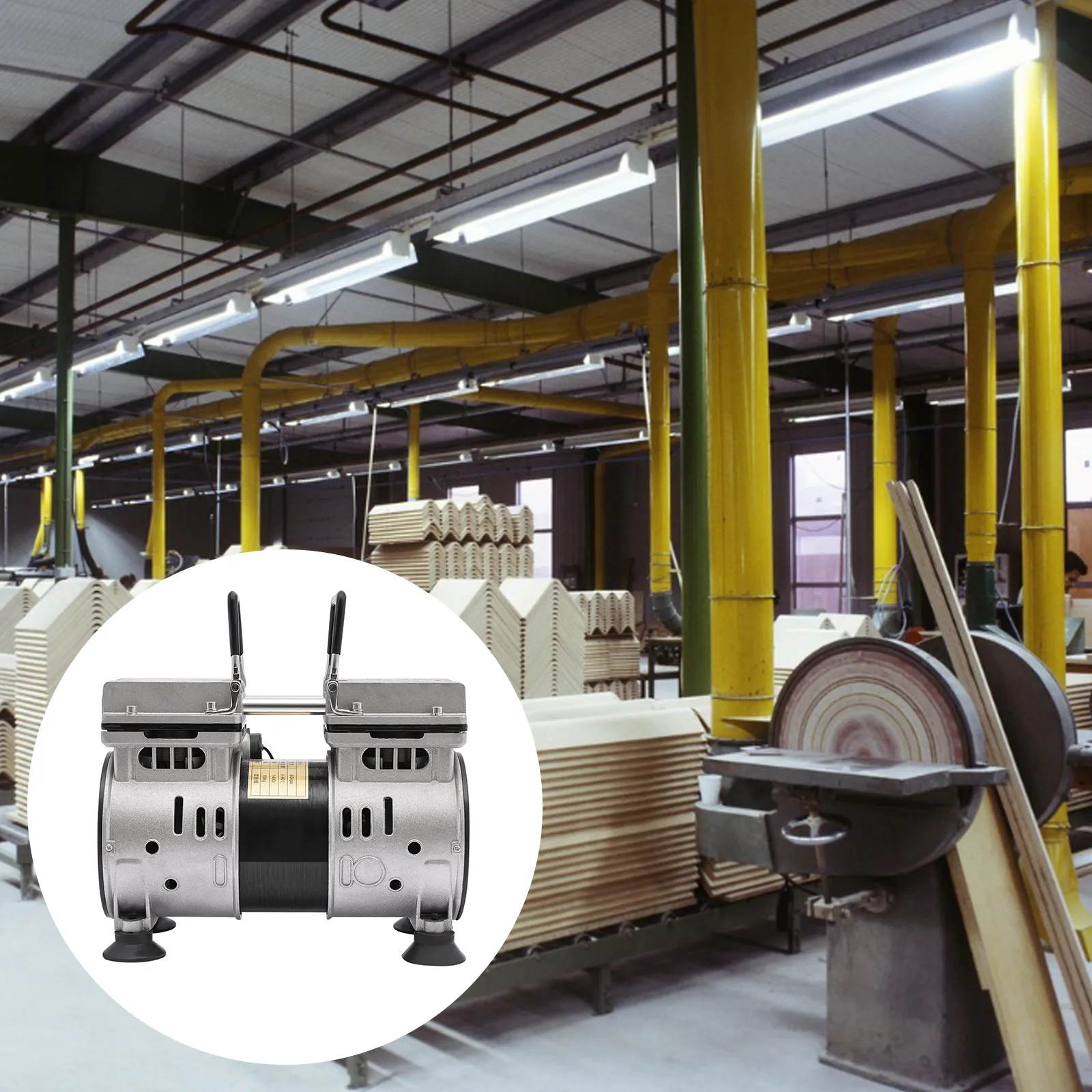

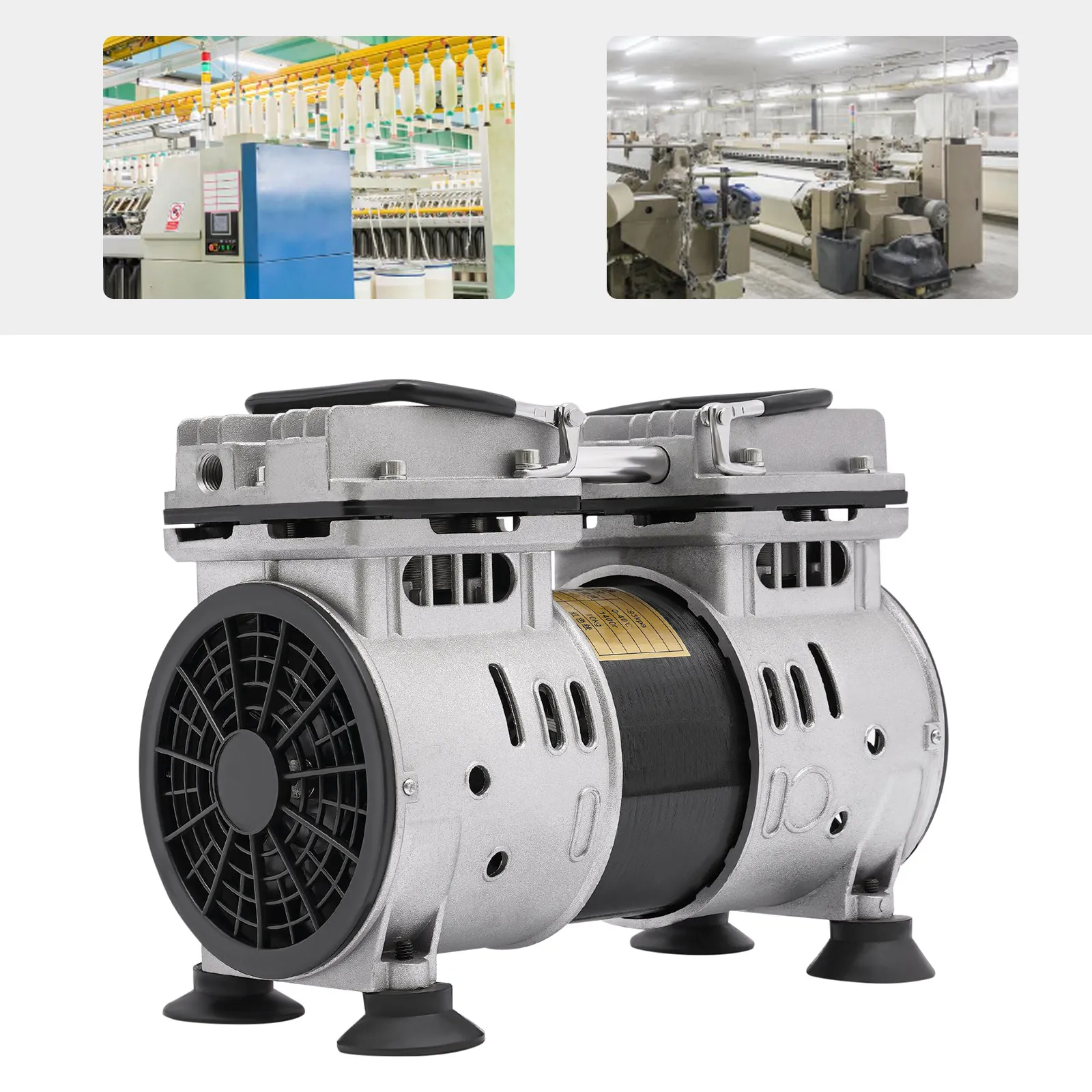

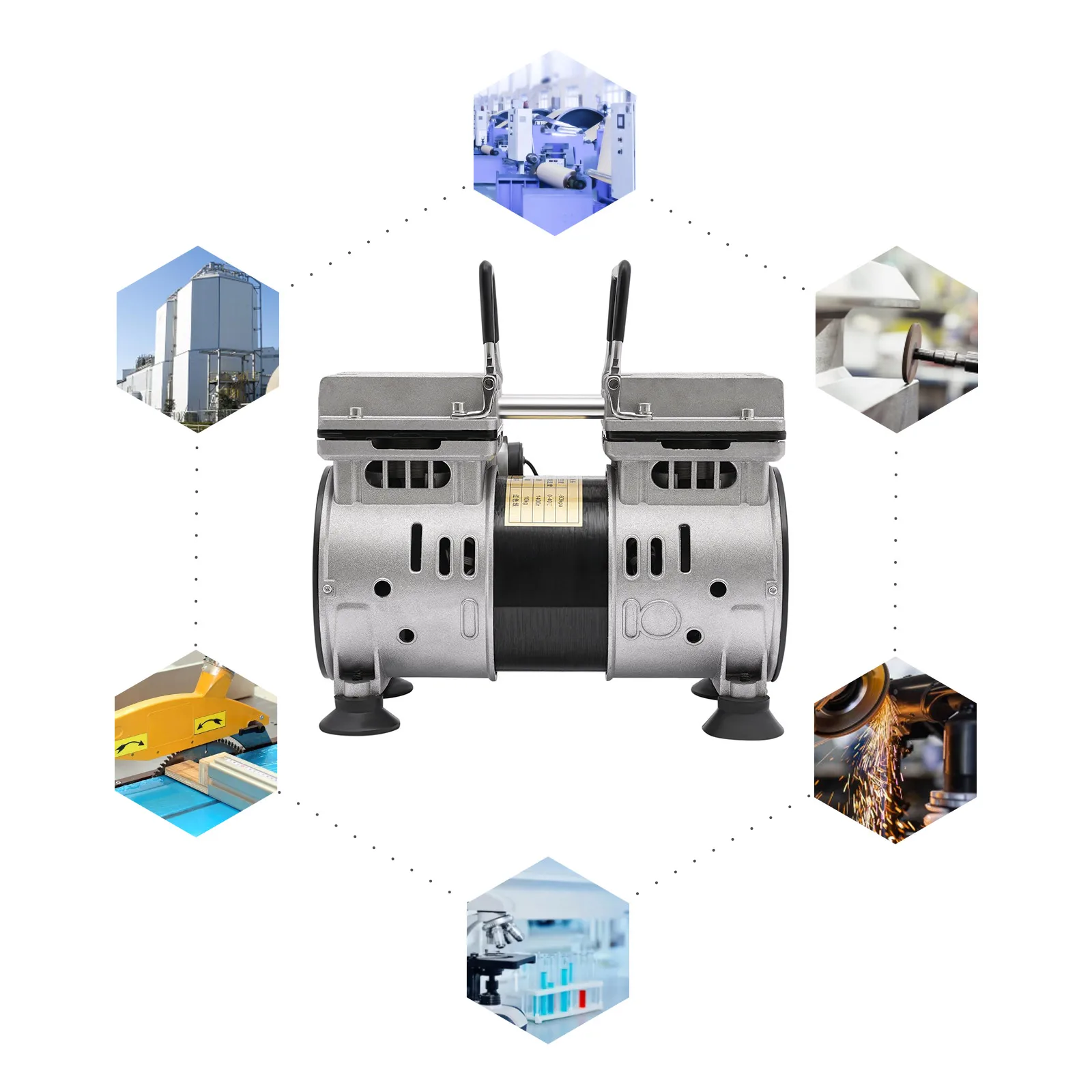

It is suitable for gas tightness experiments, surgical vacuum suction, food processing, medical machinery, laboratory, beauty equipment, medical, vacuum molding, plastics, hydraulic presses, food packaging and processing, hospital negative pressure systems, environmental protection industries, electronics industries, laboratories, chemical industries, central vacuum systems, printing industries, vacuum defoaming, and vacuum adsorption.

Package Included

1 x Oil-free Vacuum Pump
1 x Silencer

Notes

1.This item does not include a filter or pressure-regulating valve.
2.Please do not use it to pump liquid, alcohol, or oil.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
