SucceBuy Metal Lathe 220 x 600MM 750W Infinitely Variable Speed Mini Lathe Machine LED Screen for Counter Face Turning Driling

Product Description

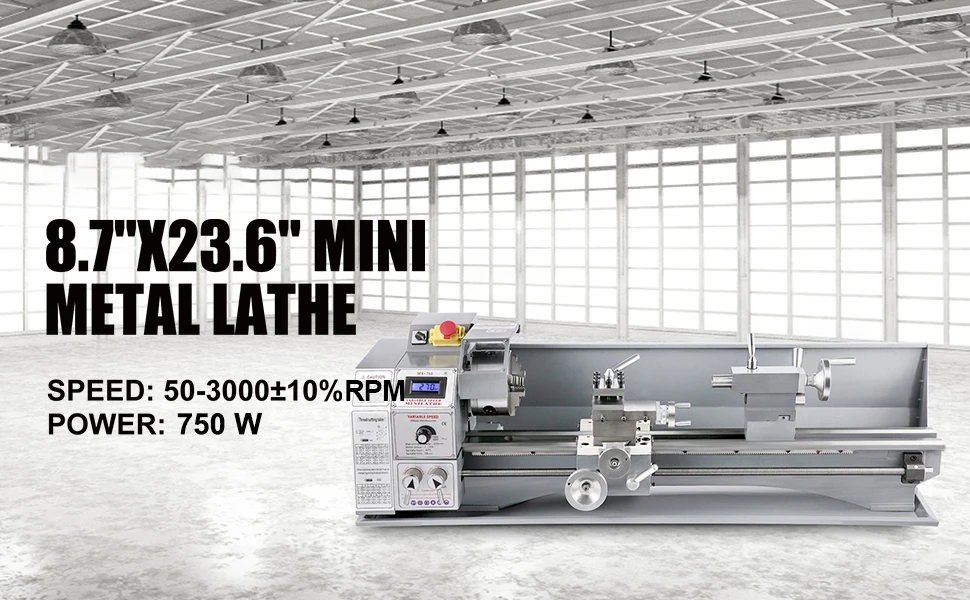

8.7" x 23.6" Metal Lathe Mini Lathe

High Precision & High Flexible & Easy Operation

The 220 x 600 mm precision metal mini lathe features 750W motor, a 3-jaw chuck, a MT5 spindle taper, a MT2 tailstock taper, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 500-3000±10% Rpm spindle speed is continuously adjustable. Steady rest and follow rest for large size or/and heavy workpieces

Variable Speed Design

600 mm Large Swing Range

Professional Compound Rest

Supportive & Protective

Accurate Tailstock

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose SucceBuy?

Premium Tough Quality

Incredibly Low Prices

Fast & Secure Delivery

30-Day Free Returns

24/7 Attentive Service

Key Features

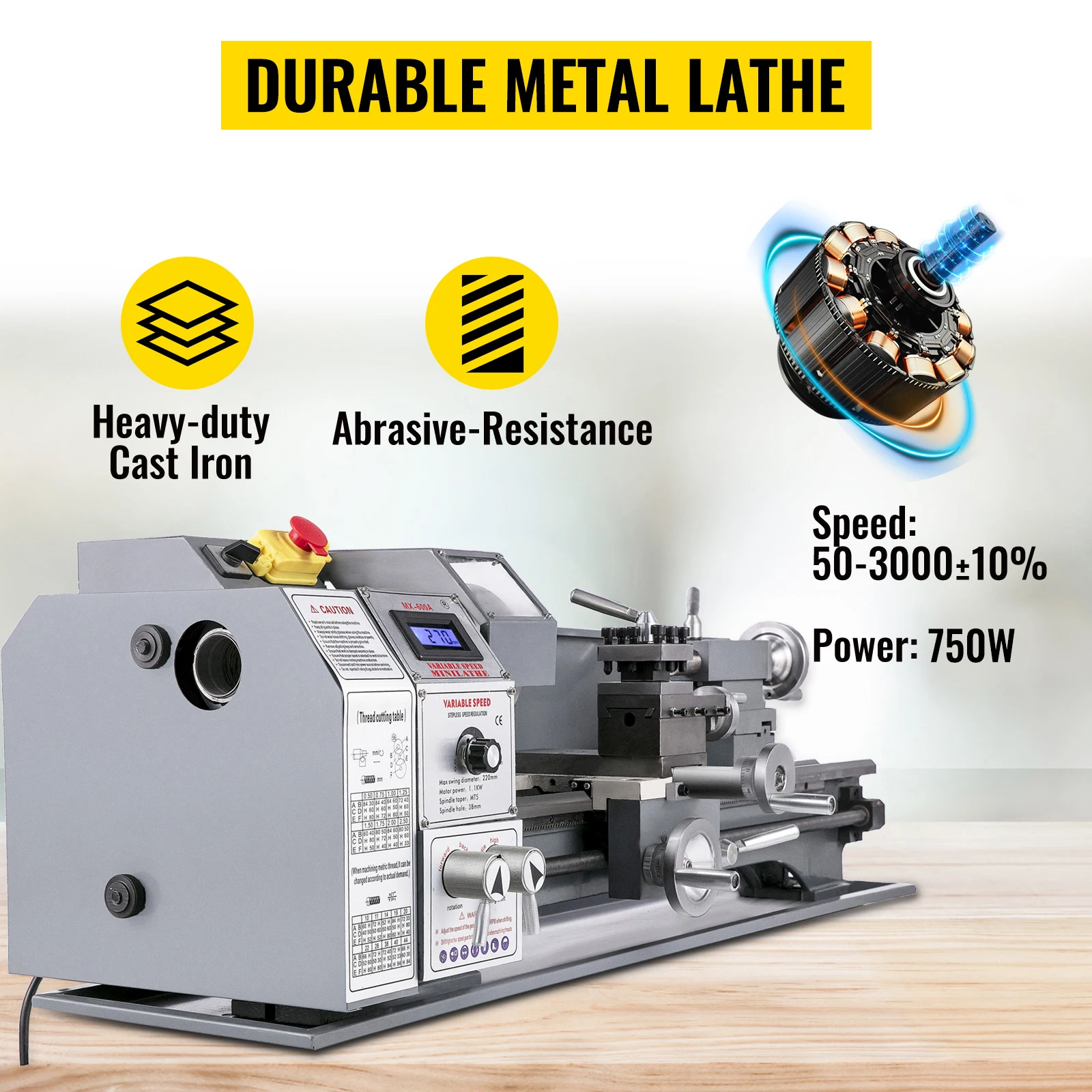

Durable Metal Lathe

The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.

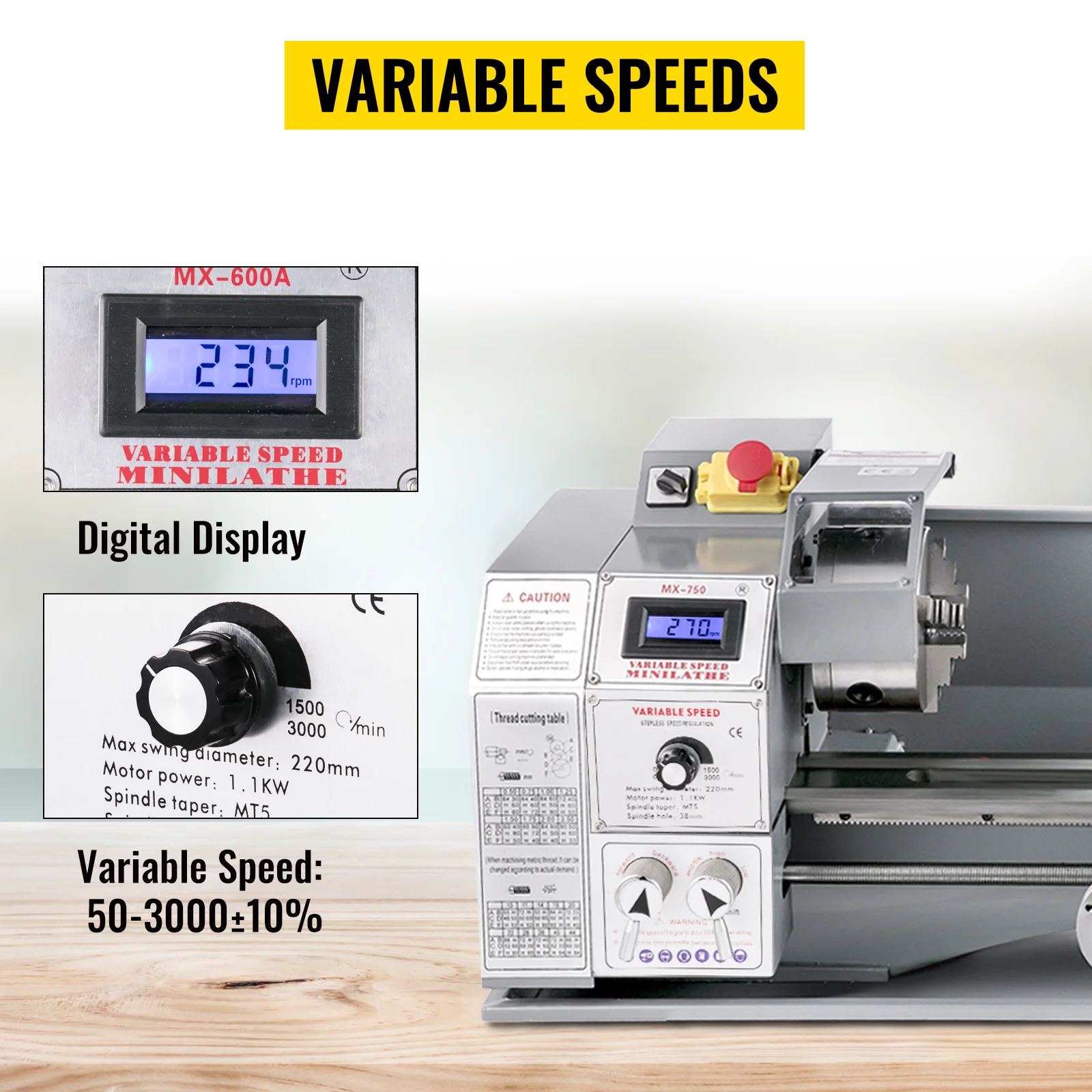

Variable Speeds

Brushless Motor Power: 750W, Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.

Effortless to Use

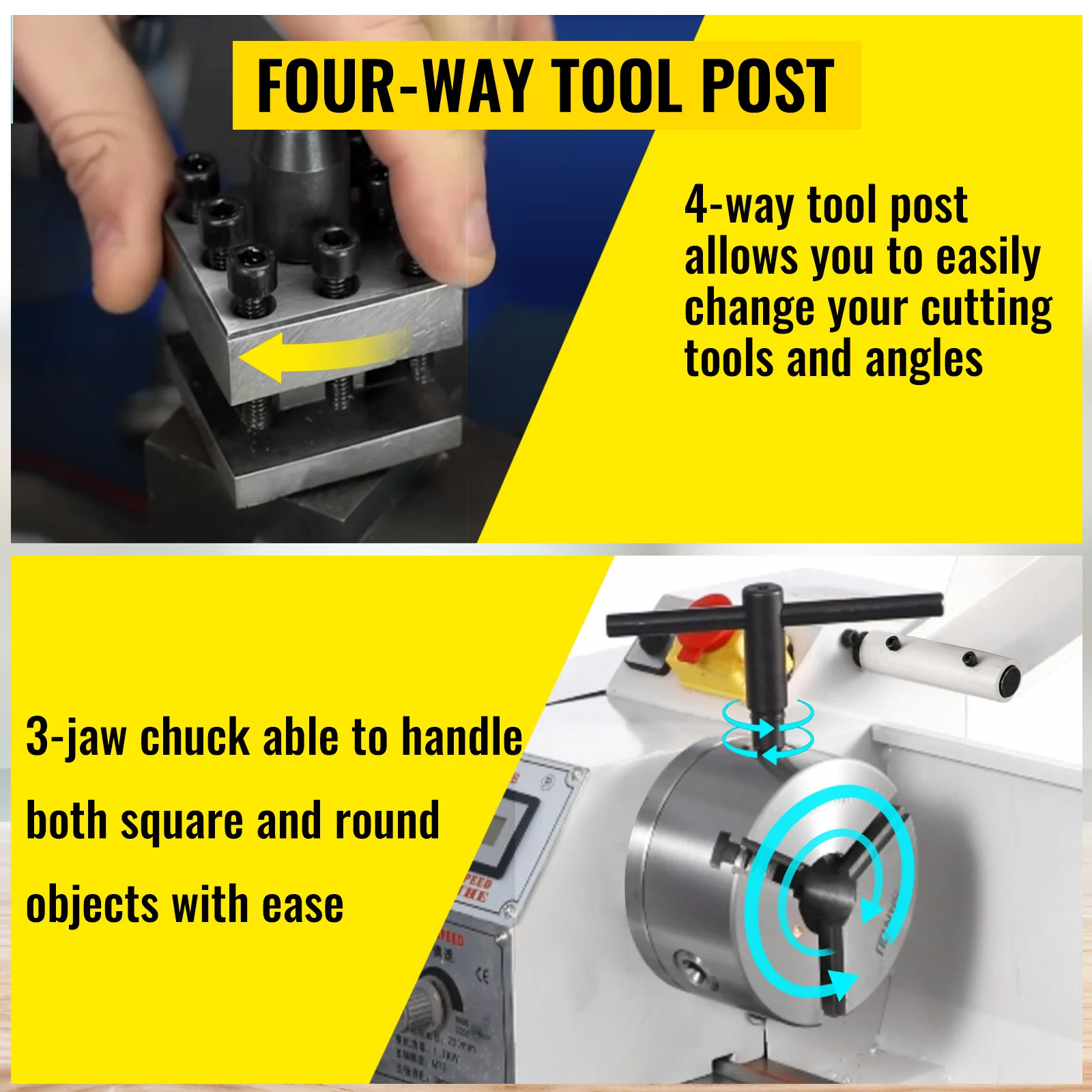

The mini lathe bears a 3-jaw chuck and a 1.5" / 38 mm spindle bore. It is widely used where precise machining is required. The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools.

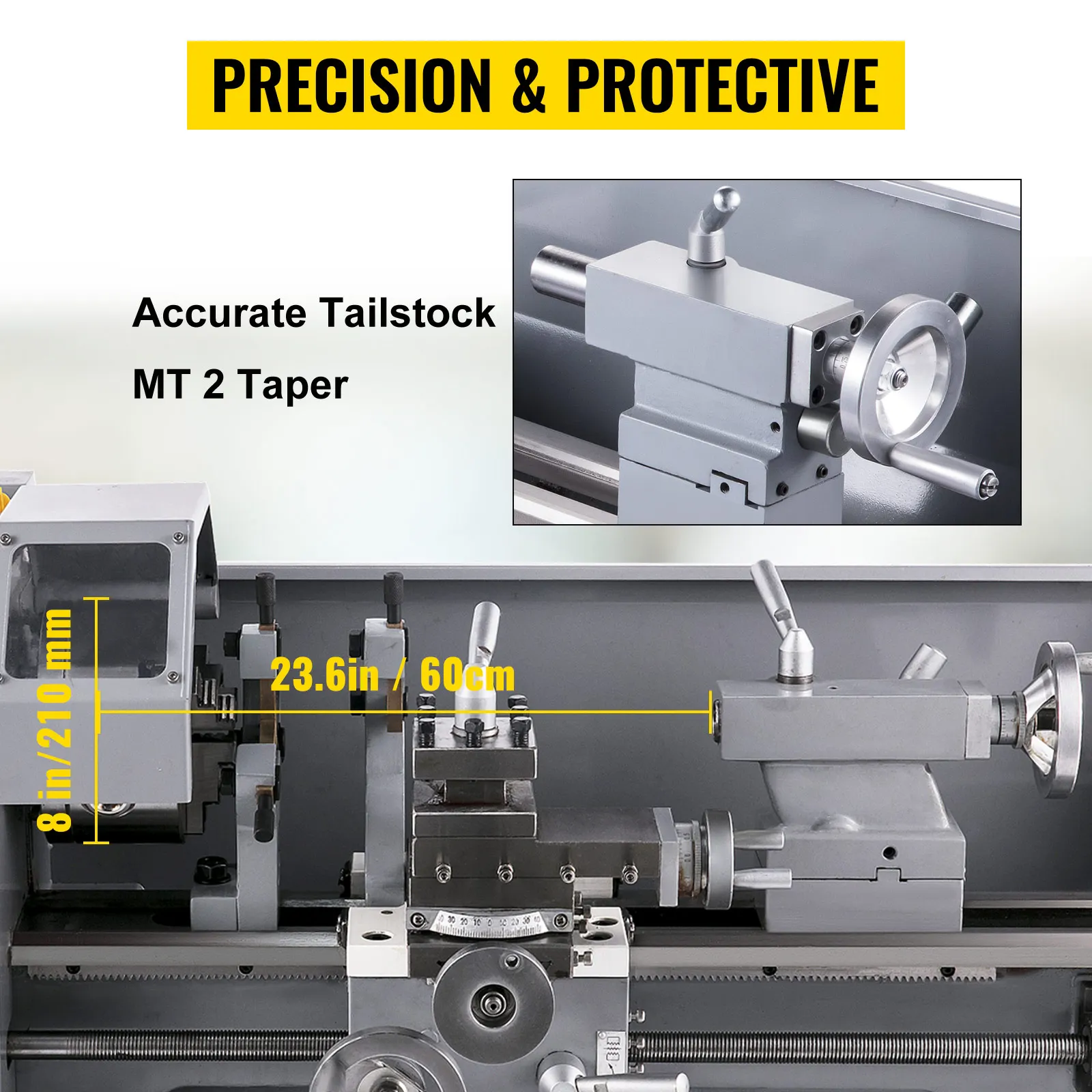

Precision & Protective

The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are going to process. Make your work safer and more stable.

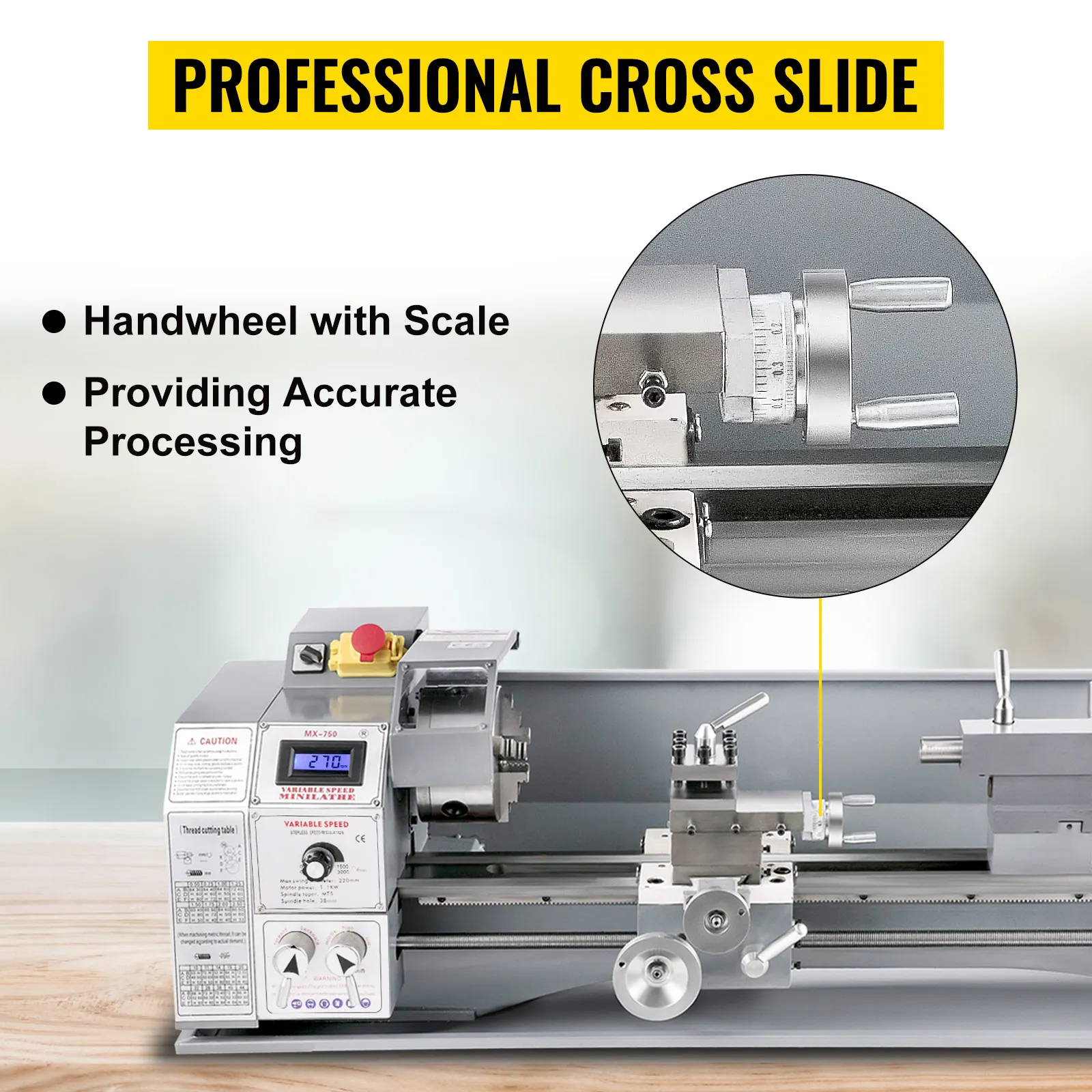

Professional Cross Slide

Designed with abrasive resistance, moving blades freely with feed rod. 8-44 T.P.I reversible lead screw. The v-slideways with distance between center: 23.6" / 600 mm. A lamp is for accurate operation in a dark environment.

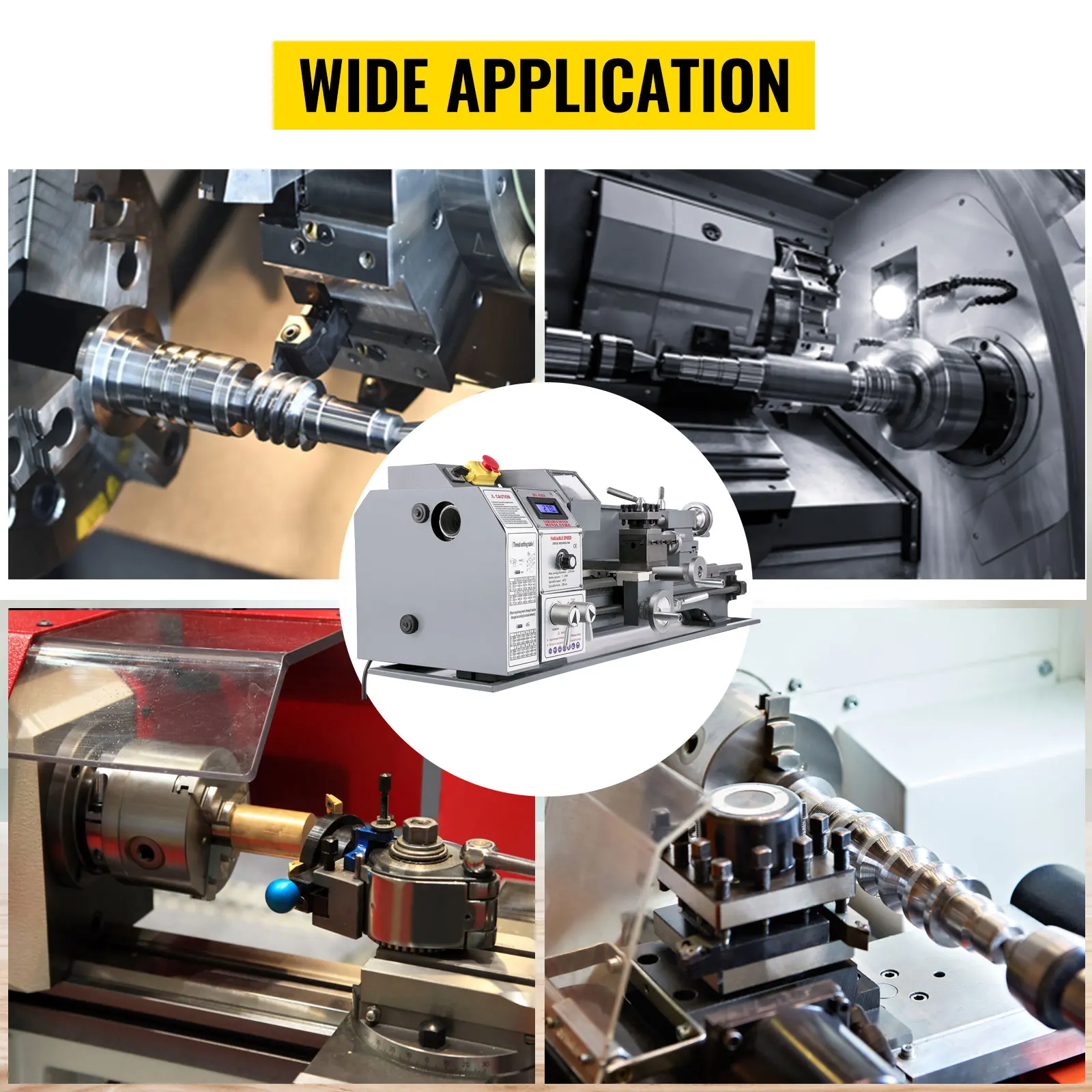

Wide Application

Suitable for processing jobs, like counter face turning, drilling, threading and cutting jobs on materials made up of round bar. All accessories are well-packed.

Specifications

Power: 750W
Motor Type: Brushless
Volt: 220V 50Hz
Phase: Single Phase
Swing Over Bed: 8.7" / 220 mm
Distance Between Centers: 23.6" / 600 mm
3-Jaw Chuck Diameter: 4.9" / 125 mm
Hole Through Spindle: 1.5" / 38 mm
Variable Speed(Rpm): 50-3000±10%
Taper of Spindle: MT#5
Taper of Tailstock: MT#2
Spindle Accuracy: 0.01 mm
Range of Imperial Threads: 8-44 T.P.I
Range of Longitudinal Feed: 0.02" - 0.1" / 0.5 - 3 mm
Gear Material: Metal
Item Weight: 183 lbs / 83 kg

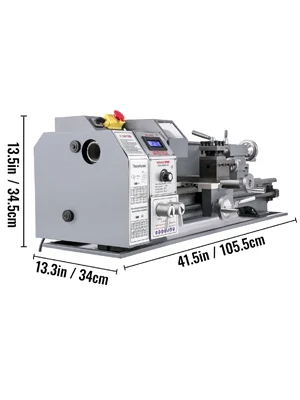

Item Dimension: 41.5 × 13.3 × 13.5 in / 105.5 × 34 × 34.5 cm

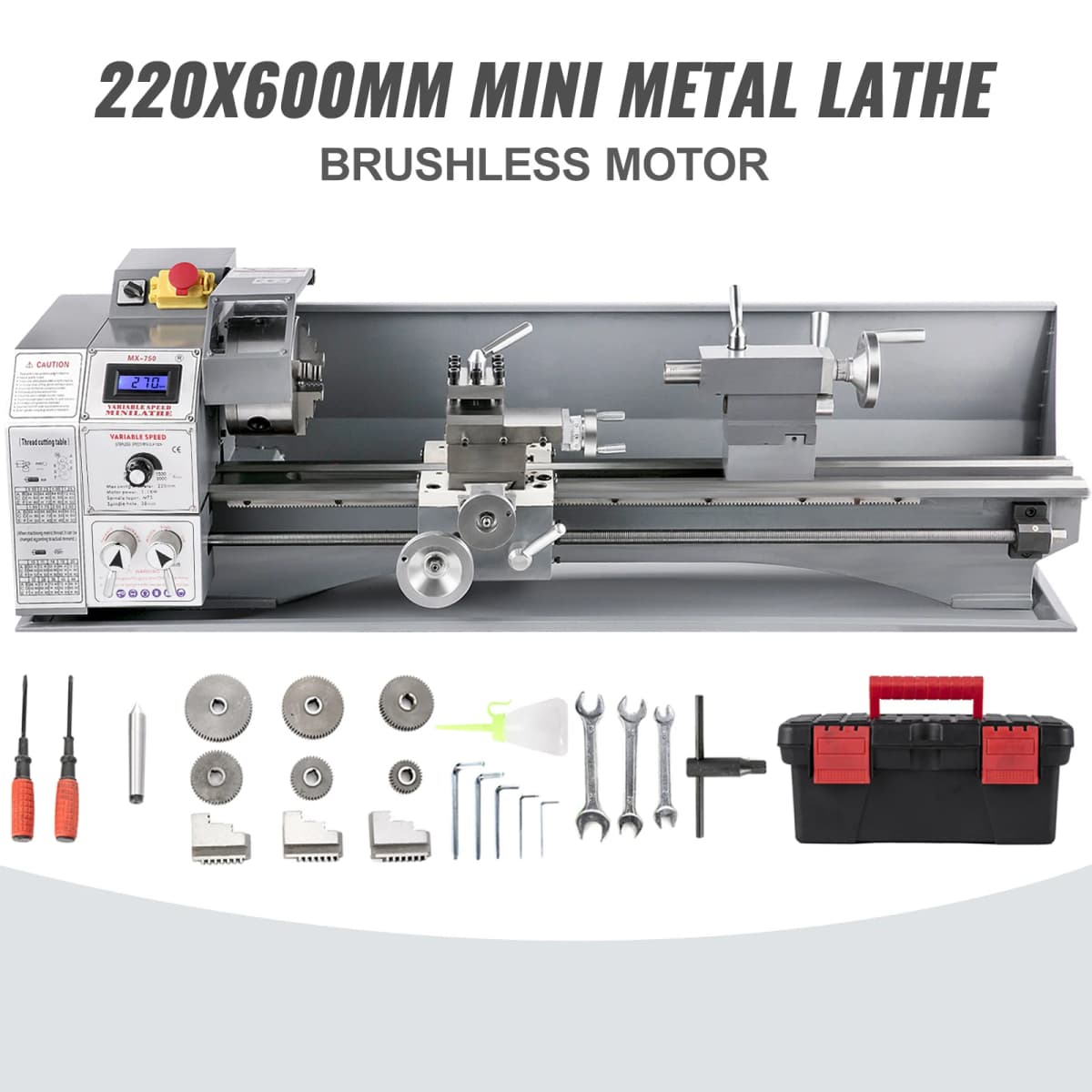

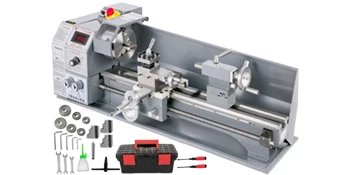

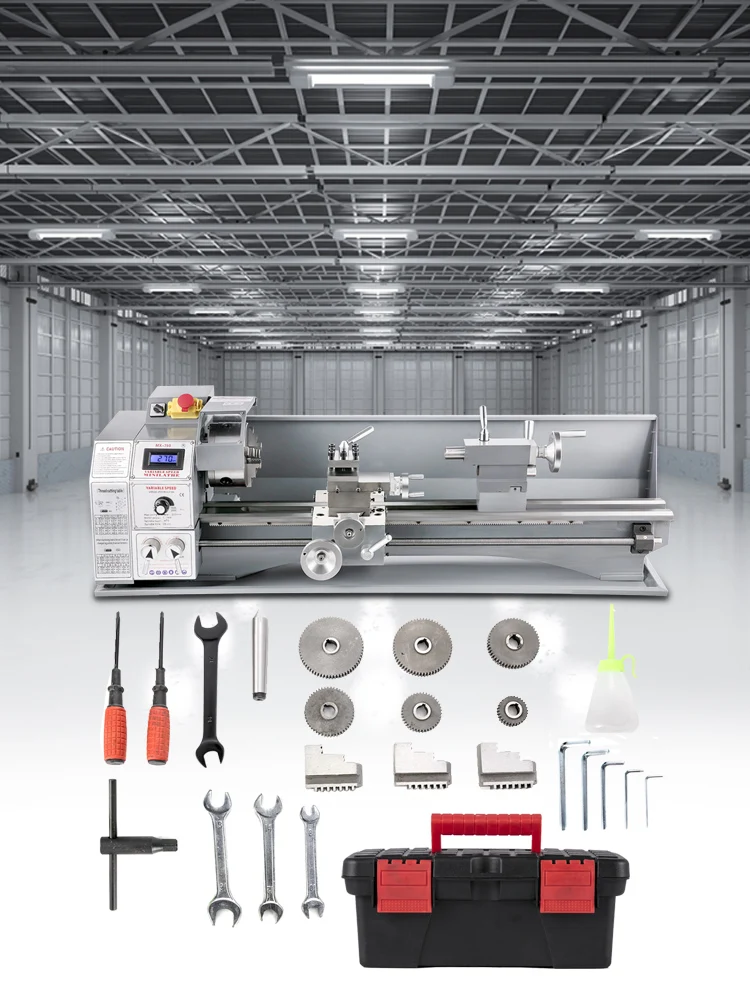

Package Content

1 x Metal Lathe
1 x Tool Rest
5 x Hex Wrench
1 x Dead Center MT2
1 x Oil Gun
3 x Jaw
5 x Gear
1 x Instruction Manual
2 x Screwdriver
1 x Accessory Kit
1 x Chuck Wrench
3 x Wrench
3 x Chuck Jaw

Features & Details

Infinitely Variable Speed: The mini metal lathe is driven by brushless motor with Power: 750W. Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spindle rotation. Operate either manually or with the adjustable auto feed rate.

600 mm Large Swing Range: The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125 mm. Swing Over Bed: 8.7"/220 mm and Swing Over Cross Slide: 23.6"/600 mm offers more possibilities for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8-44 T.P.I.

Professional Compound Rest: The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw can be reversed in three speeds by turning the two handles under the variable speed rotary button.

Supportive & Protective: Steady rest works as an end support, ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included. It features a digital screen clearly showing the rotational speed, ensuring precise and smooth operation.

Adjustable Tailstock: Taper in Tailstock Spindle: MT2. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
