220V 250W/500W Submersible Deep Well Pump Screw Pump Sand Compatible Stainless Steel Garden Farm Pump For Supplying Water

Key feature

✅bust and durable: The product is made of high quality 304 stainless steel, with polishing technique, with high strength, wear resistance, excellent waterproof properties and long service life.

✅High efficiency: The 250-W full copper motor pumps the water quickly at 2.850 rpm, which allows you to pump up to 262.47 ft groundwater in a short time and increase your productivity.

✅Safe and reliable: IP68 waterproof rating and automatic pump stop to protect against overheating prevent damage to the machine in case of overheating, thus contributing to a longer service life.

✅Good sealing performance: The standard thread and integrated structure ensure excellent sealing performance, so that the machine can work efficiently and quietly.

✅Excellent performance: It features a high-performance thermoplastic impeller that offers a high flow (422.68 g/h) and a large flow height (262.47 ft). The fixed rotor is made of strip steel with high silicon content and high dimensional accuracy. The built-in check valve, stainless steel sieve and sealed bearing effectively retain and filter out impurities so you don't have to worry.

✅Sophisticated design: This product is designed to suck from below, maximizing fluid absorption and eliminating the need for an intake sleeve.

✅Quiet operation: Thanks to the high-quality motor, this product works with a low noise level of 20dB (equivalent to a whisper) and gives you a quiet working environment.

✅Easy to operate: Thanks to the simple structure, you can operate this machine easily. You only need to place the deep pump in the well and then connect the plug to pump out the water.

✅Customer care: Our goal is to provide high quality products and services. If you have any questions, please do not hesitate to contact us. We will reply as soon as possible and solve the problem for you.

Details

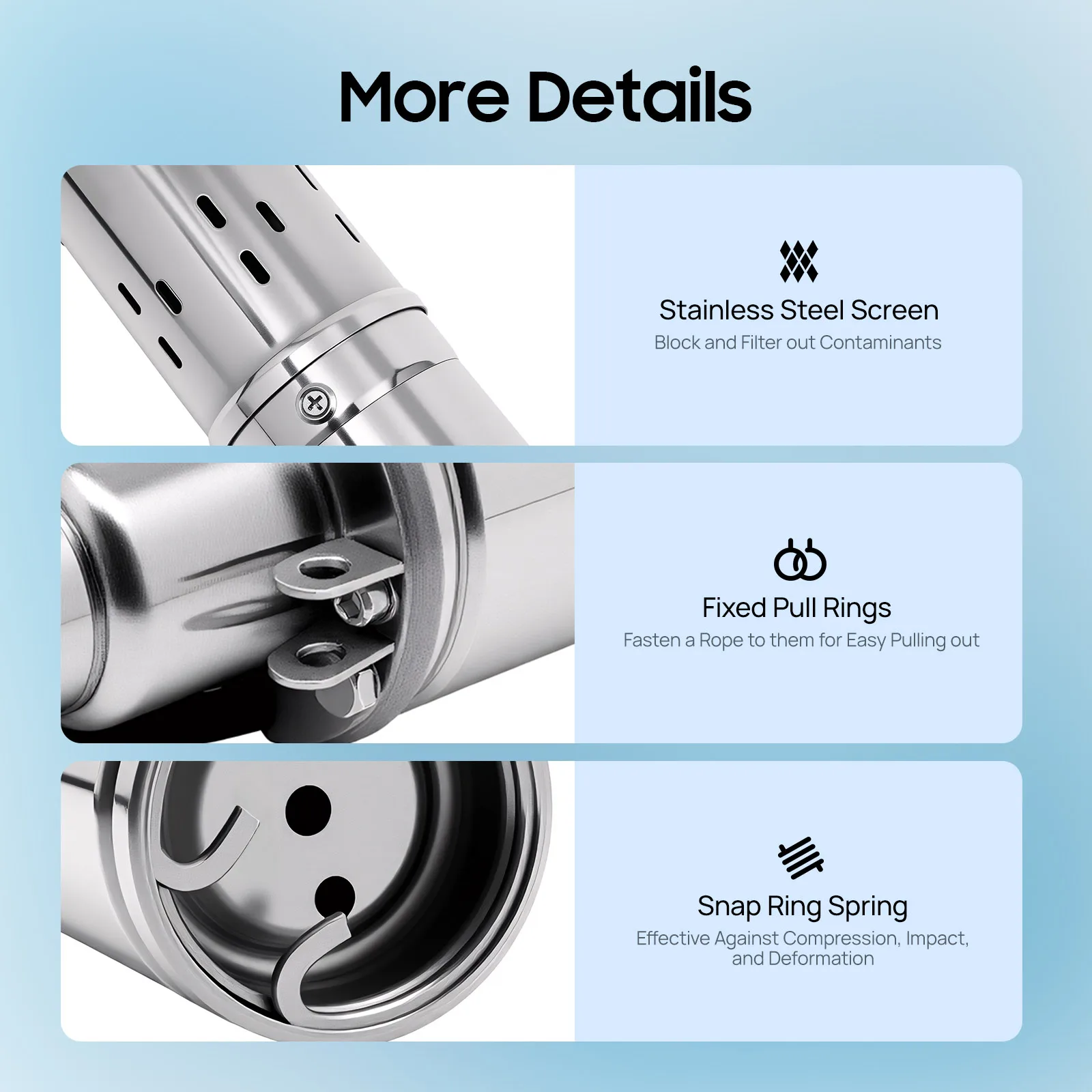

Fixed drawrings: The two pairs of fixed drawrings near the water outlet allow you to attach a rope to it to easily pull it out after use.

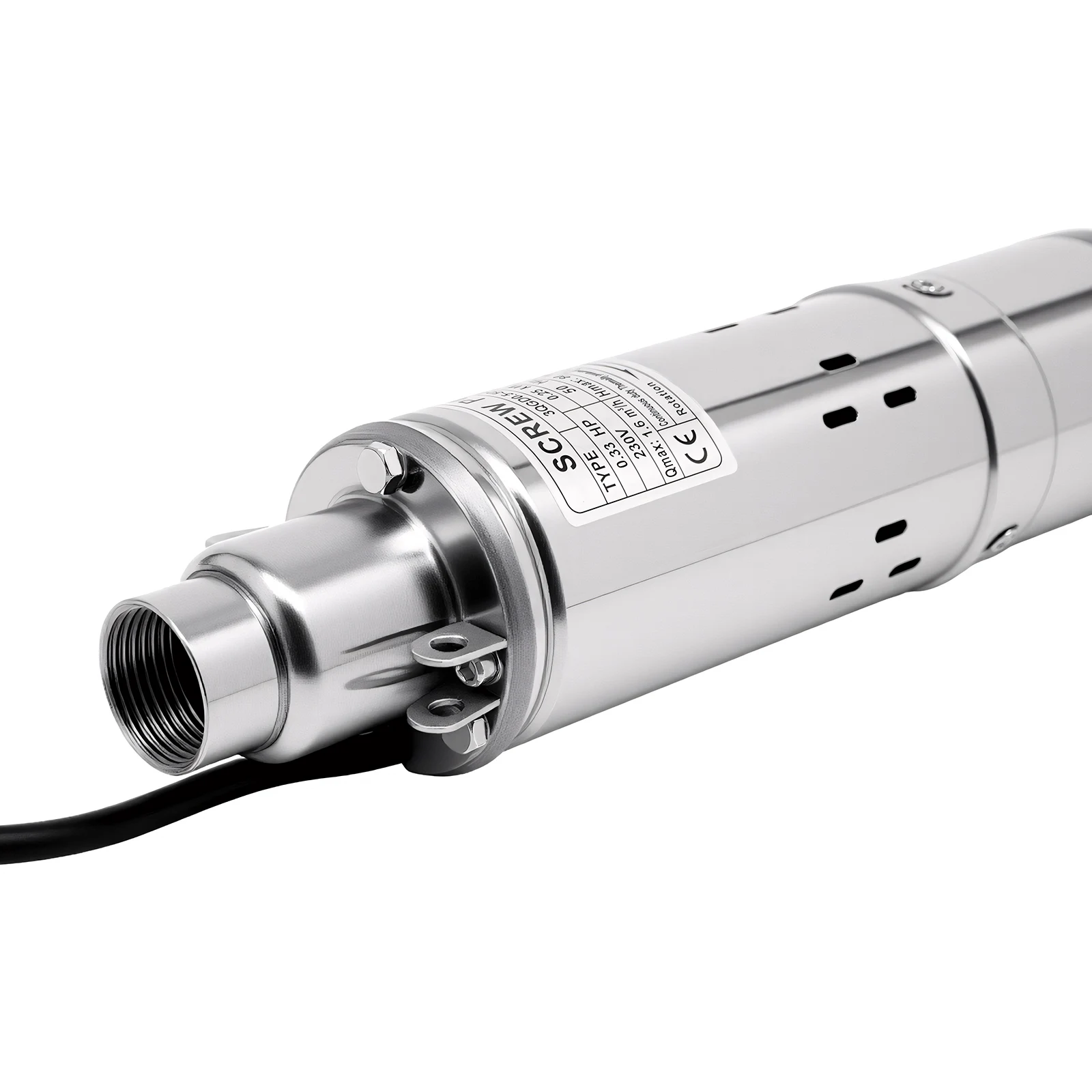

Pagoda-shaped water outlet: It is convenient for connecting pipes, saving time and labor.

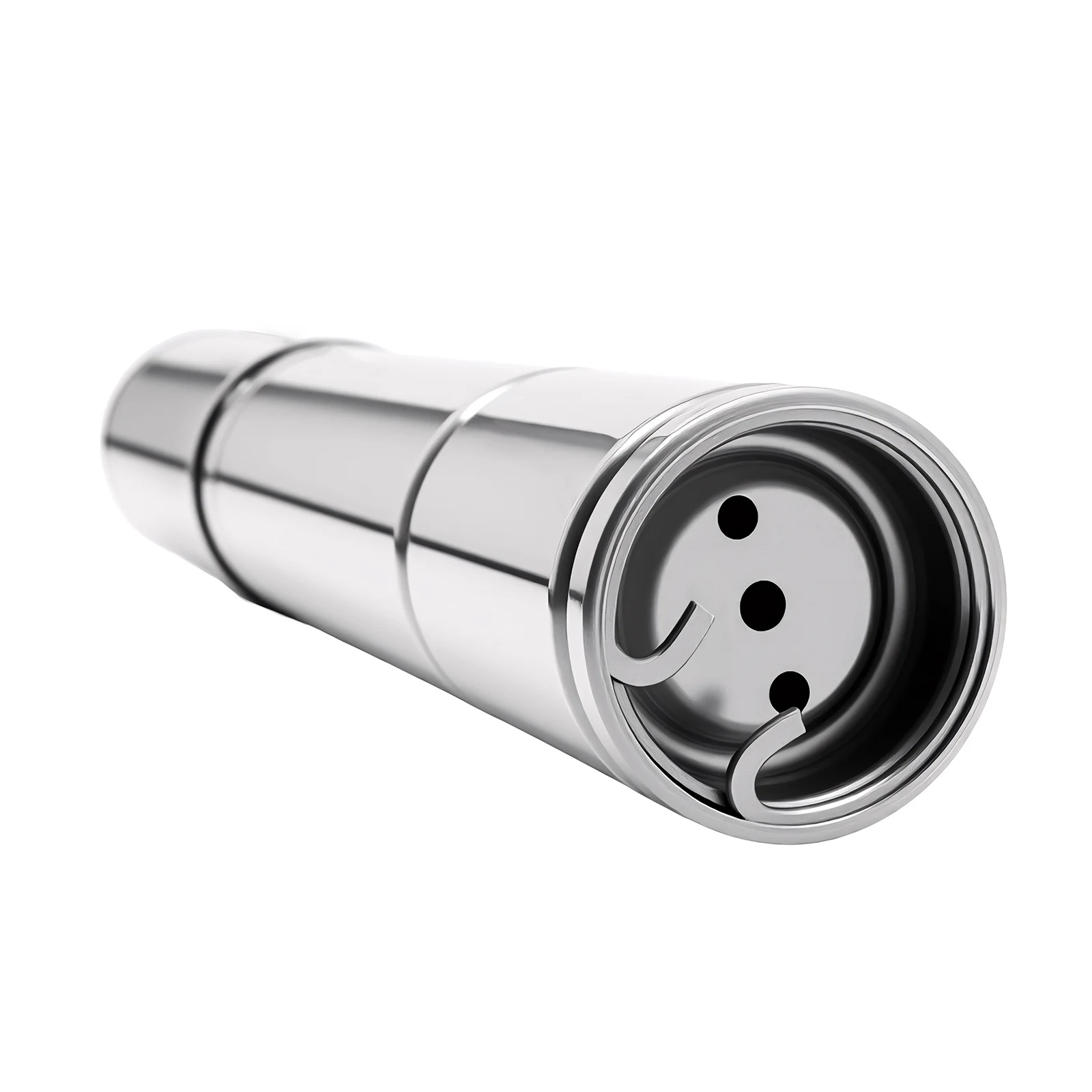

Snap ring spring: The base is equipped with a high precision steel spring, which is effective against compression, shock and deformation.

High toughness oil seal: It can protect the stable operation of the motor in a high water pressure environment.

Application

This product is suitable for the extraction of groundwater from deep wells, and can also be used in water lifting projects of rivers, reservoirs, canals, etc. use. It can be used for irrigation of arable land, water for people in mountain areas, villages, houses, farms, motorhomes, cities, factories and railways.

How is it installed

1. Wrap the adapter with PTFE tape (not included).

2. Attach the adapter to the power outlet.

3. Attach the lifting rope of the pump (not included). Please note that the use of cables as lifting ropes is strictly prohibited!

4. Secure with brackets (not included).

5. Installation is complete.

TypeA:250W

Model: 3QGD0.5-50-0.25
Style: Modern
Colour: Silver
Shape: Column
Material: 304 stainless steel
Process: Polishing
Power source: Electric with cable
Plug type: EU standard
Installation required: Yes
Degree of protection: IP 68
Voltage: 220-240V, 50HZ
Power: 0.33HP/0.25KW
Max. conveying height: 80m/262.47 ft
Max. flow rate: 1600L/422.68gal/h
Speed: 2850r/min
Cable length: 20m/65.62 ft
Number of wheels: 1
Noise: 20dB
Exhaust diameter: 2.54cm/1 in
Applicable well diameter: ≥10.16cm/4 in

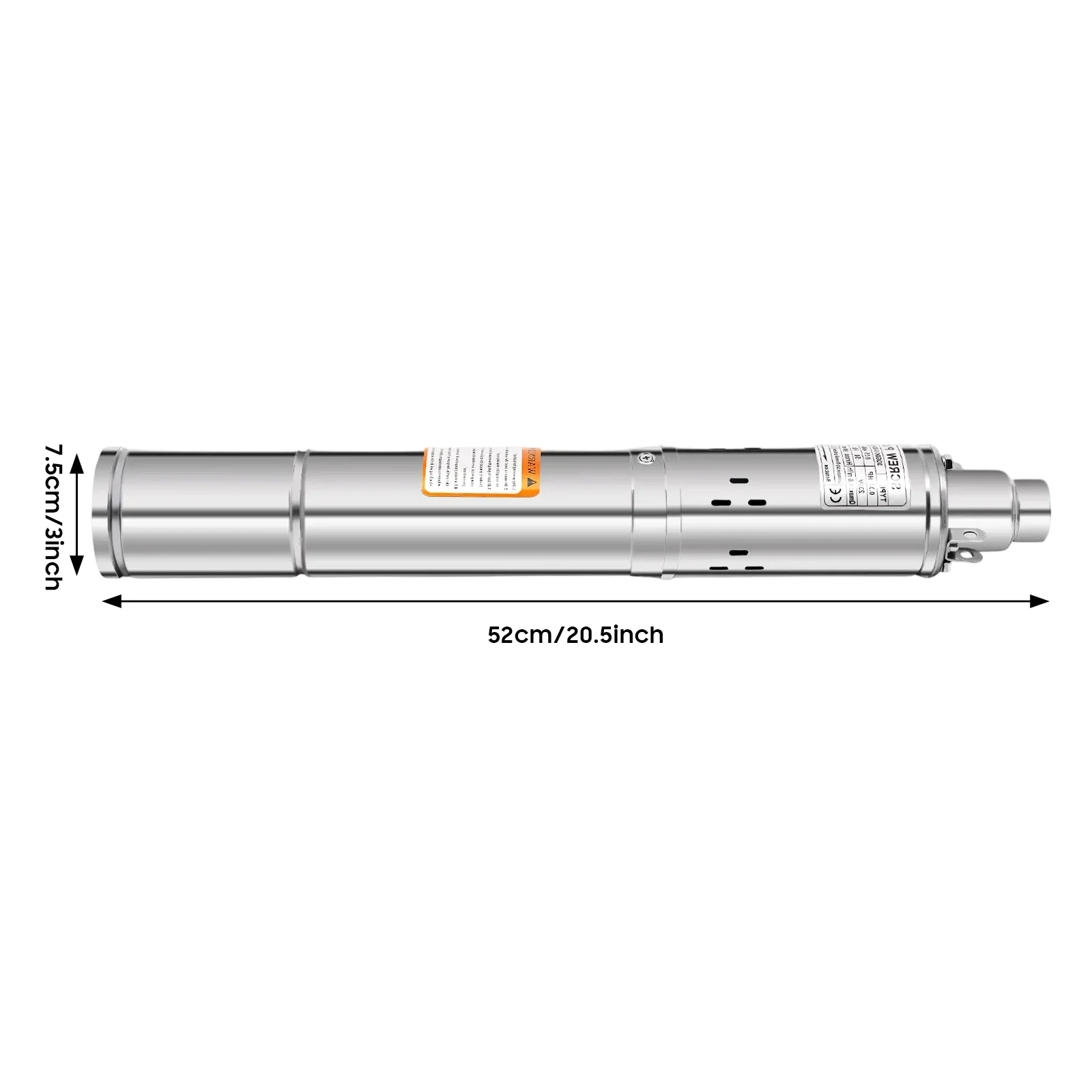

Product size (D*H): 7.5*52cm/3*20.5 in

TypeB:500W

Model: 3.5QGD1.8-50-0.5
Style: Modern
Color: Silver
Shape: Columnar
Material: 304 Stainless Steel
Process: Polishing
Power Source: Corded Electric
Plug Type: EU Standard
Assembly Required: Yes
Protection Level: IP 68
Voltage: 220-240V, 50HZ
Power: 0.7HP/0.5KW
Max. Head: 100m/328.08 ft
Max. Flow Rate: 2 m³/439.94 gal/h
Speed: 2850r/min
Cable Length: 15m/49.21 ft
Number of Impellers: 1
Noise: 20dB
Product Size(D*H): 8.7*58cm/3.5*22.8 in

Package included

1* Deep well water pump

Comments

1. Please note that the pump must be installed vertically. Use without water is prohibited.
2.Please note that the pump speed depends on the depth at which the pump dips into the water, and the greater the depth, the lower the speed.
3.Please note that this product is only suitable for pumping clear water, but not oil, chemical raw materials and other liquids.
4.Please note that for newly drilled wells with excessive particle deposits, we recommend placing a layer of gauze (not included) in front of the inlet of the filter screen.
5.Please note that the pump has a built-in check valve. However, this check valve is only used to prevent water from flowing back into the pump and turning the impeller in the opposite direction; However, if the pump is to be used in a pressure system, at least one external check valve in the pipelines is required.
6.Please note that touching the pump during operation is prohibited. Do not swim in the water in which the pump runs and do not wash laundry to avoid electric shock. To avoid electric shock, lifting and pulling the cable is strictly prohibited. Disconnect the power supply when servicing, moving or cleaning the electric pump.
7.Please allow the slight color difference by recording light and 1-3cm error due to manual measurement, and make sure you don't mind before ordering.
