250W 250W AC High Torque Motor Electric Single-Phase Motor Reversible Motor with Variable Speed Adjustable Controller Governor

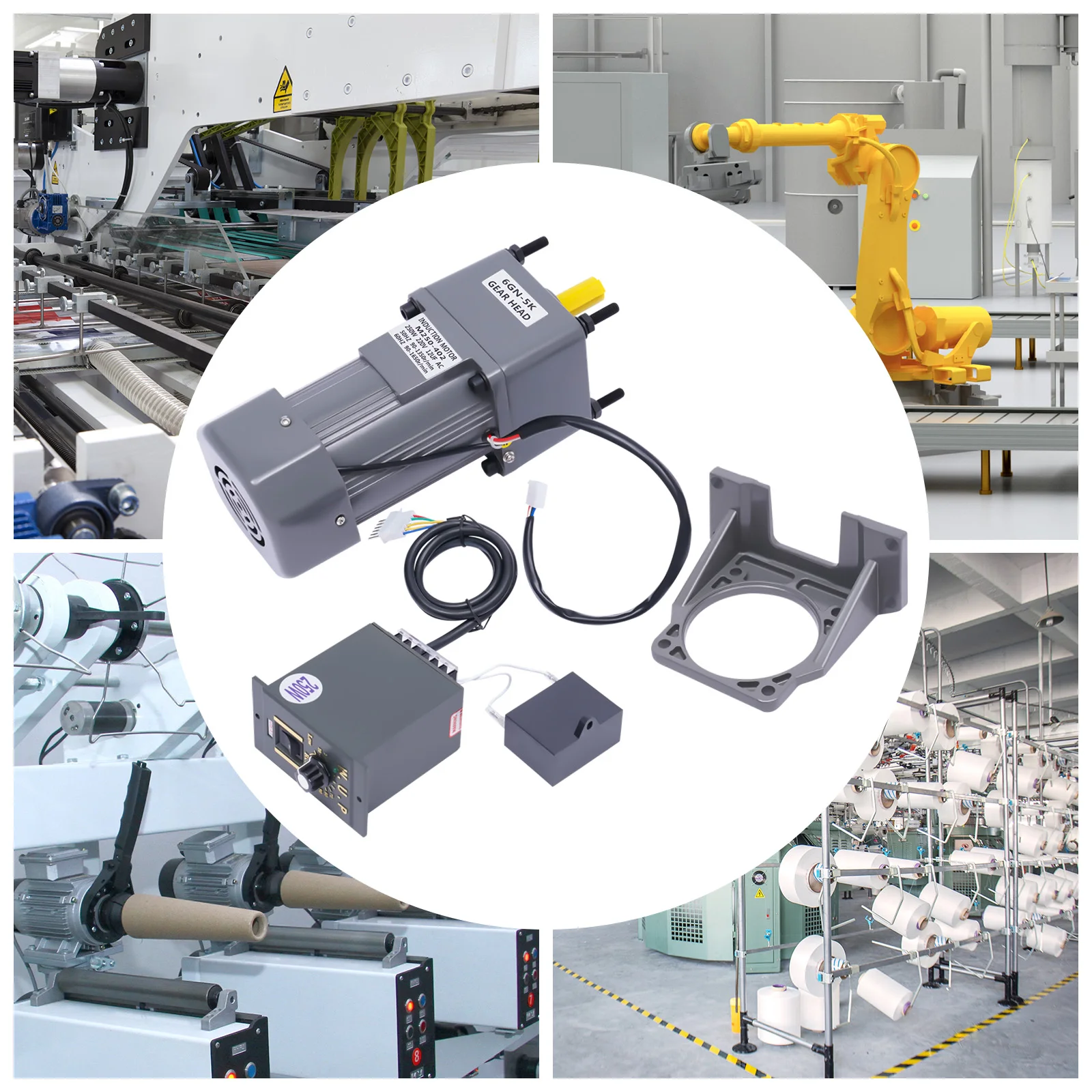

This product is widely used in industrial assembly lines, intelligent equipment, animal husbandry machinery, printing machinery, textile machinery, instrumentation, food machinery, power transmission and transformation equipment

Specifications

Material: Aluminum Alloy
Gear Material: Steel
Coil Material: Copper
Type: Single-Phase
Color: Grey
Power: 250W
Voltage: 220V 50Hz
Engine Speed Ratio: 5K
Torque: 8 N.m
Output Speed Range: 0-270rpm (Infinitely Adjustable Speed 0%-100%)
Upper Side Length of Bracket: 10.4cm/4.1inch
Lower Side Length of Bracket: 16cm/6.3inch
Bracket Width: 7.5cm/3inch
Bracket Height: 12.5cm/4.9inch

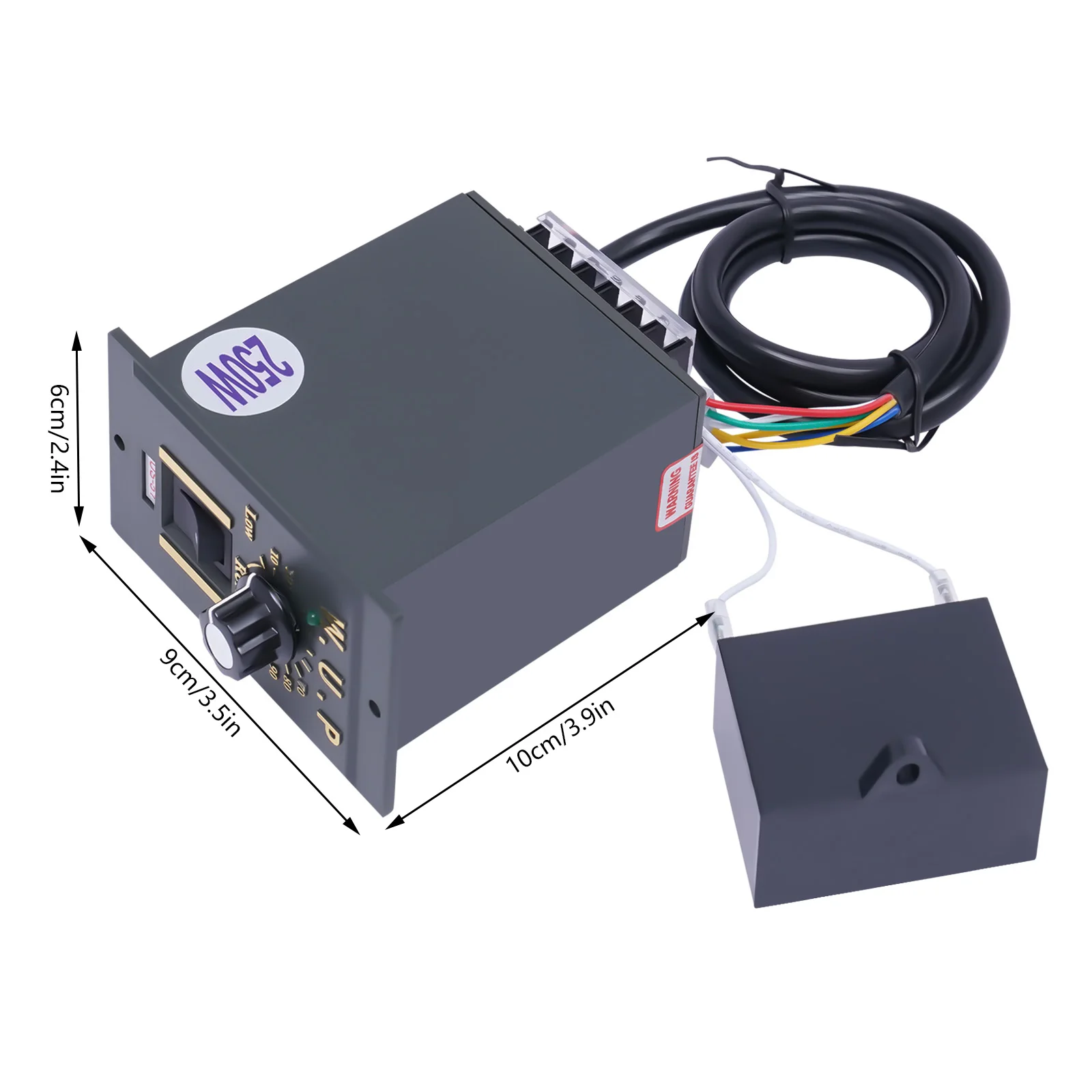

Governor Size: 9 * 6 * 10cm/3.5 * 2.4 * 3.9inch

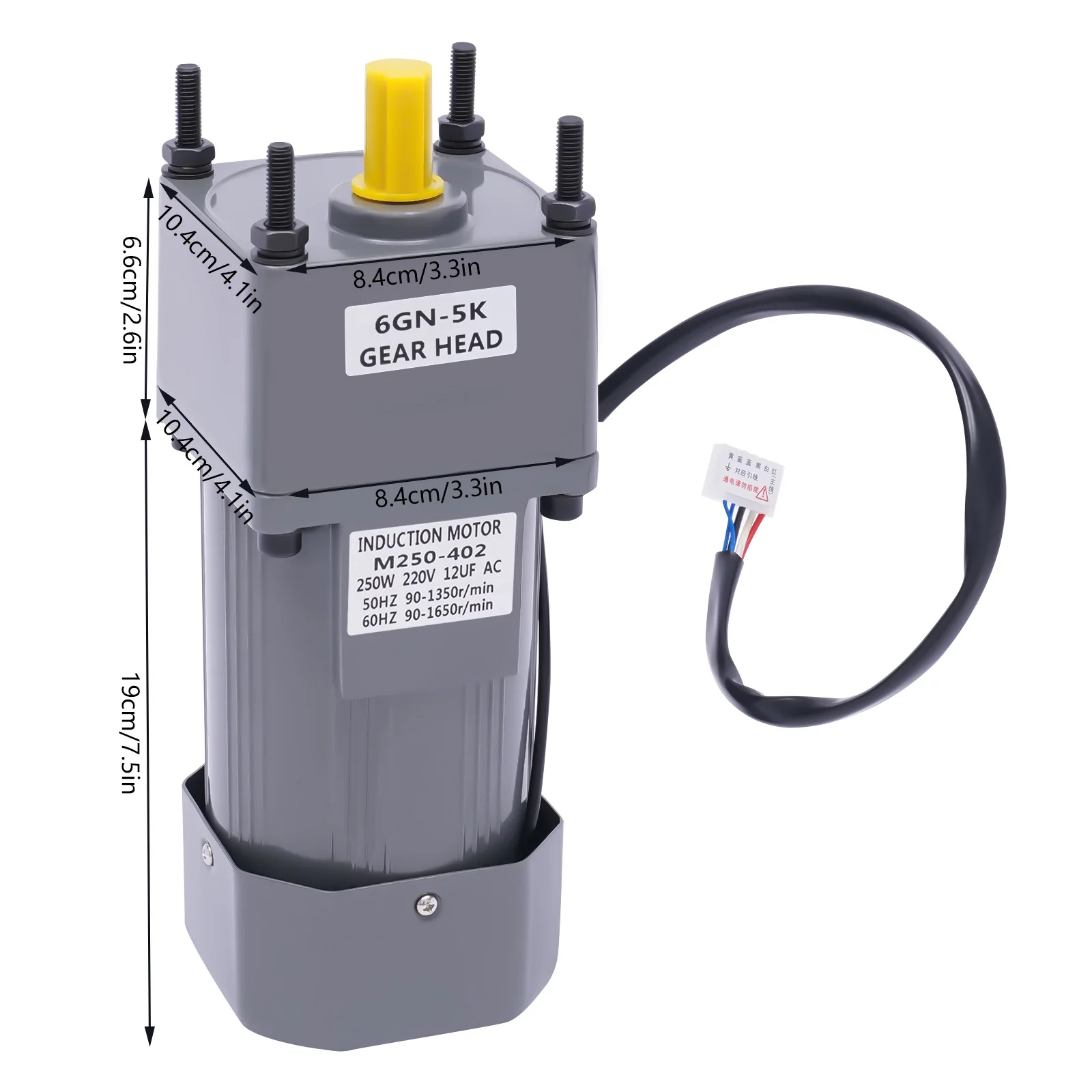

Motor Size: 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inch
Dimension of Reduction Gearbox: 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inch
Packing Size: 33*26*13cm/12.99*10.23*5.11in
Gross Weight: 7.9kg/17.41lbs
Net Weight: 7.3kg/16.09lbs

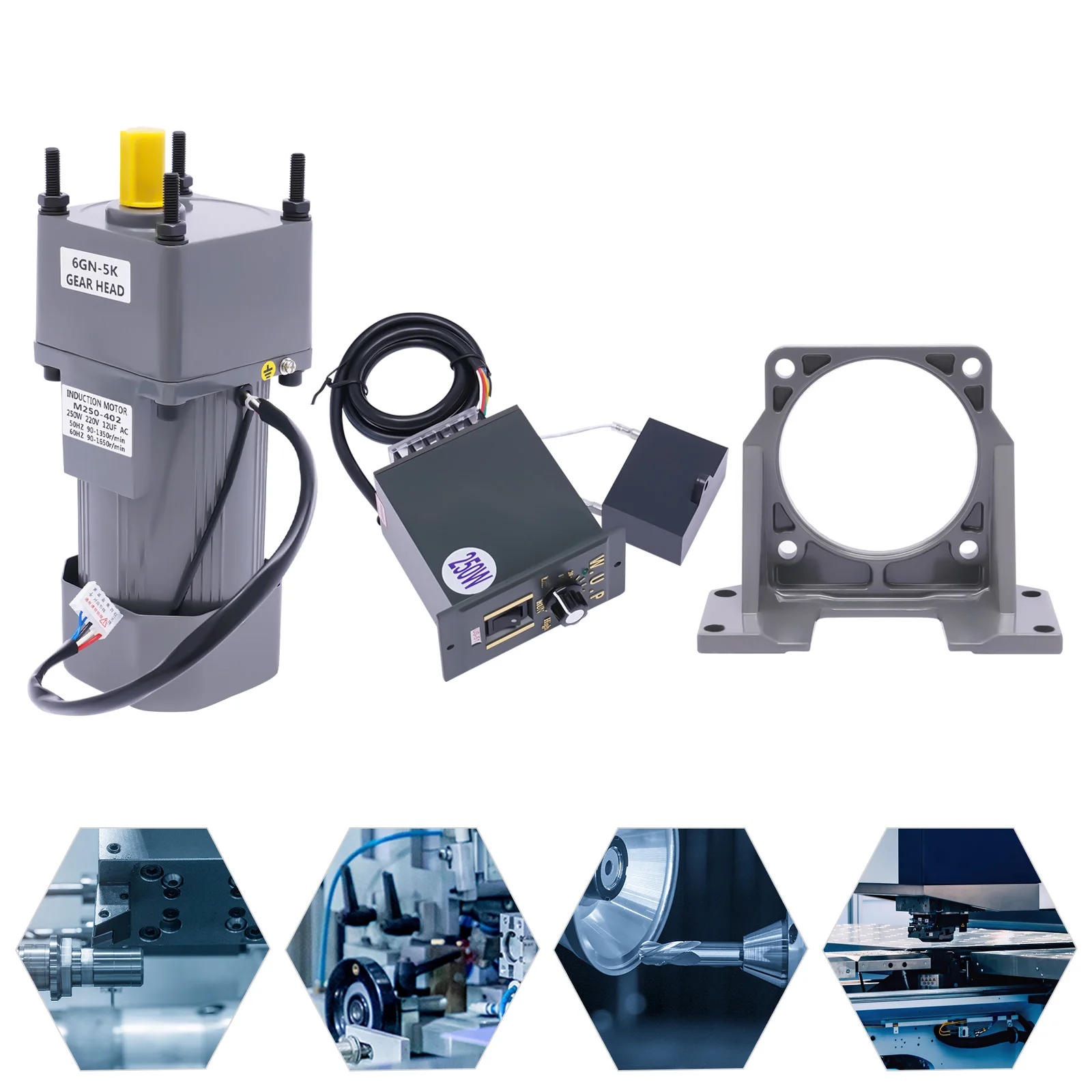

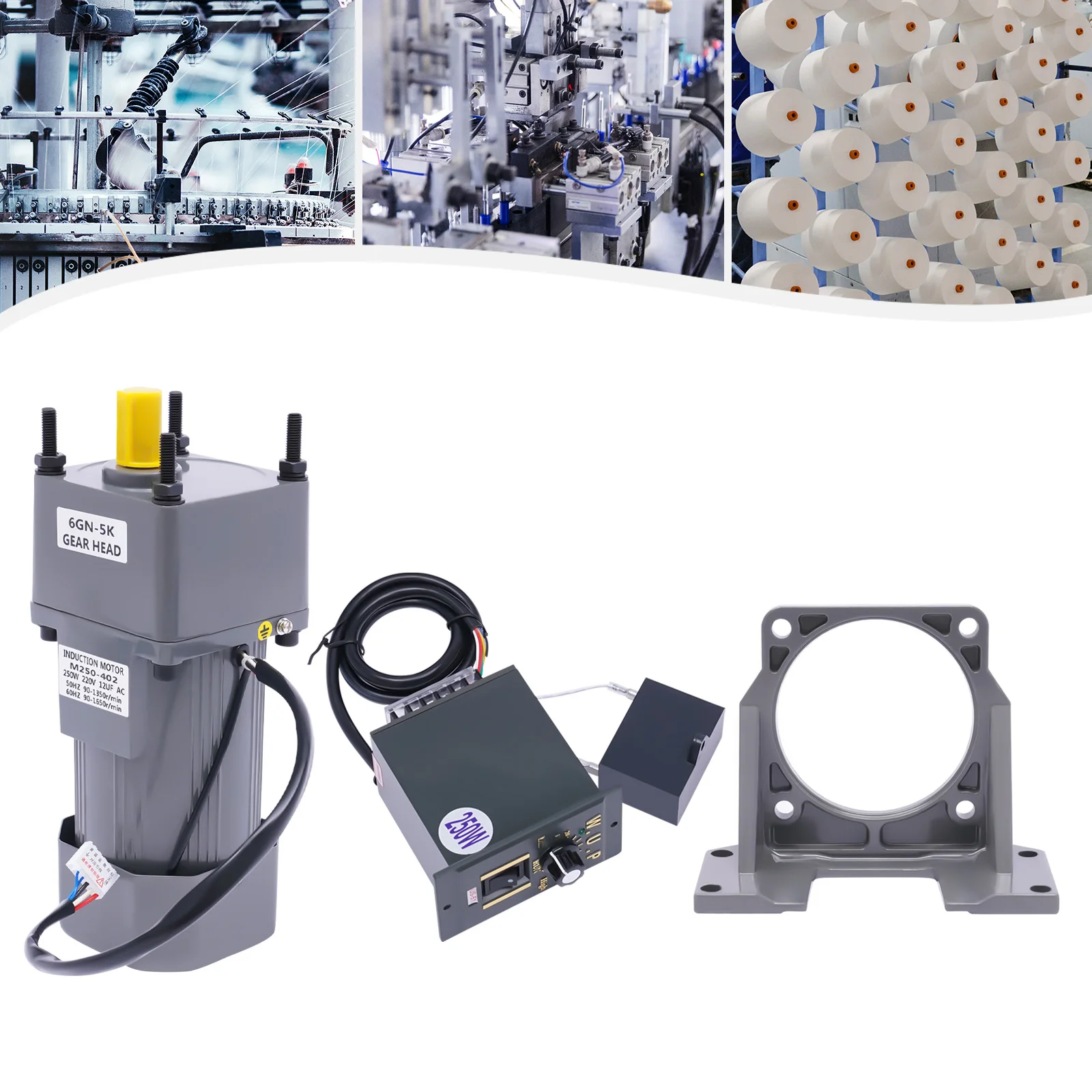

Package Included
1 x Motor
1 x Reduction Gearbox
1 x Governor
1 x Bracket

Notes
1.When the motor is working, it is normal for the temperature to rise to about 65℃/149℉. Please rest assured that it will not affect your use.
2.Please do not knock the motor and the body of the governor.
3.Please disconnect the power supply before changing the wire.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Key Features

Strong and Durable: The housing of this product is made of high-quality aluminum alloy, which is strong, durable, wear-resistant, anti-shock, high-temperature resistant, and can protect the internal parts well.

Stable Operation: Both ends of the speed control motor rotor are fitted with ball bearings, which allow it to operate with low friction, reduce energy consumption and generate lower temperatures to ensure stable operation.

High Efficiency: The stator and rotor are made of pure copper coils with good electrical conductivity, allowing for a constant high and stable power output. Adopting high-precision steel gears effectively increases the torque of the motor, which greatly enhances its working efficiency.

Adjustable Speed: You can adjust the speed from 0% to 100%(0-270rpm) through the stepless speed knob on the governor according to the different situations to achieve the desired effect.

Easy to Install: Since the motor and gearbox are already installed, you only need to plug the governor cable into the jack of the motor cable to quickly connect the motor and governor, which saves both time and labor.
