Geared Motor Kit 0-68 rpm High Torque Adjustable Electric Motor AC Single Phase Asynchronous Gear Motor + Gear +Regulator 20K40W

Reduction gear, infinitely adjustable motor, 220 V, 40 W, adjustable speed (20 K).

Specification

Colour: grey, green.

Case material: aluminium alloy.

Coil material: copper.

Voltage: 220 V.

Power: 40 W.

Rated speed: 0-1400rpm.

Output speed range: 0-68 rpm (infinitely adjustable speed 0%-100%).

Reduction ratio: 20K

Noise: about 40 dB.

Net weight: 3.2 kg/7.05 lbs.

Gross weight: 3.85 kg/8.49 lbs.

Package size: 25.3x24x12.5cm/9x9x4inch

Speed controller size: 100x90x60mm/3.9x3.5x2.4inch

Engine size: 90x74x118mm/3.5x3x4.6inch

Size of the reduction gear: 90x74x61mm/3.5x3x2.4inch

Diagonal mounting bore diameter: 104 mm/4.1 inch.

Bore diameter: 8 mm/0.3 inch.

Package includes:

1 x gear motor.

1 x speed controller.

1 x English manual.

Notes:

1. When the motor is in operation, it is normal for the temperature to rise to about 65℃/149℉. Please rest assured that this will not affect your use.

2. Please do not hit the motor and the housing of the regulator.

3. Please interrupt the power supply before changing the wire.

4. Please read the manual completely before installation and use and pay particular attention to the safety instructions included in it.

5. Please allow slight colour difference due to the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind this before ordering.

Details

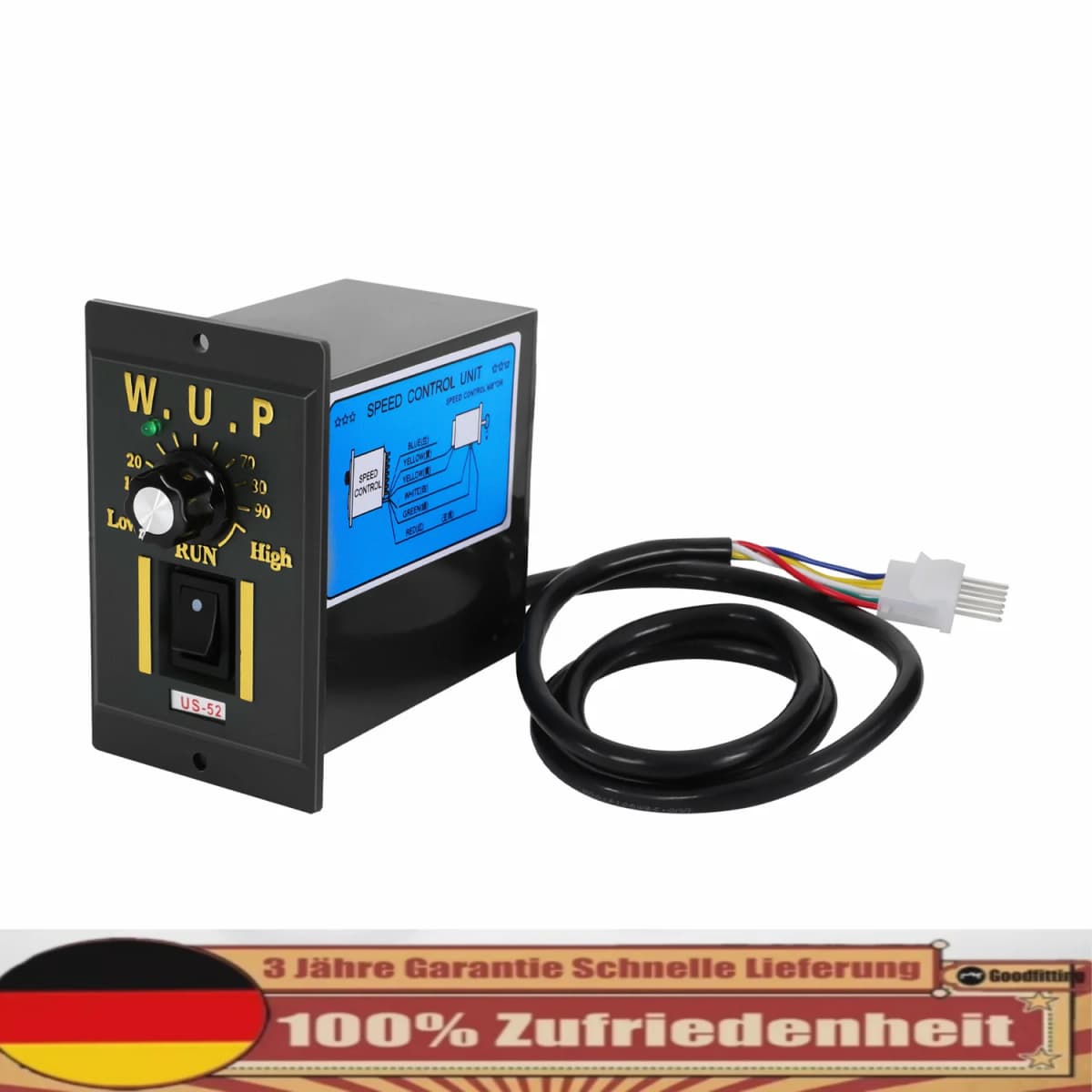

Indicator Light The indicator light on the speed controller lights up when the product is working, which is convenient for you to better understand the usage status of the product.
