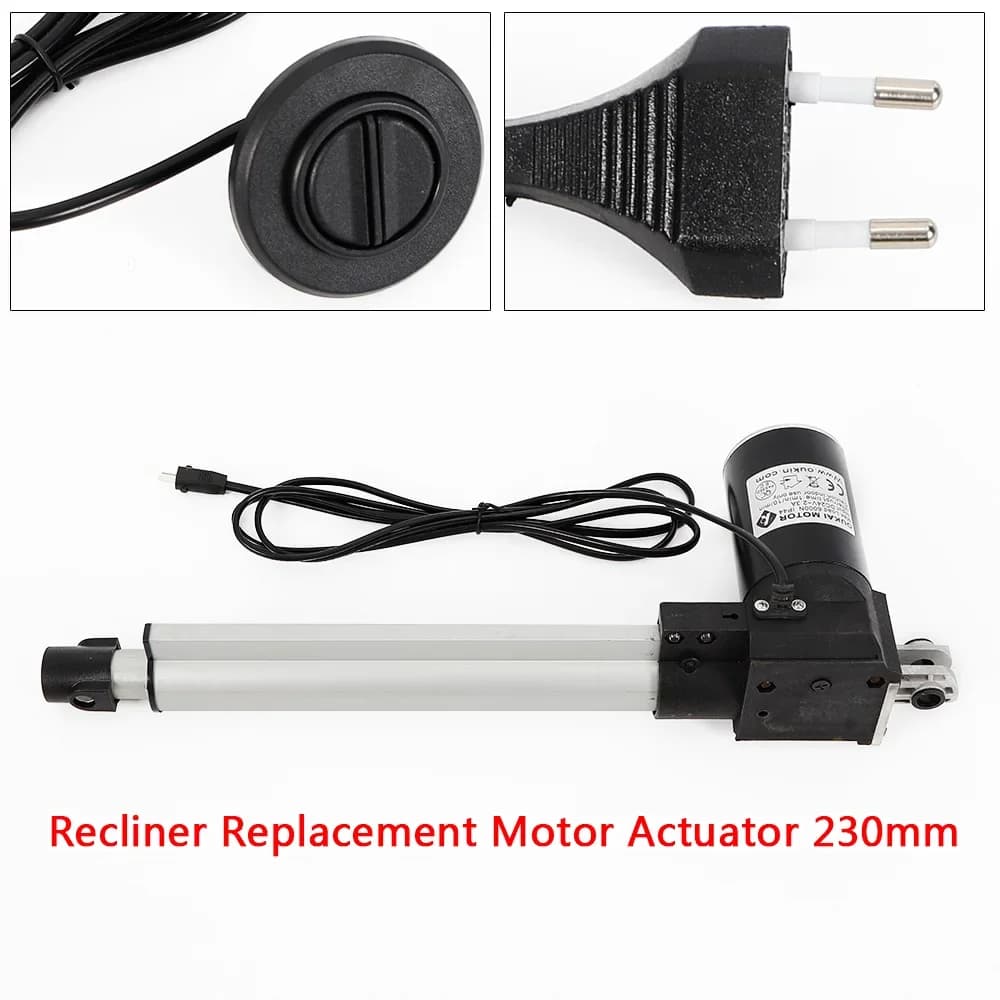

24V 600KG Recliner Actuator 230mm Stroke CE IP44 Home Office Furniture Durable Replacement Motor Easy Install

Specifications

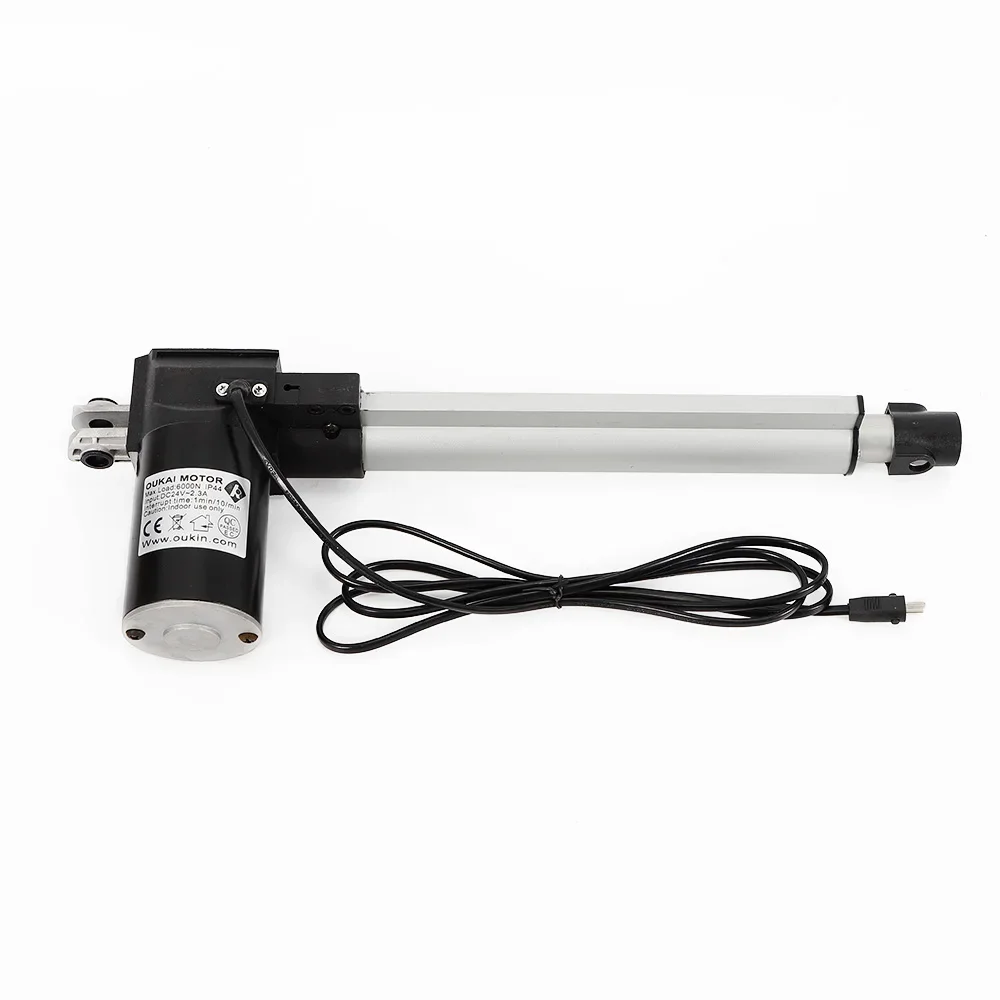

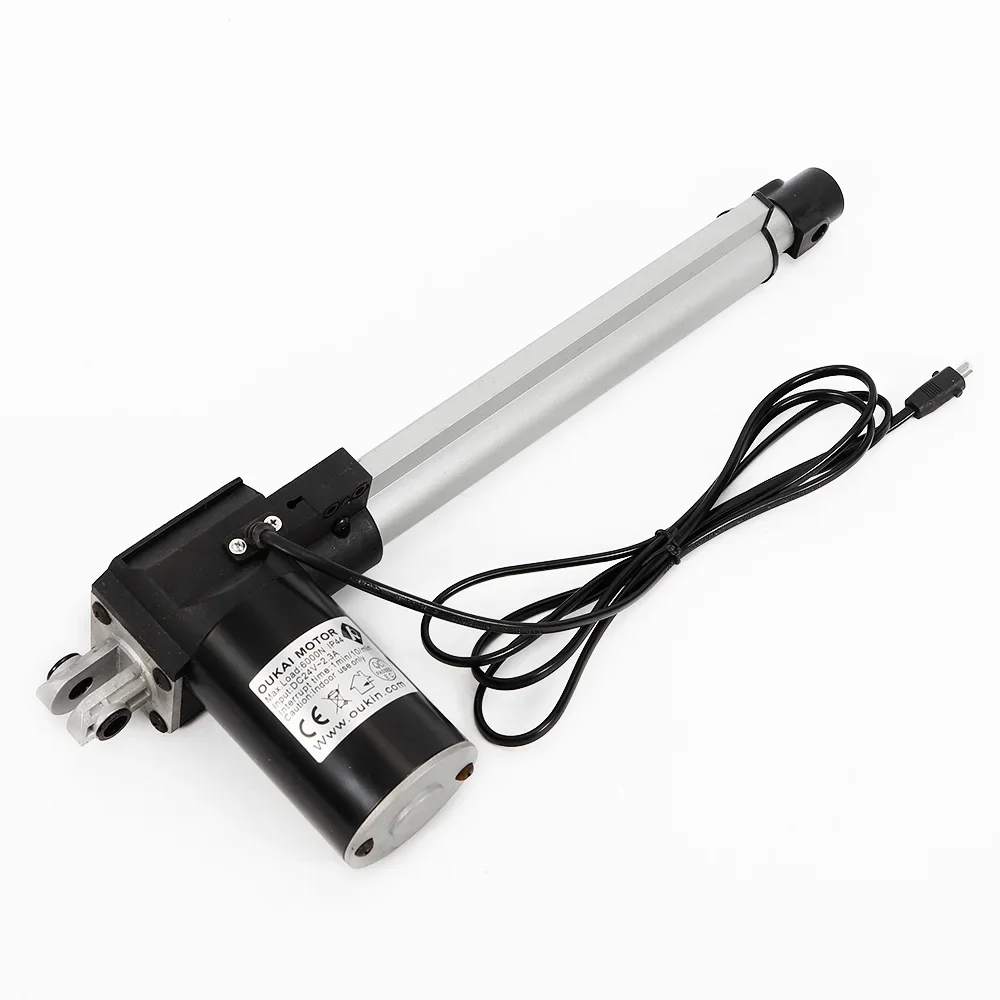

Product: Power Recliner Motor Actuator
Stroke Length: 230mm

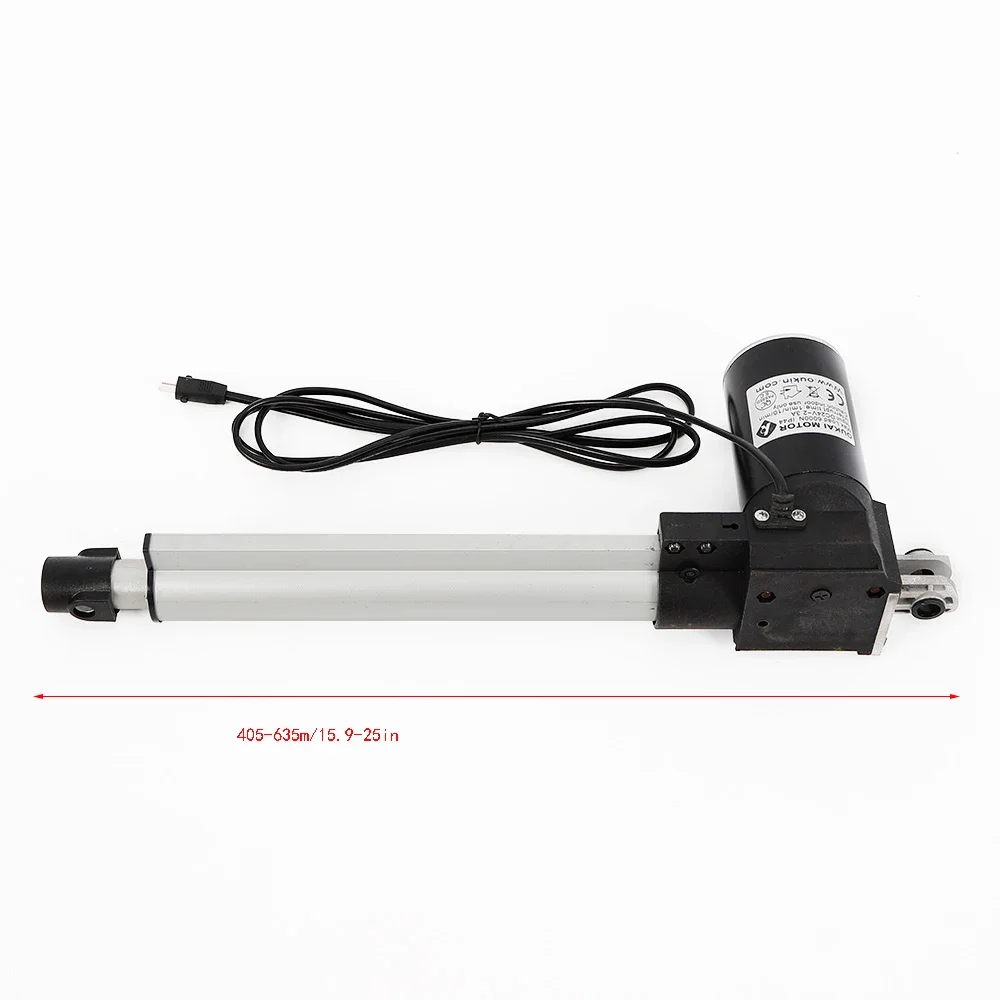

Unextended Size: 230 + 175 = 405mm
Extended Size: 230 + 175 + 230 = 635mm
Permanent Magnet Dc Motor Drive;
Voltage: 24VDC
Maximum Push / Pull: 600KG / 600KG
Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm;
The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2Xs (Stroke) +175mm
Rated Load Rate: 5mm / S (600KG)
Ambient Temperature: -5 C + + 50 C
Standard Protection Level: IP44
Net Weight:2.5kg
Gross Weight:2.95kg

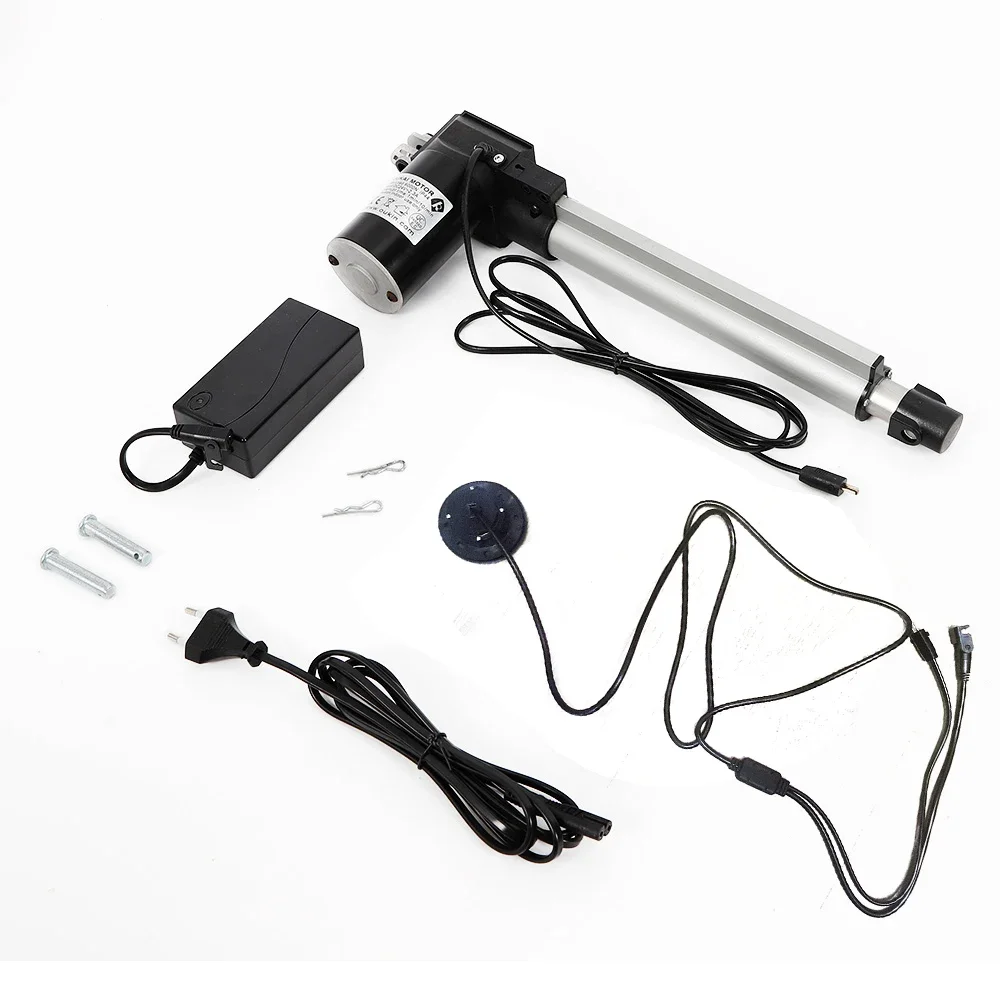

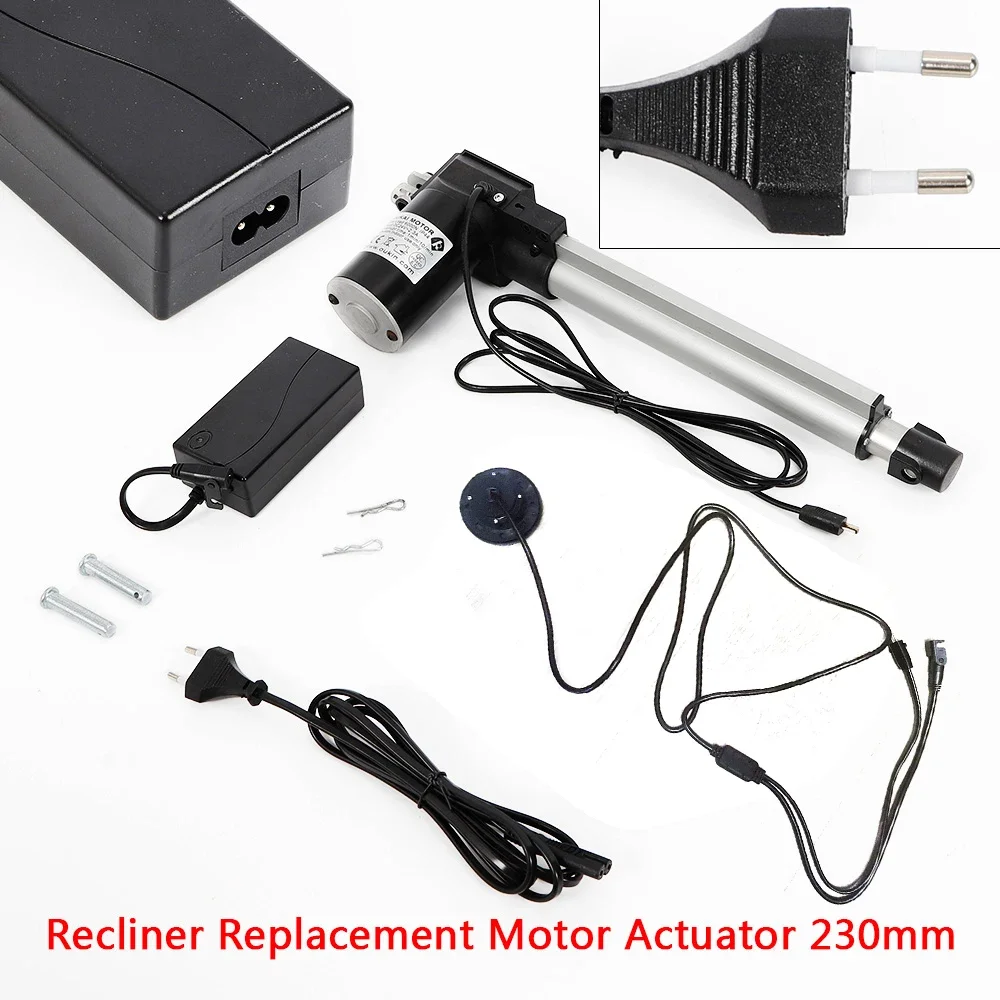

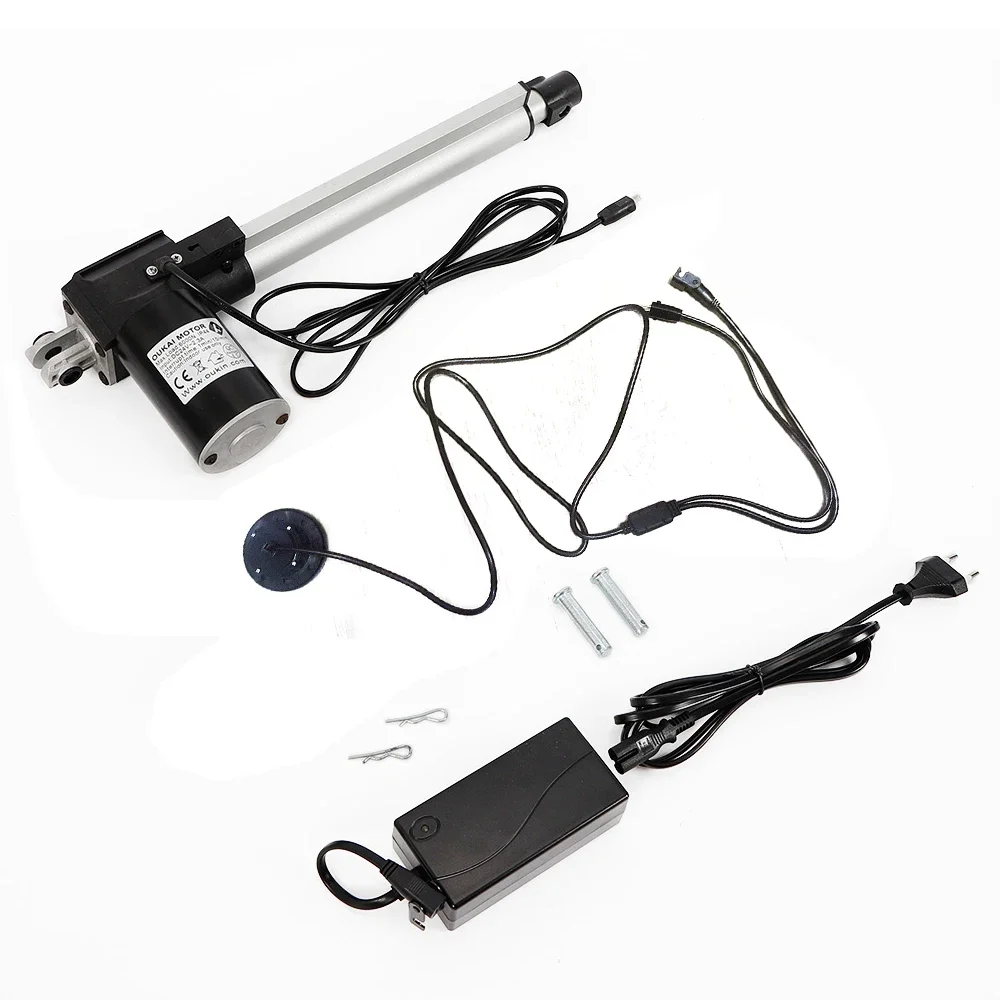

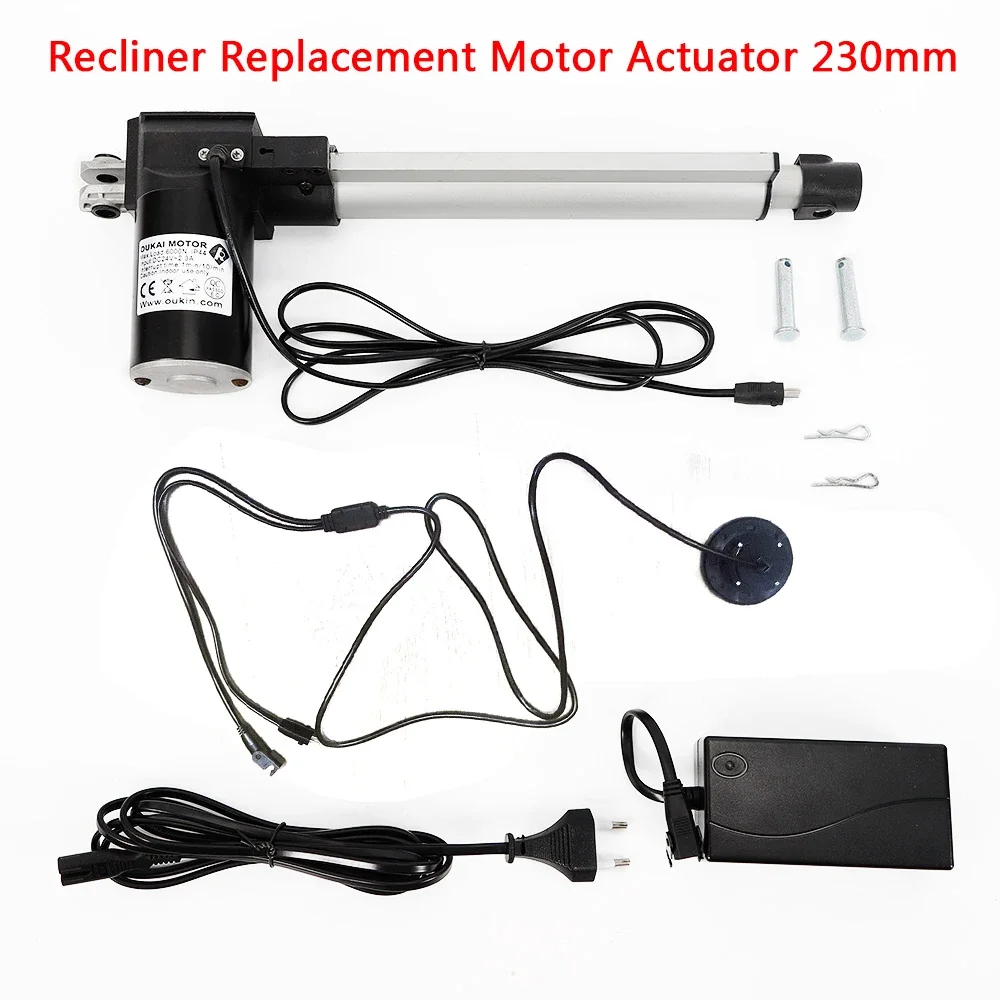

Packages

1 x Recliner Replacement Motor Actuator 38-61cm

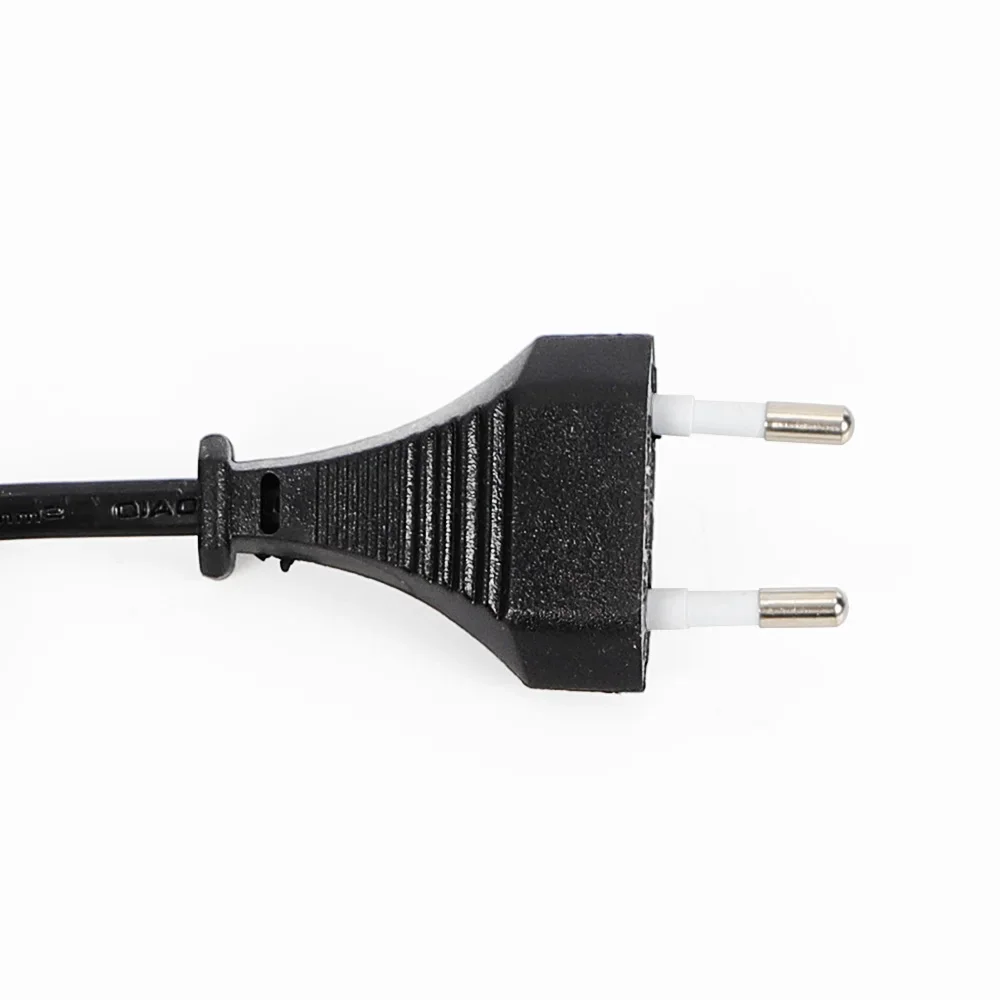

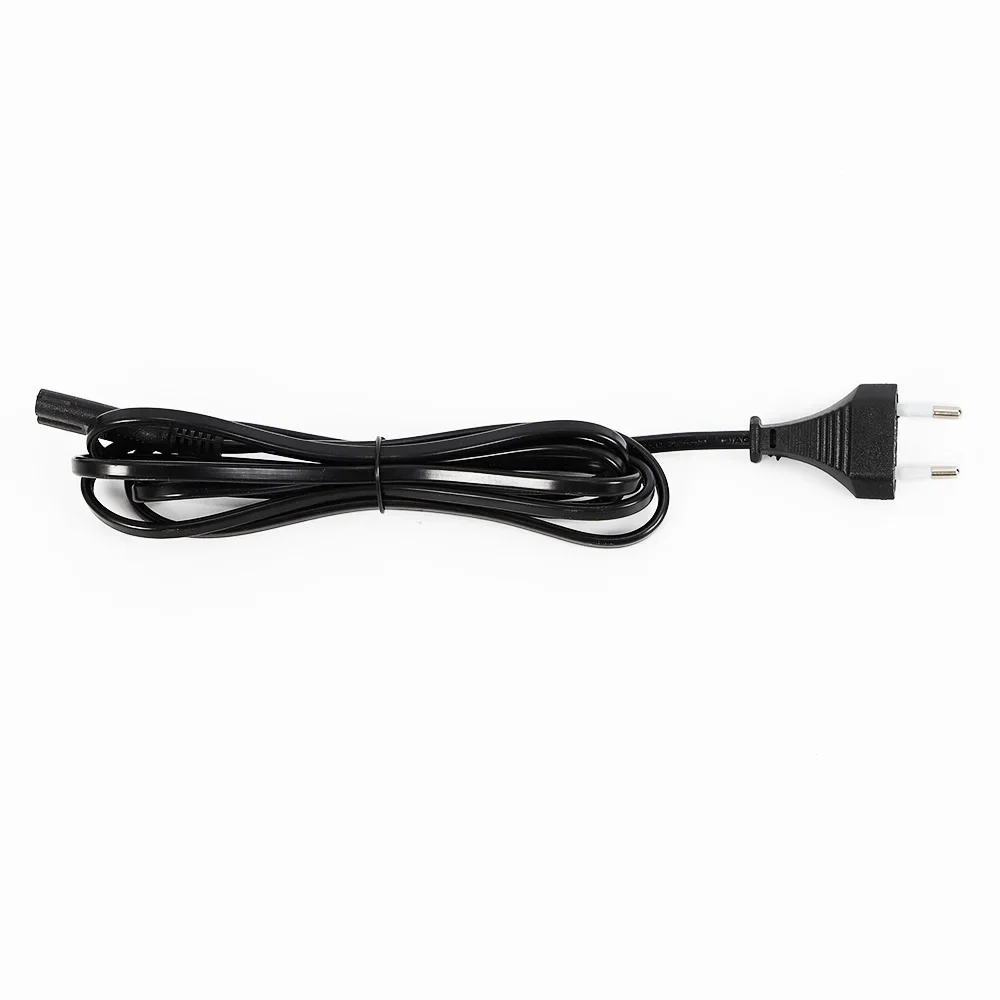

1 x 8-Suffix Ac Line
1 x DC Line
1 x Power Adapter

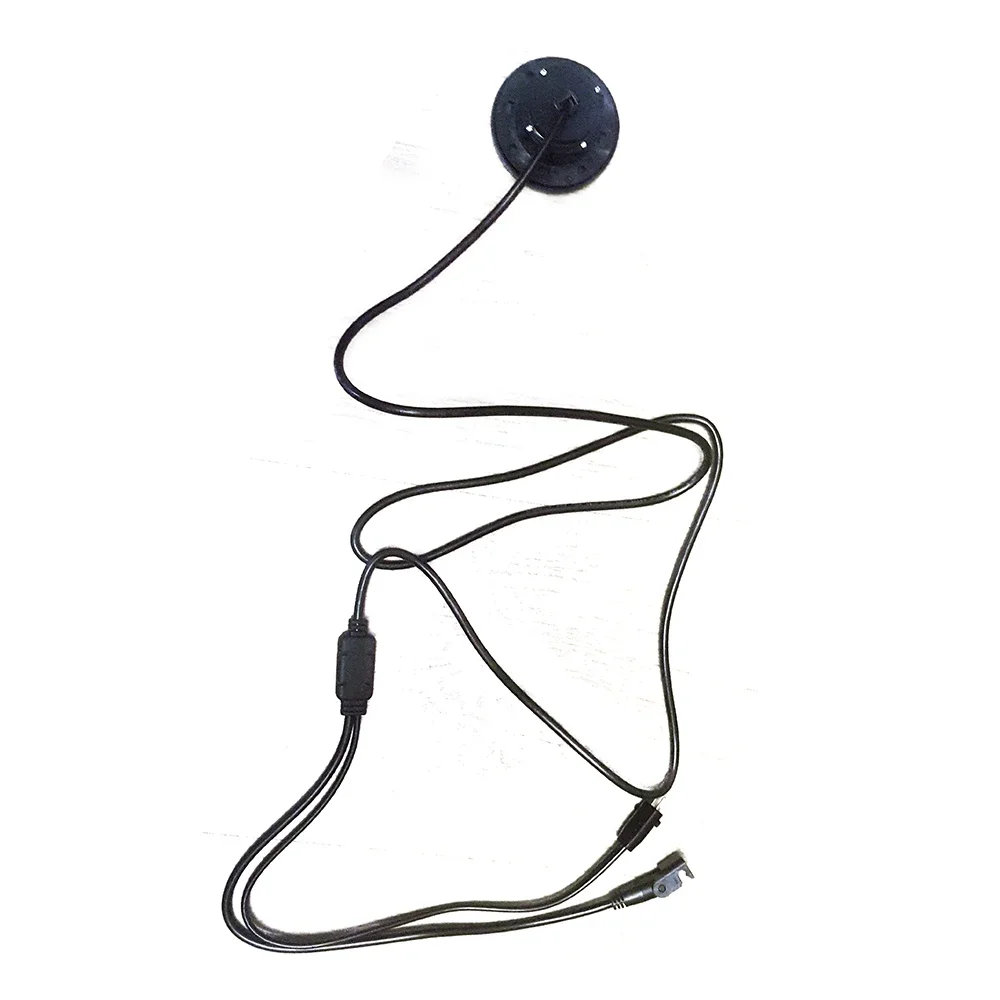

1 x Embedded Hand Controller

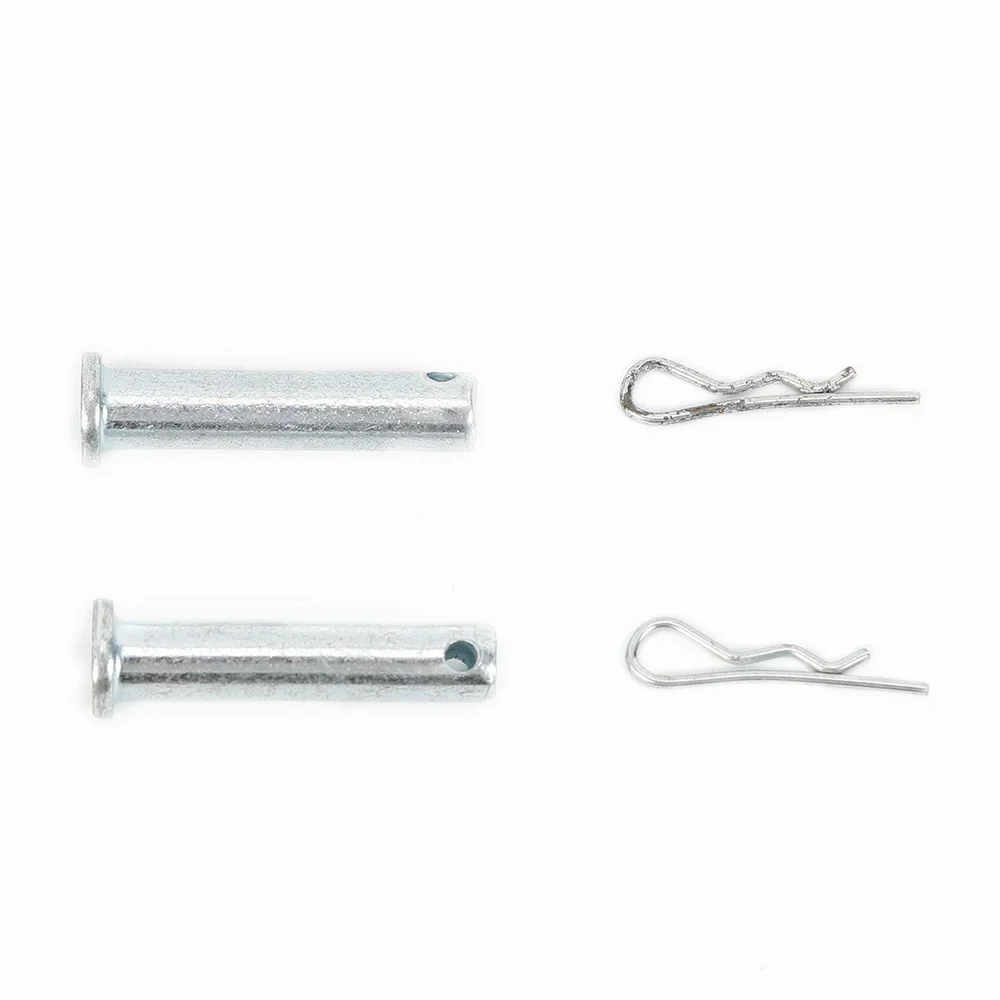

2 x Pins
2 x Cotter Pins

Features:
24Vdc Permanent Magnet Motor
Thrust Up To 6000 N In Push.And Up To 4000 N In Pull.
Elegant And Compact Design With Small Installation Dimensions
Built-In Limit Switches (Not Adjustable)
Aluminium Outer Tube Ø30 Mm
Aluminium Inner Tube Øø24mm
Steel Back Fixture
Standard Protection Class, IP44
Noise Level 48 dB (A), Actuator Not Loaded.
Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18 Minutes Not In Use.
Option:
Standard Stroke, 25-800 Mm, Can Design As Customer’s Requirement.
Free Load Speed, 6.5mm-45mm/s
Rated Load Speed, 4.5mm-40mm/s
Application:
This Power Recliner Lift Chair Linear Actuator Motor Will Open And Close The Lift Mechanism Of Power Recliner Or Lift Chair. Connects To Motor Handset Hand Control Via 5 Pin Style Connector, And Connects To The Power Transformer Via The Standard 2 Pin Style Connector.
