MT2-M10 F1-12 50mm Boring Head + 9pcs 12mm Boring Bar Cnc Milling Tools Kit Set

Application

This product is the main accessory of boring machines and CNC milling machines such as coordinate boring machines, horizontal boring machines, and general boring machines. It can be used for boring holes, boring the outer circle of holes, boring the end face of holes, boring ladder holes, boring the end face of holes, cutting holes and grooves of the outer ring.

Specifications

Model: MT2-F1-9pcs

Style: Modern

Color: Orange, Black, Silver

Material: Steel

Surface Treatment: Polishing

Assembly Required: No

Thread: M12

Boring Range: 10-125mm/0.39-4.92 in

Maximum Offset: 1.59 cm/ 5/8"

Boring Head Dia: 5cm/2"

Boring Head Height: 6cm/2.4"

Boring Bar Hole Diameter: 1.27 cm/ 1/2"

Cross Bore Diameter: 1.27 cm/ 1/2"

Accuracy Range: 0-40mm/0-1.57 in

Minimum Scale: 0.01mm/0.0004 in

Gross Weight: 6.75kg/14.88 lbs

Product Size: 22*20*6cm/8.66*7.87*2.36 in

Package Size: 25*21*10cm/9.84*8.27*3.94 in

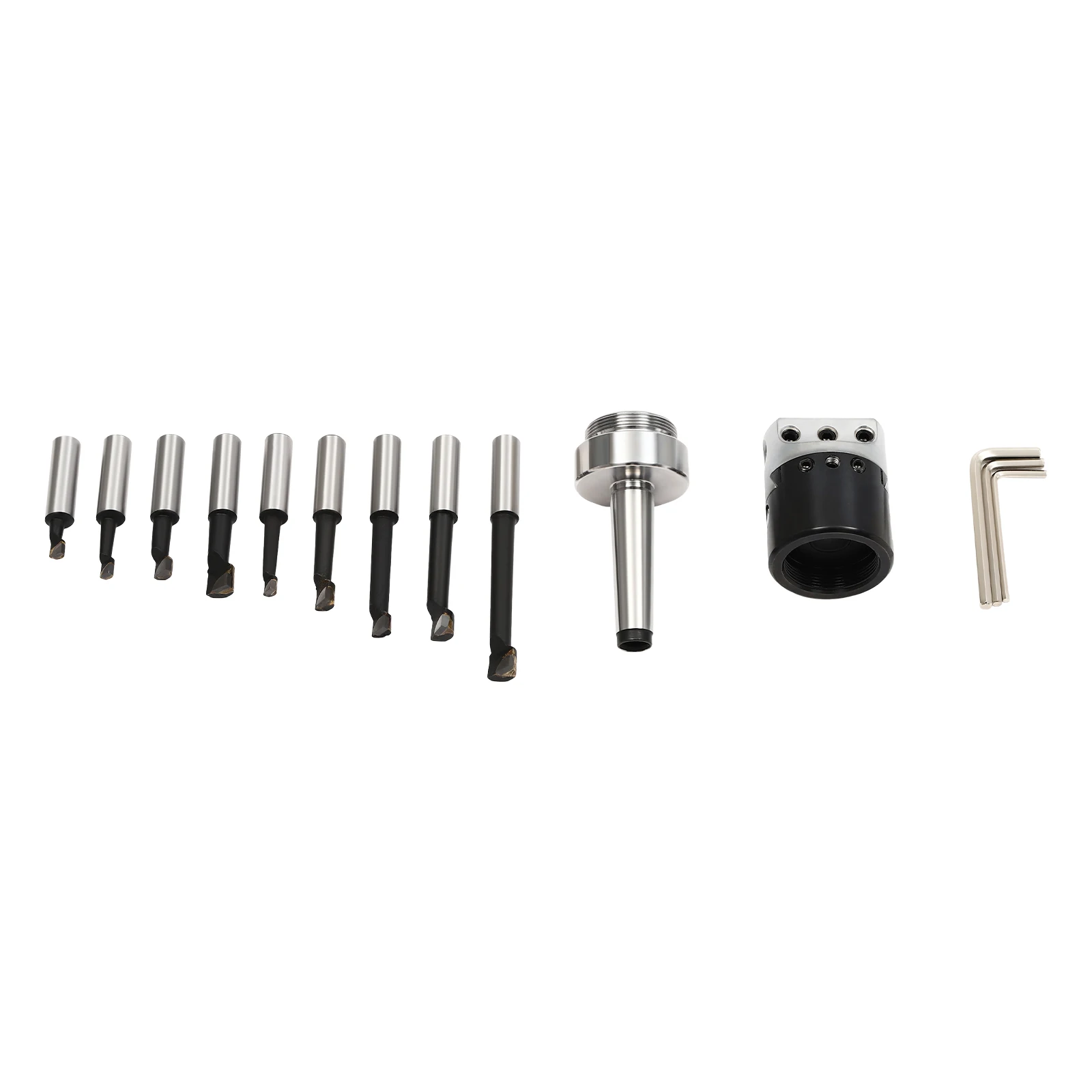

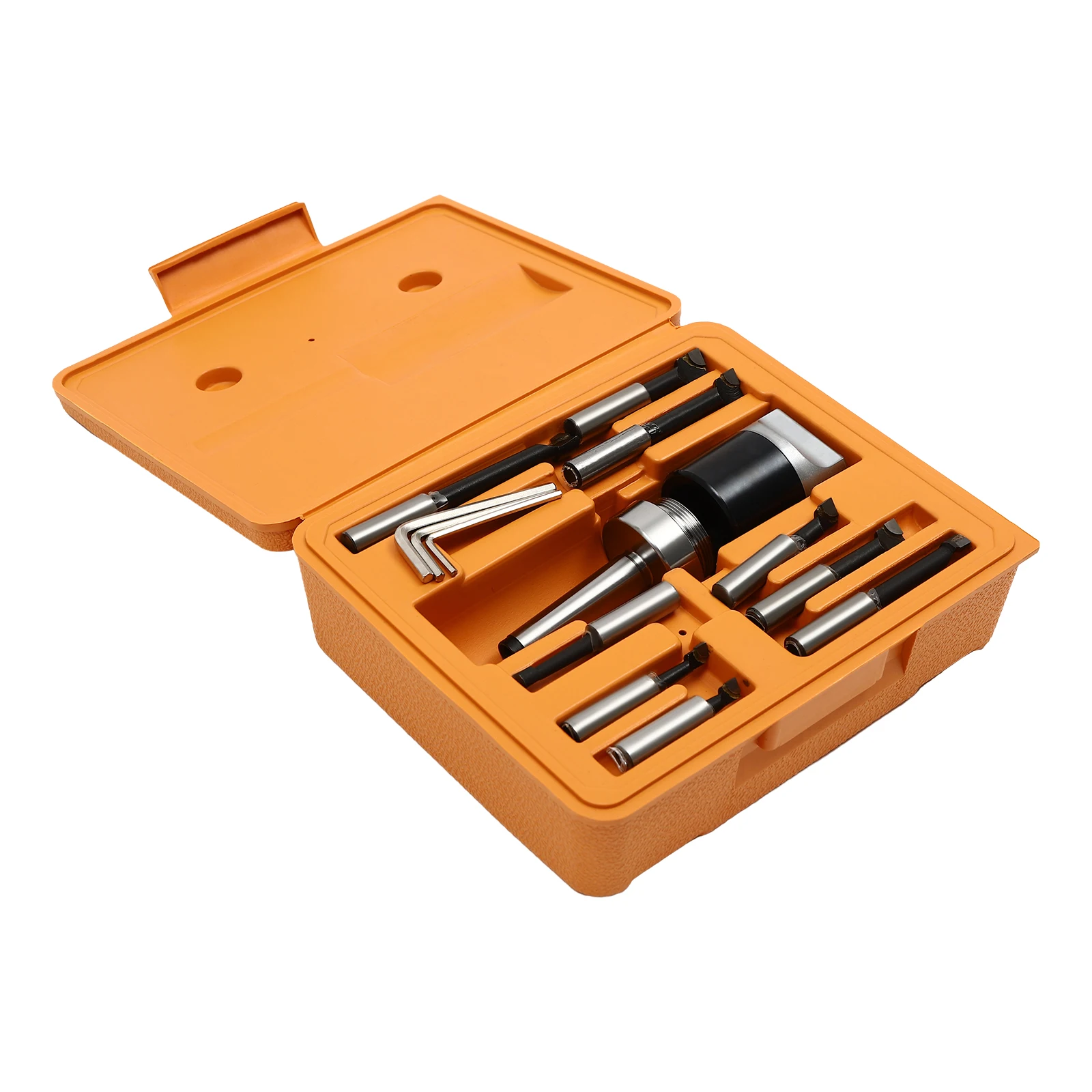

Package Included

1* Boring Head Set

3* Allen Keys

1* Carrying Case
