Huepar 903CG Set 12 3D Cross Lines Laser Level Osram Green Laser Beam Self-Leveling 360 Vertical Horizontal with Receiver Tripod

Huepar 12 Lines 3D Cross Line Laser Level Kit Osram Green Laser Beam Self-Leveling 360 Vertical Horizontal with Receiver Tripod

Huepar 903CG Self-leveling Green Laser Level Specifications:

Laser Beam Color:GreenType: 12 Lines

Laser Class:Class 2(IEC/EN60825-1/2014), output power <1mW

Laser Wavelength:510 nm

Leveling Accuracy:±3mm/10m

Leveling/Compensation Range:4°±1°

Working Distance (Line):45m,up to 60m with laser reveiver

Operating Time:4 hourswith all laser beams on

Spread Coverage:H360°/ V360° / V360° (3*360°)

Power Source:Li-lon battery

IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough.

Operation Temperature Range: 14℉- 122℉(-10℃-＋50℃)

Storage Temperature Range: -4℉- 158℉(-20℃-＋70℃Size: 8.9*6.5*9.1cm (3.5”x3.58”x2.56”)

Warning:

Avoid direct exposure of the laser beam to the eyes.

The laser would be affected by strong sun light when work outside.

Items in the Package:

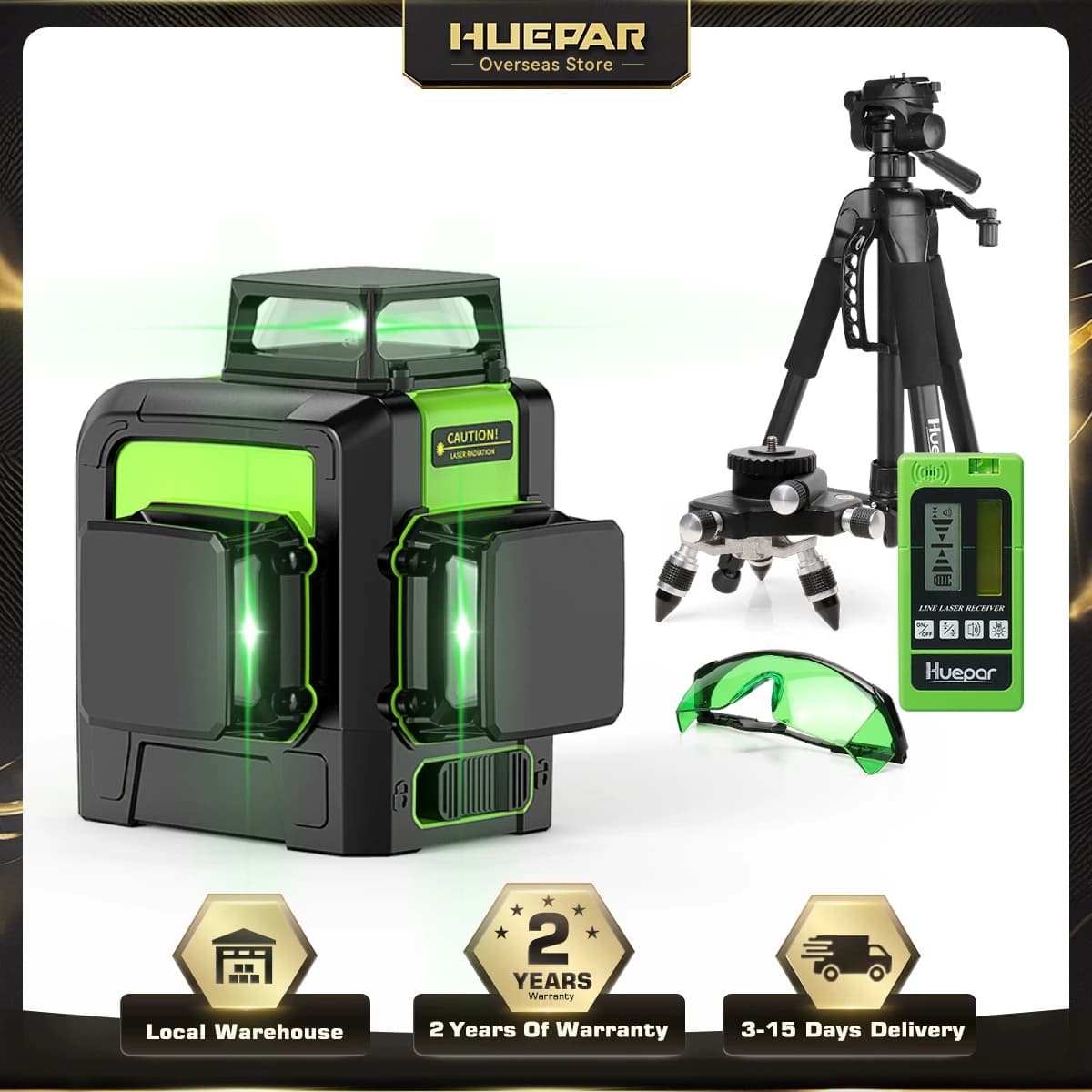

903CG Laser level + Laser Receiver + 1.4m Tripod + AT2 Bracket + Green Glasses + Battery + Charger + Bracket + Green Target + Cloth Bag + Manual

Notes: Please be noted that we will ship the laser receiver by ramdom with this 2 different body color.

Two modes of use, with lock design, reduce losses and lock the movement.

Self-leveling mode:

Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).

Manual mode:

Lock the pendulum, you can （use tripod or other bracket ）place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

Three kinds of circuit switching functions:

Each time the power button is pressed once, the laser tool projects 360° horizontal lines,360°vertical lines, and360°vertical linesin sequence.

360° cover horizontal line and 360° vertical line and360° vertical line(H360°/V360° /V360°)

Germany Osram Green Laser Technology

Adopt Osram's laser unit, wihch is the best green laser unit in the word at present from world.

Green laser is 2 times brighter than red laser with the same light source. still accurate and clear under the sun, available for outdoor using.

Dual Power Method

The level tool can be used at job site byplugged in directlyeven if take out the battery.

Users can charge the battery independently with thebattery charger.

With USB charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

This laser level adopts rechargeablelarge capacity Li-ion battery.

Pulse Mode：

Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.

When outdoor work is required (the receiver needs to be purchased separately,  the laser receiver LR510 can receive pulses.

The receiver frequency is 10khz and the Huepar brand is the best pairing.

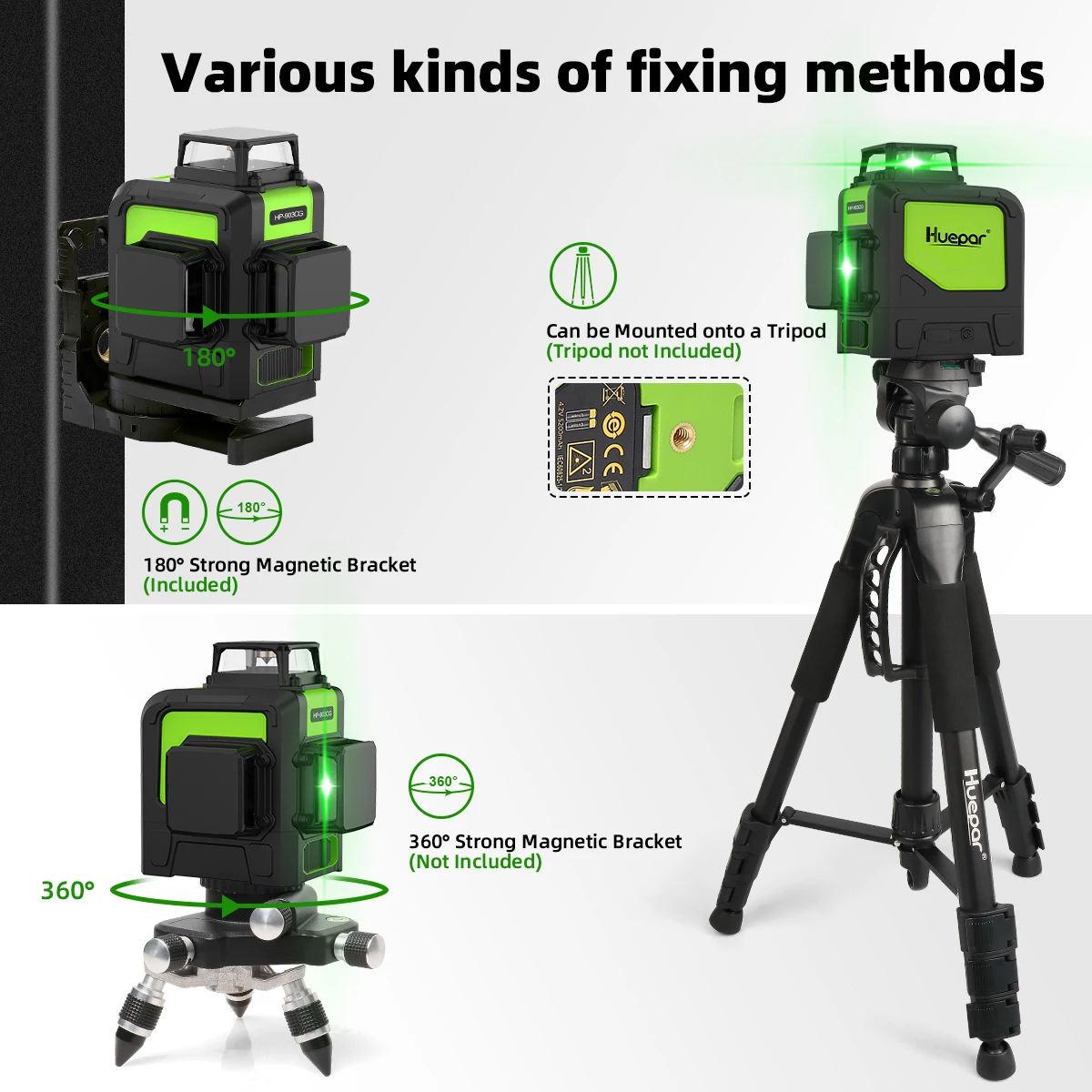

Various kinds of fixing methods:

Can be mounted with 180 degree strong megnetic bracket & 360 degree bracket, alto could be mounted onto a tripod.

Easy to Use

Green Target Plate increases the visibility of the laser beam.

Over-molded laser windowwithstands hazardous job site conditions andcan be removed and replacedwith a screwdriver.

IP54 water/dust resistanceensures you work well in hazardous working conditions.
