12V/230V Diesel Pump Fuel Oil Transfer Pump Automatic Pistol 200W/550W 45L/50L/60L/min Electric Self-priming Oil Pump Kit NEW

NOTE: Only red specs are the fuel pumps with metering!!!! ​

Dear customers, this link contains 4 products! Please read the pictures and details in the description carefully and choose the specification product that meets your needs to place an order, thank you!

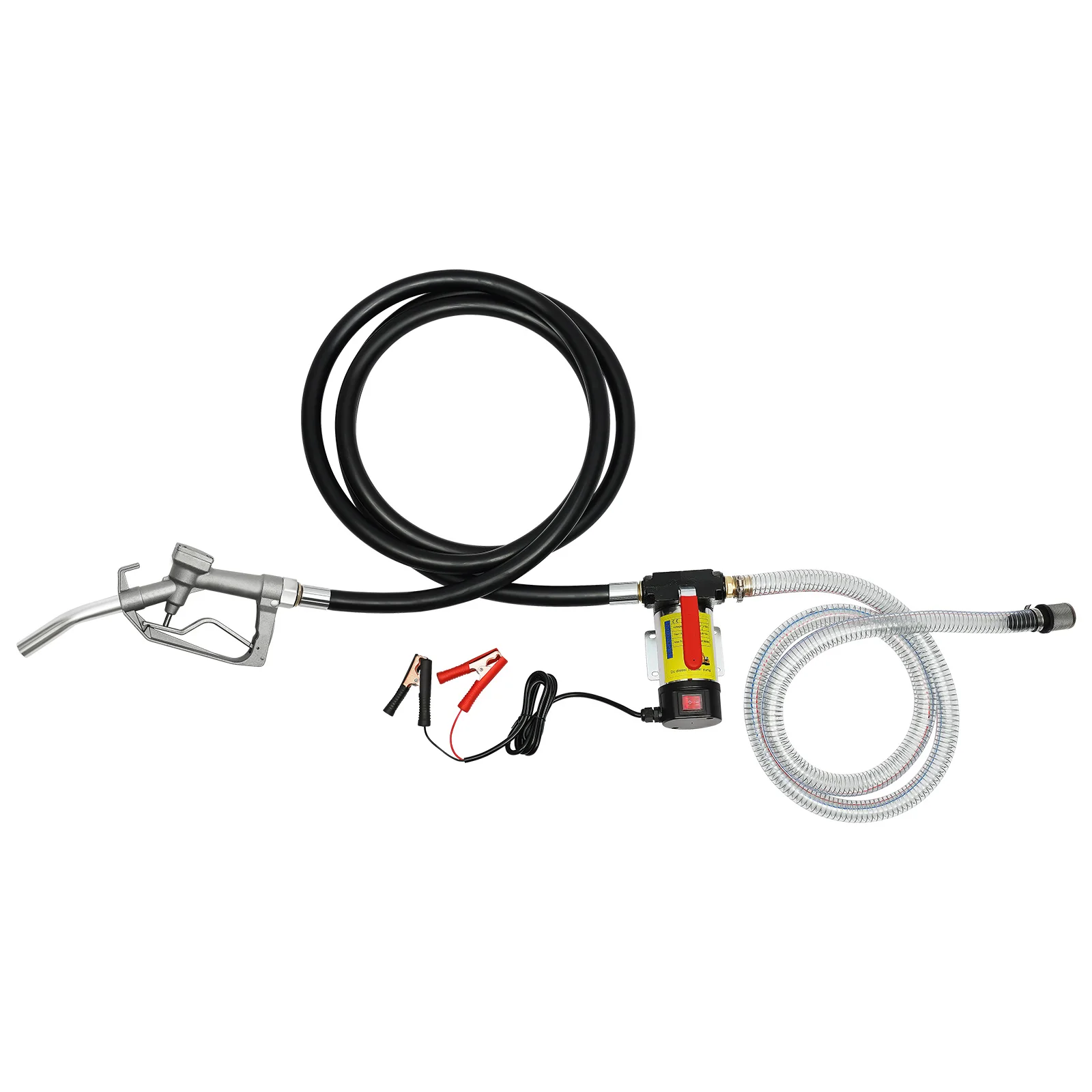

12V 200W Diesel Pump Fuel Oil Pump Automatic Pistol Self-Suction Diesel Pump 50L/min Electric Self-priming Oil Pump Transfer Pump Kit 3500RPM (OT-YCZYQ-4263 12V Black）

Main features:

* Set up in seconds, simple, convenient and easy to use.

* Heavy duty commercial grade handle, works clean and fast.

* Built-in bypass valve helps prevent overheating or overloading.

* High quality steel wire reinforced inlet hose, bonus filter kit.

* Compatible with oil, diesel, bio-diesel or kerosene.

* Suitable for mobile application and permanently mounted use, perfect for home, business and commercial use.

* Can be used as a fuel supply device for operator-driven vehicles such as construction equipment, excavators, bulldozers, road rollers, cement mixers, lifters, trucks, fuel compressors, mining equipment and agricultural machinery. It is also ideal for filling or emptying diesel and oil storage tanks.

Technical parameters:

Item condition: New

Product type: Self-priming diesel pump

Inlet and outlet: 2.54cm/1inch

PVC inlet hose: 2m

Rubber outlet hose:4 m

Max elevator: 7m

Power: 200W

Voltage: 12(DC)

Noise level: <70 dB

Speed: 3500RPM

Maximum pressure: 0.29 MPa, 3 bar, 42 PSI

Maximum flow capacity: 50L/min

Gross weight: 8kg

Package size: 43*26*21cm


Delivery:
1x Pump
1x PVC inlet hose（2m）
1x PVC drain hose（4m）
1x Pump cannon
2x Inlet hose fastening circuits
1x Fuel filter
1x Inlet hose fitting

NOTE:
Do not use the diesel pump and fuel oil pump to pump water, gasoline or flammable volatile substances!
1. Do not use it for gasoline, engine oil, water, flammable liquids or flash point liquids.
2. Do not use in rainy outdoor areas.
3. Please make sure it works with the filter.
4. Making any continuous with time less than 30min is good for longer life.

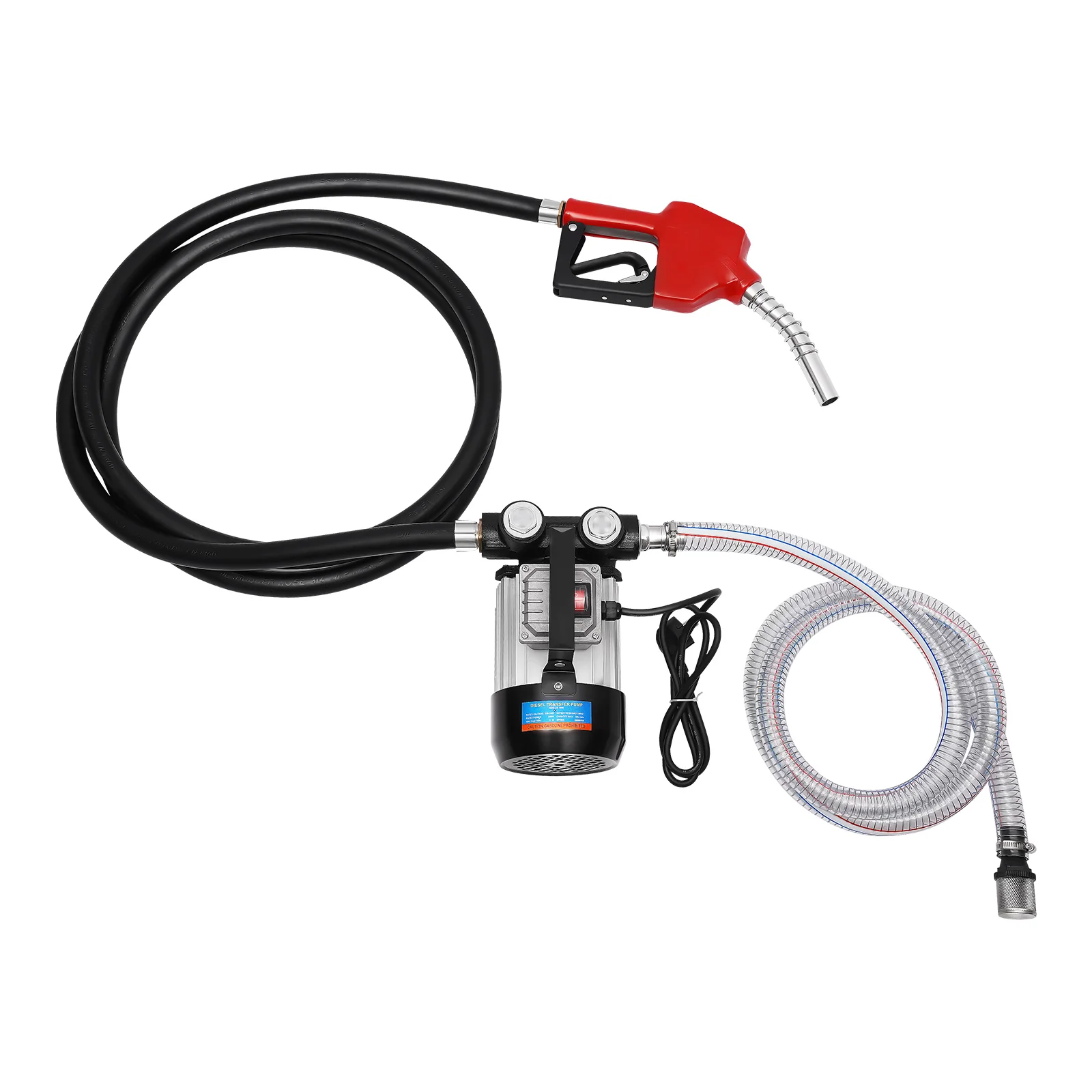

230V 550W Diesel Pump Fuel Oil Pump Automatic Pistol Self-Suction Diesel Pump 60L/min Electric Self-priming Oil Pump Transfer Pump Kit 2800RPM (OT-YCZYQ-4264 230V Black)

Specifications
Material:  Aluminium Alloy, Copper, Cast Iron, PVC, Rubber
Color: Black, Silver
Model: LG-1008
Process: Electroplating, Oxidation
Product Type: Self-priming Diesel Pump
Pump Type: Diesel Pump
Inlet and Outlet: 25mm/1inch
Pvc Inlet Hose: 2m/6.56ft
Rubber Outlet Hose: 4m/13.12ft
Delivery Head: 10-15m/32.81-49.21ft
Power: 550W
Voltage: 230V±10(Dc), 50Hz
Noise Level: <70 dB
Speed: 2800 Rpm
Max. Sucton: 5m/16.4ft
Maximum Pressure: 0.29 Mpa, 3 Bar, 42 Psi
Maximum Flow Capacity: 60 L/15.85Gal/min
Installation Position: Engine Compartment
Way of Use: Direct Replacement


Key Features
High-quality Materials: This product is mainly made of high-quality aluminium alloy, copper, cast iron, which is strong, durable, and not easy to deform.

High Efficiency: The diesel pump has a power of 550w and a rotating speed of 2800r/min, which provides you with strong power and ensures that your work can be completed quickly.

High Safety: Built-in bypass valve helps prevent overheating or overloading.

User-friendly Design: This product can be used mobile or stationary, ideal for home, business and commercial use.

Powerful Function: This kit can be used as a fuel supply for operator-driven vehicles such as construction machinery, excavators, bulldozers, cement mixers, lifts, trucks, mining equipment and agricultural machinery. It is also ideal for filling or emptying diesel fuel and oil storage tanks.

Highlights
Direct Replacement
Stylish Appearance
Strong and Durable
Exquisite Workmanship
Easy to Clean
Stable Performance
Long Service Life
Elaborate Design

Notes
1.Please do not use it for petrol, engine oil, water, flammable liquids or flash point liquids. Please do not use in rainy outdoor areas.
2.Please make sure it works with the filter.
3.We strongly recommend professional installation.
4.Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.


Fits (As a Reference)
For Universal Car Models


Package Included
1*Diesel Pump
1*Pvc Inlet Hose
1*Rubber Drain Hose
2*Inlet Hose Fastening Circuits
1*Fuel Filter
1*Inlet Hose Fitting
1*Self-sealing Oil Gun

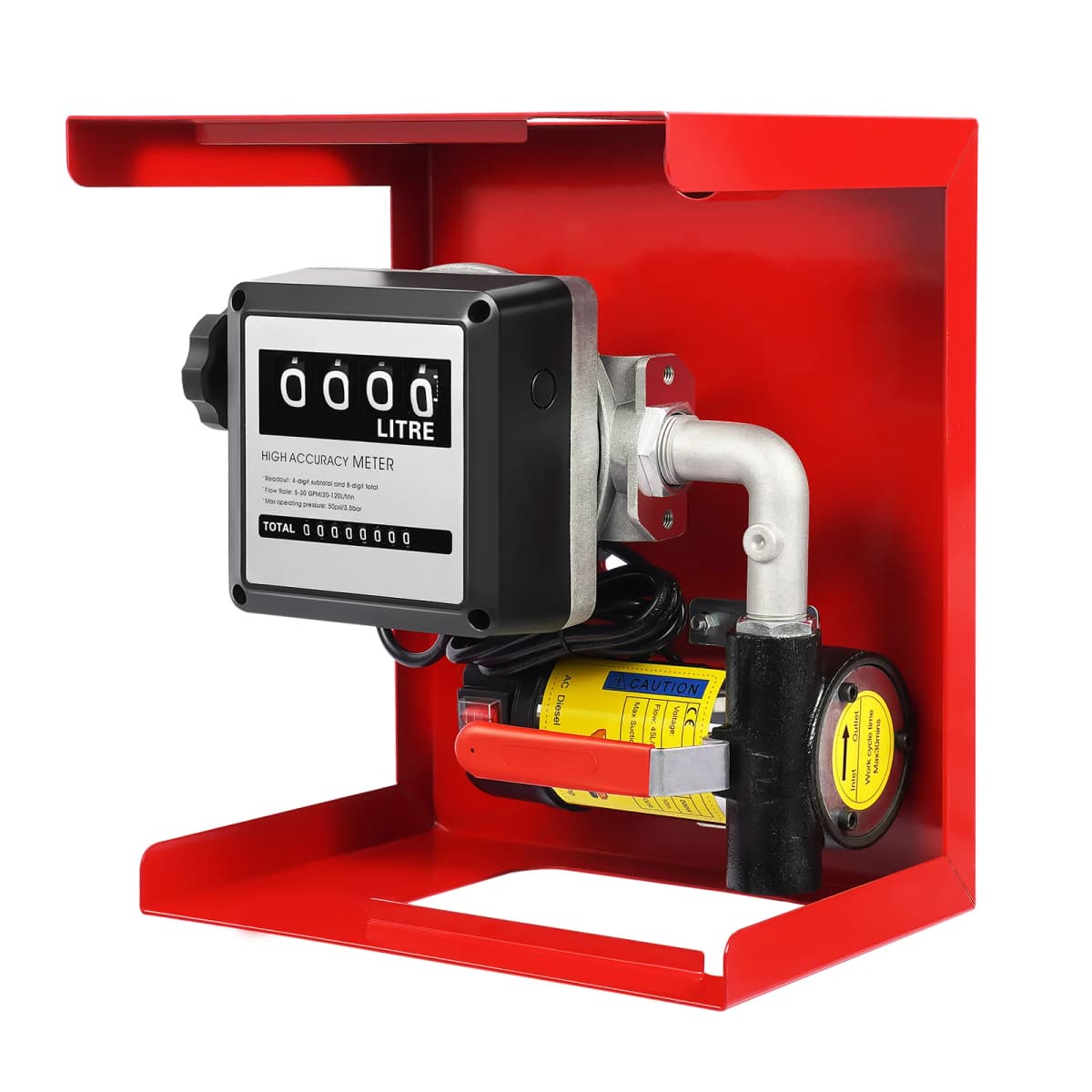

230V 200W Diesel Pump Fuel Oil Pump Automatic Pistol Self-Suction Diesel Pump 50L/min Electric Self-priming Oil Pump Transfer Pump Kit 3600RPM (OT-YCZYQ-4265 230V Red)

This diesel transfer pump is a versatile solution for efficiently pumping diesel to vehicles, construction sites, farms and other outdoor fuel equipment. It features an intuitive display that accurately shows the amount of diesel delivered per operation. The powerful pump realizes the fast power recovery of the machine, and the high-quality materials make it waterproof, windproof, sunproof, and snowproof, so it will be an indispensable fuel delivery tool.

Key Features
High Flow Rate: A copper coil motor with a power of 200W provides an ultra-strong maximum speed of 3600 rpm and a maximum flow rate of 50L/min, helping you quickly complete the task of pumping or delivering diesel.

Accurate Measurement: The 4-digit subtotal and 8-digit total flowmeter with a mechanical gear structure can ensure a measurement accuracy of up to ± 1%. It also supports manual zeroing via a knob on one side for the next accurate measurement display.

Durable and Sturdy: The cast iron pump head provides strong suction. The aluminum alloy flowmeter and steel bracket ensure strong toughness and strength, and perform well over a long period of time. PVC inlet hose has strong flexibility and tensile resistance and rubber-covered outlet hose provides excellent durability and insulation for maximum safety.

Convenient&Quick Operation: The oil gun and pump will stop automatically when filled, and the self-priming function allows for automatic suction of the oil by simply placing the suction port into the oil, saving you valuable time and energy.

Adjustable Speed: Three gear locks near the oil gun trigger enable continuous diesel delivery at three different speed gears without having to hold the trigger with one hand, saving your energy and relieving hand fatigue.

Rest Assured: The mesh suction port effectively purifies diesel to prevent blockage and the check valve in the suction port prevents the risk of backflow. The switch cover can protect the pump from water or foreign objects.

Long Distance Transfer: With an inlet pipe (6.8ft), an outlet pipe (13.4ft), and a power cord (4.4ft), it can easily realize long-distance diesel delivery without frequent movement.

Compact and Portable: It is small in size (13.4*12*8inch) and comes with an installation bracket that allows you to take it to the place you need and fix it to start pumping diesel.



Details
Gun-hanging Mouth: It allows you to safely and easily place the oil gun during use, ensuring your safety and maintaining its lifespan.

Fuel Gun Nozzle: The aluminum alloy nozzle is corrosion and rust-resistant, and the spring on the nozzle achieves stable fueling when placed in the car's fuel filler.

Convenient Handle: The sturdy long handle on the pump makes it easy to move the pump steadily to wherever refueling is needed for flexible use.

Application
It can be used to pump diesel for automobiles, farms, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, elevators, trucks, fuel compressors, or other engineering machinery, mining machinery, and agricultural machinery. It is suitable for pumping diesel and kerosene.

Specifications
Material: Cast Iron, Steel, Aluminum Alloy, PVC, Rubber
Motor Type: Copper Wire Motor
Surface Treatment: Electroplating, Oxidation
Color: Red, Black
Instrument Unit: Liter
Readout: 4-digit Subtotal and 8-digit Total
Motor Power: 200W
Voltage: 230V
Max. Lift: 10m/32.8ft
Max. Suction: 5m/16.4ft
Accuracy: ± 1%
Speed: 3600rpm
Max. Flow Rate of Pump: 50L/min (1690.9oz/min)
Max. Operating Pressure: 50psi/3.5bar
Working Cycle Time: Max. 30 minutes
Inlet Pipe Diameter: 3/4''
Outlet Pipe Diameter: 1''
Flow Meter Size: 13.6*14*8cm/5.4*5.5*3.1inch
Oil Gun Size: 37*12.5cm/14.6*5inch
Inlet Pipe Length: 2.06m/6.8ft
Outlet Pipe Length: 4.07m/13.4ft
Power Cord Length: 1.33m/4.4ft
Bracket Size: 34*30.5*20.5cm/13.4*12*8inch
Package Size: 35.5*31.5*39cm/14*12.4*15.4inch
Gross Weight: 12.45kg/27.4lbs
Net Weight: 11.6kg/25.6lbs

Package Included
1*Diesel Transfer Pump
1*Oil Inlet Pipe
1*Oil Outlet Pipe
1*Oil Gun
1*English Manual
All Accessories for Assembly

Notes
1.Please note that this product is not suitable for pumping water, gasoline and alcohol.
2.Please carefully read the manual and strictly follow the precautions to have a better experience.
3.When it is first used, a small amount of diesel should be added to the pump head to increase suction. The oil inlet pipe should not leak in order to ensure suction lift.
4.Please protect the power socket of this product from water, rain, atmospheric media, and all other liquid sprays.
5.We recommend using this product between -30-40 °C, otherwise, it may cause serious damage to the components. It is recommended to fix this product in a well-ventilated area and avoid direct sunlight.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

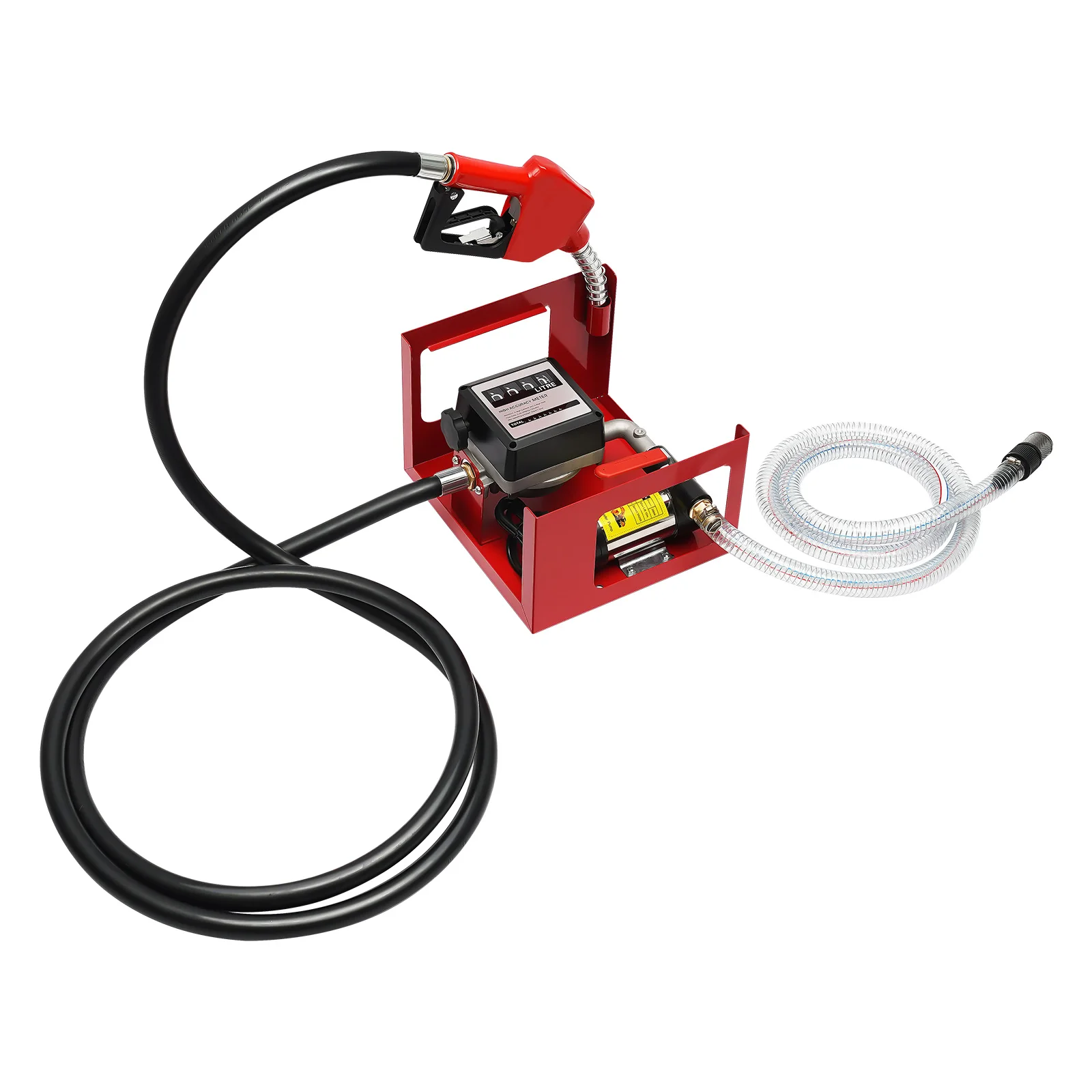

12V 200W Diesel Pump Fuel Oil Pump Automatic Pistol Self-Suction Diesel Pump 45L/min Electric Self-priming Oil Pump Transfer Pump Kit (OT-YCZYQ-4266 12V Red ) (The video shows this one)

Do you still worry about how to transfer diesel safely? Our diesel transfer pump is a comprehensive device designed specifically for extracting and transporting diesel. It combines efficient transfer technology with user-friendly design, aiming to meet the needs of diesel management in various industrial, commercial, and personal applications. It has become an indispensable auxiliary tool for various diesel power equipment due to its high efficiency, safety, and ease of use. Choosing the appropriate diesel transfer pump can significantly improve operational efficiency and ensure a stable and safe supply.

Key Features
Durable & Sturdy: The cast iron oil suction pump, aluminum alloy oil gun's mouth, steel plate mounting bracket with spray paint, pure copper motor, and pure copper positive (red) and negative (black) pole clamps offer corrosion resistance, heat resistance, and wear resistance.

High Working Efficiency: It boasts a power of 200W, a max flow rate of 45L/Min, a max. lift of 32.8ft, a max. suction of 16.4ft, and a rotation speed of 3600r/min, providing you with strong working power and ensuring that your diesel transfer process can be completed quickly and easily.

High Accuracy: The 4-digit subtotal and 8-digit total flowmeter with a mechanical gear structure can display the detailed usage volume (accuracy error: ±1%). It also supports manual zeroing by rotating the flower-shaped knob on one side.

User-friendly Design: The 6.51-ft PVC oil inlet pipe with internal steel wire and the 13.51-ft rubber oil outlet pipe can easily realize long-distance diesel delivery without frequent movement. The oil gun comes with a fixed locking device, which can keep running without pressing the trigger with a hand all the time until refueling is complete, reducing hand fatigue.

Safe to Use: The oil inlet pipe joint with strainer mesh and check valve effectively purifies diesel to prevent blockage and the risk of backflow. Also, the dustproof of IP55 can ensure machine safety during use and reduce the risk of accidents.

Compact & Portable: The bracket measures 13.38*12*9.44 inches with two large hollowed spaces on both sides, allowing you to take it to the place you need.

Complete Kit: The oil gun, oil inlet pipe, oil outlet pipe, and mounting bracket make it easy to pump the required diesel.

Customer Service: Communication is the best way to solve problems. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details
Hanging Loop: It allows you to place the oil gun easily, saving space.

Red Switch: It can help you to turn on or off the oil suction pump easily when you use it or not.

Anti-slip Spring: It is on the oil gun mouth and can prevent the oil gun from slipping during use.

Application
It can be applied to pumping diesel or kerosene for automobiles, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, trucks, etc.

Specifications
Material: Cast Iron, Steel, Aluminum Alloy, PVC, Rubber, Pure Copper
Treatment: Spray Paint
Color: Red
Assembly Required: Yes
Instrument Unit: Liter
Readout: 4-digit Subtotal and 8-digit Total
Dustproof Rate: IP55
Power: 200W
Voltage: 12V
Accuracy Error: ± 1%
Rotation Speed: 3600r/min
Max. Flow Rate: 45L/Min/12GPM
Max. Lift: 10m/32.8ft
Max. Suction: 5m/16.4ft
Max. Operating Pressure: 50psi/3.5bar
Oil Inlet Interface: 3/4''
Oil Outlet Interface: 1''
Oil Inlet Pipe Length: 198.5cm/6.51ft
Oil Outlet Pipe Length: 412cm/13.51ft
Flowmeter Size: 15*14*6cm/5.9*5.51*2.36inch
Bracket Size: 34*30.5*24cm/13.38*12*9.44inch
Gross Weight: 12.85kg/28.32lbs
Net Weight: 11.85kg/26.12lbs
Package Size: 37*33*39cm/14.56*12.99*15.35inch

Package Included
1*Diesel Transfer Pump
1*Oil Inlet Pipe
1*Oil Outlet Pipe
1*Oil Gun
1*English Manual
All Accessories for Assembly

Notes
1.Please read the user manual carefully before use and pay special attention to the safety precautions included.
2.It can't be used for pumping gasoline, alcohol, high viscosity oils, etc.
3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
