132W DC 12V Water Transfer Pump with Filter Connectors - Automatic Start-Stop Booster Pump for Home Pressure Switch Included

Specification

Mount Type: Freestanding
Assembly Required: Yes
Material: PA66, Fiberglass, All Aluminum, Rubber, Metal, 304 Stainless Steel
Color: Black
Control Method: Pressure Switch (Fully Automatic Start-Stop)
Insulation Class: B
Heat Resistance: 130℃/266℉
Noise: Around 55-60 dB
Motor Type: Pure Copper Motor
Valve & Seal Material: NBR, EPDM
Voltage: 12V DC
Current: 6.2A
Maximum Current: 11A
Adjustable Shut Off Pressure: Approx. 2.8-6.0kgf/cm²/2.75-5.88bar
Adjustable Pressure Range: Approx. 2.8-6.0kgf/cm²/2.75-5.88bar
Ambient Temperature: ≤50℃/122℉
Medium Temperature: 0~65℃/32~149℉
Medium PH: 5.0-7.5
Duty Cycle: Intermittent
Suction Range: 3m/9.84ft
Maximum Lift: 28m/91.86ft
Flow Rate: 17 LPM/4.5 GPM
Power: 132W
Connector I.D.: 12.7mm/0.5in
Connector O.D.: 20mm/0.79in

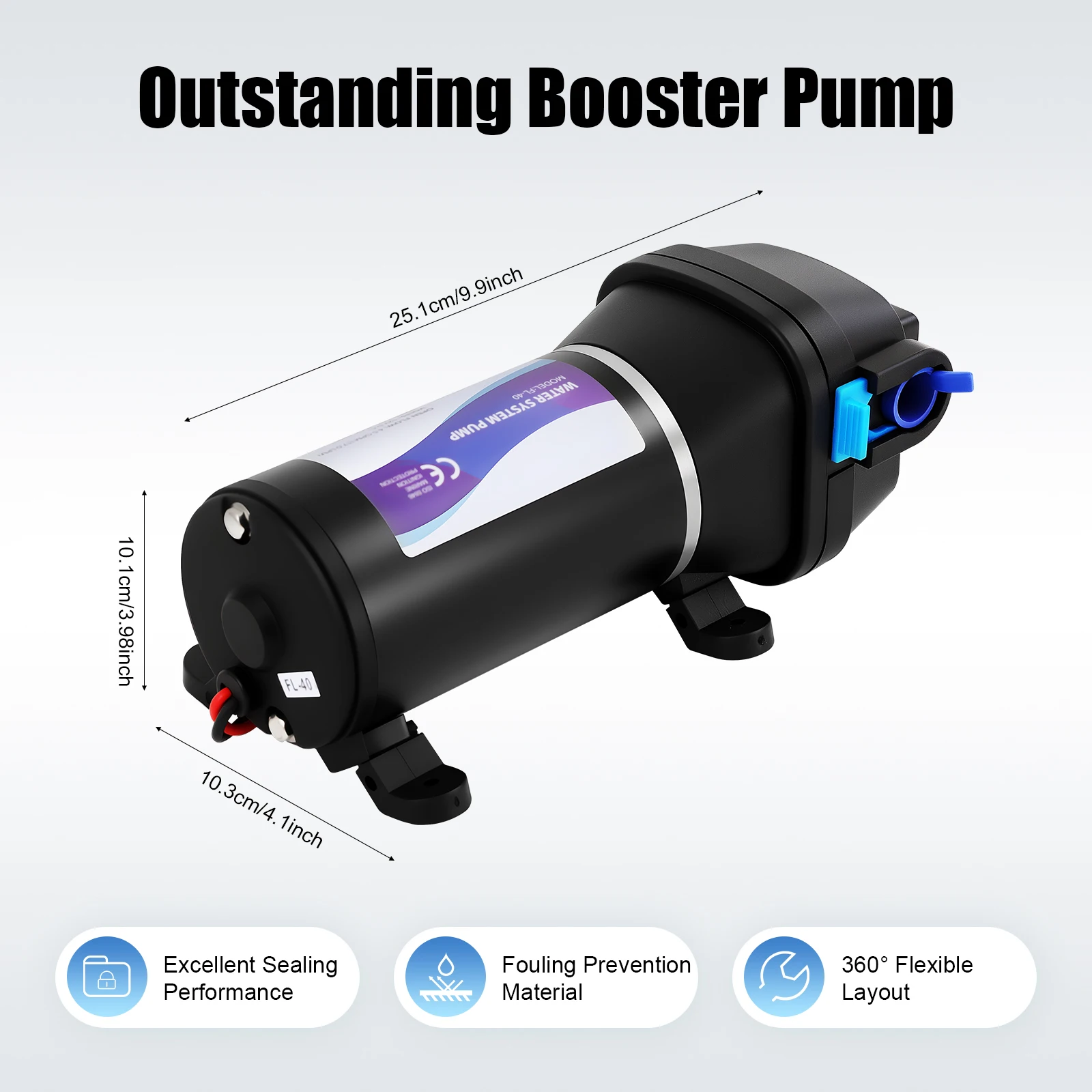

Product Size: 25.1*10.3*10.1cm/9.9*4.1*3.98in
Package Size: 37*13*11cm/14.57*5.12*4.33in
Gross Weight: 2.7kg/5.95lbs
Net Weight: 2.57kg/5.67lbs

Application

It can be used for automatic filling equipment, faucet booster, dishwasher booster, washing machine booster, equipment water circulation cooling, marine yacht water supply, liquid kiosk, electric water heater booster, RV water supply, water supply for high floors, medical equipment, liquid transportation transfer, toilet, bathroom, kitchen, balcony, and other household water supply.

How to Adjust the Switch

1.Open the pressure switch cover with the Phillips screw (not included).
2.Locate the hexagonal hole inside the switch.
3.Adjust clockwise (pressure increases) or counterclockwise (pressure decreases).

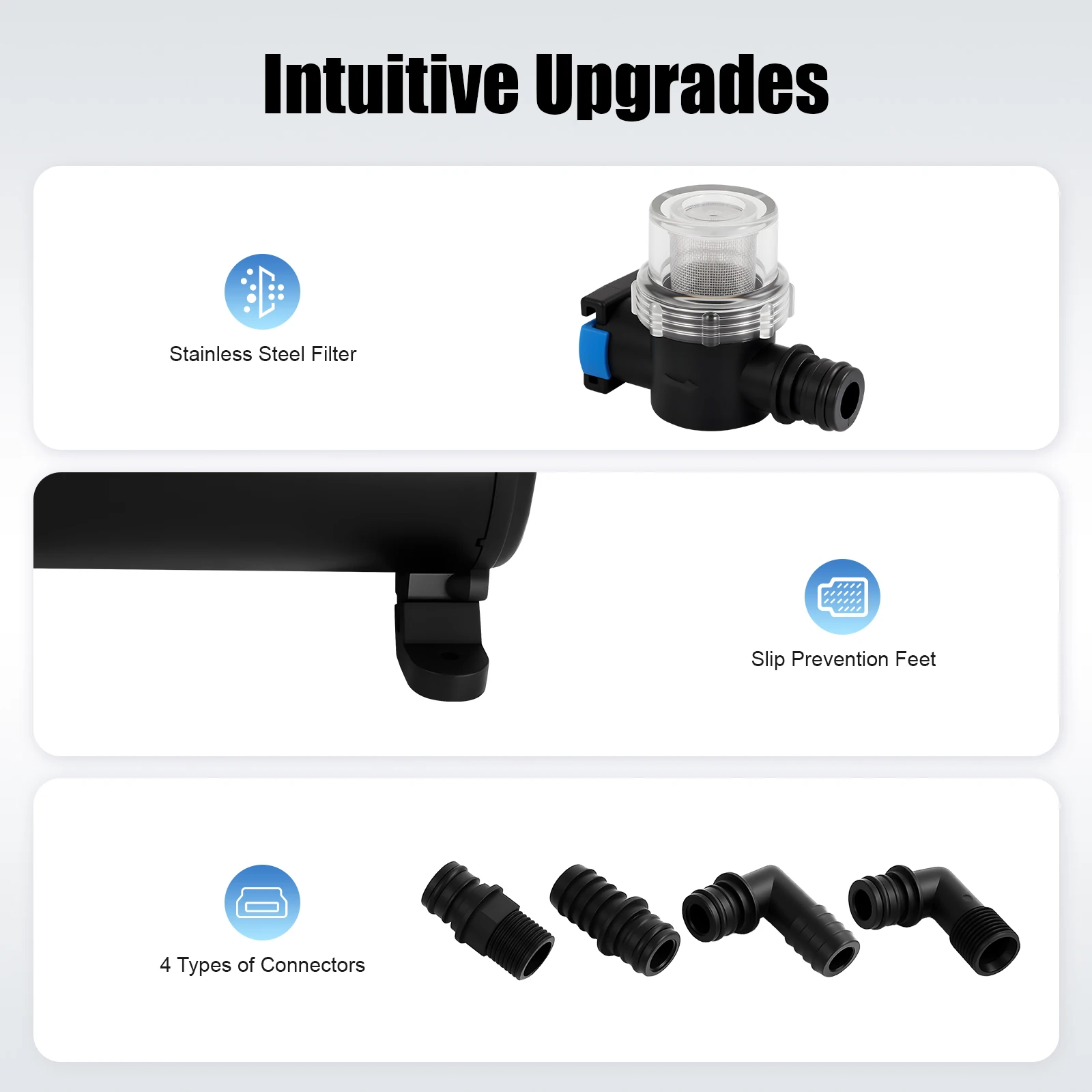

Package Included

1* Booster Pump
4* Connectors
1* Filter

Notes

1.Please check the style and size before purchasing.
2.If the pump is to be used in an environment with sewage, be sure to use it with a filter installed at the water inlet!
3.Please do not use the pump in a flam environment.
4.Please do not use the pump for pumping liquids, including gasolin, petrol, motor oil, and kerosen.
5.Please note that this product has an adjustable shut-off pressure.
6.Please adjust the pump to the applicable pressure and do not exceed the set value, otherwise, the motor will be overloaded for a short period, which will activate the temperature control protection device!
7.The pump can be used to pump media containing solid impurities of ≤0.1% by volume and particles not larger than 0.01 inch.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
