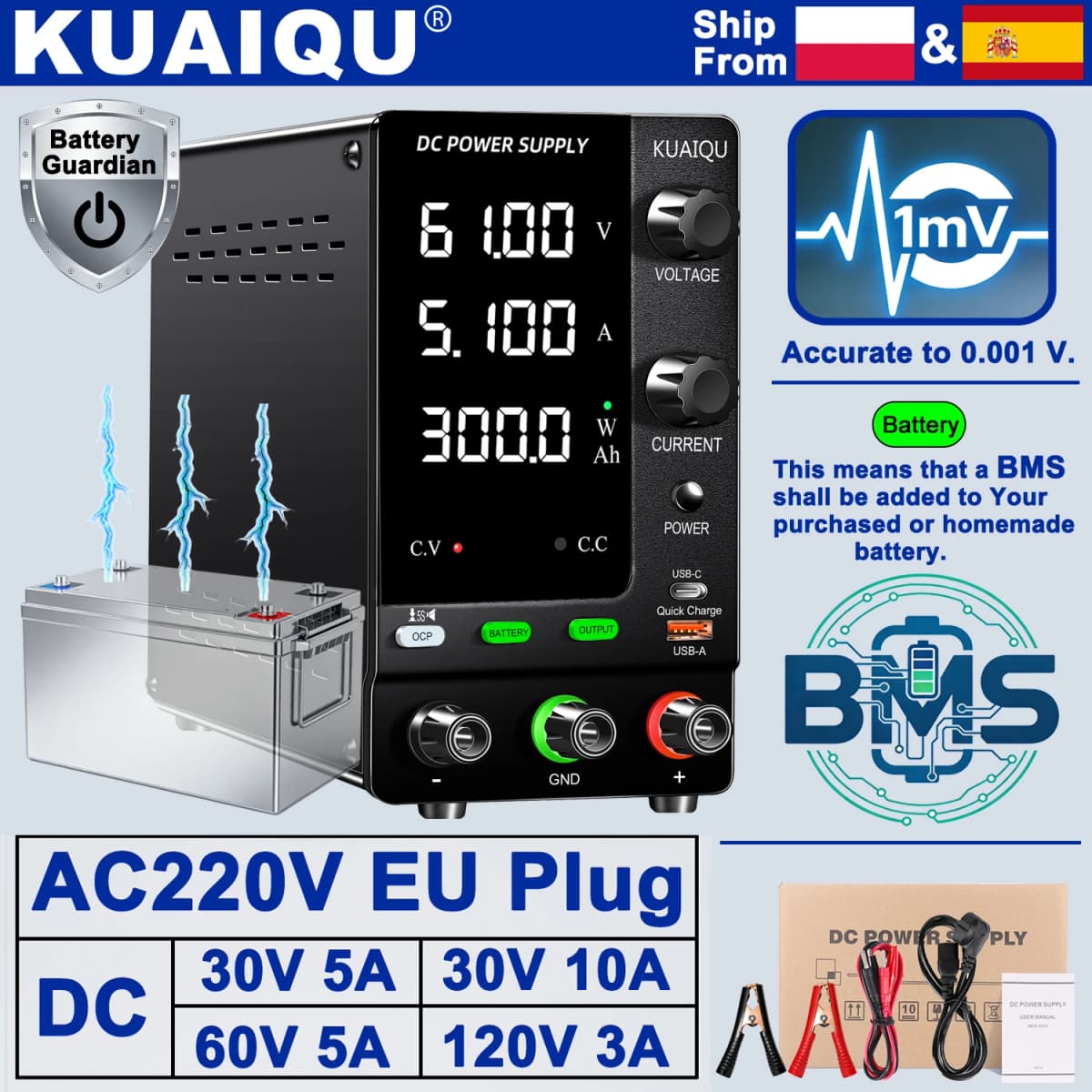

KUAIQU DC Power Supply Variable, Regulated Bench Power Supply for Fast Recharge, Equivalent to adding a BMS to your battery

🔥Our adjustable DC switching power supplies (models SPS‑C3010S, SPS‑C605S, SPS‑C1203S and SPS‑C305S) undergo burn‑in testing with different load resistors before shipment, ensuring customers receive only qualified products.

🔥Differences between the PCB boards of other brands' switching power supplies and the KUAIQU SPPS-C605C PCB board

For other brands' PCB boards:
1, Small common-mode choke with thin windings, low-spec filter components, only meeting basic EMI requirements with poor anti-interference.
2, Small main transformer with low-grade magnetic core, insufficient power margin, easy to overheat under long-term full load.
3, Only one 880μF-class large capacitor on the high-voltage side, average output filtering, weak ripple suppression and low redundancy.
4, Chaotic PCB layout, no effective isolation between high/low voltage circuits, excessive flying wires/manual connections, irregular traces, poor EMC design and low mass production consistency.
5, Thin PCB traces, weak high-current carrying capacity, high overheating risk at full load.
6, Small heat sinks, crude thermal design, loose component arrangement, easy to overheat under long-term full load and short service life.

PCB Board of KUAIQU SPS-C605C:
1, Large-volume common-mode inductor with thick magnetic core and full windings; higher-spec filter components deliver strong EMI suppression and better input stability.
2, Large main transformer with high-grade magnetic core and thicker windings, providing sufficient power margin to support long-term full-load operation.
3, Multiple large capacitors in parallel (5 high-capacity electrolytic capacitors on high-voltage and output sides combined) offer larger total capacity, excellent ripple suppression, purer output voltage and full design redundancy.
4, Compact and reasonable layout with clear separation between high-voltage and low-voltage circuits; regular and thick copper traces, high proportion of SMD components, automated soldering, mature mass-production design (marked BR300 REV.1.3), ensuring excellent consistency and reliability.
5, Robust traces for high-current paths deliver strong current-carrying capacity, excellent heat control and support for long-term high-load use.
6, Large fan plus rational component arrangement ensures sufficient heat dissipation for high-heat components; complete over-temperature protection guarantees long service life and high reliability.

Technical Parameters

KUAIQU DC Power Supply Variable for Fast Recharge

Electricity has become ubiquitous in our daily lives, such as electric cars, power tools, electric forklifts, electric golf carts, electric boats, electric bicycles, heavy-duty drones, long-range drones, etc. These products themselves are very expensive, and it is particularly important to maintain their batteries. How can we safely charge these devices? You can take a look at our intelligent universal charger, which can safely and quickly charge the battery.

The following image shows the charging speed of chargers with different voltages and currents, as well as how many parallel batteries can be charged

Which voltage and current should I choose？

The higher the charging voltage, the more types of batteries you can charge
The higher the charging current, the faster the charging speed
🔥30V 5A 150W, Suitable for batteries: 8 series lithium iron phosphate battery/12 series Lead-acid battery/7 series sodium-ion batteries/7 series Ternary lithium battery, can charge 5ah in one hour
🔥30V 10A 300W, Suitable for batteries: 8 series lithium iron phosphate battery/12 series Lead-acid battery/7 series sodium-ion batteries/7 series Ternary lithium battery, can charge 10ah in one hour
🔥60V 5A 300W, Suitable for batteries: 16 series lithium iron phosphate battery/25 series Lead-acid battery/15 series sodium-ion batteries/14 series Ternary lithium battery, can be charged for 5ah in one hour
🔥120V 3A 360W, Suitable for batteries: 33 series lithium iron phosphate battery/50 series Lead-acid battery/30 series sodium-ion batteries/28 series Ternary lithium battery, can charge 3ah in one hour
🔥15V 30A 450W, Suitable for batteries: 4 series lithium iron phosphate battery/6 series Lead-acid battery/3 series sodium-ion batteries/3 series Ternary lithium battery, can charge up to 30ah in one hour
🔥30V 20A 600W, Suitable for batteries: 8 series lithium iron phosphate battery/12 series Lead-acid battery/7 series sodium-ion batteries/7 series Ternary lithium battery, can charge 20ah in one hour
🔥30V 30A 900W, Suitable for batteries: 8 series lithium iron phosphate battery/12 series Lead-acid battery/7 series sodium-ion batteries/7 series Ternary lithium battery, capable of charging up to 30ah per hour
🔥60V 10A 600W, Suitable for batteries: 16 series lithium iron phosphate battery/25 series Lead-acid battery/15 series sodium-ion batteries/14 series Ternary lithium battery, can be charged for 10ah in one hour
🔥60V 20A 1200W, Suitable for batteries: 16 series lithium iron phosphate battery/25 series Lead-acid battery/15 series sodium-ion batteries/14 series Ternary lithium battery, can charge 20ah in one hour

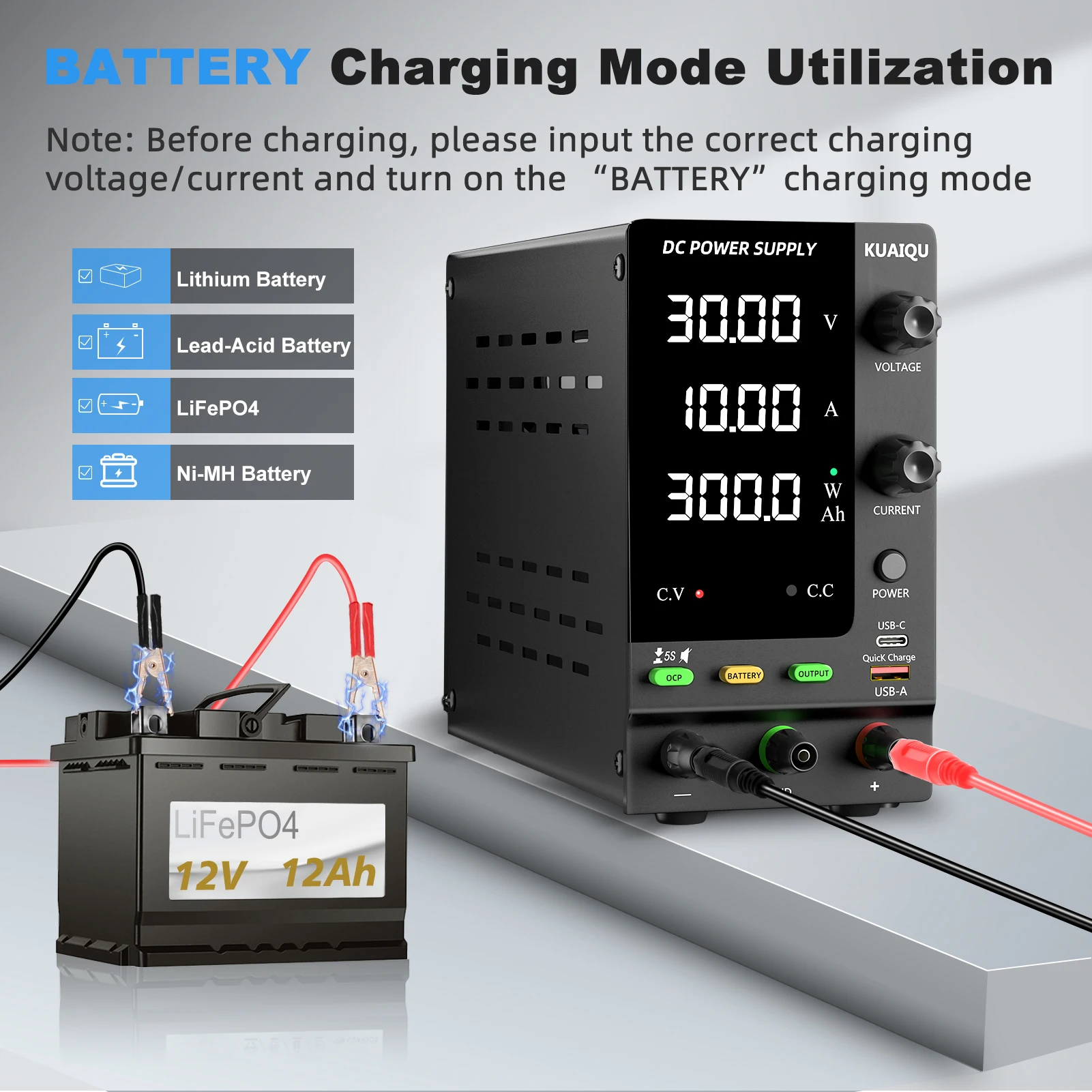

Battery Charging DC Power Supply

R-SPS High Power Battery Charging Series DC Power Supply are designed for charging batteries. The DC Power Supply can charge a wide range of battery types within it's voltage range. Such as lithium batteries, lead-acid batteries, LiFePO4 batteries, etc.

The DC power supply has a maximum voltage of 60V, and can charge batteries below 60V, such as 6V/12V/24V/36V/48V/60V batteries.
Common Battery Charge Current and Charge Voltage:
Charging voltage = 1.15 * battery rated voltage.
Charging current = 0.1C~1C ("C" is the battery capacity).

WARNING: Please note that the above recommendations do not represent all battery types, and you should check the proper charging voltage and current before charging.

Core advantages

🔥intelligent charging
🔥Short circuit detection

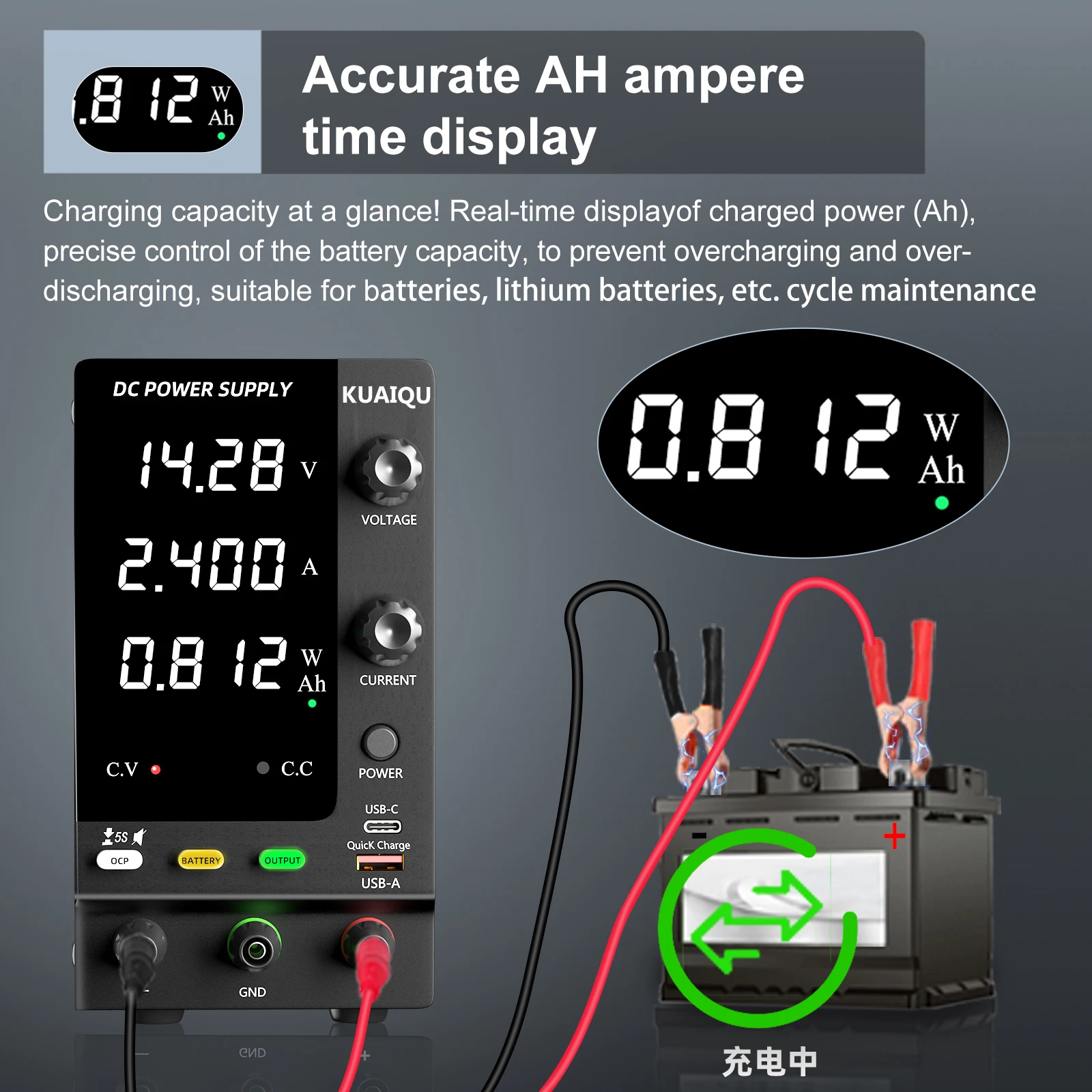

🔥Real-time Ah display

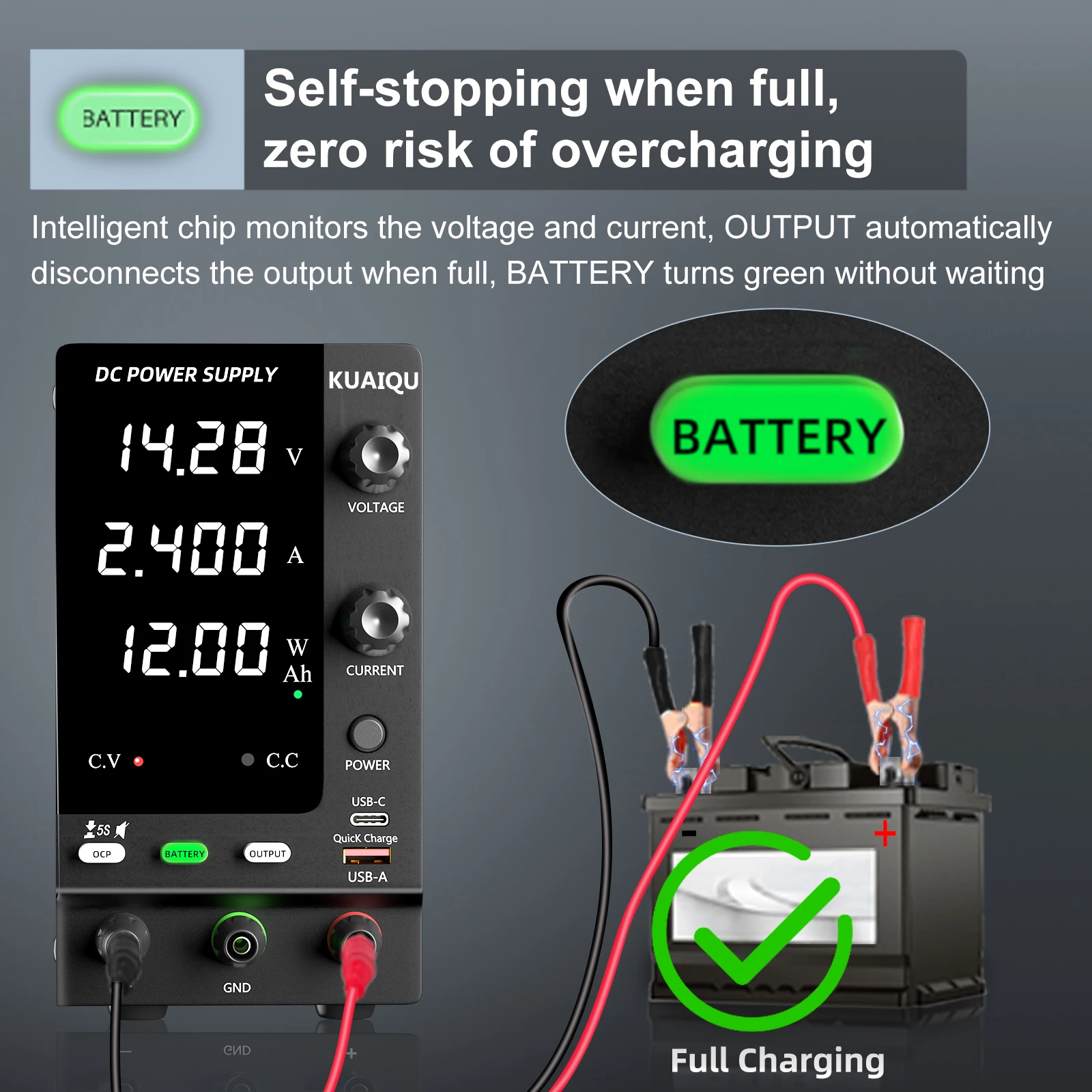

🔥Fully charged self stop
🔥Common voltage and current storage function
🔥Output Switch
🔥Check the total battery capacity

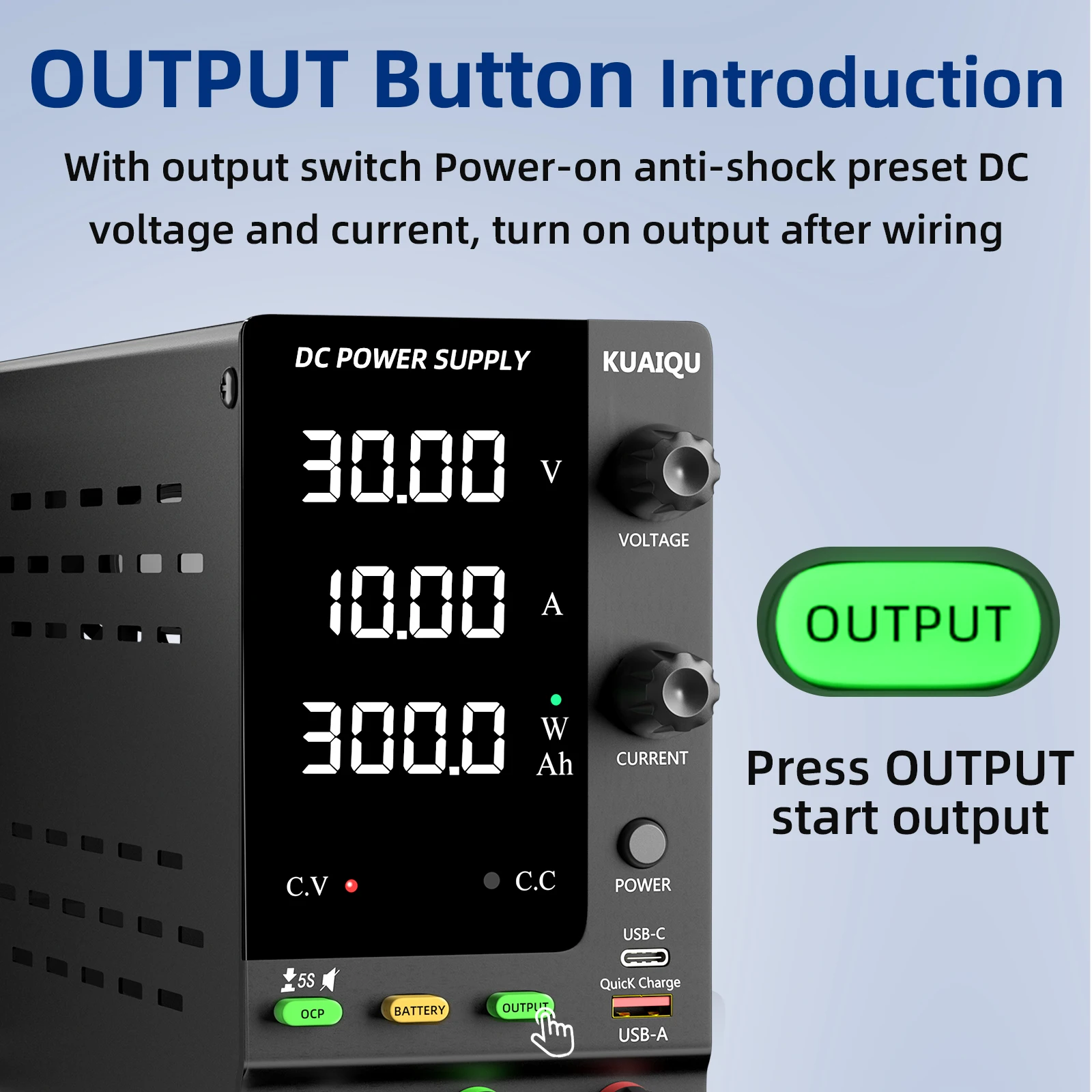

Output Switch

The DC power supply is equipped with an output switch, you can set the voltage/current value you need first, and then turn on the output switch, then the DC power supply will have output voltage/current.

The output switch prevents the connected load from being damaged.

OCP

"Short-circuit killer" is a colloquial term for various risk sources or fault modes that can cause circuit short circuits, leading to severe consequences such as equipment damage, fire, or explosion. It is commonly used in the electronics, electrical, and battery fields. The core cause is the direct connection between positive and negative poles or live and neutral wires due to insulation failure, which generates an instantaneous large current and high temperature.

Intelligent Fan

When the operating temperature of the DC power supply exceeds 122°F or 50°C, the fan will turn on intelligently to dissipate heat effectively. Reduces the working noise of the DC power supply and prolongs the service life of the DC power supply.
