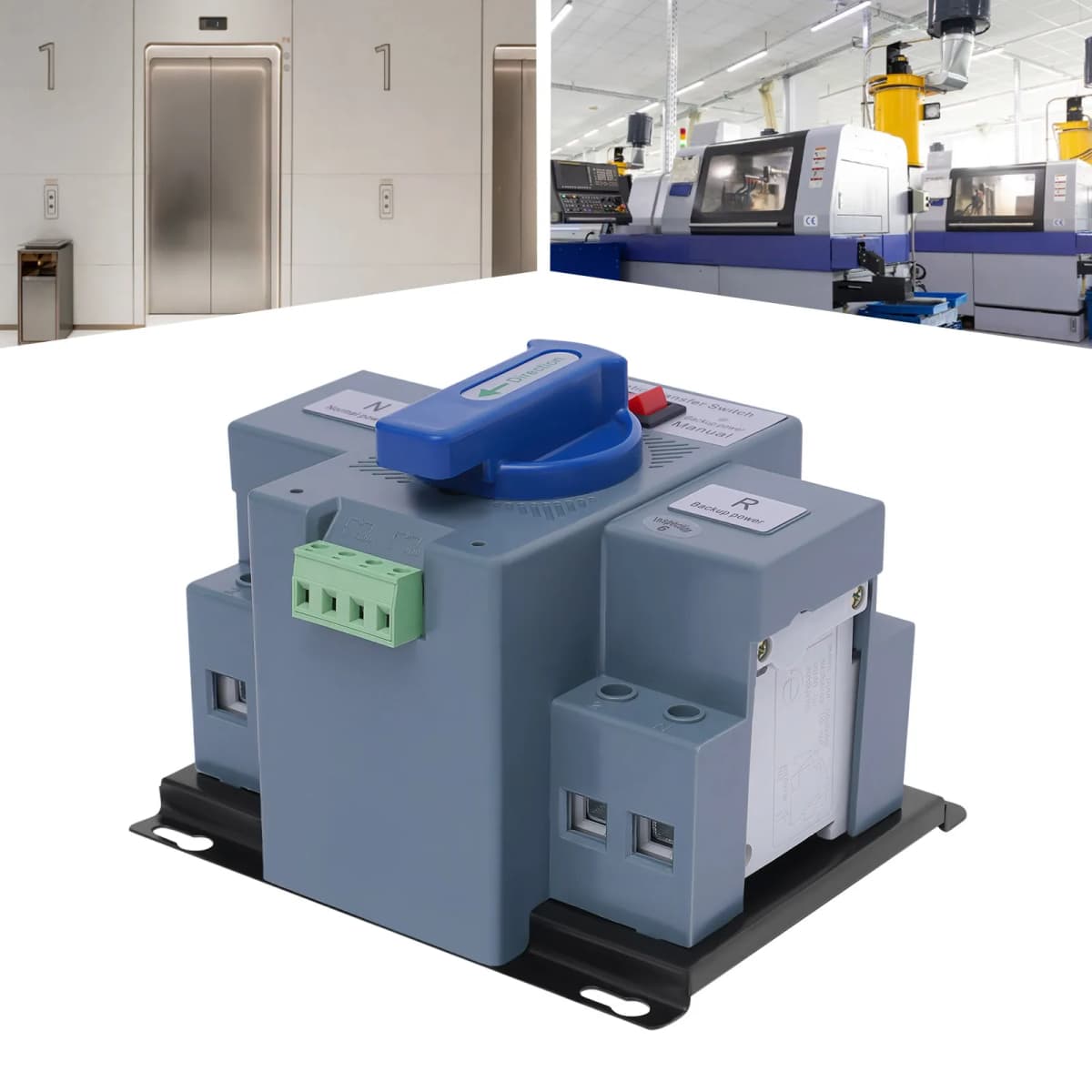

63A 2/3P Automatic Switch Transfer Switch Dual Switch Power Supply 220V Switch

Description
The sudden power cuts have caused a lot of distress. This double power automatic change-over switch will help you to solve this problem. When the common power supply is cut off, the backup power supply is supplied, and when the common power supply comes in, it is restored to the common power supply. The switching time is only 2 seconds. The automatic switchover saves you more trouble to maintain a continuous power supply.

Key Features
Excellent Performance: When a power supply fails, it will automatically connect one or more load circuits from one power supply to another to ensure the normal power supply of the load circuit.
Fast Switching: It can easily switch between the main power supply and the standby power supply, and the switching time is only 2 seconds.
High Assurance: It is a good product with high assurance and high reliability because it adopts high-quality motor and protective cover protection and has passed CE-level professional certification.
Manual/Automatic Integration: Equipped with manual and automatic switching buttons. For automatic mode, the color-given toggle switch is set to the left position, and for manual mode, it is set to the right position to meet different requirements.
Great Durability: The switch is made of resin and has good strength, corrosion resistance and impact resistance, so it is very durable.
Stable Operation:  It uses a pure copper motor to ensure its stable operation and minimize the noise generated during use, so you don't have to worry about its operation interfering with your normal rest.
Good Environmental Adaptability: It has good environmental adaptability. Whether high or low temperature will not easily affect its normal operation.
Integrated Design: It adopts a building block structure to create an integrated small size, saving the space required for installation.
Complete Protection Function: The switch supports multiple protection functions, including short circuits, overload, phase loss and under-voltage protection, to ensure your safety during use.
Protective Packaging: We put it in the carton and stuffed it with foam pads to ensure that it will not be squeezed during transportation. You can rest assured that we will deliver it to you intact.

Details
Multiple Indicators: There are multiple indicators on the switch to ensure your safety with electricity.
A Red Toggle Switch: You can toggle it to switch between automatic mode and manual mode easily with one touch.
Wiring Terminal: It adopts the mouth-type terminal to effectively prevent accidental touching, and it is safer and faster to use. In addition, it is connected to the signal light terminal, so it is also suitable for complete sets of distribution boxes.
Steel Base: The base is made of thickened steel, so it is not only stable but also strong and durable and not easy to deform.
Application
It can be applied to various scenarios such as elevators, surveillance, fire fighting, office buildings, etc. It is suitable for household electricity and various large places such as ports and terminals, banks and mechanical plants.

Specification
Model: GCQ2-63/2
Color: Blue
Material: Resin+ Steel
Conversion Mode: Self-cast
Display Function: Indicator Light Display
Installation Dimension: 128mm*122mm/5*4.8in
Hole: M6
ATS Level: CB Level
Circuit Type: 2-way
Mounting Type: Wall Mount
International Protection Rating: IP63
Number of Positions: 2
Unit Count: 1
Use Level: AC-33iB
Rated Voltage: AC400V
Working Voltage: AC220V, 50/60HZ
Rated Current: 63A
Conversion Time: ≤2S
Operation Way: Auto/Manual
Package Size: 17.5*15*12.5cm/6.9*5.9*4.9in
Product Size: 15.7*13.3*11.5cm/6.18*5.24*4.53inch
Gross Weight: 1.45kg/3.2lbs
Package Included
1 x Double Power Automatic Change-over Switch
1 x English Manual
Notes
Please read the user manual carefully before use and pay special attention to the safety precautions included.
Please allow slight color difference due to shooting light, and 1-3cm error due to manual measurement, please make sure you don't mind before ordering.
