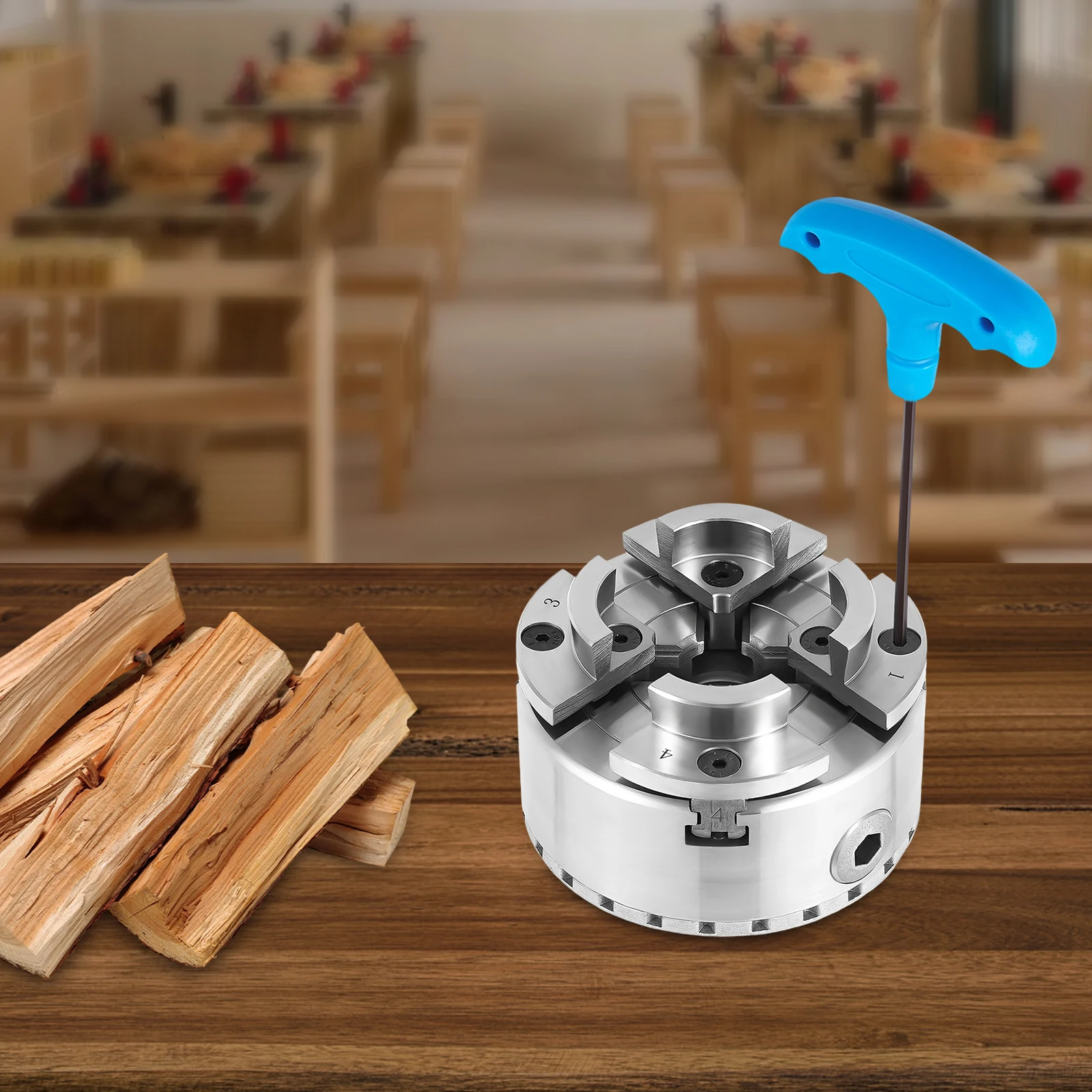

4-Jaw Self-Centering Chuck 3000rpm M33 Metal Processing Equipment and Accessories Quenching and Tempering Process

Description

The 4-jaw self-centering chuck is an indispensable accessory in wood processing, which is mainly used to fix the processing materials, ensuring the stability and accuracy of materials during cutting, carving, polishing, and other operations. It has become a powerful assistant in wood processing with its excellent performance and durability, meeting various needs from amateur enthusiasts to professional carpenters.

Specification

Main Material: Plastic, 40Cr Steel
Surface Treatment: Quenching and Tempering Process
Color: Silver
Max. Rotation Speed: 3000rpm
Threaded Hole Type: M33
Outer diameter of the chuck: 96 mm/3.78inch
External Clamping Width: 45-81mm/1.77-3.19inch
Inner Span: 32-67mm/1.26-2.64inch
Big Wrench Length: 16.5cm/ 6.49inch
Small Wrench Length: 12.5cm/4.92inch
Gross Weight: 1.9kg/4.18lbs
Net Weight: 1.7kg/3.74lbs

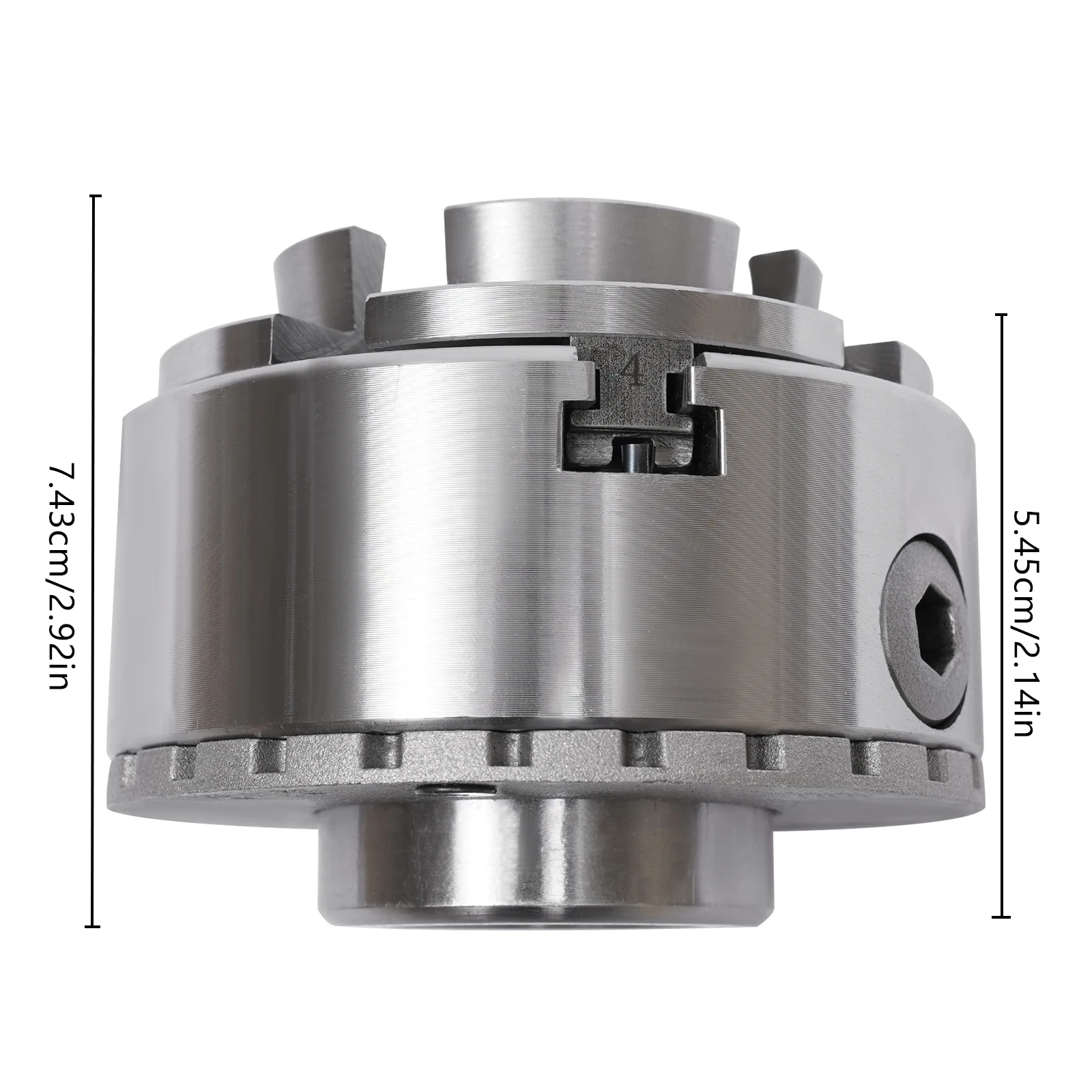

Product Size (D*H): 9.5*7.5cm/3.74*2.95inch
Package Size: 23.5*13.5*17cm/9.25*5.31*6.69inch

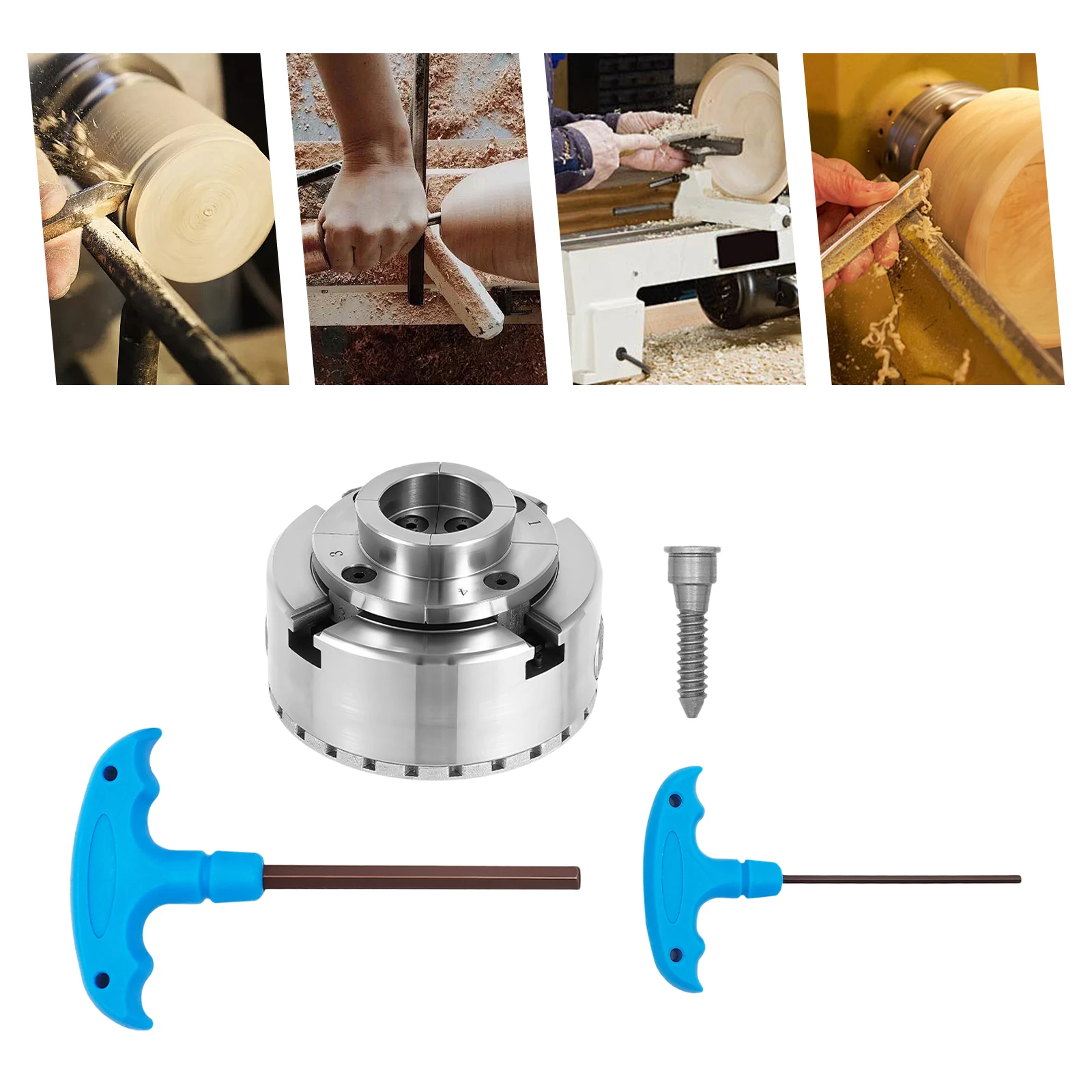

Package Included

1*4-jaw Self-centering Chuck
2*Wrenches
1*Screw
1*English Manual

Application

It's mainly applied to wood lathes.

Key Features

Build to Last: It adopts 40Cr steel with a quenching and tempering process, which can prevent corrosion, wear, rust, and deformation well, so it has a long service life.

Compact & Lightweight: It measures 3.74*2.95 inches and weighs 3.74 pounds, which is convenient to replace, store, and carry.

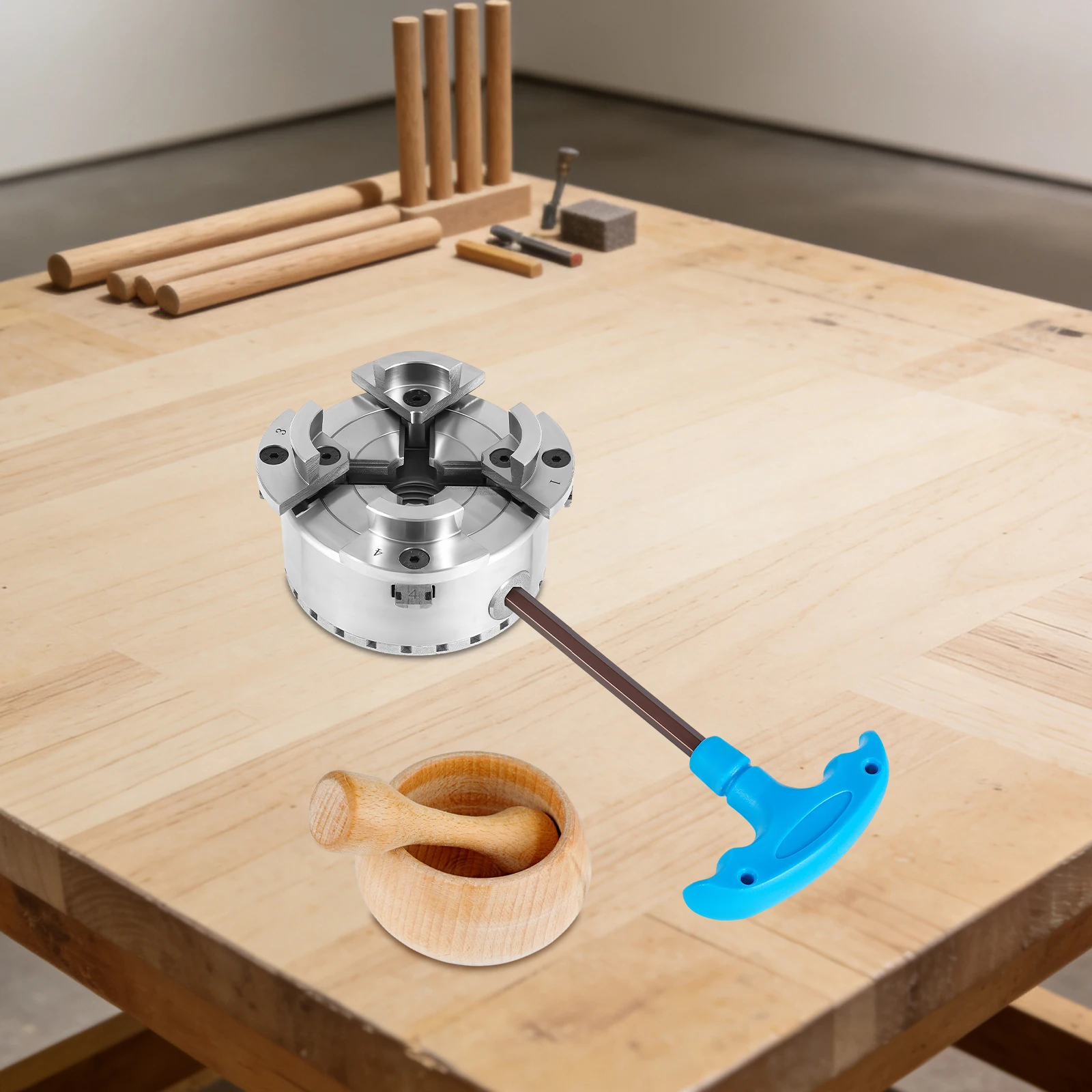

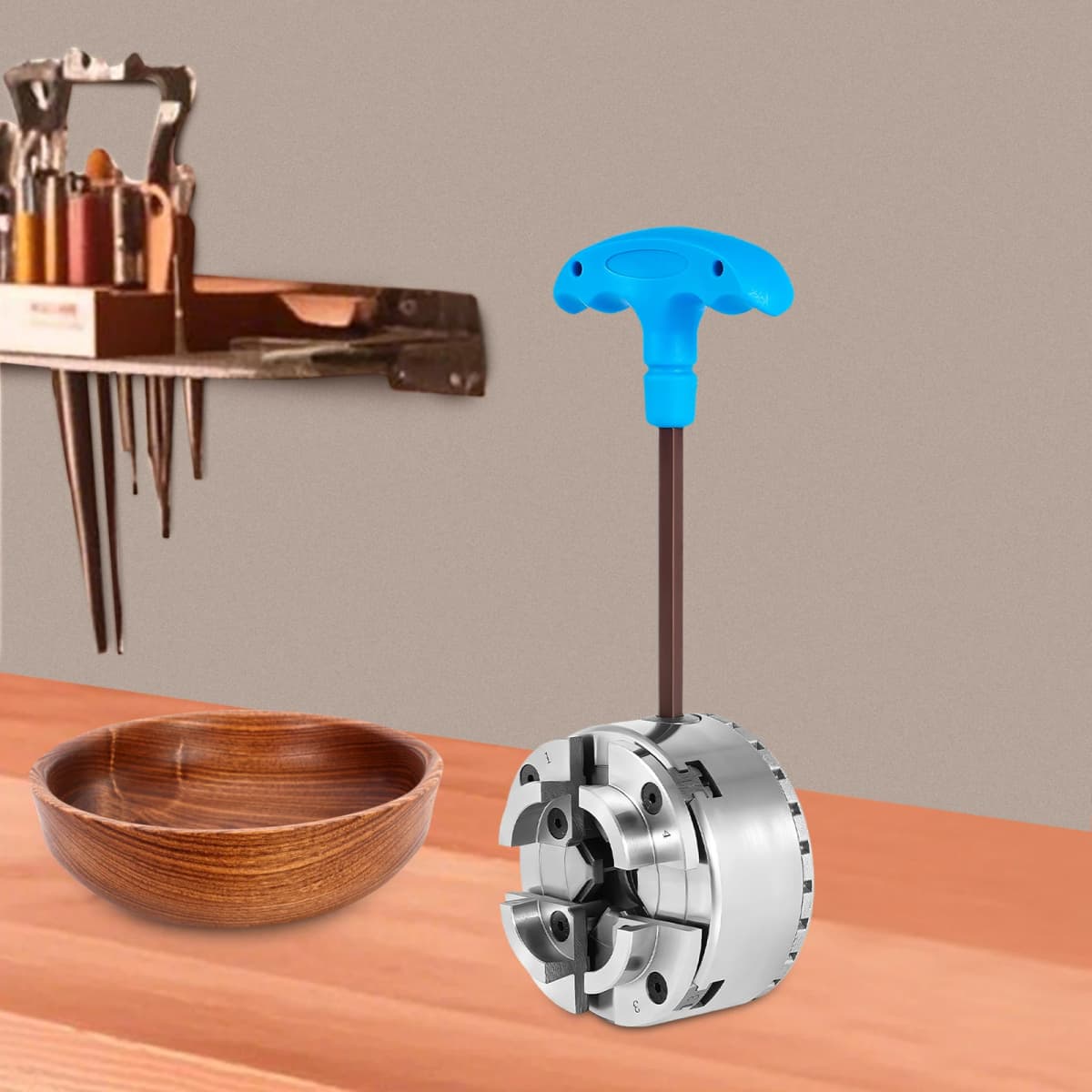

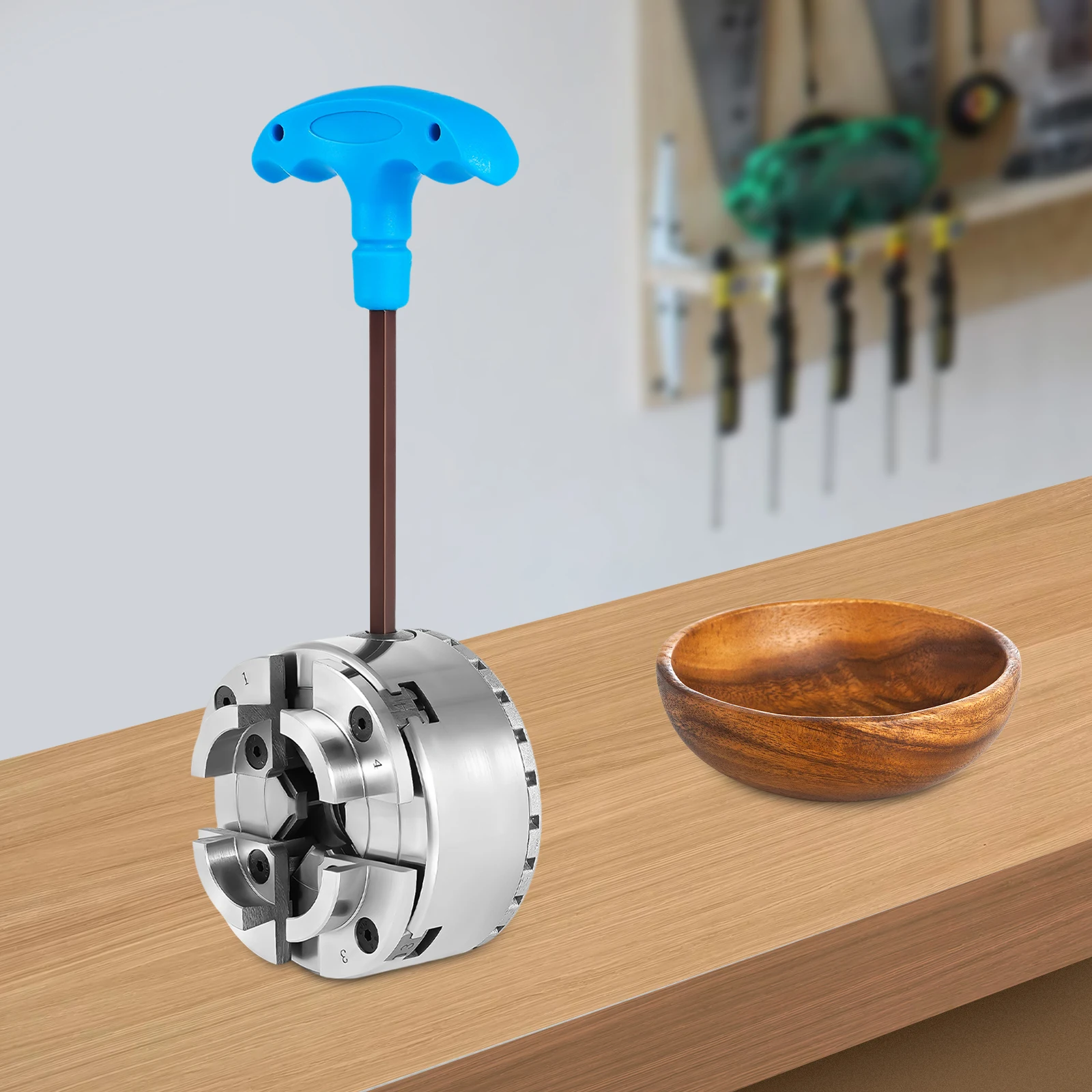

Well-intention Design: The claws can be adjusted at will by rotating the big wrench (clockwise-contract the claws; anticlockwise-expand the claws) according to the size and shape of the workpiece to achieve stable clamping.

Standard Interface: The M33 thread with good versatility and interchangeability is suitable for most wood lathes, reducing installation restrictions for you.

Self-centering Function: The chuck can automatically correct the machining center position, achieving fast and accurate positioning and clamping.

Detachable Design: The equipped chuck claws can be detached easily by the small wrench to change other claws with different sizes and shapes, meeting a wider range of requirements.

Protective Packaging: The product comes in a custom carton that resists common compression and falls to prevent product damage in transit.

Customer Service: Communication is the best way to solve problems. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

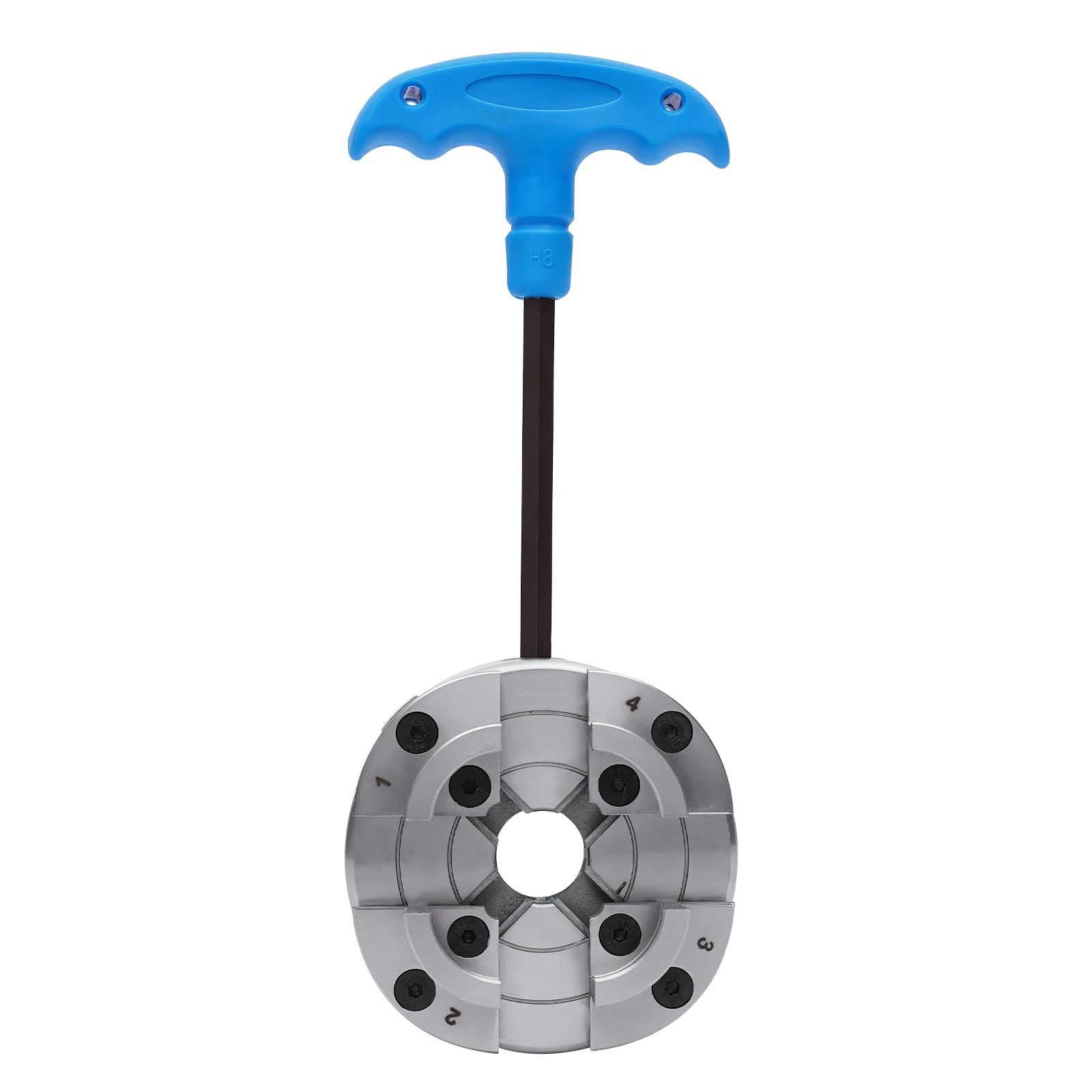

Portable Wrenches: The two different-sized wrenches with plastic T-shaped handles can be applied to different-sized screws on the chuck.

Scale Division Marks: They are under the chuck and divided into 24 equal parts, which can help divide the workpiece into required equal parts.

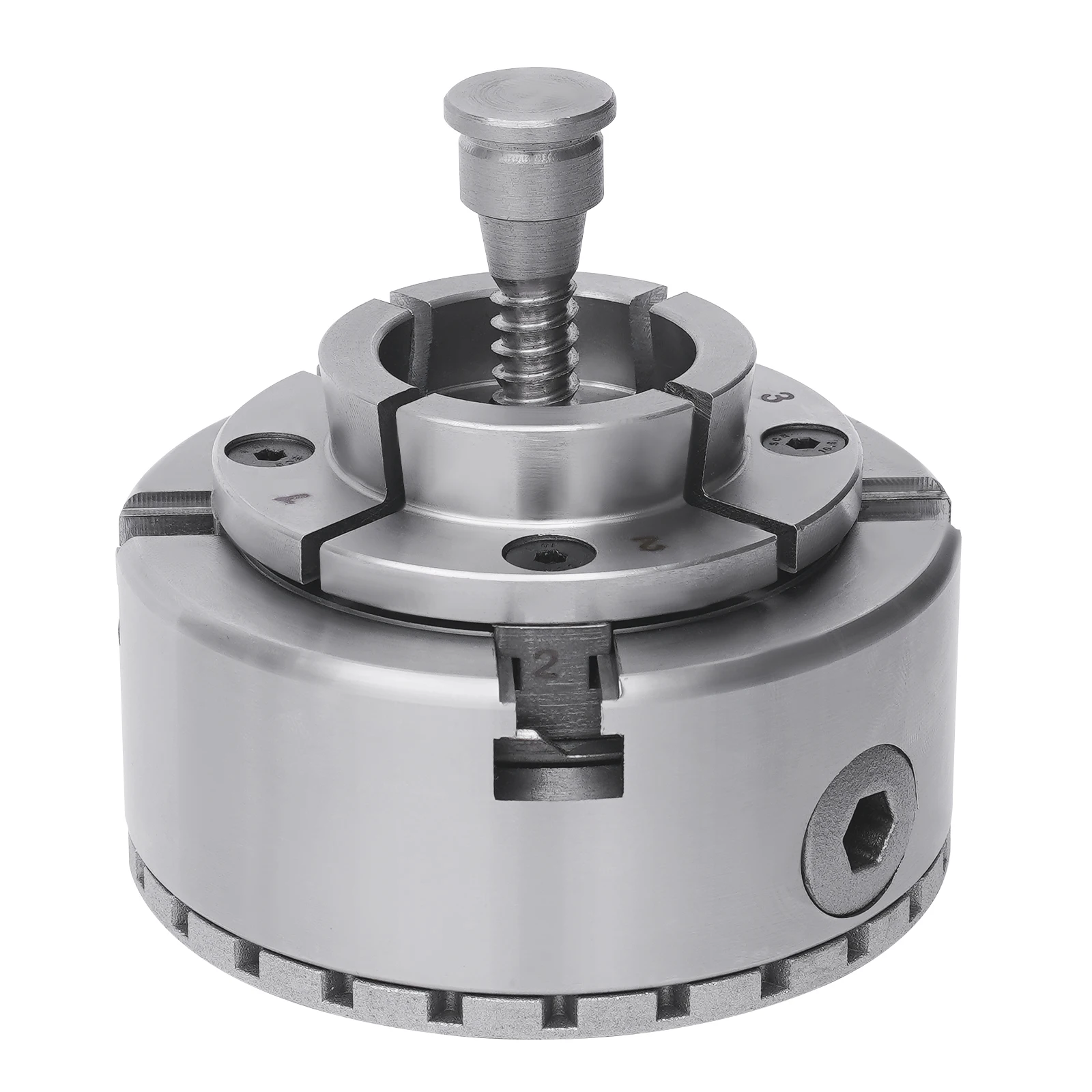

Useful Screw: It can cooperate with the chuck during operation to prevent the workpiece from dropping.

Notes

1.Please read the user manual carefully before use and pay special attention to the safety precautions included.
2.Please note that this chuck is not recommended to be used on other devices without connection parts.
3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
