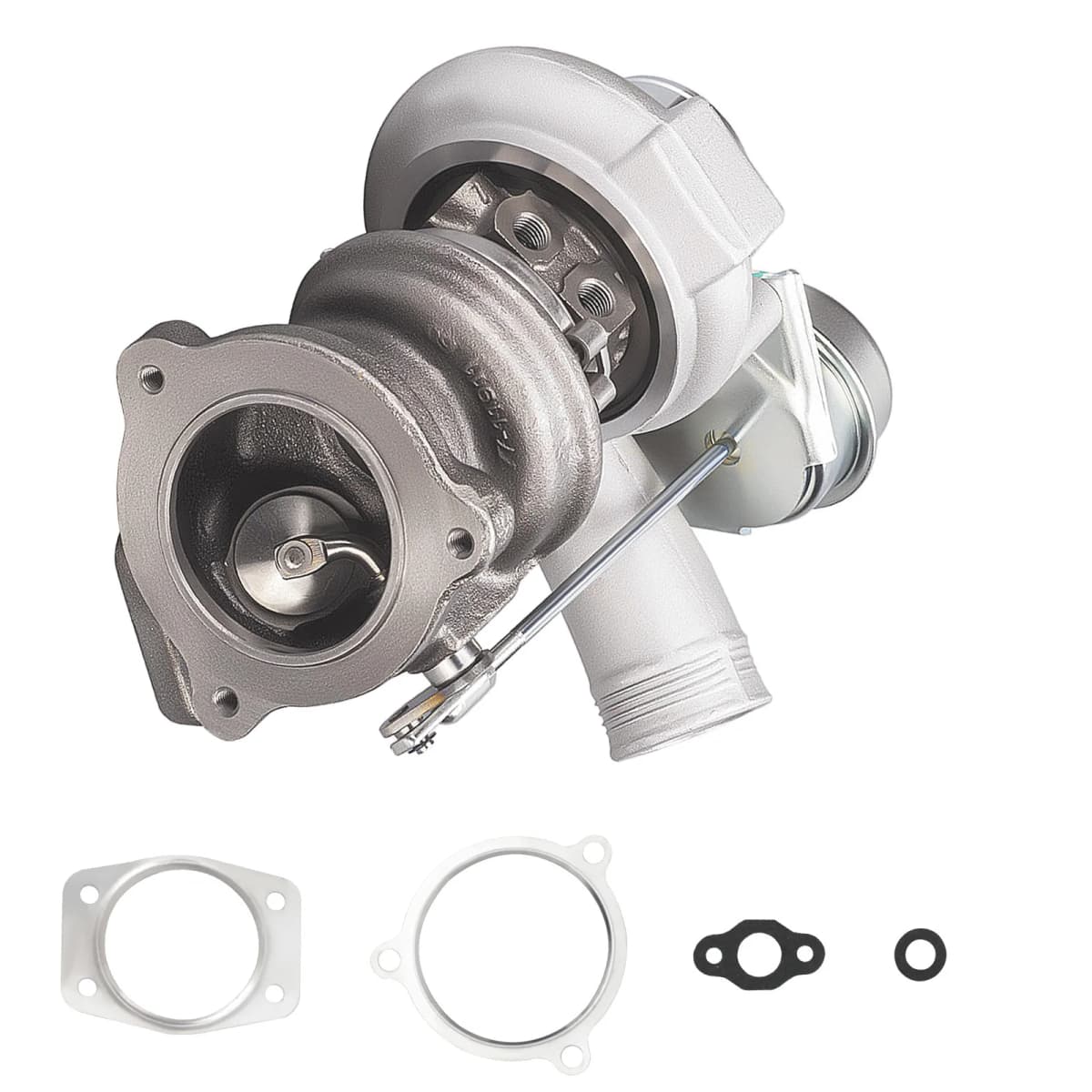

Turbocharger Assembly for Volvo S60 2.5T AWD S80 V70 2003-2008 49377-06202

Application
​
​
​For Volvo XC70 Ocean Race Wagon 4D 2006
​For Volvo XC70 Base Wagon 4D 2004-2007
​For Volvo X/C Wagon 4D 2003
​For Volvo XC90 2.5T Sport Utility 4D 2006
​For Volvo XC90 2.5T Wagon 4D 2004
​For Volvo XC90 Base Sedan 4D 2003
​For Volvo V70 2.5T Wagon 4D 2005-2007
​For Volvo V70 2.5T AWD Wagon 4D 2004
​For Volvo V70 AWD Wagon 4D 2003
​For Volvo S60 2.5T AWD Sedan 4D 2004-2005
​For Volvo S60 2.5T Sedan 4D 2004-2008
​For Volvo S60 AWD Sedan 4D 2003
​For Volvo S80 2.5T AWD Sedan 4D 2004-2006
​For Volvo S80 2.5T Sedan 4D 2004-2006
​
​
​Turbo Model
​
​
​TD04
​
​
​Turbo Part Number & OEM Number
​
​
​4937706200, 49377-06200,
​4937706201, 49377-06201,
​4937706202, 49377-06202,
​4937706203, 49377-06203,
​4937706204, 49377-06204,
​4937706210, 49377-06210,
​4937706212, 49377-06212,
​4937706213, 49377-06213,
​4937706214, 49377-06214,
​30650634, 30757679, 36002369, 36012378,
​8602627, 8603226, 8627809, 8692518,
​
​
​Specification:
​
​
​Turbo Model : TD04L-14T, TD04L-14T-6.0
​Engine Code:  B5254T, B5254T2
​Cooling Type:Water + Oil Cooling
​Bearing Type: Journal Bearing
​Thrust bearings: 270 Degrees
​Hosepower: Up to 210HP
​Turbo Type:Individual
​Universal Fitment:No
​Finish:Matte
​Condition: 100% Brand New
​Accessories: You will get what you can see in the pictures exactly
​Package Size:29*27*24 cm
​Package Weight: 6620g
​
​
​Package included:
​
​
​1 x Turbocharger
​2 x Flange gaskets
​2 x Oil/Water port gaskets
​
​
​Feature:
​
​
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
​
​
​* Technology Advantage:
​1. 100% balancing Test by TURBOTECHNICS  VSR3
​2. G3-min-Flow VNT Turbo testing
​3.  Advanced Actuator Tester/Programmer
​
​
​Note
​
​
​* Please confirm your original turbo PART NUMBER before Purchasing
​* Professional installation is highly recommended
​* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
