500mm Stroke Actuator, 12V Linear Actuator 6000N Force, Linear Motor for Recliner TV Table Lift Massage Bed Electric Sofa

Description

Our stroke actuator is widely used in various fields, such as adjusting massage chairs, TV lifters, lifting tables, electric sofas, and electric treadmills. The high-class material makes it sturdy and durable. It has front and rear limit switches and supports a maximum parallel or vertical pulling of 6000N, making it convenient for your use. In short, it plays an important role in many fields.

Package Included

1 * Stroke Actuator
1* English Manual
2* Mounting Brackets
Other Accessories for Assembly

Specification

Material: Aluminum Alloy
Color: Silver, Black
Style: Modern
Installation Required: Yes
Waterproof Rating: IP44
Maximum Parallel or Vertical Pulling Force: 6000N
Noise: ≤ 48dB

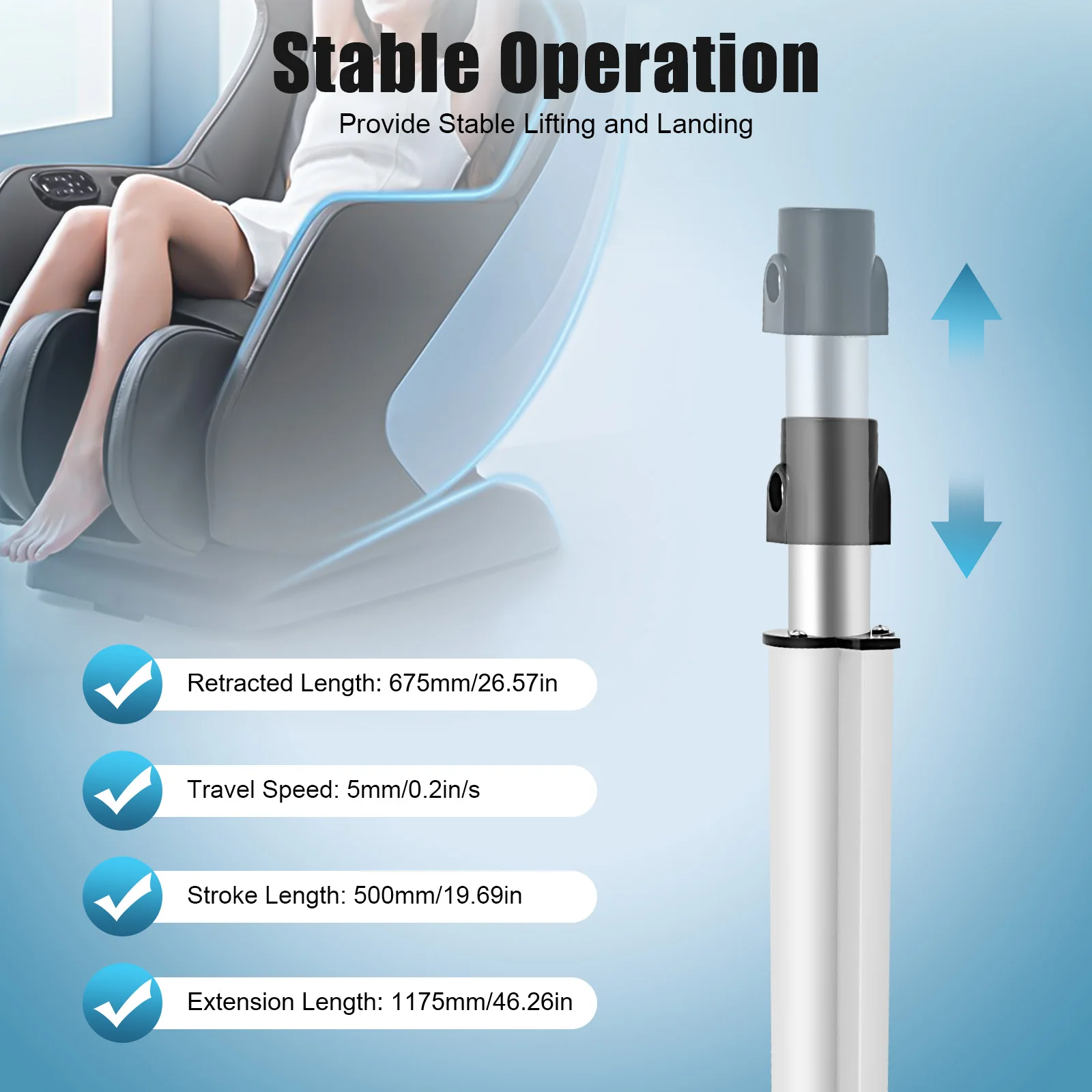

Travel Speed: 5mm/0.2in/s
Stroke Length: 500mm/19.69in
Retracted Length: 675mm/26.57in
Extension Length: 1175mm/46.26in
Interruption Time: Run Once and Rest for 15 Minutes
Input: DC 12V-5A

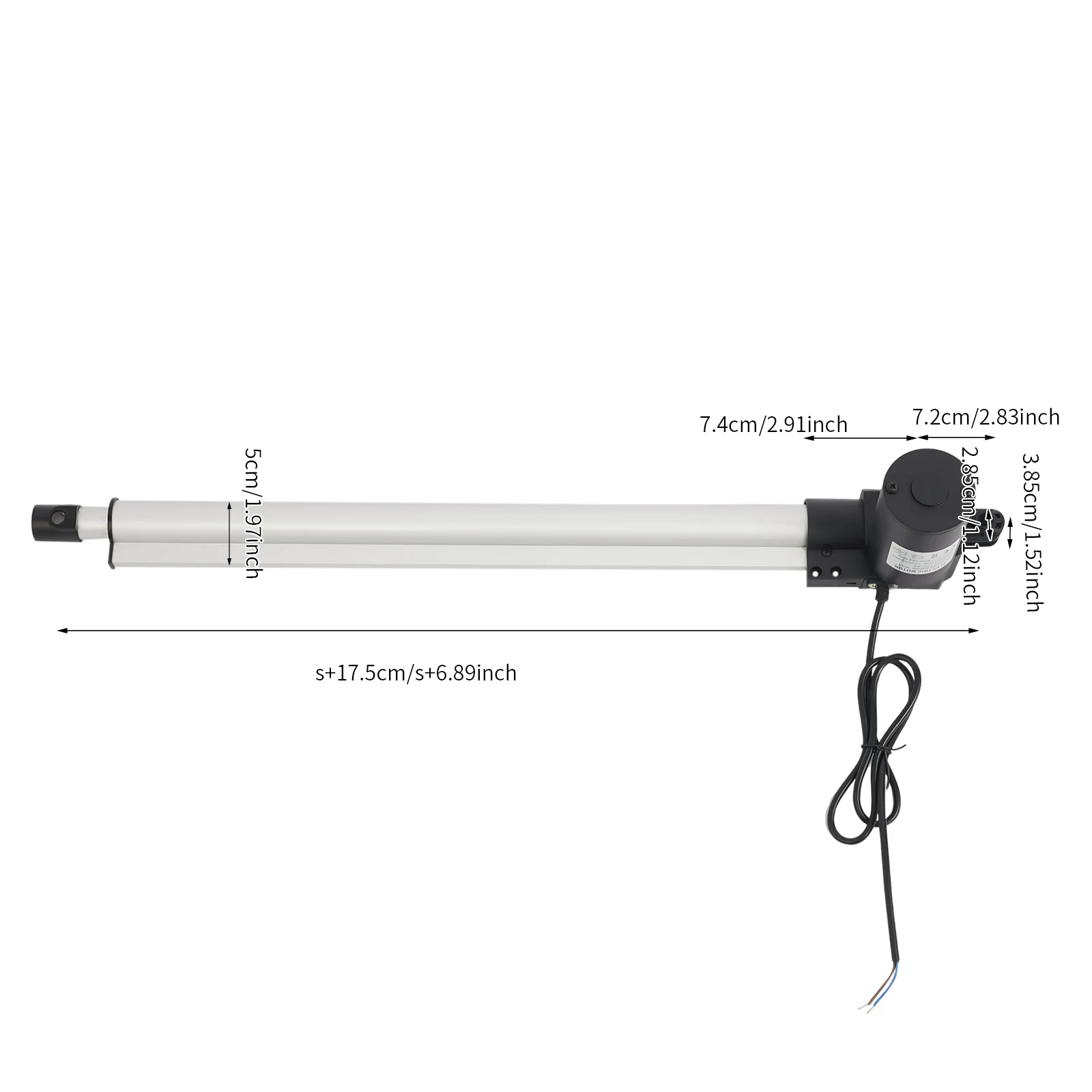

Product Size: 71*8*14.6cm/ 27.95*3.14*5.75 in
Package Size: 17*12*73cm/6.69*4.72*28.74in
Gross Weight: 3.05kg/6.72lbs
Net Weight: 3kg/6.61lbs

Application

It is suitable for industries such as automotive, medical equipment, and engineering. It can be used to adjust massage chairs, TV lifters, lift tables, electric sofas, electric treadmills, car electric tailgates, electric window openers, etc. It is suitable for indoor use.

Key Features

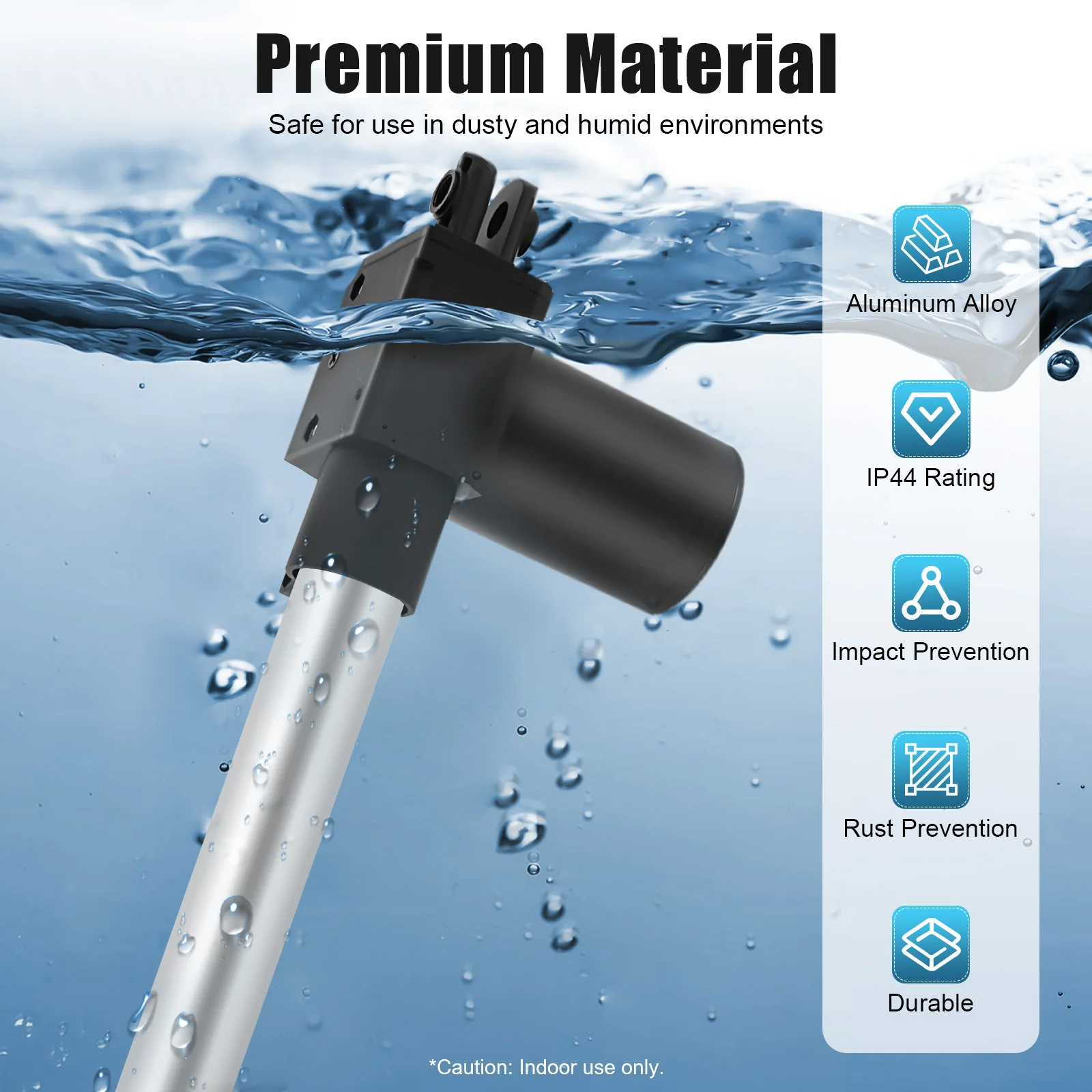

Build to Last: Mainly made of aluminum alloy, this product is impact-resistant, rust-resistant, and durable, ensuring your long-term use.

Powerful Function: It supports a maximum parallel or vertical pulling force of 6000N and a stroke length of 19.69 inches, which can meet various work requirements.

Thoughtful Design: The built-in front and rear limit switches make this product stop when it reaches the switch position, which makes it much safer when used. The IP44 waterproof protection can withstand harsh working environments, enabling automation in the home, outdoor, medical, agricultural, and other fields.

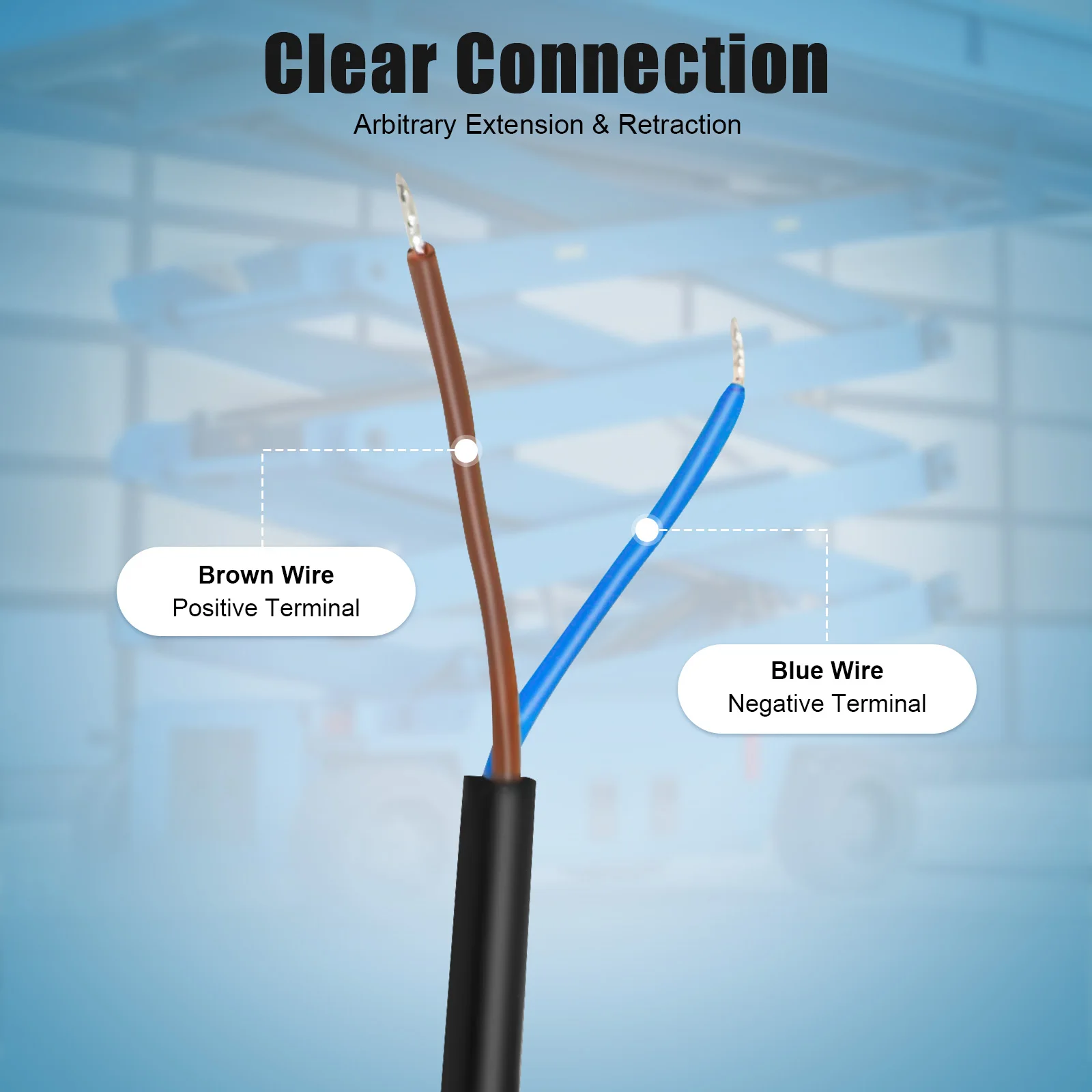

Easy to Use: The brown wire connected to the positive terminal and the blue wire connected to the negative terminal will extend the actuator. To retract it, just reverse the terminal connection.

Protective Package: To prevent the product from being damaged during transportation, we packed it with bubble bags and foam to protect your products to the maximum extent possible.

Easy to Clean: It has a smooth surface and a simple structure, so you only need to wipe the dust with a towel regularly.

Low Noise: Its low noise is ≤48dB, which will not disturb your work and rest.

Good Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Self-tapping Screw: It makes this product less prone to detachment.

Smooth Edge: The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Mounting Brackets: They make it easy to install the actuator in various applications.

Notes

1.Please carefully check the product size before placing an order.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
