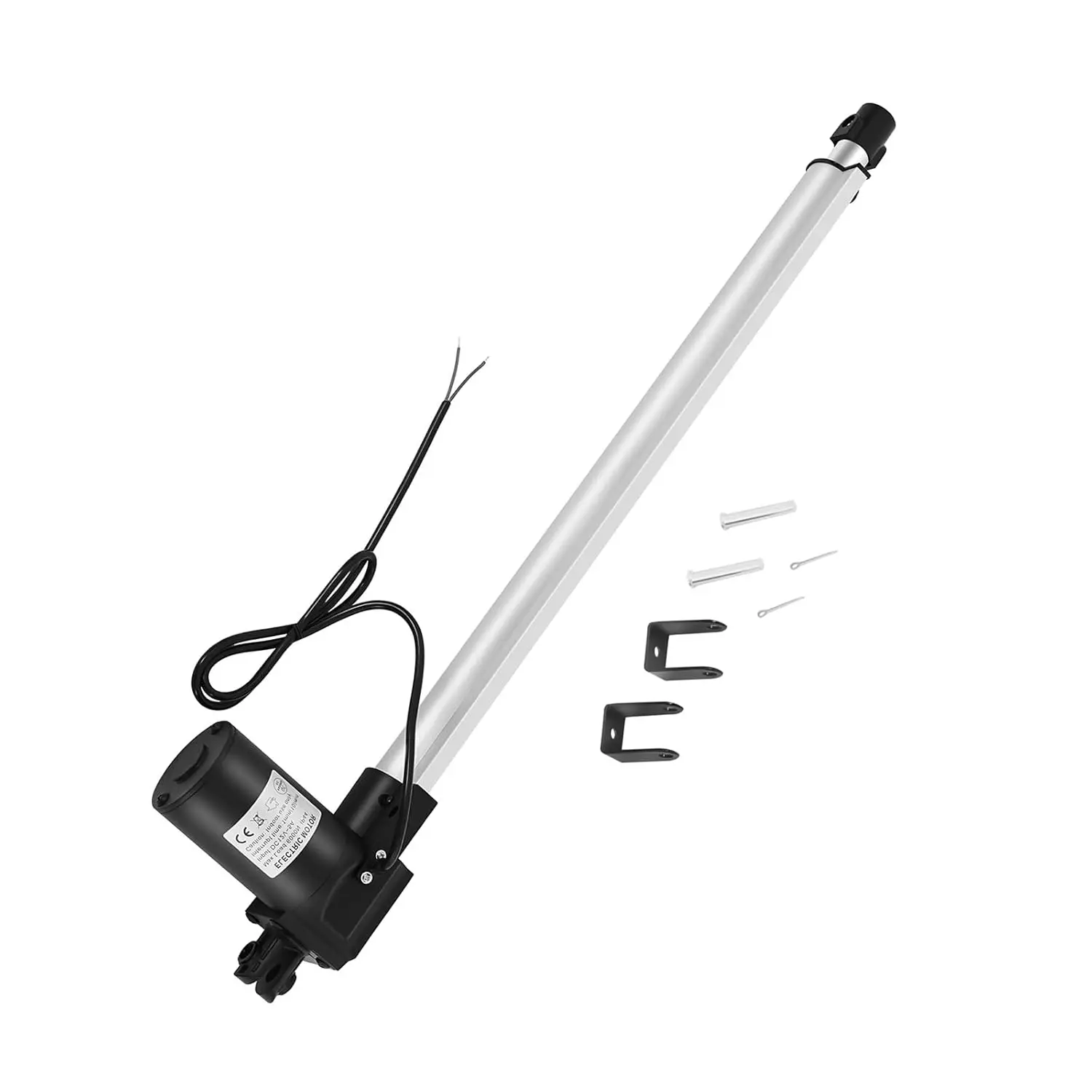

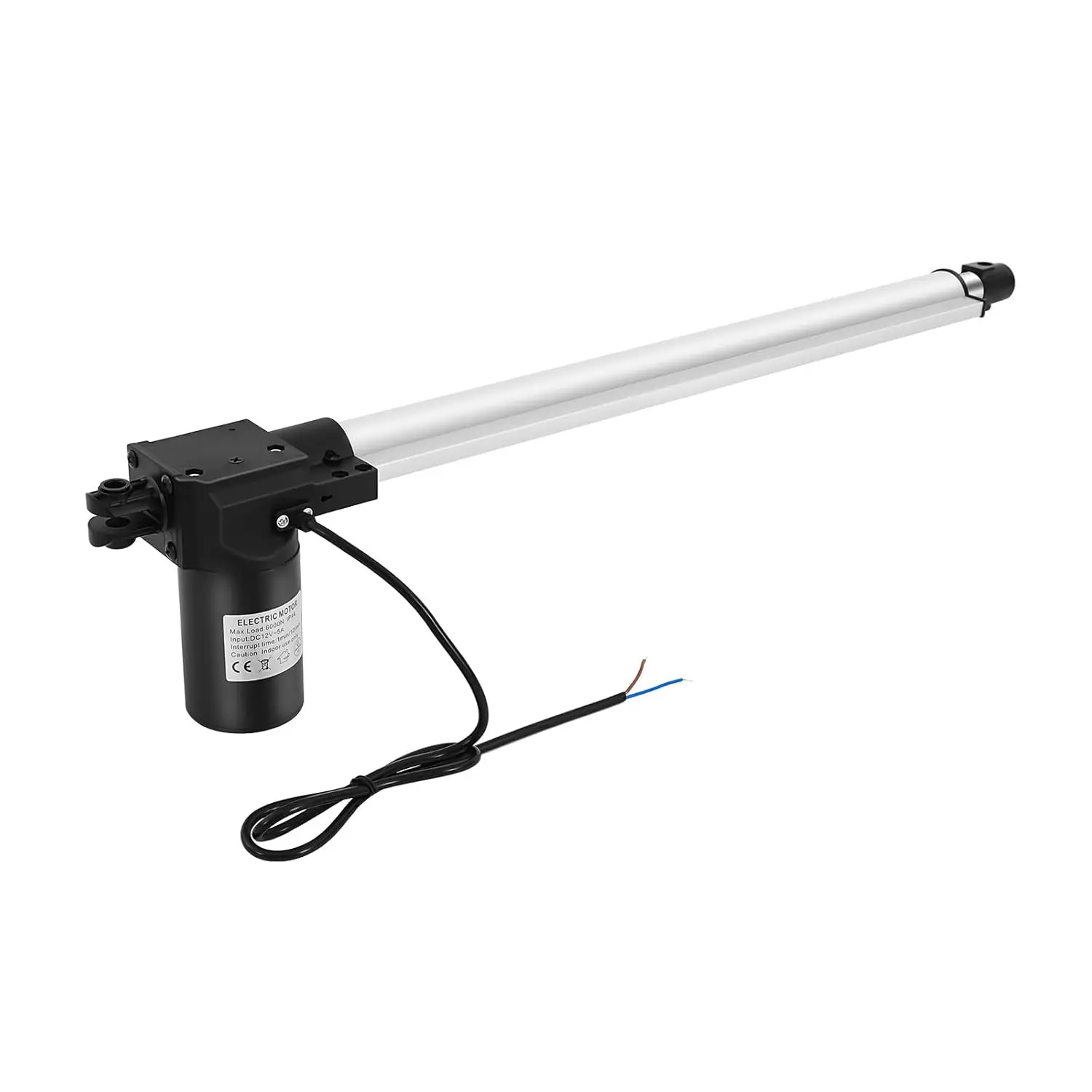

20 Inch Stroke Linear Actuator IP44 Waterproof Heavy Duty 12V Maximum Lift with Mounting Brackets for Electric Door Industrial

Product Description
Description：
Our stroke actuator is widely used in various fields, such as adjusting massage chairs, TV lifters, lifting tables, electric sofas, and electric treadmills. The high-class material makes it sturdy and durable. It has front and rear limit switches and supports a maximum parallel or vertical pulling of 6000N, making it convenient for your use. In short, it plays an important role in many fields.

Specification:
Material: Aluminum Alloy
Color: Silver, Black
Style: Modern
Installation Required: Yes
Waterproof Rating: IP44
Maximum Parallel or Vertical Pulling Force: 6000N
Noise: ≤ 48dB
Travel Speed: 5mm/0.2in/s
Stroke Length: 500mm/19.69in
Retracted Length: 675mm/26.57in
Extension Length: 1175mm/46.26in
Interruption Time: Run Once and Rest for 15 Minutes
Input: DC 12V-5A

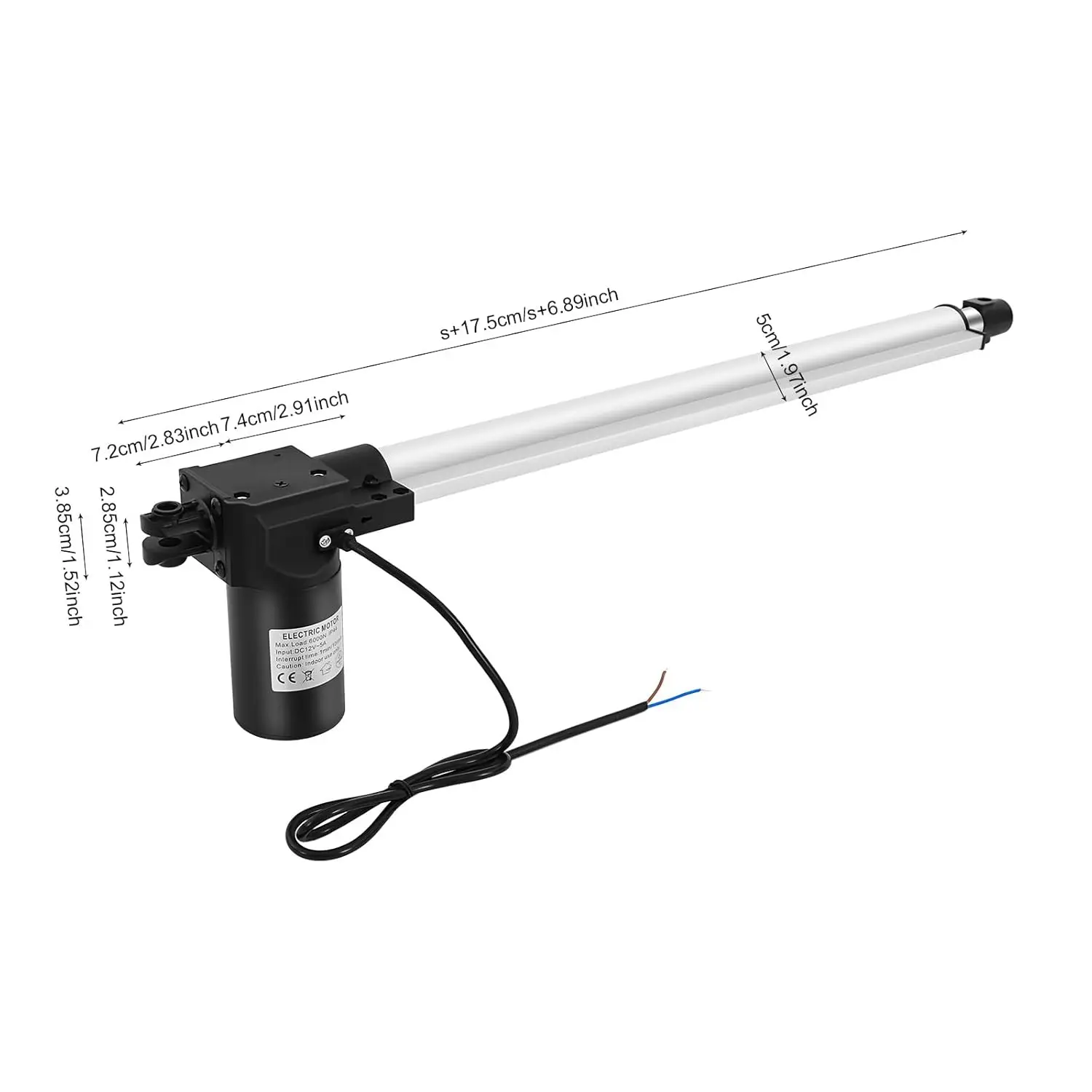

Product Size: 71×8×14.6cm/ 27.95×3.14×5.75 in
Package Size: 17×12×73cm/6.69×4.72×28.74in
Gross Weight: 3.05kg/6.72lbs
Net Weight: 3kg/6.61lbs

Package Content:
1 × Stroke Actuator
1× English Manual
2× Mounting Brackets
