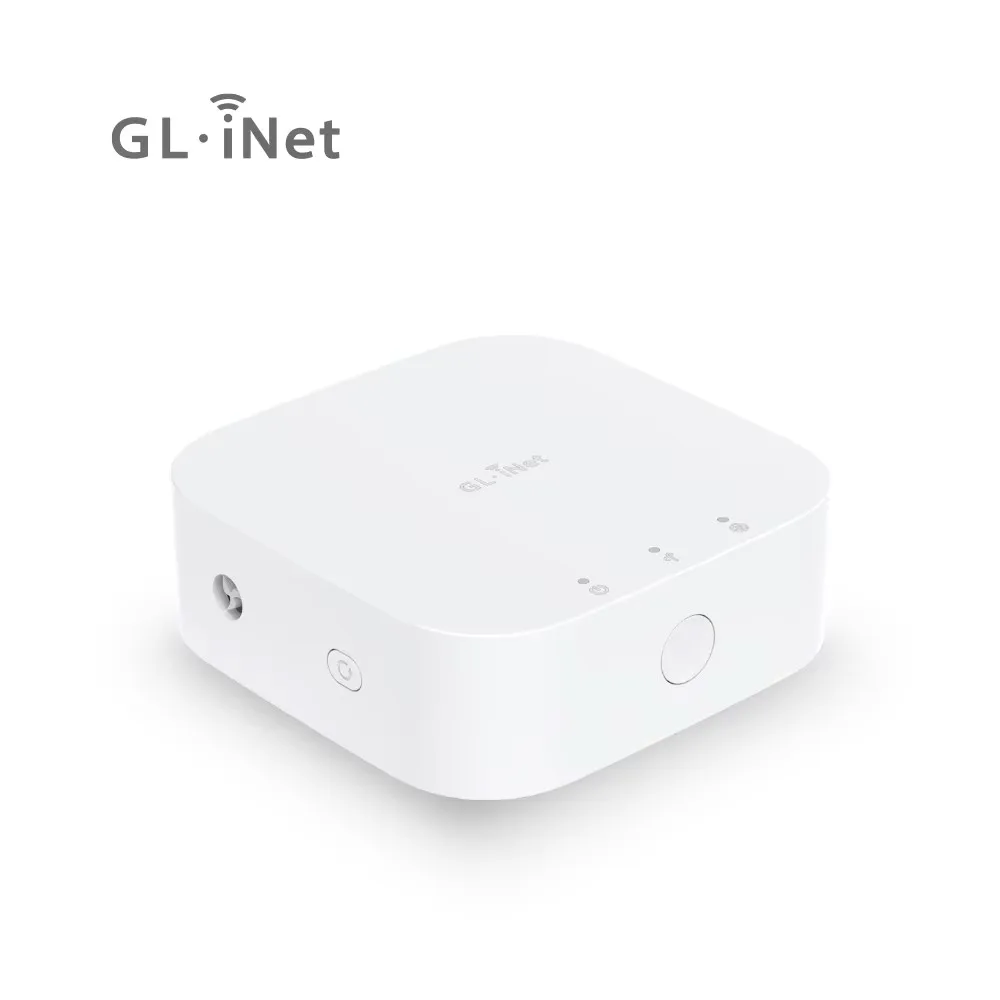

GL-S20 IoT Gateway | Thread Border Router

Compact Thread Border Router for IoT

GL-S20 is a compact and cost efficient Thread Border Router designed for fast and simple IoT deployment. It supports Thread 1.3 as well as 2.4 GHz Wi-Fi (150Mbps) and ethernet for building a Thread Network and connecting to the Internet. The GL-S20 is equipped with the high-performance ESP32 chipset and is fully compatible with FreeRTOS. It supports Wi-Fi to Ethernet Failover, ensuring optimal performance and reliability. Additionally, the GL-S20 features PoE functionality, making it a versatile solution for various IoT.

Product Description:

Built on FreeRTOS:

GL-S20 uses FreeRTOS, a marketing-leading kernel well-supported by a broad community, offering exceptional customization capabilities with ever-growing add-on libraries.

Built on Thread 1.3

GL-S20’s support for Thread 1.3 creates a seamless communication network among IoT devices. This protocol ensures consistent performance by utilizing a mesh IoT network with self-healing capabilities, creating a reliable, low-power, and minimal-maintenance IoT network.

Versatile Thread Networking

GL-S20 can seamlessly operate as a Thread Border router or a Thread router. This functionality offers added flexibility to your IoT setup and adapts to your ever-evolving IoT needs, whether it's to extend the network reach or connect to external networks.

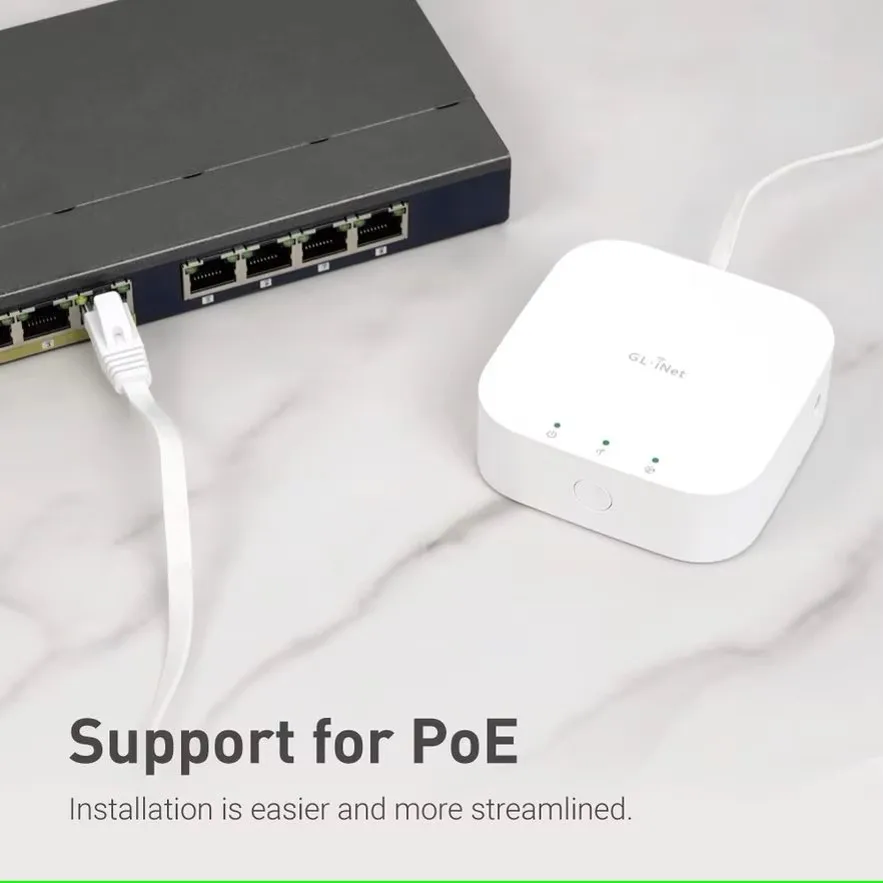

Power over Ethernet (PoE):

By integrating PoE, GL-S20 transmits power and data over a single ethernet cable. You’ll have power to more areas without having to install additional electrical infrastructure—saving on extra costs in the long run.

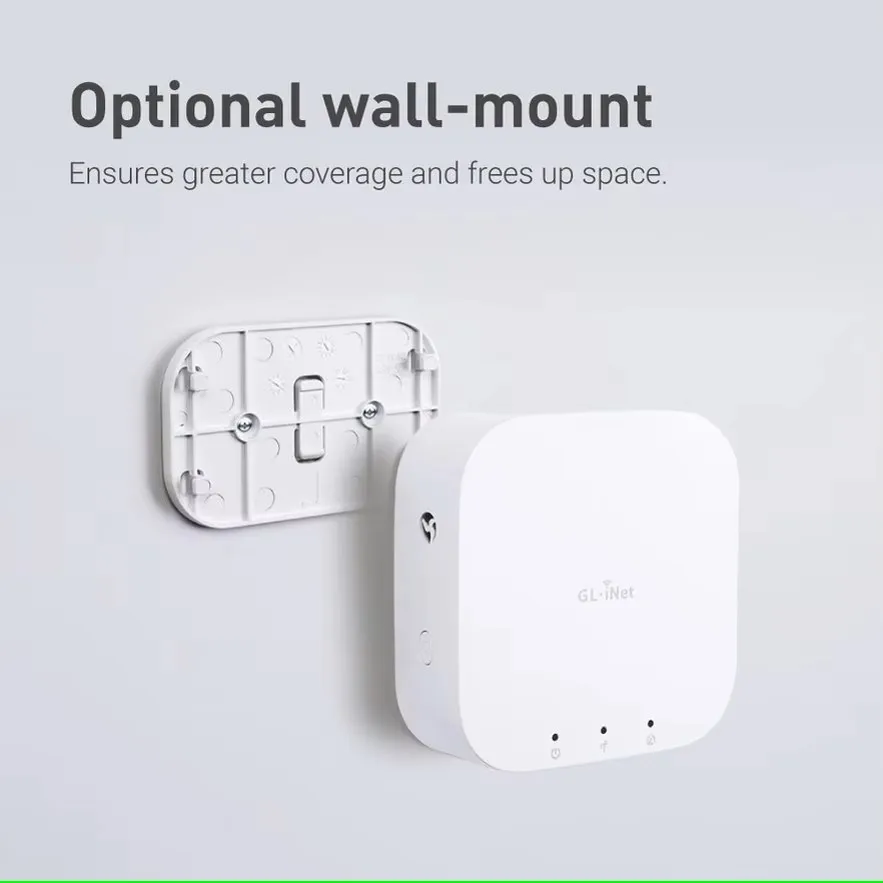

Customizable Installation:

GL-S20 is mountable on the wall, freeing up surface area while ensuring exceptional coverage and uninterrupted connectivity for your IoT devices.

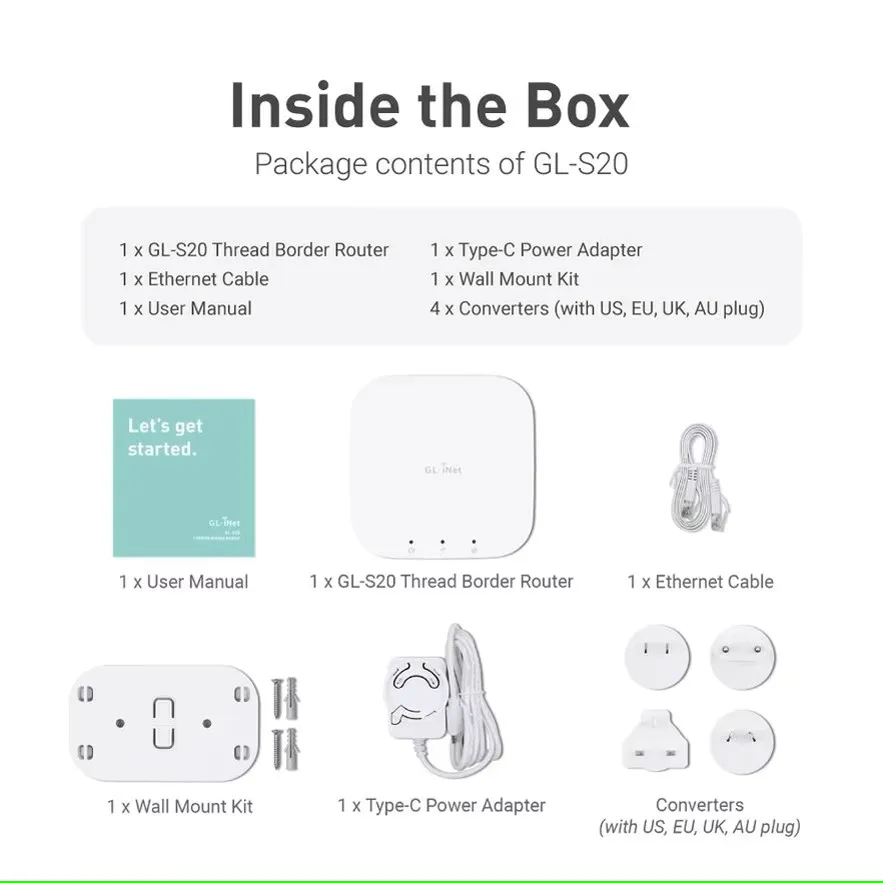

Package Contents:

GL-S20 Thread Border Router

User manual

Warranty card

Wall mount kit

Ethernet cable

Power adapters (US, EU, UK & AU plugs)

Specifications:

CPU: ESP32-S3 Dual-core, @240MHz

Memory / Storage: SRAM 512KB + PSRAM 8MB / NOR Flash 16MB

Protocol: Supports Thread 1.3, Supports BLE 5.0, Supports Wi-Fi 802.11b/g/n (2.4GHz)

Wi-Fi Speed: 150Mbps (2.4GHz)

Antennas: 2 x Internal Antenna

Cellular: N/A

Battery: N/A

TF Card Slot: N/A

USB Port: N/A

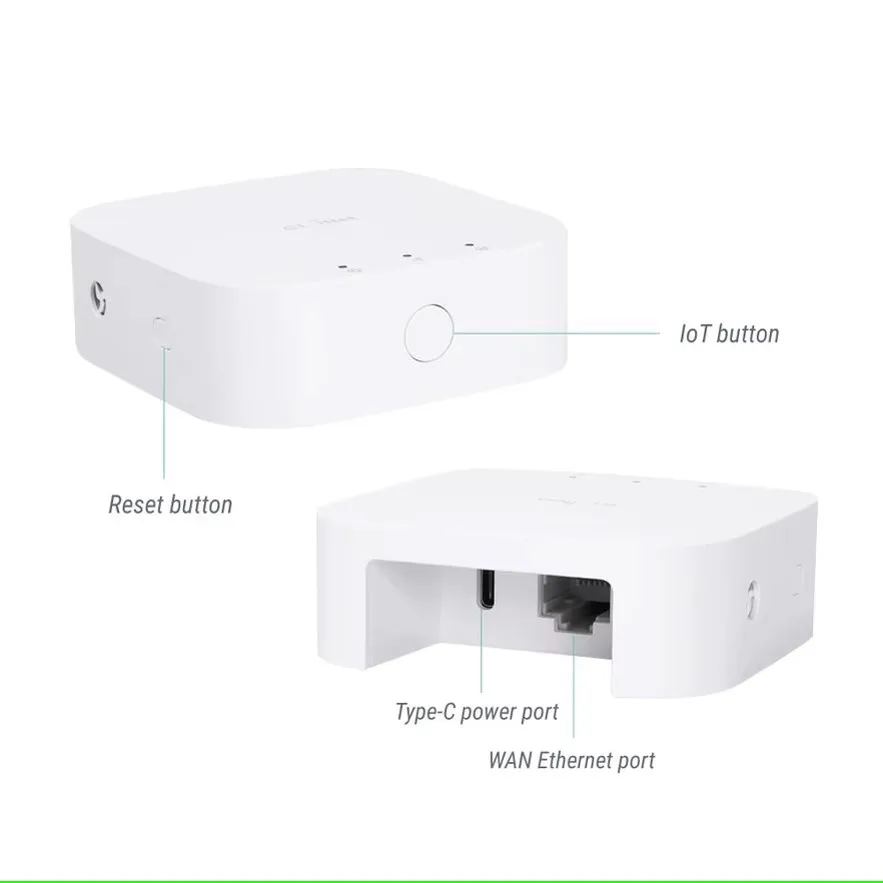

Ethernet Port: 1 x WAN Ethernet port

Ethernet Speed: 10/100 Mbps

Power Input: Type-C, 5V/1A

Power Consumption: Normal operating consumption: <3W; PoE power supply: <7W

Dimension / Weight: 76 x 76 x 25mm / 63 g
