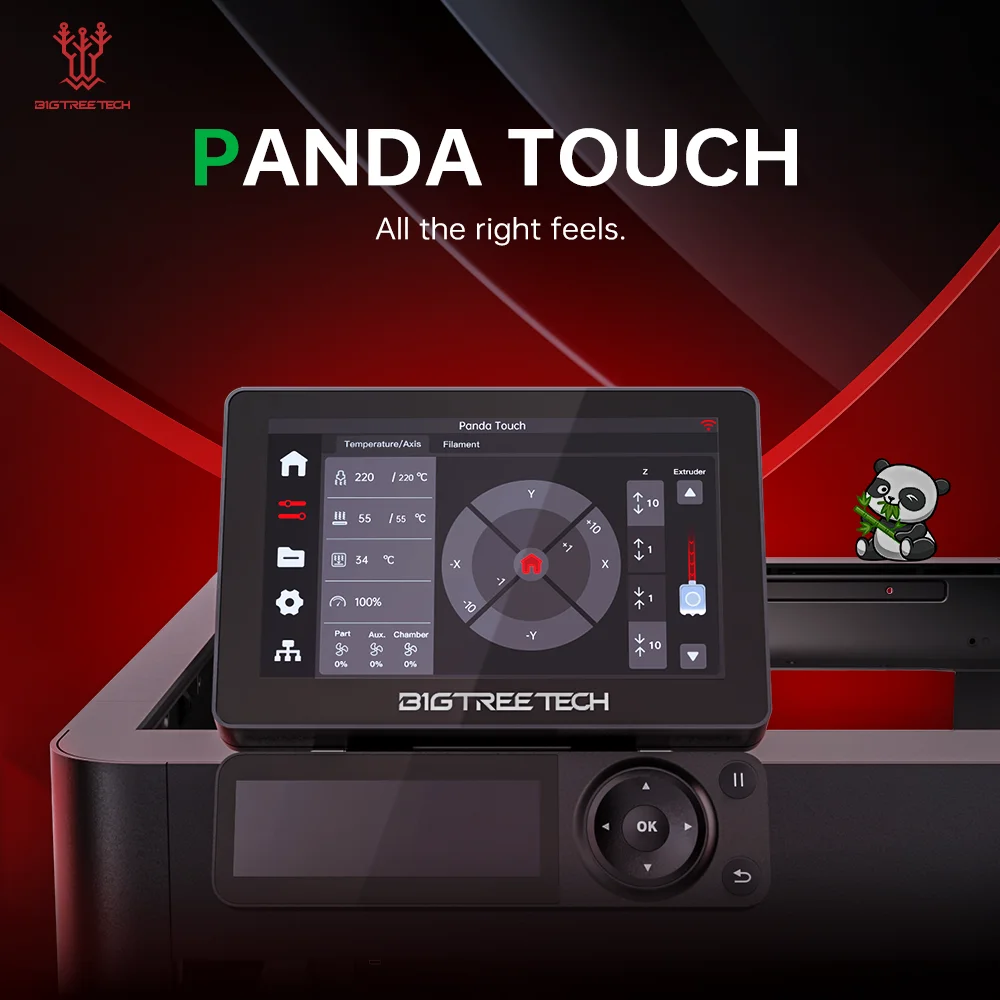

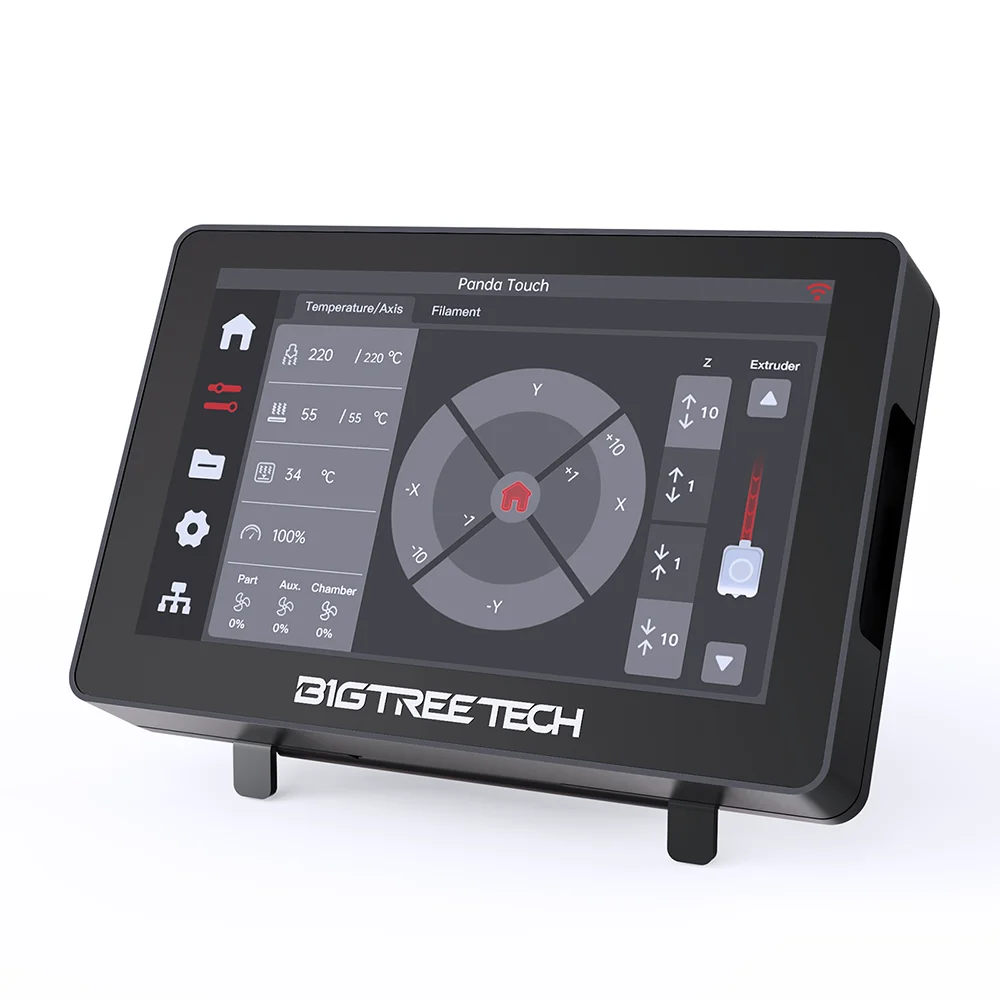

BIGTREETECH Panda Touch 5 Inch Touch Screen Wifi Display For Bambulab P1P P1S Multi-Printer Control Wireless Klipper Screen

Feature:

Custom UX & Ul

5" Touchscreen

Effortless Setup

Built-in Battery

Wireless Control

Direct USB Printing

Multi-Printer Control

X1/P1/A1 series For Bambu Lab

IMPORTANT NOTE:

Click the link to view Panda Touch software instructions and more product information:

https://bttwiki.com/Panda%20Touch.html#firmware-history

The Panda Touch is currently compatible with all Bambu Lab printer firmware versions up until:

- P1P -->v01.07.00.00

- P1S -->v01.07.00.00

- X1C -->v01.08.02.00

- X1E -->v01.01.02.00

- A1 -->v01.03.01.02

- A1 Mini -->v01.04.00.00

It is possible that Bambu Lab may release a future firmware version which impacts the functions available from the Panda Touch. Bigtreetech will monitor all beta firmware versions and if we find a firmware version that affects Panda Touch functionality we will send out an alert via email, Aliexpress chat and our social channels. Buyers can then decide whether or not they would like to perform the update at the risk of losing functionality. Note that the Panda Touch warranty does not cover lost functionality due to a Bambu Lab firmware update being performed.

Note: The Panda Touch firmware has been updated to V1.0.6.1. Some units may ship with an earlier firmware version. Please check your firmware version and upgrade to the latest for the best user experience. Please click on the link https://bttwiki.com/PandaTouch.html#firmware for the upgrade tutorial.

✅ New Panda PWR Binding Mode for Smart Power Management of Bambu printers

✅ Support Print Files Name Sorting for SD card and USB Drive

✅ Support Print Files' Thumbnail Preview of USB Drive

✅ Improved Bed Lift Button Sequence

✅ Optimize WiFi Connection Experience

✅ Fixed the issue of incorrect fan speed display.

✅ Fixed the issue that the Bmabu X1 series hot bed cannot be set to more than 100C.

Product Name：Panda Touch

MCU：Xtensa 32-bit LX7 dual-coreESP32S3R8, up to 240MHz

Screen Size：5inch

Display:Full-view IPS with 16.7M colors

Operating Temperature Range:0-60℃C

Logic Voltage:3.3V

Charging Time:1.2 hours

Compatibility:For Bambu Lab X1, P1, and A1 seriesprinters

Memory:PSRAM-8MB, Flash-16MB

Resolution:800x480

Communication:2.4G Wi-Fi (IEEE 802.11 b/g/n)

Operating Current: 5V 0.5A (peak 0.7A)

Battery Life:Enables Panda Touch portableuse for up to 0.5 hours.

Expansion Interface:12C for temperature/humidity sensorsetc.(compatible accessories will soon beavailable); USB Drive (For reading USB drives)

Certain features of the Panda Touch, including initiating printing, controlling the motion system, adjusting temperatures, controlling fans, AMS settings and calibration are likely to be affected by the authorization and authentication protection mechanisms in Bambu Lab's newly announced firmware which is (at the time of writing) only released for the X1 series. If using an X1 series machine in cloud mode, these features may be unavailable. However, these features will remain avialable if you use the machine in LAN - developer mode. If you would like to operate in cloud mode then the ability to access printer status information, such as printing progress, nozzle temperature, and bed temperature, will remain unaffected. To regain full control of X1 machines (or any machine with the new authentication firmware) when using the Panda Touch, you can manually enable Developer Mode under the LAN mode section. If you wish to use cloud mode while retaining all of the Panda Touch functionality then we recommend rolling back to a firmware version where the authorization controls were not implemented. Note that the Panda Touch warranty does not cover functionality limitations due to the authorization functions in the Bambu Lab firmware.

For more details, please refer to the official announcements by BIQU and Bambu Lab:

1.

https://bigtree-tech.com/blogs/news/announcement-on-bambu-lab-security-firmware-update

2.

https://blog.bambulab.com/firmware-update-introducing-new-authorization-control-system-2/

3.

https://blog.bambulab.com/updates-and-third-party-integration-with-bambu-connect/

Feature Highlights.

BIGTREETECH Panda Touch

All the Right Feels

Plug and Play

Streamlined Start-Up

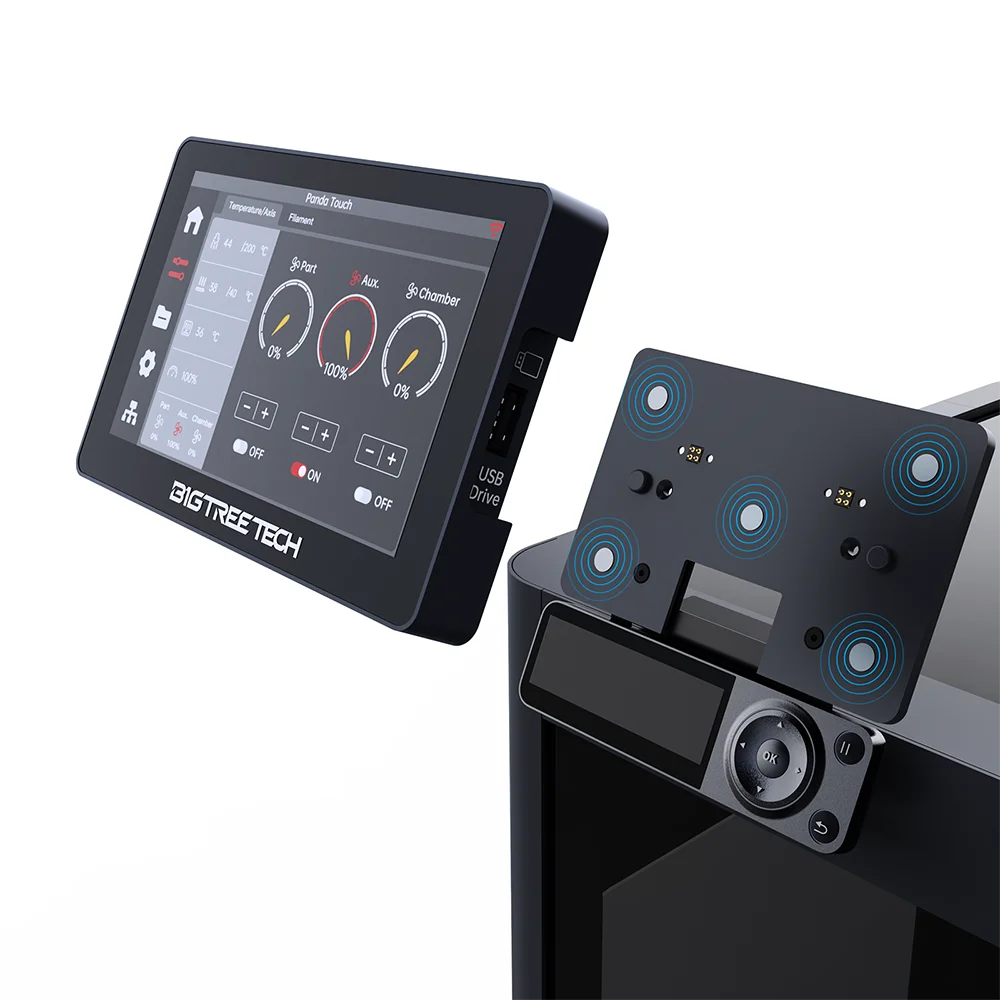

INSTALL

Damage-free installation willnot void the machine warranty

POWER ON

Powered through the USB port on the printer

TOUCH

Start controlling the printer.

Intuitive Custom Ux&Ul

On a 5" IPS Touchscreen

Tap, swipe, and effortlessly adjust temperatures, speeds, homing, etc.

Enjoy the ease of using a familiar interface with even more.

Go Wireless. Go Portable

WiFi Connectivity & Built-In Battery

With 2.4G WiFi, you've got easy wireless control within your workspace to makethings ultra flexible and simple. Plus, the lithium battery has 30 minutes ofuninterrupted battery life, giving you the option to manage prints fromwherever -no strings attached!

AMS Management Made Easy

With Panda Touch, you can easily browse the colors and types of filament loaded

into the AMS. it also supports the addition and editing of third-party filament. Enjoy

straightforward and effective management of your AMS units

Multi-Printer Management

Ultimate Command Center

Empowers you to seamlessly manage up to 10 printers at the same time.

Running a 3D Print Farm has never been easier

Pandas Love Bamboo

Fully compatible with Bambu Lab X1, P1, and A1 series printers

Panda Touch USB Dock:
