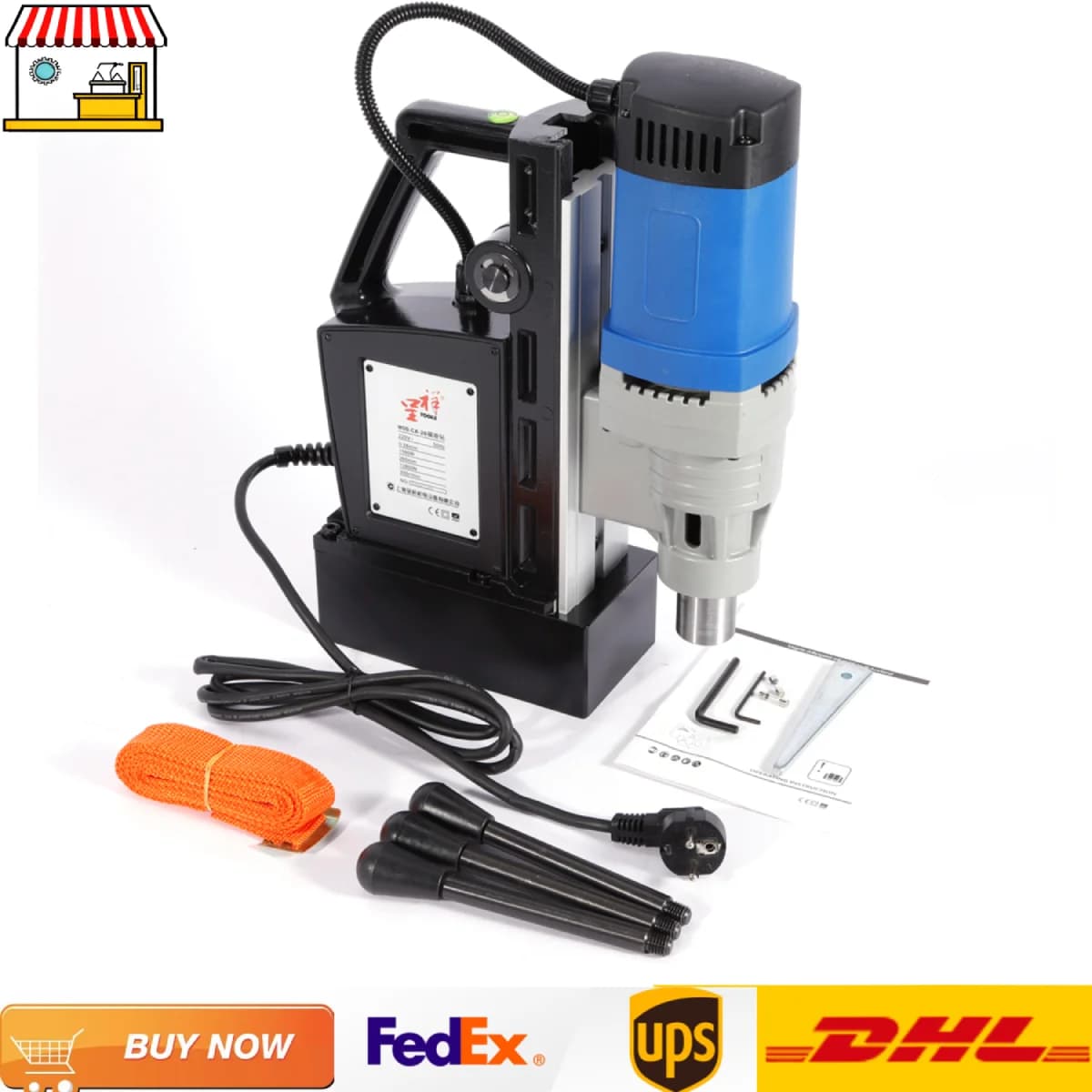

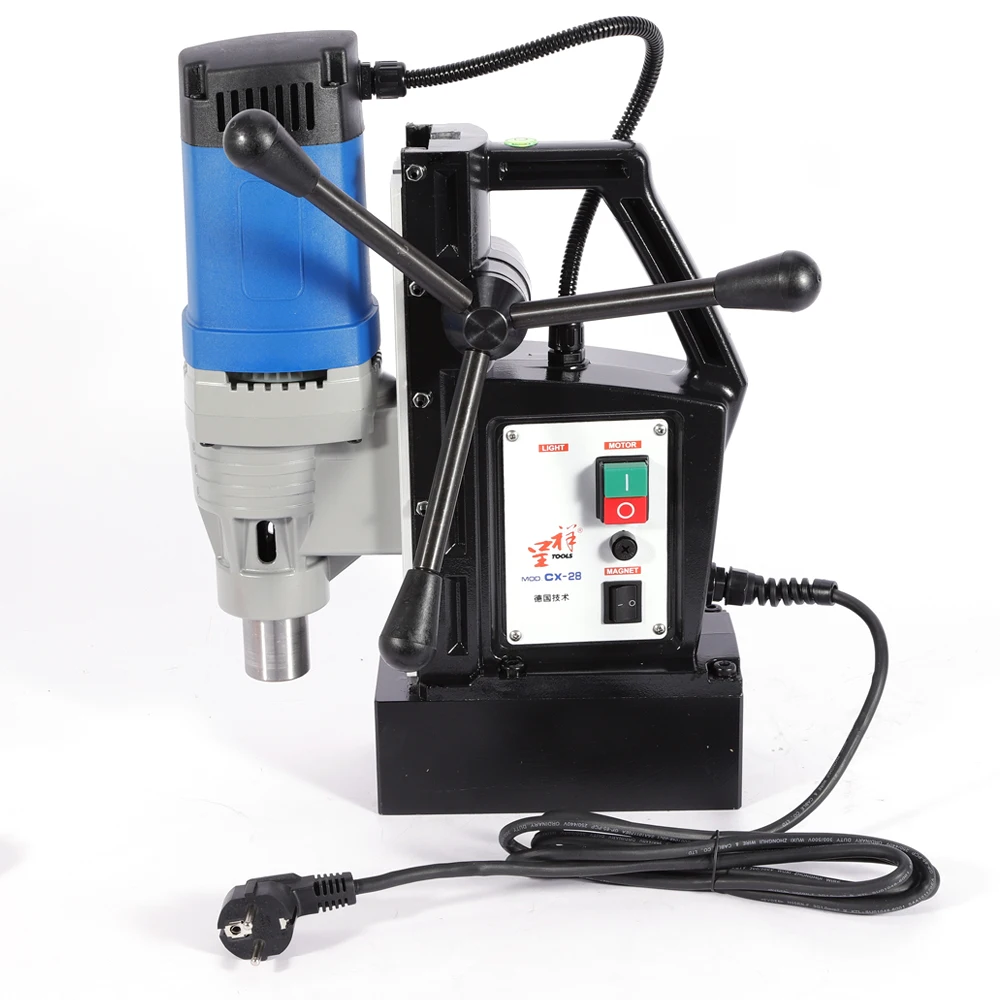

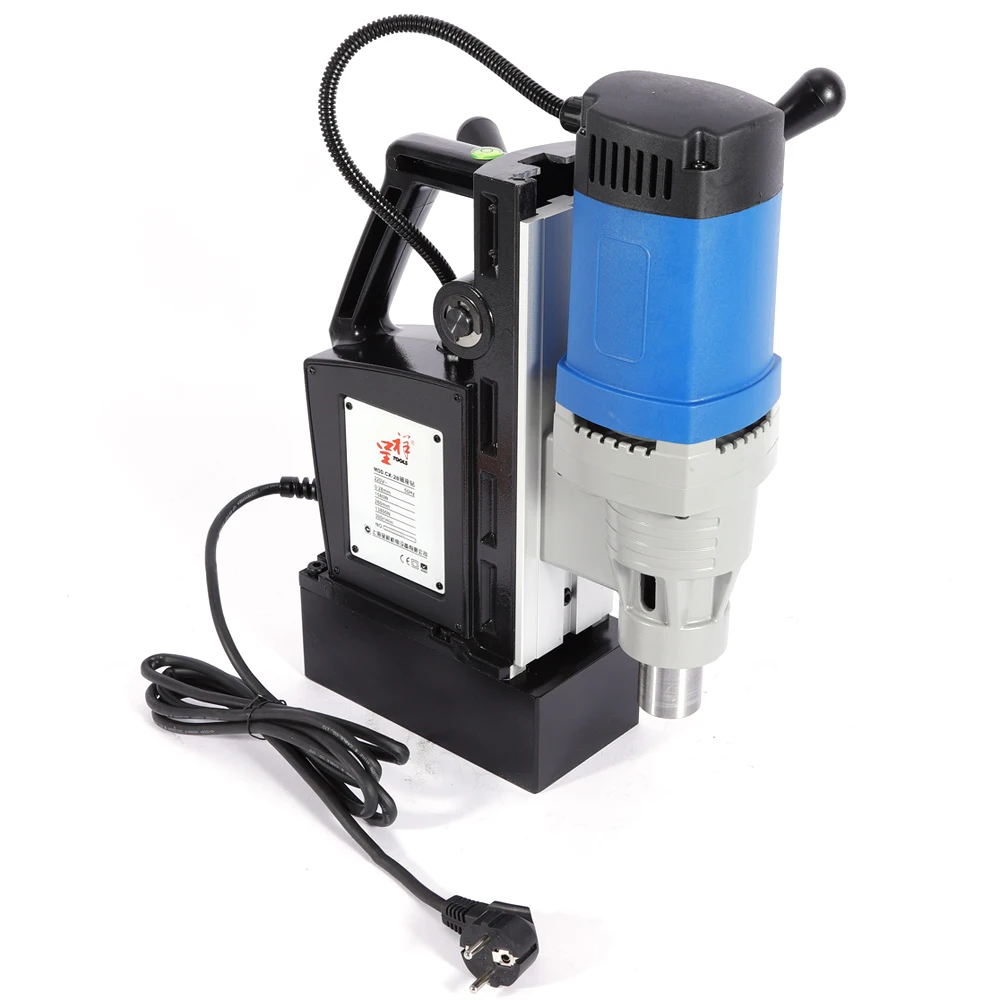

1680W 2-inches MT3 Electric Drilling Machine| Magnetic Drill Press Boring Diameter Power Drill

1680W 2-inches MT3 Electric Drilling Machine| Magnetic Drill Press Boring Diameter Power Drill

Application

It is ideal for industrial production and on-site maintenance situations that require precise drilling work on steel, iron, or other metal structures, and is also ideal for specialized workers and manufacturing companies. It is ideal for ship & bridge building, pre-engineered building, industrial and steel fabrication, heavy engineering companies, windmill & power-plant construction, railway manufacture, equipment installation, railway coach manufacturing, automobile industries, tower and pole construction, and many other fields.

Package Included

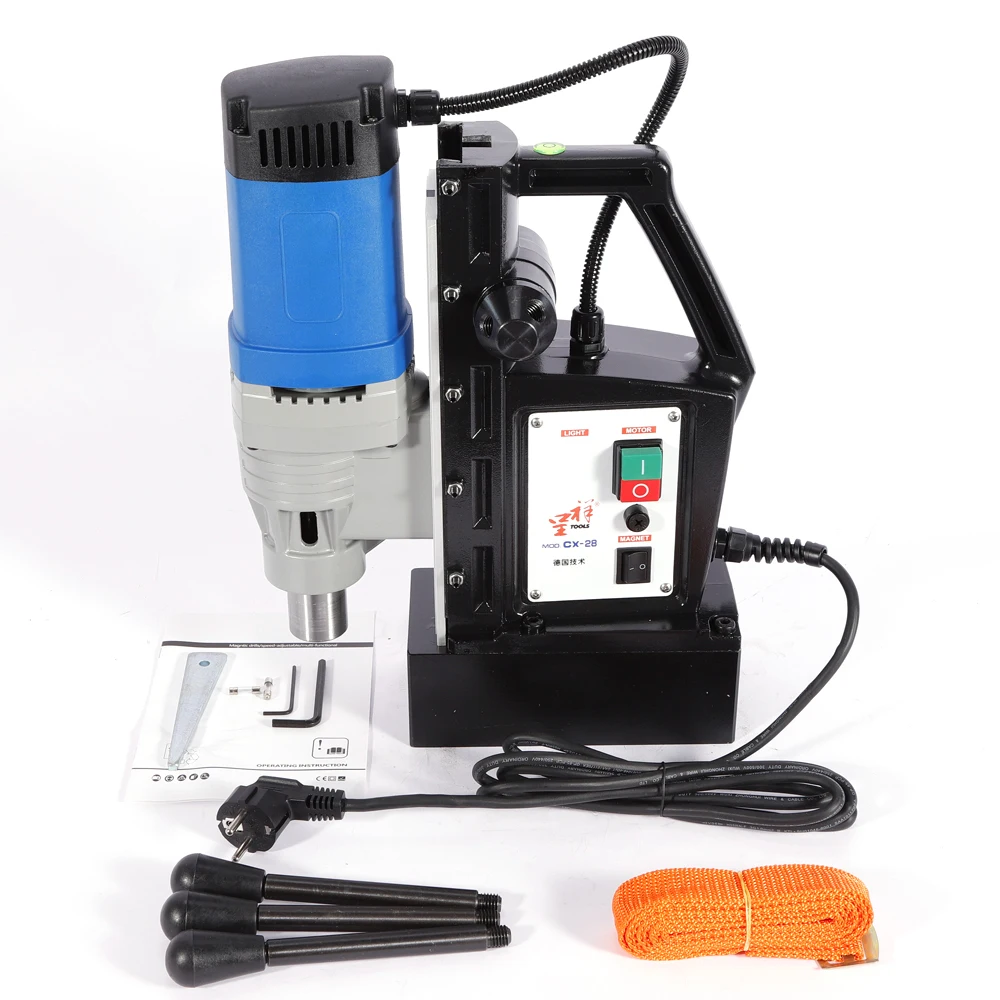

1* Magnetic Drilling Machine

1* Safety Rope

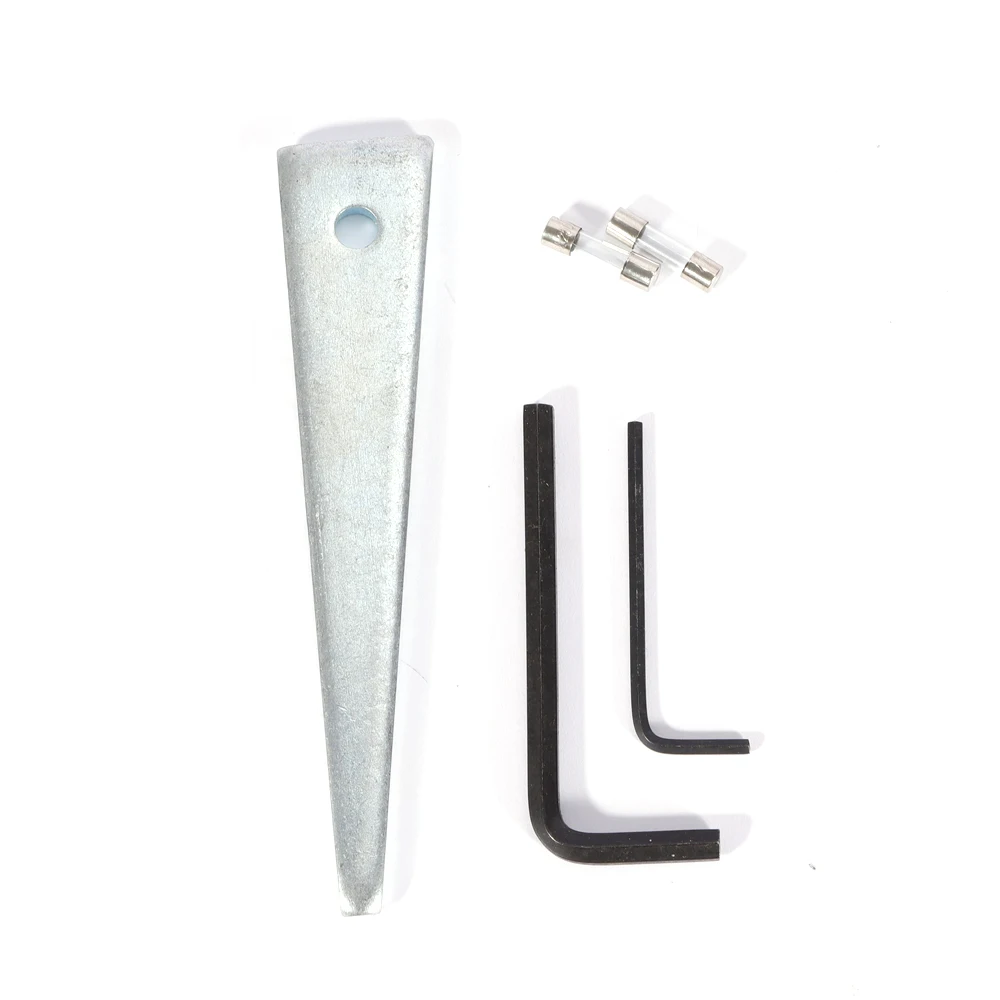

2* Spare Fuses

3* Rocker Handles

1* English Manual

All Accessories for Assembly

Key Features

Premium Materials: It is made of premium iron, copper and aluminum materials with a painting process, which is sturdy, not easy to deform, wear-resistant, impact-resistant, and has a long service life.

High-efficiency Drilling: The 1680W powerful motor and the spindle speed of 300 RPM provide plenty of drilling capacity, with a drilling depth of up to 1.97in and a range of drilling diameters from 0.12-1.1in, making it easy to fulfill your drilling needs and significantly improving your work efficiency.

Professional Assistant: It adopts an industrial standard MT3 spindle design to allow for easy and fast changing of tool holders for twist drills. Whether for industrial production or on-site maintenance, this product is your right-hand man, making drilling tasks easier and more efficient.

High Stability & Flexibility: The product is equipped with a strong magnetic base(max magnetic force: 13800N), which can be firmly adsorbed even in the horizontal, upright, or inverted position (the product is further stabilized by using a safety rope), ensuring safe operation and enhancing your work flexibility.

Security Guard: The fuse inside the machine is used to cut off the circuit in case of excessive current, protecting the equipment from damage and preventing electrical safety accidents, making it safe for you to use. In addition, 2 spare fuses are available to replace the original fuse in the event of damage.

Easy to Install: A full range of accessories, a detailed English manual, and simple construction allow you to install and use it quickly.

Easy to Clean: Thanks to its smooth surface, simple structure and removable design, you can easily clean it with a dry rag (not included).

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Description

Designed for steel plate drilling, this 1680W magnetic drilling machine utilizes MT3 spindle specification to provide strong power and efficient drilling capability. Its powerful magnetic base ensures the stability of the machine during operation, reduces vibration and displacement during work, and guarantees accurate drilling. Whether for industrial production or on-site maintenance, this equipment is your right-hand assistant, making your drilling work easier and more efficient.

Specifications

Material: Iron, Copper, Aluminum

Process: Painting

Style: Modern

Color: Black, Blue, Silver

Mount Type: Freestanding(Horizontal, Upright, or Inverted)

Assembly Required: Yes

Power Source: Electric Corded

Plug Type: EU Standard

Spindle Taper: MT3

Power Cord Length: 2.5m/8.2ft

Boring Range Diameter When Use Twist Drill Bits (Not Included): 3-28mm/0.12-1.1in

Maximum Boring Depth: 50mm/1.97in

Voltage: 220V

Rated Frequency: 50-60 Hz

Rated Input Power: 1680 W

Stroke: 20cm/7.87in

Spindle Speed (No-load Speed): 300 RPM

Max Magnetic Force: 13800N (Thinner Metal = Less Force)

Gross Weight: 17.5kg/38.58lbs

Net Weight: 16.63kg/36.66lbs

Product Size: 45*38*16cm/17.72*14.96*6.3in

Package Size: 47*39*18cm/18.50*15.35*7.09in

Details

Rounded Corners and Edges: The corners are rounded and smooth to reduce abrasions from collisions and improve safety.

Long Power Cord: The 8.2ft power cord reduces usage limitations and enhances the user experience.

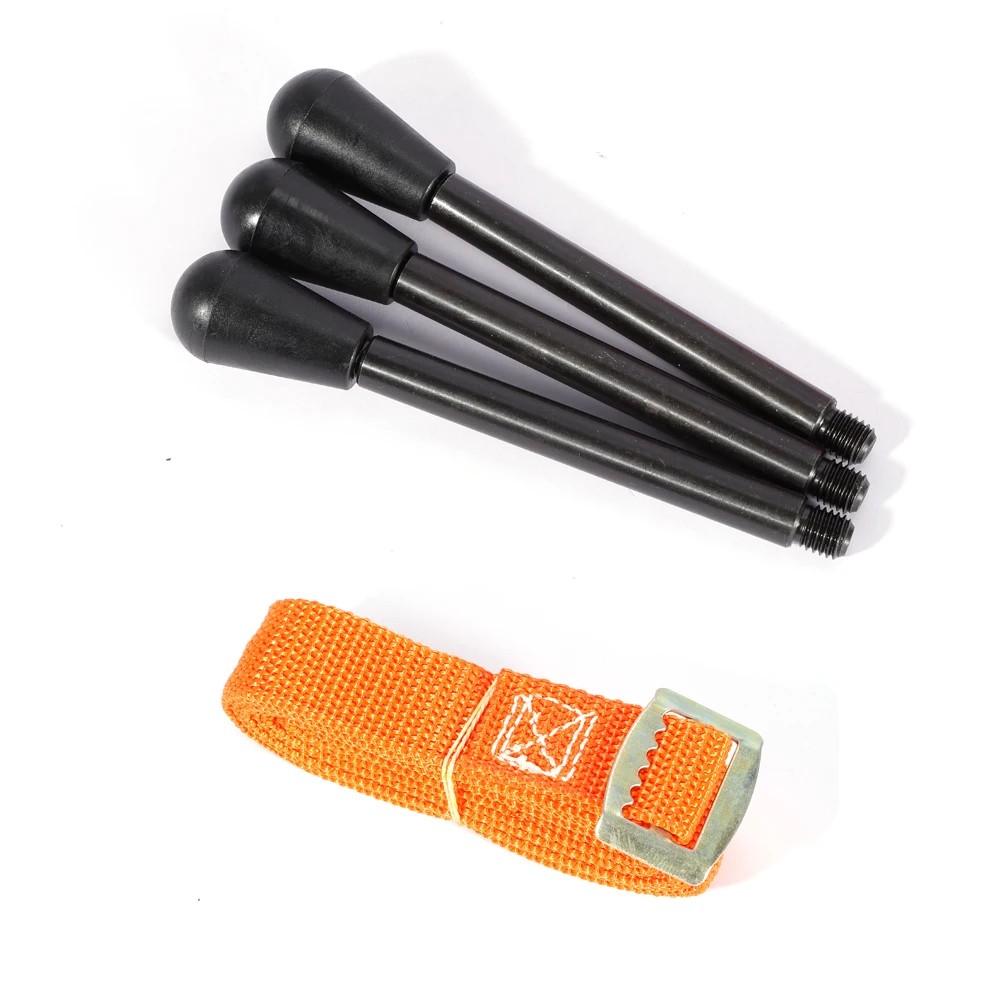

3 Rocker Handles: They can be mounted on the machine to adjust the drill up and down. They conform to ergonomics, making operations more effortless.

Safety Rope: The product is equipped with an orange safety rope that not only enhances the recognition of the equipment, but also makes it easy to secure the machine to improve safety.

Heat Dissipation Holes: They can help the motor dissipate heat in a timely manner to increase the life expectancy of the product.

Notes

1.Please carefully check if the size is suitable before placing an order.

2.Please note that the product does not include B16 drill chuck and drill bit (not included), you need to purchase them by yourself.

3.Please note that when you turn on the power, turn on the magnet switch first, and then turn on the power switch. When turning off the machine, turn off the power switch first, then the magnet switch.

4.Please ensure that you wear appropriate personal protective equipment such as goggles, ear muffs, and gloves (not included) before the operation to avoid injury.

5.Before starting the unit, please make sure the magnetic base is firmly attached to the work surface to minimize vibration and prevent the unit from shifting.

6.Please select the appropriate twist drill bit (not included) according to the material and size of the holes to be drilled, and make sure it is properly installed on the MT3 spindle.

7.During the drilling process, use coolant or lubricant (not included) to lubricate the drill bit at the appropriate time to prolong its life and improve drilling efficiency.

8.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
