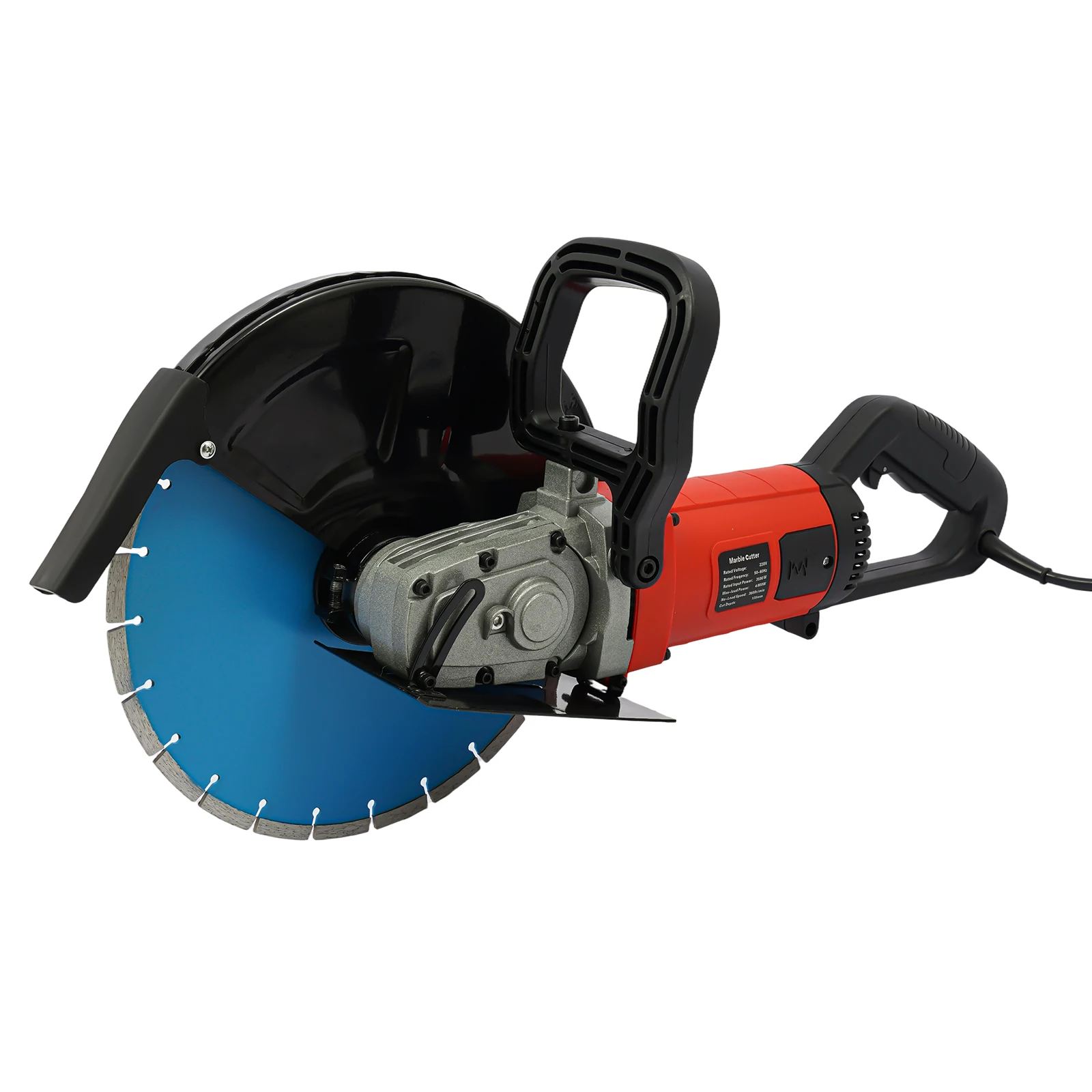

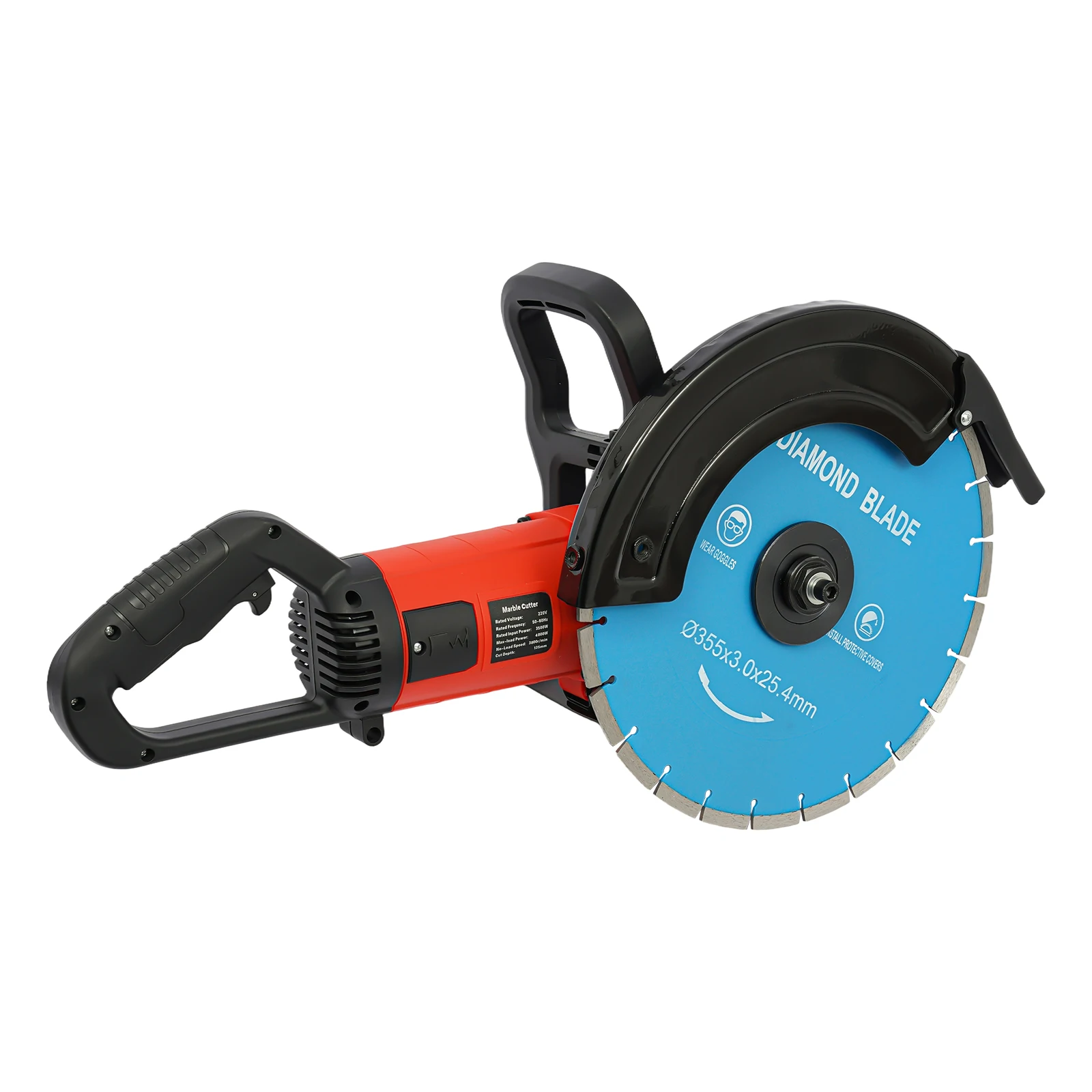

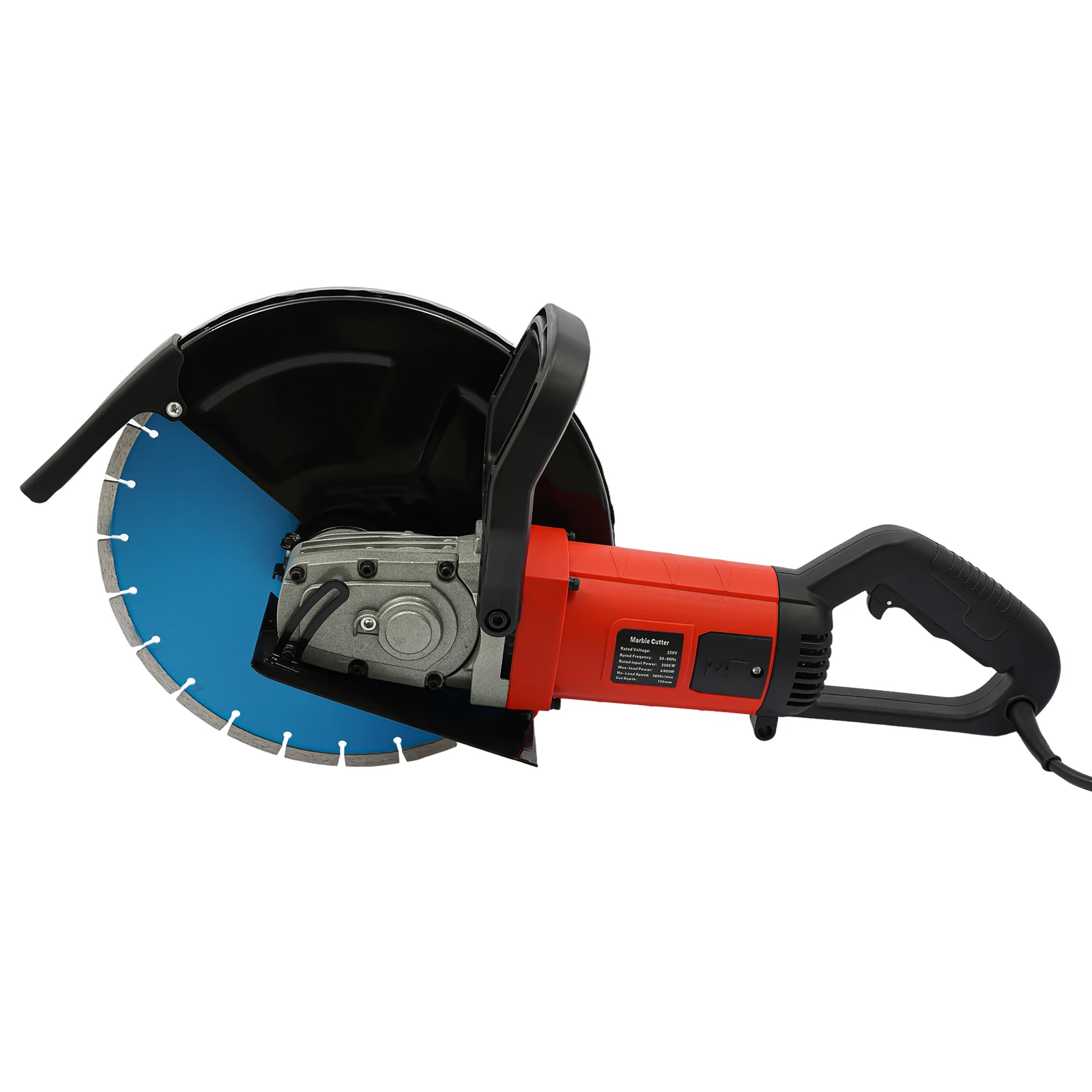

Electric Wall Slotting Machine| 3500W Dust-free Concrete/Marble/Red Brick Cutter w/ 9.5ft Cord| Circular Saw Cutting Tool

Electric Wall Slotting Machine| 3500W Dust-free Concrete/Marble/Red Brick Cutter w/ 9.5ft Cord| Circular Saw Cutting Tool

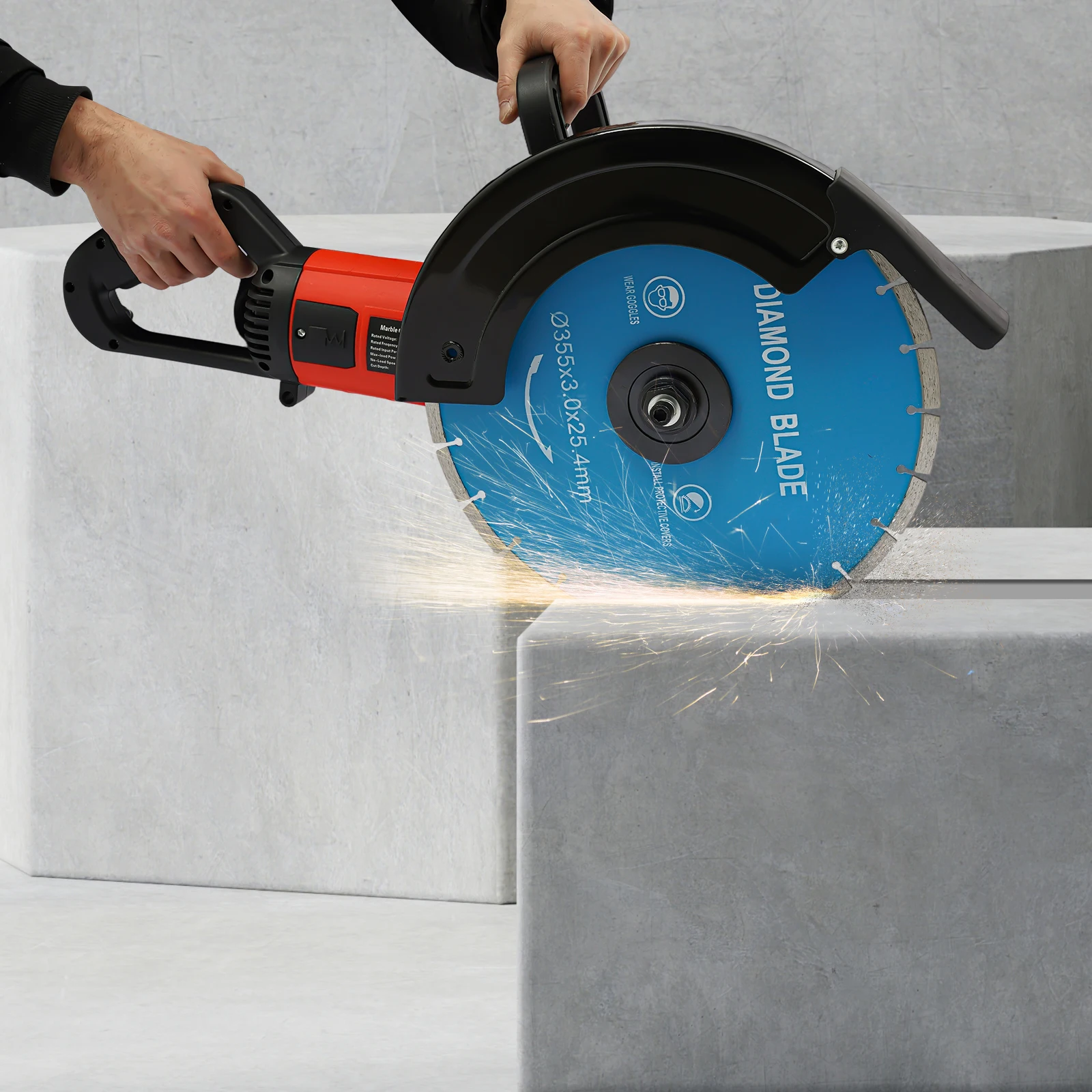

Application

It is suitable for both professional and daily home users such as electricians, plumbers, contractors, and those with strong hands-on abilities and can be used for grooving walls made of granite, porcelain, concrete, marble, red brick, sand brick, cement blocks, asphalt and stones.

Specifications

Model: Wall Saw

Material: Diamond, ABS, Carbon Steel

Motor Type: Pure Copper Brush Motor

Power Source: Corded Electric

Dust Removal Method: Water

Plug Type: EU Standard

Product Type: Circular Saw

Voltage: 220V

Rated Power: 3500W

Current: 16A

Maximum Load Power: 5800W(In a Short Period)

Maximum Speed: 3800RPM

Slotting Speed: 0.5m/1.64ft/min

Water Tube Length: 5m/16.4ft

Power Cord Length: 2.9m/9.5ft

Saw Blade Diameter: 350mm/13.77inch

Saw Blade Bore Diameter: 25.4mm/1inch

Saw Blade Thickness: 3mm/0.11inch

Cutting Depth: 85-140mm/3.34-5.51inch

Number of Saw Blade Teeth: 24

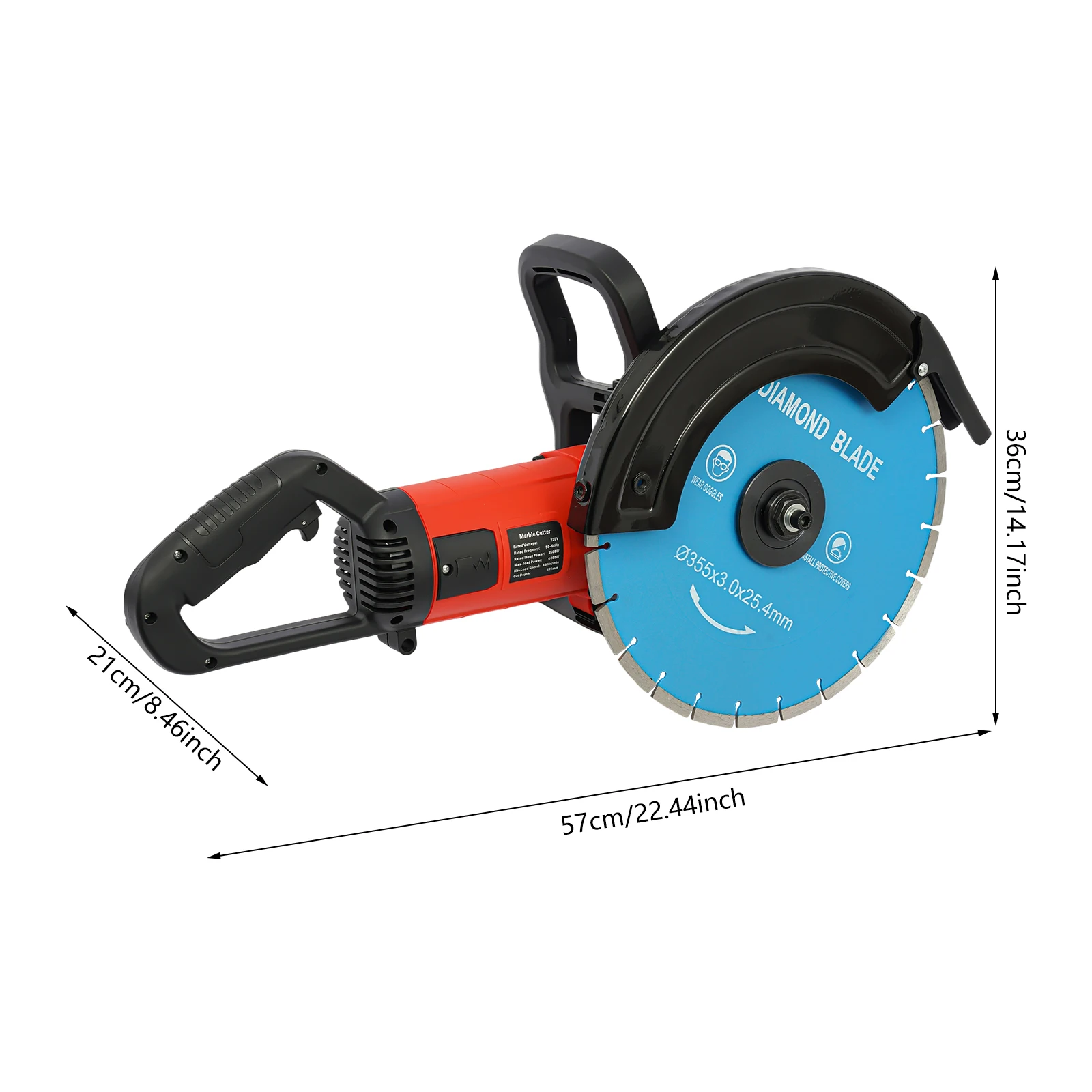

Product Size: 57x36x21.5cm/22.5x14.2x8.5inch

Packaging Size: 57x36x21.5cm/22.5x14.2x8.5inch

Gross Weight: 12kg/26.45lbs

Key Features

Excellent Performance: The machine is equipped with a 3500W all-copper motor up to 5800W (in a short period) with a high speed of 3800rpm, providing powerful slotting power. In addition, it is equipped with reinforced high-hardness diamond blades, which are heat-resistant, sharp, and durable, and can easily cut hard objects.

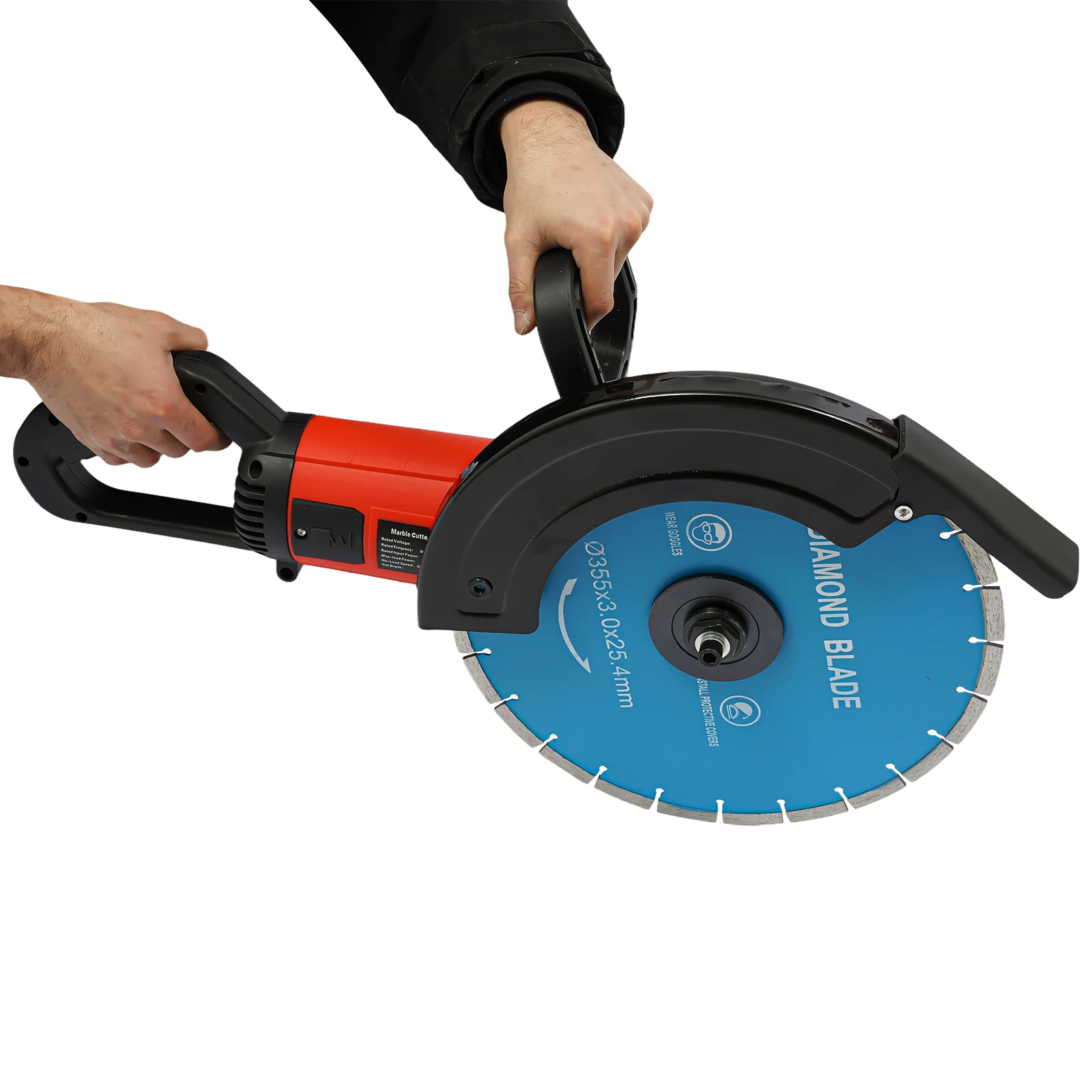

Ergonomic Design: The front auxiliary handle and the rear main handle with optimized weight distribution give you better control while cutting, allowing you to find the most comfortable angle for labor-saving operation and meeting different work requirements without scraping your hands when slotting into the corners.

Robust and Durable: It is made of high-quality carbon steel and ABS materials, which are solid, wear-resistant, impact resistant, and rustproof, ensuring stable power transmission and long service life.

Safe To Use: For security concerns, our product comes with leakage protection, overload, and overcurrent protection, and it will automatically power off when it encounters hard objects or complex environments that cause the machine to jam during use.

Easily Corner Grooving: With an adjustable protection cover, it can be used for 90-degree grooving with one straight and easy cutting. With the powerful and sharp blade, it can easily make a one-time groove anywhere on the wall without secondary processing!

Efficient Heat Dissipation: The grille cooling vents are designed near the handle, which can quickly dissipate heat and prolong the service life of the machine.

Adjustable Grooving Depth: It can accommodate a blade with a diameter of 13.77 inches, the depth can be adjusted by changing the size of blades and moving baseboards to a maximum cutting depth of 5.51 inches. You can adjust it as needed to get a more satisfactory slotting result.

Dust-free Cutting: The water pump with a hose with a length of 16.4ft can supply water quickly to reduce dust splashing during cutting, improve cutting efficiency, and protect your health by lowering the temperature of the saw blade while prolonging its service life.

Protective Package: To prevent the product from being damaged during transportation, we packed it with sponge to protect your products as much as possible.

Customer Service:  We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Description

This saw blade slotting cutter has a powerful brushed copper motor and sturdy carbon steel protection cover, greatly improved slotting speed, and secured operator's safety. ABS slip-proof handles give you a comfortable and steady slotting experience. 5.51 inches deep cutting and rotatable protection cover allow you to do a clean job even if it is a straight angle slotting. Its water dust removal system effectively cleans and cools the blade during working, and greatly extends its service life.

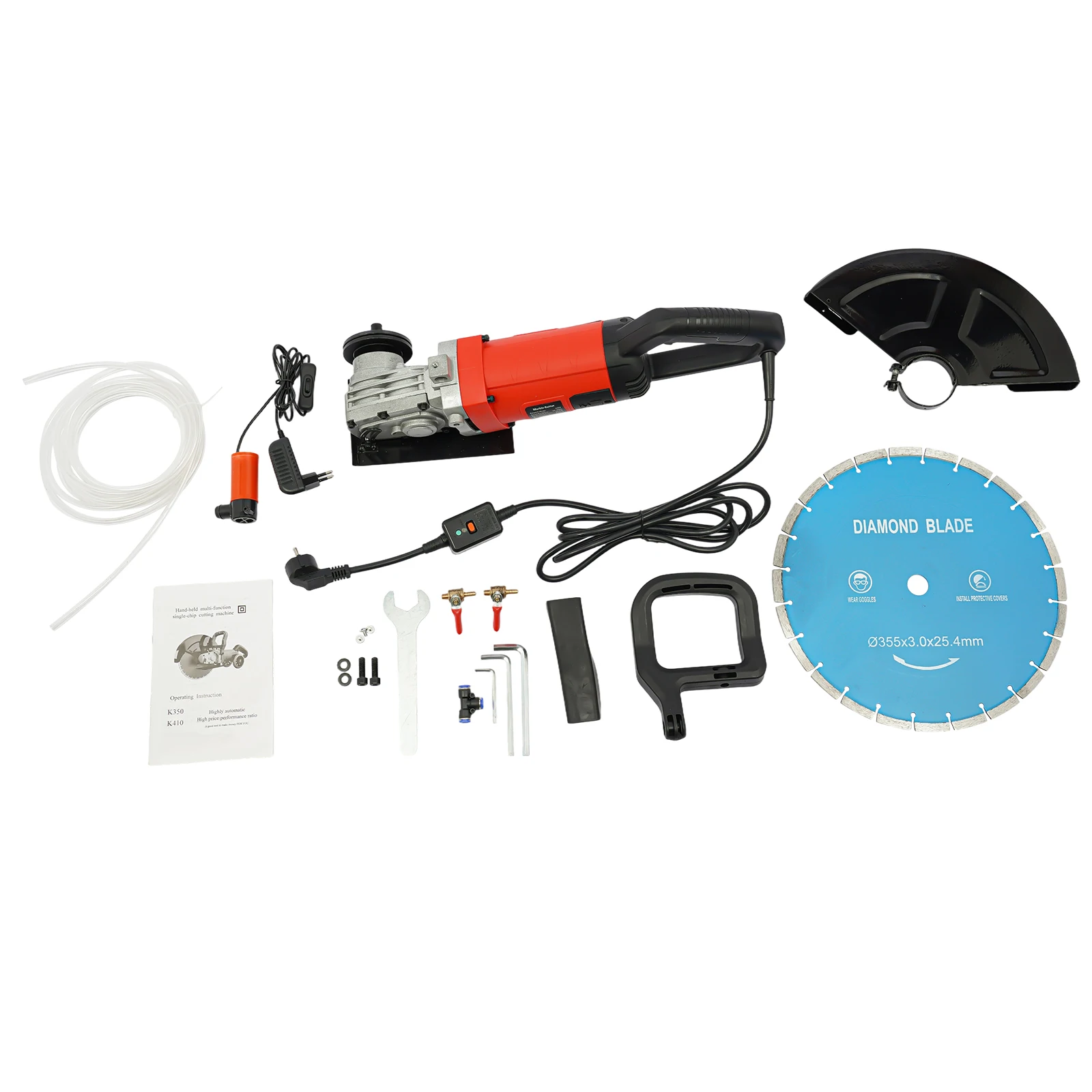

Package Included

1* Electric Slotting Machine

1* English Operating Instruction

All Needed Accessories

Details

External Carbon Brush: You can replace carbon brushes conveniently without dismantling the machine.

Long Power Cord: It is equipped with a 9.5ft long power cord, providing you with a more flexible range of usable space.

Test Button: Designed for manual testing, it enables you to check whether the machine is working properly or not.

Trigger Design: The one-touch start button makes it easy for you to quickly operate the machine.

Notes

1.Please do tests before each use.

2.Please be sure to install a protective cover and wear goggles(not included) when using the product.

3.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
