75L/H H160A 95L/h H180 Hydrogen Oxygen Generator Water Welding Machine Acrylic Polishing Machine With Flame Torch

If you are troubled by your machine that is too heavy, low-quality, and complicated to operate, then you should choose our polishing machine. It uses high-quality iron and stainless steel material with paint spraying treatment, which is durable. It has a 75L/H gas output and 2800℃ flame temperature that ensures a great polishing effect.

Build to Last

It uses high-quality iron and stainless steel material with paint spraying treatment, making it anti-rust and strong. And the PVC hose resists high temperature and corrosion.

Large Operation Area

With a 4.9ft power cable and 4.9ft hose, you can use this polisher without worrying about the distance.

Powerful Polisher

With 75L/H gas output, it uses high-temperature and adjustable flame without carbon element to make acrylic edges smooth and bright and the workpiece welded tightly, offering you a significant polishing&welding effect.

Safe and Energy-saving

It has a low working voltage and will cut off automatically beyond the set voltage. In addition, its electrolysis adopts series and parallel compound techniques and an efficient constant current switch, making this machine safe and energy-saving.

Application

It can be used for heat treatment for metal parts, welding the hinges of spectacles rim, sealing the injection glass bottles, fusing the lead or tin alloy plates for storage batteries, cutting&fusing quartz or fine parts, peeling off FPC of computers, fusing LED chips&thermocouple, welding jewelry made of gold, silver, copper, lead, tin casting, etc. and polishing irregular acrylic surface.

How to Operate

1.Prepare 800 to 1000 ml of purified water.
2.Add the electrolytic powder(200-250g)into the purified water and stir it evenly (avoid skin contact with the electrolytic powder which is corrosive).
3.Add about one-third of the purified water to the pressure tank.
4.Connect the gas pipe to ignite and complete the installation.

Model: H160A

Model: H160A
Color: Blue
Material: Iron, Stainless Steel, PVC
Treatment: Paint Spraying
Product Type: Polishing Machine
Features:
Fuel: Water (Distilled Water and Pure Water)
Power Source: Corded Electric
Appicable Acrylic Plates Thickness: ＜5mm/0.2inch
Plug: EU/UK Plug
Voltage: AC 220V
Gas Pressure: 0.08-0.13Mpa
Environment Temperature: -10-40°C/14-104°F
Flame Temperature: ≥ 2800℃/5072°F
Capacity: 1.6L/54.1Oz
Max. Gas Output: 75L/H, 2536Oz/H
Water Consumption: 0.015L/H, 0.5Oz/H
Water Volume: 1000ml/33.8Oz
Solution Density: 15%
Flame Gun No.: Single
Power Cord Length: 1.5m/4.9ft
Hose Length: 1.5m/4.9ft

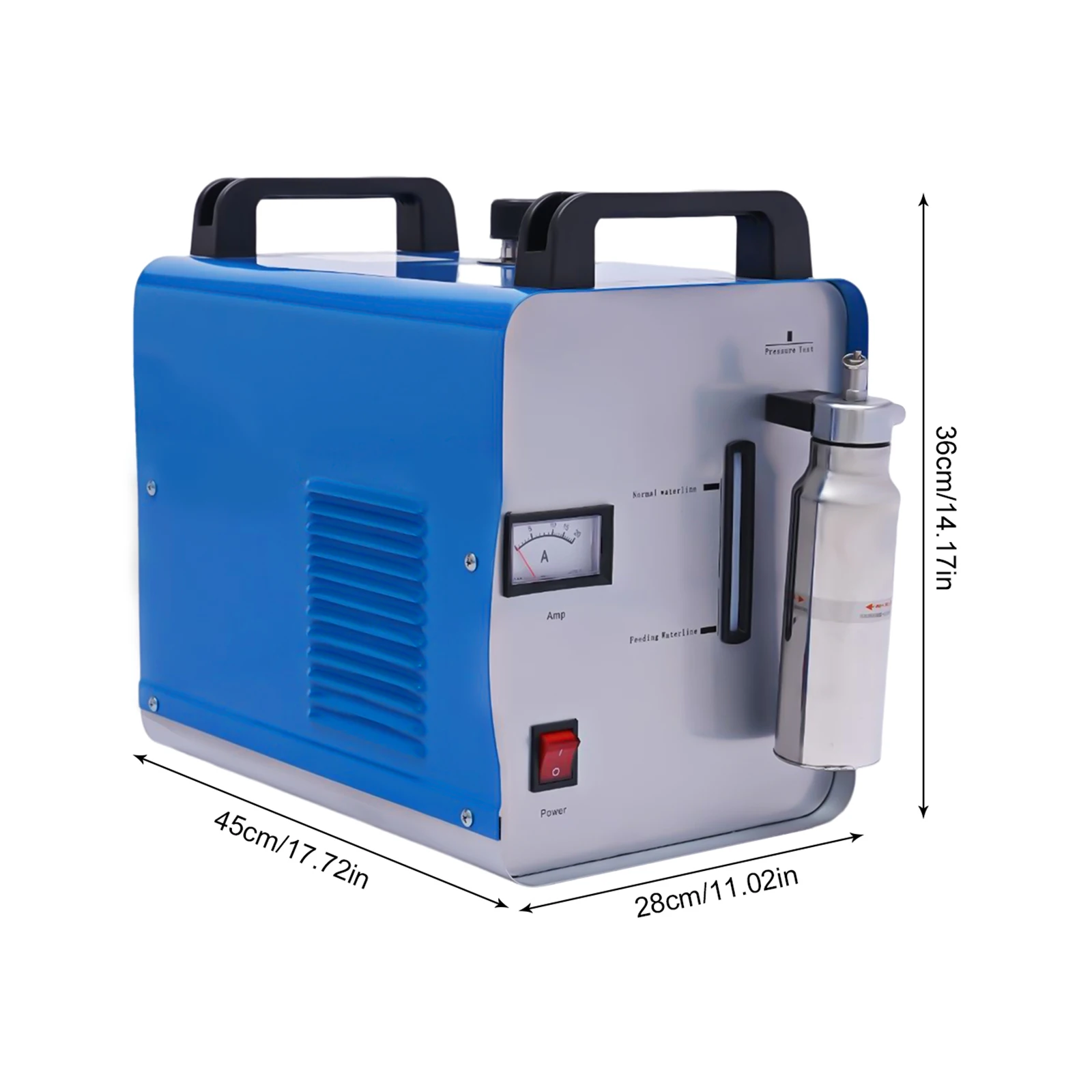

Product Size: 45*28*36cm/18*11*14inch
Package Size: 46*38*29cm/18.11*14.96*11.4inch
Net Weight: 6.4kg/14lbs
Gross Weight: 7.15kg/15.76lbs

Model: H180

Model: H180
Color: Blue, Black, Silver
Material: Iron, Stainless steel
Operation Mode: Plug-in Type
Operation mode: Tabletop
Style: Portable
Object of Action: Acrylic
Head Style: C-shaped
Working Form: Flame Polishing
Voltage: AC220V 1.5A
Power: 400W
Flame Temperature: 2800℃/5072℉
Volume: 1800ml/0.3gal
Electrical Box: 1
Flame Lamp: 1
Flame Lamp Base: 2
Water Consumption: 30ml/h (0.007gal/h)
Max Increase of Water Volume: 1 L/0.22gal
Solution Density: 15%
Compression Interval: 0.13-0.15mpa
Working Air Pressure (Mpa): <0.2
Maximum Gas Production Water Consumption: 0.45L/H (0.09gal/H)
Max Gas Production: 95L/H (20gal/H)
Number of Electrolysis Cylinder (a): 1
Net Weight: 6.9kg/15.21lbs
Gross Weight: 7.65kg/16.87lbs
Package Size: 49*28.5*37cm/19.2*11.2*14.5inch
Product Size: 48*28*36cm/18.8*11.0*14.17inch

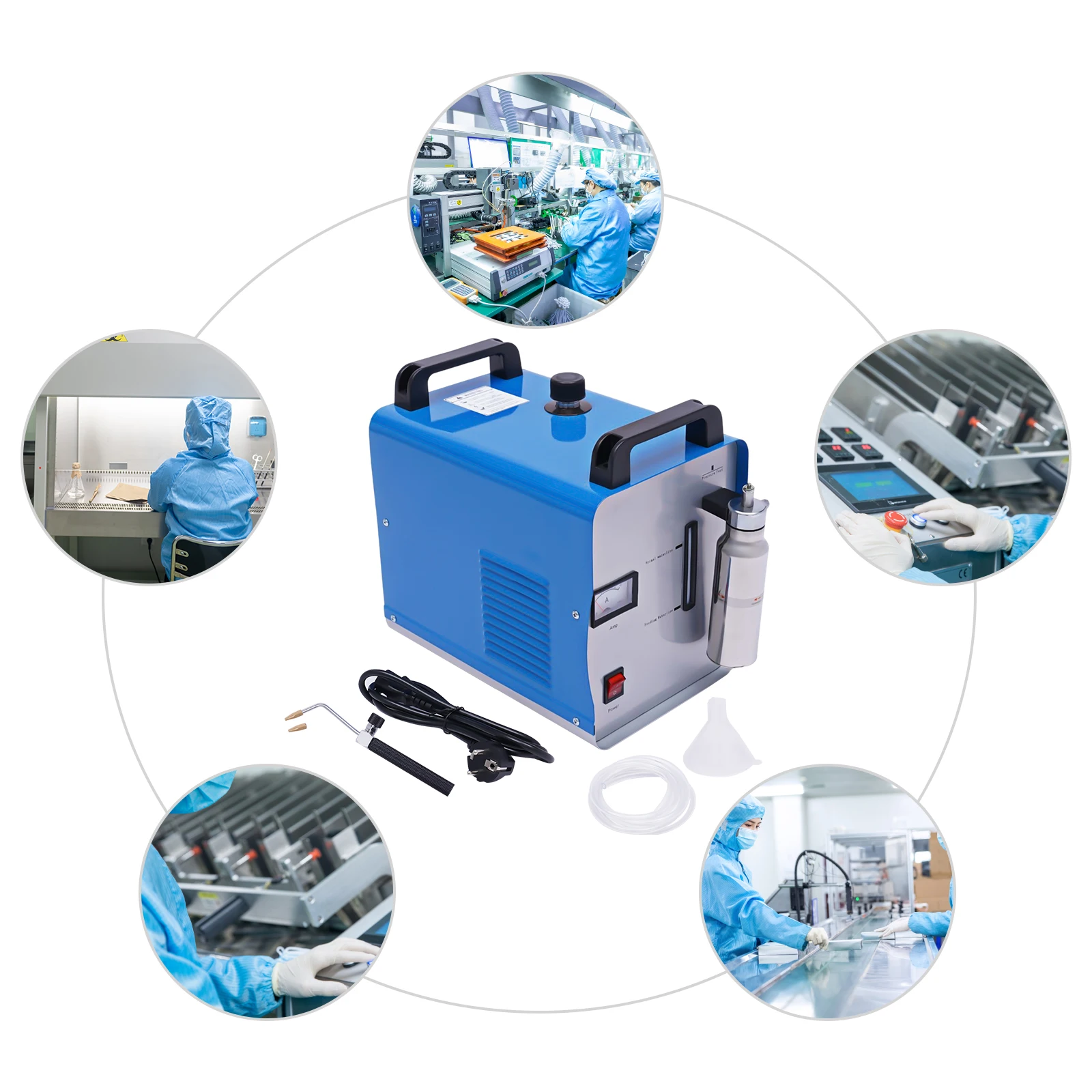

Package Included

1* Polishing Machine
1* Flame Gun with 2 Tips
1* Power Cable
1* Hose
1* Funnel
1* English Manual

Notes

1.Comes with an English plug, you don't need to buy an adapter that suits English voltage.
2.This package does not contain electrolytic powder. And the ratio of water and powder is: 4:1
3.It is recommended to use industrial alcohol to filter the produced gas. If not, you can also use clean water instead.
4.It is suitable for polishing acrylic plates within 5mm. It can only polish the material which is made from Acrylic and can only melt small metal like needle tips.
5.When using this machine, please pay attention to the safety of electricity and take necessary protective measures. Please use a plug with ground wire. And it should be kept out of reach of children daily. Water is forbidden inside the machine because there are many electric parts.
6.Please do not wear loose clothing, scarves, ties, or hand jewelry when operating to avoid danger from being caught in moving or rotating parts.
7.The electrolytic solution is highly corrosive. Ignition is forbidden without pressure inside the machine.
8.Please do not open the shell before powering off.
9.Clean electrolytic cells every two months. Release the left gas after you shut down the machine.
10.Please read the English manual carefully before using it and keep the manual for reference.
11.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
