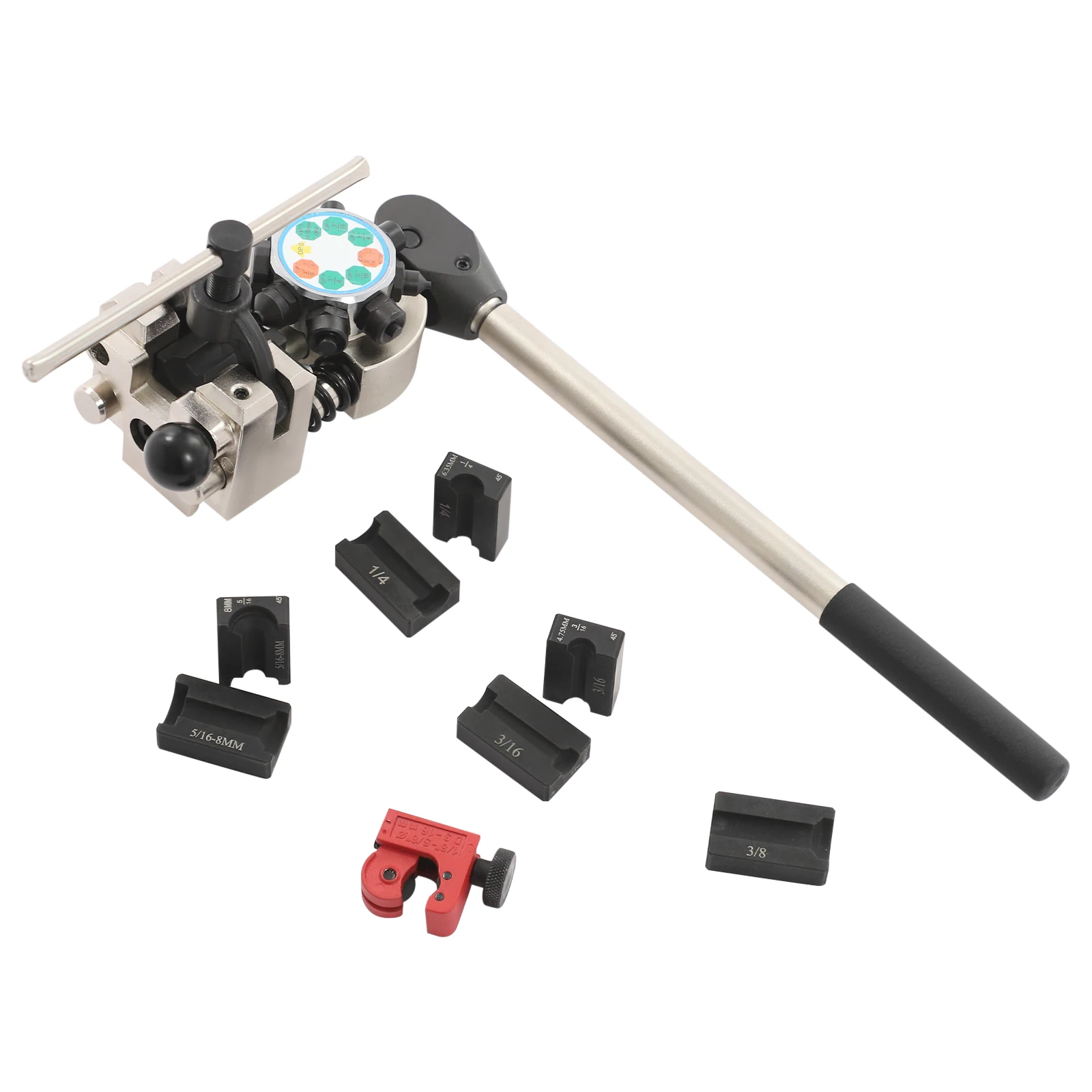

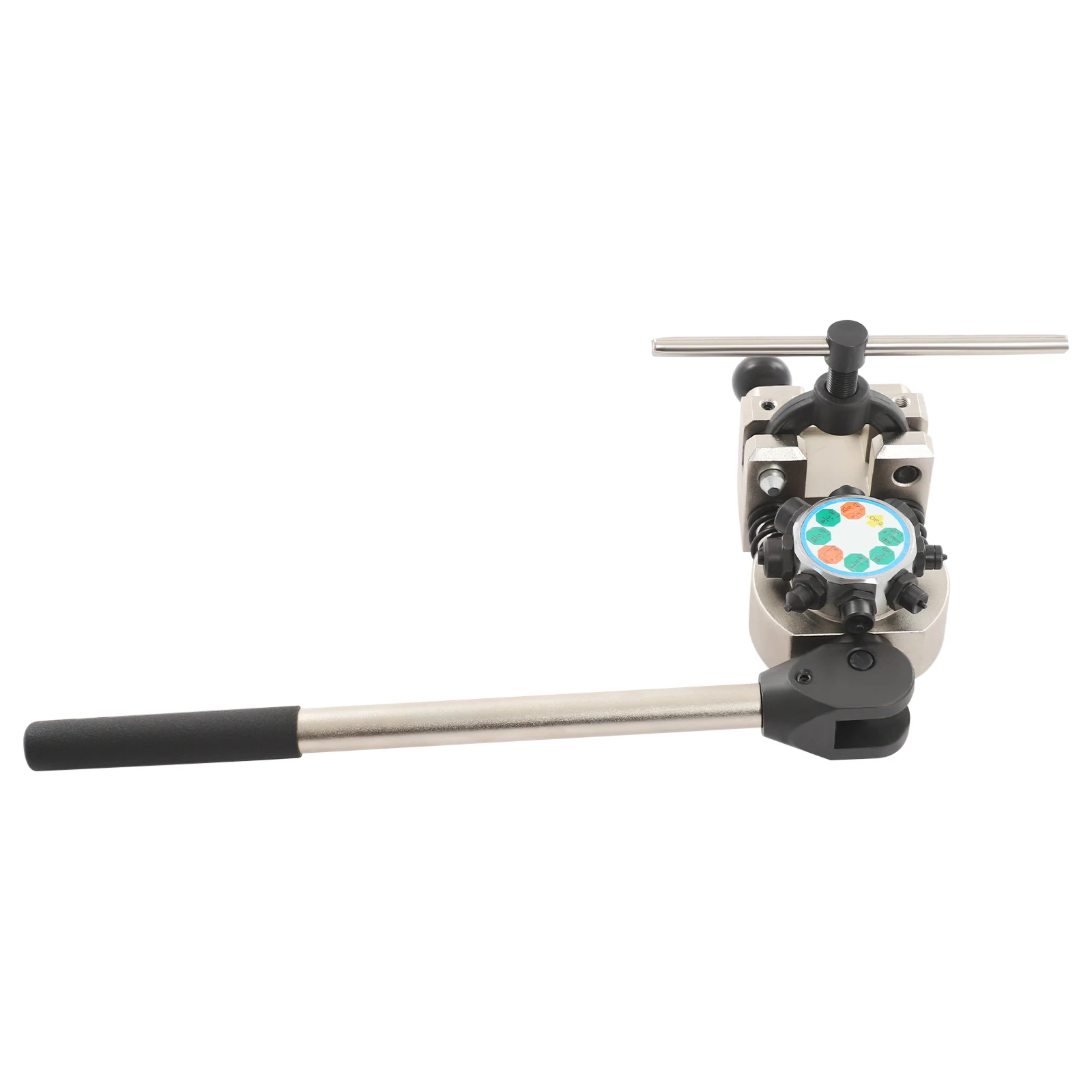

Brake Line Flaring Tool Kit with 4 Split Dies, Professional Brake Line and Tubing Flaring Tool

Description

This brake line flaring tool set can easily create a precision single flare, double flare, or bubble flare in your tubing. With 4 different dies, it is multi-purpose and can meet your various needs. The flaring tool set is made of durable materials for reliable and long-lasting performance. With a portable toolbox, it is convenient to carry and store. In short, our brake line flaring tool will be your ideal assistant.

Application

This product is suitable for flaring standard 45-degree single, bubble, and double flares on steel, stainless steel, and soft metal (copper, aluminum) brake lines, transmission cooler lines, and fuel lines.

Specifications

Style: Modern

Color: Black, Silver, Blue

Material: 40Cr Steel, 45# Steel

Process: Chrome-plated, Hot Treatment, Blackening

Assembly Required: Yes

Die Specification:  3/8''(9.53mm), 5/16"(8mm), 3/16''(4.75mm), 1/4''(6.35mm)

Tool Box Size: 43.5*11*19.5cm/17.13*4.33*7.68in

Package Size: 43.5*19.5*11cm/17.13*7.68*4.33in

Gross Weight: 4.5kg/9.92 lbs

Net Weight: 4.28kg/9.44 lbs

Package Included

1 Set* Brake Line Flaring Tool

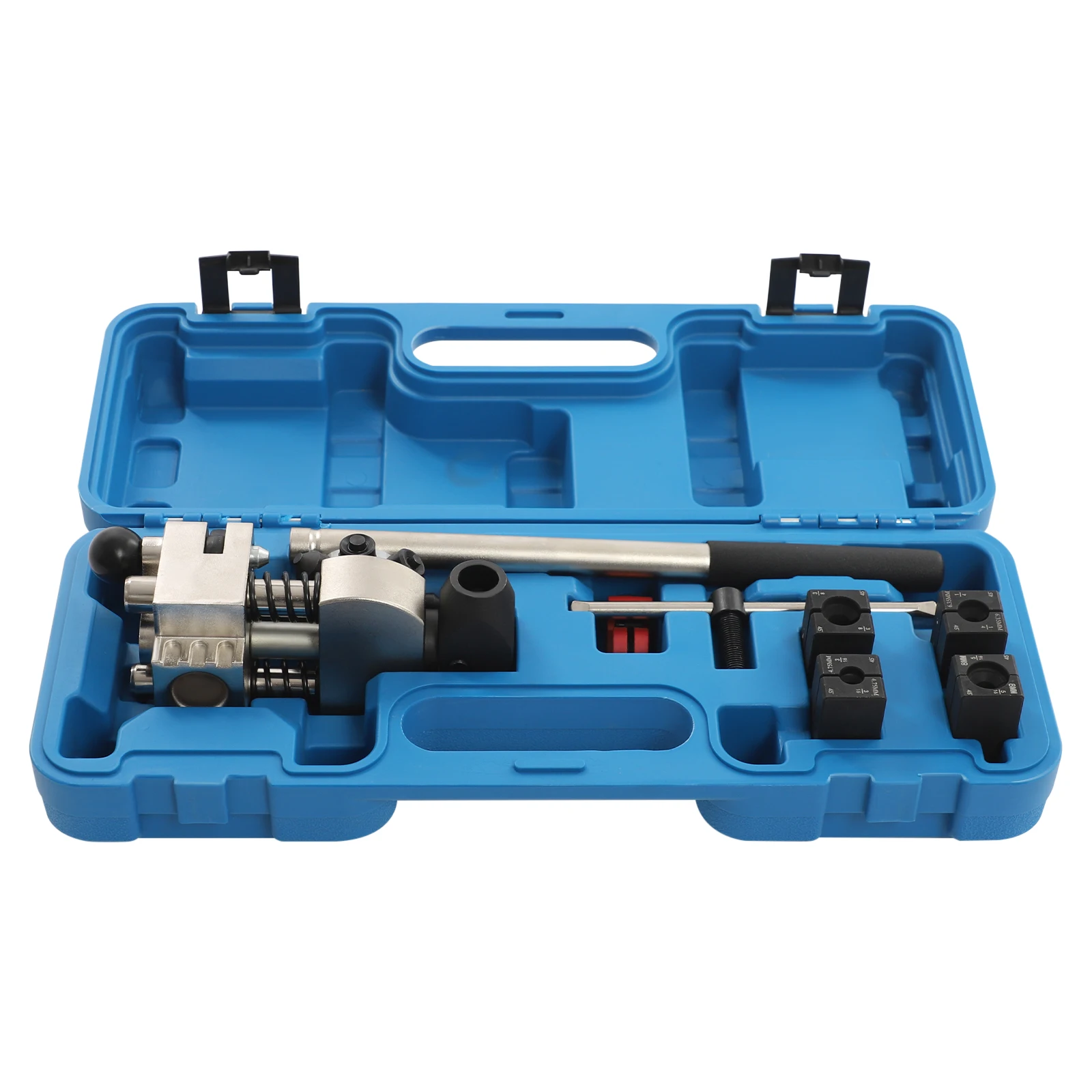

1* Tool Box

Notes

1. Please check the product size before ordering to make sure it fits your needs.

2. Please note that this product can be used on a vise in a workshop or on a hitch-mounted vise in the field (not intended for use under a car).

3. Please always wear goggles (not included) when operating the flaring tool. Ensure that the flaring tool is securely clamped in a vise, keeping your hands and fingers away from the joining surface. Wear gloves (not included) when operating this tool to avoid cuts from sharp metal edges.

4. Please note that before doing a flare, deburr the inside and outside of the tubing to ensure that metal shavings and impurities are removed from the inside and outside of the tubing. Then, apply a small amount of anti-seizeagent (not included) to the end of the cut tubing to prevent problems when squeezing. Also, it can be added a little oil to the flaring cones. Finally, simply carefully install the appropriate joint at the pipe end so that the flared end faces outward.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
