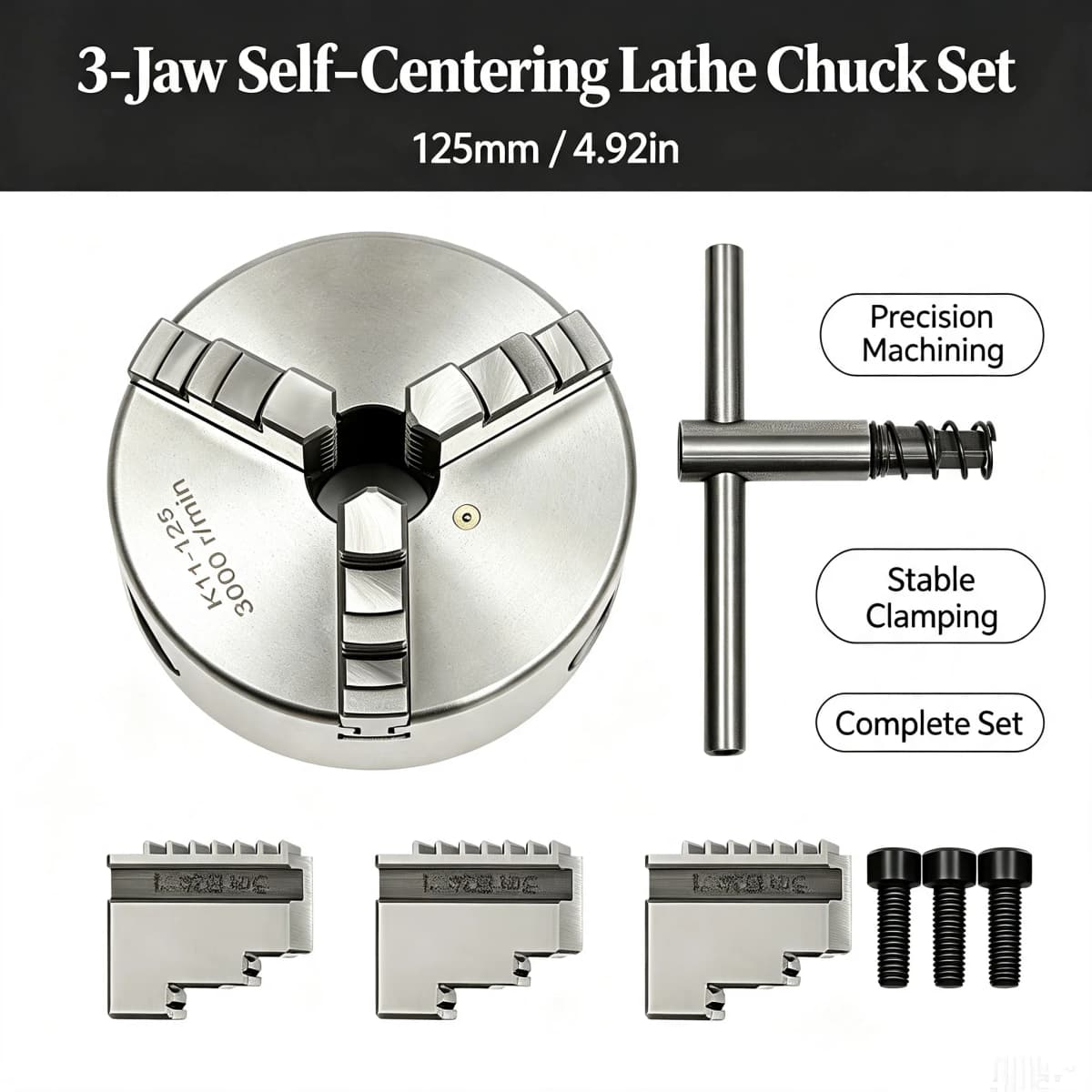

3-Jaw Self-Centering Lathe Chuck 125mm Diameter 3000r/min Centering Precision 0.07mm for CNC Drilling K11-125

3-Jaw Self-Centering Lathe Chuck K11-125 125mm Diameter 3000 r/min Centering Precision 0.07mm

Application

The products are suitable for general machine tools, CNC machine tools, milling and drilling machines, machining centers, etc., to help quickly complete the clamping, milling, drilling, and turning work.

Specifications

Color: Silver

Material: Iron, Steel

Max. Speed: 3000 r/min

Compatible Devices: Lathe

Internal Jaw Clamping Range: 2.5-40mm/0.098-1.57in

External Jaw Claw Clamping Range: 38-110mm/1.5-4.33in

Internal Jaw Jamming Range: 38-125mm/1.5-4.92in

Centering Precision: 0.07mm/0.0028in

Chuck Hole Diameter: 30mm/1.18in

Product Diameter: 125mm/4.92in

Maximum Input Torque: 100

Package Size: 18*18*17cm/7.09*7.09*6.69in

Gross Weight: 5.6kg/12.35lbs

Net Weight: 5kg/11.02lbs

Package Included

1* 3-jawSelf-Centering Chuck

1* External Jaw Set

1* Internal Jaw Set

1* Chuck Wrench

3* Screws

Key Features

Sturdy and Durable: Made of premium iron and steel, the product boasts high sturdiness and strong structure, ensuring excellent wear resistance and a long service life.

Wide Compatibility: The 0.098-1.57in internal jaw clamping range, 1.5-4.33in external jaw clamping range, and 1.5-4.92in jamming range ensure a wide range of clamping and applications to meet your multiple usage needs.

Thoughtful Design: The product features a self-centering function that can automatically adjust the machining center position, guaranteeing the accuracy and stability of the workpiece while enhancing machining efficiency and quality.

Clean with Ease: The smooth surface and simple structure allow you to wipe the dust off with a soft cloth.

Easy to Carry: The compact size(4.92 inches in diameter) allow you to store it without taking up much space.

Excellent Performance: The great clamping force ensures a tight clamping for the object, allowing the object to remain stable even at high RPMs and preventing it from loosening and falling.

Good Appearance: The metallic silver surface and smooth lines make it an excellent tool with a beautiful appearance.

Protective Package: To prevent the product from being damaged during transportation, we packed it with foam to protect your products to the maximum extent possible.

Notes
1.Please check the size carefully before ordering.
2.This product needs a flange(not included) to be fixed on the lathe.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
