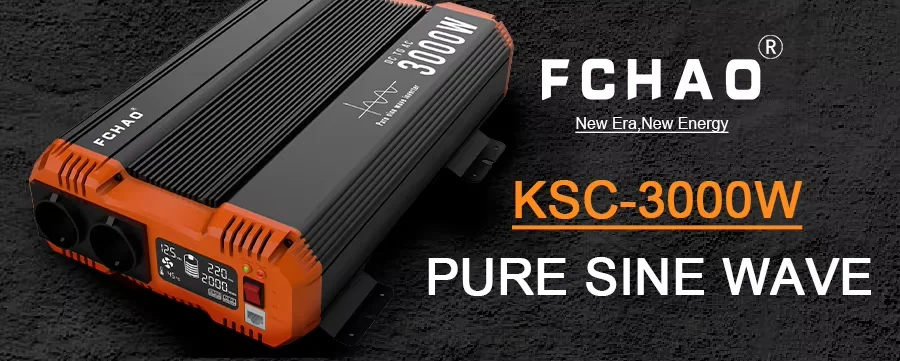

FCHAO 3000W 12VDC To 220VAC Pure Sine Wave Inverter Power 6000W Car Inversor for Home and Camp with Display LCD drive

FCHAO 3000W 12VDC To 220VAC Pure Sine Wave Inverter Peak Power 6000W Car Inversor for Home and Camp with Remote LCD Display

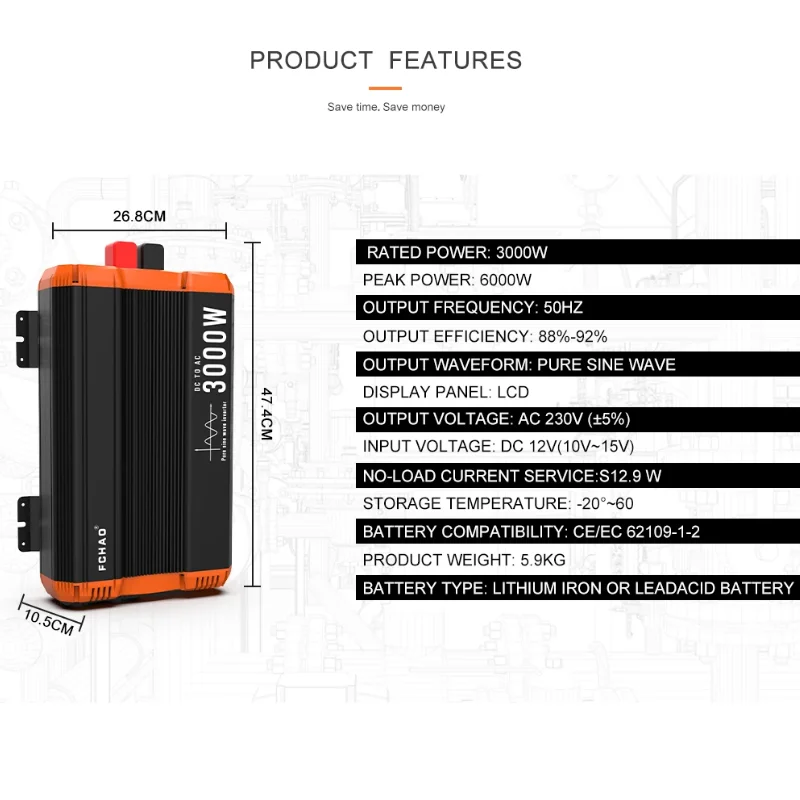

High Quality Continulous (Rated) Power of 3000W

Feature

1. Pure sine wave, intelligent filtering, does not interfere with electrical appliances, and protects electrical appliances. The conversion efficiency is high (up to 95%), and the power consumption of the product itself is low, which can greatly extend the battery life.

2. Buzzer reminder. Once the protection function of the inverter is triggered, the inverter will immediately shut down the power supply, the load will enter the protection mode, and the buzzer will remind people.

3. Almost all electrical appliances can be used, including TV/LED lights/LCD monitors, especially inductive load appliances such as refrigerators, freezers, and induction cookers.

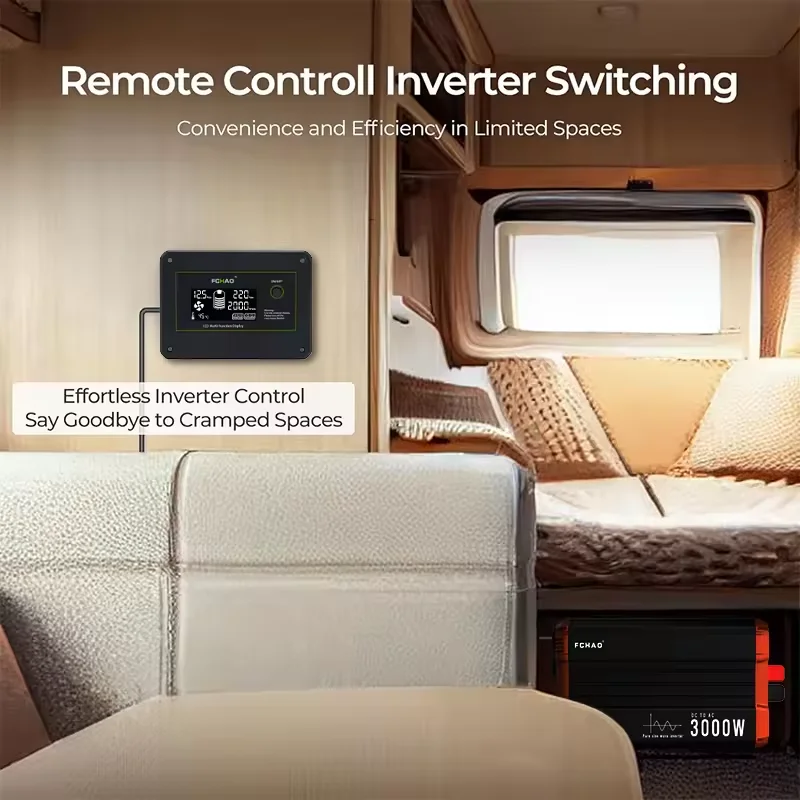

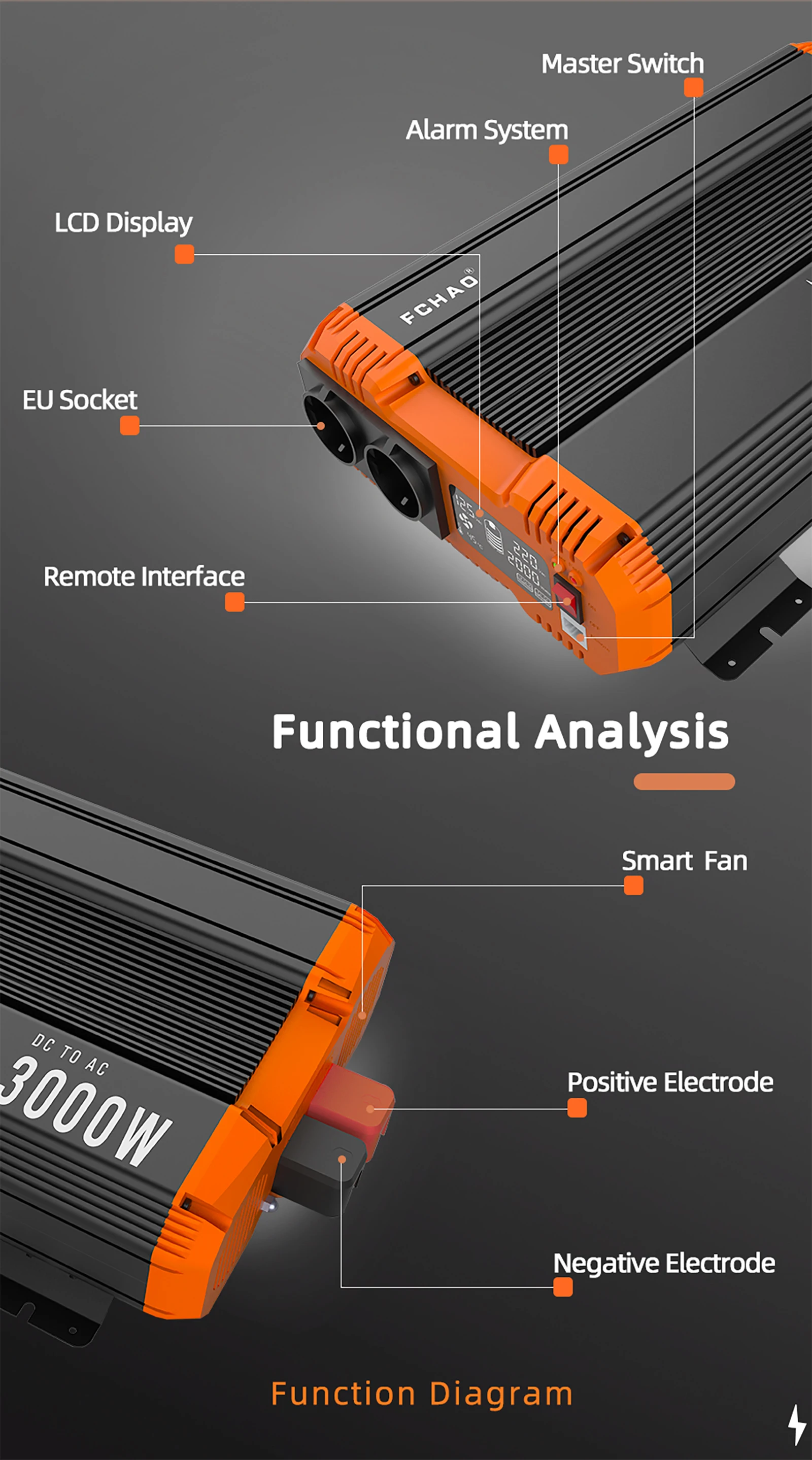

4. The 3M long cable can be connected to the Display panel, which can not only control the on and off of the invert but also Display the current Volting and power.

5.Aluminum-magnesium alloy body, strong shell can effectively protect the product itself, with double air ducts, high-quality heat for heat dissipation, good thermal conductivity, can quickly discount the temperature of components, and ensure long-term work.

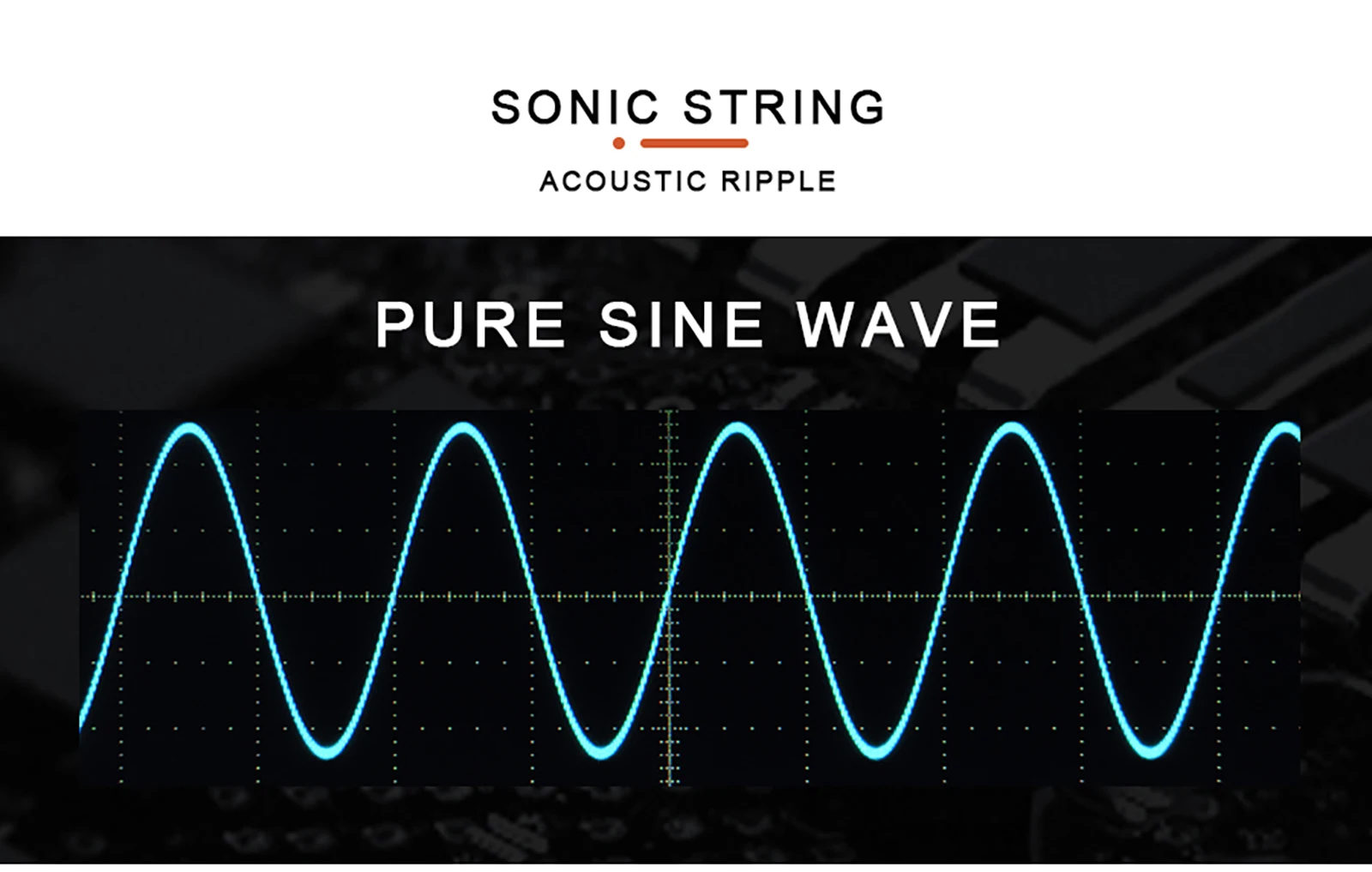

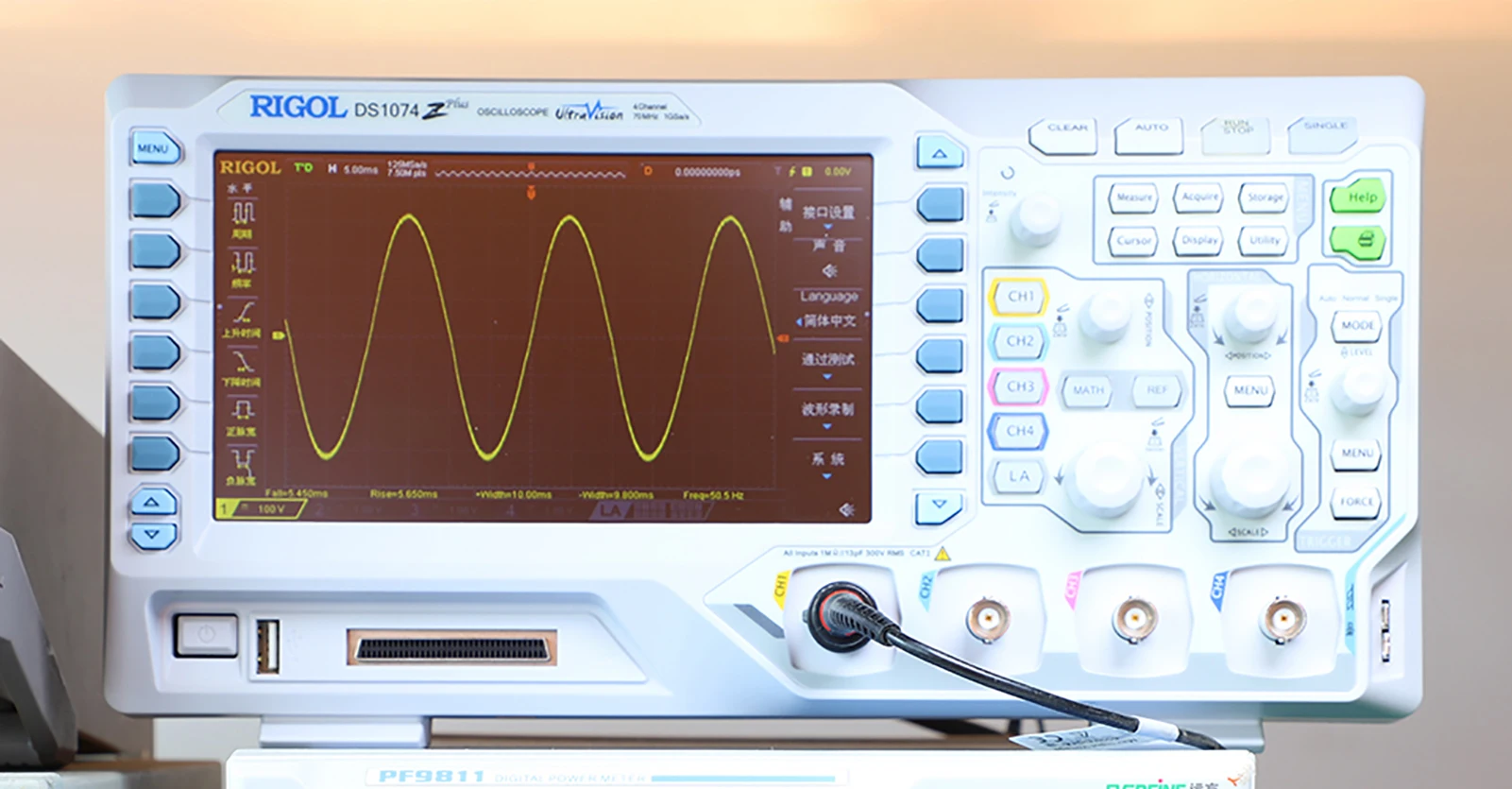

Pure Sine Wave Output Form

Scenarios and Home Appliances

Whether it is household electricity or outdoor electricity, RV power supply, industrial electricity, etc., our equipment can support it, not just refrigerators, microwave ovens, washing machines, TVs and boilers, etc.

Six Protection Functions

Positive and negative reverse polarity protection: by blowing the internal fuse;

High temperature protection: When the temperature is higher than 85°C, the AC output will be turned off, and the alarm will sound 5 times/stop for 5 seconds (continuous mode). Automatically return to normal when the temperature is lower than 75°C;

Overload protection: When the load is greater than 110%~130%, the AC output will be turned off after the alarm lasts for 15 seconds (the reset switch is restored). If the load is greater than 130%~150%, the alarm lasts for 5 seconds and then closes the AC output, (the reset switch is restored). When the load is greater than 150%%, the AC output will be turned off after 2 seconds, (the reset switch will be restored);

Low voltage protection: 12V model low voltage protection is 10V±4%, When the low voltage protection is triggered, the inverter will shut down automatically;

High voltage protection: 12V model high voltage protection is 15V±4%, When the high voltage protection is triggered, the inverter will automatically shut down;

Shorts protection circuit: turn off the service within 2 seconds (need to stop the switch to recover).

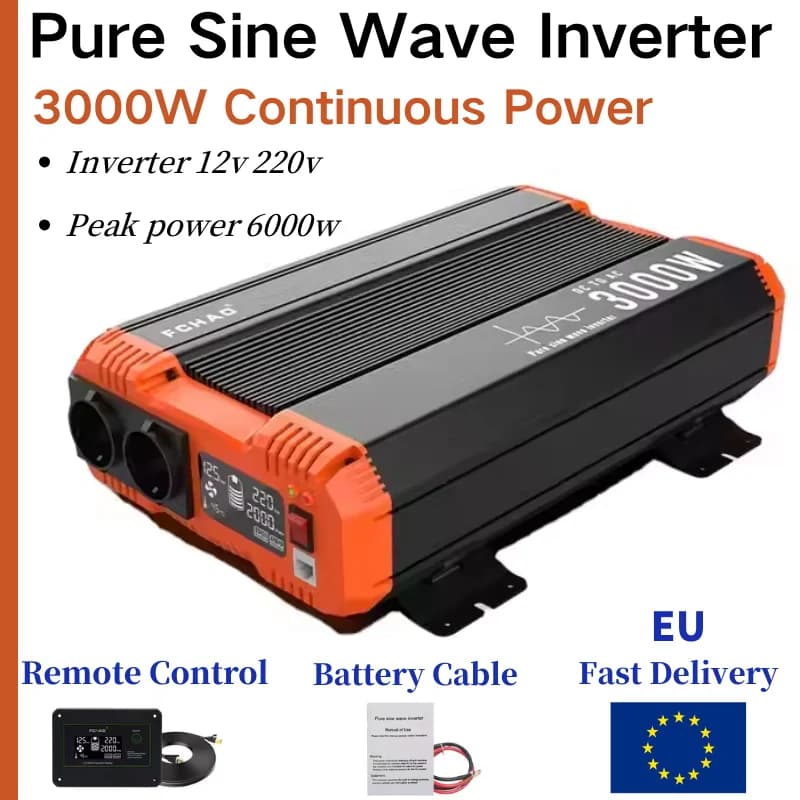

Packing List

1 x Pure Sine Wave Power Inverter

1x3 Meters Remote LCD Display Panel

1 x Positive and Negative Battery Cable

1 x User Manual
