6700W Spot Welding Machine, 220V Battery Spot Welder Output 1600A, Adjustable Current and Time Welder W/2 Welding Pens

You can infinitely adjust the current (40-100A) and time (0-100s) by adjusting the knob to meet your needs. It has an output power of 6700W and an output current of 1600A. Its transformer with temperature protection and overload protection, with the back of the cooling holes, can effectively ensure the stability and safety of the product when in use. (nickel-plated steel up to 0.25 mm and stainless steel up to 0.3 mm).

Key Features

Welding Assistant: It has an output power of 6700W and an output current of 1600A. It adopts an SCR rectifier for stable operation and can be used to assemble and maintain rechargeable batteries as well as electric vehicle power supplies and batteries, bringing you an efficient welding experience!

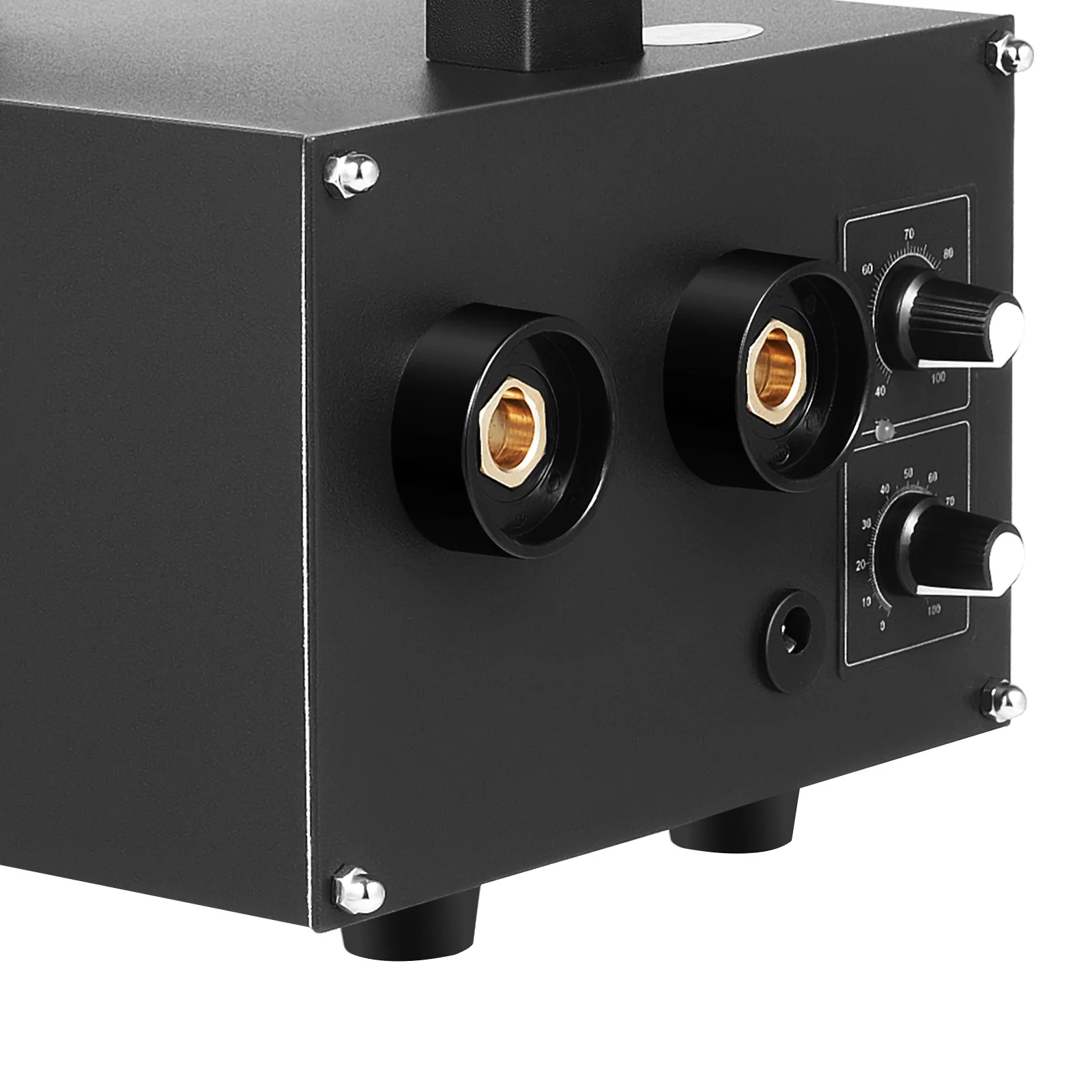

Thoughtful Design: You can infinitely adjust the current (40-100A) and time (0-100s) by adjusting the knob to meet your needs. In addition, the one-touch switch also allows you to switch products on and off easily.

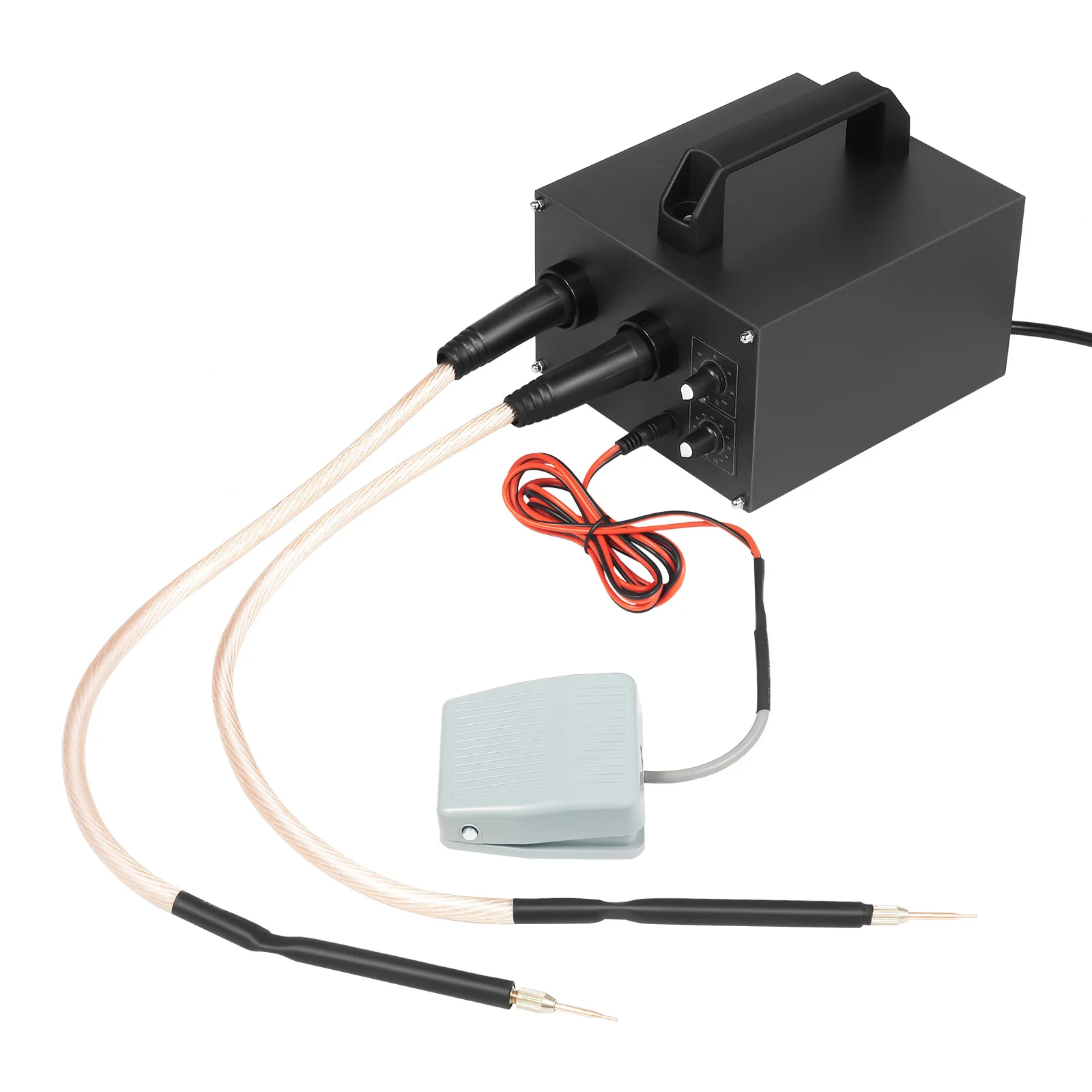

User Friendly: The footswitch frees your hands and simplifies the operation process. In addition, the product is already 90% assembled, so you can use it after you receive it by connecting the accessories.

Easy to Clean: Because of the smooth surface and simple outlook, you can wipe the dirt from this machine with a dry rag.

Ideal Gift: With its good performance and high practicability, it would be an ideal gift for your family and friends who love DIYs.

Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

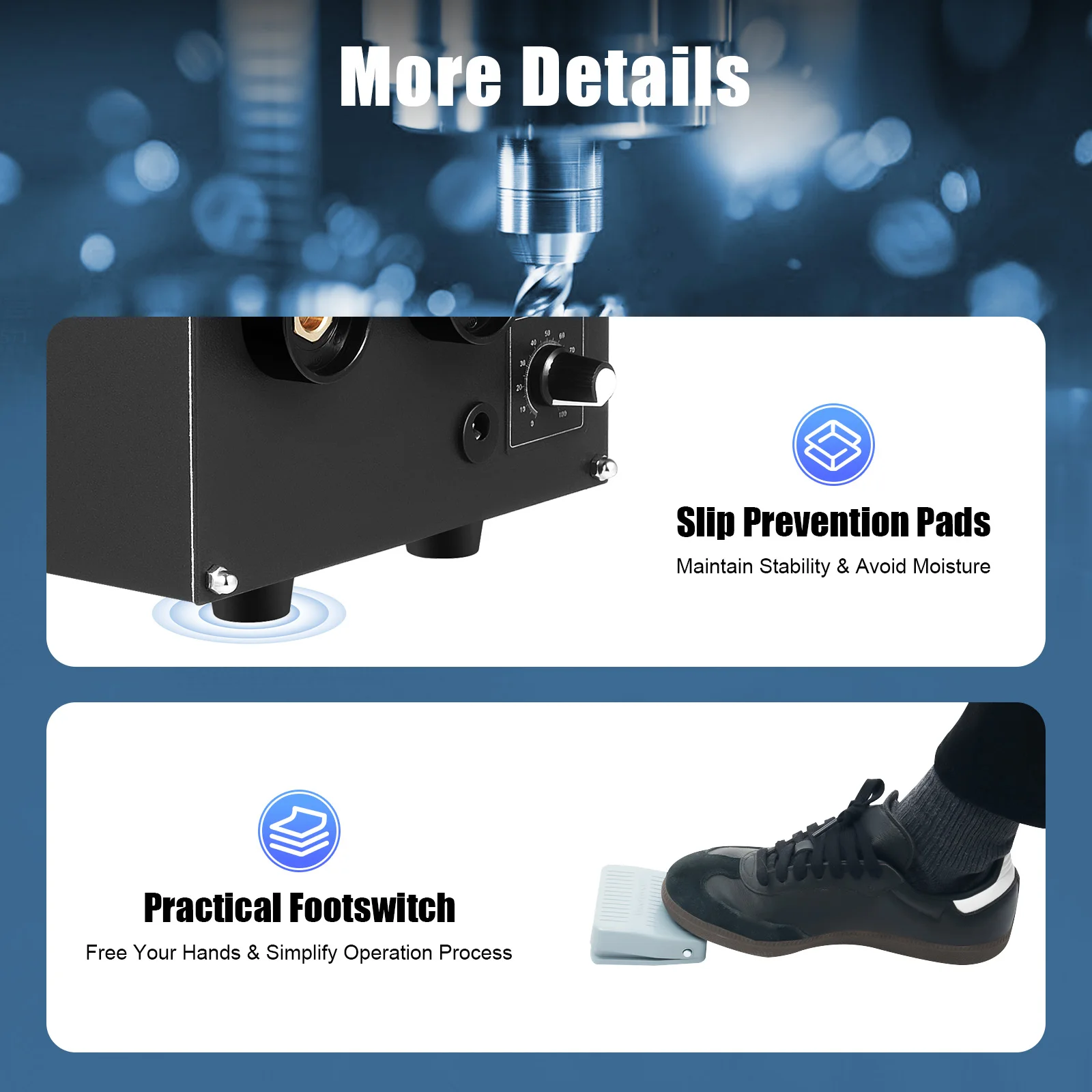

Anti-slip Pads: They can provide additional support to better maintain the stability of the product, slightly raise the bottom to avoid moisture, and protect your countertop from scratches.

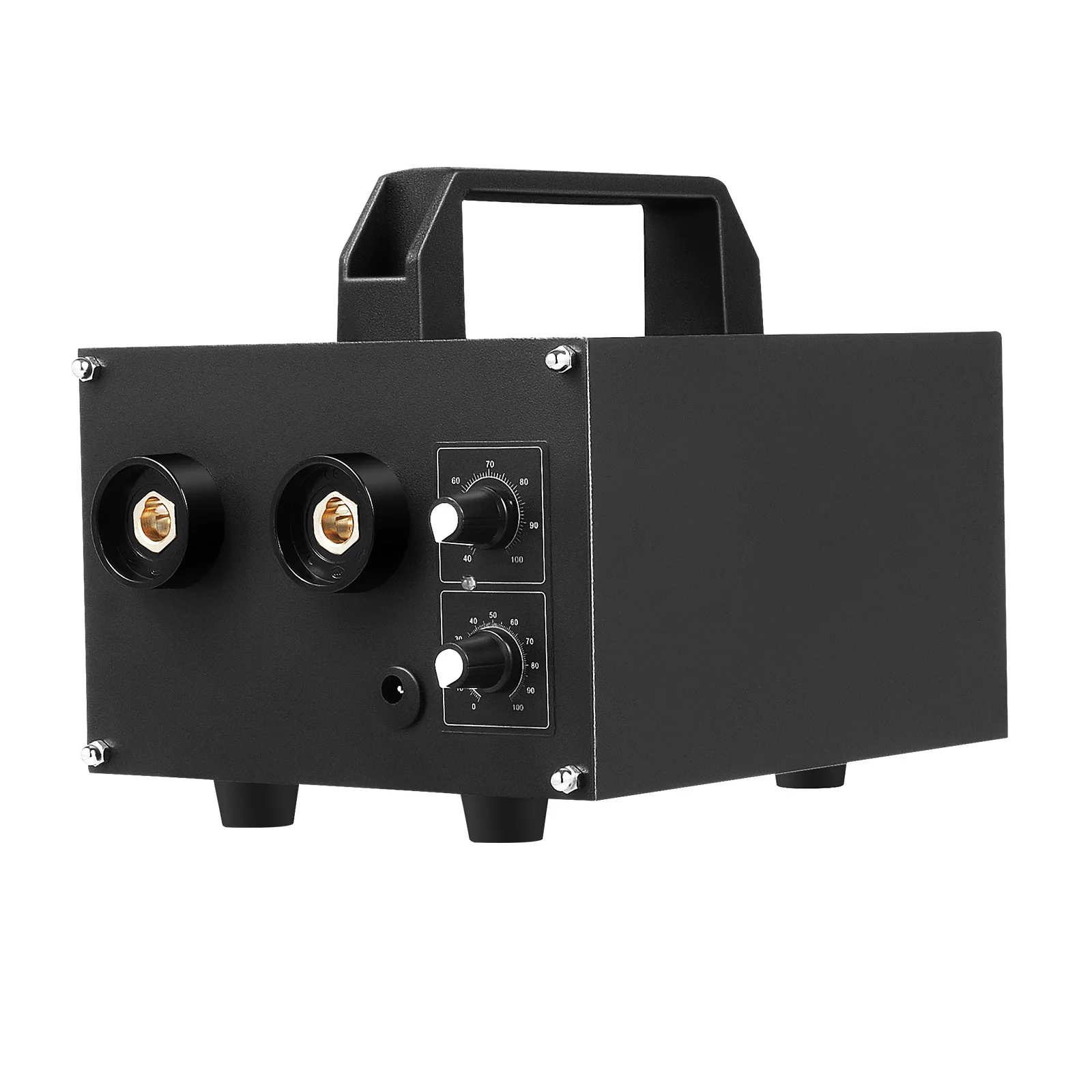

Portable Handle: Its top portable handle allows you to carry it more easily and conveniently.

Application

It can be used to assemble and maintain rechargeable batteries, electric vehicle power packs mobile power, power tool batteries, model batteries, laptop batteries and other non-aluminum-copper batteries! It can also be used in automotive manufacturing, pipeline engineering, metal fabrication, stringent construction work, on-site work, high-class welding and precision welding of thin materials. (nickel-plated steel up to 0.25 mm and stainless steel up to 0.3 mm).

Safe Use and Maintenance

1. Two electrodes, welding needle can not touch together, to avoid short-circuit.
2. Test welding must be tested on the weldment, try to avoid triggering the switch without the weldment.
3. When testing welding, the current and pulse should be adjusted from small to large during testing.
4. Please keep the electrode clean, and grind the needle after working for a period of time to remove impurities before continuing to use.
5. The machine's power supply should be plugged into the primary power supply socket, do not plug in the secondary power supply socket.

Specifications

Color: Black
Shape: Rectangular
Material: Aluminum
Mount Type: Freestanding
Assembly Required: Yes
Power Source: Corded Electric
Plug: EU Standard
Voltage: 220V 50HZ
Output Power: 6700W
Welding Current: 40-100A Adjustable
Welding Pulse: 0-100s Adjustable
Welding Thickness: 0.08-0.25mm/0.003-0.01in
Output Current: 1600A
Output Voltage: 4.5V
Main Transformer Insulation Voltage: DC500V 100M OHM or Above
Product Size: 19*15*15cm/7.48*5.91*5.91in
Package Size: 26*21*25cm/10.24*8.27*9.84in
Gross Weight: 7kg/15.43 lbs
Net Weight: 6.55kg/14.44 lbs

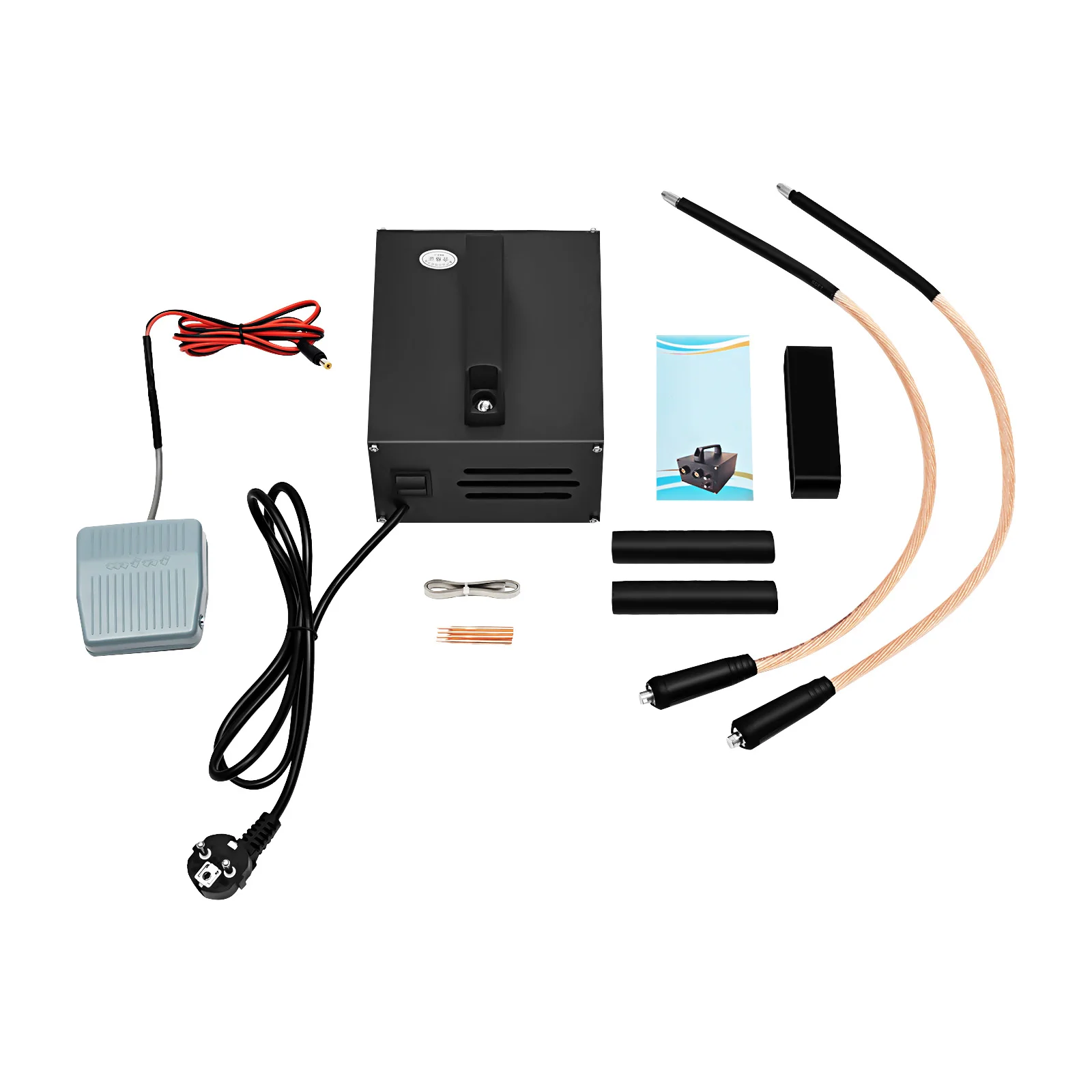

Package Included

1* Spot Welder
2* Welding Pens
2* Insulation Sleeves
1* 18650 Li-ion Battery 6-hole Fixture
4* Soldering Pins
1* Foot Pedal
1* Experimental Nickel Flake

Notes

1.The use of an ambient air switch is recommended for more than 30A, the air switch power is not enough may cause tripping, spot welding machine's instant working current is large, to avoid the current no output and reflux damage accessories!
2.Batteries are not included in the package.
3.Please peel the protective film off the machine before use.
4.Please note that this product can not solder copper, aluminum or plastic products.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
