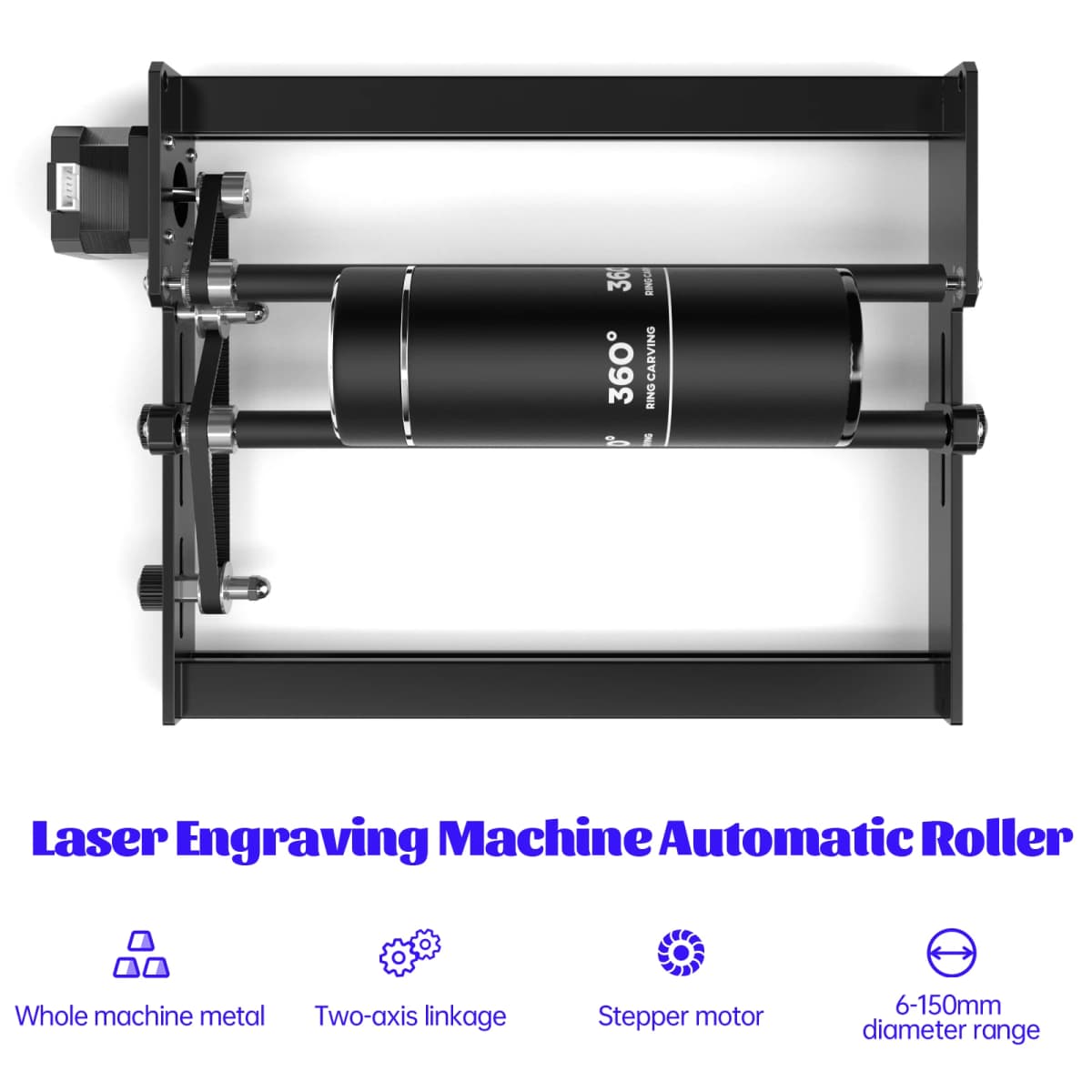

SCULPFUN Laser Engraver Roller Y-axis Rotary Roller for Engraving Cylindrical Objects Cans Huge engraving area 4 heightening

Features:

1. 100% pre-installed, plug and play: The machine has 100% installation degree in the package and is equipped with an adapter cable. It only needs to be connected to the X-axis or Y-axis stepper motor wiring of the laser engraving machine to engrave cylindrical objects, such as pens, thermos cups, etc.

2. Huge engraving area and 4 heightening feet: SCULPFUN roller chassis is designed to be lower and more stable, and is equipped with 4 sturdy metal heightening feet, so that it has a larger engraving area of 5-150mm, which can meet more engraving needs. Metal feet are stronger than plastic feet and the machine is more stable when engraving.

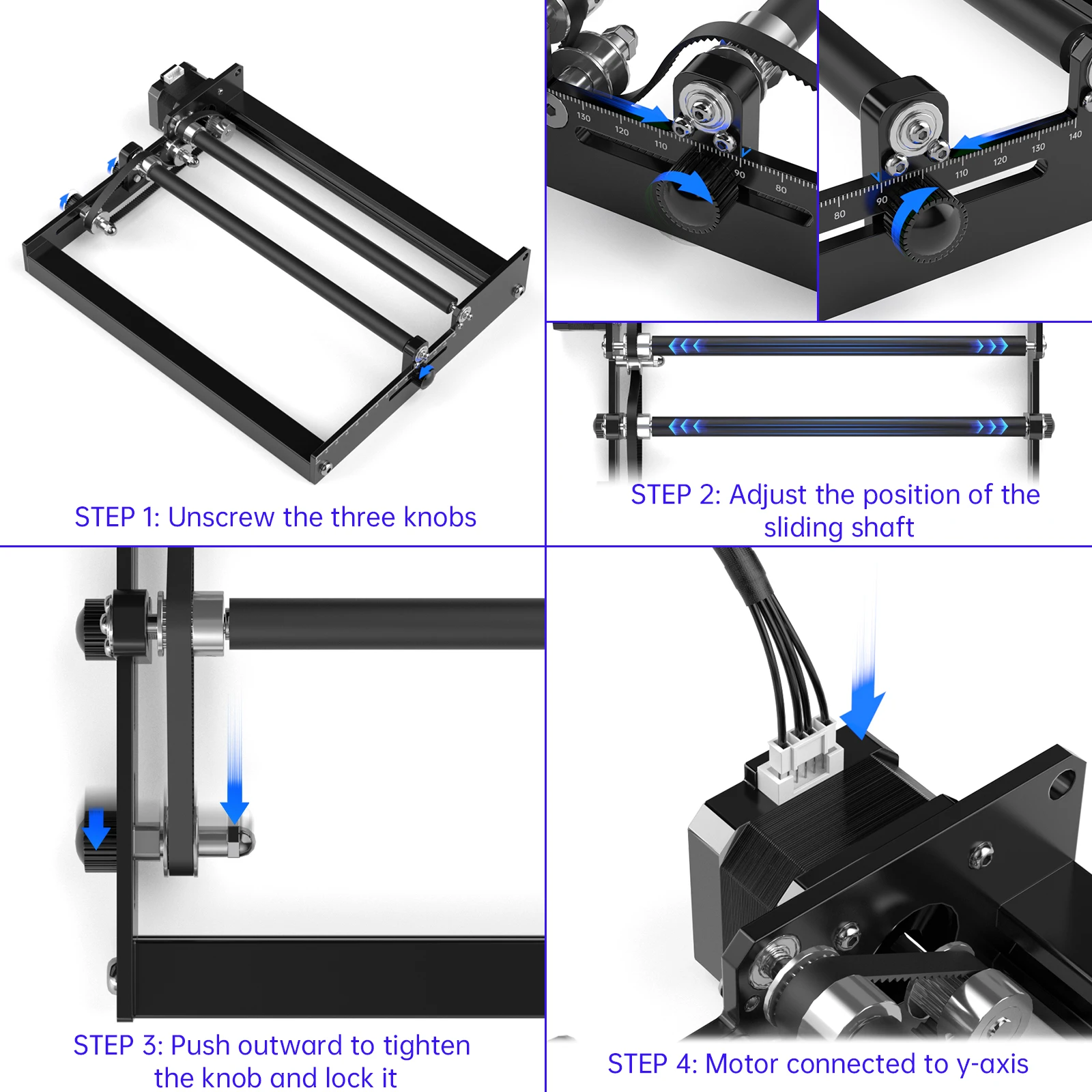

3. Sliding adjustment of the distance between the rotating shafts: SCULPFUN roller adjusts the space between the two shafts by sliding, and fixes the rotating shaft by turning the knob by hand, which is simpler and faster than the traditional multi-stage fixing hole adjustment.

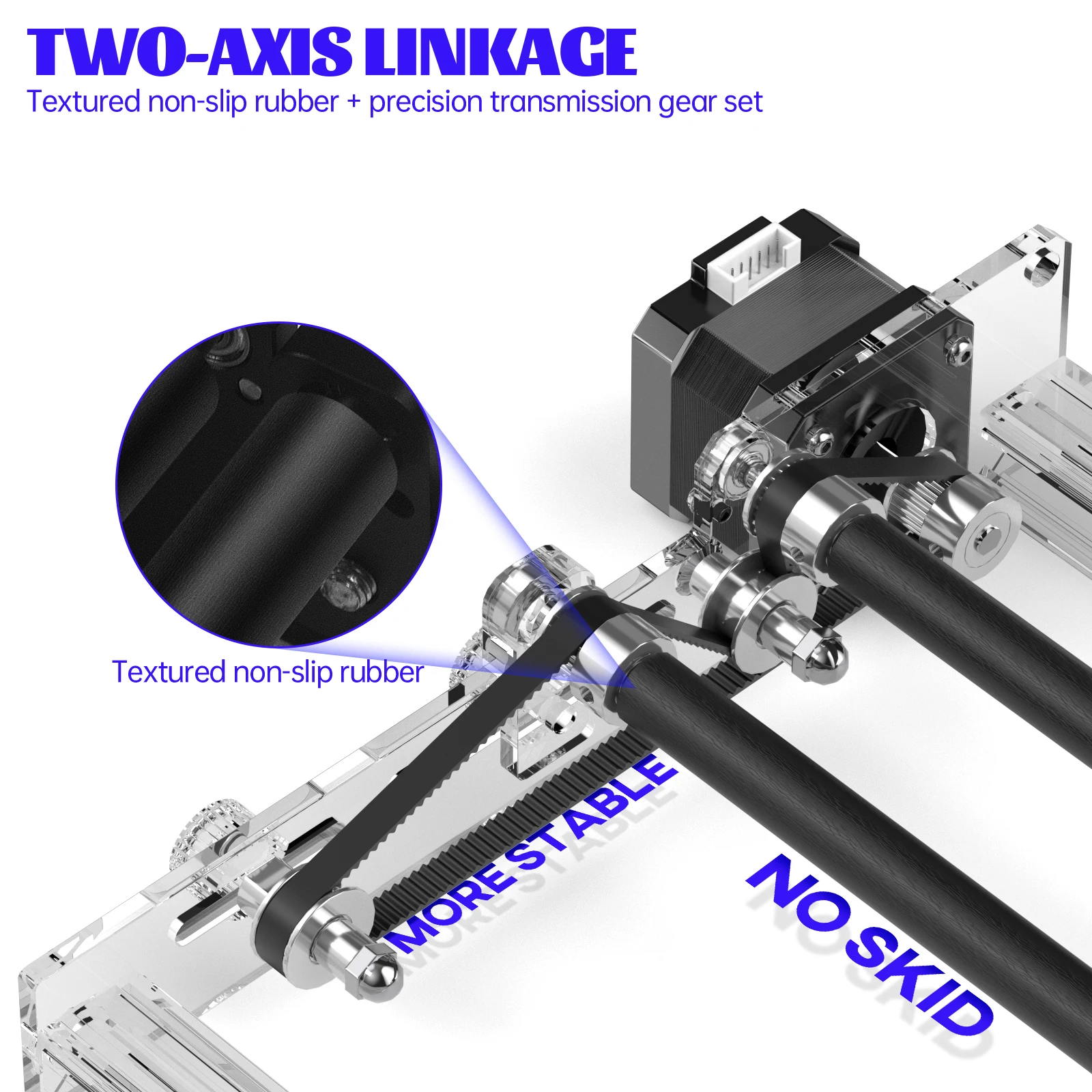

4. 100% original scale high-precision engraving: SCULPFUN rollers use high friction 70A rubber shafts to prevent slippage, and the linear speed of the rotating surface has been calculated, directly plug in the engraving machine cable to engrave the original image in 100% scale. The image will not be enlarged or reduced.

5. Extensive compatibility: SCULPFUN roller is suitable for a variety of engraving software such as lightburn or laserGRBL, and can be used directly without setting parameters. In addition, it can be applied to 95% of engraving machines on the market such as SCULPFUN, NEJE, Ortur, ATOMSTACK, etc.

Specifications:

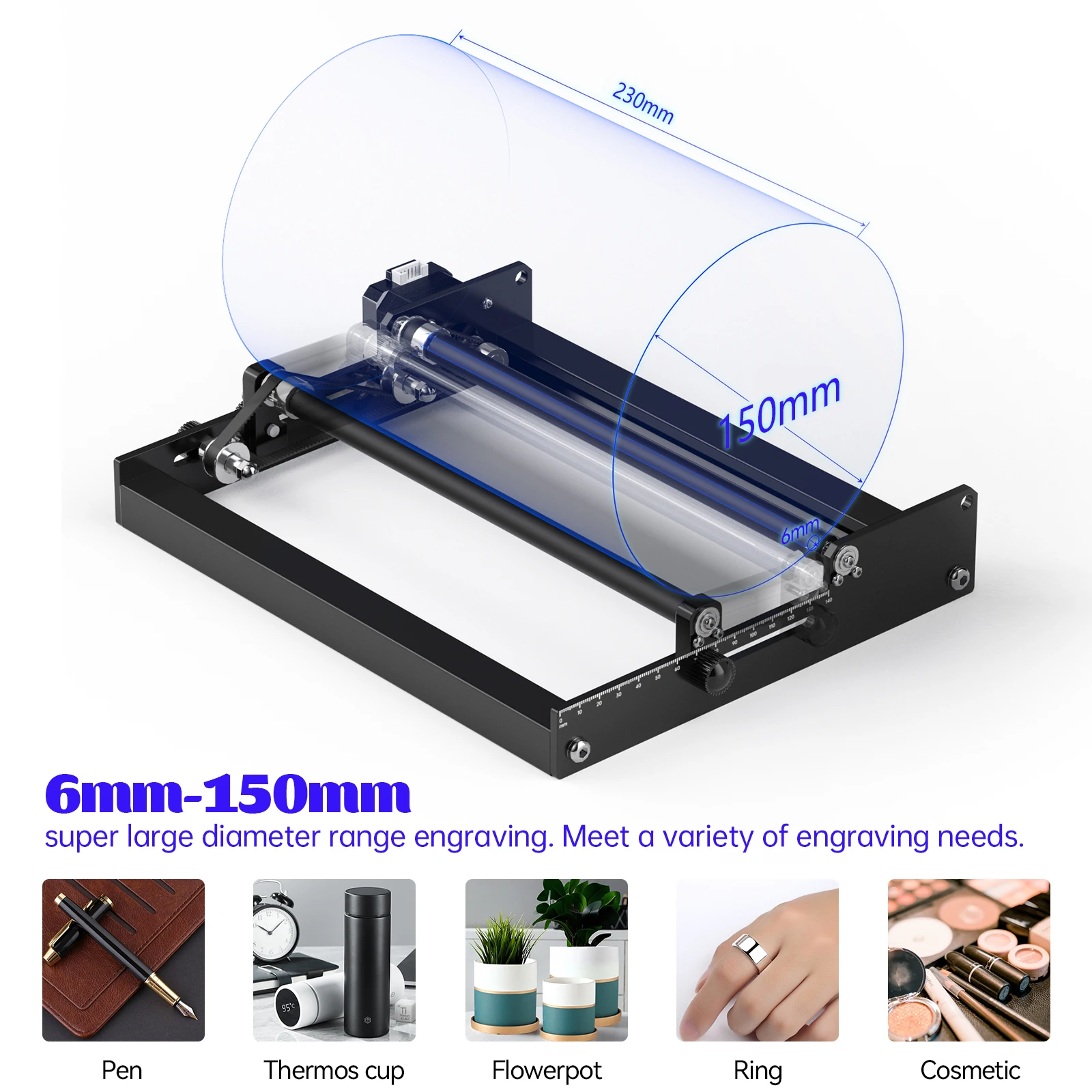

Available engraving range: cylinder diameter 5-150mm, cylinder length 0-230mm

Compatible software: Lightburn, LaserGRBL, Benbox, GrblController, LiteFire, etc. No need to set software, because the linear speed of the roller surface is the same as the original Y-axis speed.

Compatible Machines: Compatible with engraving machines of all GRBL motherboard types, including SCULPFUN, Ortur, NEJE, ATOMSTACK and other engraving machines.

Adjustment of the distance between the rotating shafts: The distance between the rotating shafts can be adjusted steplessly by sliding, and it is fixed by hand-tightening screws.

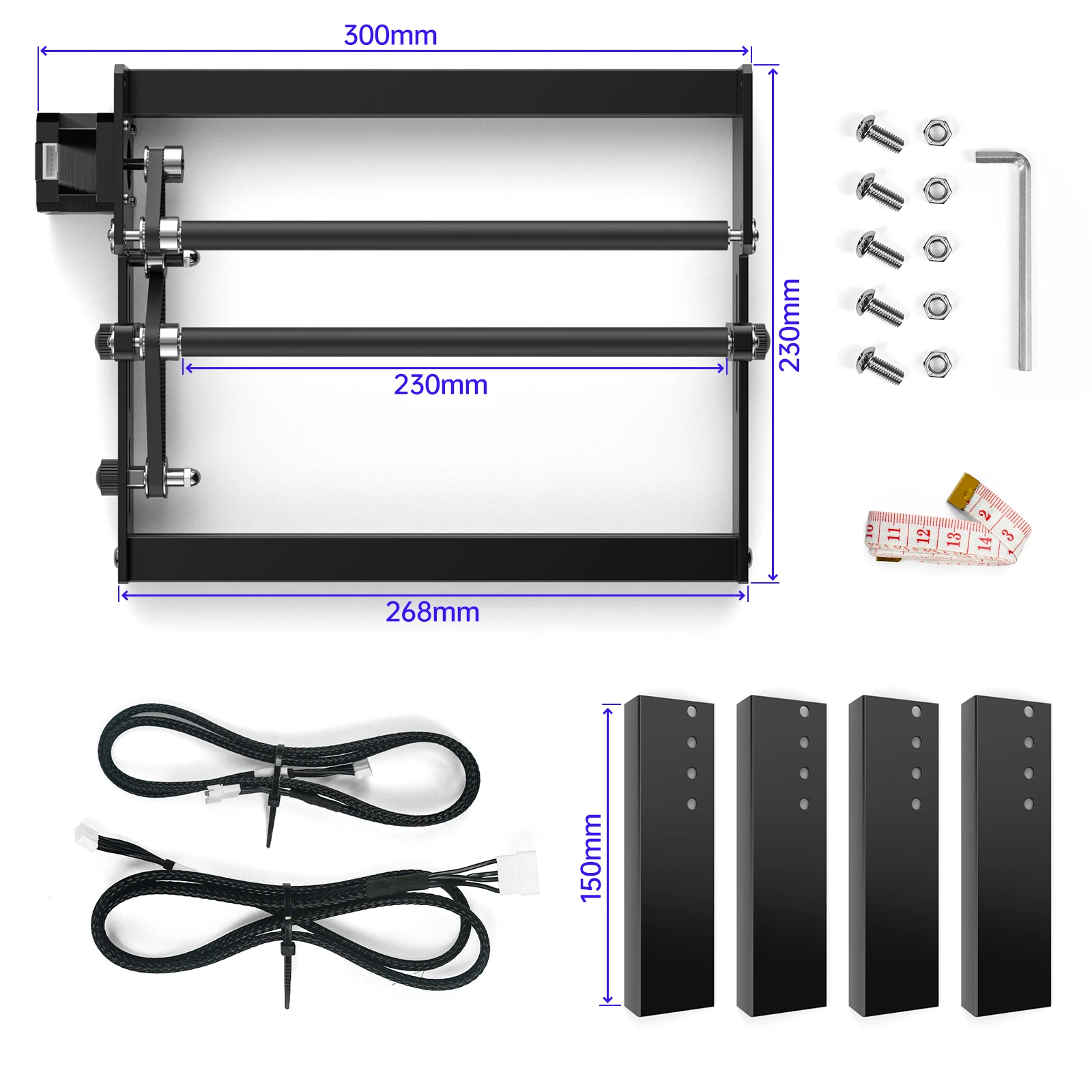

Product size: 27*22*5cm/10.63*8.66*1.97"

Product packaging size: 34*25*9cm/13.38*9.84*3.54"

Product packaging weight: 1.45kg

Instructions:

Disconnect the Y-axis motor wiring of the laser engraving machine, connect the SCULPFUN rotary roller to the Y-axis cable, and you can start using it without setting the software, because the surface linear speed of the roller is the same as the original Y-axis speed.

Notes:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3cm measuring deviation due to manual measurement.

Packing list:

1 X Roller Unit

1 X Type A wiring

1 X Type B wiring

4 X Heightening feet

1 X Screw pack

1 X Soft ruler

1 X Instruction manual
