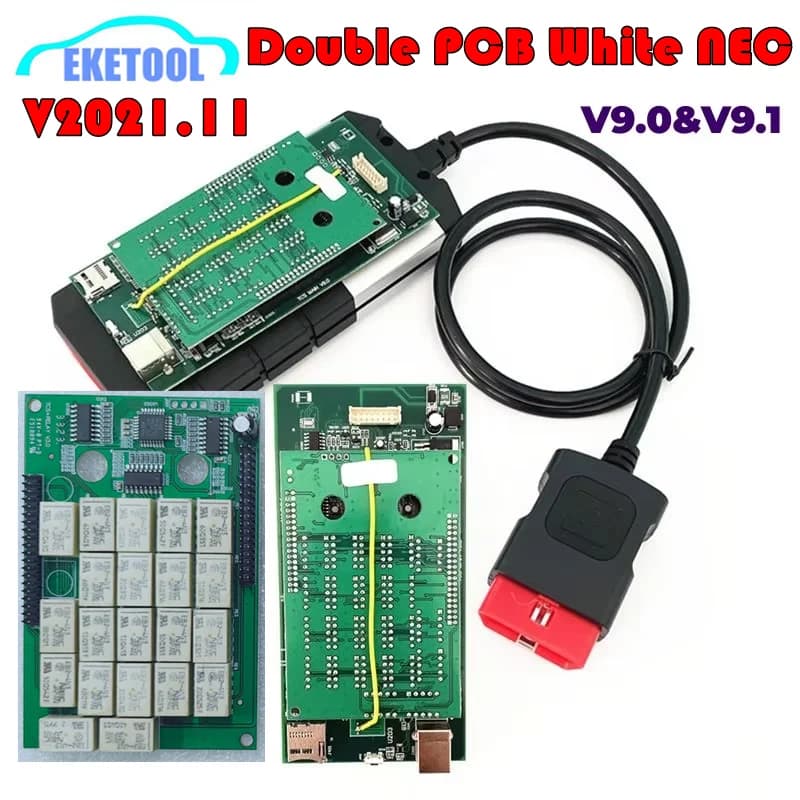

TCS NEC Relays VD150 PRO+ V9.0/V9.1 Double PCB Bluetooth V2021.11 Free Keygen OBD2 Scanner Tool Multidiag Pro Old Housing

Old Housing TCS NEC Relays VD150 PRO+ V9.0/V9.1 Double PCB Bluetooth V2021.11 Free Keygen OBD2 Scanner Tool Multidiag Pro Old Housing

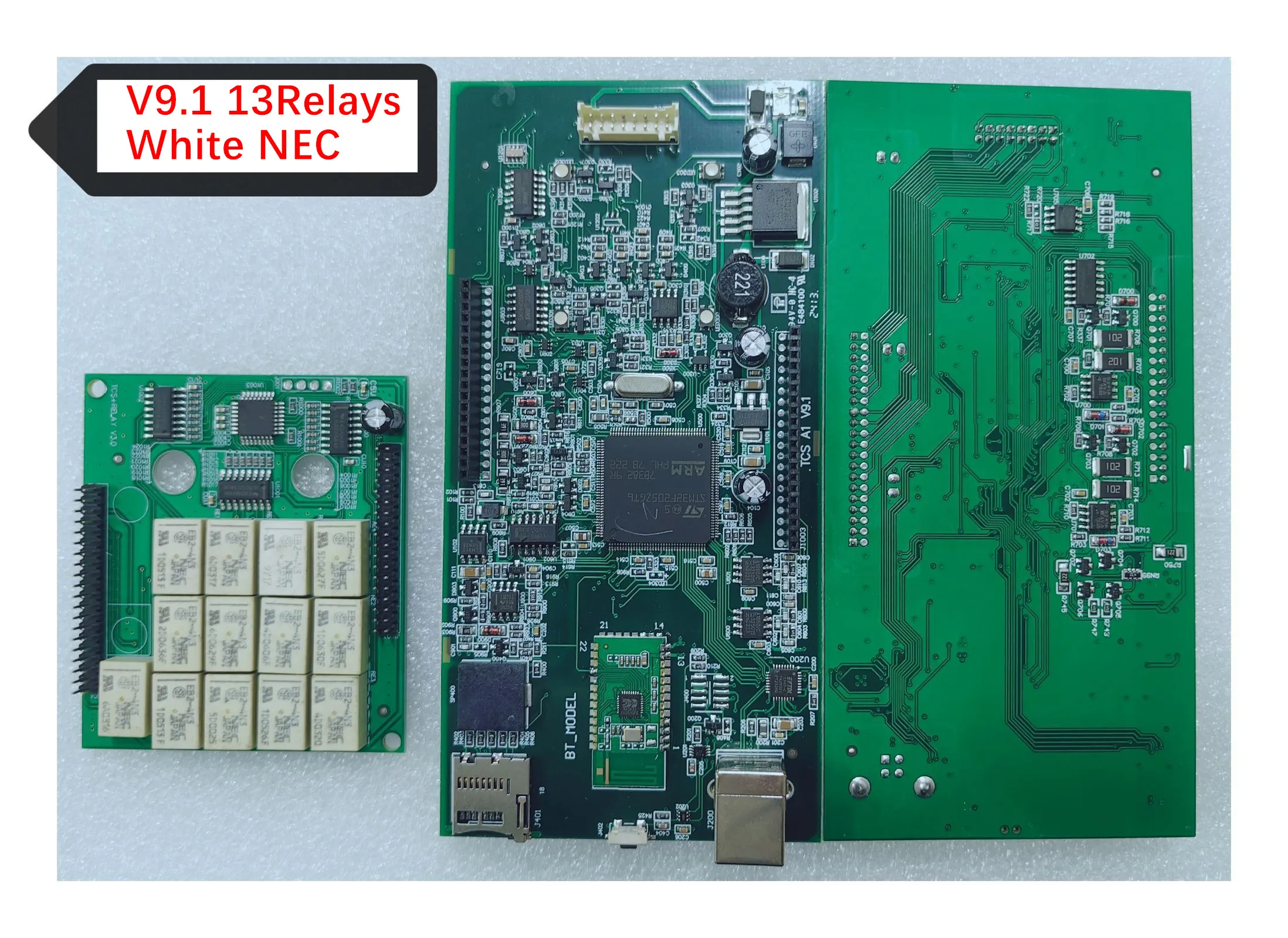

Color Optional 1: Original case with V9.1 Double PCB board ,13 Relays

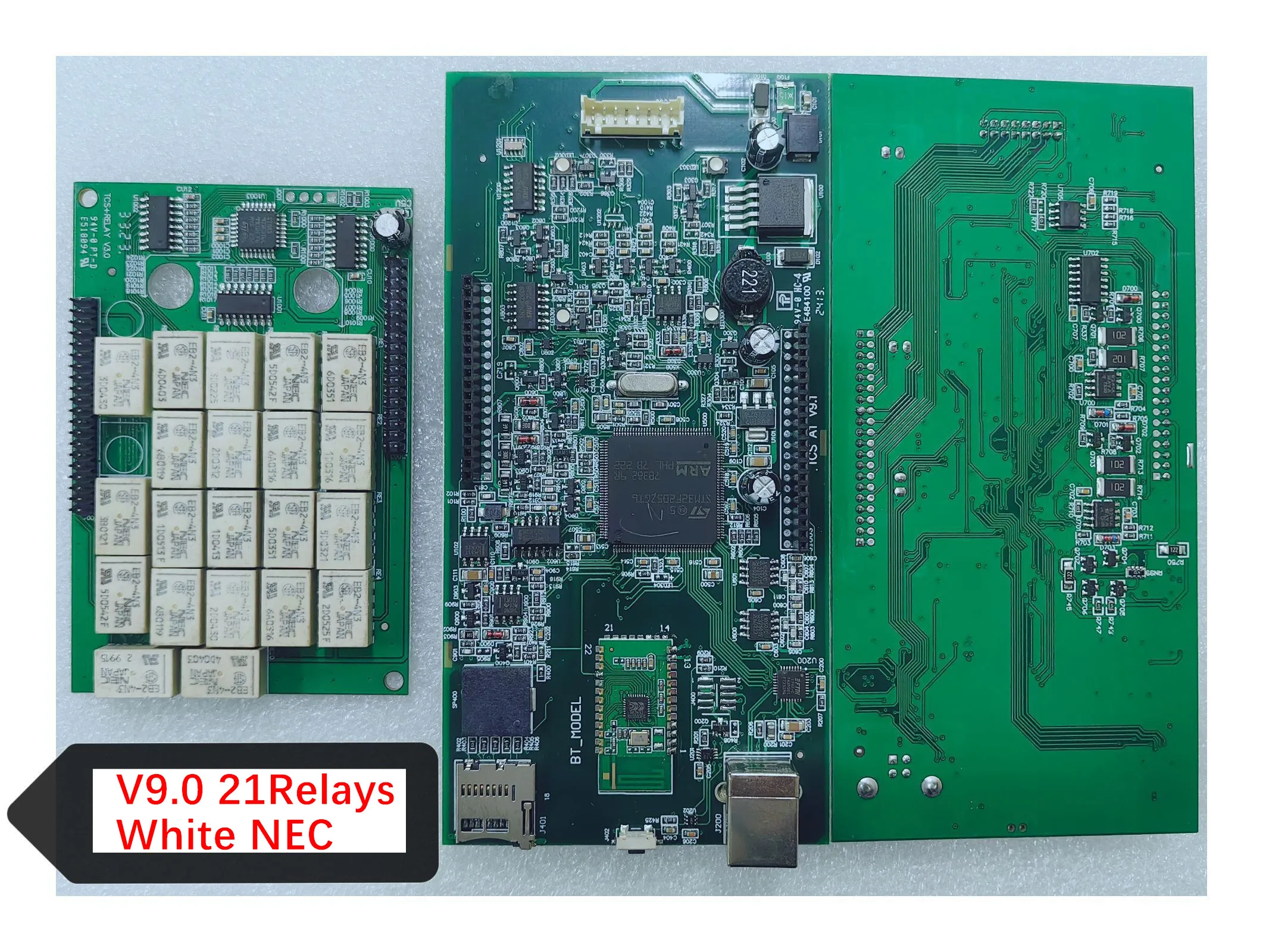

Color Optional 2: Original case with V9.0 Double PCB board ,21 Relays

PCB Board Display:

Newest version V2021.11 Features:

1. Program 2020.23 comes with a keygen,completely the real version. not support VMWARE.

2. It is very powerful and it supports cars/trucks up to 2020

3. Software has full protocols up to date.

4. It is totally new software, not the old 2013-2017 release.

5. It contains recent cars & trucks which are fully working, functionality is 99,99% as in the original program.

6. You will be able to do diagnostics and coding for most cars up to date.

7. It works only on new vci (6 digit serial like 100251 or any serial number), it does not work on old ones (30250 )

8. Both cars and trucks contained in one single installation.

9. Fixed ISS bug. ISS (automatic system scan) works in this version.

10.NO NEED turn off internet while using the program.

Please Note:

1. If buyer CD damaged or need different version software, please contact us, we will send you welink to download

2. Not every car models can support all the function or for all system, Need test in real operation.

3. Not every car model under the car brand can be working.

Highlights:

Support system :Win7 32bit/XP/Win10 32 bit.

Can work for CAR + TRUCK + Generic 3 in 1

The quality of our products is the highest, we use the green dual board with 9241 chips.

With Bluetooth Function

Supported Language:

English, Spanish, French, Italian, Portuguese, Czech, Bulgarian, Finnish ,Danish, German, Turkish, Greek, Dutch, Hungarian, Norwegian, Polish, Romanian, Russian, Serbian,Swedish, Croatian（Support 21 languages）

Description:

TCS PRO+ is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.

With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.

A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).

In serial we do following:

1) Read and erase fault codes;

2) Read live data ;

3) Basic settings ;

4) Scan function ;

5) Fully compliant to the eOBD/OBDII standard.

Functions:

1. Manufacture specific serial diagnose ;

2. Scan function;

3. EOBD/OBDII communication;

4. Serial Systems ;

5. Engine ;

6. Ignition ;

7. ABS ;

8. Service reset ;

9. SRS ;

10.Immobilizer ;

11.Instrument ;

12.Comfort system ;

13.Gear-box etc

2. FLIGHT RECORDER

With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. Multidiag is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

3. VOLTAGE CHECK

When Multidiag is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, Multidiag will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

4. CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

5. ISS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

6. ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

7. REPORT FUNCTION

Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

8. OBD-FUNCTIONS

Multidiag is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

9. UNIVERSAL

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform

10. HELP FUNCTION

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.
