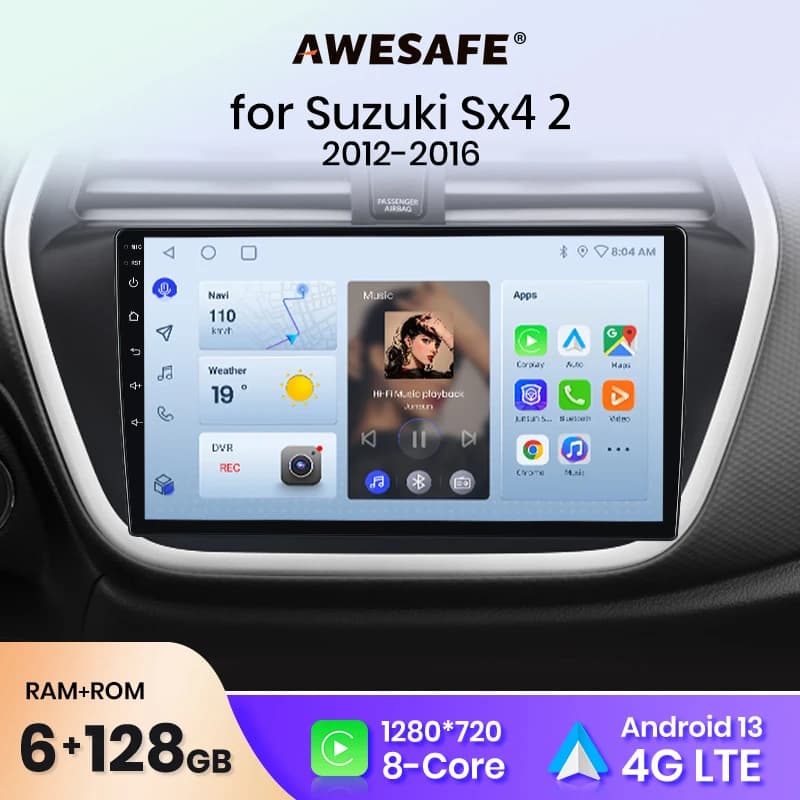

AWESAFE PX9 Plus Car Radio For Suzuki SX4 S-Cross 2012 - 2017 wireless CarPlay Android Auto No 2 din 2din DVD

If your car has the original rear camera, you need to buy additional cables: HRD-0436 The price is $25 Also, our machine does not support the original microphone. The machine itself has a built-in microphone, don't worry.

PX9/ PX9S / PX9Spro radio for Suzuki SX4 2 S-Cross 2012 - 2016

> Support Android 11.0+ QLED+CarPlay/Android AutoS / PX9(PX9S / PX9Spro supports wireless carplay)+built-in 4G internet (Options)+ GPS Navigation (Free Map Update) + Steering Wheel Control + Mirror Link + DSP 48EQ + Split Screen Display + Bluetooth 5.0 Compatible + Built-in Microphone + FM / AM + RDS + USB DVR ADAS Support + Europe DAB Function Support + 1080P Video Playback + HD 1024 * 600 + Tire Pressure Monitoring System + Support Voice Control (need to buy) + GPS tracking function (need to buy).

> Optional functional hardware: ADAS DVR camera, tire pressure monitoring, OBD2, external microphone, RCA cable.

> Benefits: Same Day Issue/15 Days Free Return/2 Years Warranty Policy.

Reduce manual screen touchin during driving,

interesting interaction

YouTube, VK, Twitter, Skype, Facebook, Messenger, Linkedln,

Navitel, IGO Navigation, Spotify, Yandex, Yandex Map,

Waze, Google, Google Map, Netflix, Instagram

When the car shifts into reverse, the screen will switch to the rear view with parking lines automatically, help you to back up or park the car.

(The rear camera in the picture below is optional and better than normal.)

You can use navigate and other applications at the same time, such as listening to music or turning on ADAS functions ect.

Support up to 2TB hard- disk

Promotes Safe Driving ADAS System Distance warning

lane departure warning

Warm and Important Tips:

1). The device needs to search the satellite correctly the first time, then the time can be updated,
two). Keep in mind that the system and the pre-installed applications will be part of the memory; If Russia map is installed it will take about 3GB; If Europe map is installed, the system will take about 7GB;

1. How to use CarPlay and Android Auto?

CarPlay:
Both are wired and can only be connected with 4-pin USB port (with 4 small holes), then click """" Phonelink """" or """" Tlink """" app on the radio;
Android Auto:
After purchasing the activation code, the customer service staff will send you the operation method and the activation code

2. How to configure the steering wheel controls?

1) If there is no canbus, please follow the steps below
① 1 + 16GB: Clik Settings Control icon, as the picture shows
Https://ae01.alicdn.com/kf/Hdd515243bc65428b89fec0f2f27828ccc.jpg

② PX9: Control Clik icon, as the picture shows
Https://ae01.alicdn.com/kf/H5d52012903cb4a58a6d8347cbb76d2efE.jpg

③ PX9S / PX9S pro: settings → car info → swc, as the picture shows
Https://ae01.alicdn.com/kf/Hfcecbe6dbc0446d0bae293be583b65bft.jpg


2) If there is canbus in the package, please connect canbus first
(⚠Please note that the Canbus cable needs to be connected, not only to connect to Canbus, but also to connect to the back of the machine with another 8-pin cable.)
Then follow the steps below
① 1 + 16GB:
Settings → factory → 3368 → car model → choose correct car information → reset
As shown in the picture:
Https://ae01.alicdn.com/kf/H6a1a227be2cf4e248dd1a0a5e274caf0F.jpg

② PX9:
Settings → System → Car Settings → 8888 → Model Choice → Choose Correct Car Information → Restart
As shown in the picture:
Https://ae01.alicdn.com/kf/He3da309960684f91b1ecbb192b7cde9c6.jpg

③ PX9S / PX9S pro:
Settings → car information → about device → ⚙ → 8888 or 8878 → you can type → choose the correct car information → restart
As shown in the picture:
Https://ae01.alicdn.com/kf/H4fd8c6c9f2fb4eeda50efaf2f9b87301i.jpg

3. How to change the boot logo?

1 + 16GB: Click System Settings ---- Extended Settings ---- enter the password 3368.

PX9 and PX9S / PX9S pro: click System Settings ---- factory settings ---- enter password 8888


4. How to connect the rear camera?

1) Red wire ① is connected to the backup light """" """" + """" """"

2) Black wire ② is connected to the backup light """" - """" """"

3) the reverse detection wire ④ (pink color) is connected to the red wire ③ that runs from the video input cable

4) ⑤ the cable does not need to be connected
