8T 360° Rotatable Head Hydraulic Copper Pipe Crimping Tool Pliers CW-1632 V Set -5 dies -12, 15, 18, 22, 28

Our product is made with high-quality materials to withstand tough jobs. Its 360° rotatable head makes it adaptable to various working environments. With an ergonomic handle, it's easy to operate with one hand. It is widely used in electrical power, communication, transportation, petroleum, chemical industry, mining, metallurgy, shipbuilding, and other fields.

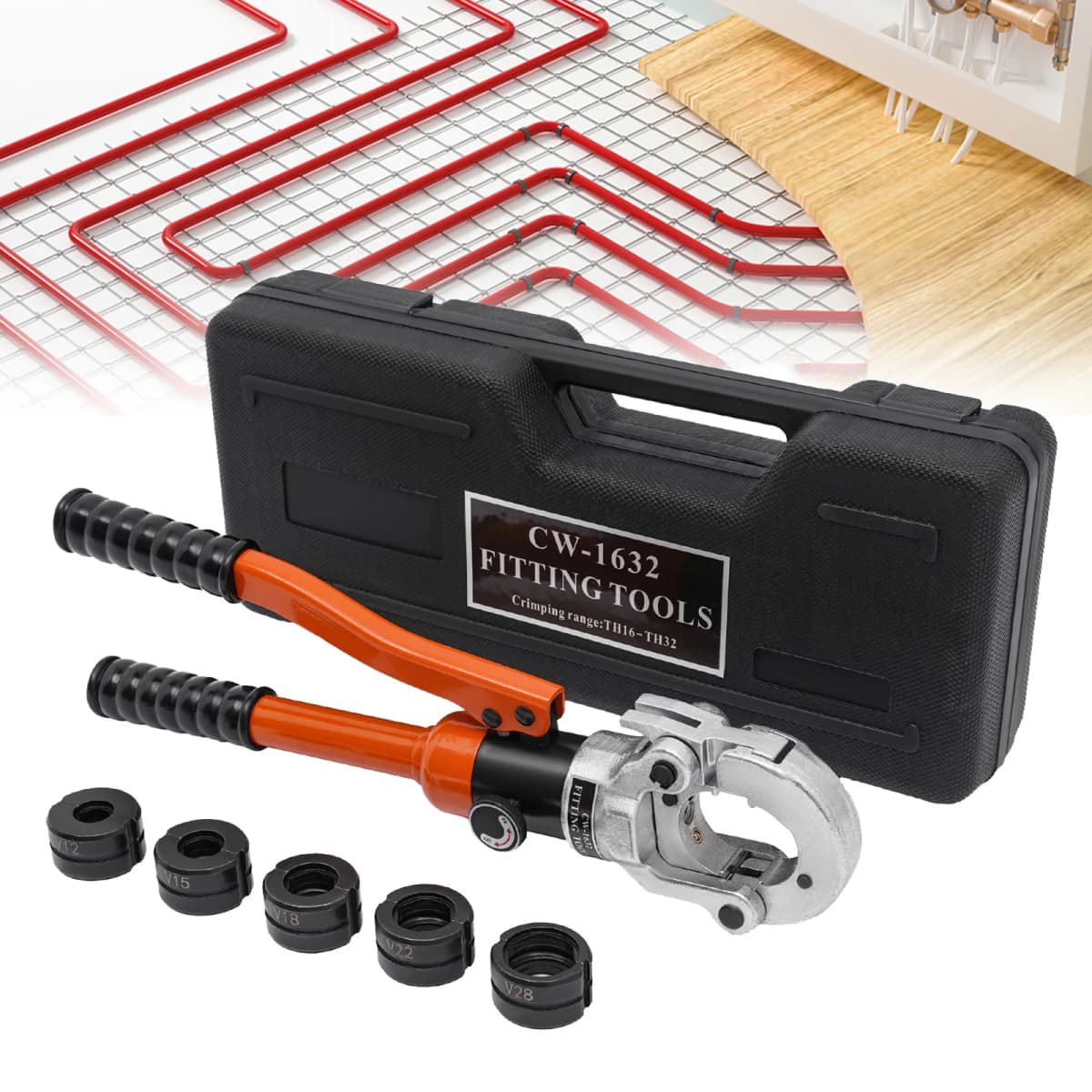

✅V Molds Package Included

1* Hydraulic Plier
5 Set* Dies(One is Installed)
1* Toolbox
1* English Manual

Specifications:

Color: Orange
Model: CW-1632
Grip Type: Ergonomic
Material: 41Cr4, Rubber
Process: Polishing, Electroplating, Oxidation, Spraying
Maximum Pressure: 8T/80KN
Applicable Pipe: Copper Pipe (Not Included)
Die Specifications: V12, V15, V18, V22, V28
Applicable Pipe Outer Diameter: 12mm/0.47in, 15mm/0.59in, 18mm/0.71in, 22mm/0.87in, 28mm/1.1in
Stroke: 15mm/0.59in
Package Size: 44 * 19 * 9cm/17.32 * 7.48 * 3.54in
Gross Weight: 4.8kg/10.58lbs

Description

Looking for a durable hydraulic plier? Our product is made with high-quality materials to withstand tough jobs. Its 360° rotatable head makes it adaptable to various working environments. With an ergonomic handle, it's easy to operate with one hand. Come and choose our hydraulic plier for your various crimping needs.

Key Features

⭐Made to Last:
It is mainly made of 41Cr4 and adopts polishing, electroplating, oxidation, and spraying processes, which makes the product strong, high-hardness, and durable.

⭐Saving Labor &Time:
This product uses hydraulic pressure, with a maximum pressure of 80KN, which can help you complete crimping more effortlessly.

⭐Good Compatibility:
This product is equipped with 5 sets of dies of different specifications, which can adapt to copper pipes of a diameter of 12mm, 15mm, 18mm, 22mm, and 28mm.

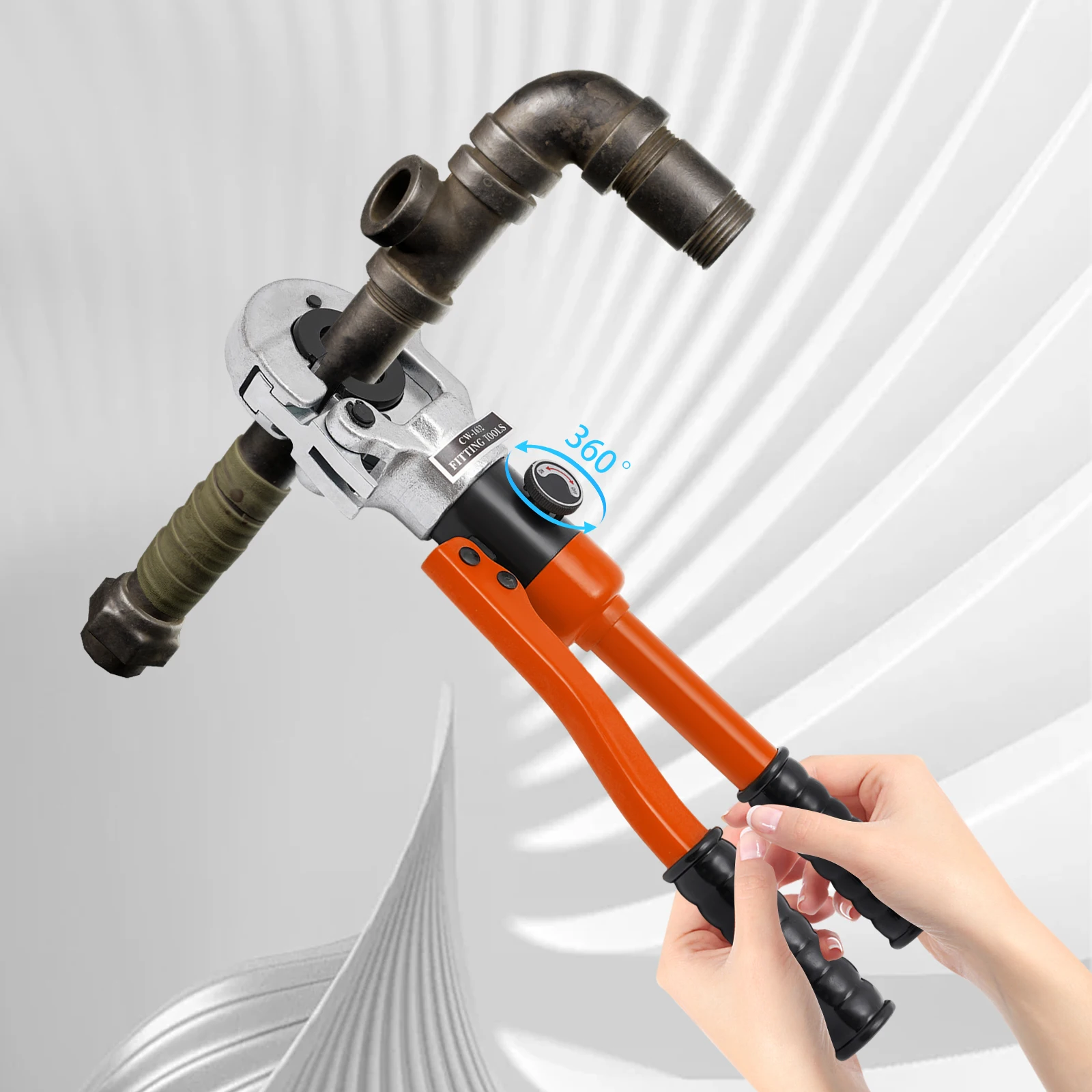

⭐Flexible Operation:
The crimping head can rotate 360°, allowing it to operate flexibly in narrow or difficult-to-reach areas.

⭐Simple Operation:

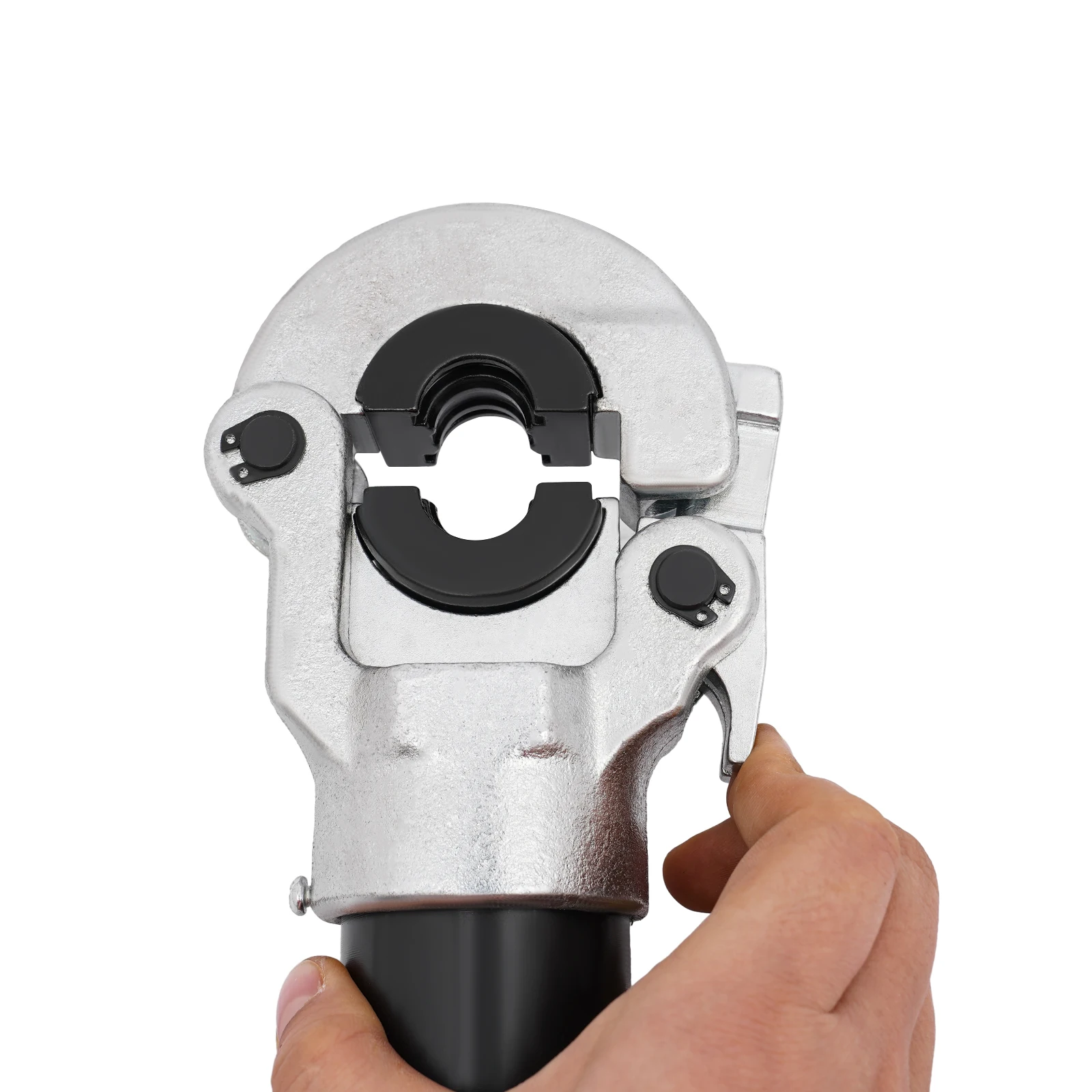

The tong head can be opened for convenient and easy replacement of the die. At the same time, the oil return valve helps prevent oil leakage.

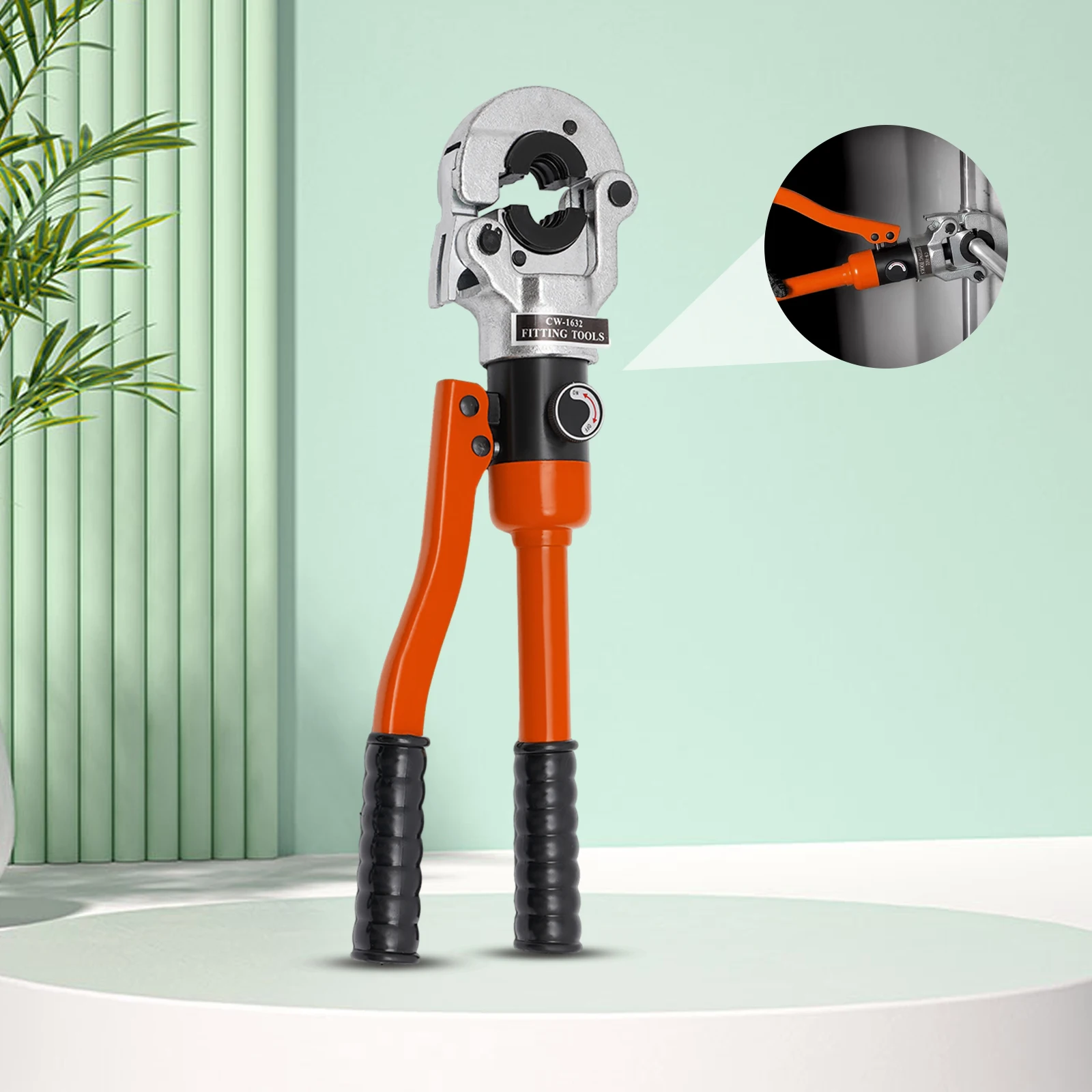

⭐Humanized Design:
The ergonomic handle is easy to grip without slipping and can effectively reduce hand fatigue caused by long hours of work.

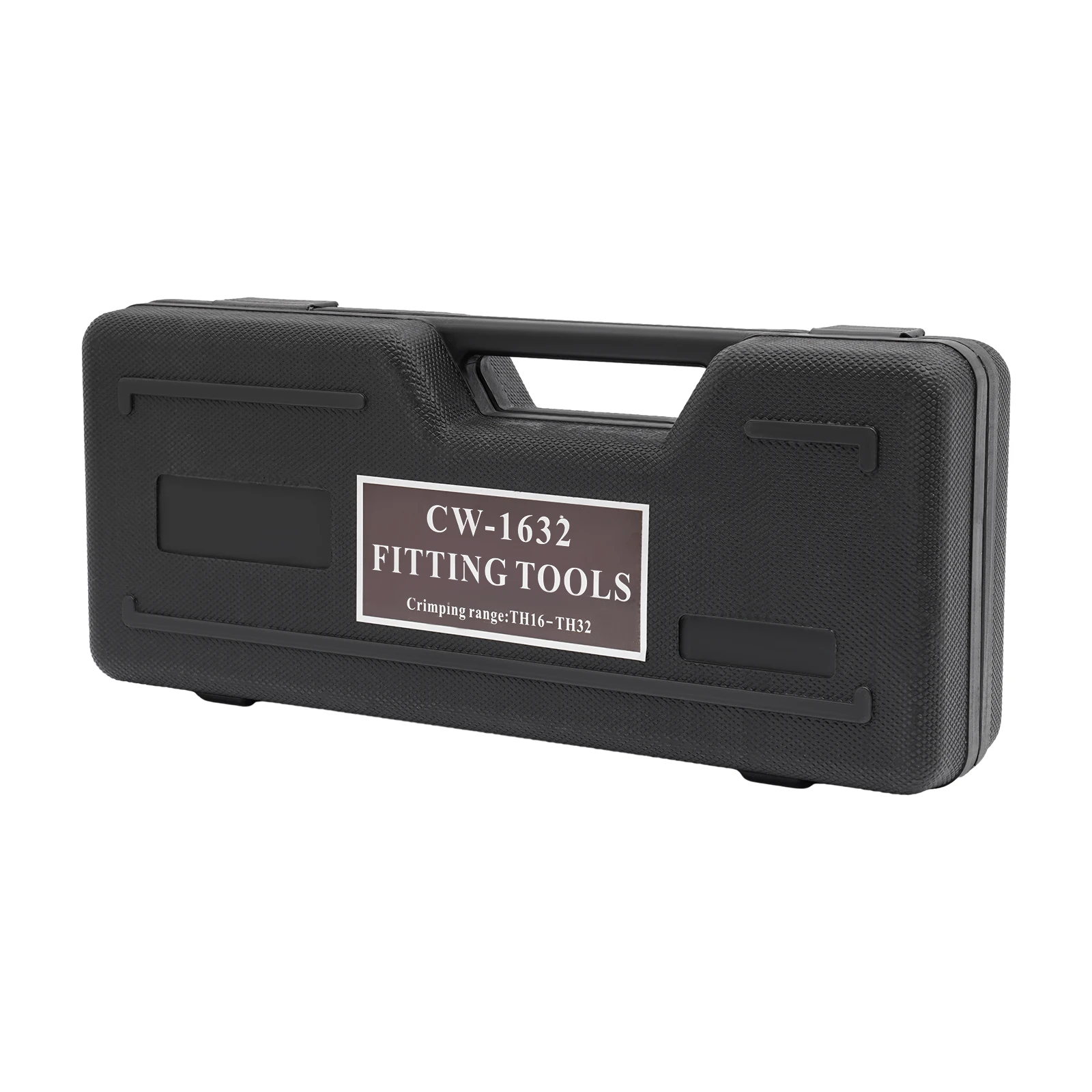

⭐Convenient to Carry:
Equipped with a toolbox that can hold this product and its accessories, it is convenient for you to carry it to different work sites.

⭐Easy to Maintain:
With a simple structure, smooth surface, and open structure, you can easily wipe away surface stains using a rag.

Details

Clear Marks:
Each die has clear specification marks, making it easy for you to quickly find the set you need when using it.

Slots:
They can help fix the pliers and dies in the box to prevent them from missing or being damaged by normal bumping.

Application

It is widely used in electrical power, communication, transportation, petroleum, chemical industry, mining, metallurgy, shipbuilding, and other fields.

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.It is strictly prohibited to start crimping without installing the die.
3.Please observe if there is enough space for the pliers to enter during use to avoid situations where the pliers cannot enter or get stuck.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
