GT3582 GT35 Universal Turbo Turbocharger For Ford Falcon BA/BF XR6 FPV & 64mm Piping Kits & Intercooler 76

For Ford Falcon BA/BF XR6 FPV GT3582 Universal Turbo Turbocharger & 64mm Piping Kits & Intercooler 76

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

2.5" 64mm Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.

600x300x76mm Intercooler fits Universal engine & vehicle.

Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines

Horse Power: Capable of Boosting Horse Power up to 600HP

Cooling Type: Water + Oil

Specification

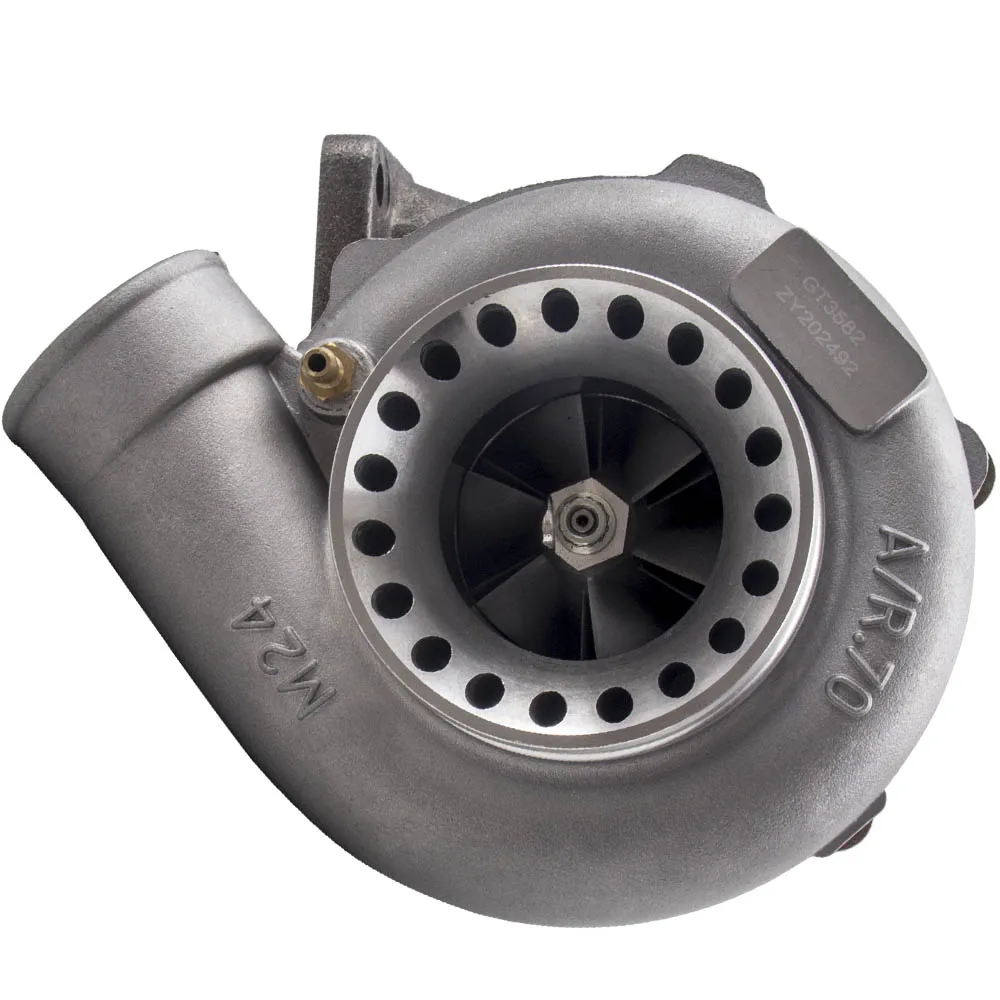

Turbo

Exhaust Inlet (Turbo Manifold) Flange: T3 Flange

Exhaust Outlet (Downpipe) Flange: 4 Bolt

Turbine Trim: 84

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Turbine A/R: 0.63

Compressor Trim: 57

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compressor A/R: 0.7

Bearing: Wet Float

Warranty: 2 Year

Internal Wastegate: No

Intercooler Turbo Piping Pipe Kit

Pipe Thickness: 1.8mm

Pipe length: 18''

-100% brand new  Never been tried or installed.

-100% quality assurance tested

-Made out of high quality of 6061 aluminum Manual polishing finished

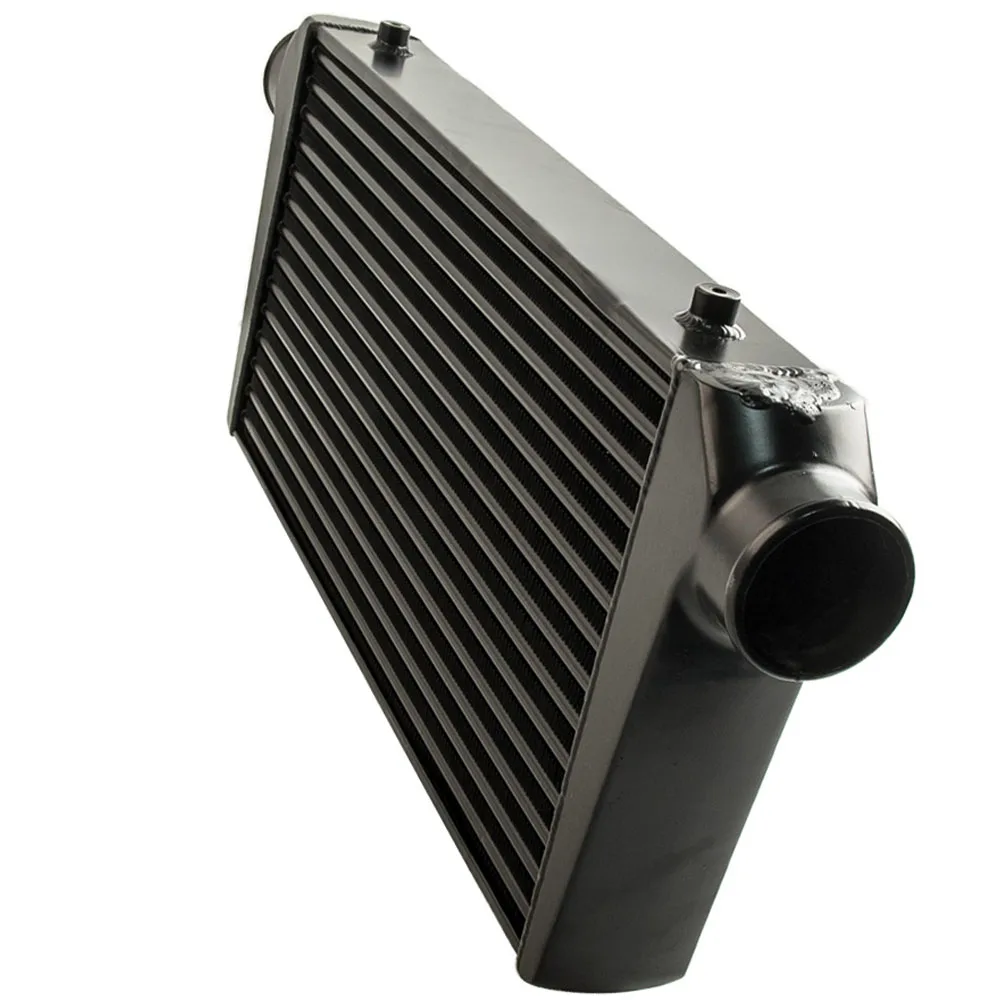

Intercooler

Core Dimension: 600 X 300 X 76 MM

Inlet / outlet size:  3" inch

Thickness: 3" (76mm)

Pipe length: 18''

Pipe Thickness: 1.8mm

Core design:  Tube & Fin

Color:  Black

Intercoolers are designed with a tube and fin core which has the highest thermodynamic dissipative process.

100% quality assurance tested

Made out of high quality of 6061 aluminum Manual polishing finished

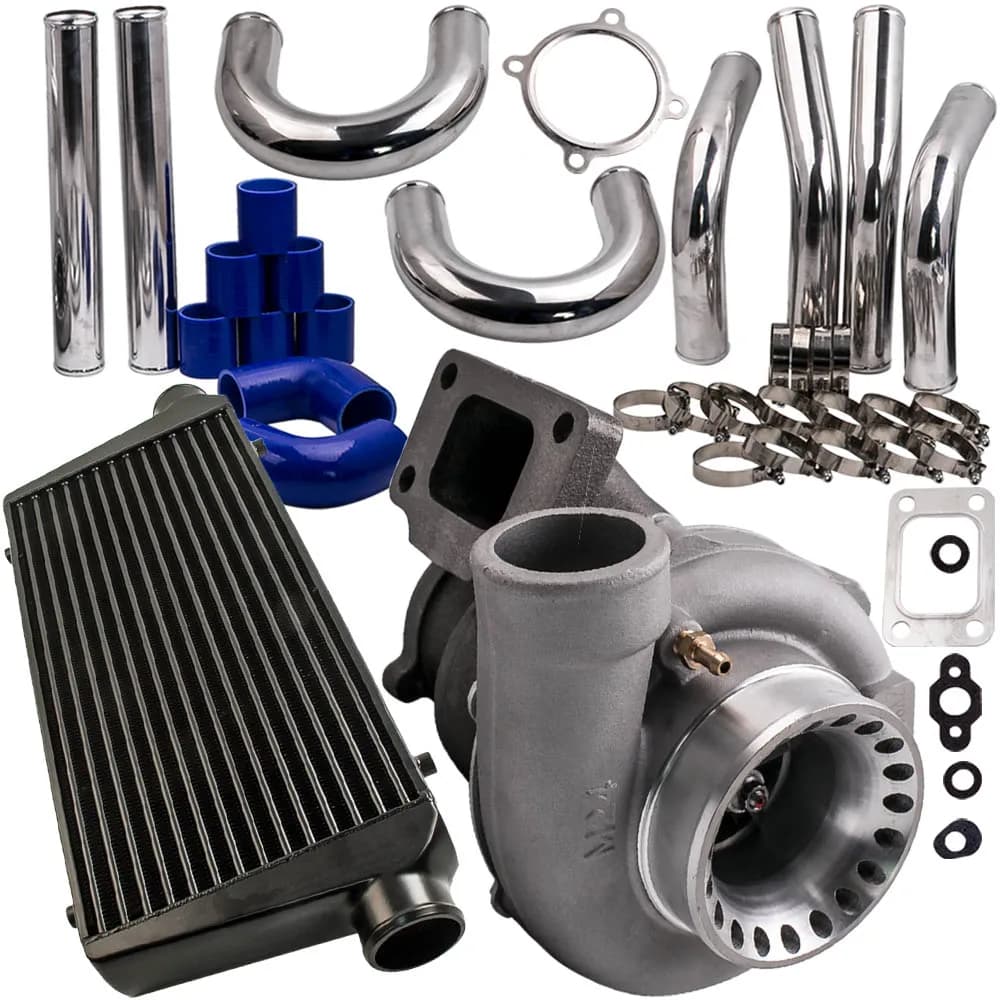

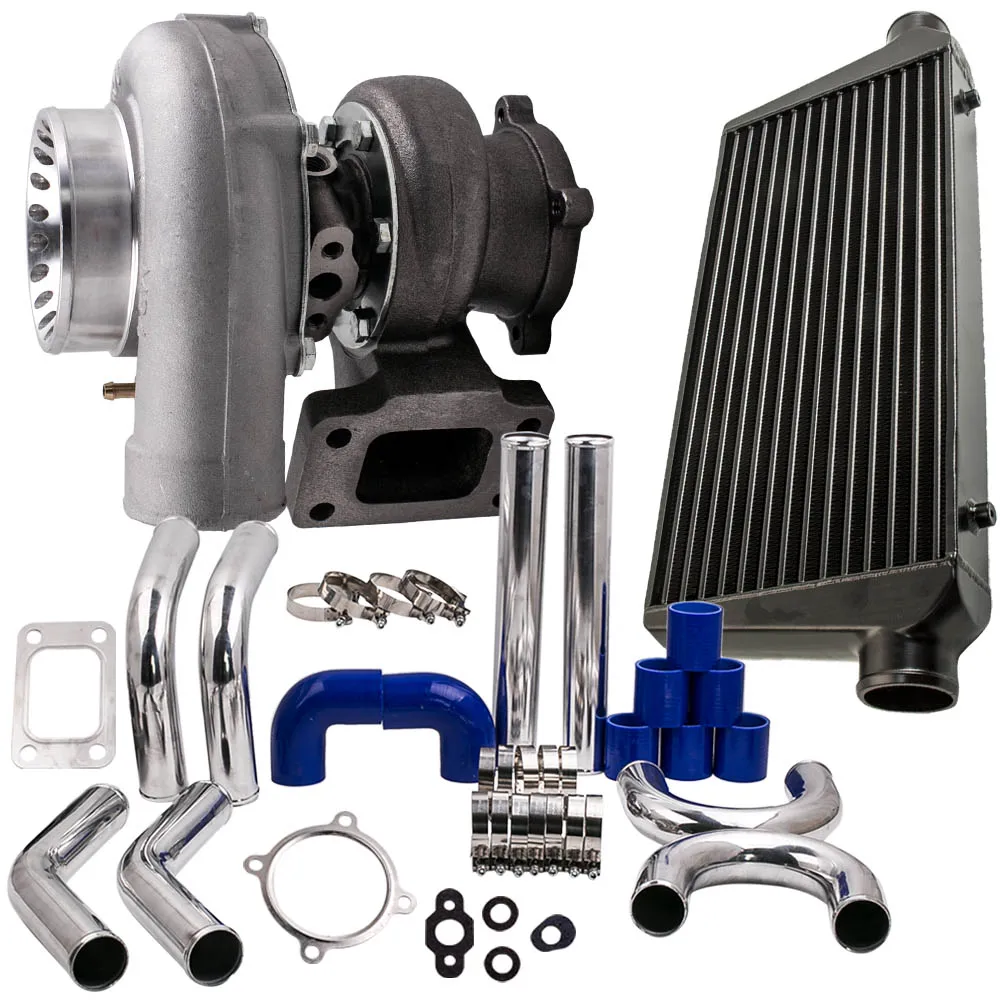

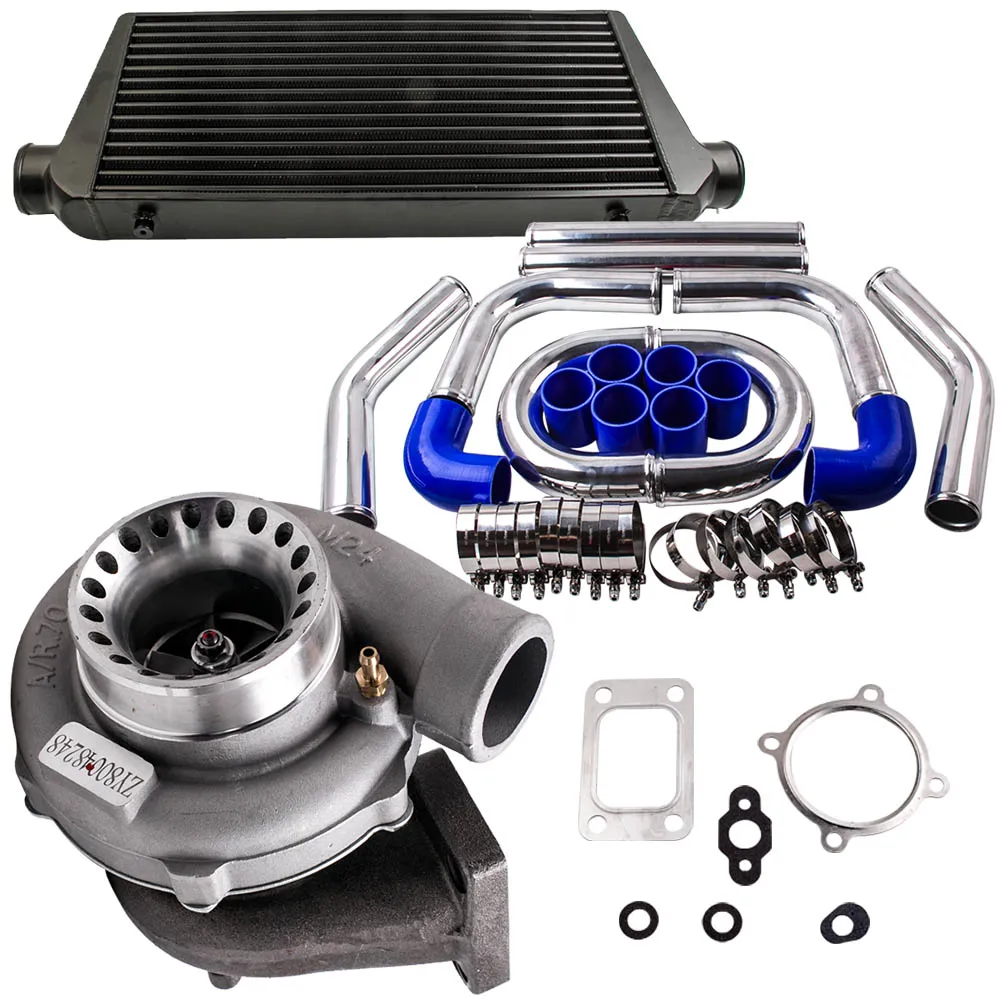

Package Including

2x 90 Degree Aluminum Pipe 2.5"

2x Straight aluminum pipe 2.5"

2x 135 Degree Aluminum Pipe×2 2.5"

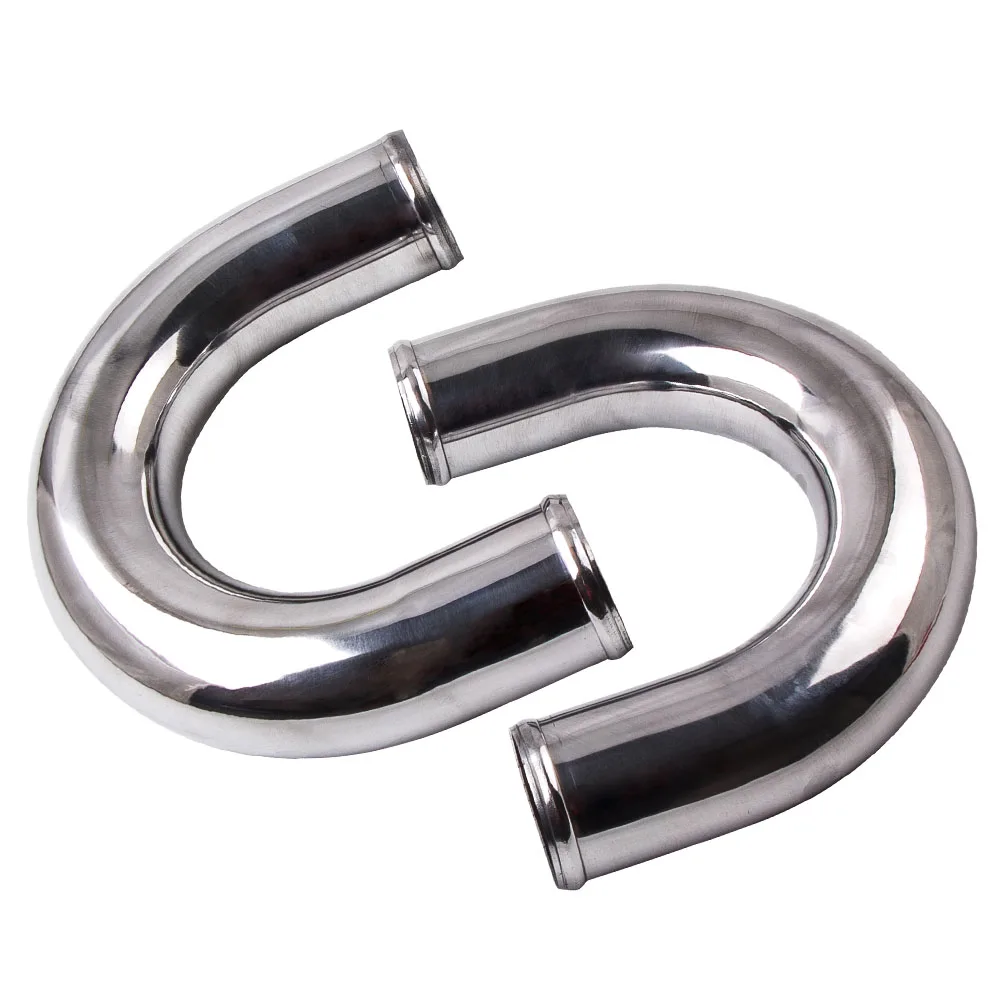

2x U Aluminum Pipe×2 2.5"

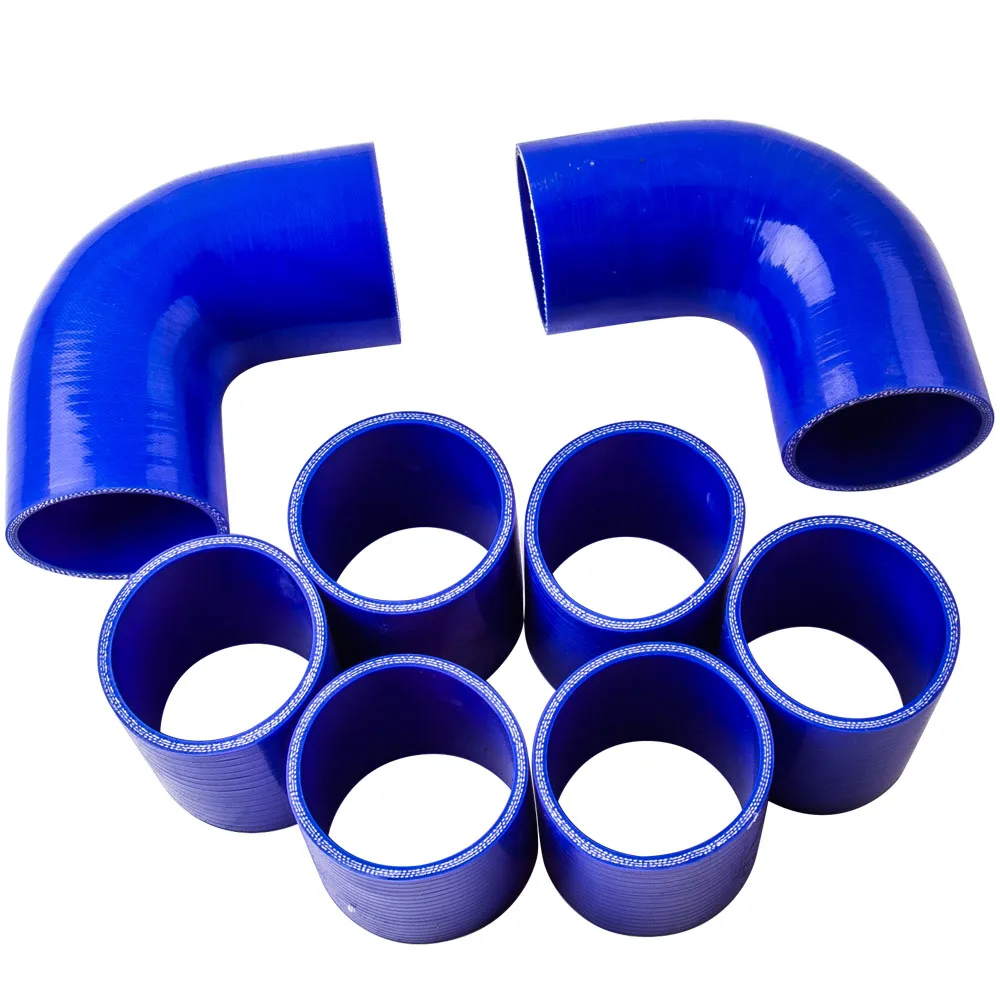

6x Straight Silicon Hose 2.5" (Blue )

2x 90 Degree Silicone Hose×2 2.5"(Blue )

16x Clamps 2.5"

1x Turbo and gaskets

600x300x76mm Intercooler

Notice

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us

* This is universal application turbo, so modification might be required for some vehicles

* Professional installation is highly recommended (No Instruction Included)
