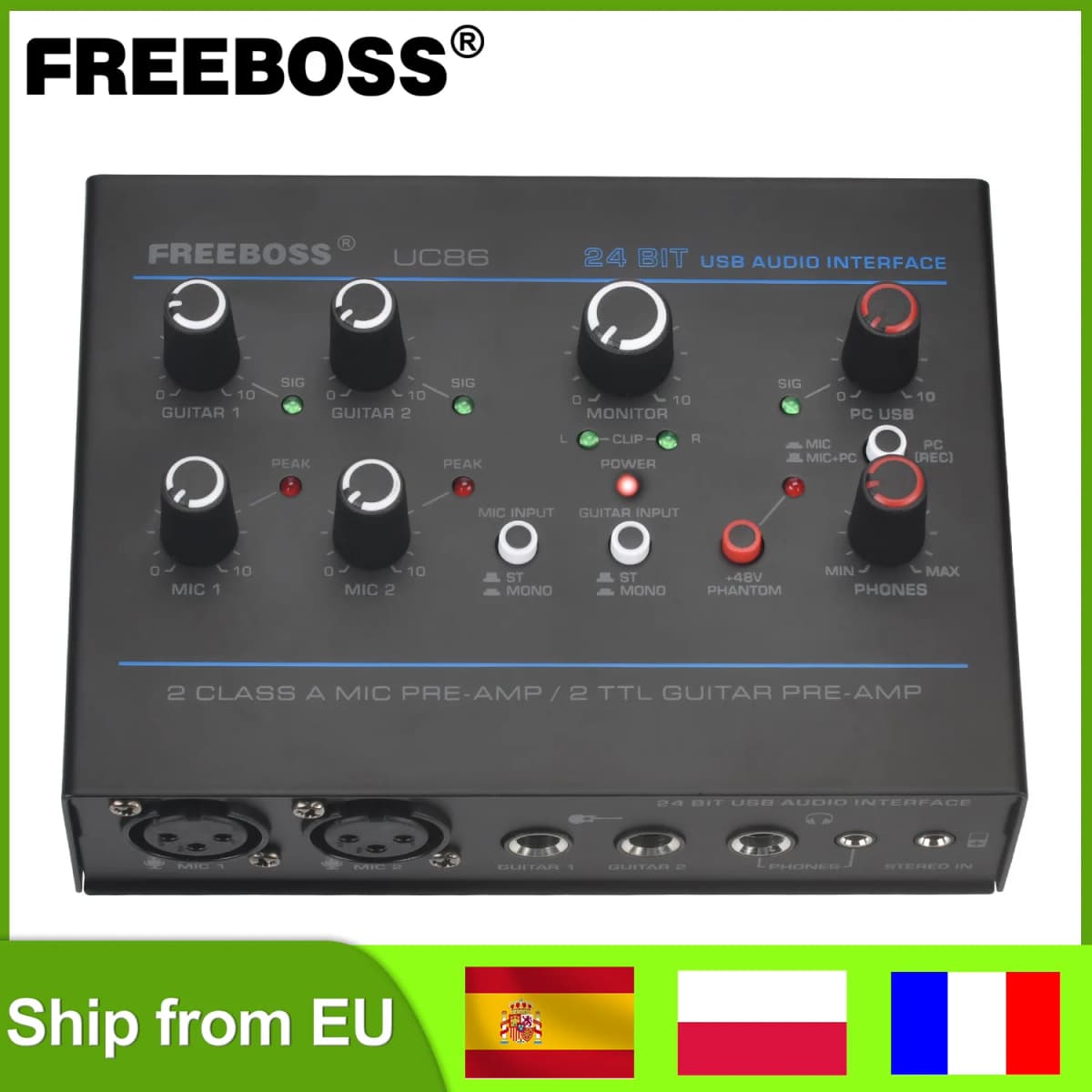

Freeboss 3.5 Stereo Audio Interface 48V PC Recording Guitar 5 CH Input Driver-free External Sound Card For Windows ASIO4ALL UC86

FREEBOSS UC86

    5 Channels Input 24Bit 48KHz Audio Interface Support ASIO4ALL GoldWave 2 Guitar Input External Sound Card with Stereo Mono Switch Button for Windnows Mac OS System.

Selling Point

 1. Driver-free
2. Support ASIO4ALL
3. Support Windnows/Mac OS system
4. Recording: 24bit 48KHz
5. Stereo/Mono switch button
6. 2 Guitar Input

5 Input Channels

The 5 input channels consist of 2 XLR inputs, two 6.35 inputs and one 3.5 stereo input.
1. For XLR input, it can connect to 48V condenser microphone and dynamic microphone.
2. For 6.35 input, it is suitable for guitars, electric basses, electronic drums and other high-impedance instruments.
3. For 3.5 stereo input, it is a TRS input, it is suitable for MP3 device.

Driver-free

The sound card is a driver-free device, you can connect to your computer directly. And it is support Windnows and Mac OS system.

Support ASIO4ALL

UC86 support ASIO4ALL driver, but you need to download ASIO4ALL driver by yourself. And please note that ASIO4ALL driver only for Windonws system, not for other system.

4 Recording Bit Rates Optional

1. 2 channels 16bit 44.1KHz
2. 2 channels 16bit 48KHz
3. 2 channels 24bit 44.1KHz
4. 2 channels 24bit 48KHz

PC Recording

1. Setting on the computer

2. Recording PC music settings
(1) If you only need to record a channel signal, please press down PC(REC) button.
(2) If you need to record channel signal and PC signal, please do not press down PC(REC) button.

Stereo/Mono Switch Button

1. This sound card has 2 stereo/mono switch button, 1 button work on XLR channel, 1 button work on guitar channel.
2. When the button is bounce up, CH1 signal will be output to L, CH2 signal will be output to R.
3. When the button is press down, CH1 and CH2 will be output to L and R at the same time.

48V Phantom Power

1. 48V only for XLR jack, not for 6.35 jack.
2. When you turn on 48V, it will power for CH1 and CH2 at the same time.

If your microphone is a 48V condenser microphone, please use XLR plug connect to sound card and turn on 48V phantom power, otherwise 48V condenser microphone will not work on sound card.

2. Dynamic microphone

If your microphone is a dynamic mic, we recommend using an XLR plug connect to sound card, because the sound will be small when you using the 6.35 plug connect to sound card.

(1) When using XLR plug, please turn off 48V phantom power, otherwise the dynamic mic may be burned.

(2) When using 6.35 plug, the 48V can be turned on or off, because 48V does not power suppply to 6.35 socket.

3. Non-48V condenser microphone will not work on sound card.

Channel Volume Control

Headphone Volume Control

Non-slip Mat

Product Size

Packing List

Product Details
