YIZHAN 2K Soldering Microscope HDMI USB 130X C-Mount Lens 38MP Video Take Photos Measurement For PCB Repair Thickened Metal Base

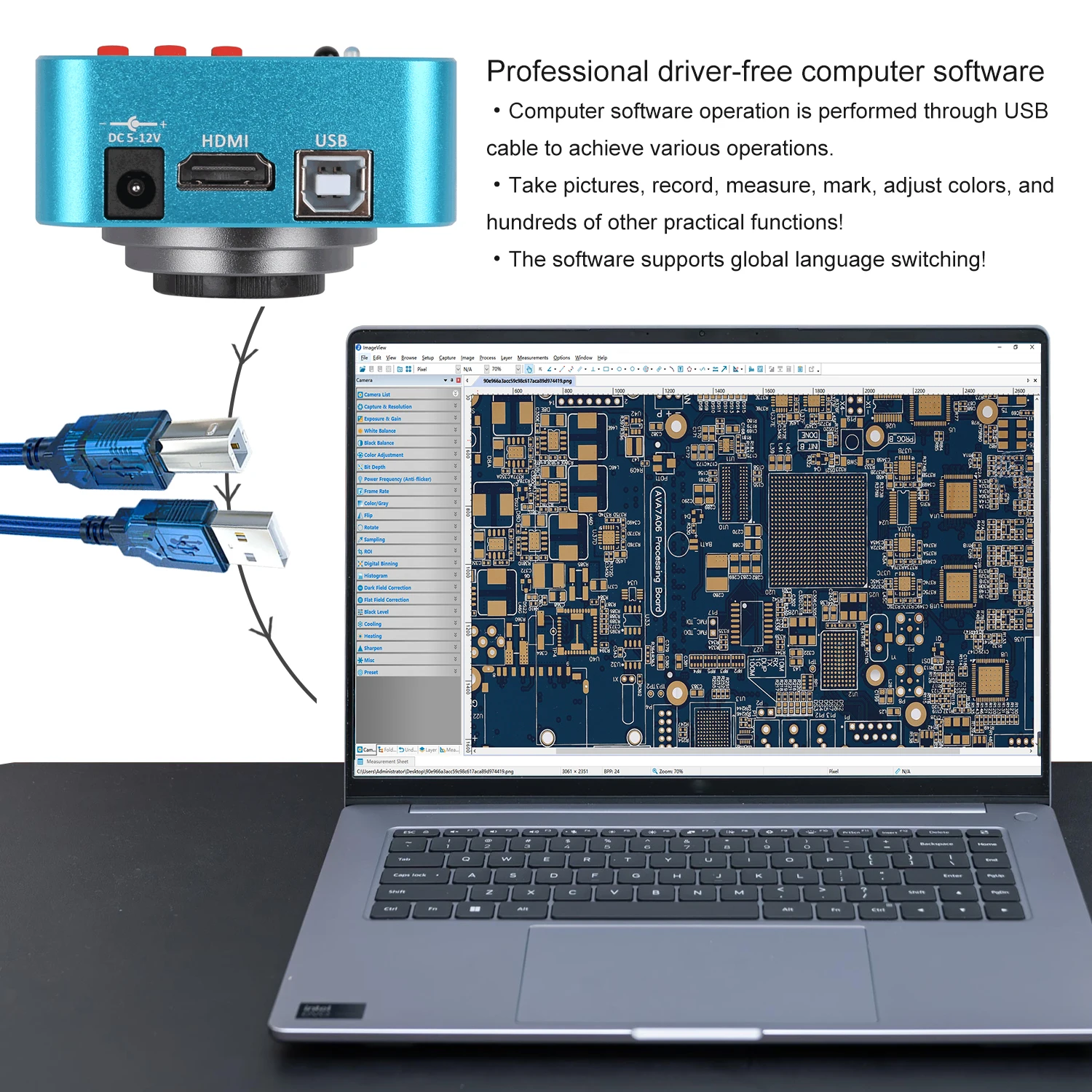

Microscope software download address.

Contact customer service proactively to obtain the software download address.

YIZHAN XHU4005 2K 38MP Microscope Camera (HDMI USB)

Pixel array:38MP(4632*3488)
The sensor: imx327
Overall dimension: 20*70*70mm
Video Interface:HDMI USB2.0
(Drive gratis): 1920*1080 @ 30FPS 1280*720 @ 30FPS 640*480 @ 30FPS
Lens:CS
Working voltage:12V
Working current:120mA
Stroomverbruik: MAX 0.15 W 12 V, 0.12A
Optical format:1/2.3"
Pixel size:1.4um*1.4um
TV Lines:2000TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 5 horizontal and vertical Color / line width adjustable
B/W:allow
Freeze:allow
Output of display resolution: HDMI：1920*1080
HDMI schaal: Ondersteuning 4:3, 16:9, 16:10 scherm

Camera Package incluede:
1 x 38MP Camera（HDMI USB 2K ）Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x HDMI cables
1 x Hard copy
1 x paper manual

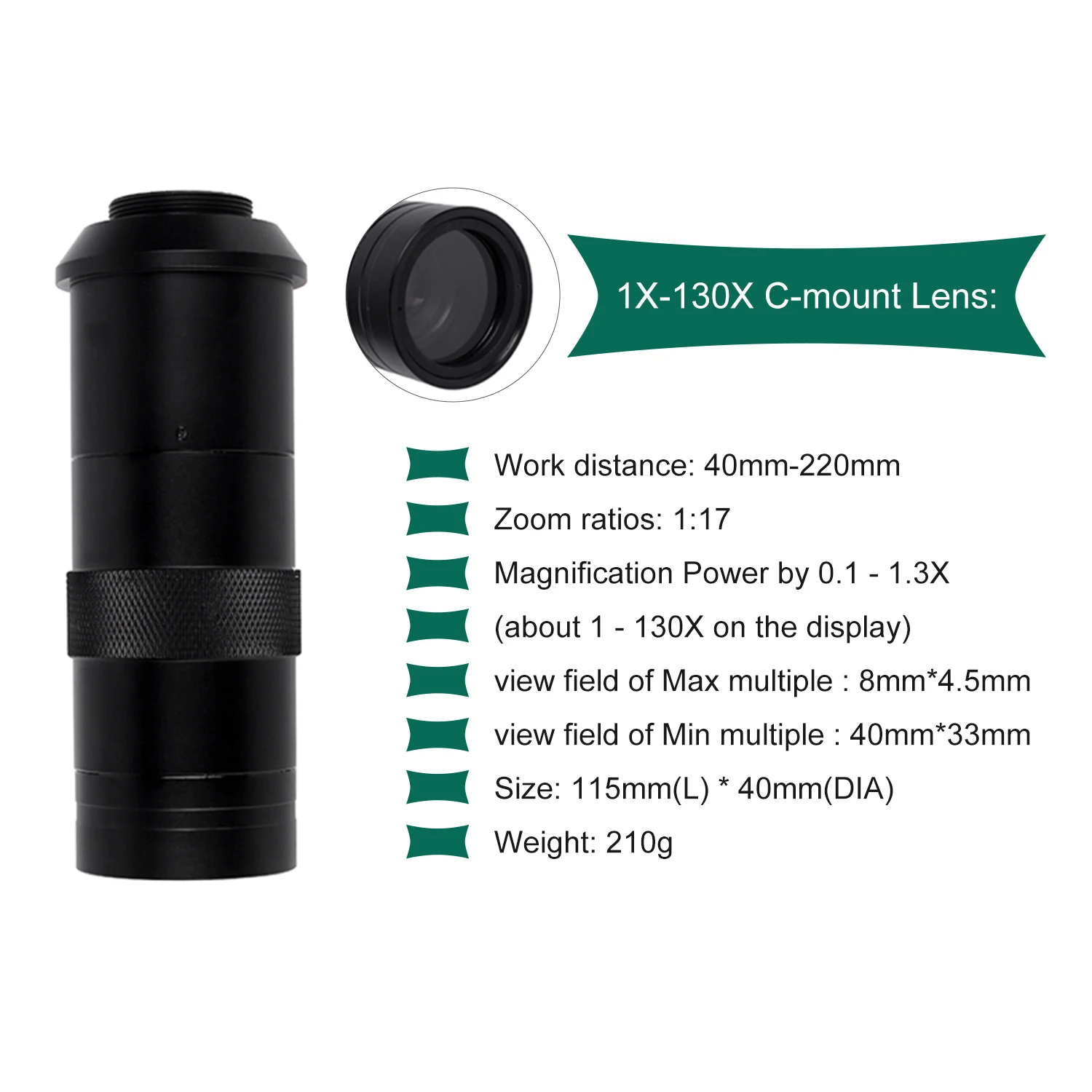

1X-130X C-mount Lens:

Work distance: 40mm-220mm
Zoom ratios: 1:17
Magnification Power by 0.1 - 1.3X (about 1 - 130X on the display)
view field of Max multiple : 8mm*4.5mm
view field of Min multiple : 40mm*33mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

56 bright white LED bulbs：

100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

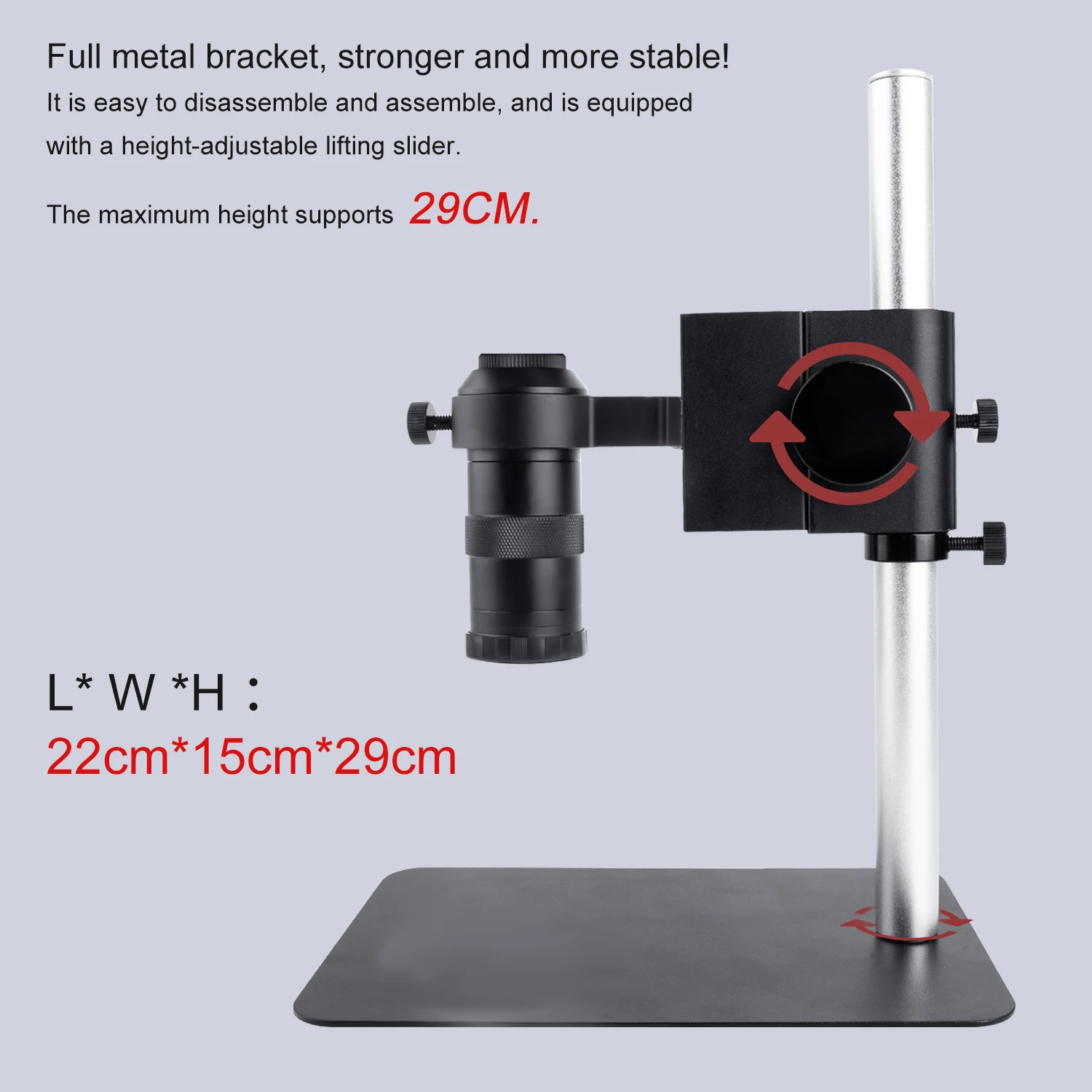

Standard bracket (with base)：

This microscope working station can be adjusted up and down to satisfy your requirement
It can help the microscope rotate any angles
Lens of microscope can be fixed on this stand
Product Size: Assembly base size: 150mm * 220mm
Main column height: 290mm
Lens mounting inner diameter: 0-42mm

List of packing：

1 x Microscope Camera Set
1 x 130X lens
1 x 56 led ring light
1 x Stand
