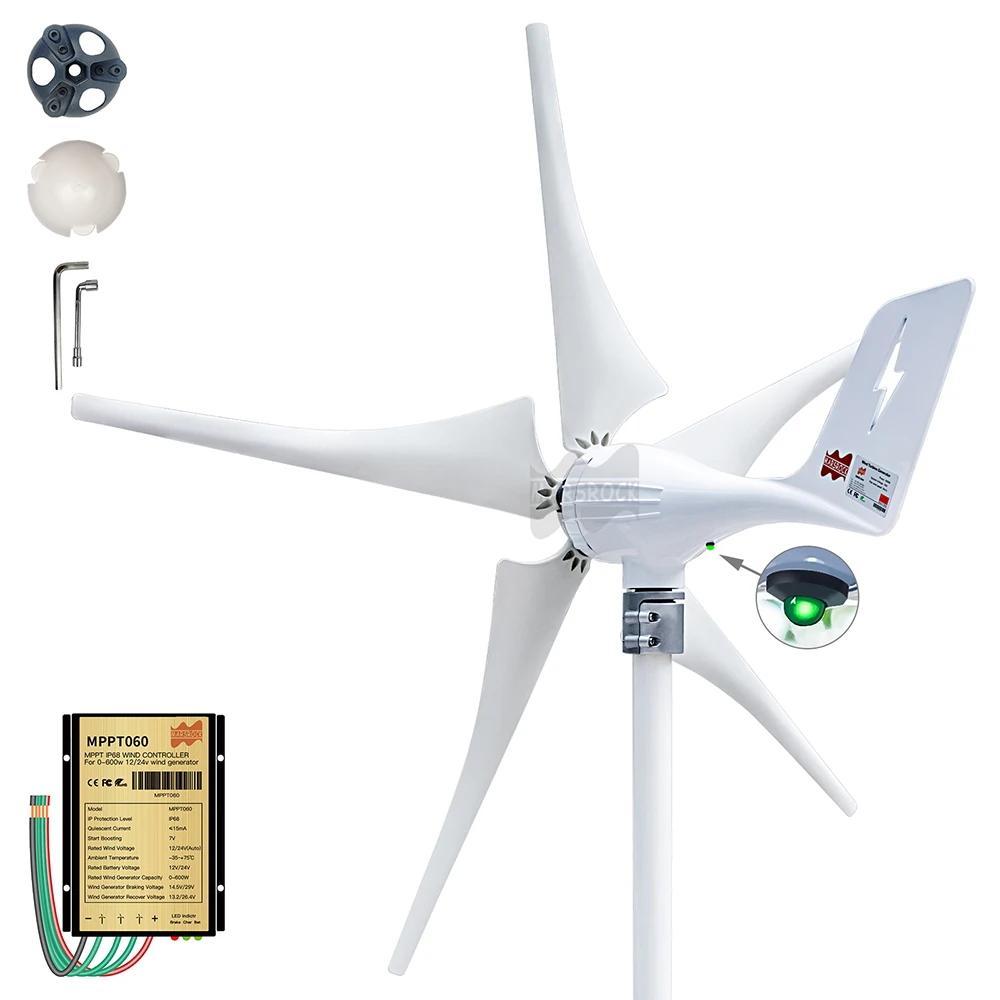

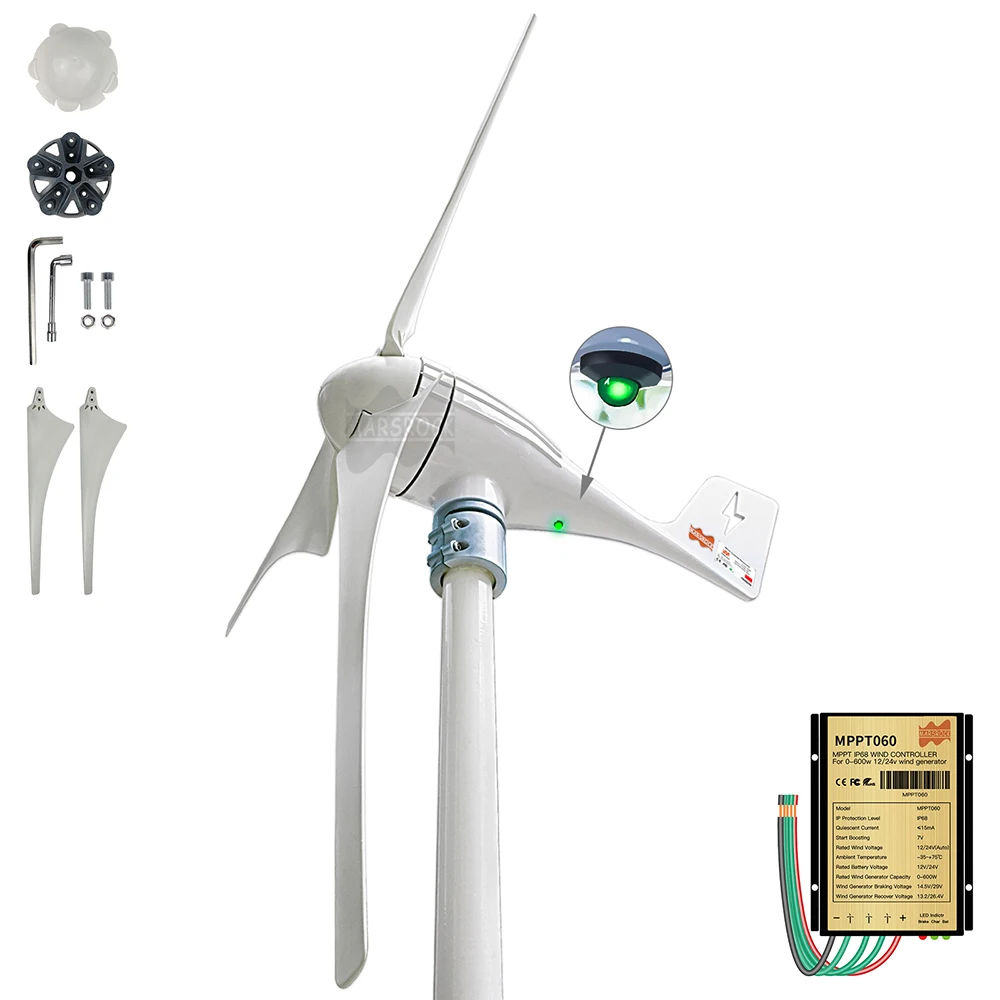

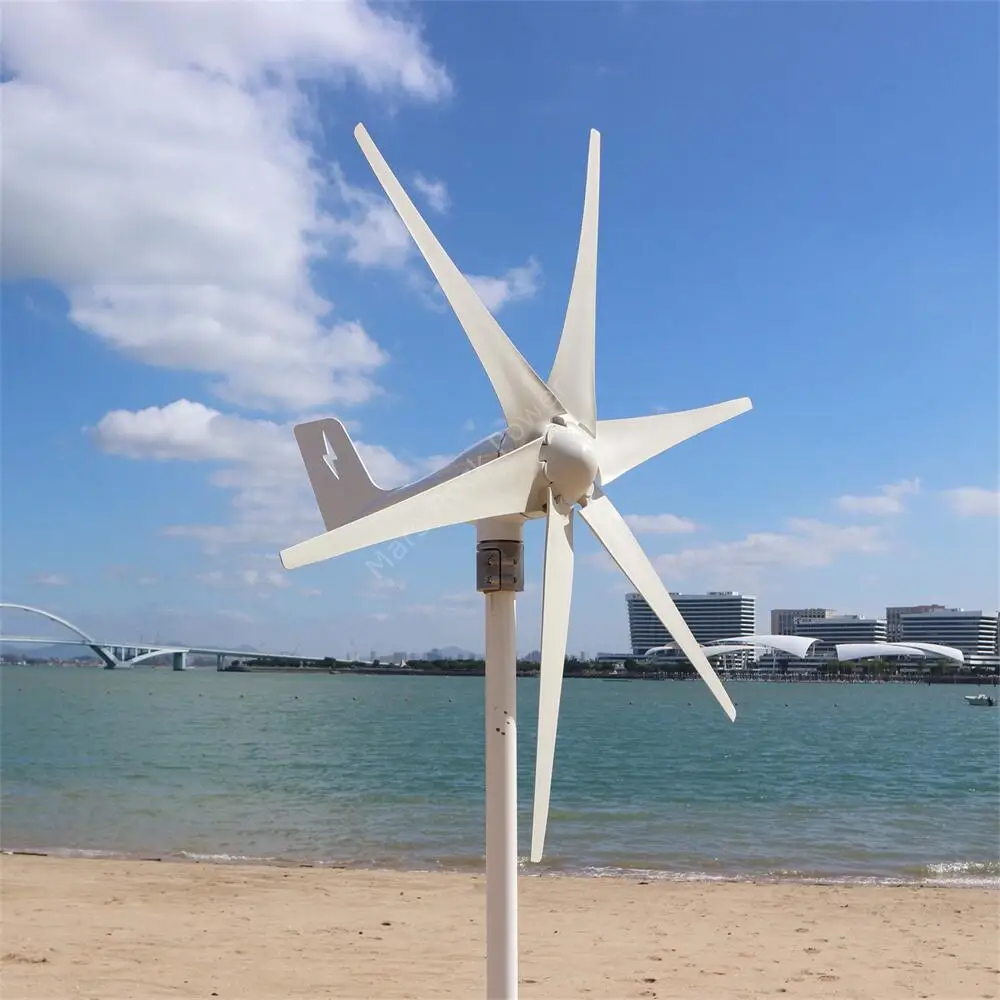

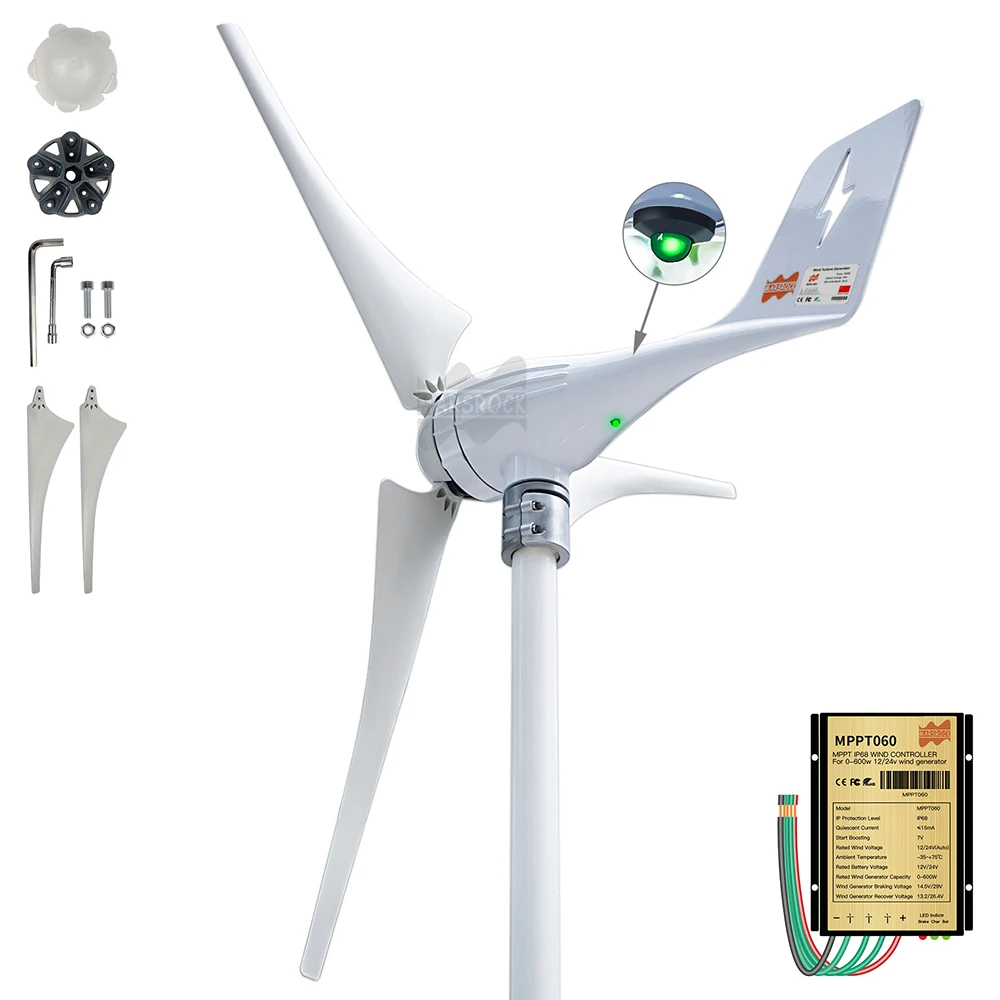

600W 12V 24V Wind Turbine Generator 3 5 Blades Residential AC Hawt Wind Mill with Free MPPT Controller Charging Indicator LED

Related Products

Product Description

Product features

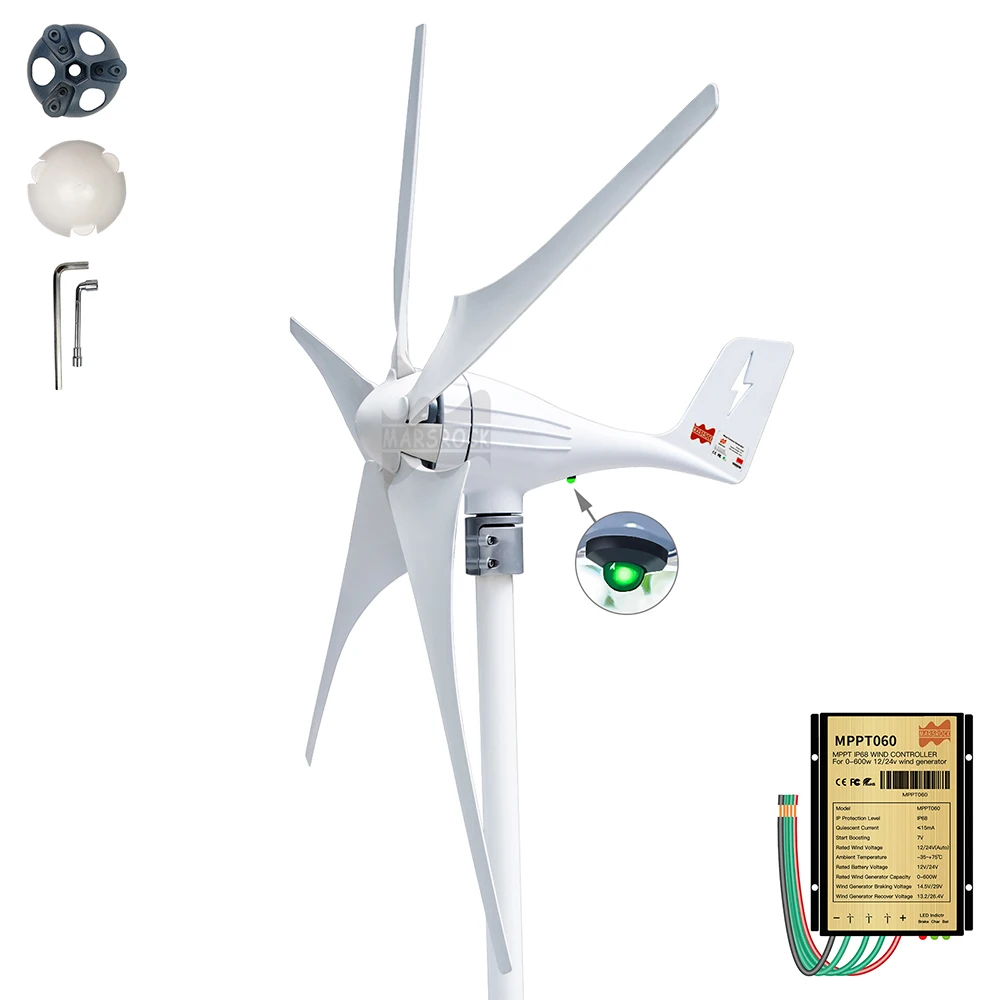

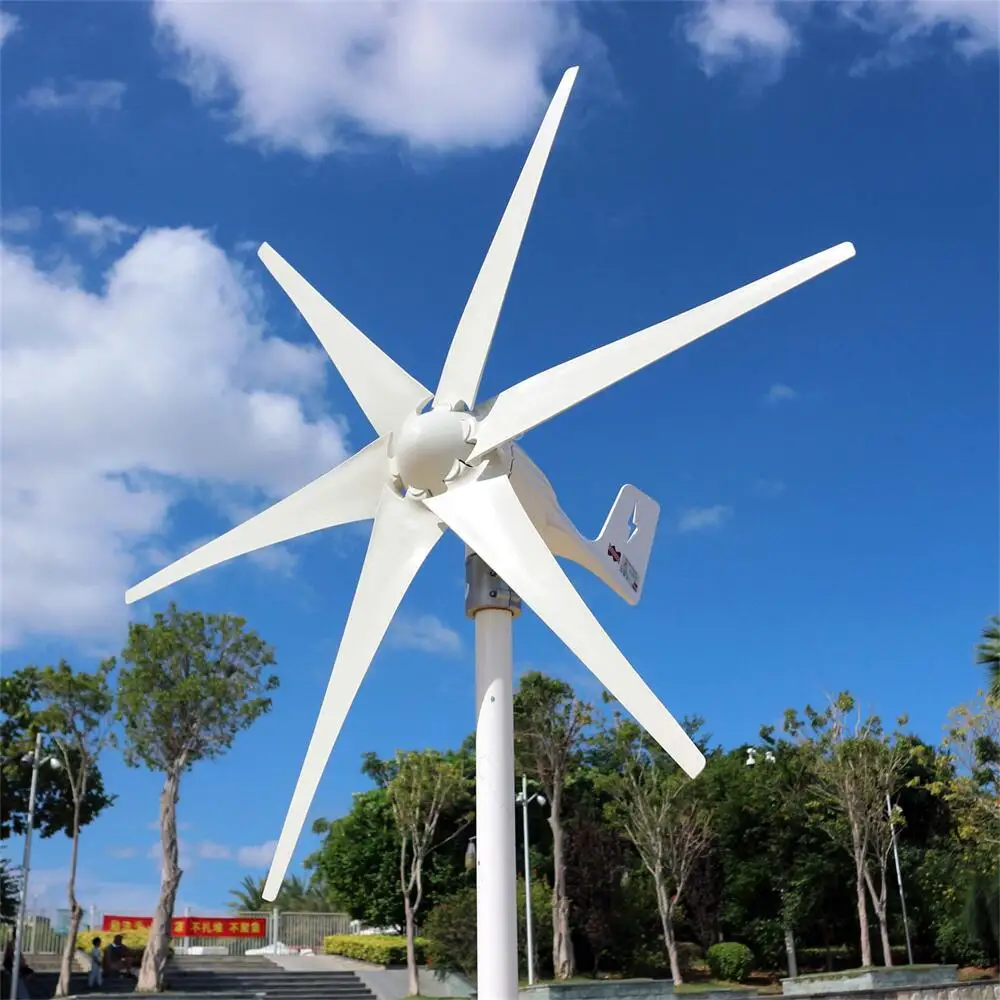

1.Low start up speed, 3 or 5 or 6 blades optional for different wind speed areas,high wind energy utilization;

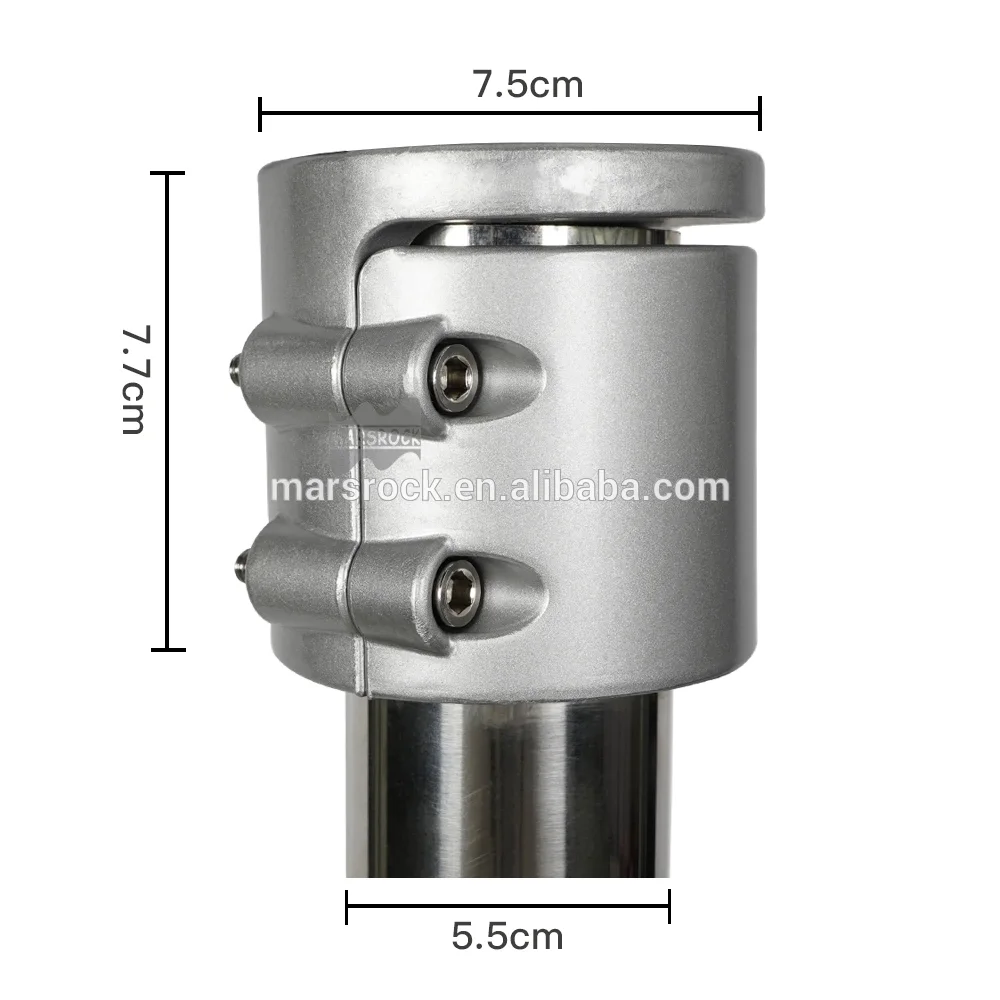

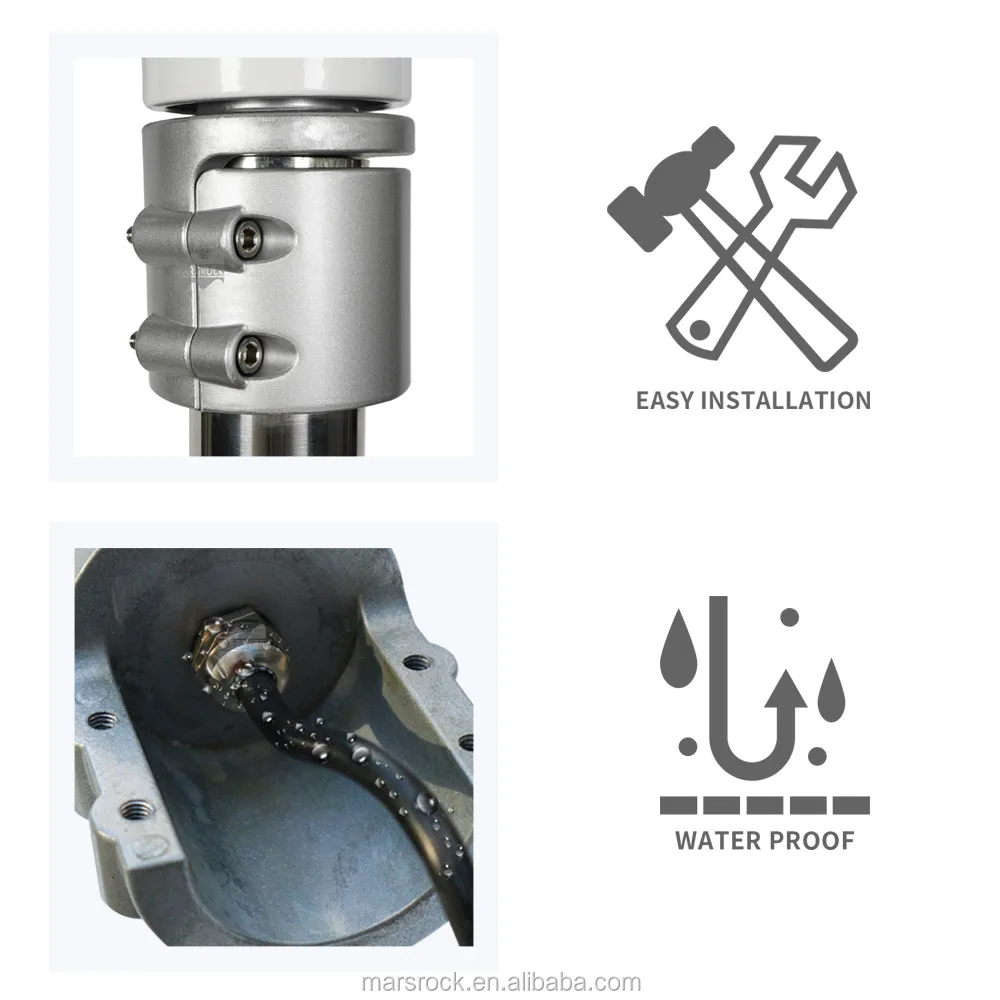

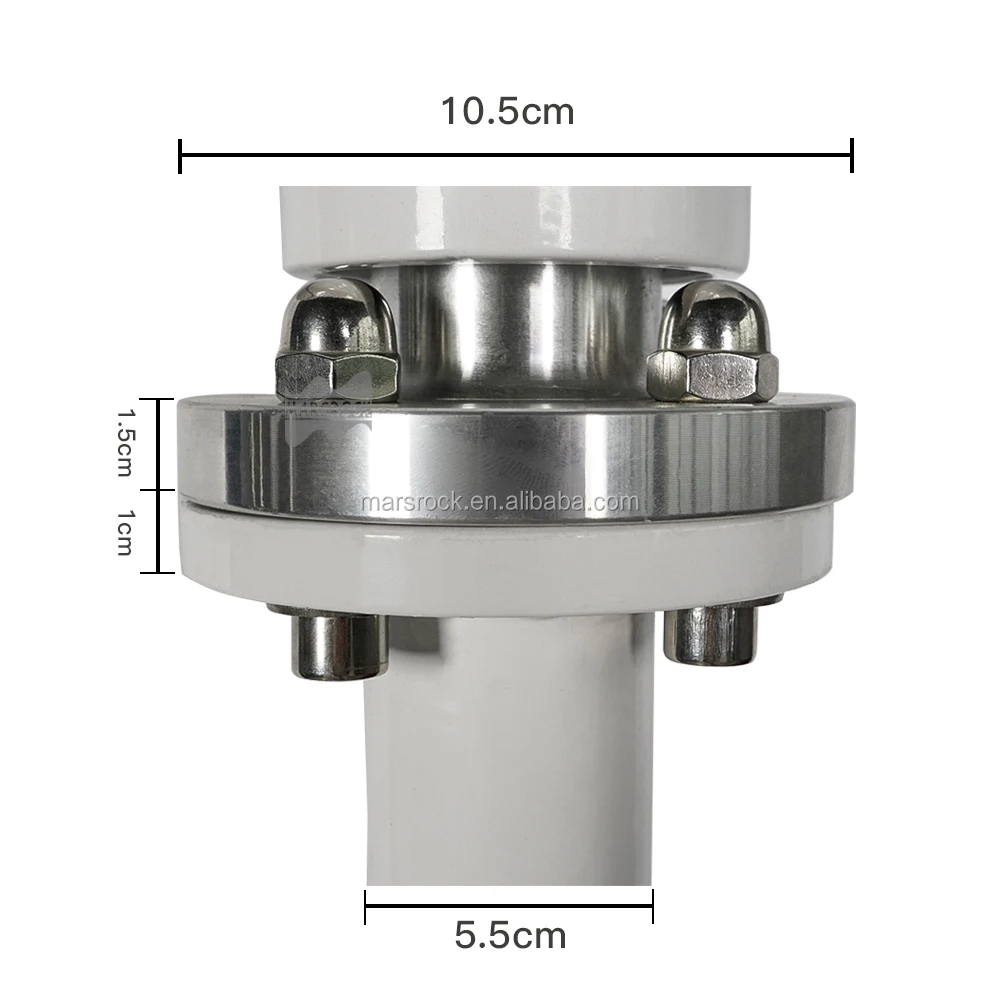

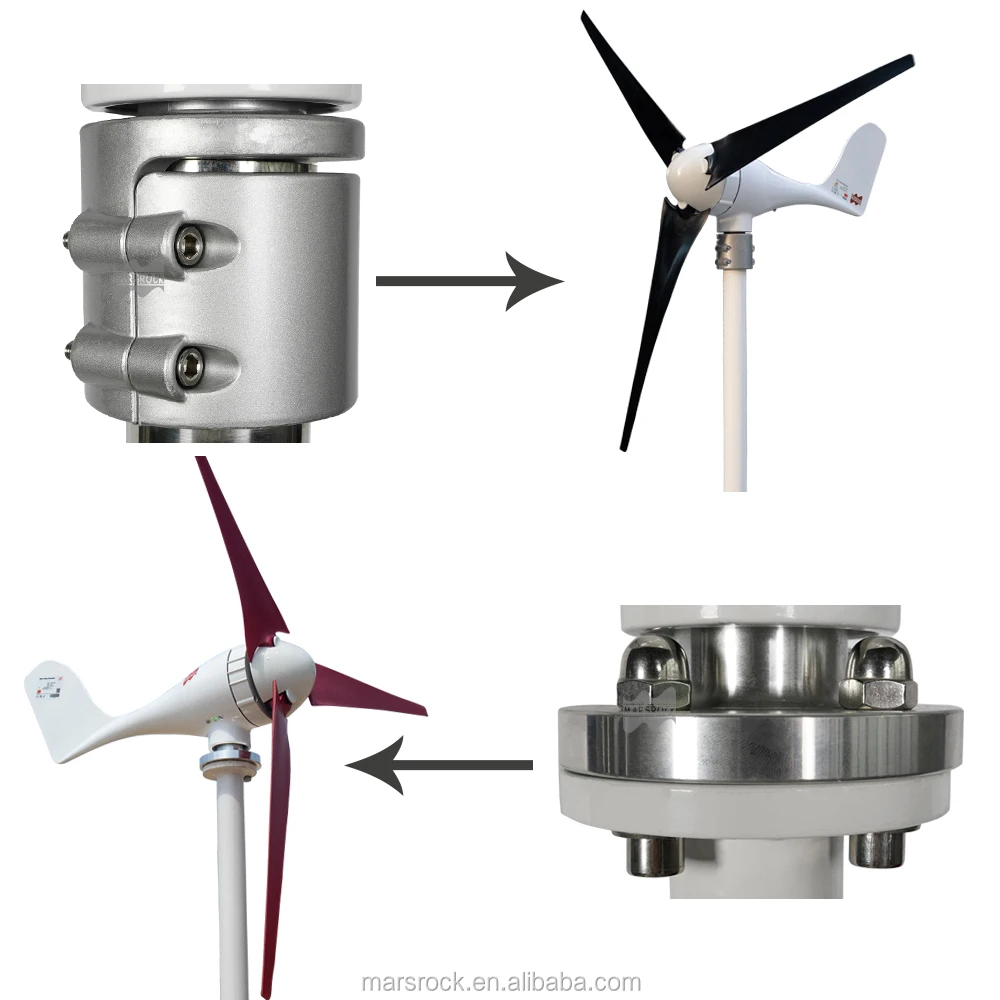

2.Easy installation, hoop or flange connection optional;

3.Blades using new art of precision injection molding , matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output;

4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely;

5.Patented permanent magnet ac generator with special stator,ffectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system;

6. MPPT Controller,inverter can be matched accroding to customers' specific needs.

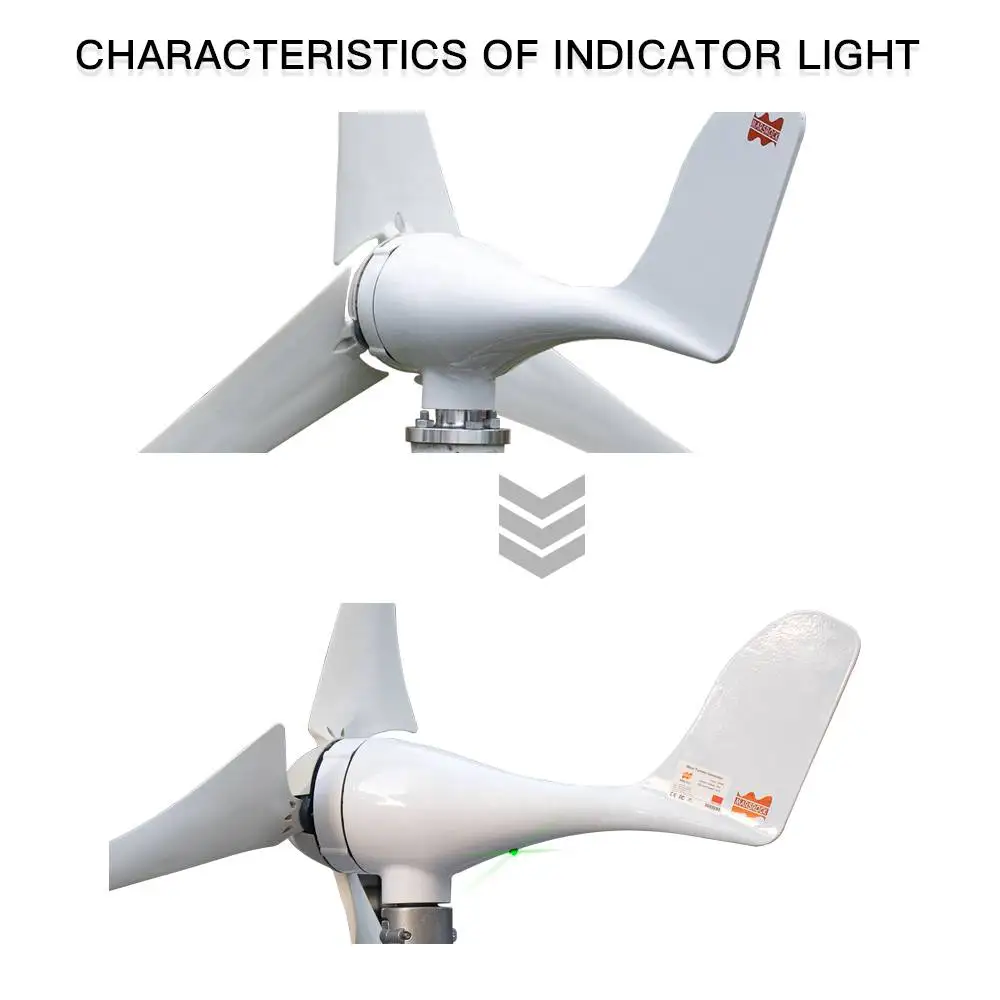

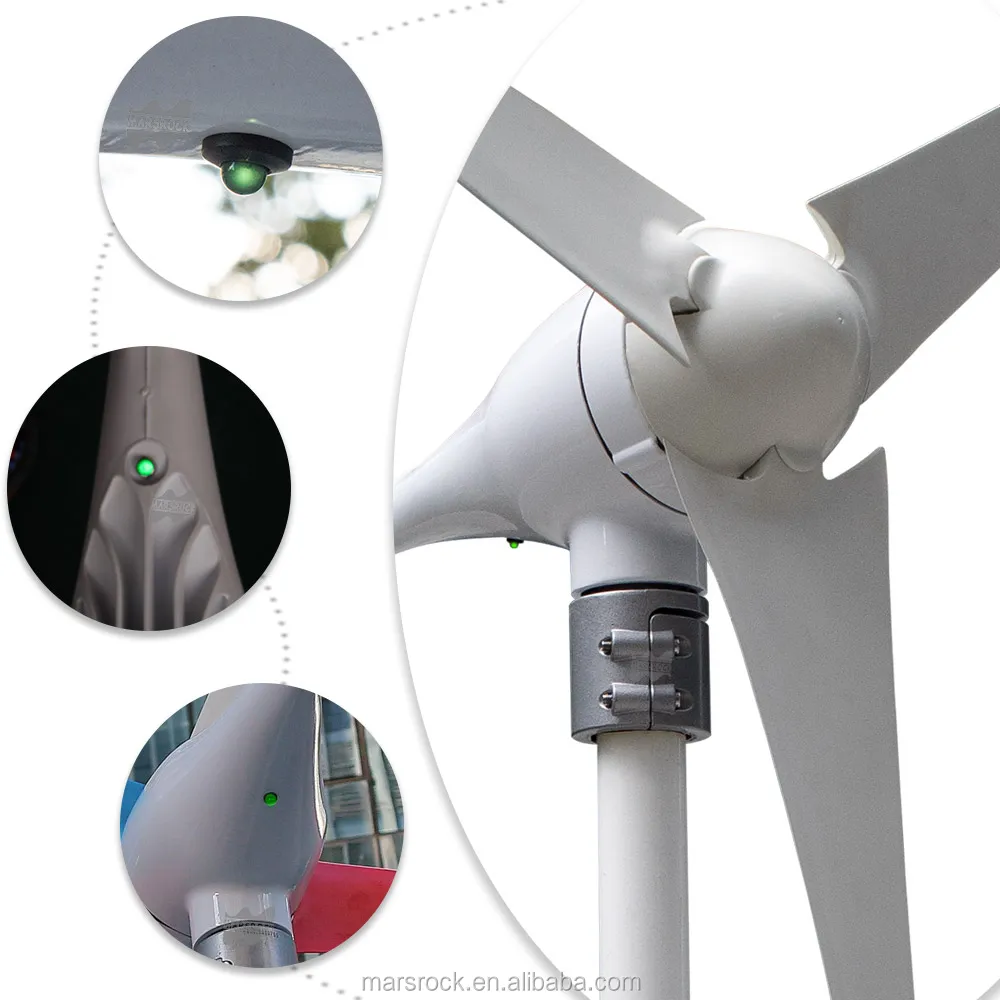

7.UniqueCharging Indicator Light design.

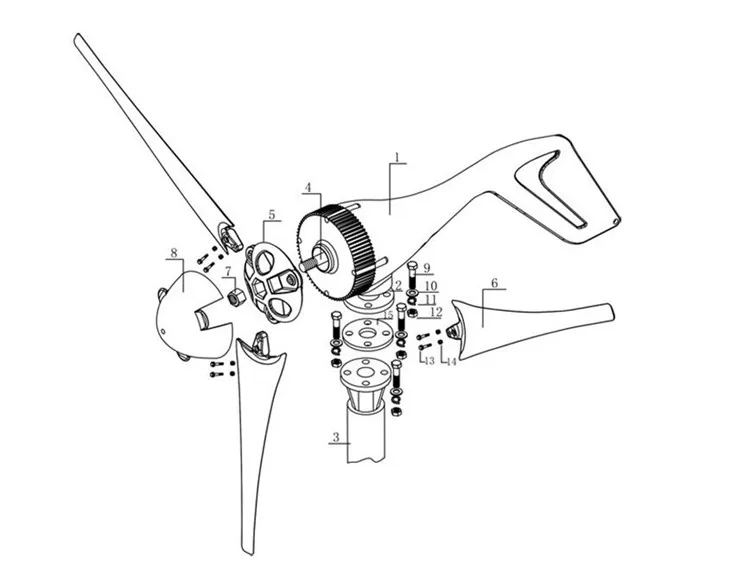

1. Turbine Body; 2. Flange base; 3. Steel pipe bracket ; 4. Spindle; 5. Hub; 6. Blades; 7. Stainless nut; 8. wind cap; 9. Screw; 10. Flat washer; 11. Spring washer; 12. Nut; 13. Stainless screw; 14. Anti-loose still nut; 15. Rubber washer.

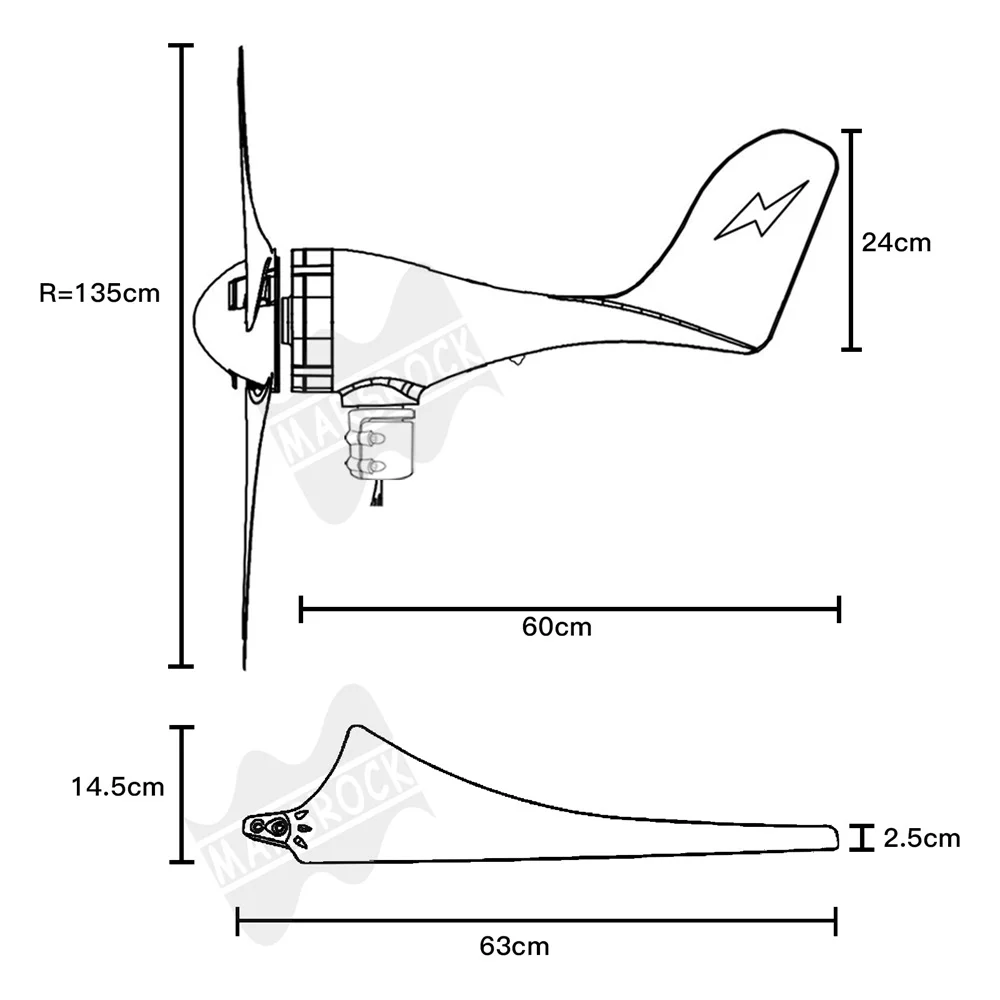

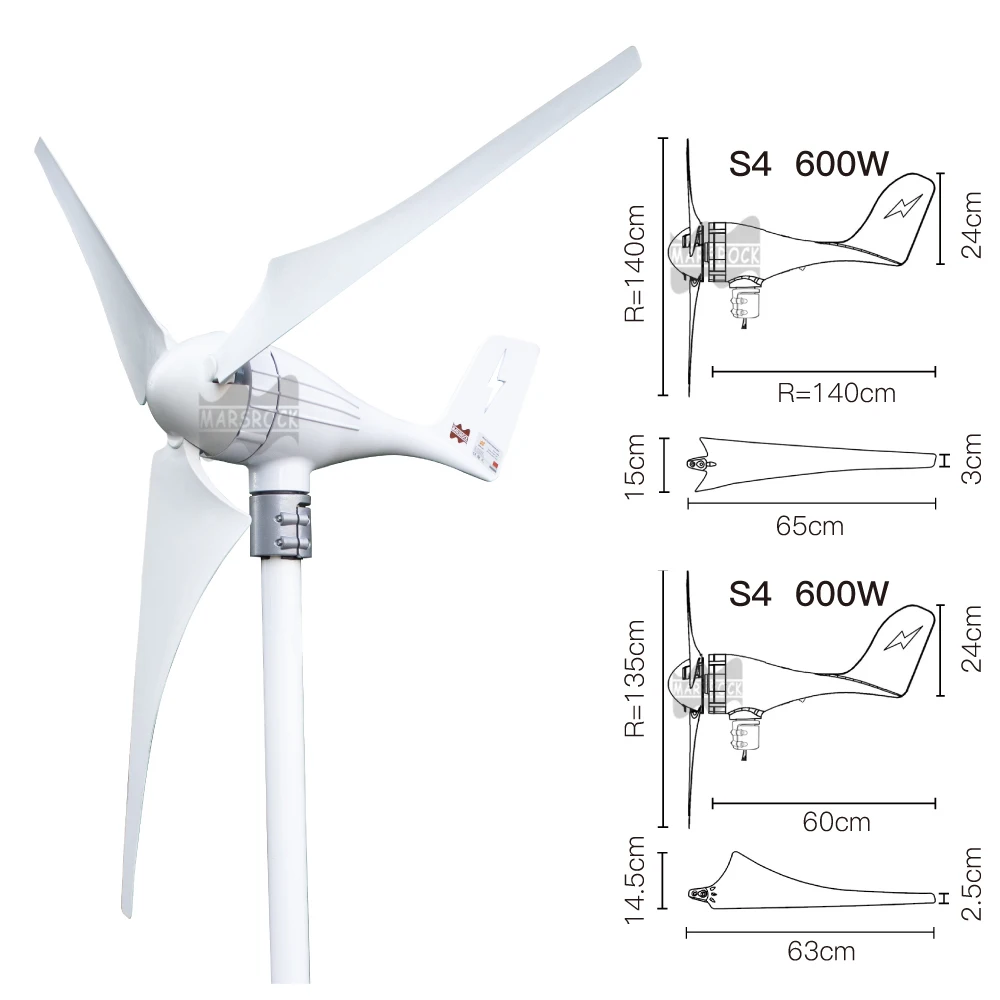

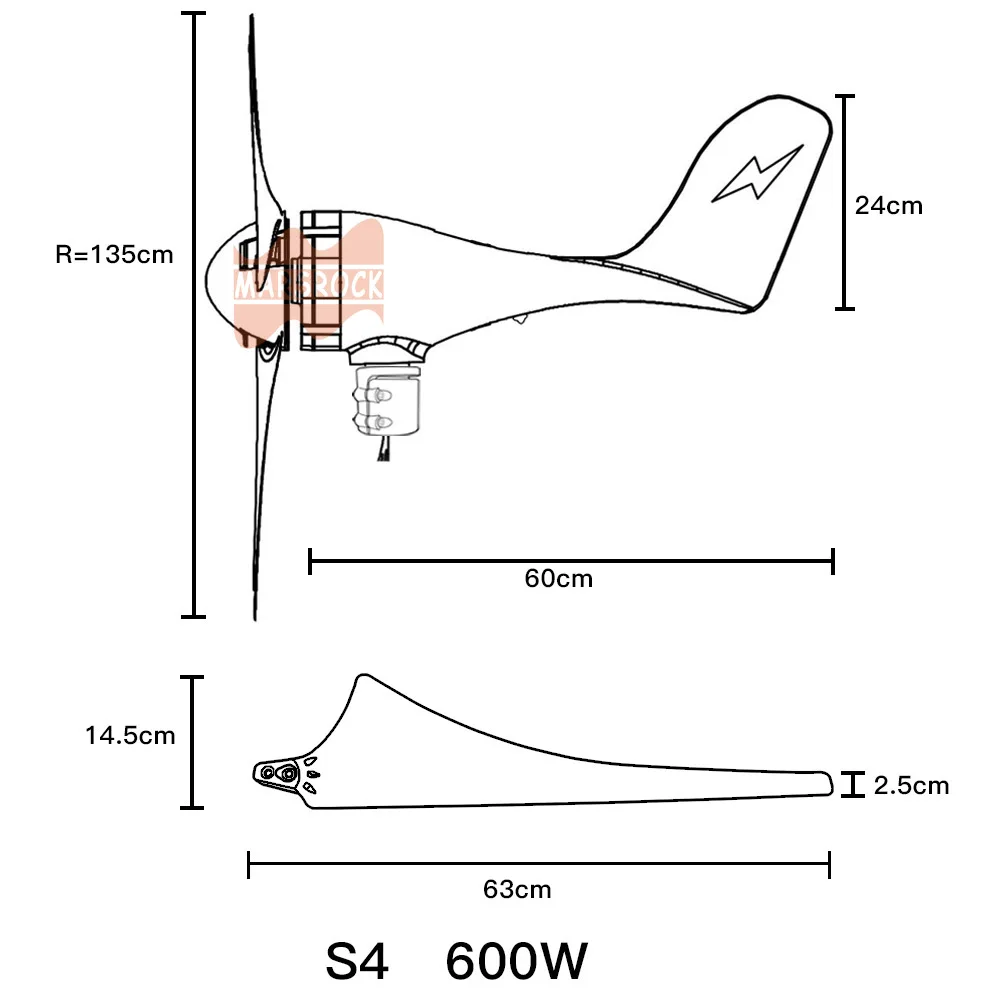

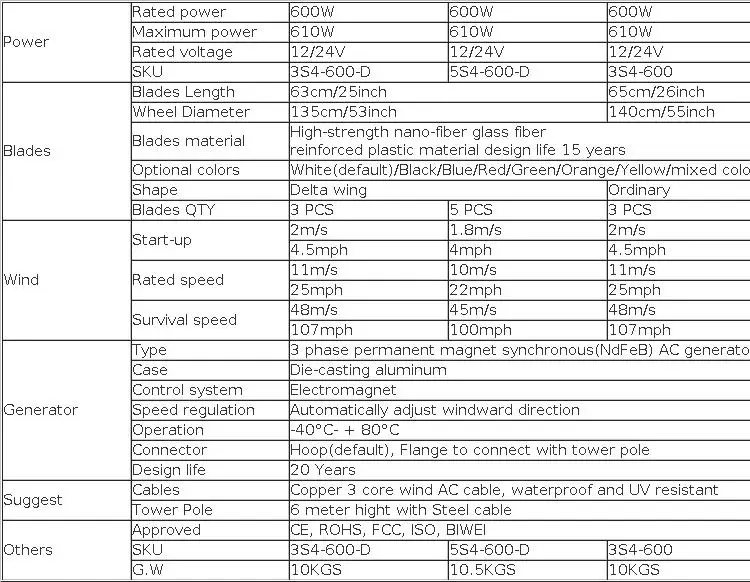

Product Specifications

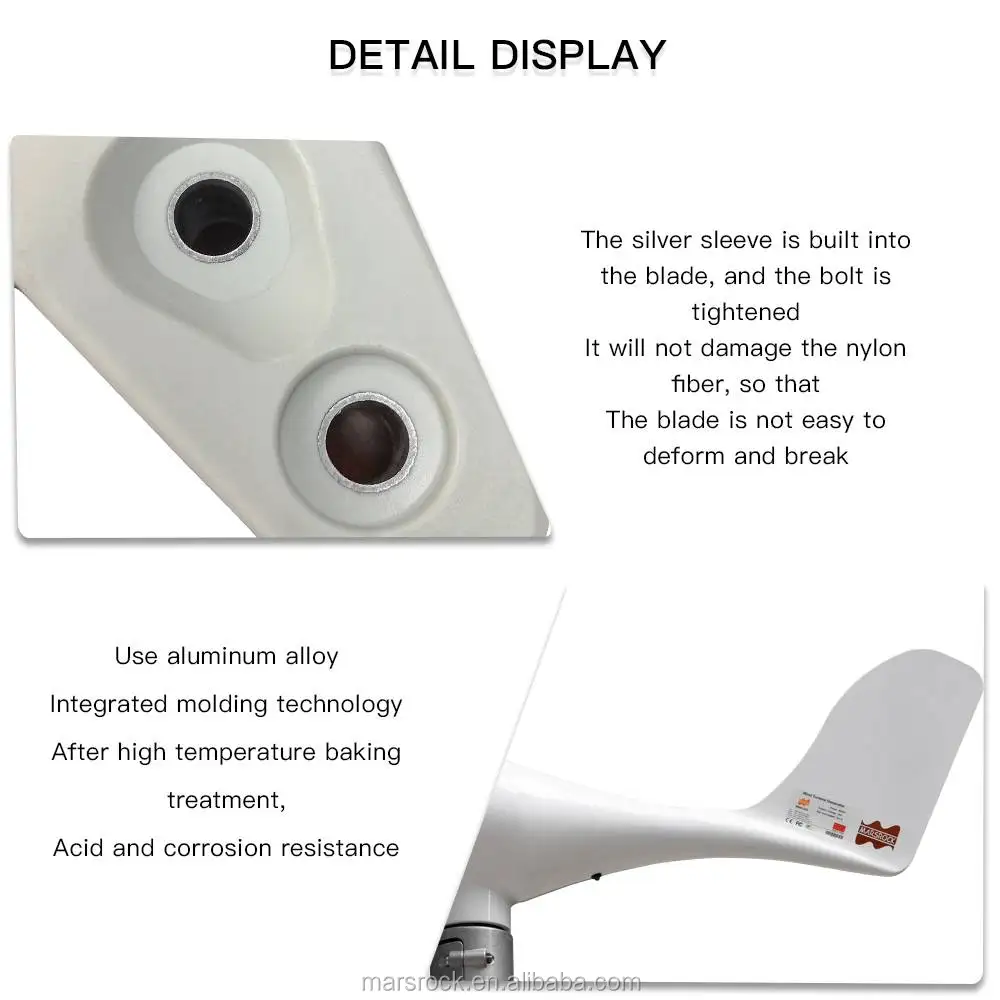

Detailed Pictures

Product Features

MPPT Wind Turbine Controller Features.

1. This controller can control wind turbines tocharge the battery automatically.

2.MPPTelectrodeless and noiseless unloading.

3. Unique reverse connectprotection circuit.

4. With the independentintellectual property rightsof modular design, which makes the performance of the whole system to get the biggest safeguard.

5. Thecomprehensive waterproof protection. The protection grade reaches the IP68 above, even in water can steadily work normally for a long time.

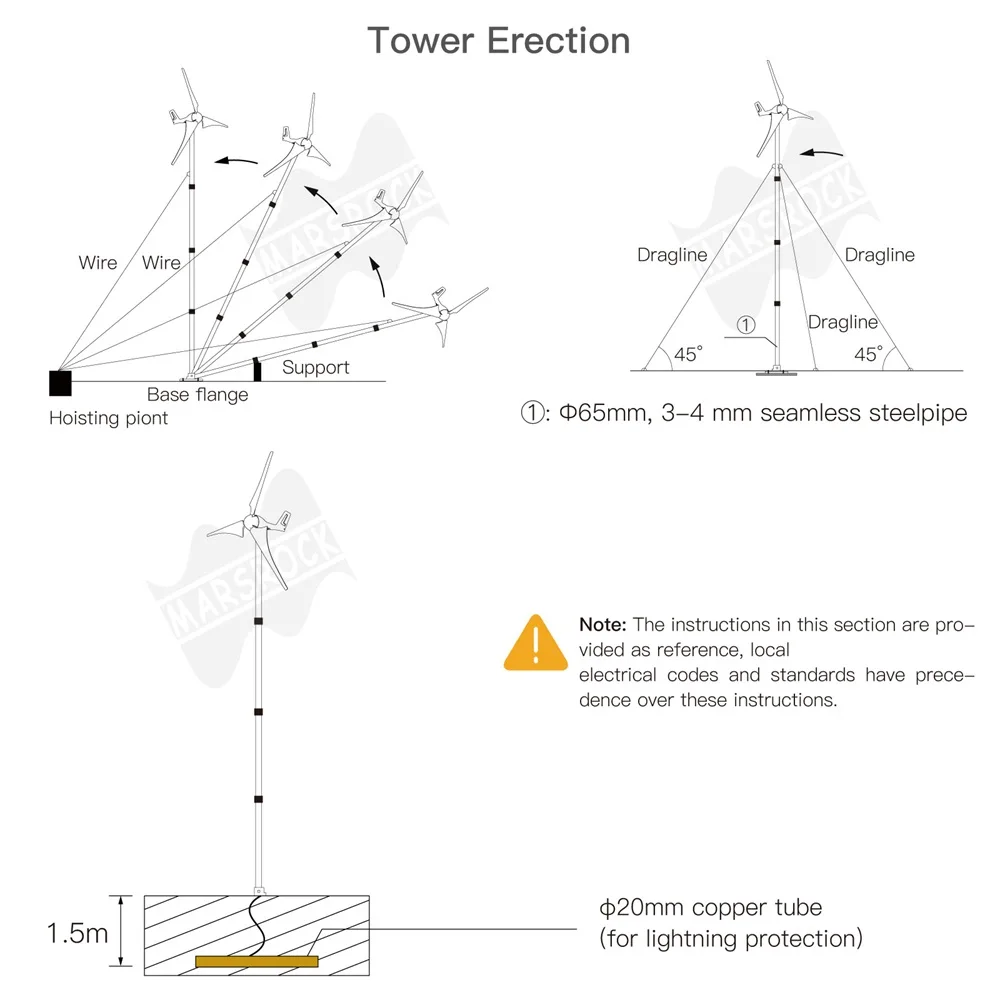

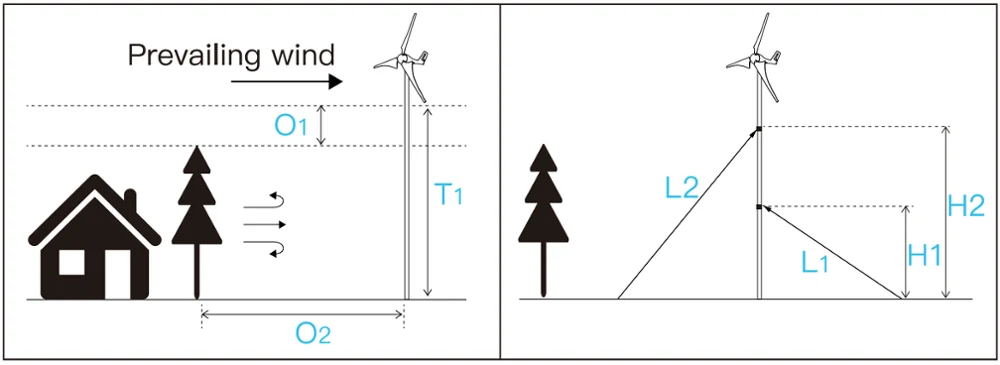

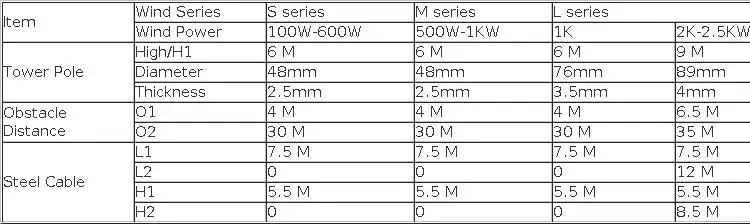

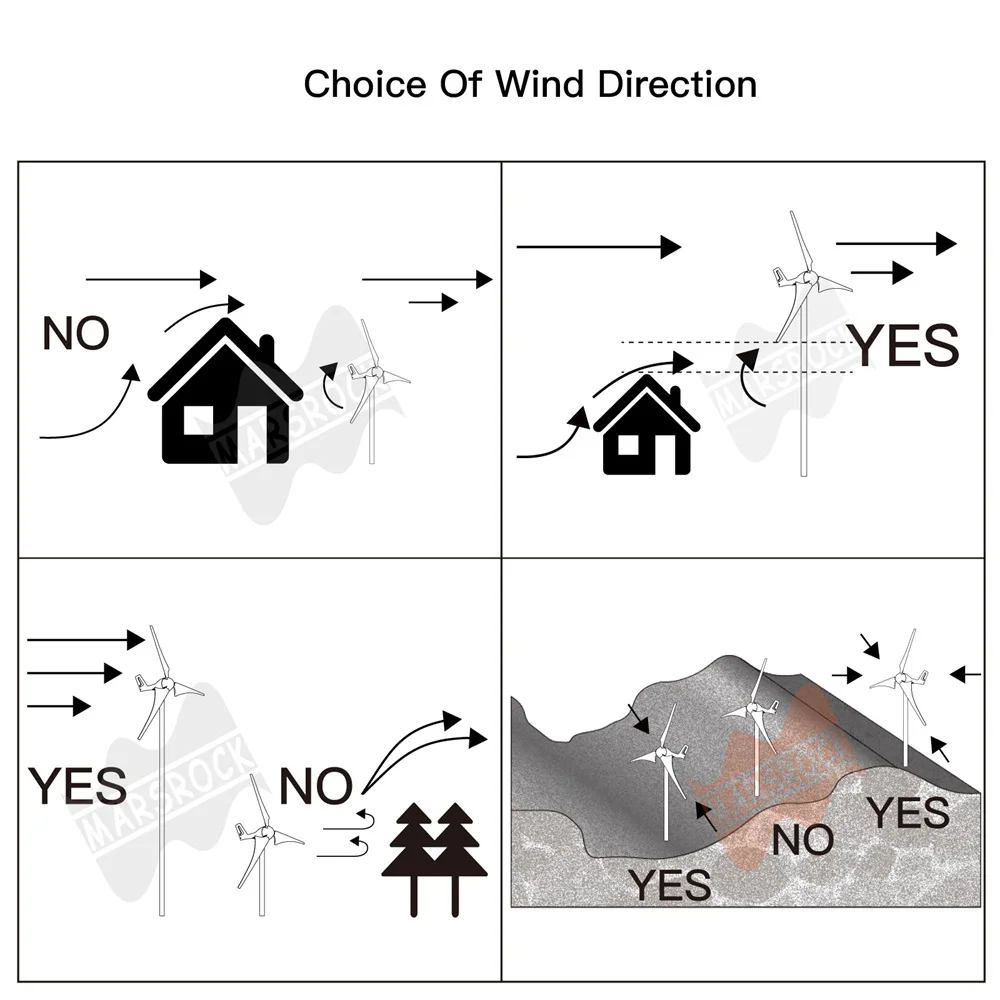

Installation instructions

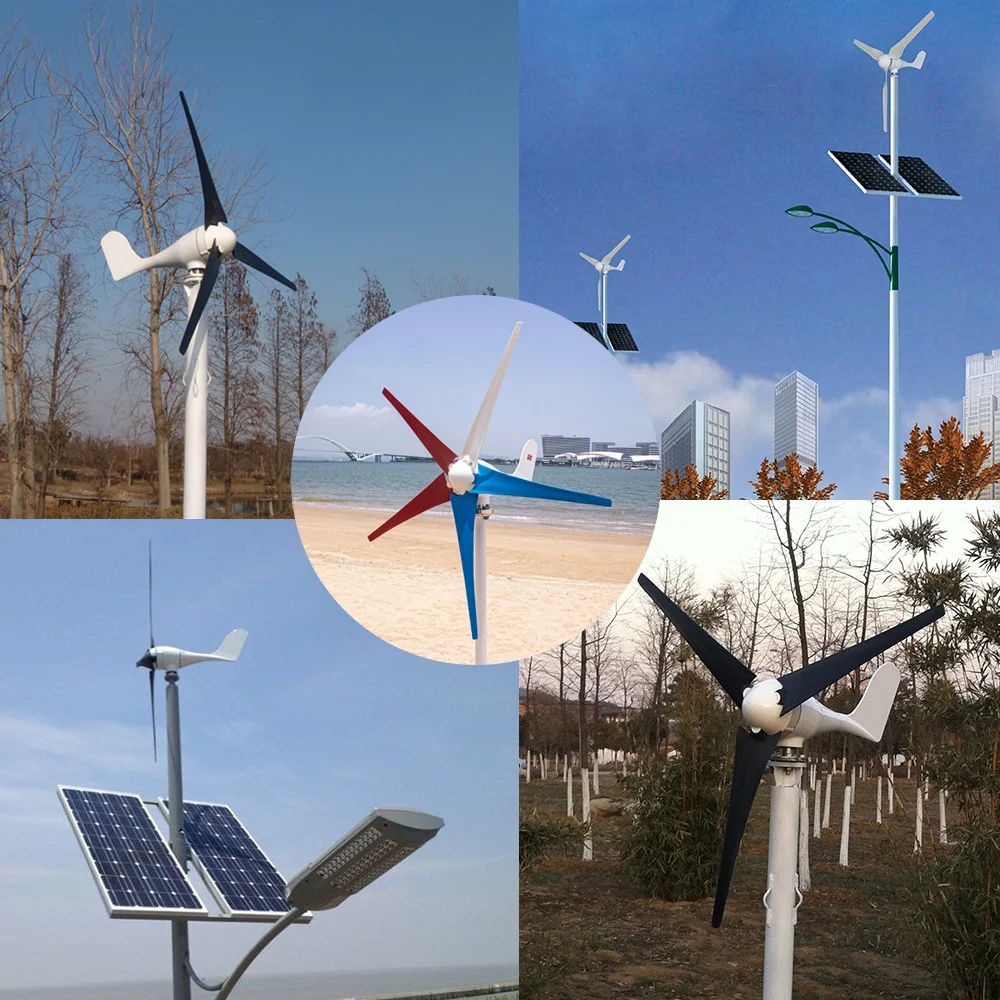

Product Application

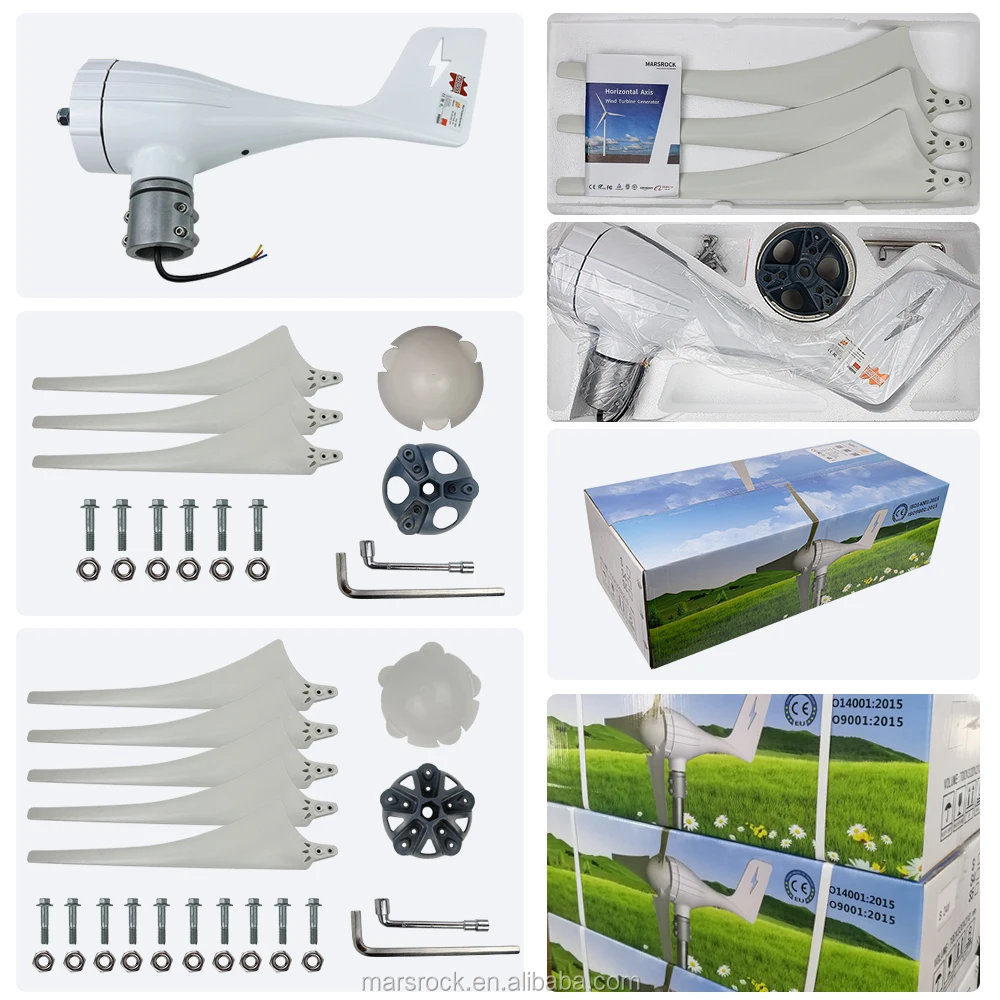

Packing & Delivery

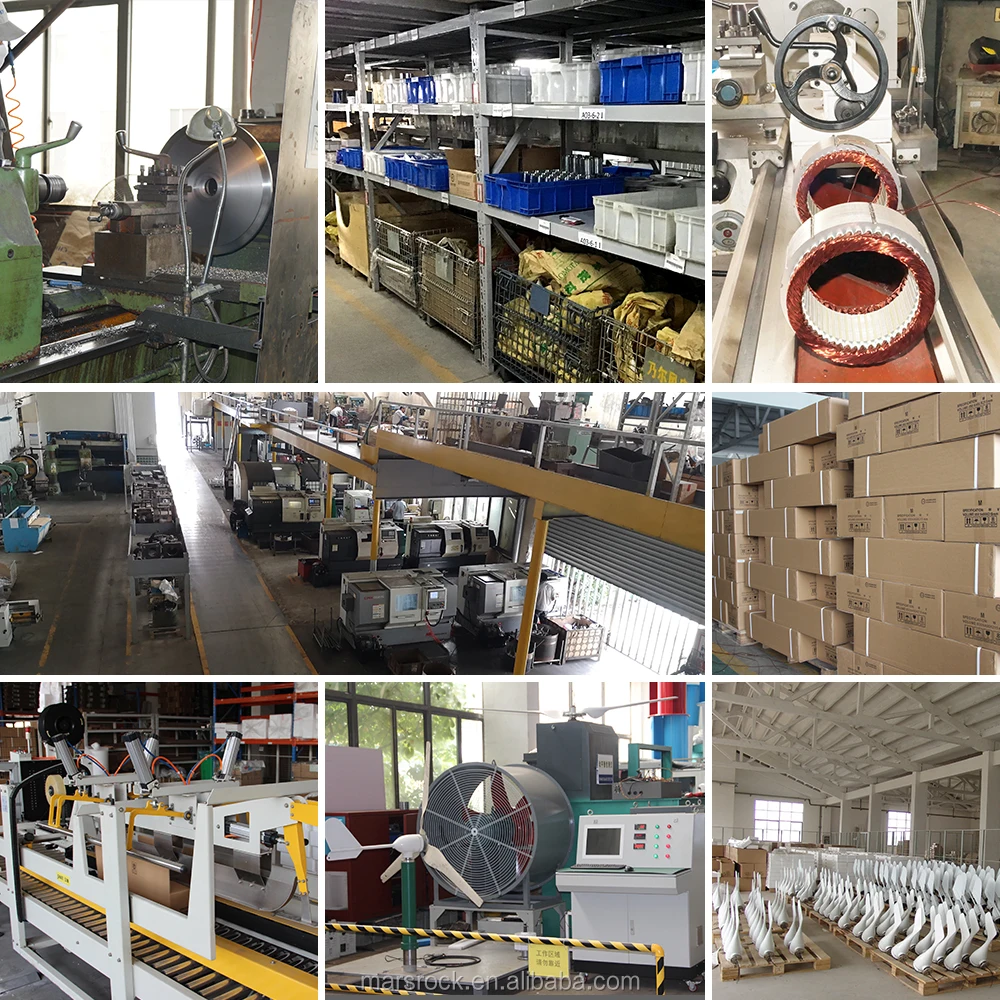

Company Profile

MARS ROCK Group

We specialize in the development of green energy industry for more than 13 years. We own professional solar panel factory (Fleda Solar Produce Co.,Ltd) in Shenzhen which can customize various solar panels for clients. Besides Solar panel, we expand our fields to wind turbine and solar water pump from 2015. Currently, our engineers' team can supply all solutions about solar, wind energy solutions to customers.

Quality First

Quality is the soul of products. Every order before shipping, products are tested at our lab first. Only qualfied products can ship out. This is the secret of our yearly output has grown to over SD120,000,000.

Customer First; Honesty First.

As a formal enterprise, customer is the source of our business. We believe "Customer is god" and we insist to do it. Honesty is the basic of doing business. Only honesty helps us to win more and more customers.

FAQ

1. What kind of region can be installed wind turbine?

Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s effectively average wind power should be more than 100W/m2.

It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.

2. How to calculate the actual need power in my home to configure the appropriate power of wind turbines?

At present, battery stores the power from the wind turbine, then discharge to home appliances. So the power which discharged to the load and be charged timely by wind turbine is the amount of the actual needs power. Take an example: the rated output power from wind turbine generator is 100W per hour, the continuous workable hours by wind is 4 hours. The battery can be charged total capacity is 400WH. For only about 70% power from battery can be discharged to the load, so the actual power which can be used from battery is 280WH.

If there are:

1) Bulb15W x 2 Pieces, working 4 hours one day, consumption 120WH

2) TV 35W x 1 set, working 3 hours one day, consumption 105WH

3) Radio 15W x 1 Piece, working 4 hours one day, consumption 60WH

Above total consumption is 285WH per day. If you only design to install 100W wind turbine generator, the consumption total power will more than the power from wind turbine generator. In long period of time using power from 100W wind turbine generator, it will make the battery serious loss of electricity and damaged, and it will cut down your battery service life.

It is assumed that wind turbine at rated wind power generation and energy consumption, but in fact, due to the variability of the wind, intermittent, there are strong and weak wind different (wind speed) and wind blow in long time and short time different(frequency). So you should cut down even cut off some electrical application working time when the wind condition is in poor to protect your battery. If your budget is enough, it will be better to install a diesel generator set or install solar panels at the same time.

3. How to select the correct battery capacity to get power from wind turbine generator?

Generally, the battery capacity should be equal or smaller than the power from wind turbine generator.

1) 100W wind turbine generator matches 120AH battery (60AH x 2 Pieces)

2) 200W wind turbine generator matches 120-180AH battery (60 OR 90AH x 2 Pieces)

3) 300W wind turbine generator matches 240AH battery (120AH x 2 Pieces)

4) 750W wind turbine generator matches 240AH battery (120AH x 2 Pieces)

5) 1000W wind turbine generator matches 360AH battery (60AH x 3 Pieces)

4. How many winds for wind turbines can generate electricity?

In general situation, about 3 levels to the battery charge (the wind generator voltage is higher than the battery voltage), the installation of wind turbines must be aware of your local wind resources, such as the annual wind speed in the 3-5 level, we proposed 300-1000W small wind power generator, if more than 4 levels of wind resources in the usual year, can choose more than 1000W wind generator.

5. How to confirm your wind situation?

Level 1: smoke with the wind

Level 2: wind blows the face

Level 3: the leaves move, the red flag flies

Level 4 level: wind blowing paper

Level 5 level: shakes with small leaves

Level 6: hard lifting

Level 7: inconveniences in the wind

Level 8 level: wind blowing branch break

Level 9 level: roof flying tile

Level 10: pull up a tree and reverse the house

6. Why the wind generator will brake?

When the battery is full, or in the case of strong wind, the fan will also have the phenomenon of braking or not turning. This is the normal phenomenon of the fan controller in protecting the battery or the fan.
