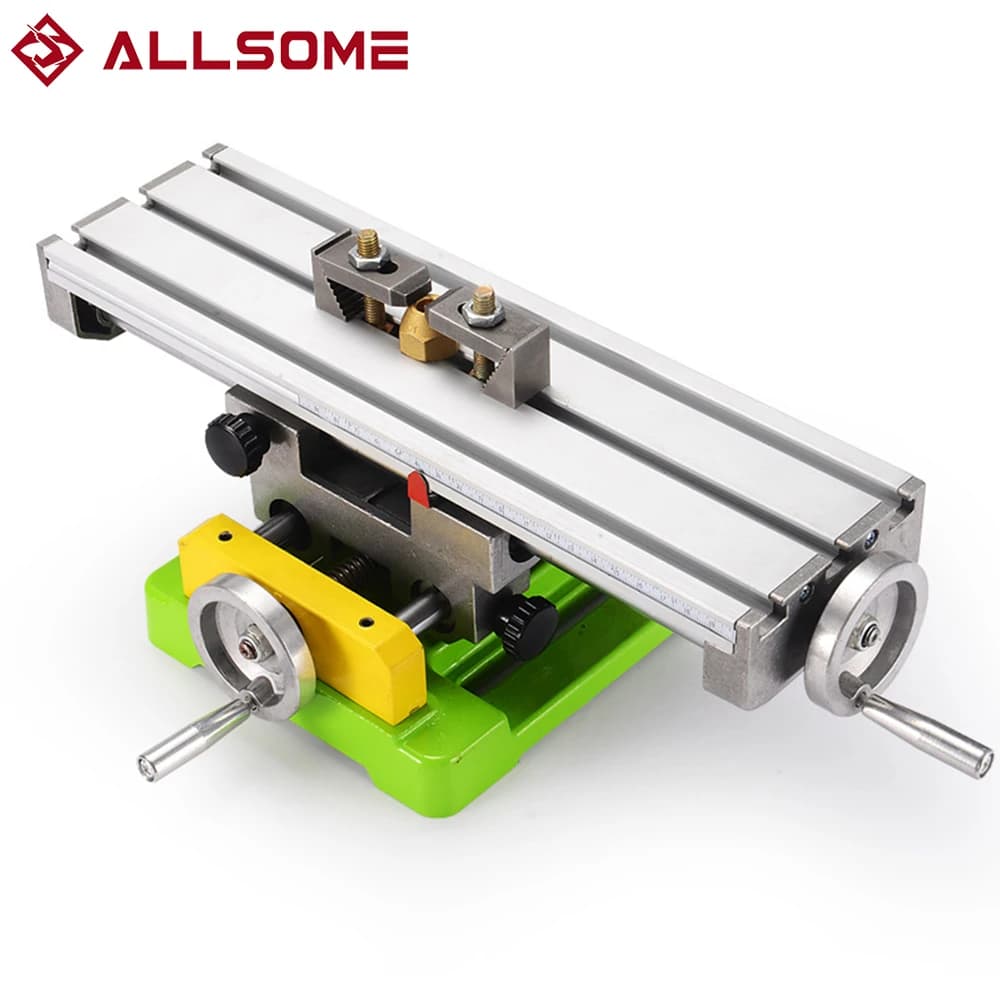

ALLSOME MINIQ BG6350 Multifunction Drill Vise Fixture Working Table Mini Precision Milling Machine Worktable HT2747

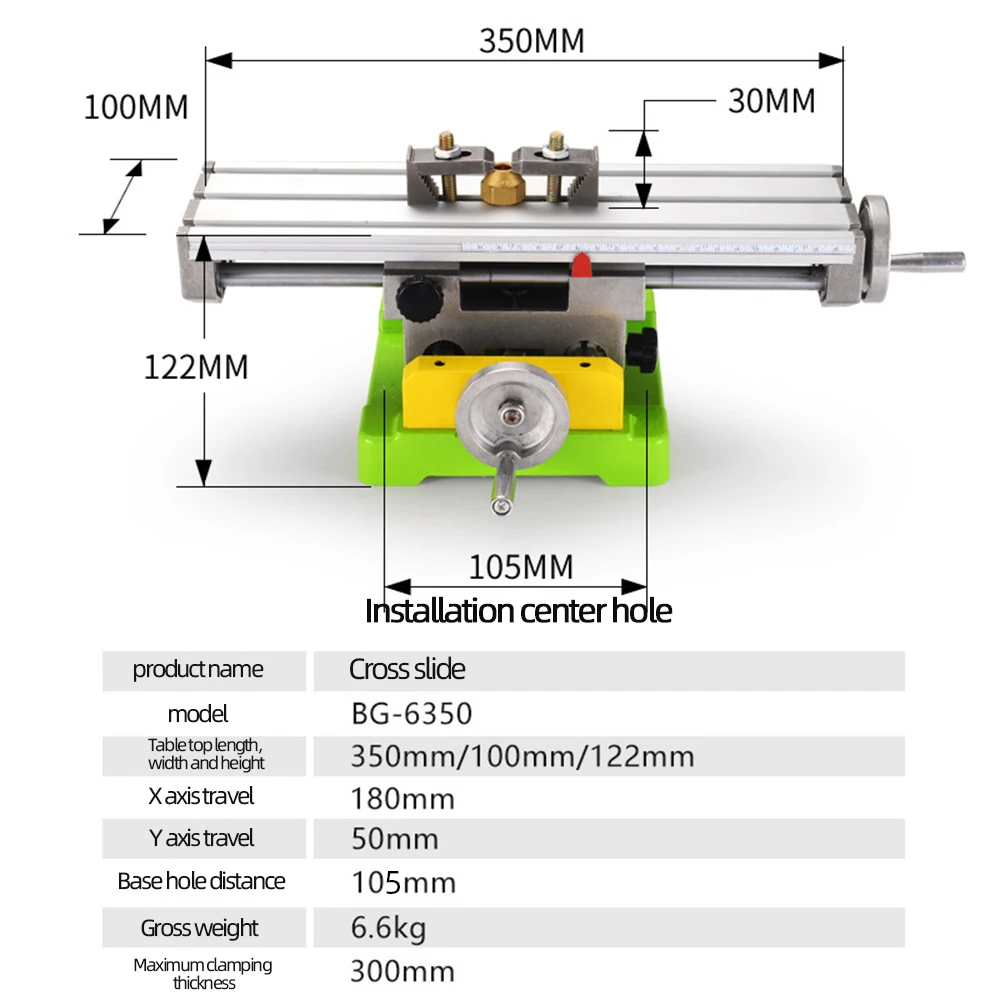

Specification:

Model: BG6350

Table size: 350*100mm

Adjustable for X direction: 180mm

Adjustment for Y direction: 50mm

X Y-axis scale adjustment:

1 circle = 3mm

A subdivision marks= 0.05mm

The lead screws are M14x3

Apple to : Mini drill and drill bracket series and other suitable machine

Features:

1. The table is suitable for Mini Drill and drill bracket series.

2. It can also apply to other suitable machine.

3. The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.

4. The working table with three T shaped groove, standard size is 15x8x6mm.

5. Scale is in front of the movable positioning.

6. adjustment handwheel rotates a circle of 3mm. A lattice is equal to 0.05mm.

7. The X axis Y axis distance is 180mm, the stroke is 50mm.

8. Working table size is 350x100mm and the height of 122mm, including two working clamp.

9. Mini multifunctional working table 6350,The table is suitable for mini drill and drill bracket series. It can also be applied to other suitable machines.

10. It can also apply to other suitable ?machine. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.

Package Included:

1 x BG6350 Mini Multifunctional Worktable

(The bench drill  is not included)

Notice:

1. Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.

2. The color may have different as the difference display, pls understand.
