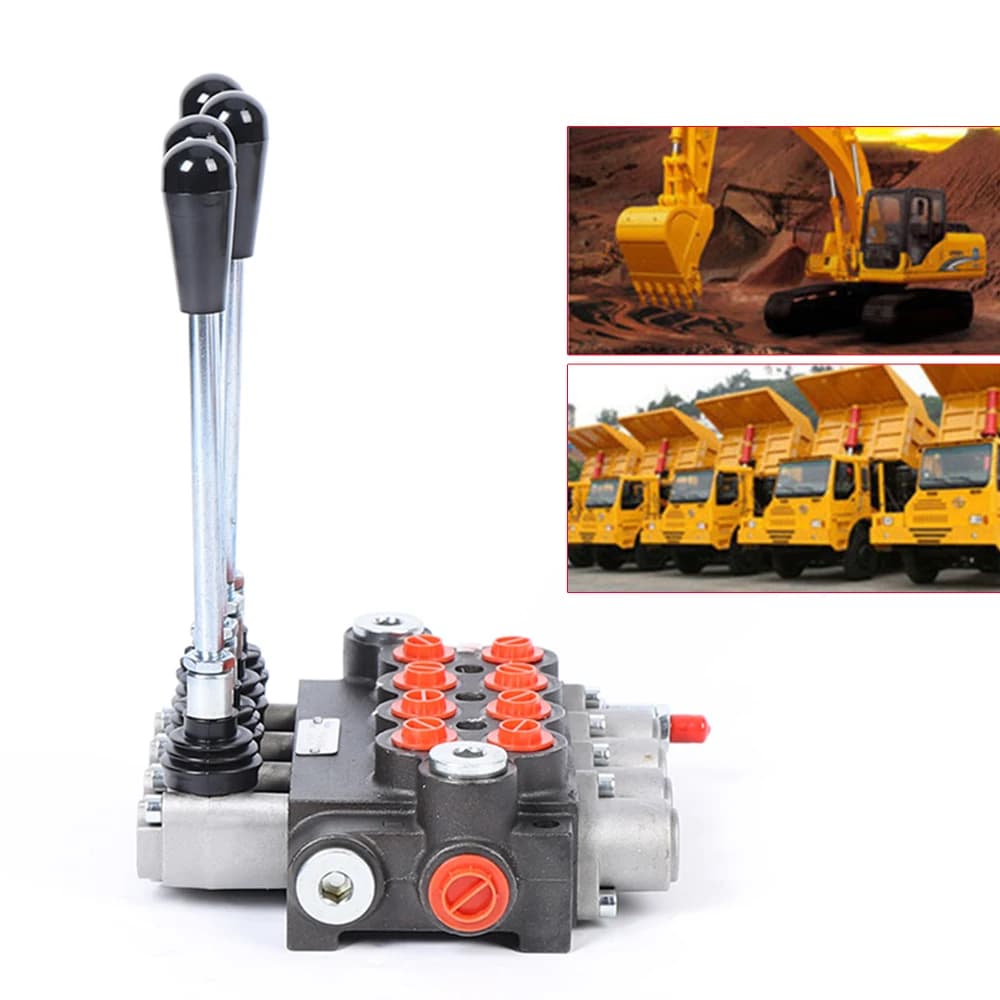

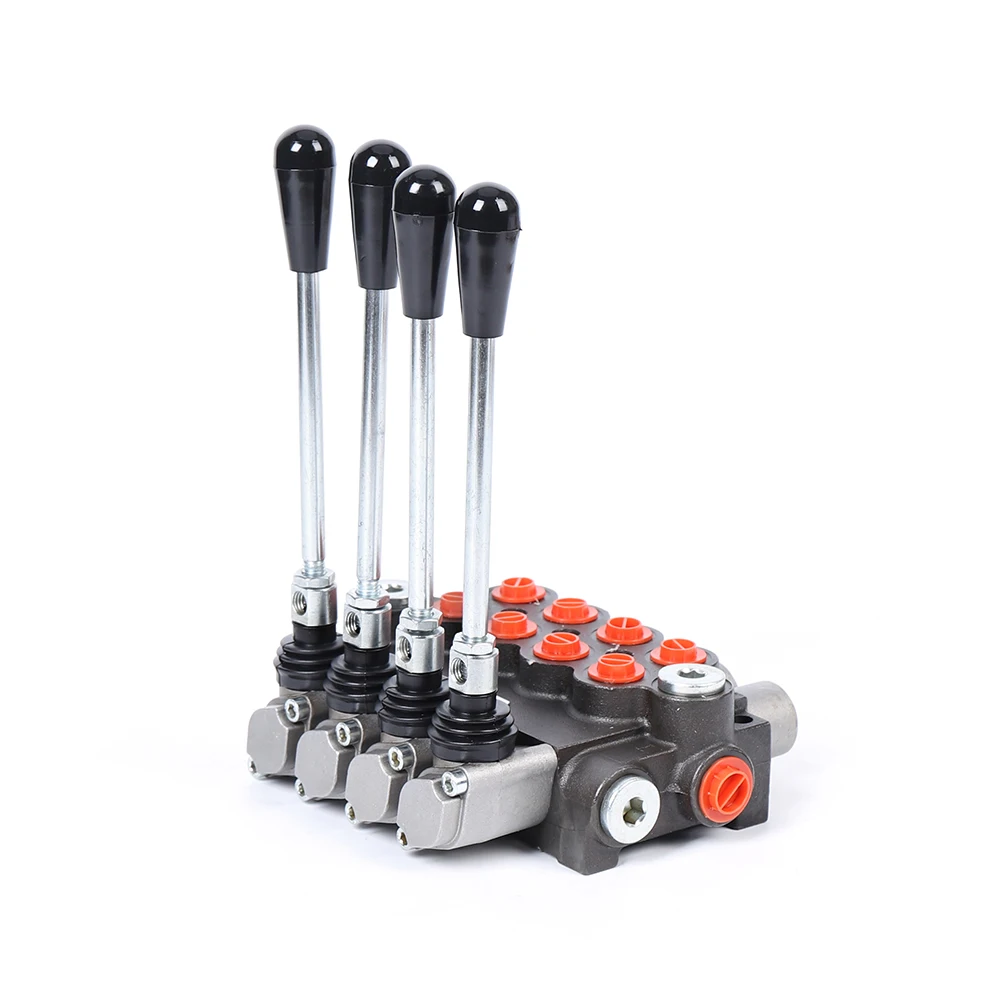

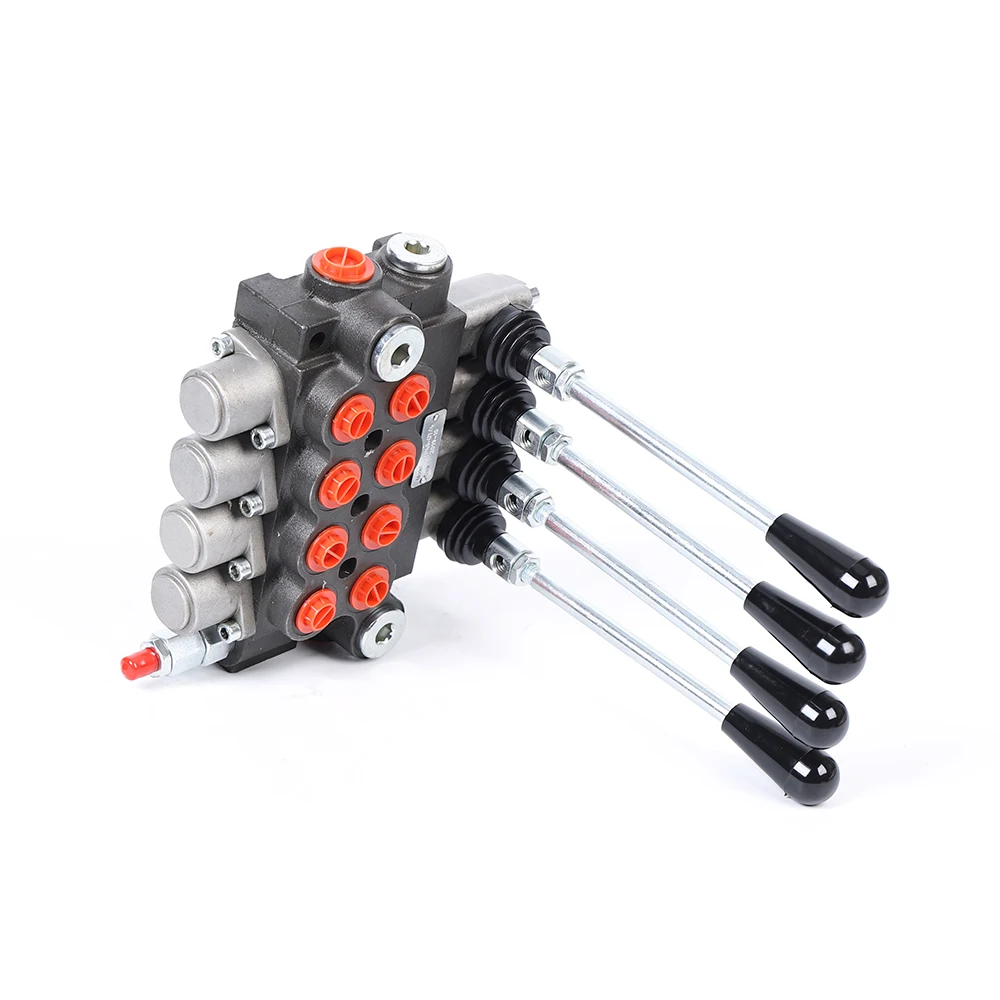

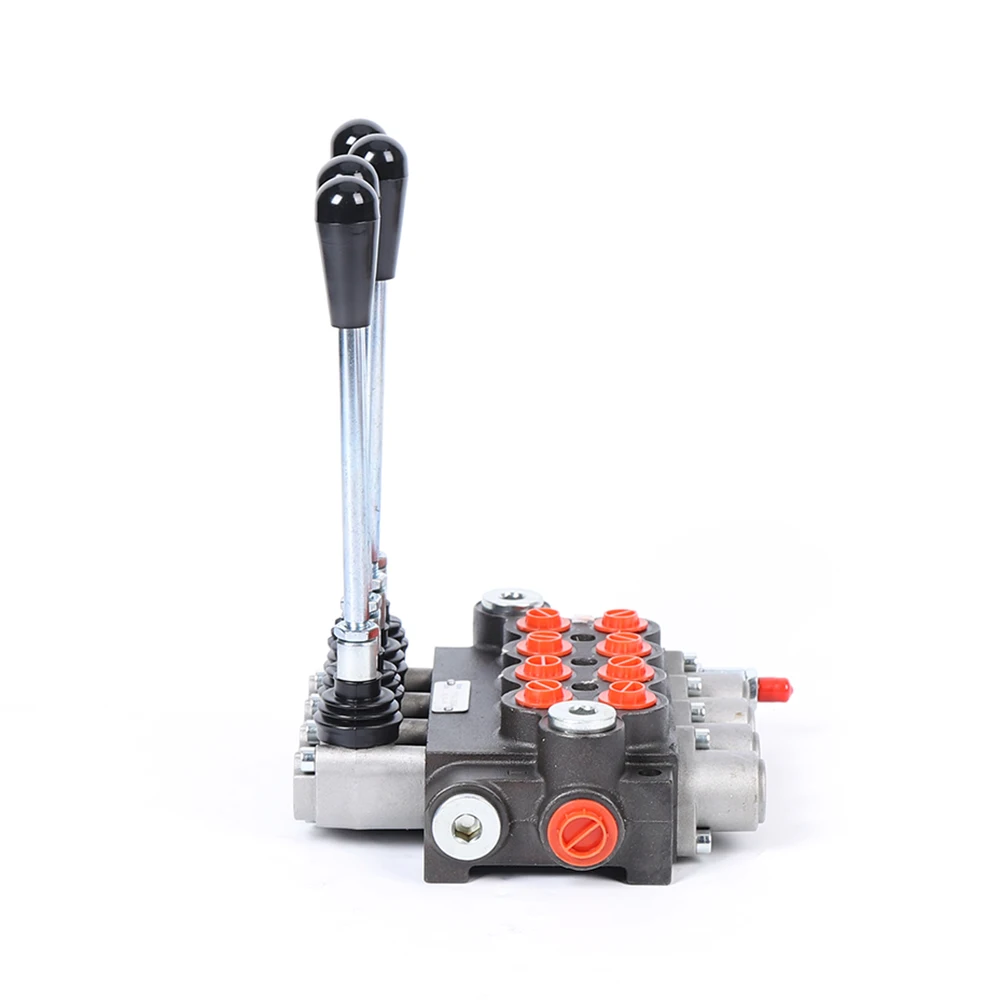

4Spool P40 Hydraulic Directional Control Valve Manual Operate 13Gpm For Double Acting Cylinders

Q: What scenarios are the products suitable for?

A: This product is suitable for the hydraulic mechanisms of small tractors, log-splitting machines, forklifts, sanitation vehicles, small loaders, and other construction machinery.

Specification

Material: Vermicular Graphite Cast Iron, 40Cr

Color: Black, Red

Process: Phosphating

Style: Modern

Relief Valve: Adjustable

Center Mechanism: Open

Max. Operating Pressure: P = 3600psi (250 Bar); T = 150psi (10 Bar); B = 4300psi (300 Bar)

Rated Flow Rate: 60L/Min/13gpm

A, B Ports: 1/2" BSPP

P, T, N Port: 1/2" BSPP

Back Pressure: ≤1MPA

Temperature: -20~80℃/-4~176℉

Viscosity Range: 10 - 400mm²/0.01-0.62in²/s

Filtrating Accuracy: ≤10μm

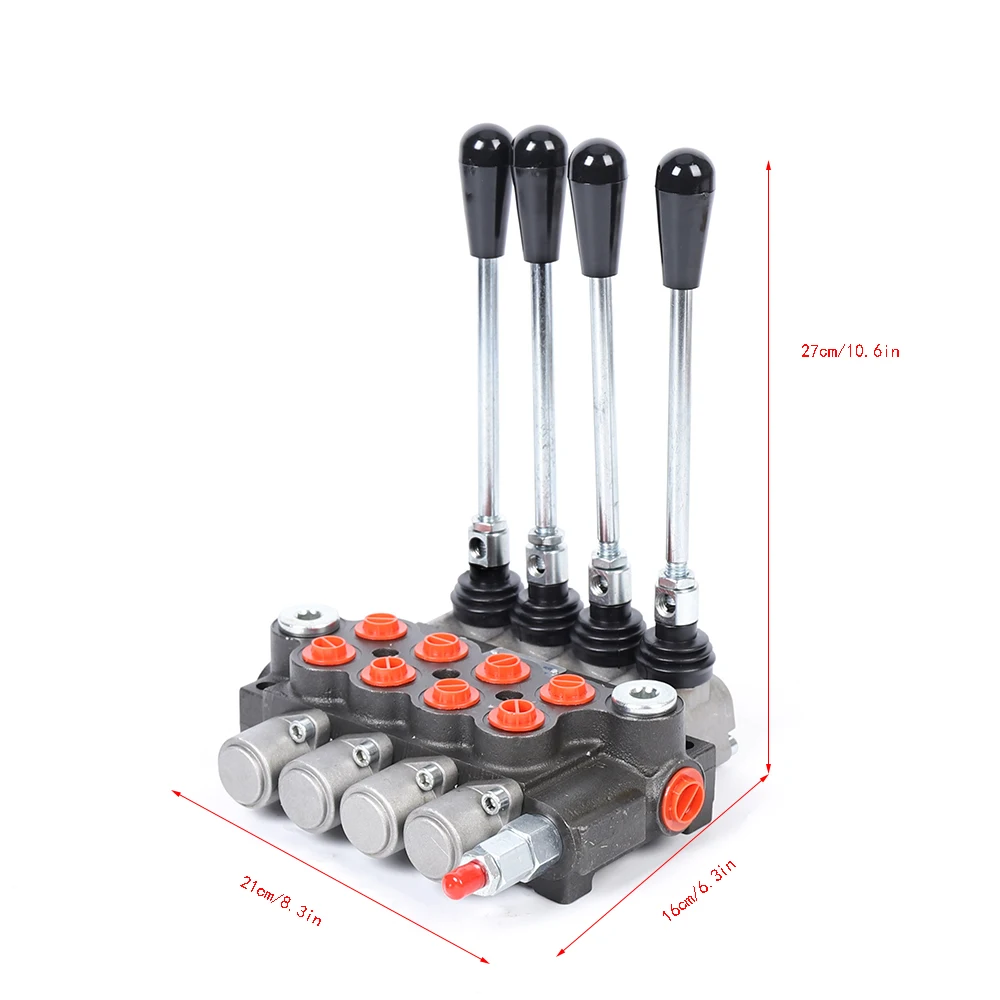

Product Size: 21*16*27cm/8.3*6.3*10.6in

Package Size: 27*23*12cm/10.63*9.06*4.72in

Gross Weight: 8kg/17.64lbs

Net Weight: 7.6kg/16.76lbs

Description

This 4-spool P40 hydraulic directional control valve is a high-performance hydraulic control component suitable for various industrial and construction machinery equipment. It is made of sturdy materials and has excellent durability and reliability. The valve body design is compact, easy to install, and can effectively save space. The handle operates flexibly and feels comfortable, ensuring that you can easily control the hydraulic mechanism. Overall, this product is not only powerful in function but also easy to operate, making it an indispensable and important component in various hydraulic mechanisms.

Key Features

Made to Last: High-class vermicular graphite cast iron and 40Cr with an exquisite phosphating treatment make this product sturdy, scratch-resistant, impact-resistant, and not easy to corrode and deform, ensuring a long service life.

Versatile Control Options: The product offers 4 control methods, including manual, pneumatic, hydraulic, and electric control, providing flexibility to suit different applications.

High Efficiency: The maximum working pressure of this product can reach 3600 PSI, and the rated flow rate can reach 13GPM, greatly improving your work efficiency and saving you time and energy.

Pressure Adjustable: The built-in relief valve in the valve body can help you adjust the working pressure of the hydraulic mechanism to meet the needs of multiple scenarios.

Good Performance: All valve cores of this product are standard double-acting valve cores, with springs returning to the neutral position, which has excellent performance and stable operation, making it an ideal choice for double-acting oil cylinders.

Excellent Function: This product adopts a parallel oil circuit design, which is connected to other hydraulic components through a pressure output port, providing a sufficient power source for your equipment.

Simple Operation: This valve is equipped with four independent handles, each of which can independently control a hydraulic circuit, achieving precise flow and direction control.

High Adaptability: The valve body is equipped with multiple interfaces, making it easy to connect various hydraulic pipelines and meet the needs of different application scenarios.

Effortless Cleaning: It has a smooth surface and a simple structure, so you only need to wipe the dust or residue with a towel.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Inner Check Valve: The check valve inside the valve body ensures that hydraulic oil does not backflow.

Dust Plugs: They can prevent dust from entering, effectively keep the interior of the product clean, and extend its service life.

Practical Handles: The handles are flexible and comfortable to operate, ensuring that you can easily control the hydraulic mechanism during the operation process.

Application

This product is suitable for the hydraulic mechanisms of small tractors, log-splitting machines, forklifts, sanitation vehicles, small loaders, and other construction machinery.

Applications:

Small Tractors

Tractors Loaders

Log Splitters

Other Mobile

Packages:

1 x 4P40 Hydraulic Directional Control Valve
