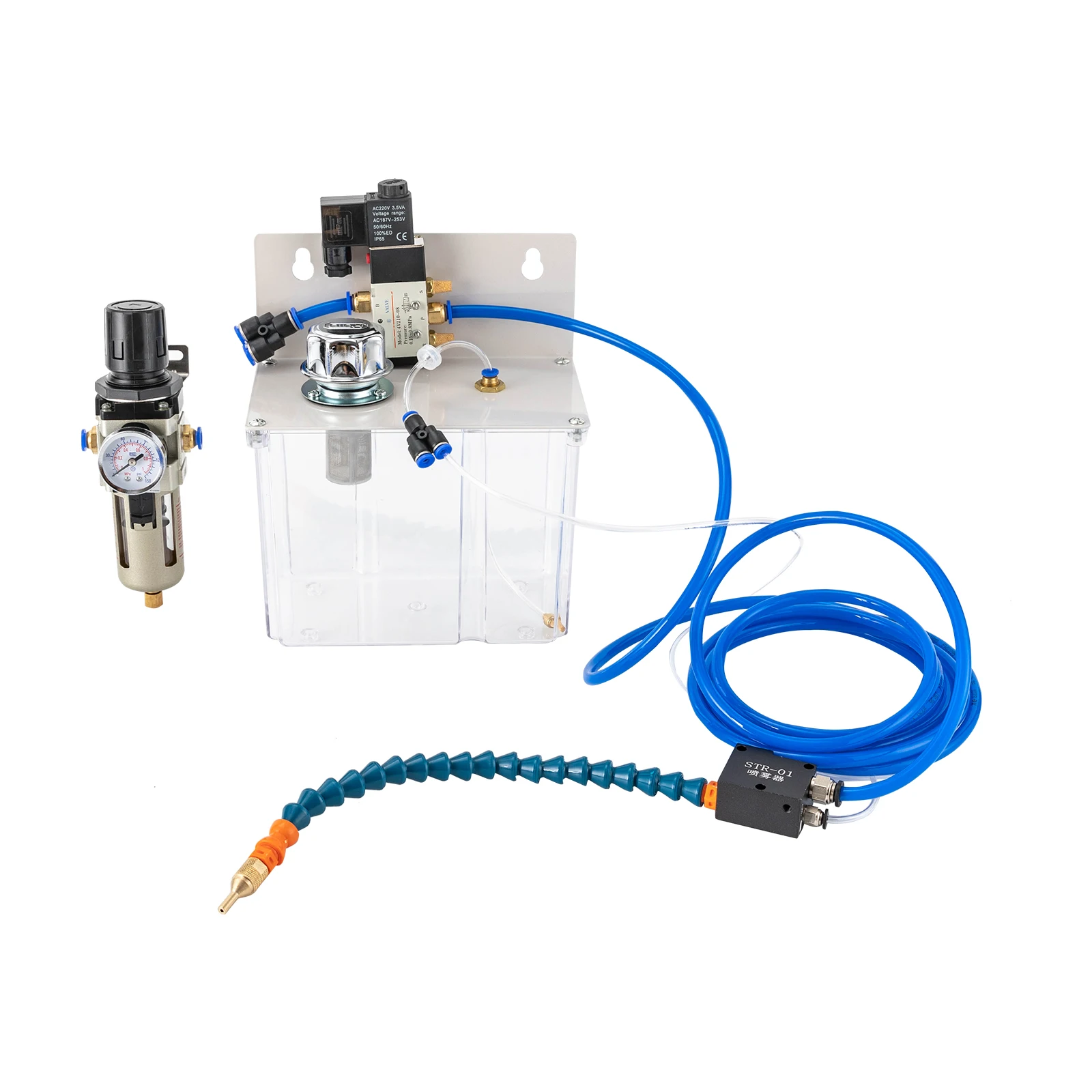

3L Spray Cooler Coolant Pump Oil Mist Sprayer Lubrication Spray System Mist Machine for CNC Lathe Milling Drill Grind Machine

Description

A powerful tool is indispensable for cooling and lubrication work. Made of resin, A3 iron, aluminum alloy,  iron, engineering plastic, PU, and PVC, our coolant cooling spray pump lays the foundation for your long-term use. The large capacity of 126.8oz allows you to complete your work faster and more conveniently. A simple operation can also save you time. With it, you have a good assistant.

Key Features

Build to Last: High-quality resin, A3 iron, aluminum alloy, iron, engineering plastic, PU, and PVC make the whole product solid and durable, so it can better keep practical for a long time.

Excellent Performance: This product can complete cooling, lubrication, and chip blowing at one time, improve the machining speed, reduce the machining cost, and also ensure smooth and high-precision machining surface. Besides, it adopts the negative pressure siphon principle, and 0.1mpa air pressure can make the product realize spray without water pressure.

Careful Design: Compared with traditional pouring oil cooling, this spray coolant lubrication spray system can save coolant, control the capacity of the spray and coolant, and achieve a better cooling effect. In addition, it can also increase the tightness, avoid leakage and save your costs.

Adjustable Design: The air volume (spray force)/oil volume (flow) can be adjusted by adjusting the knob “AIR”/“OIL” on the spray, and the adjustment direction is marked beside the knob, so the operation is simple.

Safety Guard: The waterproof grade of IP65 and air filter can effectively protect the safety during use.

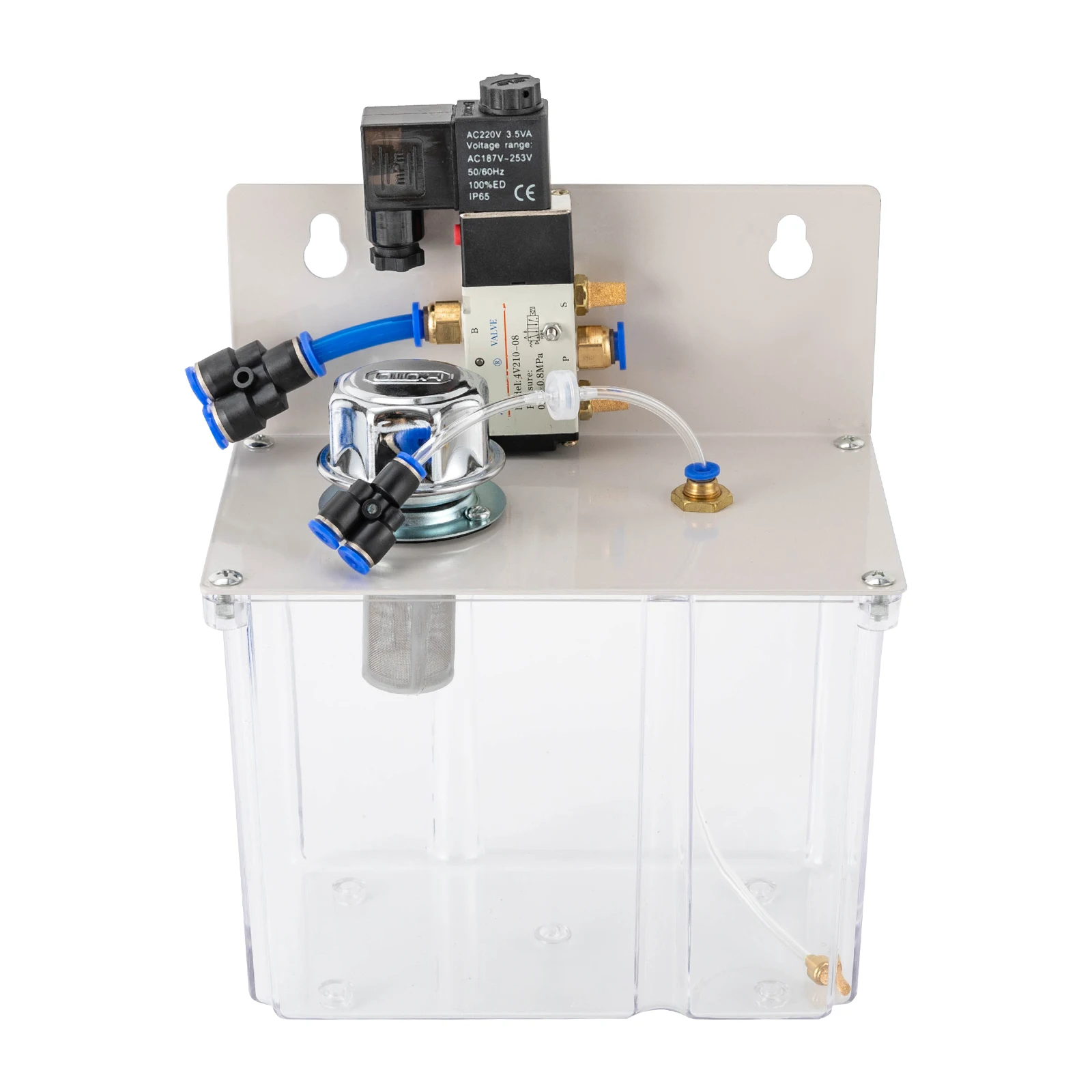

Well-designed Fuel Tank: 126.8oz clear fuel tank avoids frequent refueling and improves working efficiency. In addition, you can also observe the oil quantity and add oil in time.

Simple Installation and Operation: The simple structure, pressure(0.15-0.8mpa), two 11.81inch sprayer universal tubes, three mounting holes, and two 13.12ft tracheas enable you to install and master it in a short time.

Easy to Carry and Store: The overall size of 9.49*7.68*4.92inch, the net weight of 6.39bs, and the removable design make it easy to store and carry anywhere.

Ideal Gift: With good performance, this product is an ideal gift to family, friends, or lovers engaged in processing and other industries.

Details

Round Corners: Compared with traditional square corners, an arc design without a burr can better care for your skin.

Robust Outlet Pipe: The pipe does not leak or shake, ensuring that your work can be carried out smoothly.

Powerful Nozzle: The nozzle with an inner diameter of 0.09-inch has good sealing performance, which can improve your work efficiency.

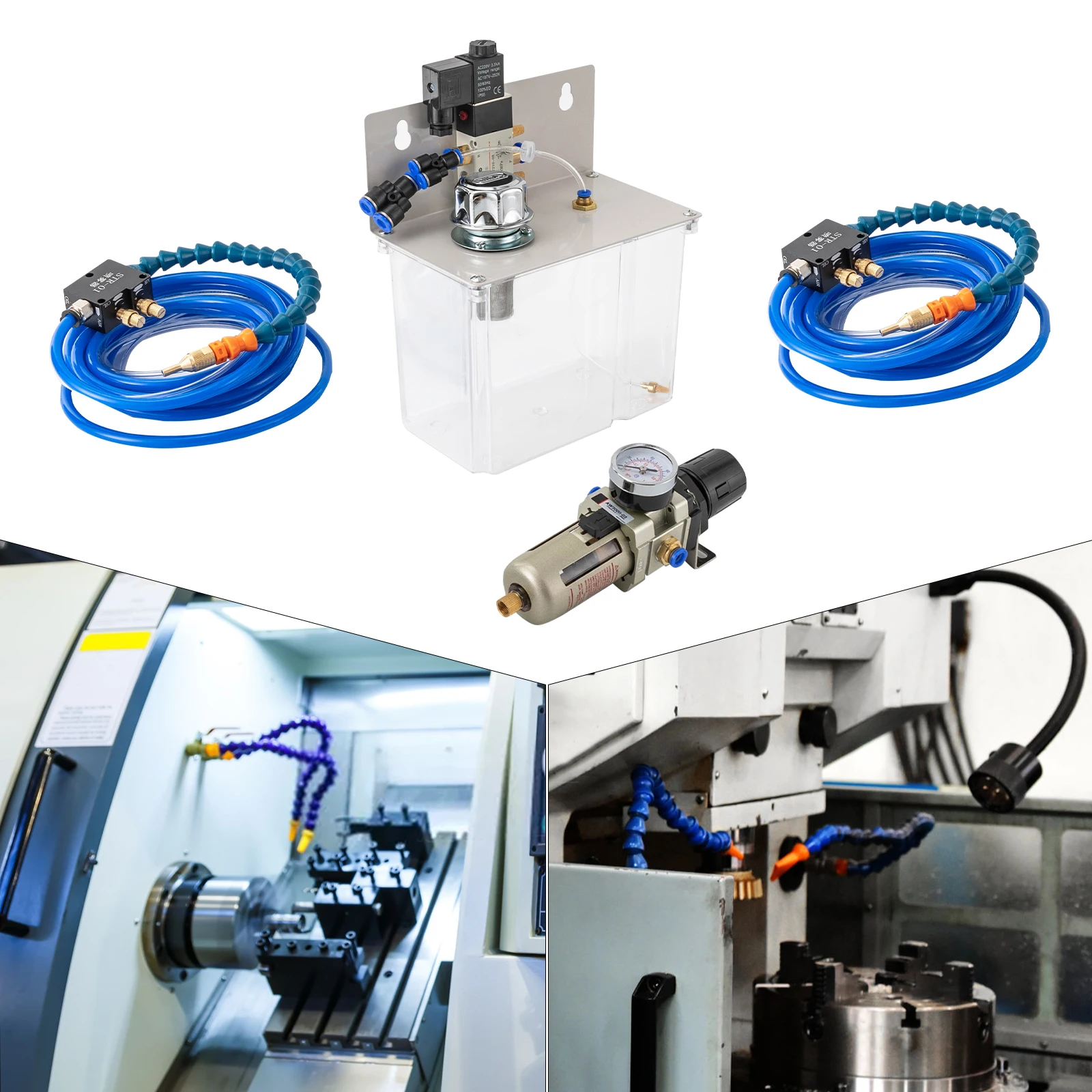

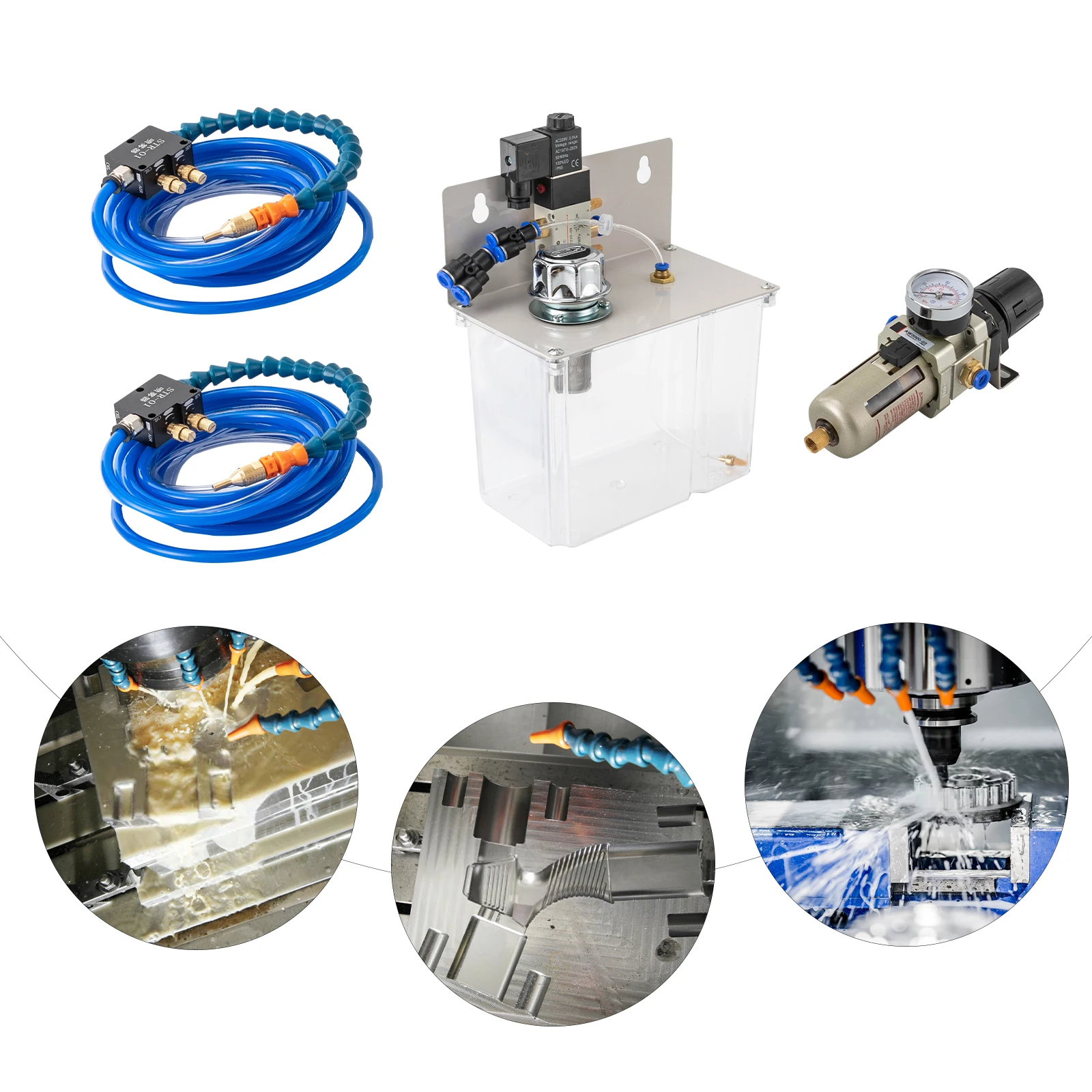

Application

This product is applicable to the cooling, lubrication, engraving, milling, grinding, drilling, and boring of equipment such as precision engraving highlight machines, aluminum processing machinery, lathes, milling machines, grinders, drilling machines, tapping machines, grinding equipment, CNC machining centers, sawing machines, woodworking equipment, feeders, etc. It can also be used for small area cooling spray or spraying, such as automatic punching machines, mobile phone back cover polishing, etc. It is suitable for water, alcohol, coolant, engine oil, kerosene, edible oil, and other spraying media.

How to Use

1. The air pipe of the air pump enters the air from the IN identification air inlet of the air filter. The air is discharged from the OUT air outlet, and then connected to the end of the solenoid valve with 2 copper silencers.

2. Plug the complimentary blue air pipe from the end of the solenoid valve with a plug to the AIR inlet of the spray. One end of the free transparent oil pipe is connected to the check valve on the oil tank, and the other end is directly inserted into the OIL suction port of the spray.

3. The machine tool PLC is connected to the coil of the solenoid valve, and the PLC program is used to control the opening and closing of the solenoid valve. When the solenoid valve is opened, it will ventilate and spray; When the solenoid valve is closed, air will be cut off and spray will not occur. (If the power supply is required to work, the PLC equipment or automatic signal needs to be wired to the solenoid valve:The connection method is to connect the positive and negative poles of the two parallel contacts in the solenoid valve coil. The two contacts are not positive or negative. A separate contact on the side is grounded to prevent static electricity.)

Specification

Material:
Fuel Tank: Resin
Fuel Tank Cover: A3 Iron
Sprayer and Solenoid Valve: Aluminum Alloy
Air Filter: Iron+ Engineering Plastic
Trachea: PU
Sprayer Universal Tube: PVC
Color: Blue+Clear
Assembly Required: Yes
Shape: Rectangular
Mount Type: Free Standing
Number of Items: 1
Model: 4V210-08
Pressure: 0.15-0.8mpa
Voltage: AC 220V 3.5VA
Waterproof Grade: IP65
Air Filter Model: AW3000-03
Sprayer Model: STR-01
Fuel Tank Capacity: 3L/126.8oz
Nozzle Inner Diameter: 2mm/0.09 inch
Sprayer Universal Tube Length: 30cm/11.81inch
Trachea Length: 4m/13.12ft
Number of Installation Holes: 3
Hole Diameter: 5mm/0.2inch
Liquid Pipe Diameter: 4mm/0.16inch
Intake Pipe Diameter: 8mm/0.31inch
Sprayable Medium: Water, Alcohol, Coolant, Engine Oil, Kerosene, Cooking Oil

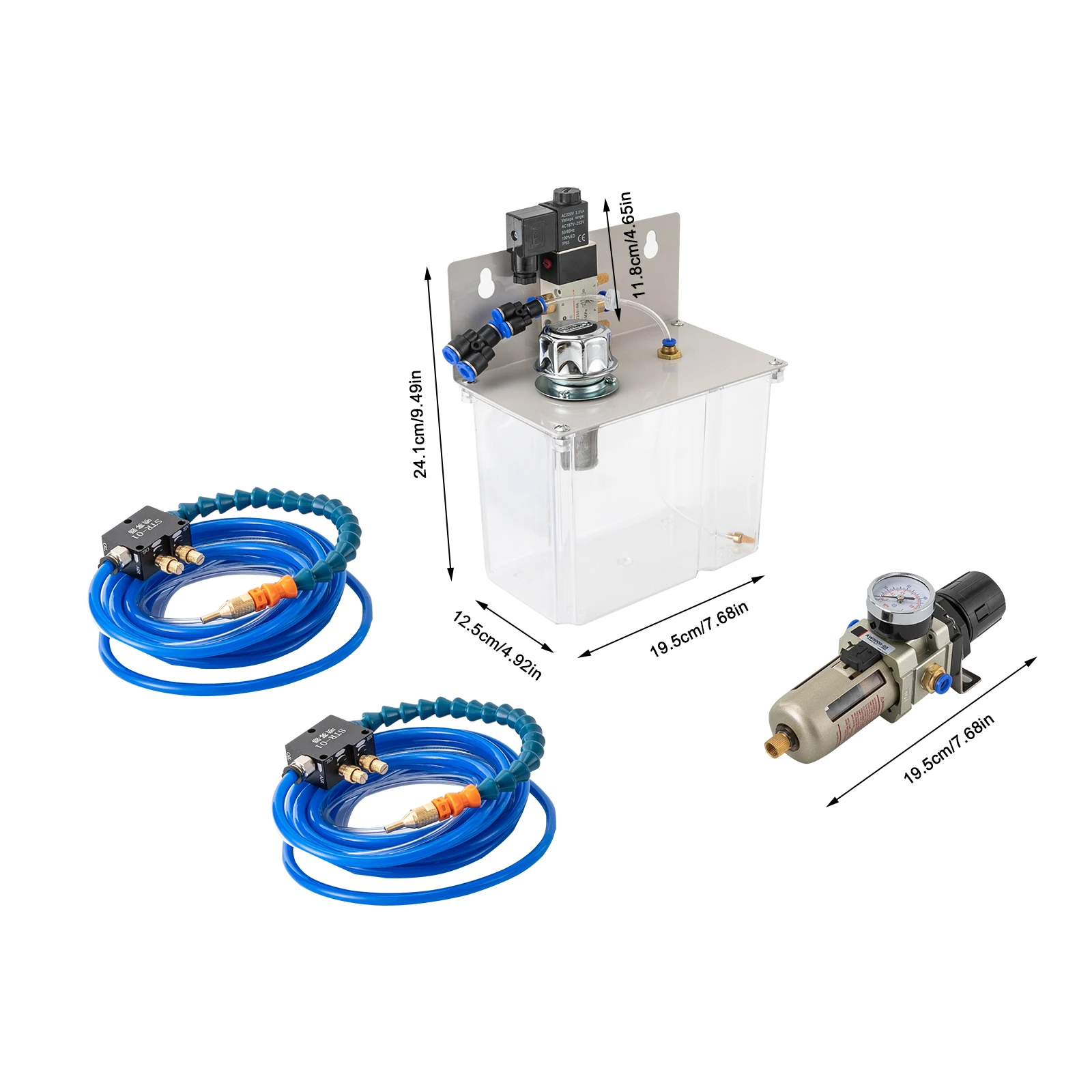

Size:
Fuel Tank: 24.1*19.5*12.5cm/9.49*7.68*4.92inch
Electromagnetic Valve: 11.8cm/4.65inch
Air Filter: 19.5cm/7.68inch
Package Size: 35*25*22cm/13.78*9.84*8.66inch
Gross Weight: 2.9kg/6.39lbs

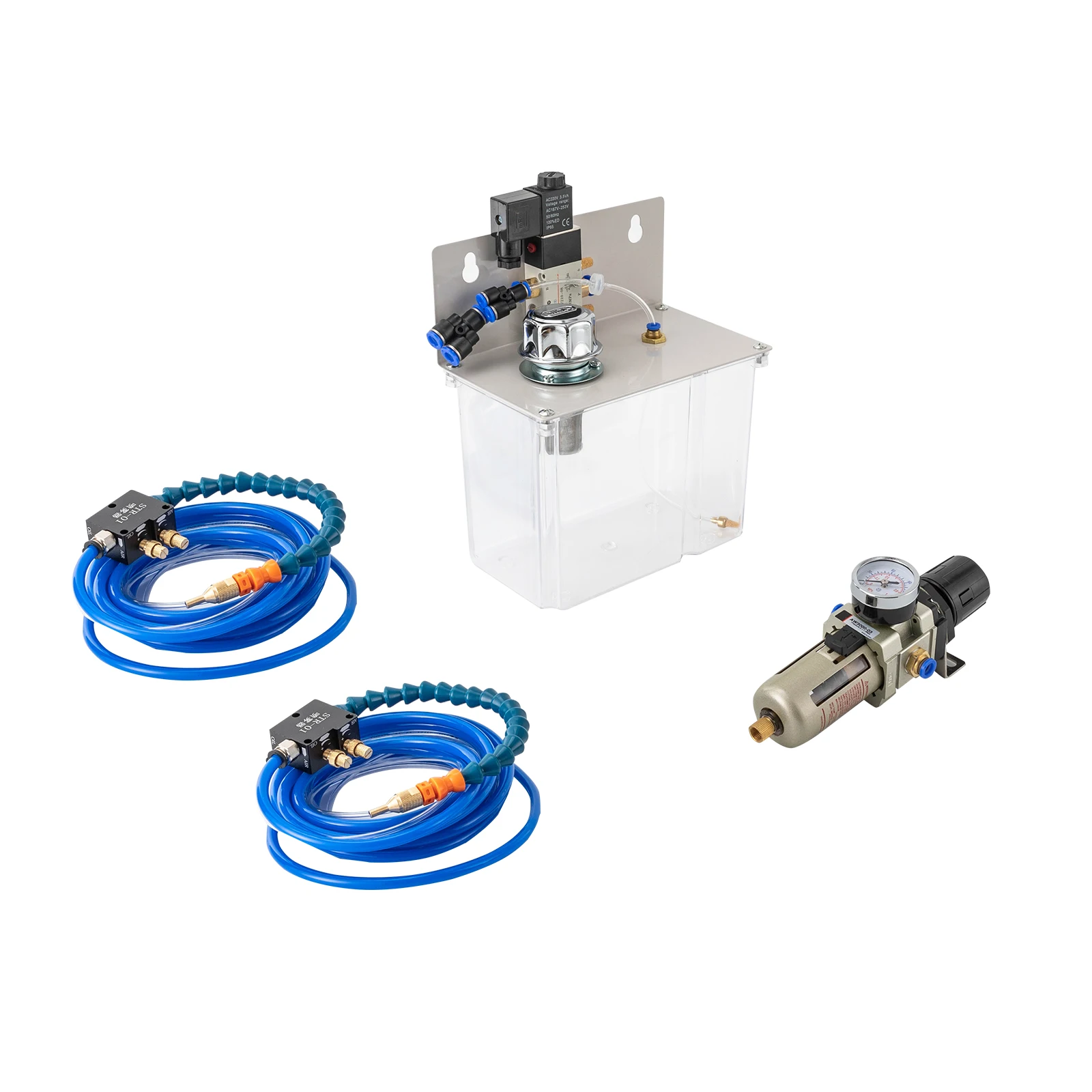

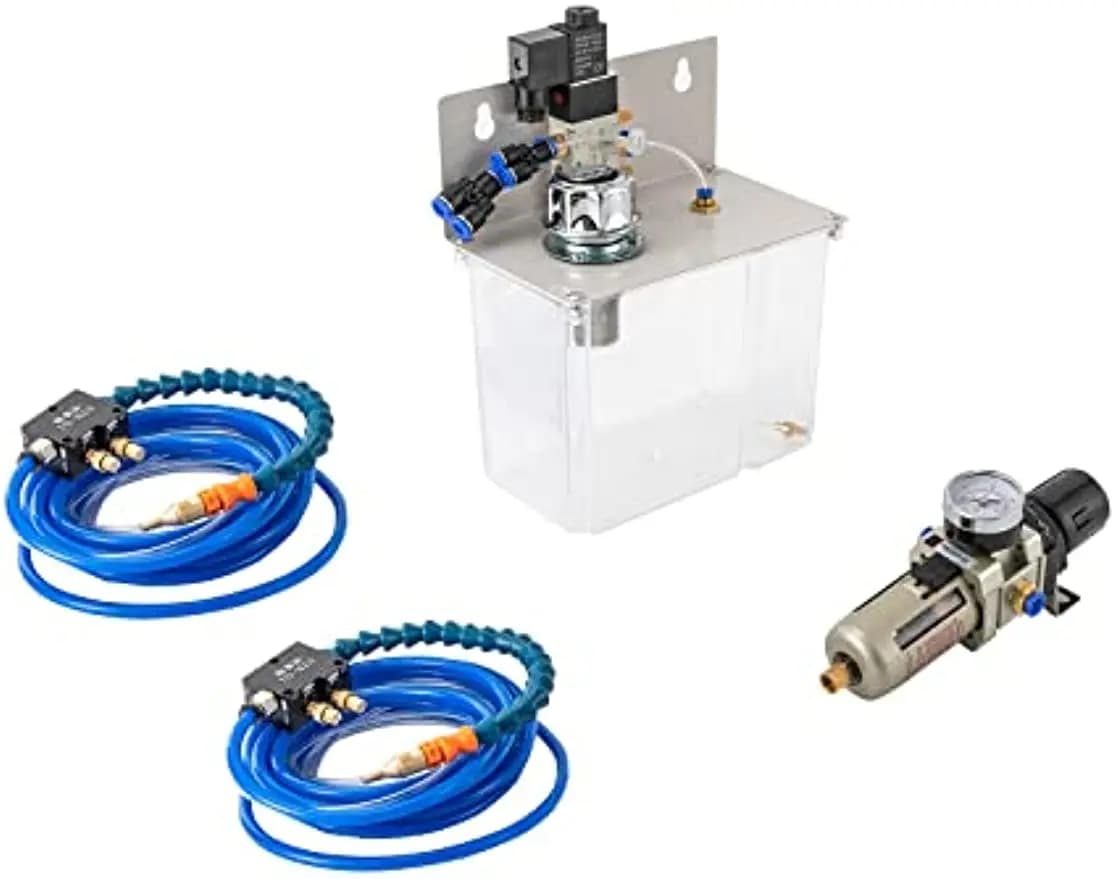

Package Included

1* Fuel Tank
2* Sprayer Universal Tubes
2* Tracheas
1* Air Filter

Notes

1.Please note that you need to prepare an air compressor (air pressure 2-8kg) for connection use.
2.Please note that this product is not applicable to solid grease, particle suspension, glue, and paint.
3.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
