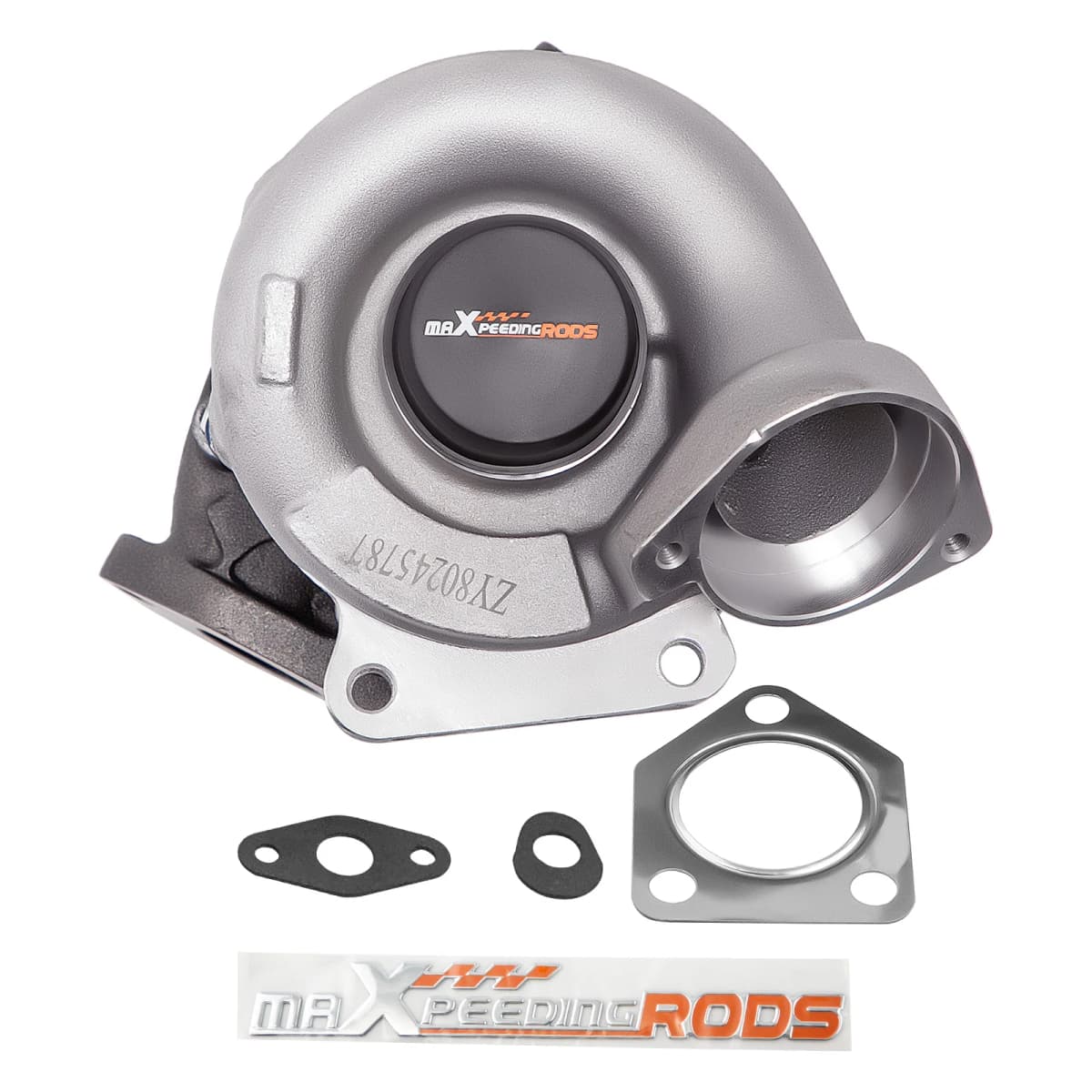

Turbocharger E90 E91 E87 for BMW 320D 120D M47 163HP Turbo + Gasket 1165228749607 4716166 7795499 7795498 779549807

Turbocharger for BMW E90 E91 320D 120D 163HP M47TU2D20 Turbo 49135-05610

Application ：

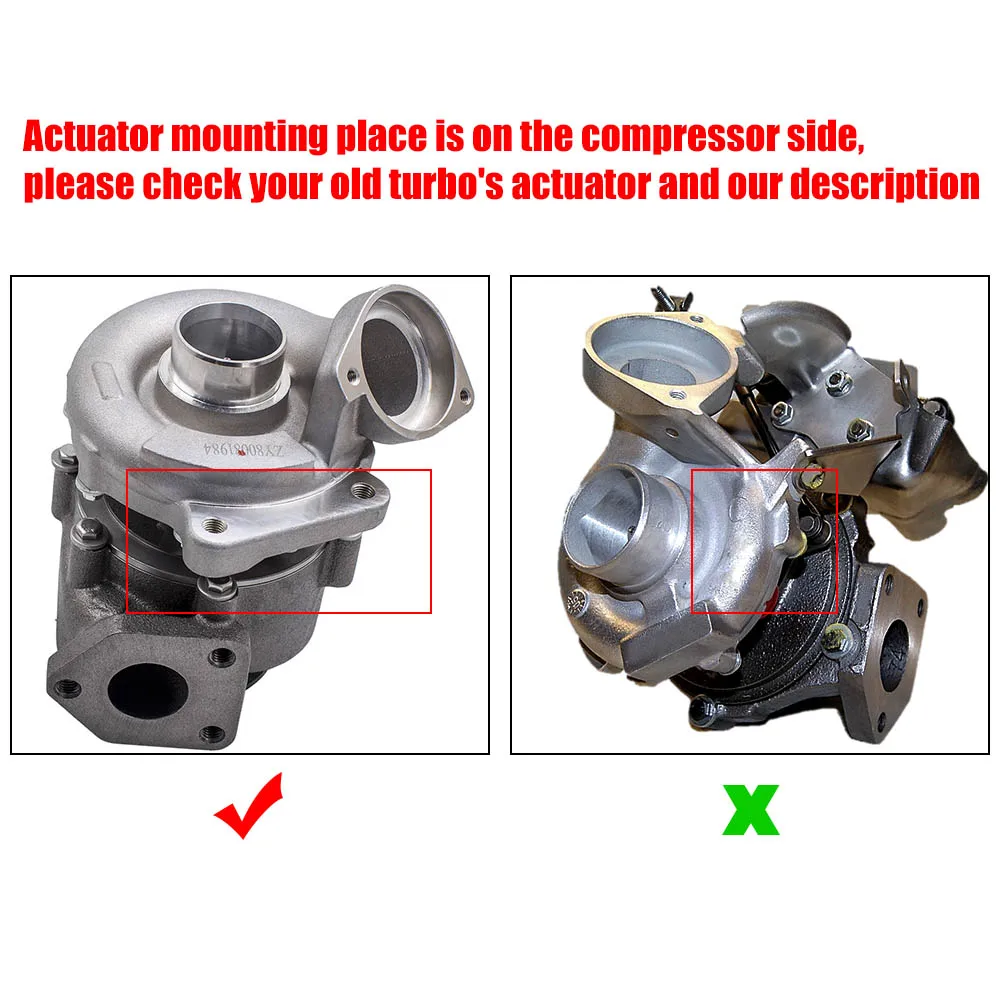

( Note: this turbo's actuator need to been installed on the compressor housing side, and this turbo fit for bmw 120d with m47 engine, not for m46 engine, the aother similar one is a VNT/VGT turbo, their big difference is the actuator mouting place )

NOTE: Please install the turbo with the original eletrical aturator.

for BMW 1 Series

for BMW 1 Series 120 d (E87) Engine: M47TU2D20 2.0L 1995 ccm 120 Kw - 163 HP 2003-2006

for BMW 3 Series

for BMW 3 Series 320 d (E90 / E91) Engine: M47TU2D20 2.0L 1995 ccm 110 Kw - 150 HP 2005-2007

for BMW 3 Series 320 d (E90 / E91) Engine: M47TU2D20 2.0L 1995 ccm 120 Kw - 163 HP 2004-2007

Turbo Model：

TF035HL , TF035

Turbo Part Number & OEM Number：

49S35-05671 , 49S35 05671 , 49S3505671

49135-05671 , 49135 05671 , 4913505671

49135-05670 , 49135 05670 , 4913505670

49135-05651 , 49135 05651 , 4913505651

49135-05650 , 49135 05650 , 4913505650

49135-05641 , 49135 05641 , 4913505641

49135-05660 , 49135 05660 , 4913505660

49135-05640 , 49135 05640 , 4913505640

49135-05630 , 49135 05630 , 4913505630

49135-05620 , 49135 05620 , 4913505620

49135-05610 , 49135 05610 , 4913505610

49E90-35209 , 49E90 35209 , 49E9035209

11654716166 , 7795499K10 , 11657795499K

11657795499 , 11657795498 , 11652287496

1165779549907 , 1165779549807 , 1165228749607

4716166 , 7795499 , 7795498 , 779549807 , 779549907

Note:

*
