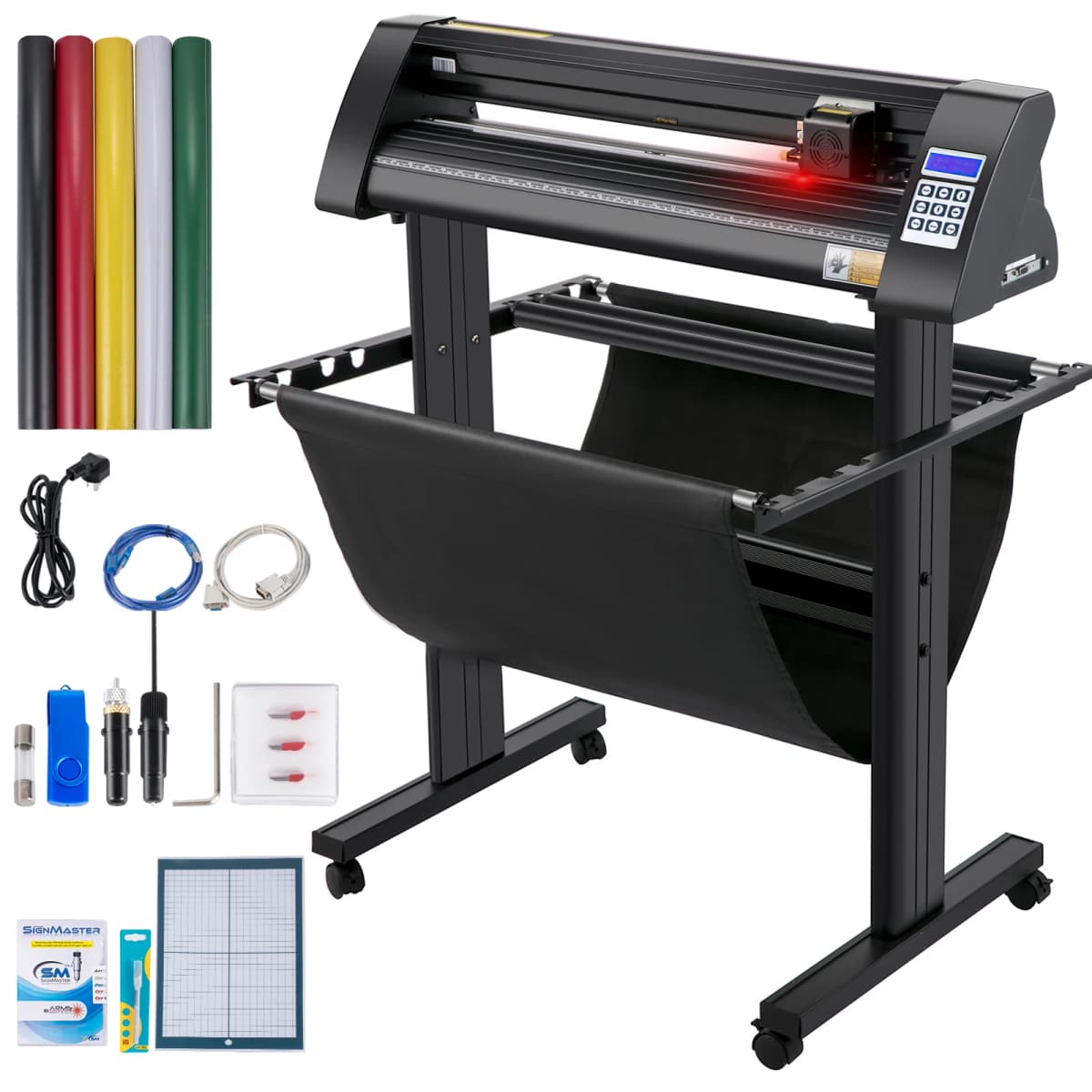

SucceBuy 28/34/53 Inch Semi-Automatic Vinyl Cutter Plotter Cutting Printer Floor Stand 3 Blades LCD Display SIGNMASTER Software

Product Description

720 / 870 / 1350 mm Semi-Automatic Vinyl Cutter Plotter

Contour Cutting & Clear LED Screen & Wide Application

This handpicked vinyl plotter with floor stand is loaded with advanced features that will bring professional-looking projects. It delivers 720 mm / 28.3 in, 870 mm / 34.3 in, and 1350 mm / 53.1 in three max paper feed types with 630 mm / 24.8 in, 780 mm / 30.7 in, 1260 mm / 46.6 in three max cutting width types. A built-in optical eye for laser guiding will semi-automatically and accurately scan all kinds of marks. The robust construction with a LED display will help you operate the machine clearly and easily. It can cut various intricate lettering and patterns, including paper, cardstock, vinyl, and fabric.

Key Features

Optical Eye for Laser Guiding

Three adjustable double-spring pinch rollers and aluminum knurled rods ensure the vinyl plotter feeding paper steadily without paper jam.

LED Digital Panel

The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a cutting speed of 800 mm/s and a cutting force of 500g.

Accurate Calibration

The ruler guide is integrated for easier measurements, and the 3 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included Biro pen component to sketch out your design before cutting.

Flexible Input

This plotter cutter vinyl machine has high compatibility and flexible input, which can be connected through COM and USB. It is compatible with multiple computer systems like Windows XP/VISTA/7/8/10 (32&64).

Complete Accessories

This sign cutting plotter includes complete accessories for better use, such as USB flash drive including installation and user manual, 5 vinyl sheets, cutting mat and replaceable blades. It also offers a fuse possessing of emergency stop function to prevent you from the danger.

Extensive Use

The vinyl cutter is capable to flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

Specifications

Model: KH-1350A

Max Cutting Width: 46.6 in / 1260 mm

Max Paper Feed: 53.1 in / 1350 mm

Motor Type: Stepper

Material: Aluminum Alloy

Power: 95W

Mother-board: ARM

Max Cutting Force: 500 g / 1.1 lbs

Max Cutting Speed: 800 mm/s / 31.5 ips

Buffer: 1-4M

LCD Display: CN/EN

Real-time Speed Adjusting: Support

Interface: COM+USB

Re-cutting Function: Support

Re-cutting Accuracy: ±0.004 in / ±0.01 mm

Resolution Ratio: 0.0245 mm / step

Language Format: DMPL / HPGL

Voltage: AC 85-264V

Max Cutting Thickness: 0.12 in / 3 mm

Included Software: Signmaster

OS Compatibility:Windows

Product Size (L x W x H): 60.2 x 25.2 x 40.6 in / 153 x 64 x 103 cm

Weight: 61.7 Ibs / 28 kg

Package Content

1 x Cutting Plotter

1 x Power Supply Cable

3 x Blades

1 x Graver

1 x Blade Holder

1 x Pen Holder

1 x Ball Pen Core

5 x Vinyl Sheets

1 x Cutting Mat

1 x COM Connection Cable

1 x USB Cable

1 x Spanner

1 x USB Driver

1 x Bracket Screws

1 x Floor Stand

Specifications

Model: KH-720A

Max Cutting Width: 24.8 in / 630 mm

Max Paper Feed: 28.3 in / 720 mm

Motor Type: Stepper

Material: Aluminum Alloy

Power: 95W

Mother-board: ARM

Max Cutting Force: 500 g / 1.1 lbs

Max Cutting Speed: 800 mm/s / 31.5 ips

Buffer: 1-4M

LCD Display: CN/EN

Real-time Speed Adjusting: Support

Interface: COM+USB

Re-cutting Function: Support

Re-cutting Accuracy: ±0.004 in / ±0.01 mm

Resolution Ratio: 0.0245 mm / step

Language Format: DMPL / HPGL

Voltage: AC 85-264V

Max Cutting Thickness: 0.12 in / 3 mm

Included Software: Signmaster

OS Compatibility:Windows

Product Size (L x W x H): 34 x 25.2 x 40.6 in / 88 x 64 x 103 cm

Weight: 43.43 lbs / 19.7 kg

Package Content

1 x Cutting Plotter

1 x Power Supply Cable

3 x Blades

1 x Graver

1 x Blade Holder

1 x Pen Holder

1 x Ball Pen Core

5 x Vinyl Sheets

1 x Cutting Mat

1 x COM Connection Cable

1 x USB Cable

1 x Spanner

1 x USB Driver

1 x Bracket Screws

1 x Floor Stand

Specifications

Model: KH-870A

Max Cutting Width: 30.7 in / 780 mm

Max Paper Feed: 34.3 in / 870 mm

Motor Type: Stepper

Material: Aluminum Alloy

Power: 95W

Mother-board: ARM

Max Cutting Force: 500 g / 1.1 lbs

Max Cutting Speed: 800 mm/s / 31.5 ips

Buffer: 1-4M

LCD Display: CN/EN

Real-time Speed Adjusting: Support

Interface: COM+USB

Re-cutting Function: Support

Re-cutting Accuracy: ±0.004 in / ±0.01 mm

Resolution Ratio: 0.0245 mm / step

Language Format: DMPL / HPGL

Voltage: AC 85-264V

Max Cutting Thickness: 0.12 in / 3 mm

Included Software: Signmaster

OS Compatibility:Windows

Product Size (L x W x H): 41.3 x 25.2 x 40.6 in / 105 x 64 x 103 cm

Weight: 46.3 lbs / 21 kg

Package Content

1 x Cutting Plotter

1 x Power Supply Cable

3 x Blades

1 x Graver

1 x Blade Holder

1 x Pen Holder

1 x Ball Pen Core

5 x Vinyl Sheets

1 x Cutting Mat

1 x COM Connection Cable

1 x USB Cable

1 x Spanner

1 x USB Driver

1 x Bracket Screws

1 x Floor Stand

Features & Details

Built-In Optical Eye: The Optical eye of this vinyl cutter plotter is a laser pointing device for Contour Cutting, supported by software such as Signcut and Signmaster. This feature enables users to cut away the excess medium from the design that is not needed, leaving just the contour feature around your design.

Efficient LED Display: Coming with an illuminated LED screen and a large control panel, this plotter cutter simplifies the previous tedious buttons, making the operation much more explicit. With the adjustable cutting pressure 0-500g, and adjustable cutting speed 15-800 mm / s, this device will offer you a sensitive and intelligent operation.

Precise Cutting: This vinyl cutter includes three replaceable blades and a precise dividing ruler, enjoying a good reputation for its incredibly sharp and accurate performance. Max Cutting Width: 630 mm / 24.8 in, 780 mm / 30.7 in, 1260 mm / 46.6 in; Max Paper Feed: 720 mm / 28.3 in, 870 mm / 34.3 in, 1350 mm / 53.1 in; Cutting Precision: +/-0.01 mm / 0.0004 in, definitely meeting your multiple requirements.

Versatile Compatibility: This plotter cutter vinyl includes Signmaster software with a USB interface & COM port for easier connection. Support DM/PL, HP/GL multiple languages. System: Pentium processor-based PC or computers such as Windows XP/Vista/7/8/10, ARTCUT, Graph-Cut, Signcut, Signmaster, Flexi, Coreldraw. NOT compatible with the Mac system.

Powerful Design for Multiple Uses: Our intricately designed cutting plotter is equipped with a heavy-duty sheet metal floor stand featuring 4 caster wheels for convenient movement. Besides, inside fuses can decrease your probability of hurting. It is suitable for stickers, crepe paper, and many other materials and can be used for car stickers, traffic signs, balloons, helmets, etc.
