Mini Desktop Table Saw with 4 Saw Blades, 7 Speed Adjustable Small Cutting Machine 5000RPM for PCB/Stick/Acrylic/Veneer Cutting

Multifunctional Mini Table Saw, Compact Portable Woodworking DIY Craft Cutting Machine, 7-Speed Adjustable Electric Tabletop Saw Cutting Depth 15mm with 4 Saw Blades & Power Adapter for PCB/Stick/Acrylic/Veneer/Thin Wood/Aluminum Alloy Cutting Model Making 5000RPM (18*14*8cm)

This mini desktop table saw is an efficient cutting tool for DIY artisans. Its compact design and excellent performance make it an ideal choice for home studios. The product is equipped with an efficient motor that can provide strong and stable power output, easily meeting the cutting needs of various materials.

Key Features

Made to Last: High-class aluminum alloy, metal, and acrylic with exquisite laser cutting, bending, welding, and spray molding processes make this product sturdy, scratch-resistant, impact-resistant, and not easy to corrode and deform, ensuring a long service life.

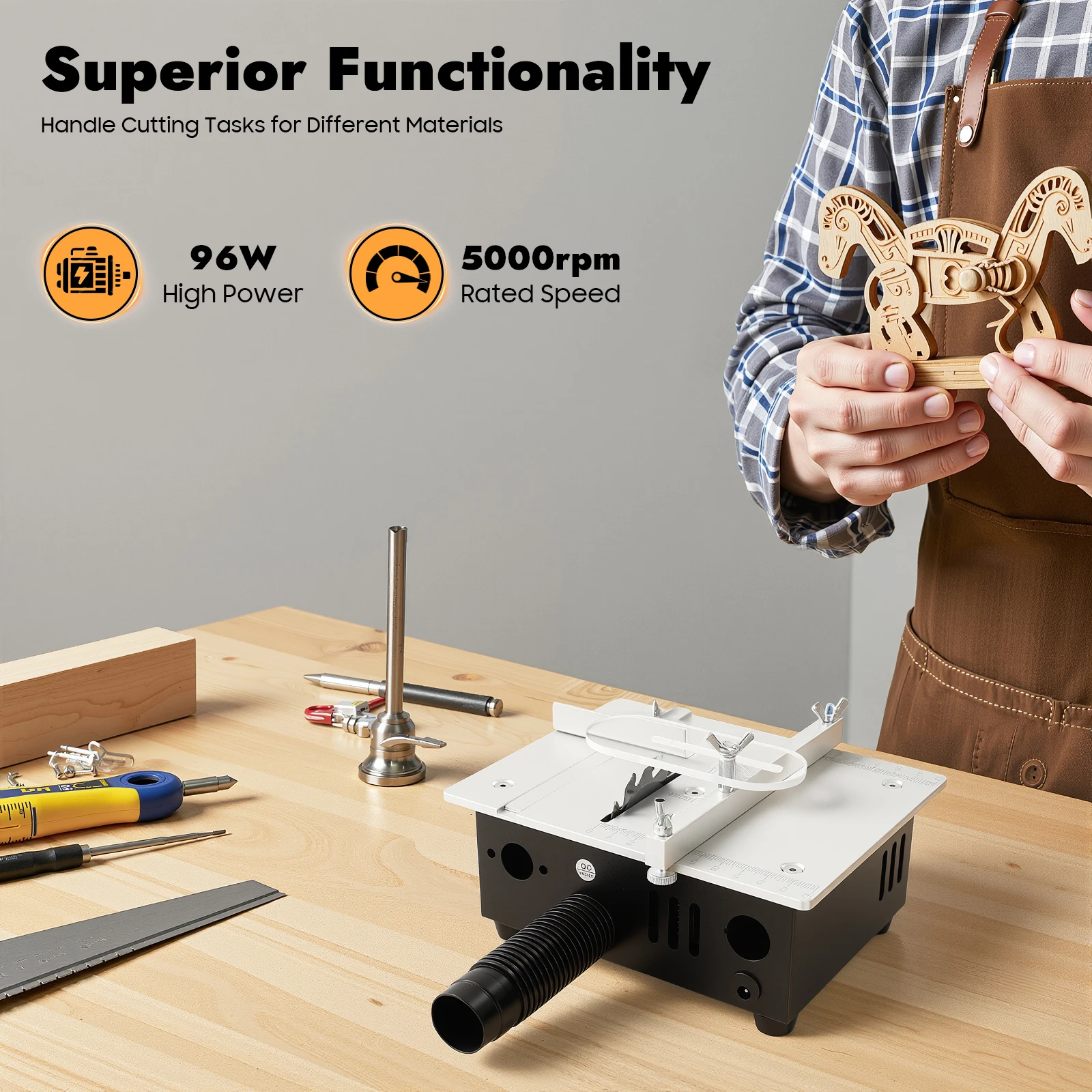

Good Performance: This product uses a premium pure copper motor to achieve a speed of up to 5000rpm, providing stable and strong power, which can easily meet the cutting needs of various materials such as wood and plastic.

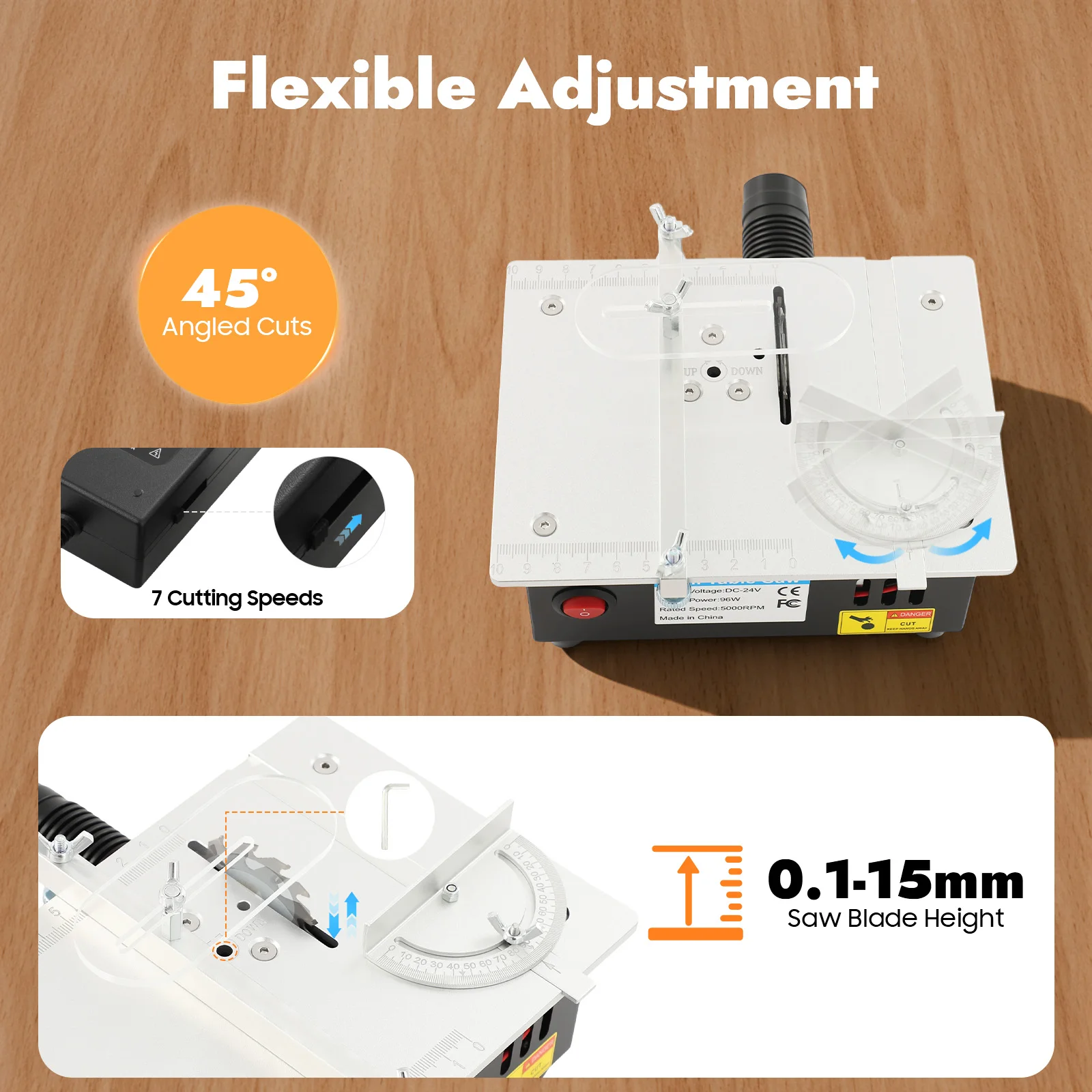

Adjustable Design: You can adjust the height of the saw blade within the range of 0.0039-0.59in using a hex wrench to meet the cutting needs of different thickness plates. You can adjust 7 cutting speeds to meet different needs through the adjustment knob on the power supply.

Thoughtful Design: The scale on the table allows you to easily measure the cutting length. In addition, the protractor can help achieve precise 45 ° oblique cutting, allowing you to achieve more ideal cutting results.

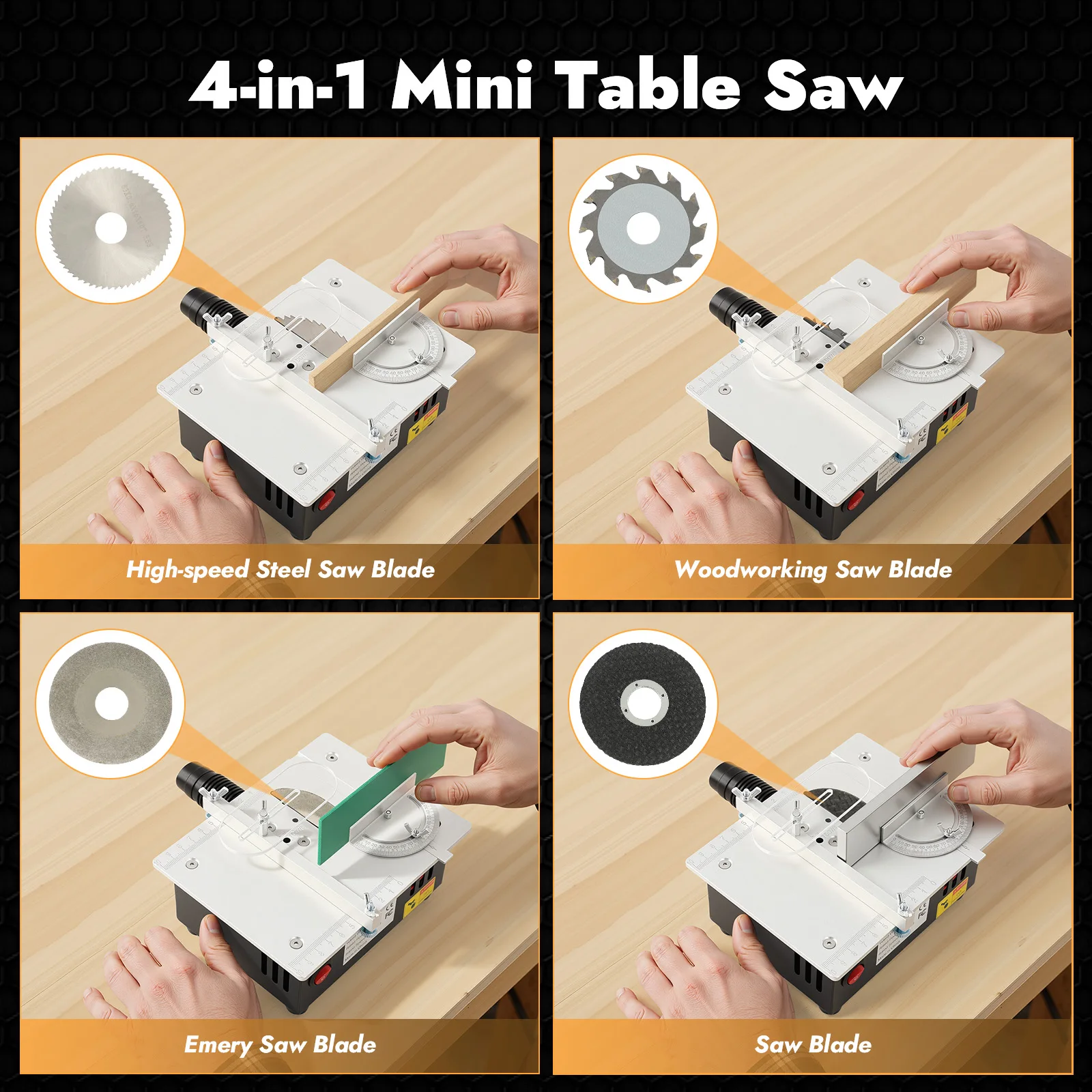

Versatile Usage: This product is equipped with a high-speed steel saw blade, a woodworking saw blade, a silicon carbide saw blade, and a resin grinding blade, which can fully meet various cutting needs.

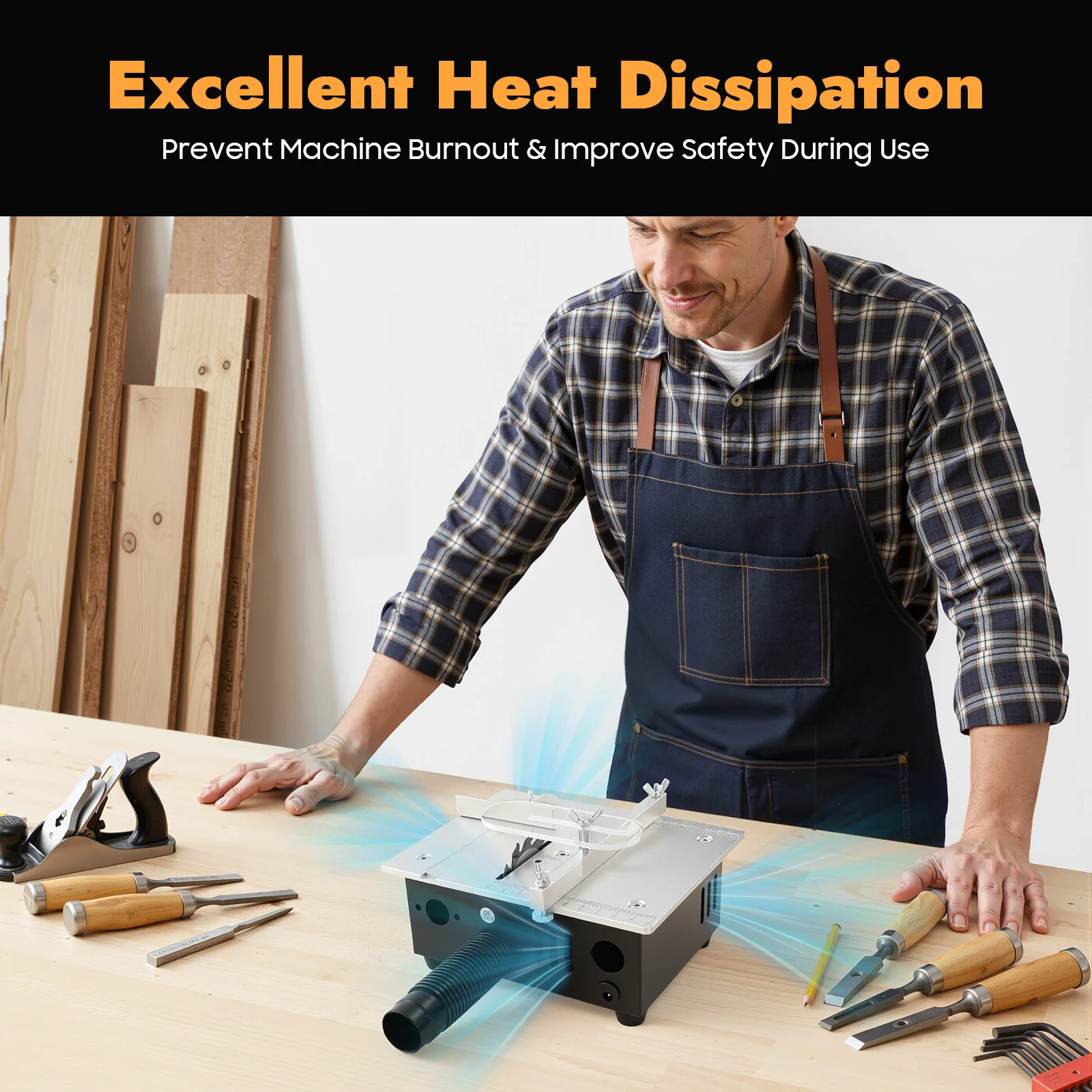

High Safety: The heat dissipation holes on the body can help the machine dissipate heat in a timely manner, prevent the machine from being burned out, improve the safety of use, and extend the service life of the product.

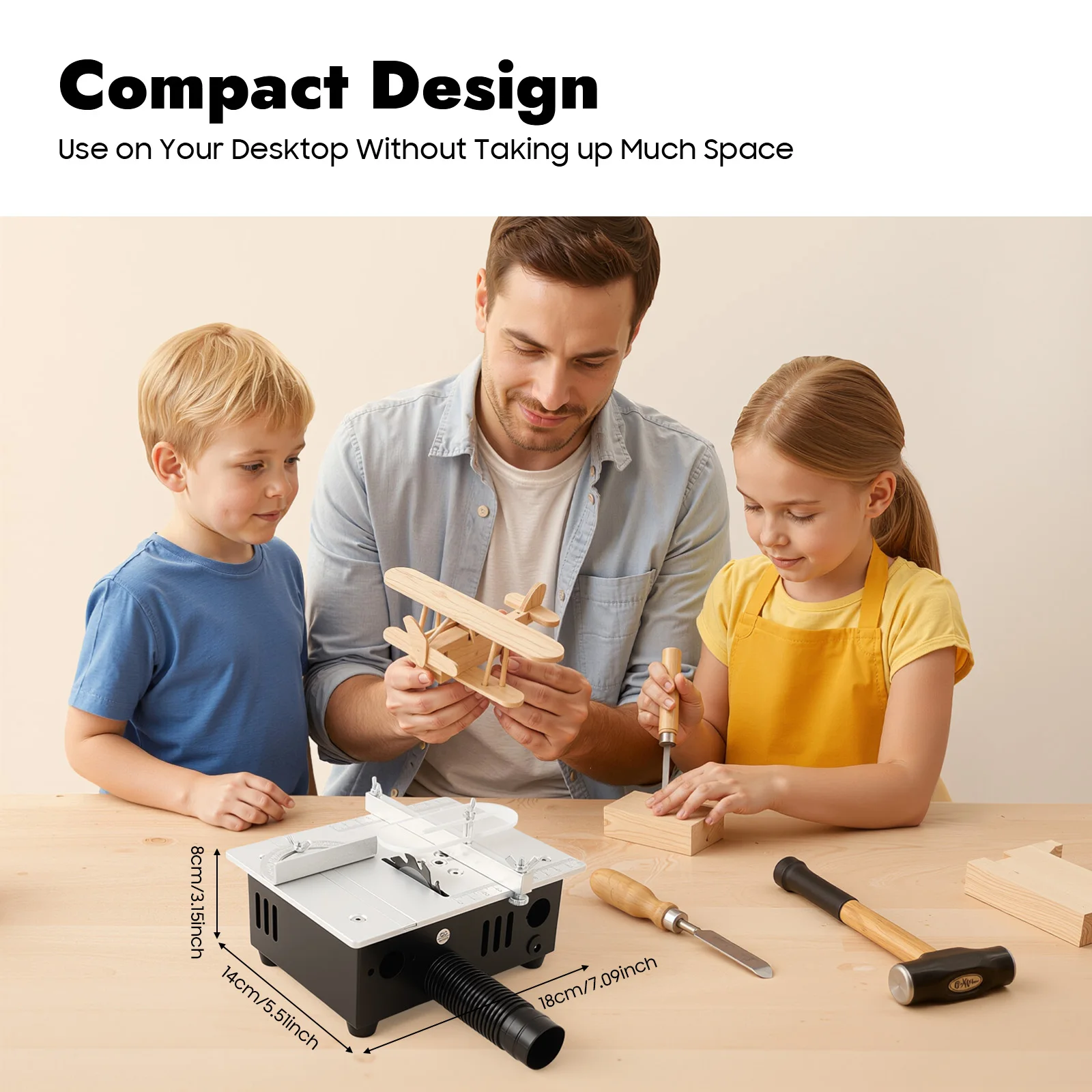

Space Saving: The overall size of this product is compact (7.09*5.51*3.15in) and suitable for placement on small workbench, without taking up too much space.

Dust-free Cutting: The bottom is equipped with a black chip removal tube, which can be directly connected to a vacuum cleaner (not included) to effectively collect dust and debris generated during the cutting process, achieving dust-free cutting and maintaining a clean working environment.

Easy Assembly: Simple structure, complete accessories, and English manual help you finish the installation quickly and use it in a short time.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Protective Cover: The top is equipped with a clear protective cover, which not only provides a clear view of the operation but also effectively prevents debris splashing, ensuring the safety of operators.

Anti-slip Mats: They ensure that the table saw remains stable during use, avoiding cutting errors caused by vibration.

Application

This product can be used for cutting PCBs, small wooden sticks, acrylic, copper pipes, thin wooden boards, aluminum alloys, etc.

How to Replace the Saw Blade

1. Loosen the four screws at the corners, remove the tabletop and invert it.

2. Insert a small wrench into the shaft stop hole, and loosen the screw with a large wrench.

3. Install the saw blade, tighten the pressure plate, and ensure that the saw teeth are not installed backward.

4. Cover the panel, tighten the screws, and complete the installation.

Specification

Material: Aluminum Alloy, Metal, Acrylic, High-speed Steel, Silicon Carbide, Resin
Color: Black, Silver
Process: Laser Cutting, Bending, Welding, Spray Molding
Style: Modern
Assembly Required: Yes
Mounting Type: Tabletop
Plug Type: EU Standard
Motor Type: Pure Copper Motor
Rated Voltage: DC 24V
Rated Power: 96W
Rated Speed: 5000rpm
Adapter Input: AC110-240V 50/60Hz 1.3A MAX
Adapter Output: 12/15/16/18/19V 4.5A MAX 20/24V 5A MAX
Saw Blade Size: Diameter 63mm/2.48in, Inner Diameter 16mm/0.63in (Larger Saw Blades Are Not Supported)
Saw Blade Height Adjustment Range: 0.1-15mm/0.0039-0.59in
Product Size: 18*14*8cm/7.09*5.51*3.15in
Package Size: 28*17*10cm/11.02*6.69*3.94in
Gross Weight: 1.88kg/4.14lbs
Net Weight: 1.79kg/3.95lbs

Package Included

1* Portable Table Saw
4* Saw Blades
1* English Manual
1* Power Cable & Power Adapter
Other Accessories for Assembly

Notes

1.Please note that this product is intended for cutting small parts.
2.Please install the saw blade according to the manual.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
