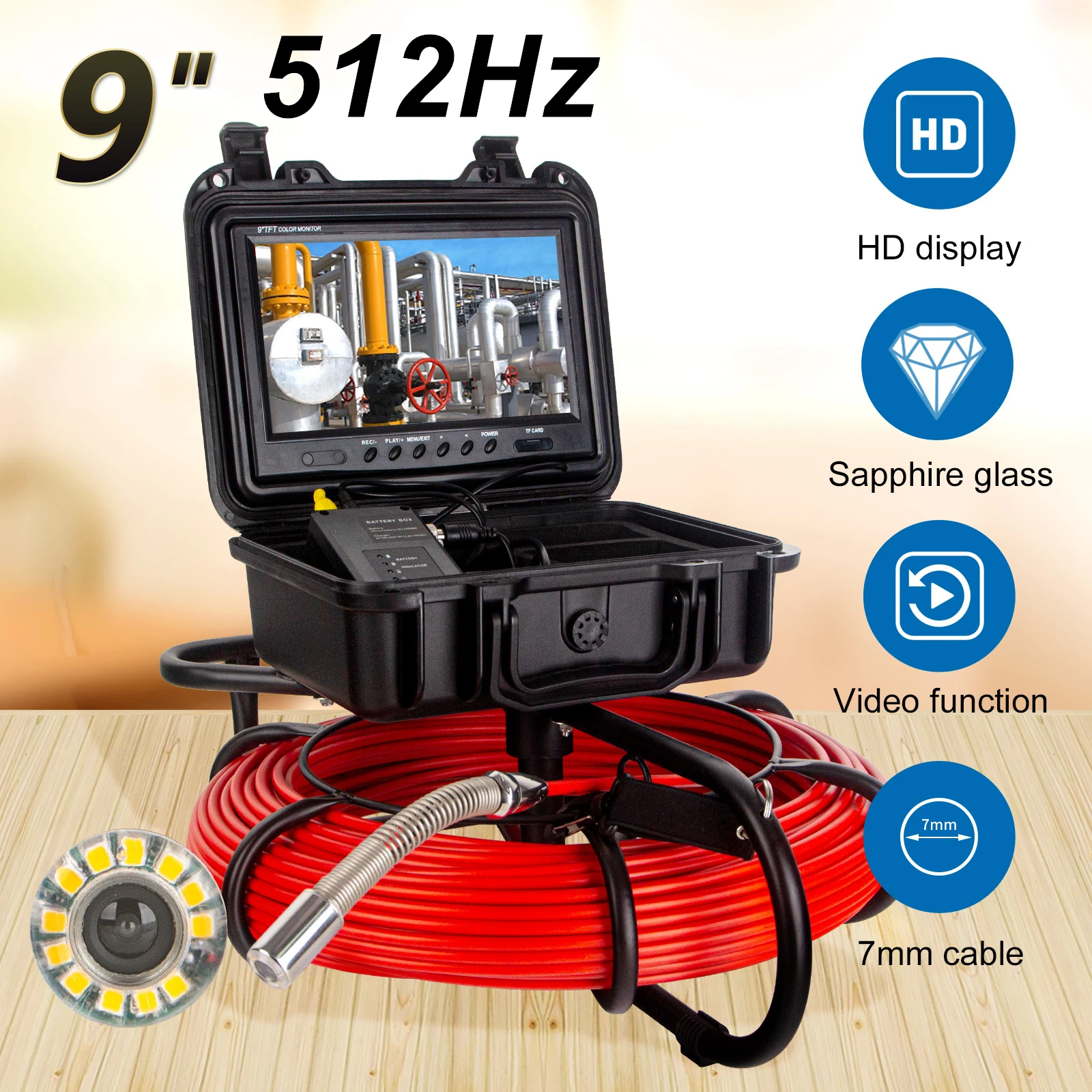

Pipe Inspection Camera 512Hz sonde/transmitter+self-leveling, SYANSPAN 9Inch HD1080P Screen Sewer Drain Industrail Endoscope DVR

Pipe Inspection Camera 9Inch 1080P Screen and Auto Self-Balancing 512HZ Sewer Pipeline Locator IP68 23MM Camera with WIFI Function

512Hz Built-in Sonde Transmitter ------

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly
helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any
compatible locator, allowing you to pinpoint the transmitter’s position underground.（Locator Receiver is NOT included）

WIRELESS SIGNAL TECHNOLOGY ----------

The Pipe Inspection Camera built-in 2.4G wifi,it can be operated by the free app(Android ,IOS and tablet pc), support max to 3 devices viewing simultaneously,very simple and convenient to use. The inspections can be playback by  your phone.

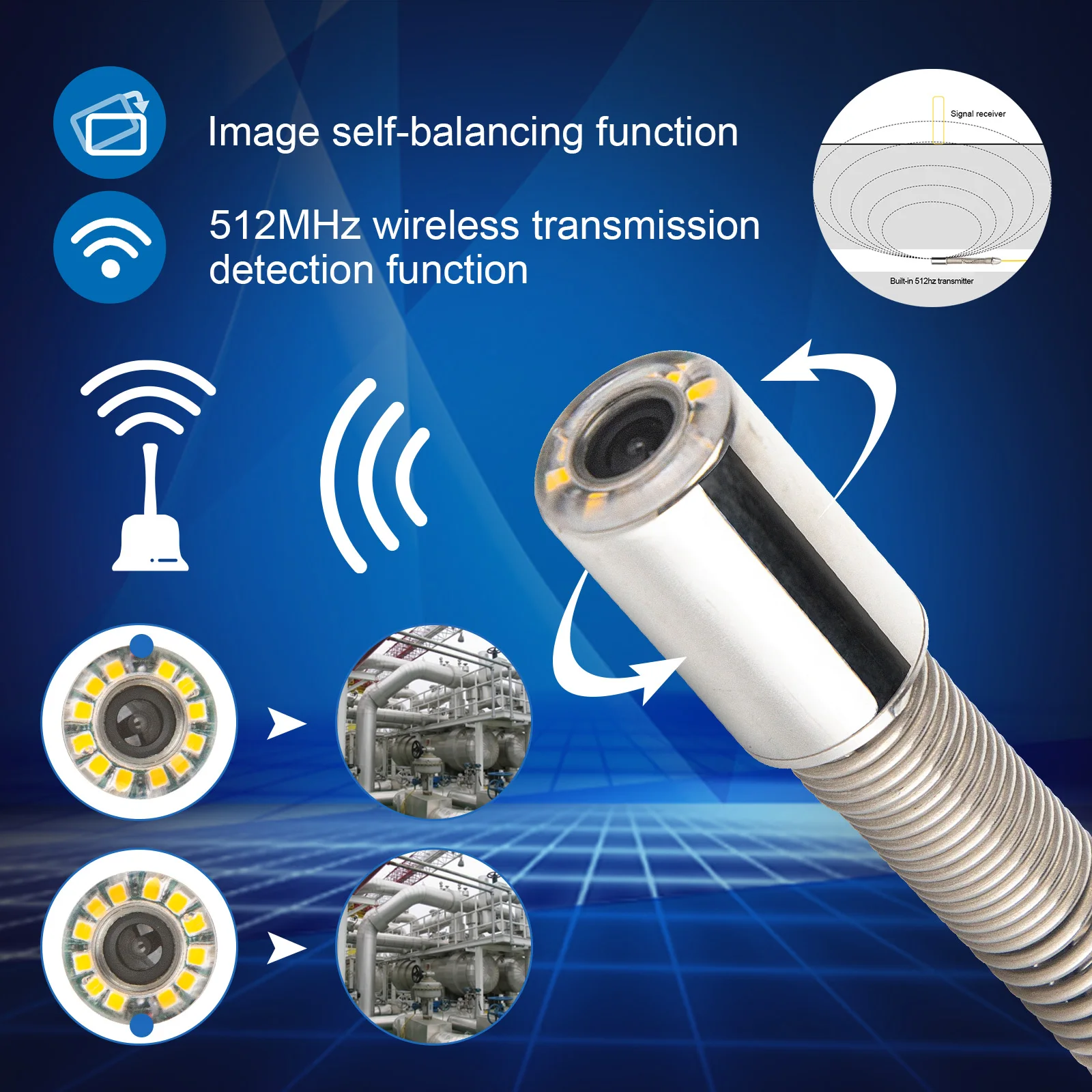

Image Self-balancing Camera --------

The camera with Auto self-balancing Camera

Camera---------

SYANSPAN Drain Pipe Sewer Pipeline Inspection Camera measures 0.9-inch/23mm with #304 stainless steel housing and the glass of the camera is make from sapphire glass. It with 12leds and adjustable. Waterproof IP68.It is suitable for pipes at 25 -200mm (1 - 8 inch), camera with super flexible spring at length of 173mm, easily go through 90° bend pipes at 45mm (2-inches)

DVR RECORDING FUNCTION-------

Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,8GB TF card included,it is available to view live video and save video clips and photos.You can record the inspections and playback
on PC with card reader.

WATERPROOF&NIGHT VISION--------

The Drain Sewer Pipeline Industrial Endoscope System with HD 1000TVL high-
definition waterproof IP68 #304 stainless steel camera+tipped probe+110°wide viewing angle what make it clear when
you inspect some places hard to watch.12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area.
Inspections will be seen more clearly in the dark environment.

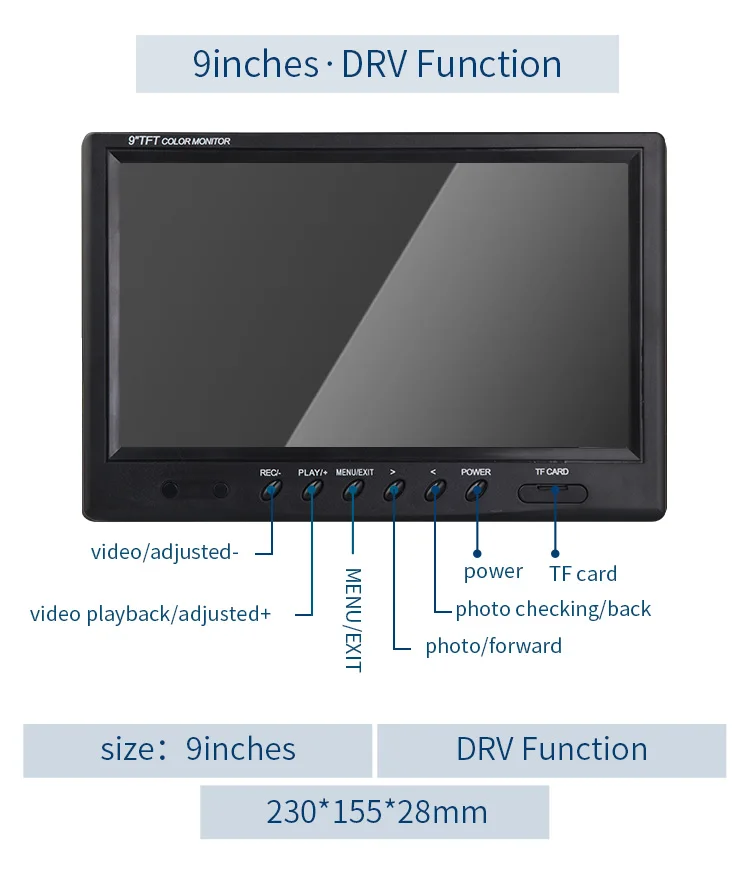

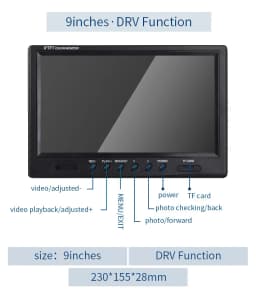

MONITOR&CABLE-------Monitor:9inch; Cable:7mm

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inches color
HD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 7MM),anti-
corrosion/cold/tensile.

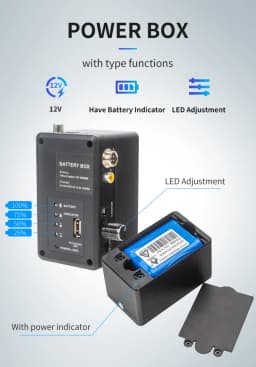

PORTABLE CARRY CASE&LONG BATTERY------12V 4500mAh

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 6 hours of continuous use.

VERSATILE:---------

Drain Pipe/Sewer Pipeline Inspection Snake Camera can be used under floors, inside walls, attics,
gutters and roof even and can even be used to view mold and water damage.Pipe Sewer Industrial Endoscope Pipe Video Inspection System also applicable to air-conditioner pipe, vacuum pipeline,Sunken pipe etc.It is convenient to use and avoid danger at the utmost.

SERVICE------------

In this 12 months, our factory support the partys for free for replacement. Out of warranty,if you need assistance, including pre-order/after-sales service, please do not hesitate to contact us.
All SYANSPAN pipeline inspection camera spare parts/accessories for repair or replacement,factory offer
very cheap price,you do not need to worry about the cost and availability of the replacements.

SYANSPAN  Video Snake Pipe and Wall Inspection is a must have for any homeowner, contractor and Even professional! It eliminates the needs of tearing into drywall to locate leaks, pipes, or electric lines. The Pipeline Inspection Camera System features only the highest quality components such as true premium grade Video Wire,Stainless Steel parts and Connectors for video connections.The portable aluminum/ABS carry case,which also stores all items for transport and when in-use. Buy a Video Snake today to avoid Tomorrow plumb problems.

Feature：--------------------------

512 hertz transmitter
The camera with Auto self-balancing Camera
9" TFT LCD Monitor
Metal carry case for easy transportation
Fiberglass Cable & Stainless Steel Reel
φ23mm HD 1000TVL Color Stainless Steel Camera with 12 LED Lights
20/50/80/100M/200M Cable（33/65.5/164/262/328 ft)
It is suitable for the pipe from 25 to 200mm

SpecificationsCamera---------------------

DVR Fuction
viewing angle 110°storage temperature -50-60°C
operating temperature -20-60°C
picture colour
material stainless steel
Waterproof: IP68

Cable------------------------------------

material fibre tube;length /20/50/80/100m/200m

Power supply------------------------

Charger AC100V-240V / DC12.6V 1000mA
Battery storage: 4500mAh
Continuous use time for battery approximate 6h

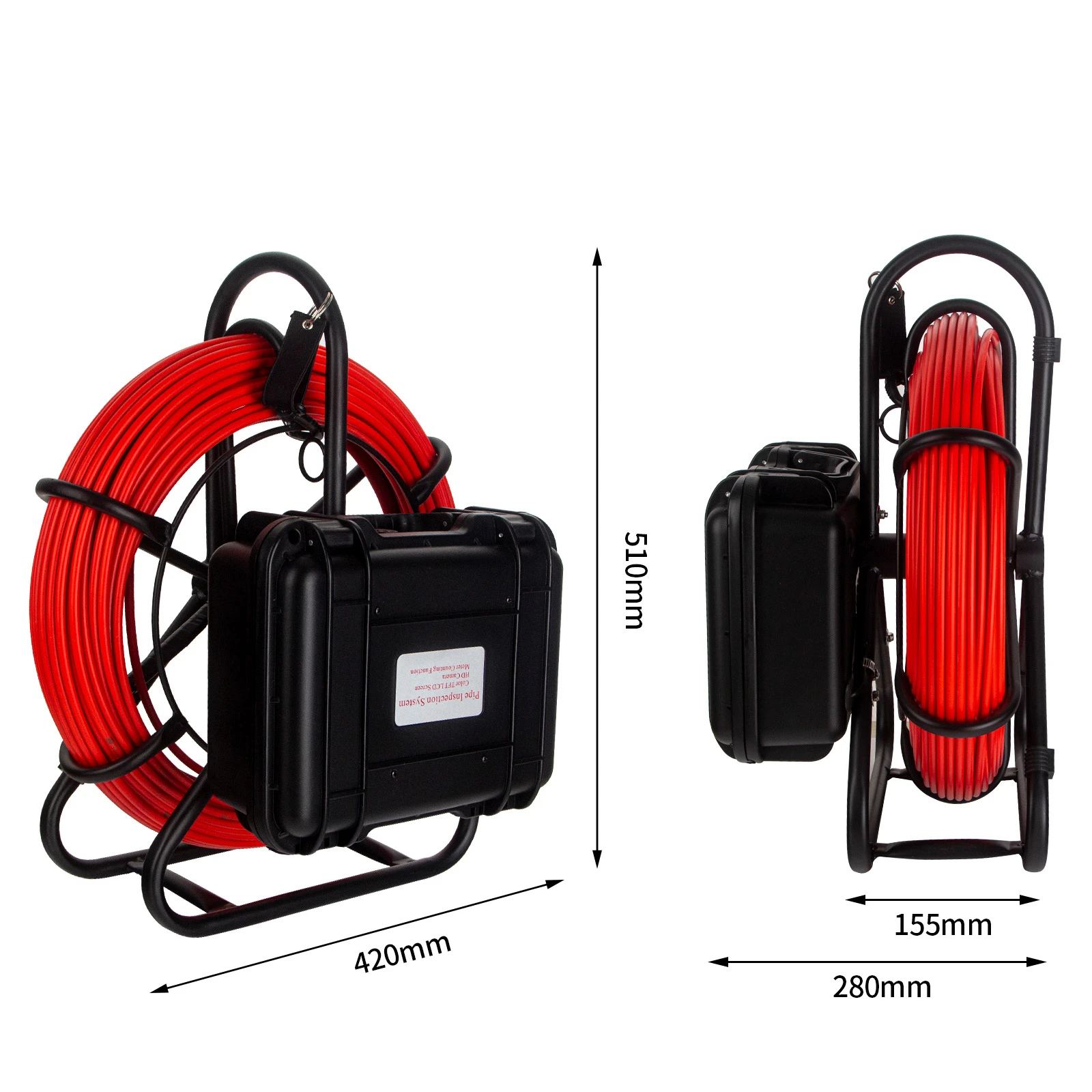

Dimension------------------------

Camera 23X45 mm
Package size 520*420*330 mm

Weight--------------------------

Switchboard net weight 4.7Kg（20M)
Package weight 15Kg（20M)
Every rise 10M of Cable means the net weight of the system increase 0.3KG

Package Content--------------------

1 x Camera
1 x Sun-visor
1 x Monitor
1 x Connecting Line
1 x ABS Box
1 x Charger
1 x Coil
1 x Screw Driver
2 x Camera Protective Case
