BSIDE ASTS Line Analyzer Professional Socket Tester Socket Checker Electrician Polar Phase Wiring Cable Status RCD Check

BSIDE ASTS Circuit Analyzer Professional Socket Tester Outlet Checker Electricista Polarity Phase Wiring Cable Status Check RCD Meter

Product introduction:

This circuit analyzer is a special test device designed for AC low-voltage distribution line quick fault location. With simple operation, accurate measurement and other features, it can detect multiple problems on a line, such as causing to electric shock, electrical fire, abnormal operation of equipment, etc.

[Professional Circuit Analyzer]: Mainly used to analyze various wiring status; the RMS & peak voltage between neutral wire & live wire, the frequency, the voltage between neutral live and ground wire; test leakage trip protection switch.

[Easy to Use]: Plug and test, this tester can automatically complete most of the tests and display the results when it is connected to the tested socket. Easy to understand the test results according to the guide printed on the side of the product.

[Powerful Functions]: Test wire voltage distribution and fast locate line fault, test the peak voltage and frequency, phase voltage TRMS value, etc.

[RCD/GFCI Test]: GFCI test button is used to check whether the trip function for GFCI is active or not.

[Dual Mode Alarm]: Backlight flashing red, and continuous beeping sounds alarm greatly enhance the test experience.

Features:

100% new and high quality.

True RMS measuring.

Measures voltage : Line,Ground-to-Neutral,Peak,Frequency.

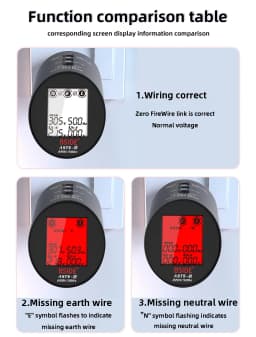

Test socket wiring status

Test phase voltage TRMS value

Test the peak voltage voltage and frequency

Large LCD display

Backlight and low battery indication

Specifications:

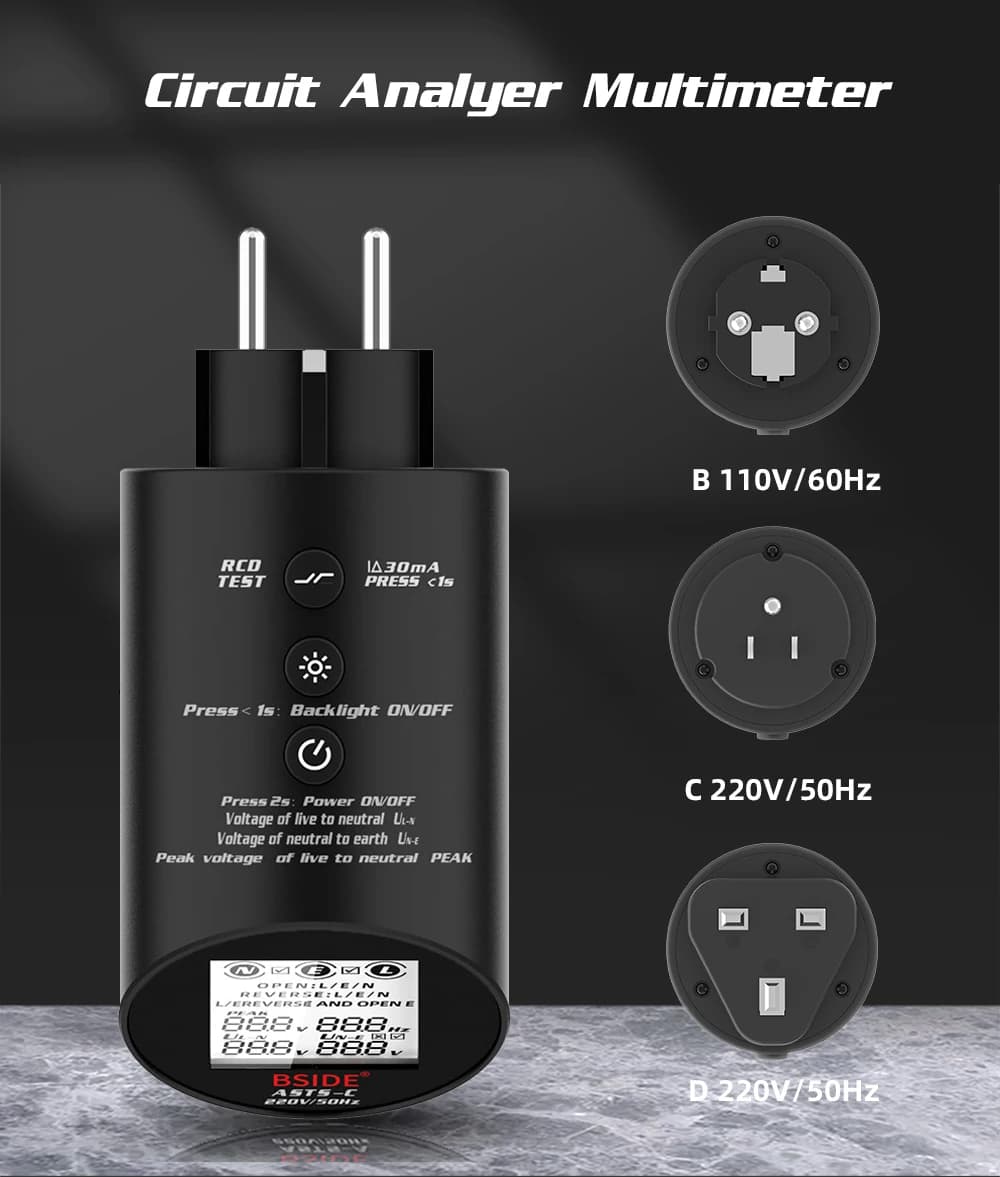

Plug Type: EU/US/UK Standard

Voltage: 85V-265V(50/60Hz)

UL_N(RMS): 85.0-99.9V/0.1V ±(2.0%+0.2); 100-265V/1V ±(1.0%+1 )

UL_N(P_P): 121-374V/1V±(1.0%+1 V)

Frequency: 45.0-65.0Hz/0.1Hz±(1.0%+0.3)

UN_E(RMS): 0.0-10.0V/0.1V±(2.5%+0.2)

Work height: maximum 2000m.

Power: 1.5V (AAA) * 3.

Size: 137×60×62mm.

Weight:160g.

Package Includes:

1 * ASTS Circuit Analyzer Socket Tester

1 * High-quality EVA bag

1 * User Manual

1 * Box
