700Bar 7L Electric Driven Hydraulic Pump Single Acting Manual Valve Control 750W

Q: Can you set the maximum pressure with a pressure relief valve?

A: Do not use a pressure reducing valve to reduce its pressure.

Q: What hydraulic oil is used?

A:Hydraulic oil below 32 can be used.

Specification

Material: Steel

Color: Black, Orange

Style: Modern

Process: Spray Molding, Blacking

Plug Type: EU Standard

Input Voltage: AC 220V 50Hz

Flow Rate: 0.6L/0.13Gal/Min(＞7Mpa) - 5L/1.1Gal/Min(＜7Mpa)

Working Pressure: 290-10152PSI/2-70Mpa

Oil Capacity: 7L/1.54 Gal

Motor Power: 750W

Motor Speed: 1400RPM

Regular Working Temperature: Below 40 ℃/104℉

Motor Type: Copper Wire Motor

Oil Pipe Joint Type: Taper Thread ZG-3/8

Compatible Oil: Hydraulic Oil Between # 0 and # 32

Power Cord Length: 1.5m/4.92 ft

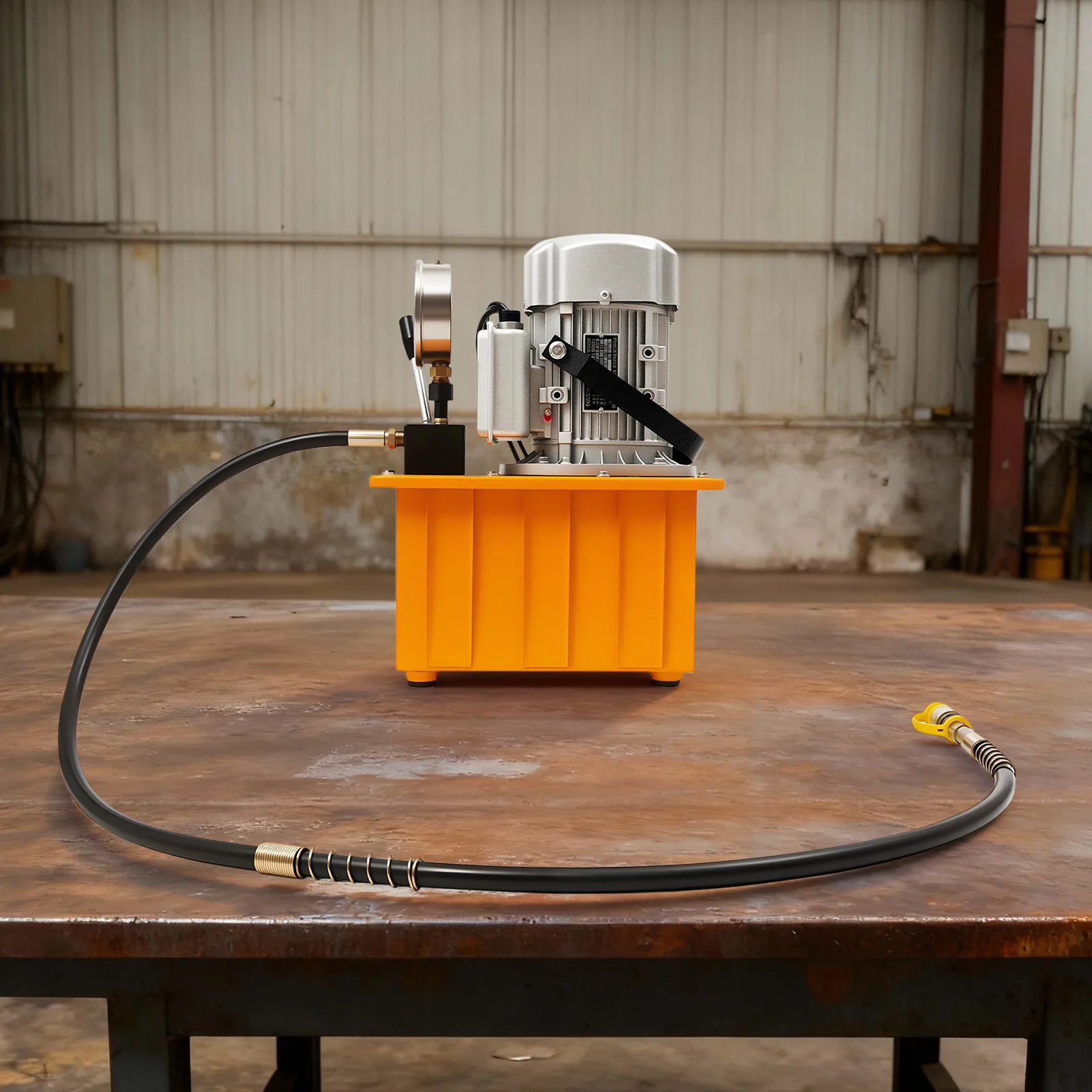

Oil Pipe Length: 1.8m/5.91 ft

Product Size: 32*25*44.5cm/12.6*9.84*17.52in

Package Size: 51*37*29cm/20.08*14.57*11.42in

Gross Weight: 24.25kg/53.46 lbs

Net Weight: 23.04kg/50.79 lbs

Package Included

1* Electric Hydraulic Pump

1* Oil Pipe

Notes

1. Please check the size and product parameters carefully before ordering.

2. Please be advised that the pressure should not exceed 63Mpa when using this product

3. Please be advised that if the product temperature is too high or if it is used continuously under high pressure for a period of time, it should be stopped and allowed to cool before continuing to be used.

4. Please be informed that the pressure of the pressure relief valve and safety valve of this product have been set before leaving the factory, so you cannot increase the pressure arbitrarily, but can only reduce the pressure according to the actual working pressure, which can improve the service life of the product.

5. Please be aware that the motor must be reliably grounded during the use of this product.

6. Please be informed that it cannot be turned on for use when there is no oil in the fuel tank.

7. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

Description

Our electric hydraulic pump is made of excellent steel material, is durable, and can ensure a long service life. It uses the high-performance motor that can achieve efficient conversion of mechanical energy to hydraulic energy, providing stable high-pressure output. It has the advantages of compact structure, high efficiency, and easy maintenance, making it an ideal helper in hydraulic power work.

Key Features

Build to Last: It is made of steel material, with spray molding and blacking processes, which is sturdy, wear-resistant, impact-resistant, and anti-corrosion, ensuring a long service life.

Powerful Function:  This product comes with a 750W copper wire motor that can achieve a speed of 1400r/Min, which provides continuously controllable and powerful hydraulic pressure output, reducing physical labor and improving your work efficiency.

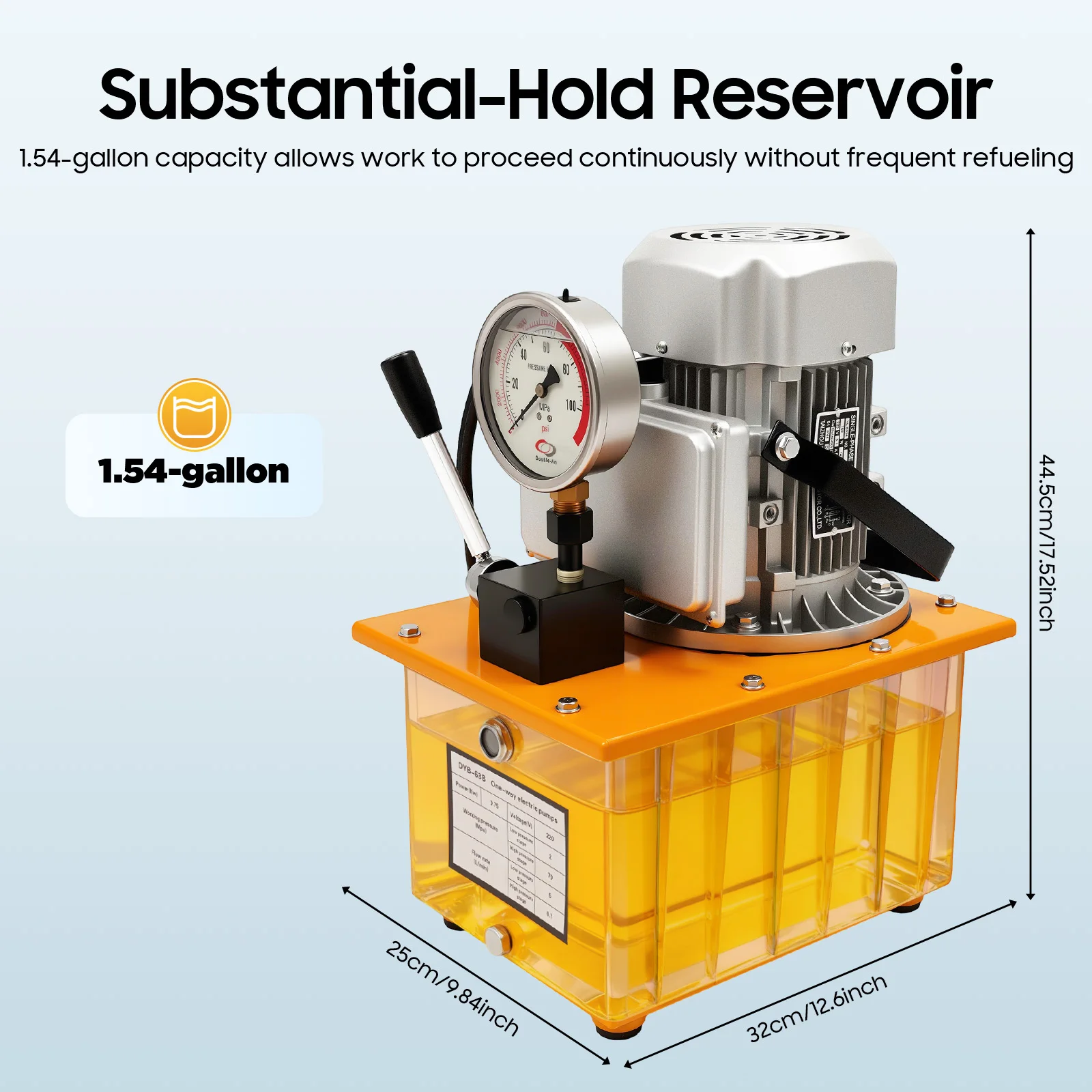

Large Fuel Tank: This product comes with a 1.54-gallon capacity large fuel tank, which can provide stronger power, maintain job continuity without the need to frequently refuel, and ensure higher response speed.

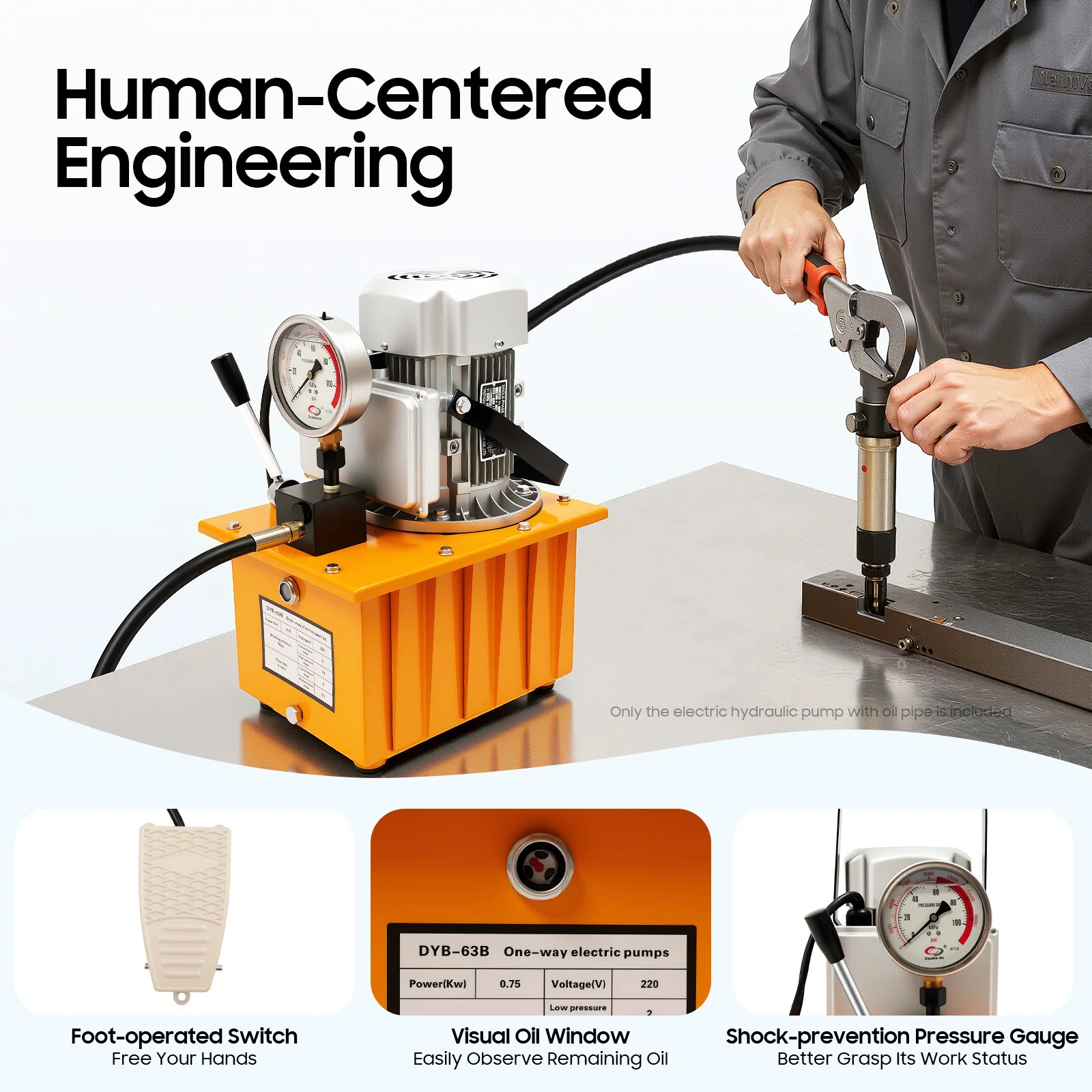

Thoughtful Design: This product comes with a shock-resistant pressure gauge that can effectively prevent the effects of vibration and maintain clear indication, allowing you to quickly know and adjust the pressure during work.

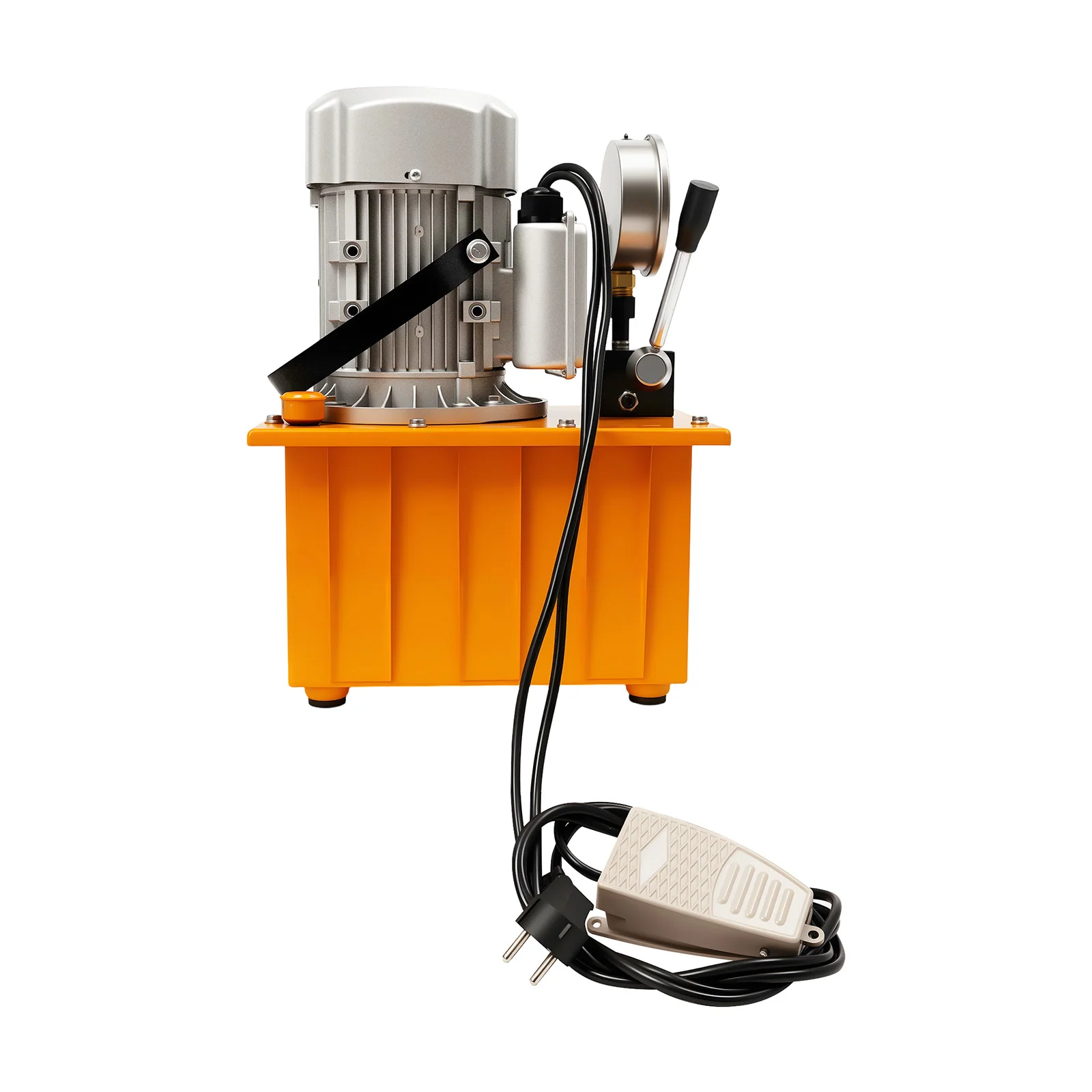

Easy to Operate: The manual pressure relief valve can control oil discharge and return.  At the same time, this product also comes with a foot switch, allowing you to easily control its on/off status.

Wide Applicability: This product is suitable for any type of hydraulic oil from 0 # to 32 #, and can also be used with various hydraulic equipment to meet your different usage needs and improve its practicality.

Simple Clean-up: It has a smooth surface and a simple structure, so you only need to wipe the dust or residue with a towel.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Anti-slip Feet: They can keep the product running stably and prevent the floor from being scratched.

Long Power Cord: A 4.92-ft long power cord can provide you with more usage positions and keep you away from the power source for safer use.

Visual Oil Window: It allows you to observe the amount of hydraulic oil in the tank, making it convenient for you to refuel in a timely manner.

Oil Pipe Dust Cover: It can prevent dust or debris from entering the oil pipe when it is not in use, keeping it unobstructed.

Portable Handle: It enhances the portability of the product, allowing you to easily carry it to where you need it.

Application

This product is suitable for a variety of hydraulic equipment, working on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and disassembly.
