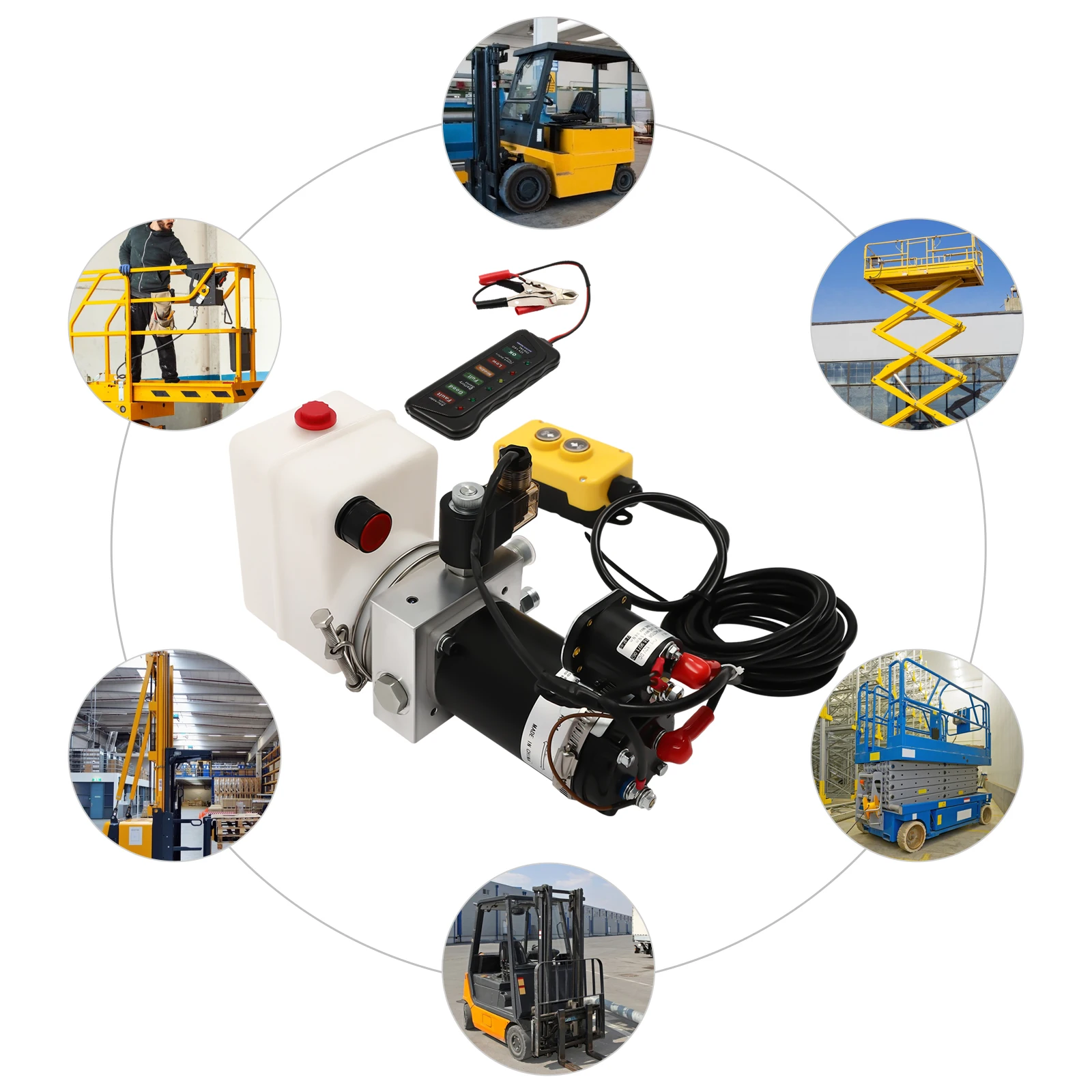

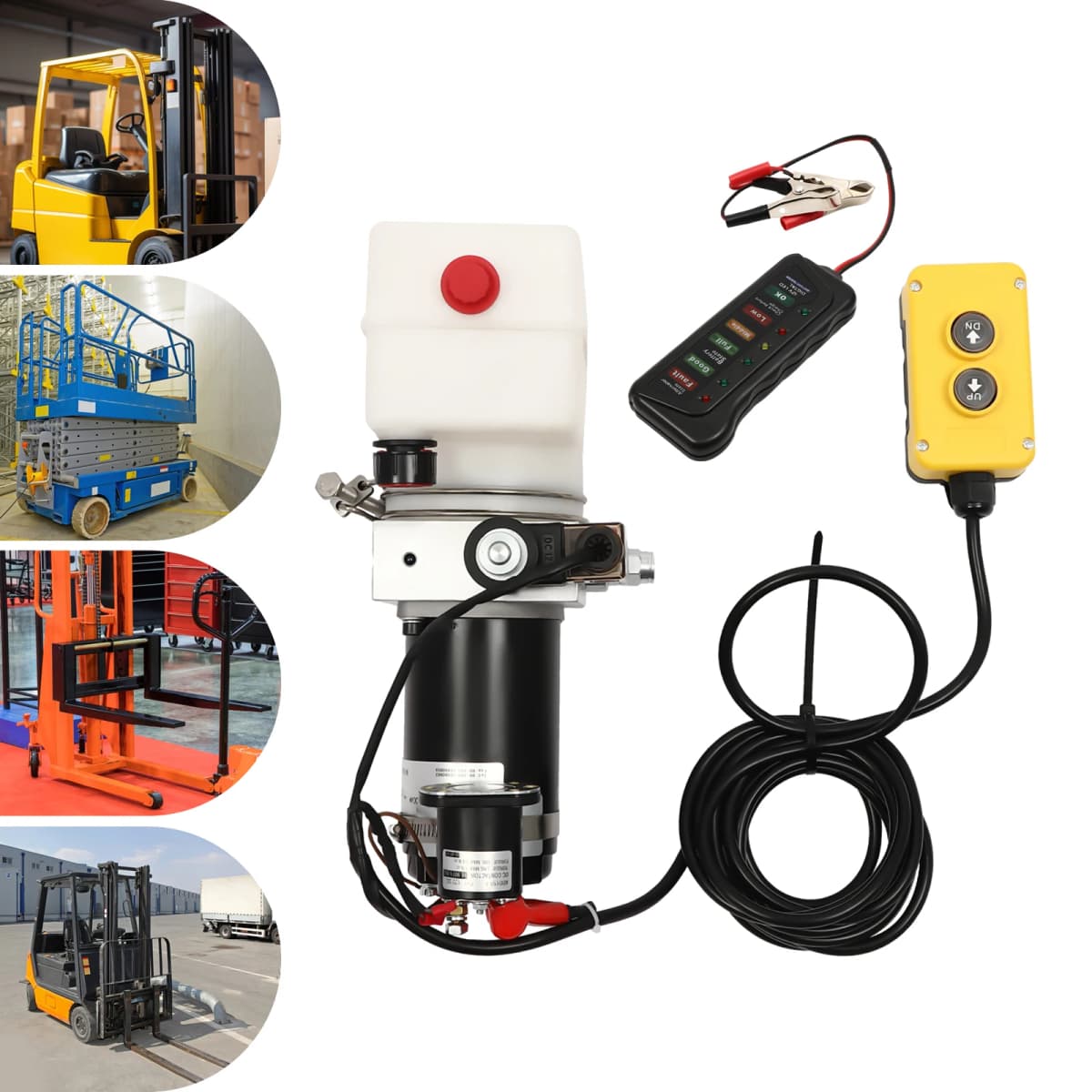

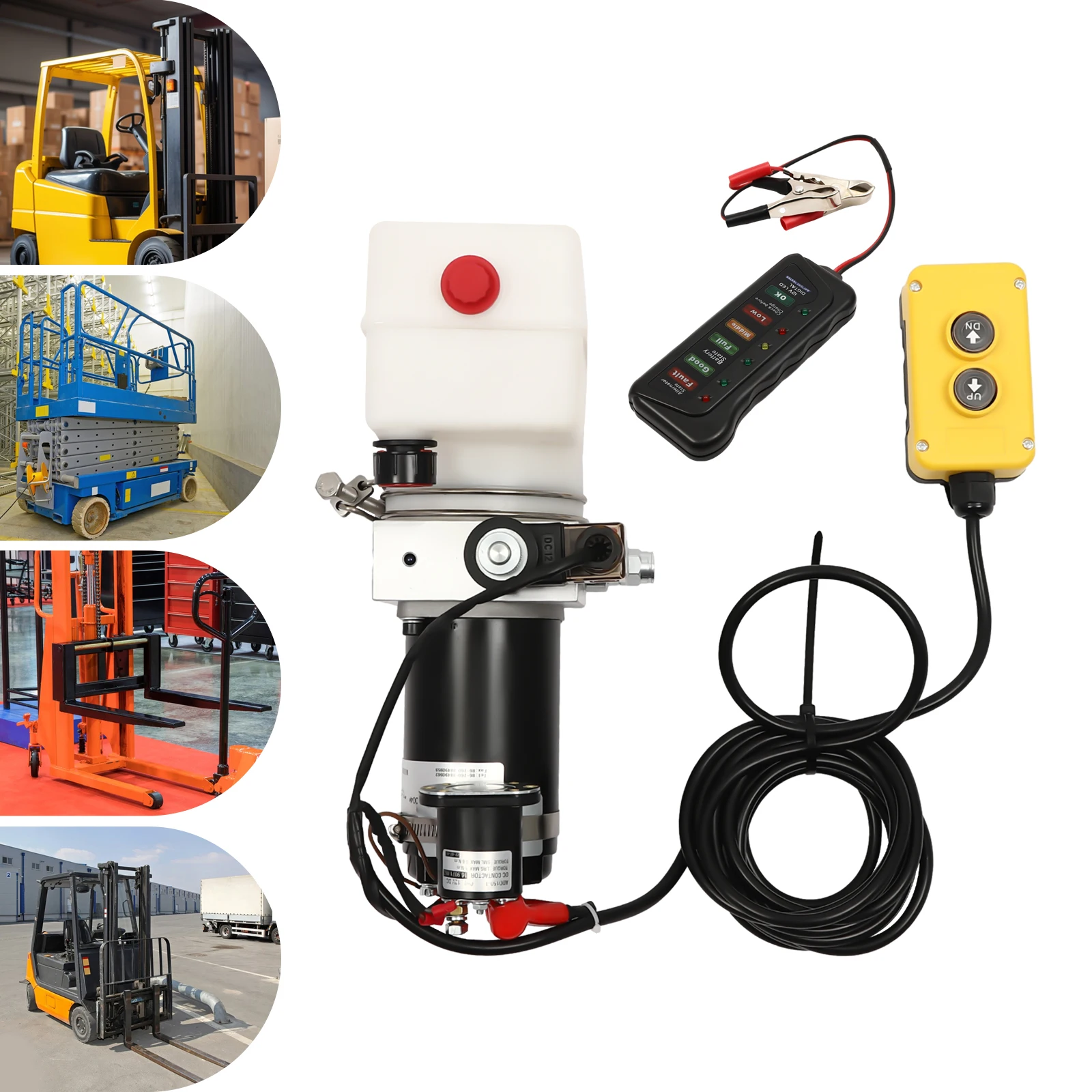

Hydraulic Pump for Dump Trailer Hydraulic Power Unit 12V Single Acting Dump Truck Hydraulic Pump

Specifications

Color: Black, Silver

Material: Copper, Aluminum, Plastic

Surface Treatment: Electroplating, Painting

Assembly Required: Yes

Applicable Medium: Hydraulic Oil(Not Included)

Fuel Tank Capacity: 1.5L//1.58Qt

Motor Voltage: DC 12V

Motor Power: 800W

Torque: LRG MAX 5 N.m

Torque: SML MAX 0.6 N.m

Rotation Speed: 2850rpm

Pump Output: 1.1cc/r

Nominal Pressure: 18Mpa

Noise: About 50db

Remote Control Wire Length: 4.5m/14.76ft

Gross Weight: 5.8kg/12.78lbs

Product Size: 14*20*32cm/5.51*7.87*12.6in

Pakage Size: 38*23*21cm/14.96*9.06*8.27in

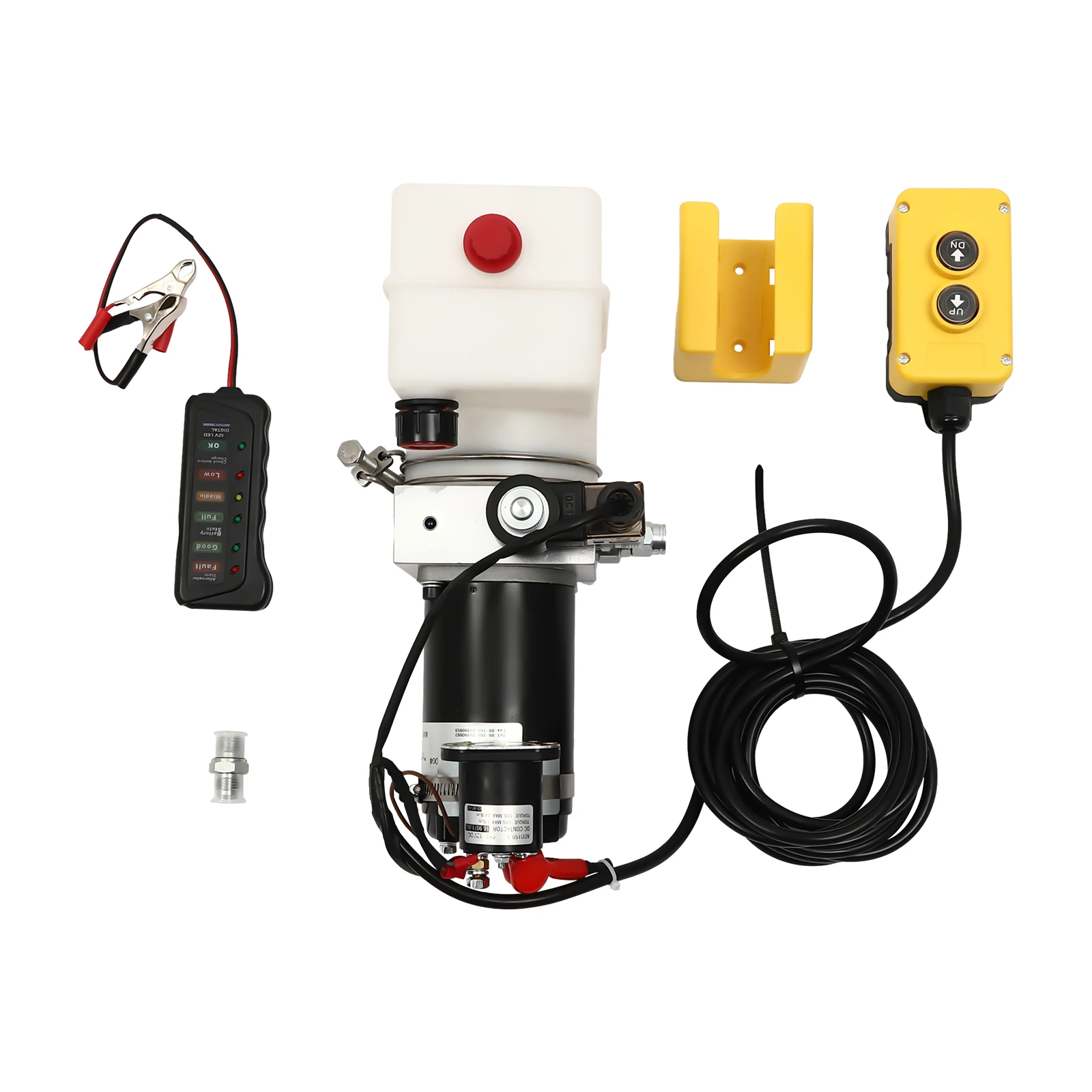

Package Included

1*Electric Hydraulic Pump

1*Voltage Indicator

1*Switch Housing

1*Connector

Notes

1. Please check the size carefully before ordering.

2. This product is applicable to vertical and horizontal directions, but cannot be tilted or inverted.

2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
