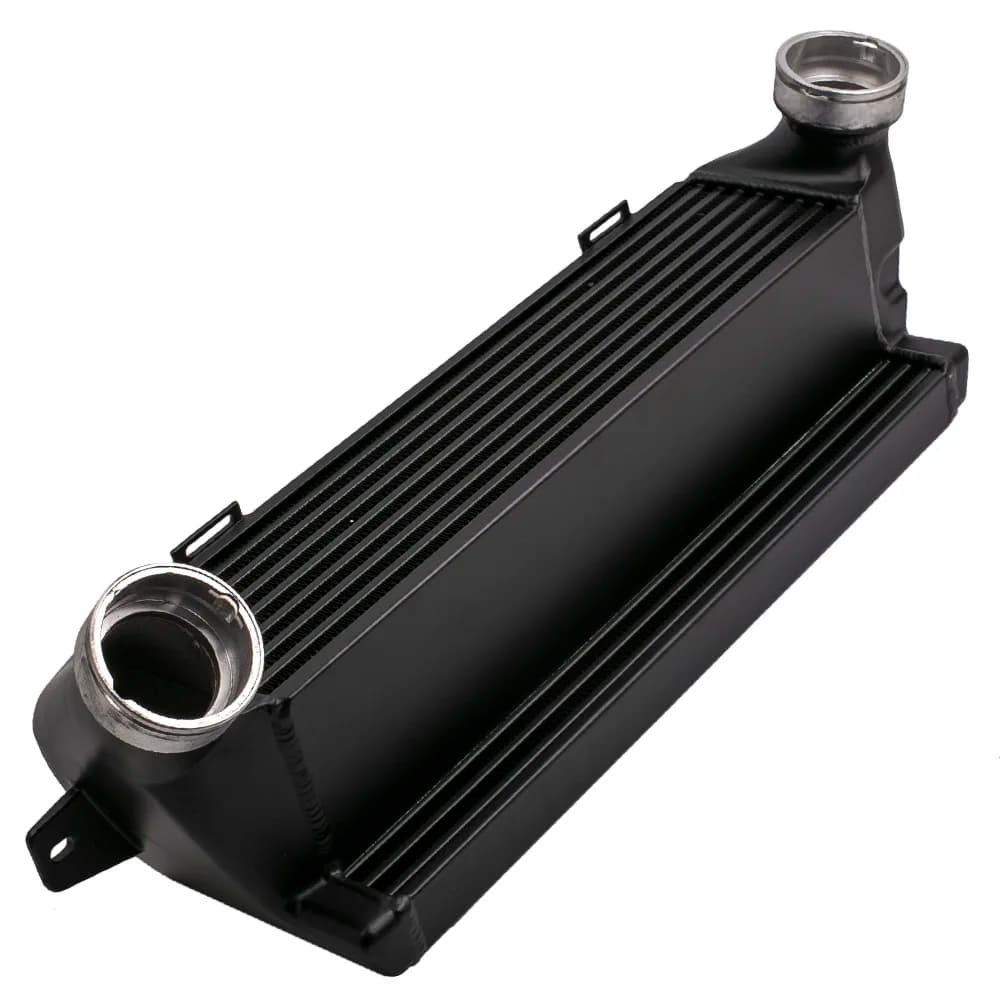

Black Turbo Intercooler for BMW 3 Series E90 330d 335d Cabriolet E93 330d 520*180*145mm

Intercooler

Intercooler exchange device used on turbocharged and supercharged internal combustion engines to improve their volumetric efficiency by increasing intake air charge density through nearly isobaric cooling, which removes the heat of compression that occurs in any gas when its pressure is raised or its unit mass per unit volume is increased.

Application

This is for disel engine

For BMW 3 Series E90 330d 2008 / 02-2011 / 12 2993 ccm, 180 KW, 245 PS

For BMW 3 Series E90 330d 2004 / 09-2008 / 08 2993 ccm, 170 KW, 231 PS

For BMW 3 Series E90 335d 2006 / 09-2011 / 12 2993 ccm, 210 KW, 286 PS

For BMW 3 Series Cabriolet E93 330d 2007 / 03-2013 / 12 2993 ccm, 170 KW, 231 PS

For BMW 3 Series Cabriolet E93 330d 2009 / 01-2013 / 12 2993 ccm, 180 KW, 245 PS

For BMW 3 Series Coupe E92 330d 2006 / 09-2013 / 12 2993 ccm, 170 KW, 231 PS

For BMW 3 Series Coupe E92 330d 2009 / 01-2013 / 12 2993 ccm, 180 KW, 245 PS

For BMW 3 Series Coupe E92 335d 2006 / 09-2013 / 12 2993 ccm, 210 KW, 286 PS

For BMW 3 Series Touring E91 330d 2008 / 02-2012 / 05 2993 ccm, 180 KW, 245 PS

For BMW 3 Series Touring E91 330d 2004 / 12-2008 / 08 2993 ccm, 170 KW, 231 PS

For BMW 3 Series Touring E91 335d 2006 / 09-2012 / 06 2993 ccm, 210 KW, 286 PS

Feature

1. Direct replacement, Easy installation

2. Made of High-quality material for long-lasting durability

3. 5" Thickness core (approx. 2" thicker than the standard intercooler) Stepped design

4. Intercooler dimensions: 520mm x 180mm x 145mm

5. Core dimensions: 510mm x 130mm x 110mm

6. tube and fin design

7. Power coated in black with aluminuim end tanks

8. Additional rows at the front which increases the surface area

Specification

Max horsepower capacity: 500HP+

Location: intake Power

Intercooler dimensions: 520mm x 180mm x 145mm

Material: cast aluminium

Volume: 13000 cm³

weight： 9.2kg

Core length: 20"

Core height: 6" (lower side ) 8 " ( taller side)

Core thickness: 5"

Inlet / outlet size: 3.25"

End to end length: 27"approx.

Color: Black

50 % + more volume air flow then oem intercooler

Accessories: You will get exactly showing in the picture

Parcel including

As Picture Shows

Important  Notice

1. This listing is only for the intercooler, there is no pipes, clamps, or coupler.

2. No installation guides are included, we highly recommend seeking a professional installer.

Instruction are not included.professional installation is recommended

Please confirm your original turbo number before buying
